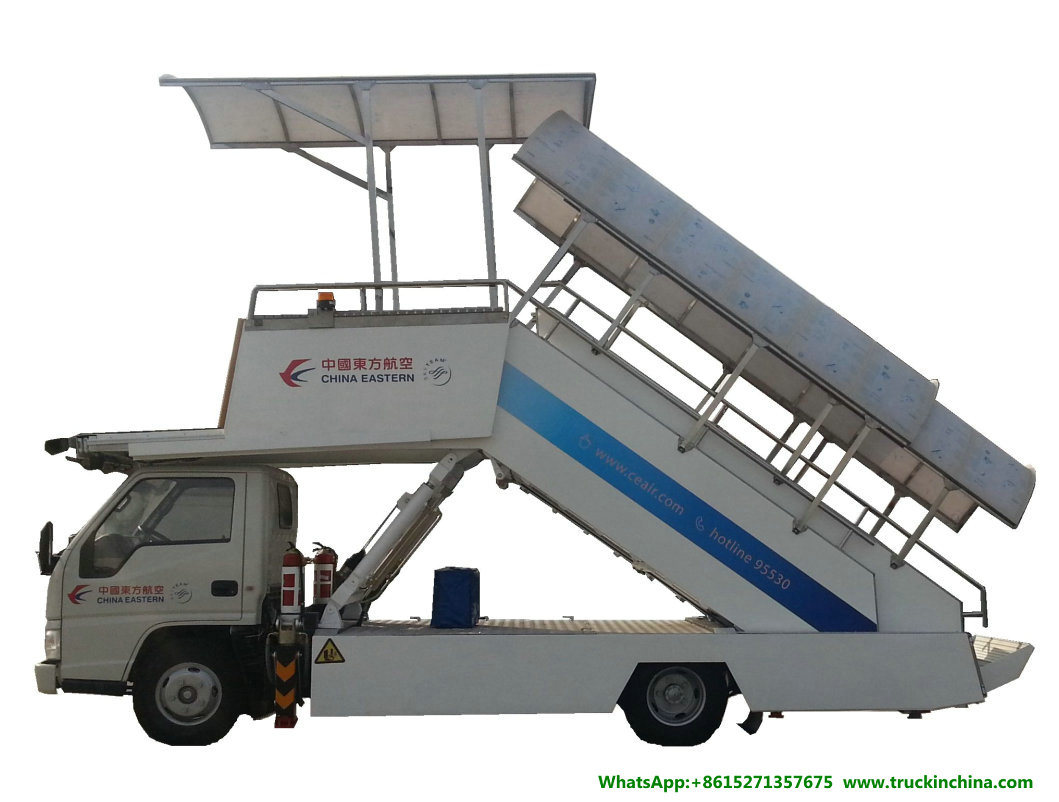

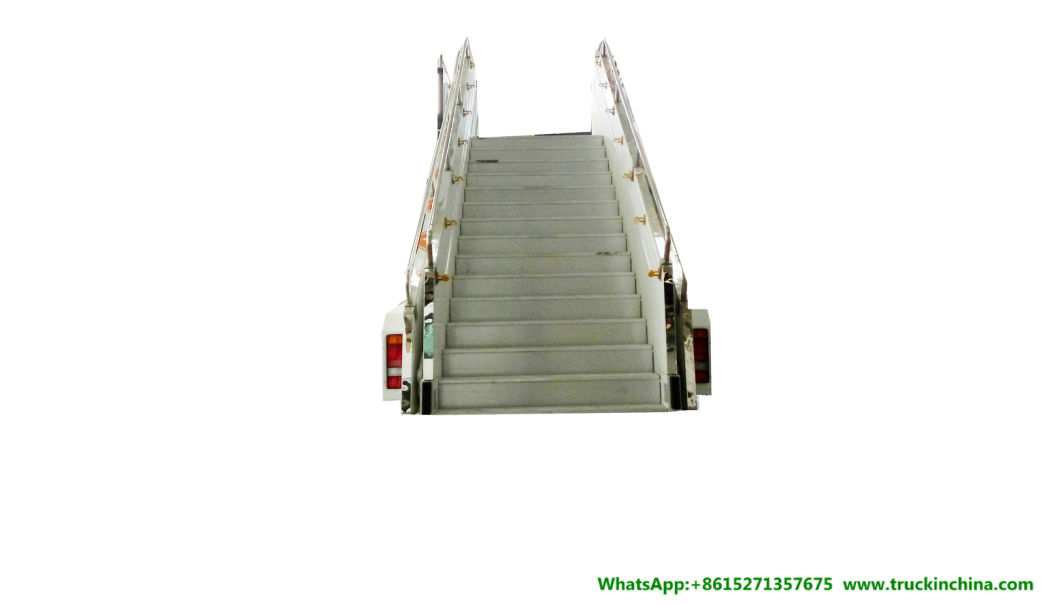

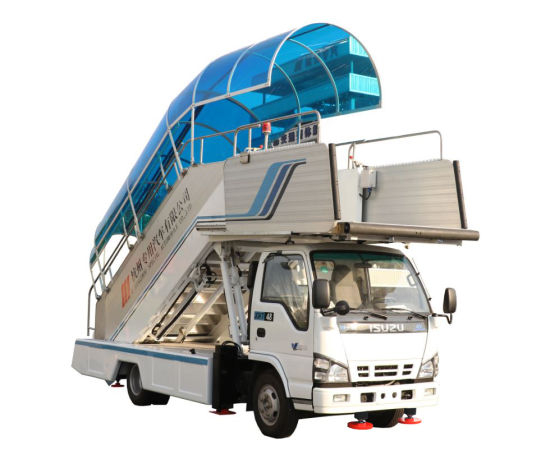

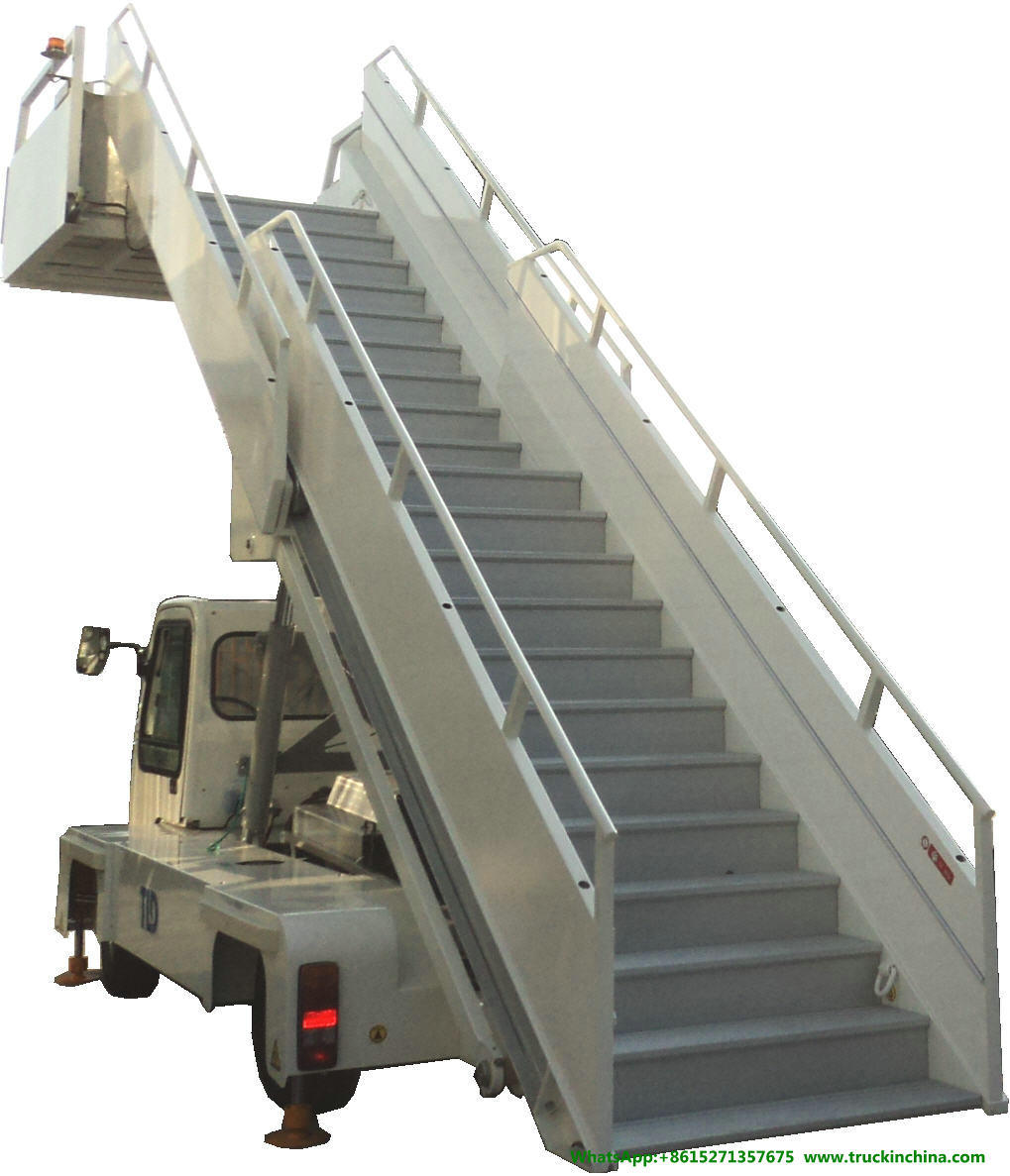

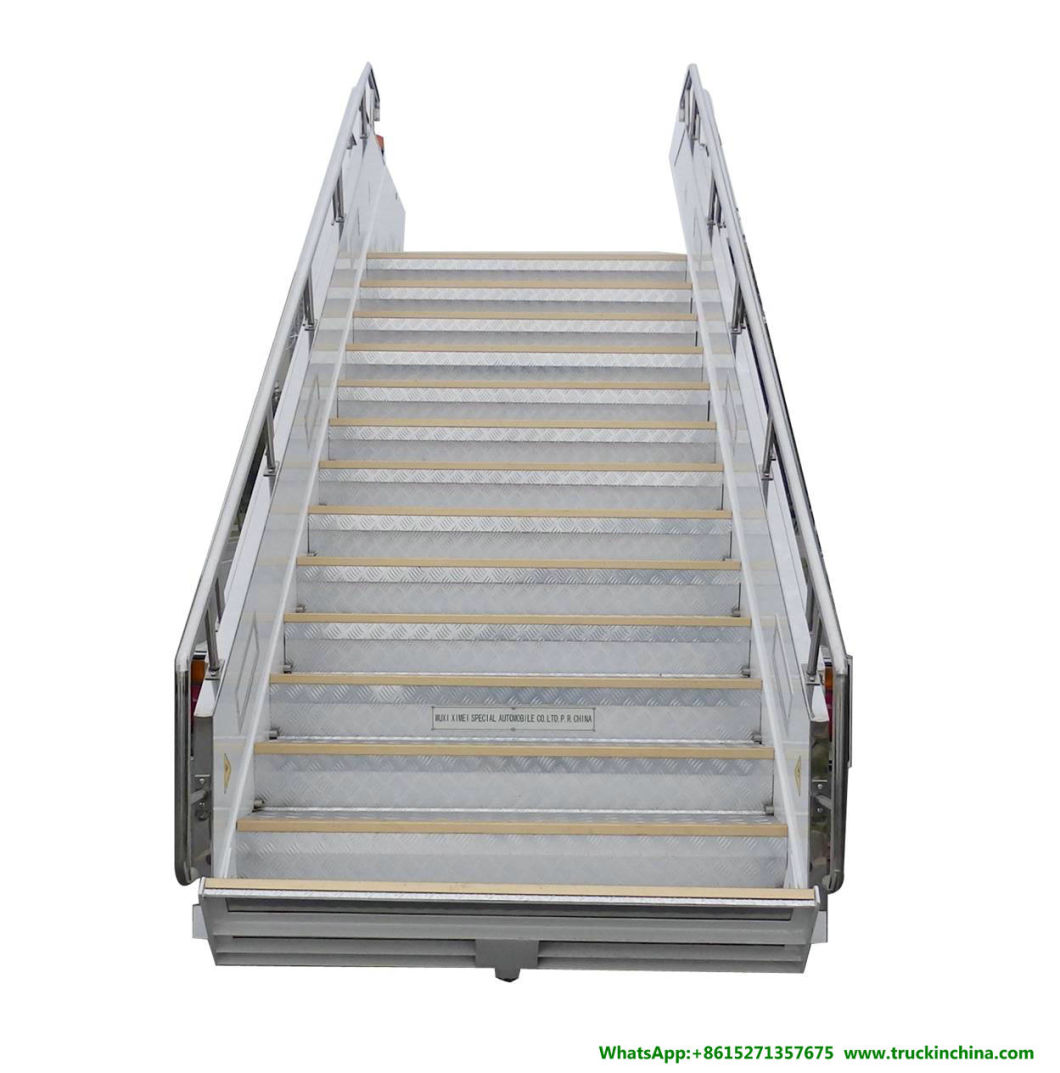

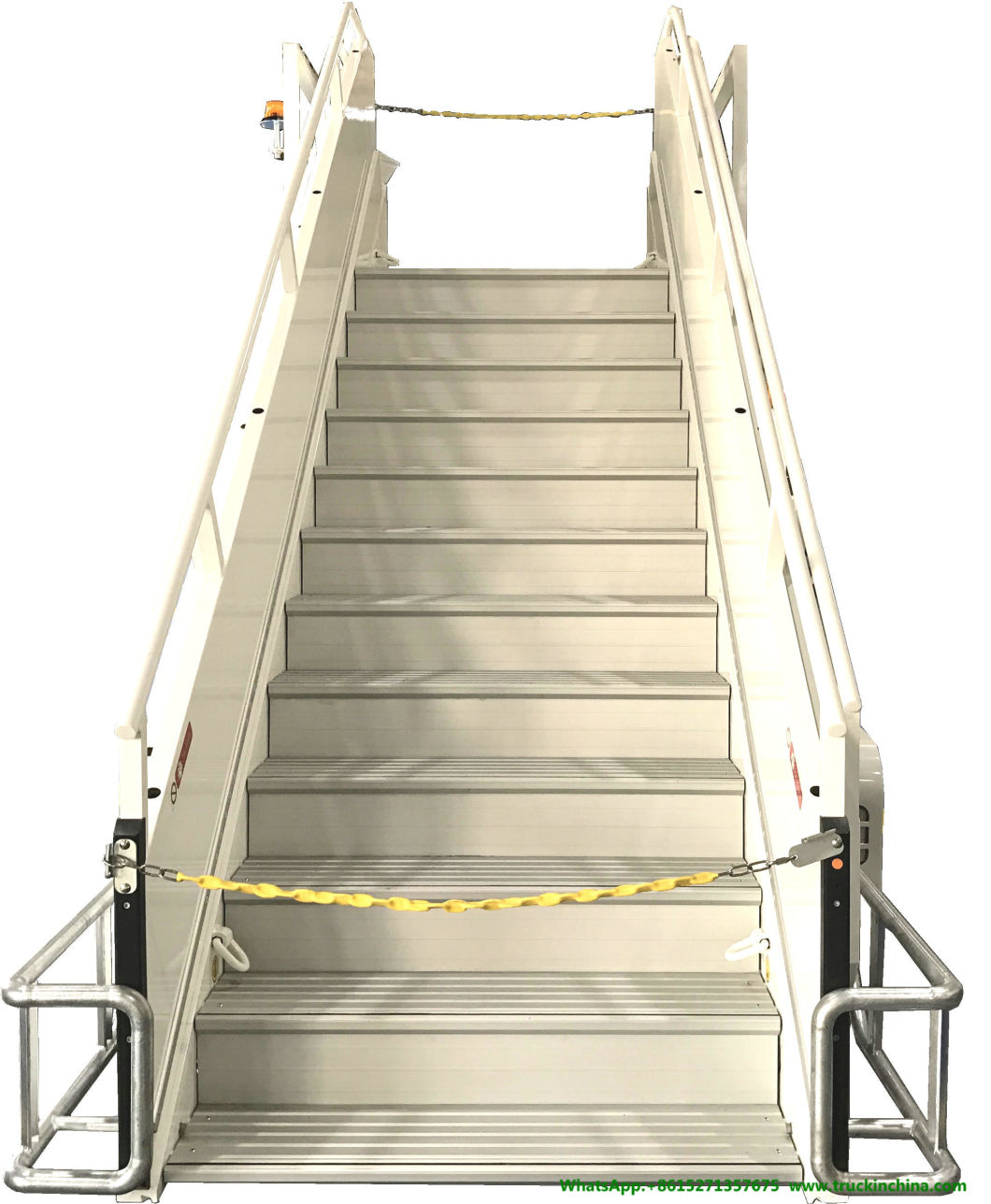

Aircraft Passenger Stairs for Airport Passenger Boarding (ISUZU. FOTON. JMC. DONGFENG Diesel or Electric Power Aviation Stairway)

Aircraft Passenger Stairs for Airport Passenger Boarding (ISUZU. FOTON. JMC. DONGFENG Diesel or Electric Power Aviation Stairway)
Availability:
Quantity:
  • Shanghai, China

  • T/T

  • Roro

Aircraft Passenger Stairs For Airport Passenger Boarding  (ISUZU . FOTON. JMC . DONGFENG Diesel or  Electric Power Aviation Stairway) Self-propelled Aircraft Passenger Step
Maximum tilt angle of ladder body (° 39.5 38.5)
Step size (D × w × h) (mm) 310 × 1500 × 180
Working height of passenger elevator (mm): 2400 ~ 5800
Height adjustment mode: upper and lower ladder body retractable type; lower ladder body retractable type
Number of steps on ladder body 13
Number of steps of lower ladder body 15
Platform dimension (depth × width) (mm): 2800 × 1500

The designed height off ground for WTJ5060JKT mobile passenger stair is from 2370mm to 5630mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777.


Aircraft Passenger Stairs for Airport Passenger Boarding (ISUZU. FOTON. JMC. DONGFENG Diesel or Electric Power Aviation Stairway)

passenger stairs is build upon branded commercial chassis featuring a superior reliablity and stability. It is in full comliance with IATA AHM 905, IATA AHM 910, IATA AHM 913, IATA AHM 915, IATA AHM 916, IATA AHM 920, SAE-ARP836A and MH/T6029-2003 etc.

Suitable Aircraft

A318, A319, A320,B707,B727, B737,TU-134, TU-154, Bae ATP, CANADAIR, DC8, IL-62M


Aircraft Passenger Stairs for Airport Passenger Boarding (ISUZU. FOTON. JMC. DONGFENG Diesel or Electric Power Aviation Stairway)
Aircraft Passenger Stairs for Airport Passenger Boarding (ISUZU. FOTON. JMC. DONGFENG Diesel or Electric Power Aviation Stairway)
Aircraft Passenger Stairs for Airport Passenger Boarding (ISUZU. FOTON. JMC. DONGFENG Diesel or Electric Power Aviation Stairway) Aircraft Passenger Stairs for Airport Passenger Boarding (ISUZU. FOTON. JMC. DONGFENG Diesel or Electric Power Aviation Stairway)

Standard:

ZB/T50 001-87 Special vehicles--Engineering approval evaluation program

JB/T5943-91 welding general technical specification for construction machinery

IATA AHM-913

IATA AHM-910

IATA AHM-915 Standard control device

SAE--ARP836A Design of passenger steps and safety standard

No. Type and description Unit Qty Manufacturer
1 Chassis parts
1.1 ISUZU QL1100A8KAY piece 1 ISUZU
2 Hydraulic system
2.1 Lifting cylinder piece 1 China
2.2 Arm-brace cylinder piece 6 China
2.3 Platform cylinder piece 2 China
2.4 Magnetic valve piece 5 China
2.5 EF4-50 Hydraulic air filter piece 1 China
2.6 YN-60 0-25Mpa pressure gauge piece 1 China
2.7 LXZ-160X80LY oil filter piece 1 China
2.8 YWZ-100T Liquid thermometer piece 1 China
2.9 Hand pump piece 1 China
3 Electric system
3.1 Travel switch piece 4 China
3.2 Rita anti-collision alarm system piece 1 China
3.3 Height-range indicator for lift platform piece 1 China
3.4 Alarm lamp piece 1
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql1070a5kay, ql1070a1kay, ql11009kary, ql1080zkarzy, nkr77plpacjay
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4kh1cn5hs 4kh1-tcg40 4hk1-tc51 4hk1-tcn2 4KH1-TC
Maximum tilt angle of ladder body (°): 39.5 39.5 39.5 39.5 39.8 38.5 38.5
Step size (depth × width × height) (mm): 310 × 1500 × 180 270 × 1500 × 180 270 × 1500 × 180 270 × 180 × 180 × 1500 × 180 270 × 1500 × 180 × 270 × 1500 × 180
Working height of passenger elevator (mm): 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 13 13 13 13 13 13 13 13 13
Number of steps of lower ladder body 15 15 15 15 15 15 15
Platform dimension (depth × width) (mm): 2800 × 1500 2800 × 1500 2800 × 1500 2800 × 1500 2800 × 1500 2800 × 1500
Boundary dimension (L × w × h) (mm): 7825 × 2500 × 3830 7610 × 2320 × 3780 7675 × 2450 × 3870 7700 × 2500 × 3870 7700 × 2500 × 3550 7760 × 2450 × 3500
Curb weight (kg): 8150 7200 6700 7850 7400 6160
Other properties - -----
Steps of tail ladder 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
The emission of exhaust pollutants from the engine shall meet the limit requirements of the fifth stage of GB 17691-2005
Gearbox manufacturer Allison transmission Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: allison1000 msb-5sm msb-5sm mld-6q my-6s msb-5sm
Hot Tags: self-propelled aircraft passenger step

  KT-48B
Main performance indexes:
Project performance index
Configuration III (2019-10-31), configuration II (2018-06-01), configuration I (2017-01-20)
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25 jx1061tg24 jx1060tg24
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5 jx493zlq4 jx493zlq4
Maximum tilt angle of ladder body (°): 39.5 39.5 39.5 39.5
Step size (D × w × h) (mm): 1300 × 280 × 195 1300 × 280 × 200 1300 × 280 × 200
Working height of passenger elevator (mm): 2200-4800 2200-4800 2200-4800
Height adjustment mode: up and down ladder body expansion type, up and down ladder body expansion type, up and down ladder body expansion type
Number of steps on ladder body 9 9 9
Number of steps of lower ladder body 99 99 11
Platform dimension (depth × width) (mm): 3440 × 1570 3160 × 1570 3160 × 1570
Boundary dimension (L × w × h) (mm): 7560 × 2100 × 3500 (without awning) / 8060 × 2100 × 5160 (with awning) / 7450 × 2100 × 5160 (with awning) / 6950 × 2100 × 3500 (without awning) / 7450 × 2100 × 5160 (with awning) / 6950 × 2100 × 3500 (without awning) / 7450 × 2100 × 5160 (with awning)
Curb weight (kg) 5900 (without awning) / 6100 (with awning) / 5750 (without awning) / 5950 (with awning) / 5750 (without awning) / 5950 (with awning)
Other performance options: awning options: awning options: awning options: awning
Steps of tail ladder 2 2 2 2
The exhaust pollutants emitted by the engine shall meet the requirements of gb17691-2005 phase V limit, and the exhaust smoke shall meet the requirements of GB 3847-2005.
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd. getrak (Jiangxi) transmission system Co., Ltd
Model jc528 jc528t8 jc528t8


KT-48E
Main performance indexes:
Project performance index
Driving motor manufacturer Foton Motor Co., Ltd
Model fttb060
Driving motor controller manufacturer Foton Motor Co., Ltd
Model: ftivt200
Energy storage device assembly manufacturer Lishen power battery system Co., Ltd
Model lsft? 104.7kwh? F
Maximum tilt angle of ladder body (° 39.5)
Step size (D × w × h) (mm) 280x1300x195
Working height of passenger elevator (mm): 2200-4800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 9
Number of steps of lower ladder body 11
Platform dimension (depth × width) (mm) 3740x1570
Boundary dimension (L × w × h) (mm): 7890x2200x3560
Curb weight (kg) 6750
Endurance (km + times): small airport 174 + 87
Large airport 173 + 85
Medium airport 173 + 86
Test temperature condition (ºC) - 20 ~ + 50
Other performance--
Chassis manufacturer Foton Automobile Co., Ltd
Model: bj1065evja1
Hydraulic motor manufacturer Zhejiang kaweide New Energy Technology Co., Ltd
Model: hdzxb0919 / bl3-380vac
Hydraulic motor controller manufacturer Zhejiang kaweide New Energy Technology Co., Ltd
Model gvd500-11nz0
Step number of tail ladder 2
Total energy of energy storage device (KWH) 104.7

  TK-36
Main performance indexes:
Project performance index
Maximum tilt angle of ladder body (° 33)
Step size (D × w × h) (mm) (290-320) × 1070 × (140-195)
Working height of passenger elevator (mm): 2600 ~ 3600
Height adjustment mode: parallelogram displacement
Number of steps on ladder body 17
Number of steps of lower ladder body 1
Platform dimension (depth × width) (mm): 1840 × 1500
Boundary dimension (L × w × h) (mm): 7825 × 1850 × 3700
Curb weight (kg) 3060
Outer diameter of channel circle (mm): 17000
Other performance: solar photovoltaic panel or external power supply can be selected for charging; the maximum driving speed is 3km / h
Underframe manufacturer Shanghai Eastern Aviation Equipment Manufacturing Co., Ltd
Model tk36-0100000
KT-58
Main performance indexes:
Chassis manufacturer Beijing Foton Automobile Co., Ltd. Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: bj1109vejed-a1 ql1100a8kay ql11009kary
Engine manufacturer Beijing Futian Cummins Engine Co., Ltd. Qingling Isuzu (Chongqing) engine Qingling Isuzu (Chongqing) engine
Model: isf3.8s5154 4hk1-tc51 4hk1-tcg40
Maximum tilt angle of ladder body (° 39 39 39
Step size (D × w × h) (mm): 1500 × 300 × 193 1500 × 300 × 193 1500 × 300 × 193
Working height of passenger elevator (mm): 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800 2400 ~ 5800
Height adjustment mode: up and down ladder body expansion type, up and down ladder body expansion type, up and down ladder body expansion type
Number of steps on ladder body 12 12
Number of steps of lower ladder 13 13 13
Platform dimension (depth × width) (mm) 2830 × 2200 2830 × 2200 2830 × 2200 2830 × 2200
Boundary dimension (L × w × h) (mm) (7820 × 2360 × 3760) (without awning) / (7870 × 2360 × 5335) (with awning) / (7870 × 2360 × 3760) (without awning) / (7870 × 2360 × 5335) (with awning) / (7720 × 2360 × 3760) (without awning) / (7870 × 2360 × 5335) (with awning)
Curb weight (kg) 7600 (without awning) / 7850 (with awning) / 7600 (without awning) / 7850 (with awning) / 7600 (without awning) / 7850 (with awning)
Other performance optional awning optional awning optional awning
Steps of tail ladder 3 3 3 3
Engine emission: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Allison transmission holdings, Inc. Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: 1000 mld-6q

KT-58E
ain performance indexes:
Project performance index
Driving motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Driving motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Maximum tilt angle of ladder body (°): 36.5
Step size (D × w × h) (mm) 300 × 1500 × 185
Working height of passenger elevator (mm): 2400 ~ 5800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 13
Number of steps of lower ladder body 14
Platform dimension (depth × width) (mm): 3200 × 2000
Boundary dimension (L × w × h) (mm): 7900 × 2400 × 3800
Curb weight (kg) 7700
Endurance (km + times) small airport 95 + 46
Large airport 90 + 43
Medium airport 92 + 44
Test temperature condition (ºC) - 20 ~ + 50
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070beveccay
Manufacturer of hydraulic motor Zhejiang kawade New Energy Technology Co., Ltd
Model: hdzxb0919 / bl3-380vac
Hydraulic motor controller manufacturer Zhejiang kaweide New Energy Technology Co., Ltd
Model gvd500-11nz0
Step number of tail ladder 2
Total energy of energy storage device (KWH): 96.77
  TD58CKT
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Engine manufacturer Qingling Automobile Co., Ltd
Model: 4hk1-tc51
Maximum tilt angle of ladder body (° 39)
Step size (D × w × h) (mm) 300 × 1500 × 200
Working height of passenger elevator (mm): 2400 ~ 5800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 12
Number of steps of lower ladder body 15
Platform dimension (depth × width) (mm): 3700 × 2300
Boundary dimension (L × w × h) (mm): 7860 × 2470 × 3780
Curb weight (kg) 8200
Other performance--
Step number of tail ladder 2
Engine emissions - exhaust pollutants meet the limit requirements of gb17691-2005 phase V; exhaust smoke meets the requirements of gb3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q

  TD36TKT
Main performance indexes:
Project performance index
Maximum tilt angle of ladder body (° 39)
Step size (depth × width × height) (mm) 300 × 1100 × (140 ~ 200) 300 × 1100 × (140 ~ 200)
Working height of passenger elevator (mm): 2550 ~ 3600; 2550 ~ 3600
Height adjustment mode step parallelogram displacement step parallelogram displacement
Number of steps on ladder body 18
Number of steps of lower ladder--
Platform dimension (depth × width) (mm): 1920 × 1400, 1930 × 1410
Boundary dimension (L × w × h) (mm): 6930 × 2010 × 3600 6920 × 2150 × 3600
Curb weight (kg) 1450 1450
Outer diameter of channel circle (mm) 18500--
Other performance rear axle steering front axle steering
Underframe manufacturer Suqian TEDA Airport Equipment Co., Ltd. Suqian TEDA Airport Equipment Co., Ltd
Model: td36tkt-0503000 3600xkt-0503000


WXQ5062TKT
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1080a8kay, ql1070a5kay, ql11009kary, ql1070a1kay
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4kh1cn5hs 4hk1-tcg40 4kh1-tcg40
Maximum tilt angle of ladder body (° 37.7 ° - 37.7 ° - 37.7 ° - 37.7 °
Step size (D × w × h) (mm): 300 × 1500 × 190 300 × 1500 × 190 300 × 1500 × 190 300 × 1500 × 190 300 × 1500 × 190 300 × 1500 × 190
Working height of passenger elevator (mm): 2500-5900 2400-5800 2500-5900 2400-5800
Height adjustment mode: up and down ladder body expansion type, up and down ladder body expansion type, up and down ladder body expansion type, up and down ladder body expansion type
Number of steps on ladder body 12 12 12
Number of steps of lower ladder body 14 14 14
Platform dimension (depth × width) (mm): 3300 × 1950 3470 × 1850 3300 × 1950 3470 × 1850
Boundary dimension (L × w × h) (mm): 8100 × 2330 × 3600 8100 × 2200 × 3600 8100 × 2330 × 3600 8100 × 2200 × 3600
Curb weight (kg): 8000 7200 8200 7150
Other performance -- -----
Steps of tail ladder 1 1 1 1 1
Engine emission: exhaust pollutants meet the requirements of GB 17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005.
Gearbox manufacturer Allison gearbox (Shanghai) Co., Ltd. Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: 1000 msb-5sm mld-6q msb-5sm

WXQ5050TKT
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: ql104a6hay jx1061tg25 jx1051tg24
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5ls jx493zlq5 jx493zlq4
Maximum tilt angle of ladder body (°): 35.2 ° - 35.2 ° - 35.2 °
Step size (D × w × h) (mm): 300 × 1400 × 190 300 × 1400 × 190 300 × 1400 × 190
Working height of passenger elevator (mm): 2400-4800 2200-4800 2200-4800
Height adjustment mode: up and down ladder body expansion type, up and down ladder body expansion type, up and down ladder body expansion type
Number of steps on ladder body 9 9 9
Number of steps of lower ladder body 12 12
Platform dimension (depth × width) (mm): 3030 × 1820, 3030 × 1820, 3030 × 1820
Boundary dimension (L × w × h) (mm): 7430 × 2120 × 3290 7430 × 2120 × 3290 7610 × 2120 × 3270
Curb weight (kg) 6200 6250 6050
Other properties -
Step number of tail ladder 1 1 1
Engine emissions: exhaust pollutants meet the emission limits of GB 17691-2005, phase V, exhaust smoke meet the requirements of GB 3847-2005; exhaust pollutants meet the emission limits of GB 17691-2005, phase V, exhaust smoke meet the requirements of GB 3847-2005; exhaust pollutants meet the emission limits of GB 17691-2005, phase IV, exhaust smoke meet the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd. getrak (Jiangxi) transmission system Co., Ltd
Model: msb-5mt jc528 jc528t8

WXQ5062DKT
Main performance indexes:
Project performance index
Driving motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Driving motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Maximum tilt angle of ladder body (° 37)
Step size (D × w × h) (mm): 300 × 1500 × 190
Working height of passenger elevator (mm): 2400 ~ 5800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 12
Number of steps of lower ladder body 14
Platform dimension (depth × width) (mm): 3470 × 1850
Boundary dimension (L × w × h) (mm): 8220 × 2200 × 3720
Curb weight (kg) 8100
Endurance (km + times): small airport 117 + 58
Large airport 116 + 56
Medium airport 116 + 57
Test temperature condition (ºC) - 32 ~ 60
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Hydraulic motor
Model: wxq5062dkt-0620100
Hydraulic motor controller
Model: wxq5062dkt-0801000
Step number of tail ladder 1
Total energy of energy storage device (KWH): 96.77
WTJ5080JKT
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
Maximum tilt angle of ladder body (° 36)
Step size (D × w × h) (mm) 305 × 1500 × 180
Working height of passenger elevator (mm): 2400 ~ 4900
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 9
Number of steps of lower ladder body 15
Platform dimension (depth × width) (mm): 3220 × 2080
Boundary dimension (L × w × h) (mm): 7655 × 2500 × 3830
Curb weight (kg) 7950
Other performance--
Step number of tail ladder 1
Engine emissions - exhaust pollutants meet the limit requirements of gb17691-2005 phase V, exhaust smoke meets the requirements of gb3847-2005
Gearbox manufacturer Allison transmission
Model allison1000

WGKT58
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1070a5kay ql1070a1kay
Engine manufacturer Qingling Isuzu (Chongqing)
Model: 4kh1cn5hs 4kh1-tcg40
Maximum tilt angle of ladder body (° 40)
Step size (D × w × h) (mm) 320 × 1500 × 200 320 × 1500 × 200
Working height of passenger elevator (mm): 2400-5800 2400-5800
Height adjustment mode: up and down ladder body expansion type: up and down ladder body expansion type
Number of steps on ladder body 12
Number of steps of lower ladder body 14
Platform dimension (depth × width) (mm): 3350 × 2200 3350 × 2200
Boundary dimension (L × w × h) (mm): 7970 × 2370 × 3750 7970 × 2370 × 3750
Curb weight (kg) 7450 7450
Other performance ---
Step number of tail ladder 1 1
Engine emissions? Exhaust pollutants meet the requirements of GB 17691-2005, phase V, and exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model msb-5sm MSB


WGKT54
Main performance indexes:
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a6hay; ql1053harry
Engine manufacturer Qingling Isuzu (Chongqing)
Model: 4kh1cn5ls 4jb1cn
Maximum tilt angle of ladder body (° 39.3 39.3)
Step size (D × w × h) (mm) 315 × 1300 × 200 315 × 1300 × 200
Working height of passenger elevator (mm): 2350-5400 2420-5400
Height adjustment mode: up and down ladder body expansion type: up and down ladder body expansion type
Number of steps on ladder body 10
Number of steps of lower ladder 13
Platform dimension (depth × width) (mm): 2800 × 1780 2800 × 1780
Boundary dimension (L × w × h) (mm): 7500 × 2275 × 3700 7680 × 2275 × 3640
Curb weight (kg): 6600 6500
Other performance ---
Step number of tail ladder 2 2
Engine emissions - exhaust pollutants meet the limit value of gb17691-2005 phase V, exhaust smoke meets the requirements of gb3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: msb-5mt msb-5mt
  WGKT44
Main performance indexes:
Project performance index
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5
Maximum tilt angle of ladder body (° 37)
Step size (D × w × h) (mm) 310 × 1300 × 190
Working height of passenger elevator (mm): 2200 ~ 4400
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 8
Number of steps of lower ladder body 12
Platform dimension (depth × width) (mm): 3030 × 1730
Boundary dimension (L × w × h) (mm): 7335 × 2270 × 3480
Curb weight (kg) 6000
Other properties -
Step number of tail ladder 2
Engine emissions: exhaust pollutants meet the emission limits of the fifth stage of GB 17691-2005; exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd
Model JC528

  LH5060TKT
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a6hay
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5ls
Maximum tilt angle of ladder body (°): 35.5
Step size (D × w × h) (mm) 300 × 1400 × 190
Working height of passenger elevator (mm): 2400-4900
Height adjustment mode: up and down ladder retractable
Number of steps on ladder body 8
Number of steps of lower ladder body 11
Platform dimension (depth × width) (mm): 3030 × 1770
Boundary dimension (L × w × h) (mm): 7610 × 2120 × 3680
Curb weight (kg) 6300
Other performance--
Step number of tail ladder 2
Engine emissions: exhaust pollutants meet the emission limits of the fifth stage of GB 17691-2005; exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5mt

QJY58KT
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs
Maximum tilt angle of ladder body (° 38)
Step size (D × w × h) (mm): 300 × 1500 × 190
Working height of passenger elevator (mm): 2400 ~ 5800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 12
Number of steps of lower ladder body 14
Platform dimension (depth × width) (mm): 3440 × 1860
Boundary dimension (L × w × h) (mm): 8100 × 2200 × 3530
Curb weight (kg) 7150
Other performance--
Step number of tail ladder 1
Engine emissions exhaust pollutants meet the requirements of GB 17691-2005 phase V, exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model msb-5sm

JGKT48
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5hay
Engine manufacturer Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs
Maximum tilt angle of ladder body (° 38)
Step size (D × w × h) (mm) 1300x270x180
Working height of passenger elevator (mm): 2370 ~ 4800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 8
Number of steps of lower ladder body 13
Platform dimension (depth × width) (mm) 2980 × 1596
Boundary dimension (L × w × h) (mm): 7040 × 2130 × 4530
Curb weight (kg) 6650
Other performance optional: without awning
Step number of tail ladder 2
Engine emissions: exhaust pollutants meet the limit requirements of GB 17691-2005 phase V, exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model msb-5sm

  HFFKT5800
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql10909kary
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tcg40
Maximum tilt angle of ladder body (° 38)
Step size (D × w × h) (mm): 1490 × 290 × 190
Working height of passenger elevator (mm): 2470 ~ 5800
Height adjustment mode: up and down ladder telescopic
Number of steps on ladder body 13
Number of steps of lower ladder body 14
Platform dimension (depth × width) (mm): 3355 × 1890
Boundary dimension (L × w × h) (mm): 8230 × 2340 × 3700
Curb weight (kg) 8400
Other performance--
Step number of tail ladder 1
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005, stage IV, and exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q
Previous:
Next:

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Contract Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Contract Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300
Address Keystone Vessel :R 23, F4,New Factory (4), B1, Phase II, Dashu Industrial Village , Liufang Street ,Wuhan East Lake Hi-tech Development Zone, Wuhan City, Hubei Province,P.R.China  .......
 Hubei Dong Runze Special Vehicle Equipment Co., Ltd.  Keystone Vessel (Wuhan) Co., Ltd ;Keystone Vessel Manufacturing Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/  www.truckinchina.com ,www.tictrucks.com, https://ks-vessel.com
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
