Shacman F3000
-
8705906000
-
Shanghai, China
-
T/T
-
Roro

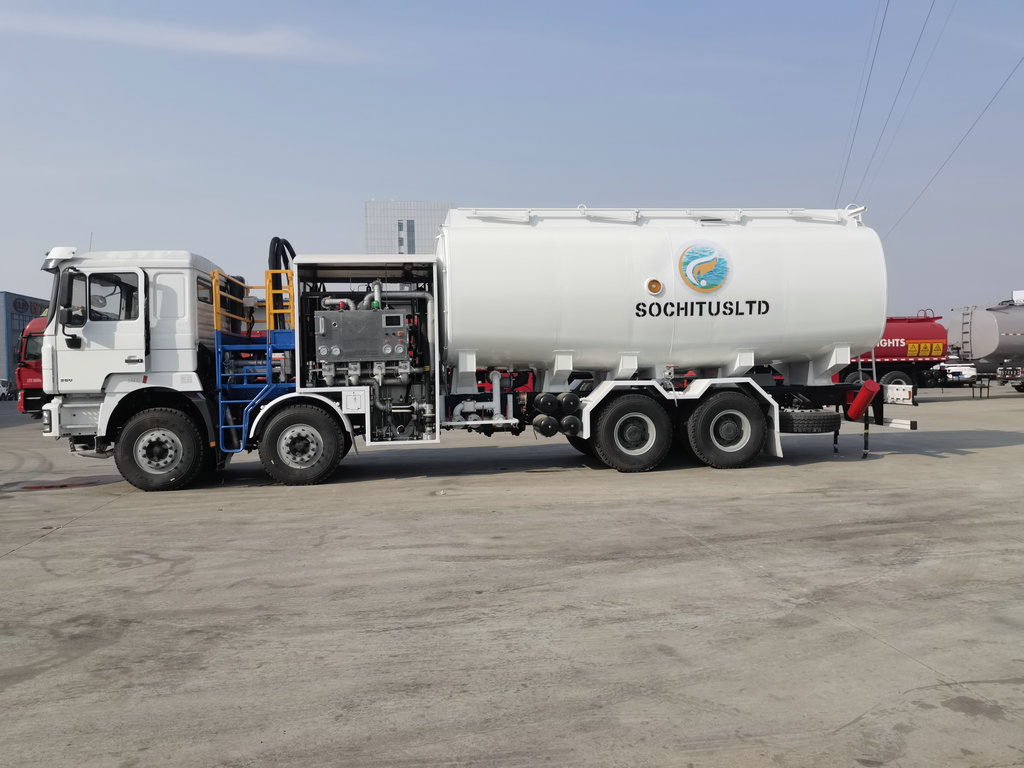

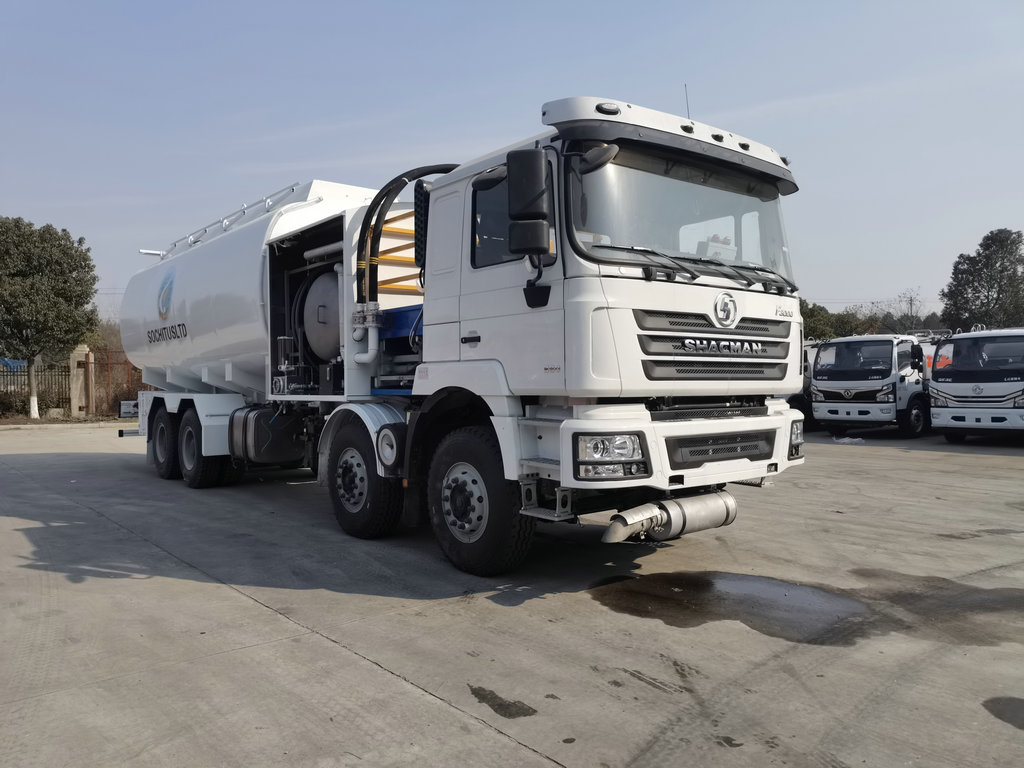

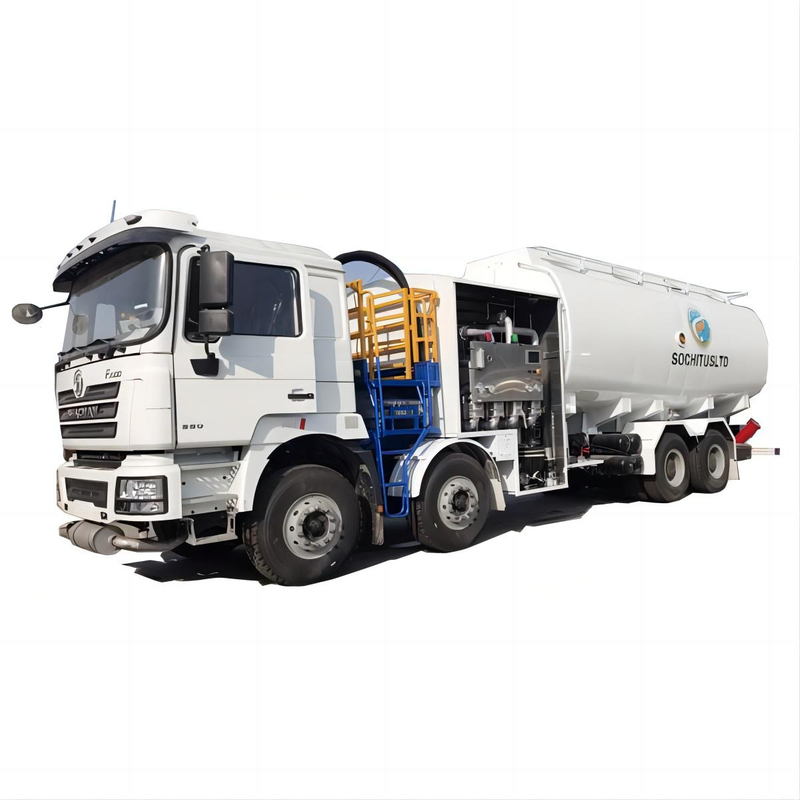

Shacman 25KL Aluminum Alloy Tank Aircraft Refueller
SHACMAN F3000 flat top cab, Hydraulic main seat, four-point hydraulic suspension cab, electric air conditioning, electric shaking window machine, manual flip, ordinary air filter, metal bumpers, hinged pedal, 165Ah maintenance-free battery, spare tire rack, SHACMAN logo, all English logo
Avation Jet A1 Kerosene Refueling Tanker Trucks (LHD / RHD Aircraft Refueller)
| Item | Specification | Remark | |
| Product name | Shacman 8x4 aircraft refueller | Model number | F3000 |
| cab | Flat top with sleeping berth | Engine horsepower (PS) | 380 |
| Overall dimensions (mm) | 12000 * 2550 * 3500 | Tank size (mm) | 6800*2500*2100 |
| Weight (kg) | 16000 | Load weight (kg) | 25000 |
| Product parameter | |||
| Item | Specification | Remark | |
| cab | SHACMAN F3000 flat top cab | Hydraulic main seat, four-point hydraulic suspension cab, electric air conditioning, electric shaking window machine, manual flip, ordinary air filter, metal bumpers, hinged pedal, 165Ah maintenance-free battery, spare tire rack, SHACMAN logo, all English logo | |
| Front axle | 9.5 ton MAN Bridge +9.5 ton MAN Bridge | ||
| Rear axle | 16 ton MAN bridge +16 ton MAN bridge | Speed ratio: 5.262 | |
| gearbox | Fast 10 gear /10JSD180 | Force extractor with QH50 flange | |
| Vehicle frame | Straight reinforced girder | 850×300 (8+5) | |
| tyre | 12.00R20 steel wire tire 11, with spare tire | ||
| Force adapter interface | have | ||
| Power stripper | have | QH50 flange force extractor | |
| Front/rear overhang (mm) | Front: 1525, back :2700 | ||
| Departure Angle | First: 13, last :12 | ||
| suspend | Leaf spring 13/13/12 | ||
| Leaf spring | 13/13 in the front, 12 in the back | ||
| Number of axles | 4 | ||
| Wheelbase (mm) | 1800 + 4575 + 1400 | ||
| Number of tires | 12 + 1 | ||
| Wheel base (mm) | Before: 2070/2070, after: 1860/1860 | ||
| Driving type | 8 * 4 | ||
| engine | WP10.380 | Weichai 380 horsepower | |
| Emission standard | Euro 3 / Euro 5 -6 | ||
| suspend | Leaf spring | ||
| Driving form | Steering wheel/left-hand drive | ||
| Tank capacity | 300L aluminum alloy | ||
| brake | Drum type | ||
| Brake system | Dead-air braking | ||
| Spare tire carrier | have | ||
| voltage | 24V | ||
| Toolbox | have | ||
| colour | According to user requirements | ||
| Top configuration | |||
| Number of compartments | Share a granary | ||
| Tank body | Aluminum alloy 5182/ head: 6mm, barrel: 6mm | ||
| Tank volume | 30 cubic meters | ||
| conduit | 3 inch aluminum alloy pipe | ||
| washboard | Four or five bucks | ||
| Handling safety valve | 3" Handling safety valve /2 sets | ||
| API interface | have | ||
| Emergency shutoff valve | have | ||
| Manhole cover | With hatch /2 sets | ||
| Breather valve | Two sets | ||
| Lower oil device | A set | ||
| Filling pump | Self-priming centrifugal pump (pump in pump out) with auxiliary transmission shaft drive hydraulic station /1200L/min | ||
| Separate filter | 1 set/rated flow 1200L/min, rated working pressure 1.0MPa, maximum allowable pressure difference 0.15Mpa | ||
| Control system | Retarman control system/wired, 10 meters long | ||
| flowmeter | 1200L/min /1 set / 5-bit mechanical record | ||
| Straight through check valve | A set | ||
| A venturi tube | Two sets | ||
| Aviation pressure regulator connector | Pressure refueling /1 set/Special DN65 hydraulic reel 25m with aviation pressure regulator joint flow 1000L/min | ||
| Gravity refueling gun | Gravity refueling /1 set /DN65 hydraulic reel 20 meters and gun flow 300L/min | ||
| Differential pressure gauge | A set | ||
| manometer | 4" /5 sets | ||

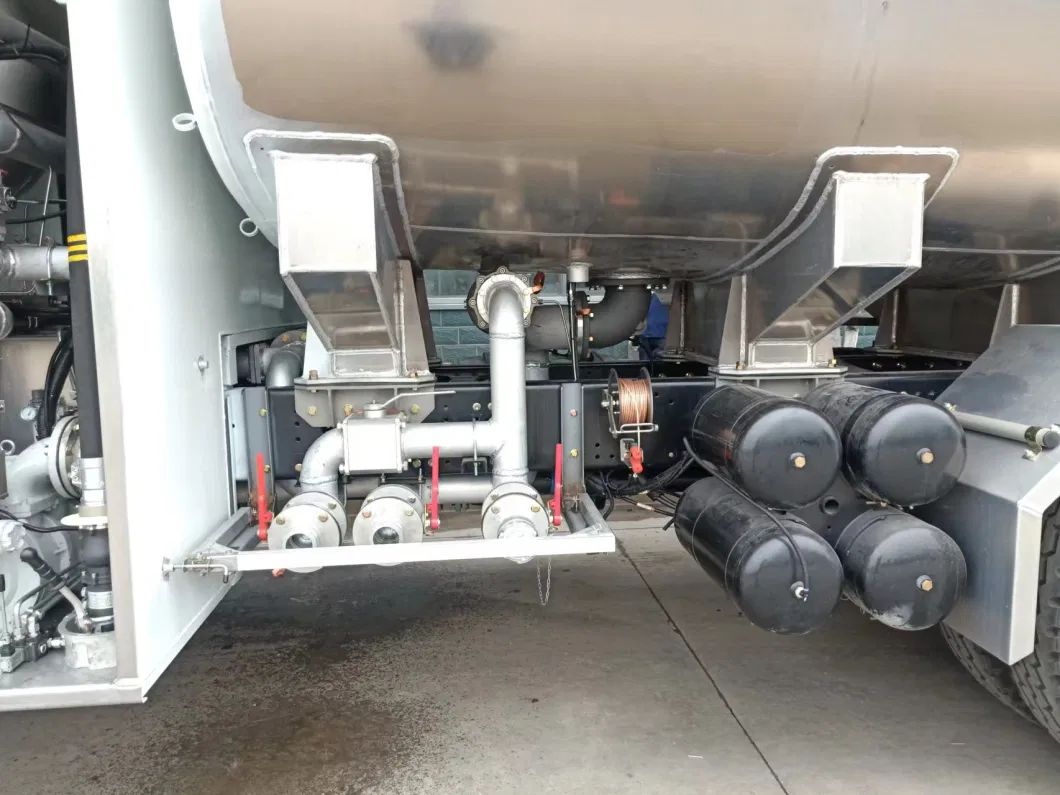

| Drain valve | 3/4" retractable /6 sets | ||
| Rise recorder | A set | ||
| Display screen | Large display with 4" red numbers /1 set | ||
| Grounding device | Static ground guide with interlock /2 sets | ||
| Override system | Override system inside and outside the cab | ||
| Interlock lights on the control panel | have | ||
| PLC programmable logic control | have | ||
| sensor | have /16 | ||
| Refueling reel | have /2 sets/hydraulic chain drive | ||
| liquidometer | The stainless steel float ball in the tank and the 3-inch aluminum alloy dial on the left side of the tank can clearly observe the volume of the current liquid in the tank | ||
| Joint valve | (with oil and gas recovery joint, with four tee) elastic soft connection | ||

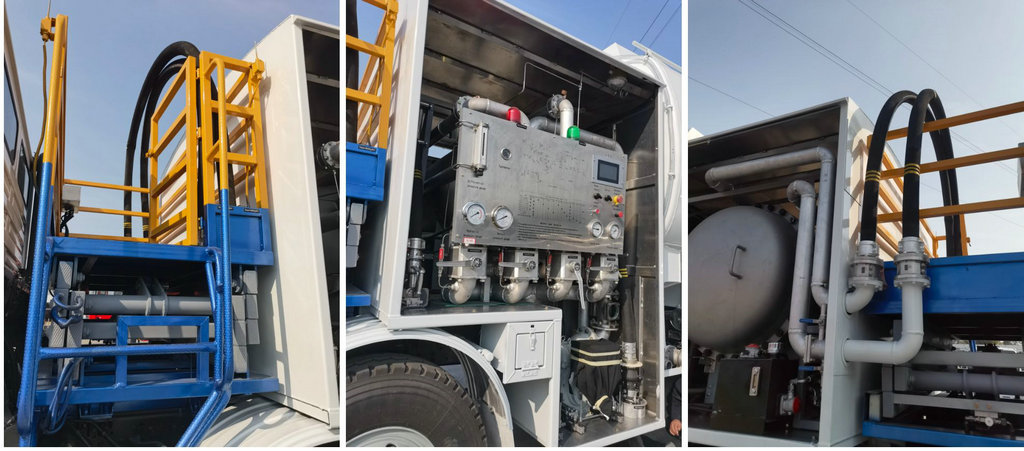

| Operating equipment box | Remote magnetic switch, hand throttle (including cylinder), internal pressure control valve, Venturi tube, high level control valve, magnetic refueling controller. | ||
| sampler | Filter pre/post/blowdown sampling (closed circuit sampler) | ||
| Filter separator outlet sampling valve | have | ||
| Explosion-proof lamp | have | ||
| Lifting platform | Hydraulic lift/platform lift after the ground height of about 5 meters | ||
| Tank top walkway | Yes/longitudinal non-slip | ||
| Stormwater drainage | have | ||
| extinguisher | have | ||
| Crawling ladder | With/with non-slip pedals | ||
| Exhaust pipe | preposition | ||
| manhole | 1 /DN500 | ||
