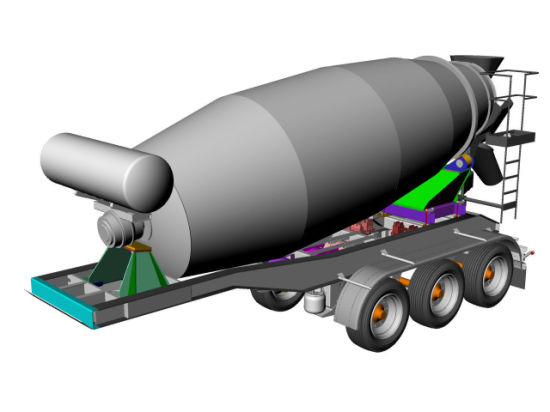

Transit Mixer Tank 10m3-12m3 Concrete Mixer Trailer (2 axles / 3 axles Concrete Mixer Drum Semi-Trailer)
Transit Mixer Tank 10m3-12m3 Concrete Mixer Trailer (2 axles / 3 axles Concrete Mixer Drum Semi-Trailer)
| Quantity: | |
|---|---|
- Shanghai, China
- 800
- T/T
10m3-12m3 Concrete Mixer Trailer ( 2 axles / 3 axles Concrete Mixer Drum Semi-Trailer)

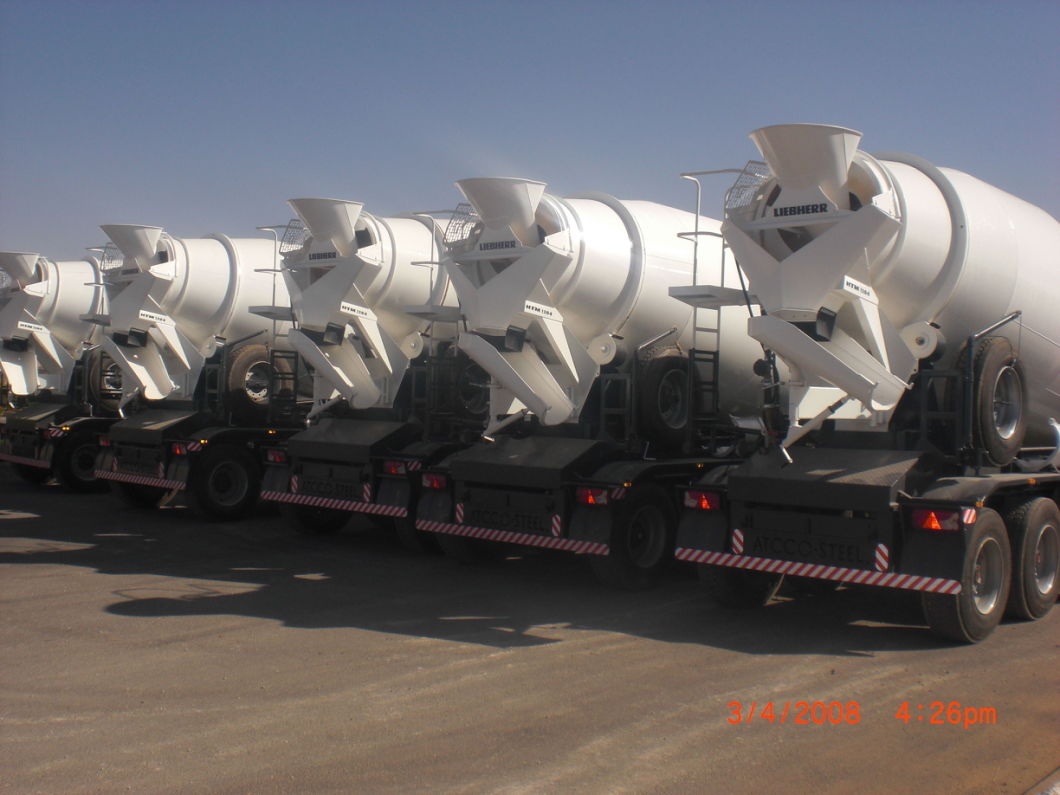

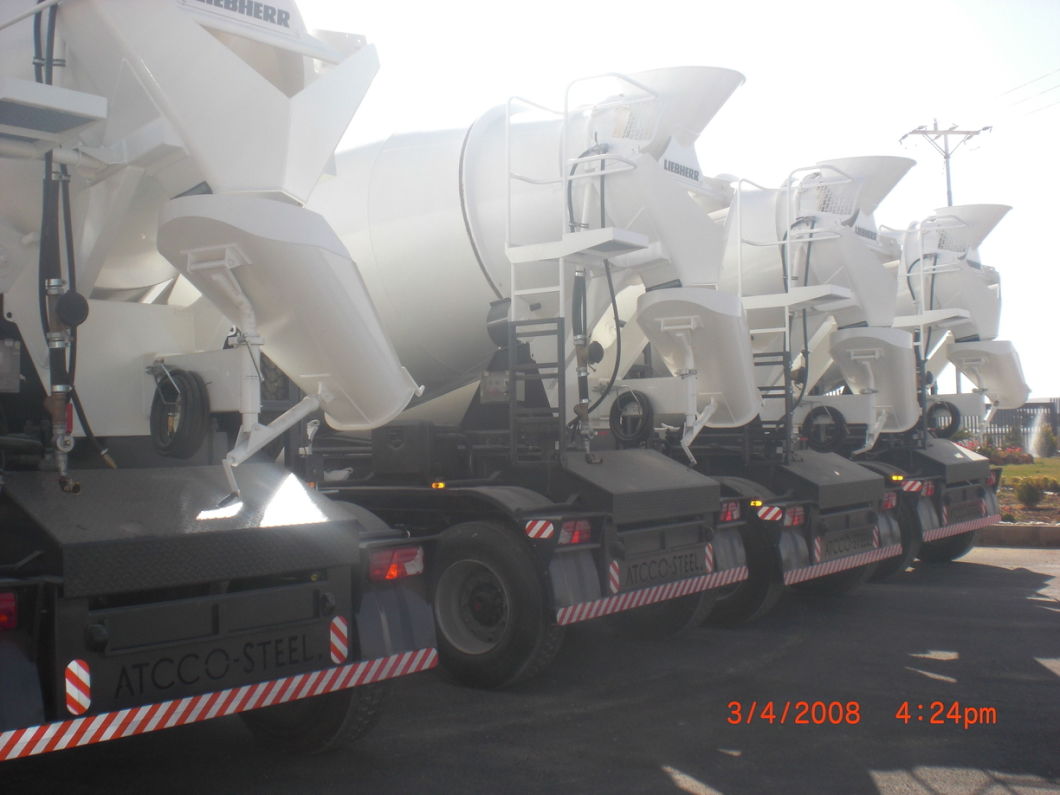

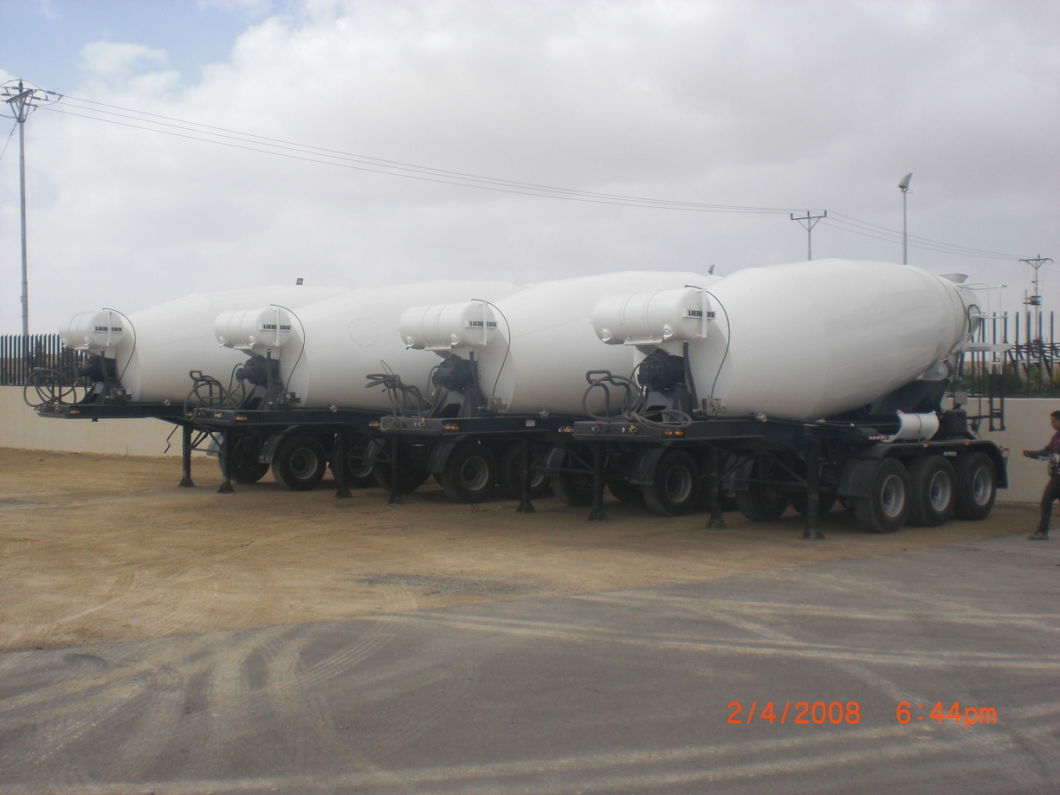

Photos: Axle Space:3225+1350mm (+1350mm)
Agitating Capacity:10m3
Rear Rotation Radius:2084mm
Reducer:PMP ZF5300
Concrete cement Mixer Truck Trailer
Please contact us to know more.
| 10m3 2 AXLE Concrete Mixer Semi-Trailer | ||
| Parameter | Axle Space | 3225+1350mm |
| Agitating Capacity | 10m3 | |
| Empty Saddle Height | 1395mm | |
| Rear Rotation Radius | 2084mm | |
| Discharging Remain Ration | <1% | |
| OEM | Axle | 2units,13T Fuwa |
| Tyre | 8 units,315R80/22.5 | |
| Rim | 8 units,9.0-22.5 | |
| Pneumatic System | Diesel Engine | Weichai 6105 |
| Pump | Saao75 | |
| Motor Model | Saao75 | |
| Speed Reducer | PMP ZF5300 | |
| 2 AXLE 12CBM CONCRETE MIXER SEMI TRAILER | |
| SPECIFICATION | |
| Tare weight | 11800kg |
| Overall Size | 9870*2500*3970mm |
| Volume | 8/10/12/14/16CBM |
| Chassis | Skeletal chassis with special designed I beam. opting for high tensile steel Q345B welded by automatic submerged Arc processes .Top flange18mm; Bottom flange 20mm.Middle flange 10mm. |
| Axle | FUWA Brand 13Ton*2axles |
| Suspension | Mechanical suspension |
| Leaf spring | Leaf spring 10/10 |
| Tire | Double star brand 12R22.5 *8units |
| Wheel rim | 9.0-22.5 steel wheel rim *8pcs |
| Engine | WEICHAI brand Diesel engine |
| Pump | Italian TOP brand /American Eaton brand hydraulic pump |
| Motor | Italian TOP brand /American Eaton brand hydraulic motor |
| Gear box | Italian TOP brand/American Eaton brand gear box |
| Kingpin | 2''/3.5''bolt-in king pin |
| Landing gear | 28Ton two-speed, manual operating ,heavy duty landing gear |
| ABS | 4S2M |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Electrical | Voltage 24V, Receptacle 7 ways (7 wire harness),LED lights,One set 6-core standard cable. |
| Accessories | One standard tool box,one spare tire carrier ,one rocker handle, one Shaft wrench |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Wax spray |
| Main Dimensions | ||||||
| Overall Length | 100500mm | |||||
| Overall Height | 3780mm | |||||
| Overall Width | 2500 mm | |||||
| Tare Weight | 10800 KGS | |||||
| Photo only for reference, final product can be made according to exact requirements | ||||||
| Tank | ||||||
| Capacity | 14 cbm | |||||
| Mixing tanker sloping angle | 10-14 degree | |||||
| Mixing tanker revolving speed | 12-20 (r/min) | |||||
| Engine | Cummins diesel engine, 140 hp | |||||
| Hydraulic pump | USA Eaton 6423-279 or Italian TOP brand | |||||
| Hydraulic motor | Eaton 6433-042 or Italian TOP brand | |||||
| Gearbox | Italy Bonfiglioli 580 L | |||||
| Radiator | Italian brand YS26, 26 liters | |||||
| Chassis | ||||||
| Axle | 3 axles | |||||
| BPW 13 Ton | ||||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||||
| King Pin | JOST brand 2" bolt-in king pin | |||||
| Suspension | German design heavy duty mechanical suspension , 13-pcs leaf spring | |||||
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30 Spring brake chamber; 40L air tanks. | |||||
| Wheel rim | 9.00-22.5 wheel rim, 13 pcs | |||||
| Tire | 12R22.5 tubeless tire, 13 pcs , | |||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||||
| Accessories | One standard tool box, one spare tyre and carrier | |||||
1, Made by high tensile strengh steel, Q345B, Q610, 700
2, heave duty loading capacity. Mixer body volume: 12M3-16M3.
3, nice appearance.
4, Hydraulic pump, motor: USA or Italian TOP brand.
5, Factory directly selling, high quality and compective price
Cell :+8615271357675
Website: http://www.truckinchina.com/
