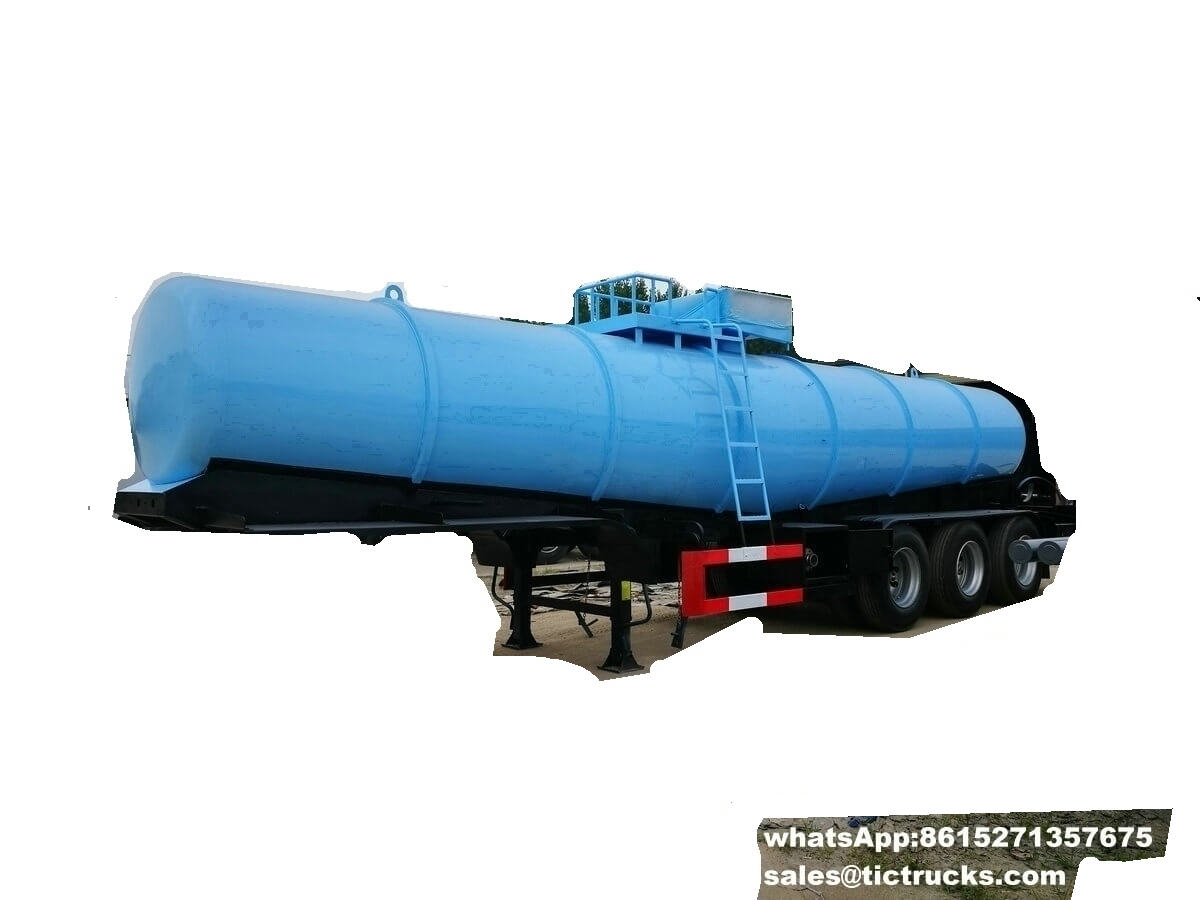

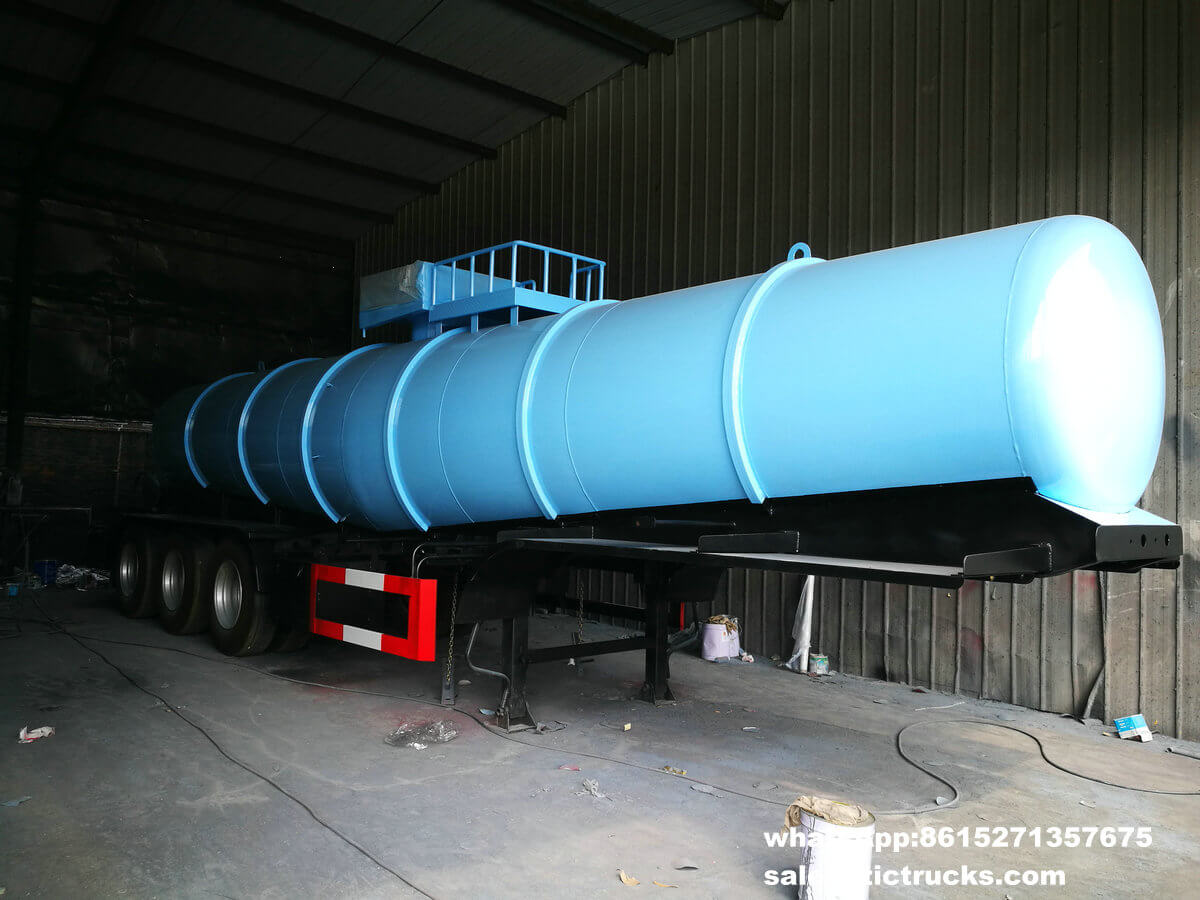

Sulphuric Acid Tanker Trailer V shape 21000L air bag suspension

Sulphuric Acid Tanker Trailer V shape 21000L air bag suspension designed for Zambia Market.
Acid tanker trailer Capacity 21000 liters.
Acid tanker material can be high quality carbon steel,
this V shape acid tanker trailer is equipped with 3 units FUWA axles.
with heavy duty spring suspension or airbag suspension.
Price: $ 20000  -  26000
Discount Price: $ 18000  -  24200
FOB:
Availability:
Quantity:

  • DRZ9400GFW

  • DRZ

  • 8716319000

Sulphuric Acid Tanker Trailer V shape 21000L air bag suspension net weight :8400kg

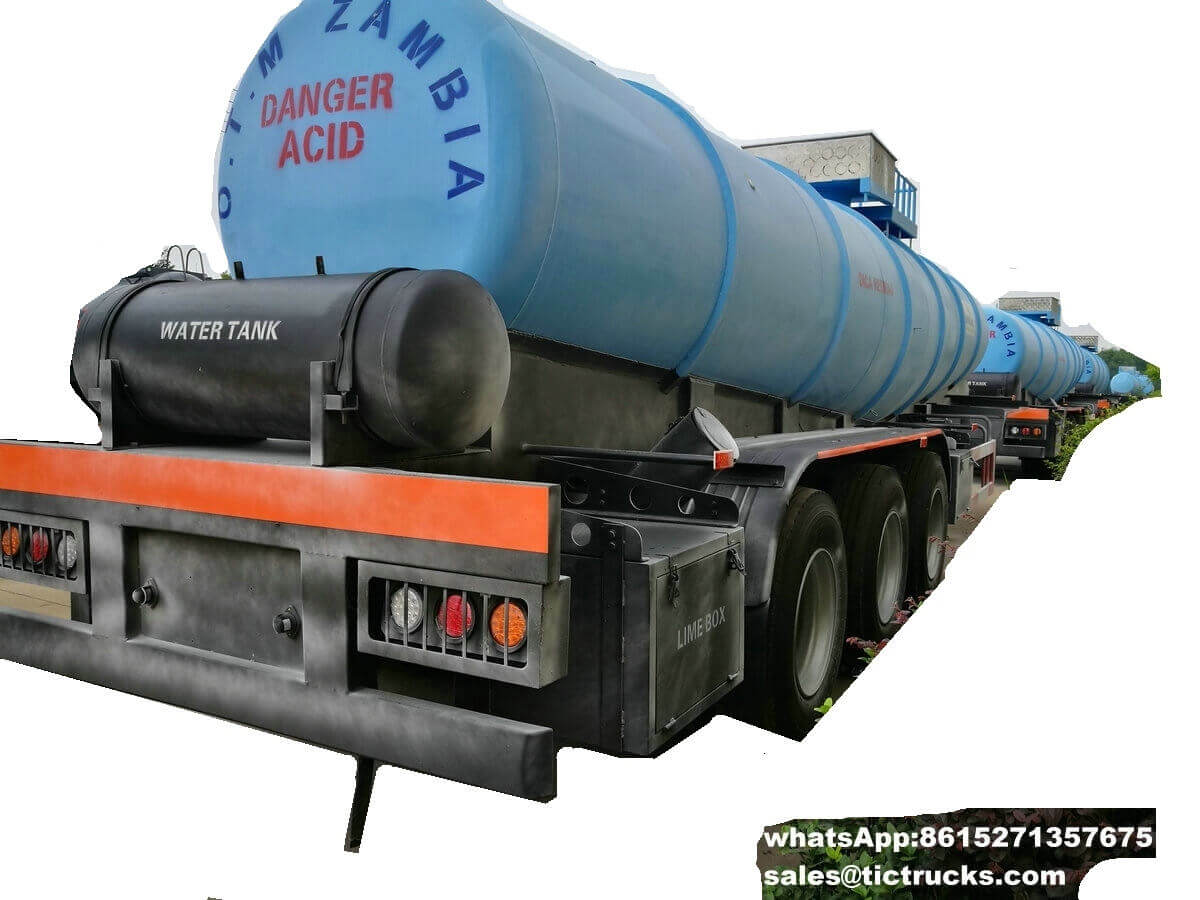

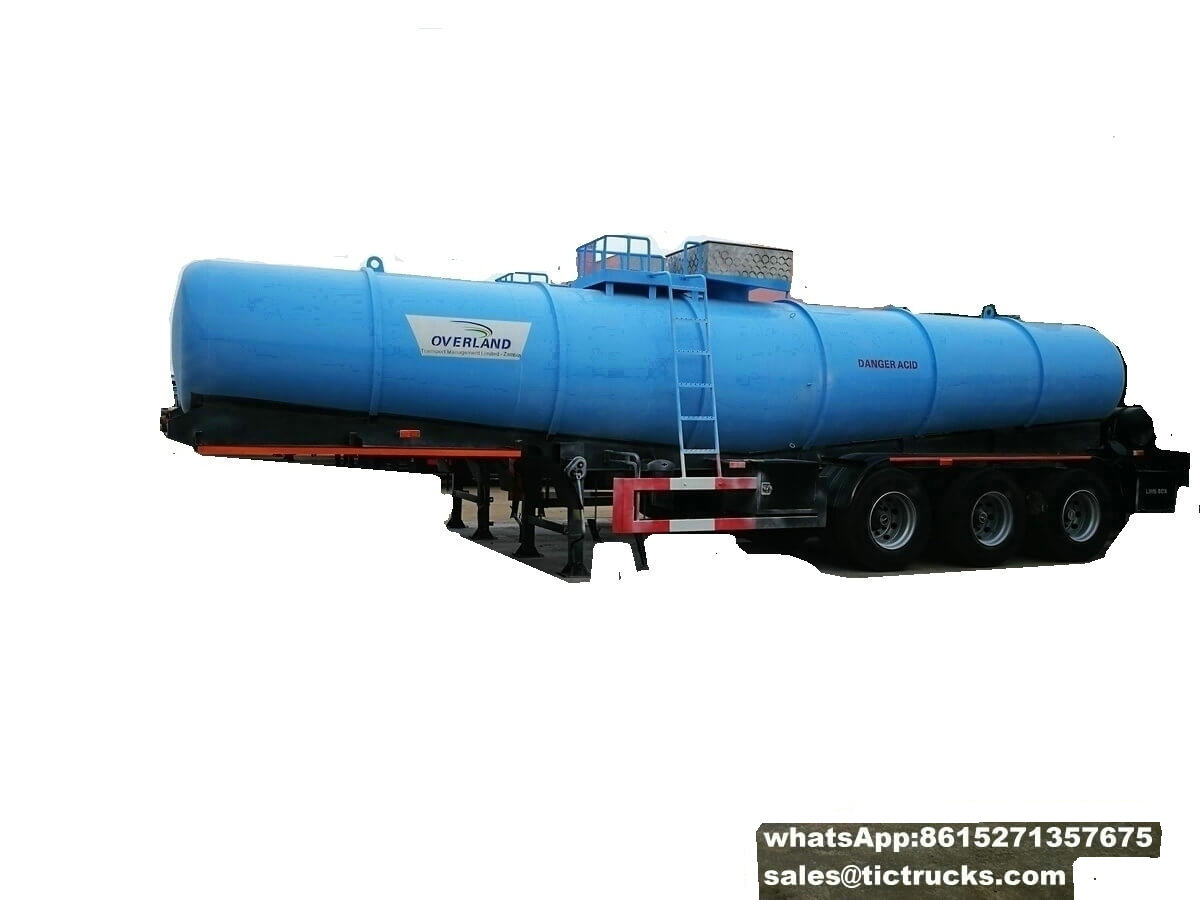

danger acid tanker

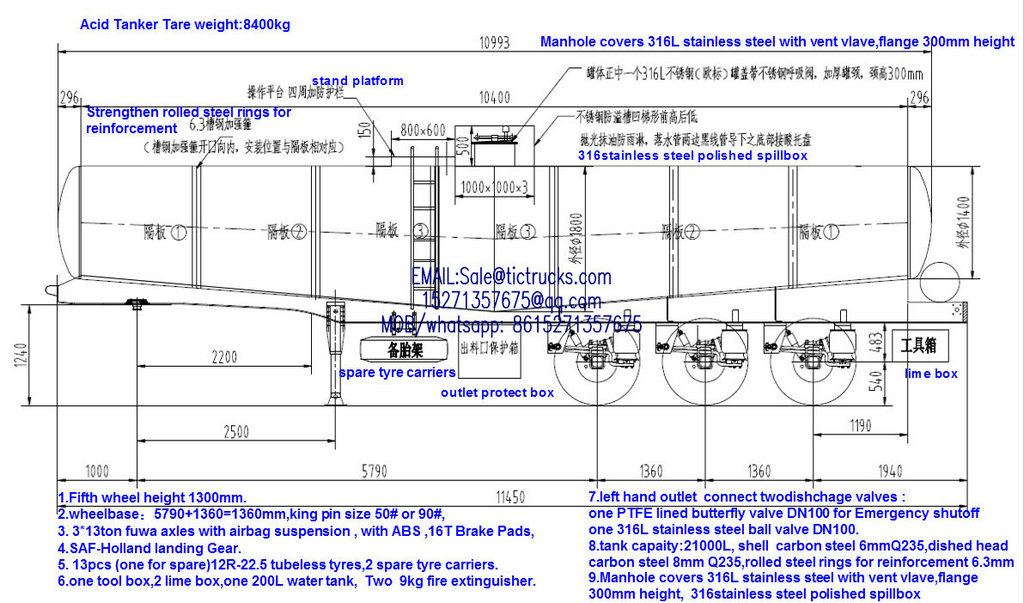

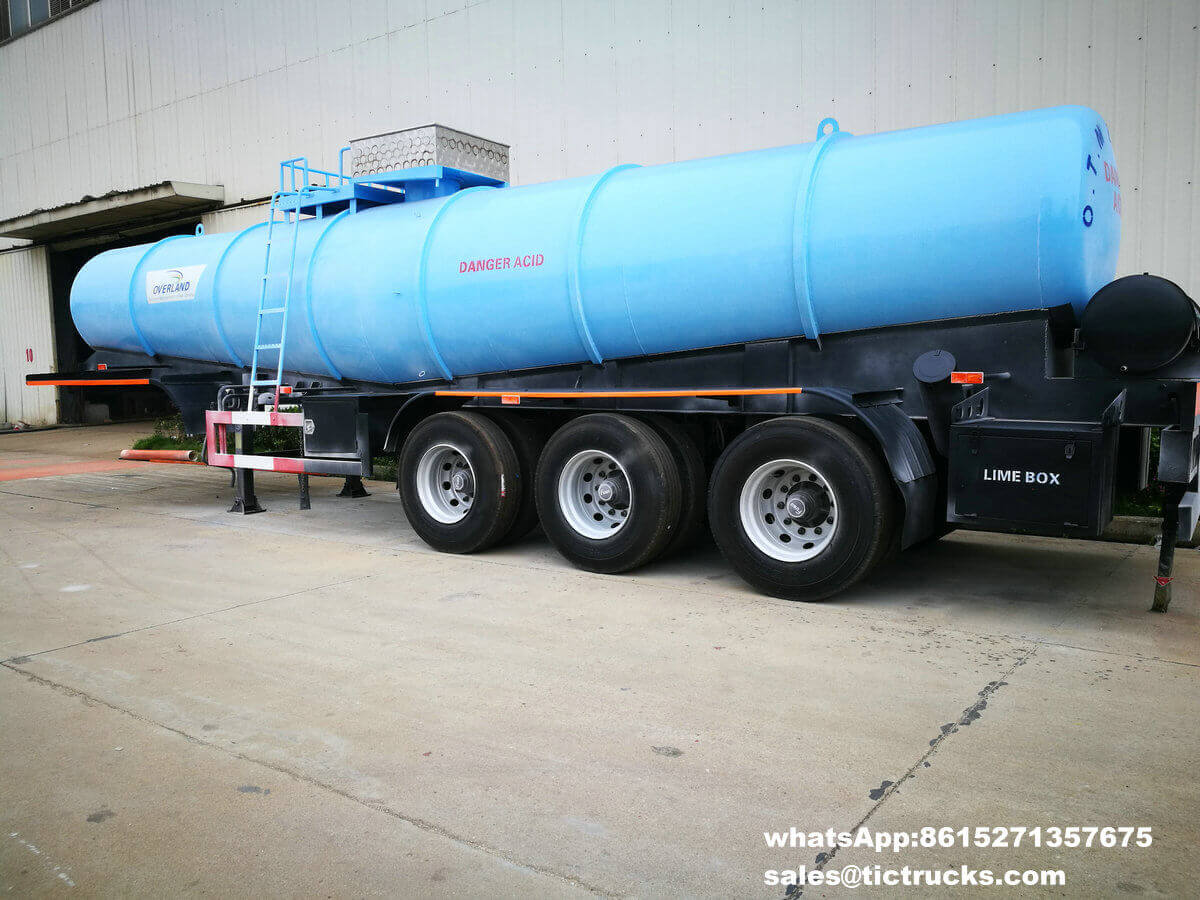

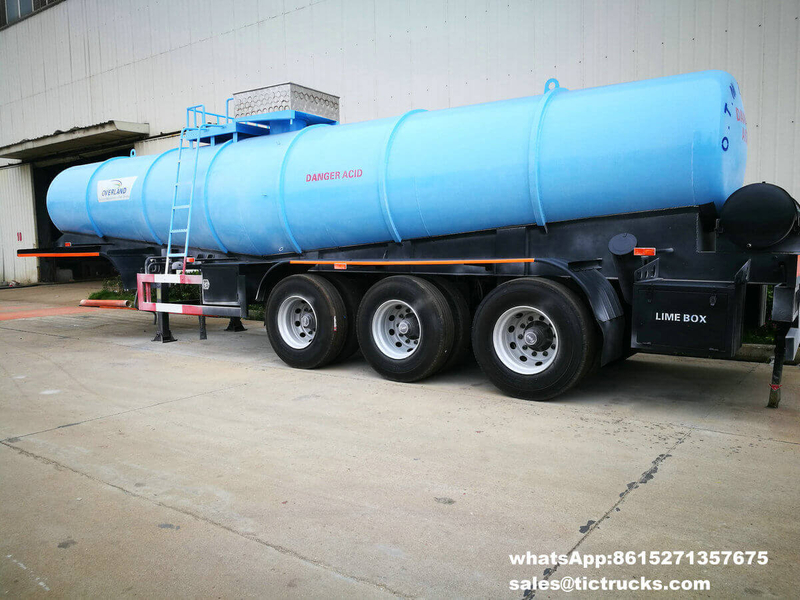

acid tanker trailer 21000L.jpg drawing of the 21,000 Acid Tanker 1e_1.jpg 21000L acid tanker acid tanker trailer truck -036-21000L.jpgacid tanker trailer truck -039-21000L.jpgacid tanker trailer truck -044-21000L.jpgacid tanker trailer truck -051-21000L.jpgacid tanker trailer truck -067-21000L.jpgacid tanker trailer truck -066-21000L.jpgacid tanker trailer truck -071-21000L.jpgacid tanker trailer truck -076-21000L.jpg

Sulfuric Acid Tank Semi Trailer

Sulphuric Acid Tanker Trailer V shape 21000L  air bag suspension  designed for Zambia Market.

 Acid tanker trailer Capacity 21000 liters.

Acid tanker material can be high quality carbon steel,

this V shape acid tanker trailer is equipped with 3 units  FUWA axles.




Sulfuric Acid Tank Semi Trailer  specialized designed for Zambia Market.

18-21 CBM Acid tanker trailer Capacity is 18000 liters or 21000 liters.

Acid tanker material can be high quality carbon steel,stainless steel SS316L.

this V shape acid tanker trailer is equipped with 3 units 13T BPW axles or FUWA axles.

with heavy duty spring suspension or airbag suspension.

Specification 21,000 liter airbag suspension Acid tanker Semi trailer specifications just for reference

DIMENSIONS

Tare  Weight

8400kg

Payload

32000 kg

Total  Weight

40400kg

Overall  Length

 12000mm

Overall  Width

 2500mm

Overall  Height

  3500mm

Wheel track

Refer drawing mm

Wheel base

Refer drawing mm

STANDARD SPECIFICATION

Main  Frame

Heavy duty and extra durability designed; Opting for high tensile steel Q345B, Middle Flange 6mm ;Bottom Flange 16mm,width 140mm

Axle

Three fuwa axles.

Suspension

3-axle AIR BAG Suspension

Landing Gear

Two-speed ,manual operation, heavy duty landing gear

Wheel Rim

Twelve units of 9.0wide x 10 stud (tubeless rim)

Tyre

Twelve units of 12R-22.5 tyres (tubeless)

Spare Wheel Carrier

two spare wheel carrier including a riser

Pneumatic Braking System

30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ;  reliable local brand standard coppery air-connector. With ABS on one axle

Electrical  System

24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.

Tank

21,000 litres capacity  for  H2SO4 98%


shell of tank 6mm /baffles 5mm carbon steel add Strengthen rolled steel rings reinforcement, end of the tankers with 8mm carbon steel


Walkway and top tank; stainless steel ladder end or side of tank

Tank fittings

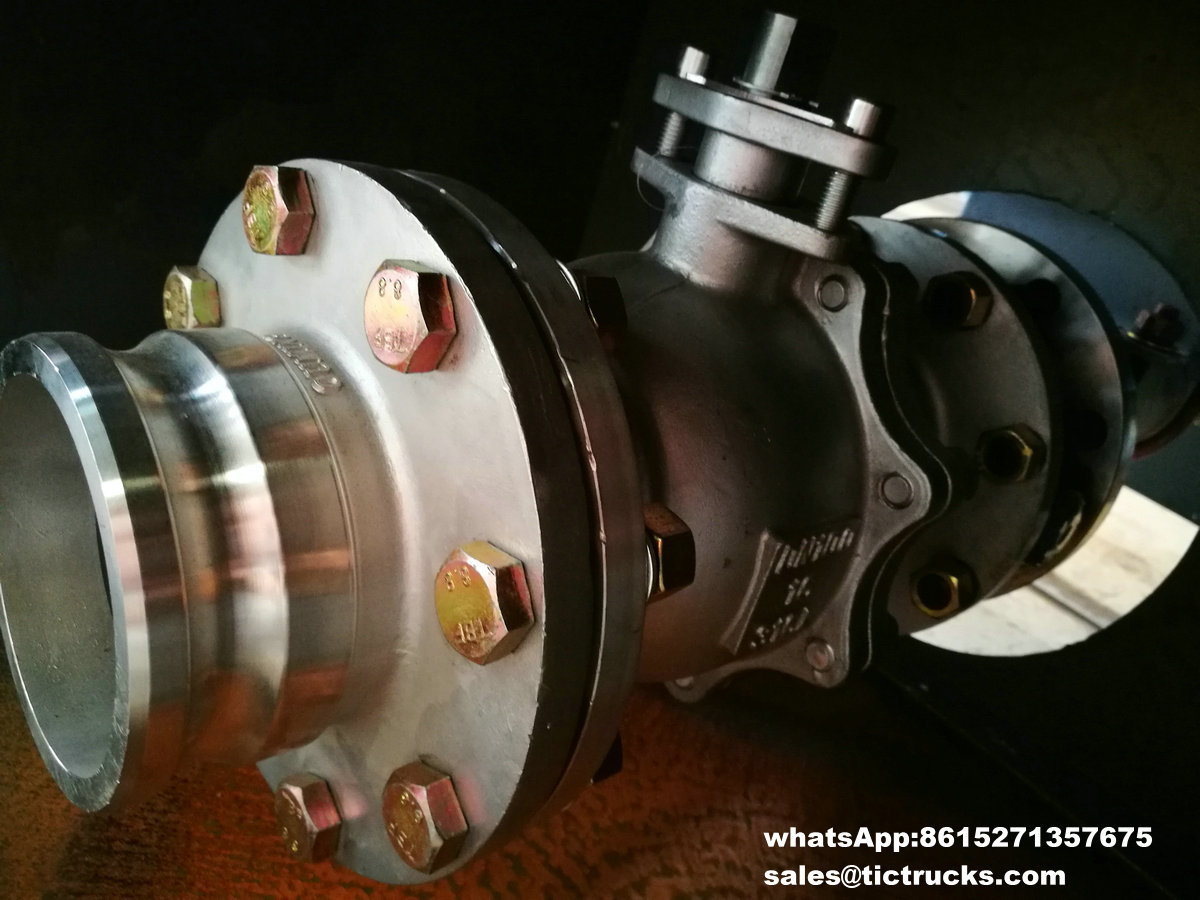

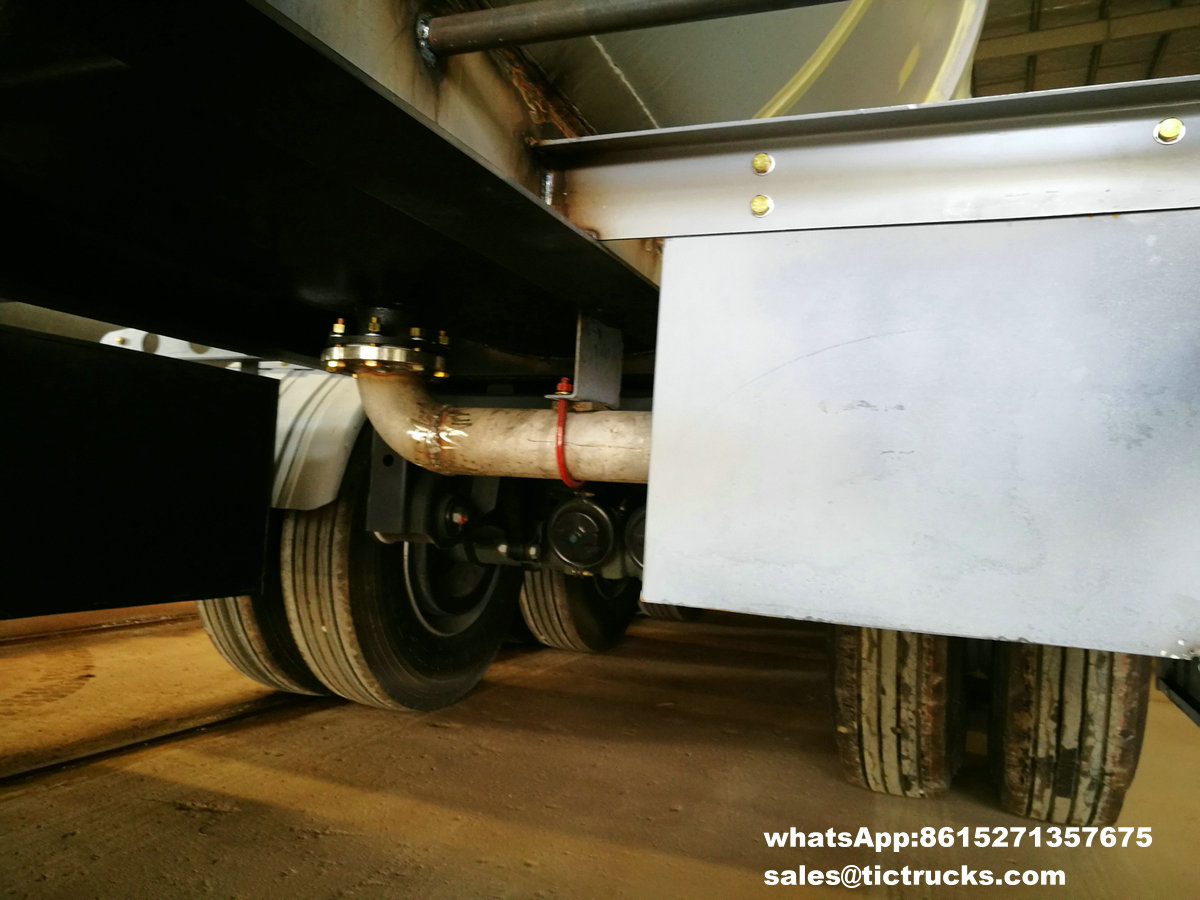

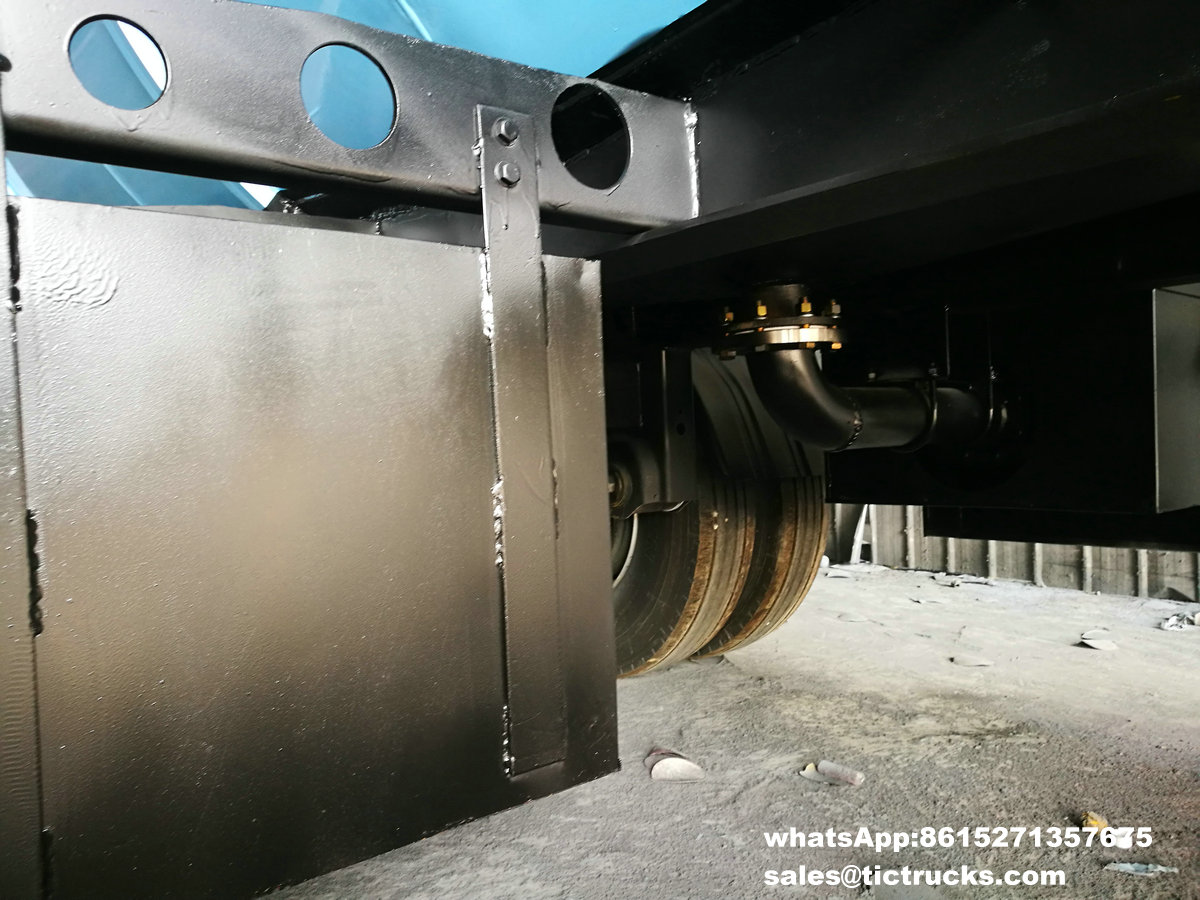

Manhole covers top filler and spillbox, Bottom coupling DN80 discharge system : stainless steel;

Painting

Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting; (black chassis, blue tank or as client requirement)

Accessory

One trailer tool box , One water tank, Two lime box,


                                      Main Dimensions


Overall Length

11700mm


Overall Height

3270mm


Overall Width

2500 mm


Tare Weight

8000 KGS


Loading Capacity

38000 kgs


Tank Body


Shape

V shape


Total Volume(m3)

21 CBM


Tanker Body Material

Carbon Steel Q235B, 6 mm


End plate

Carbon Steel Q235B, 6 mm


Chassis


Axle

3 axles

BPW 13 ton

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 2” bolt-in king pin

Suspension

Heavy duty type mechanical suspension

Pneumatic Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks.

Wheel rim

9.0-22.5 wheel rim, 14 pieces

Tire

12R22.5 tubeless tire with two spare tire, 14 pieces

Spare wheel carrier

2 per tank

Mudguards

Carbon steel with flaps

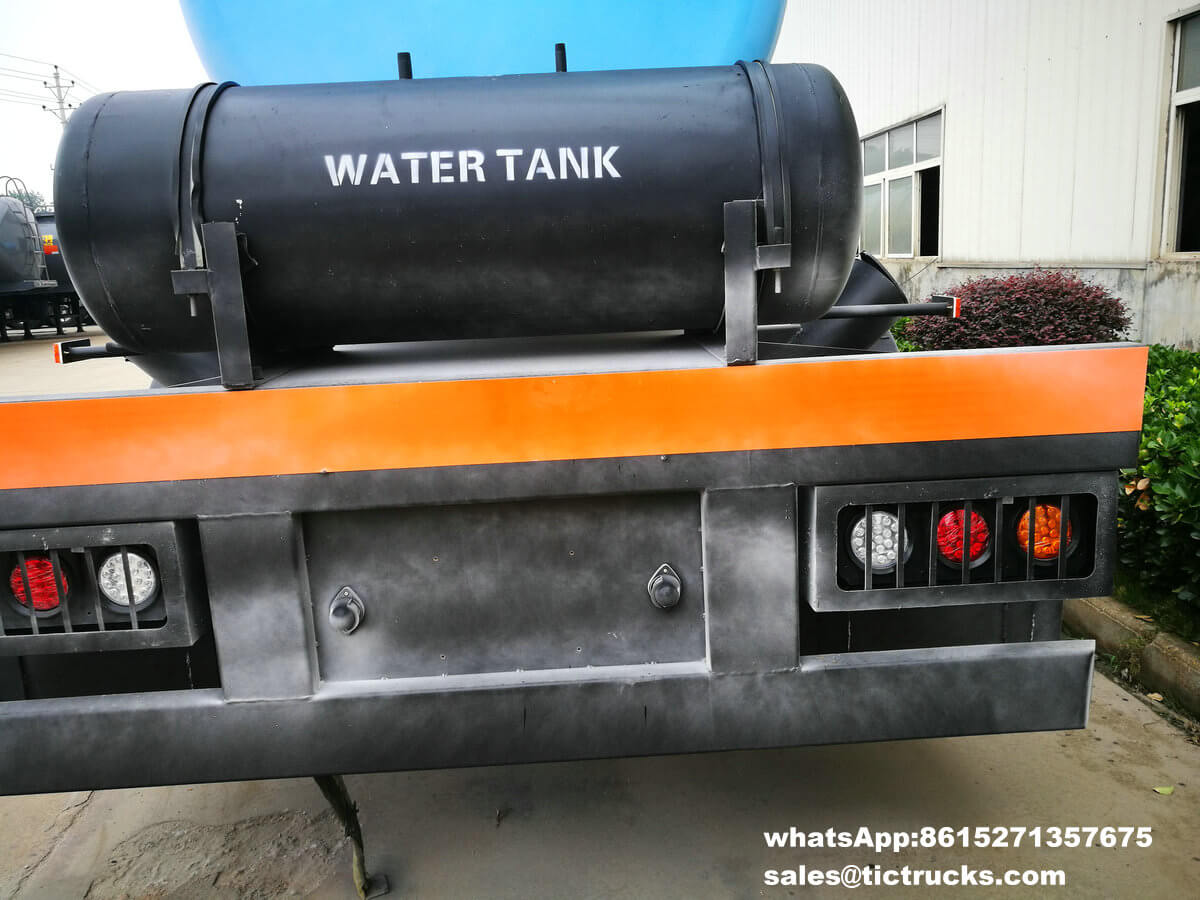

Water tank

Top lid with chain with bottom valve

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Taillights

Anti theft Top LED wonder lights 2 indicator and 2 brake
Anti theft Bottom LED wonder lights 4 indicator, 4 brake, 1
reverse and 2 number plate

Accessories

One standard tool box

draw for 18000 liters V shape acid tanker trailer


drawing For Chassis_ Acid tanker trailer.jpgdrawing For acid tank_ Acid tanker trailer.jpg

shipping parking

Packaging & Shipping_1.jpg
