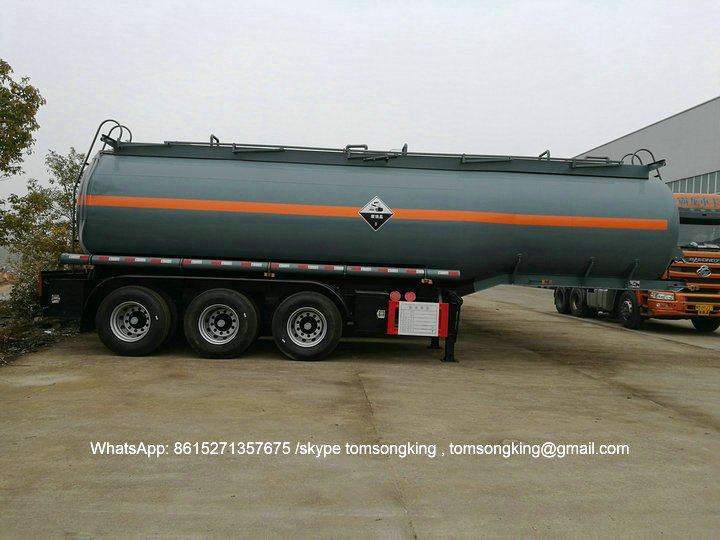

HYDROGEN PEROXIDE / PHOSPHORIC ACID Tanker Trailer 3 Axles

 Customers Transporting Bleach, Hydrochloric Acid,Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.

HYDROGEN PEROXIDE / PHOSPHORIC ACID Tanker  Trailer  3 Axles

 DIMENSIONS

Tare  Weight10000kg

Payload32000 kg

Total  Weight42000kg

Overall  LengthRefer drawing 11000mm

Overall  WidthRefer drawing mm (maximum 2500mm)

Overall  HeightRefer drawing 3850mm

Wheel track1850/1850/1850

Wheel base5100+1310+1310(mm) Refer drawing

STANDARD SPECIFICATION

Main  FrameHeavy duty and extra durability designed; high tensile steel Q345B

AxleThree Units of FUWA or L1 axles.

Suspension3-axle spring Suspension

Landing GearTwo-speed ,manual operation, heavy duty landing gear

Wheel RimTwelve units of  9.0wide x 10 stud (tubeless rim)

TyreTwelve units of 12.00R-22.5 tyres (tubeless)

Spare Wheel CarrierOne set of spare wheel carrier including a riser

Pneumatic Braking System30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ;  reliable local brand standard coppery air-connector. With ABS on axle

Electrical  System24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.

Tank 8000 gal

Carbon steel Shell 6mm inner lined 16mm PE

Walkway and top tank;  steel ladder end of tank

Tank fittingsPE Manhole covers and spillbox, Bottom DN80 discharge system

PaintingSand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting; anticorrosive paint ( as client requirement)

AccessoryOne trailer tool box
