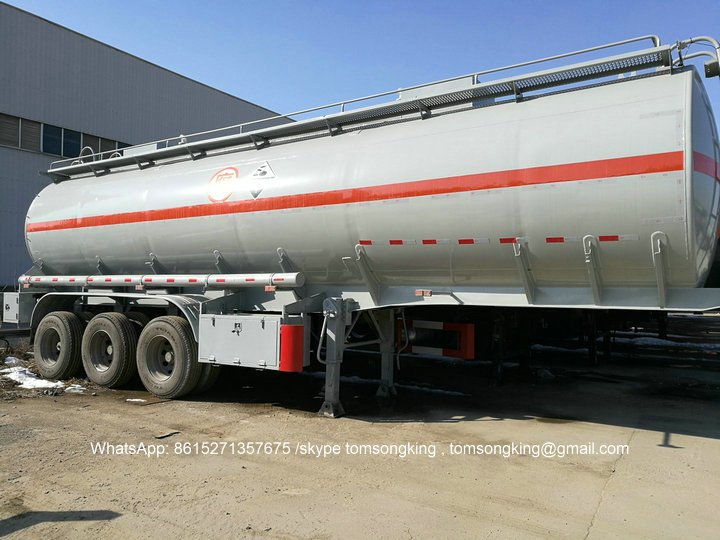

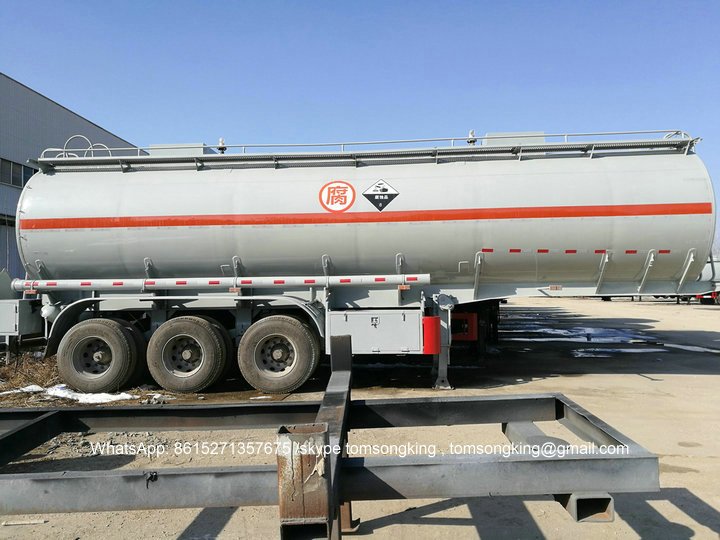

Acetic Acid Tanker Semi Trailer 3 Axles For Transport Acetic Acid 5%, Glacial Acetic Acid 50%
Customers Transporting Bleach, Hydrochloric Acid,Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ
-
Dong Run
-
8716319000
Acetic Acid Tanker Semi Trailer 3 Axles For Transport Acetic Acid 5%, Glacial acetic acid 50%
Customers Transporting Bleach, Hydrochloric Acid,Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
DIMENSIONS
Tare Weight10000kg
Payload32000 kg
Total Weight42000kg
Overall LengthRefer drawing 11000mm
Overall WidthRefer drawing mm (maximum 2500mm)
Overall HeightRefer drawing 3850mm
Wheel track1850/1850/1850
Wheel base5100+1310+1310(mm) Refer drawing
STANDARD SPECIFICATION
Main FrameHeavy duty and extra durability designed; high tensile steel Q345B
AxleThree Units of FUWA or L1 axles.
Suspension3-axle spring Suspension
Landing GearTwo-speed ,manual operation, heavy duty landing gear
Wheel RimTwelve units of 9.0wide x 10 stud (tubeless rim)
TyreTwelve units of 12.00R-22.5 tyres (tubeless)
Spare Wheel CarrierOne set of spare wheel carrier including a riser
Pneumatic Braking System30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector. With ABS on axle
Electrical System24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.
Tank 8000 gal

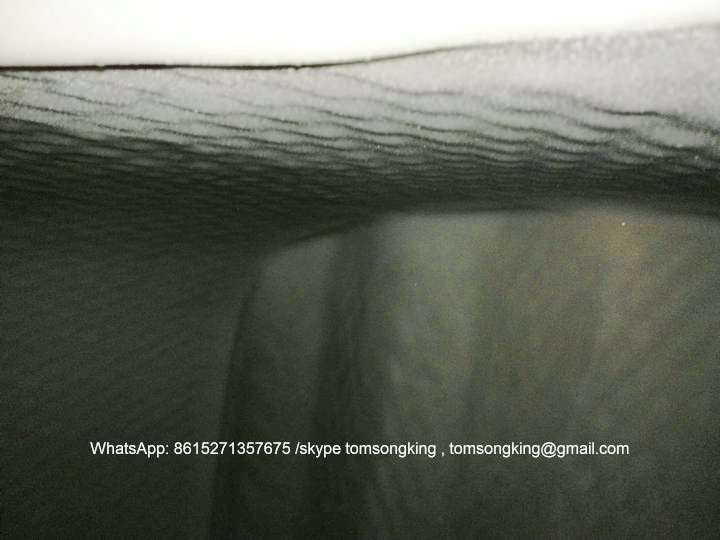

Carbon steel Shell 6mm inner lined 16mm PE
Walkway and top tank; steel ladder end of tank
Tank fittingsPE Manhole covers and spillbox, Bottom DN80 discharge system
PaintingSand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting; anticorrosive paint ( as client requirement)
AccessoryOne trailer tool box
