Straight Tank Trailer Manufacturers
CONTACT US
Website: www.truckinchina.com
Detailed Pictures
Trailer Model | 3 Axles Aluminum Oil Tank Semi Trailer |
Overall Dimension(Lx W x H)(mm) | 13000*2500*3650 |
Tank Volume(L) | 40000 |
Compartment | 4 |
Manhole Cover | Diameter is 500mm,Q235 material, 6 pieces |
Axle Brand | FUWA 13TON |
Axle Number | Three |
Suspension system | Mechanical suspension |
Steel Spring | 10 layers/set, with 13mm leaf thickness& 90mm leaf width |
Tank Information | The tanker body made of 6mm aluminum 5083, the front side head and back side head made of 7mm aluminum 5083 |
Tire Type | 12R22.5 |
Tire quantity | 12units |
Traction Pin | 50mm |
Remarks | With oil gas recovery system, loading system from down,with skid resistance board, with locks, with hand rail on the rear side and armrest on top both sides, with dip stick in the 6 compartments, loading and offloading pipe diameter is 4''(need to be on the left side), each compartment should be numbered with the fill capacity. |
Spare Wheel Bracket | 1 pieces |
Tool Box | 1 Unit |
Landing Gear | Two-speed, manual operation, heavy duty landing gear |
Brake system | none ABS. With parking brake switch |
Brake air chamber | Four double and two single chamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Painting | Original color |
Packing | Polish with wax before shipping |
Delivery way | Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume. |
3 axle 38 CBM 5 compartment aluminum semitrailer
Description of 3 axle 38 CBM 5 compartment aluminum semitrailer
The tank body is made of 6mm high-quality aluminum 5454 or 5083. With double bulkheads to Prevent leakage. And a plurality of anti-wave baffles are arranged in the tank body. High pressure gas leak test is adopted to ensure that the tank body has high strength, stable center of gravity and safe and stable vehicle transportation.Tank valves and fittings are imported from USA or American .Dixon ,Betts,Allegheny.
Advantages of 3 axle 38 CBM 5 compartment aluminum semitrailer
High quality
Aluminum tank trailer get DOT 406 report and obtained the ISO9001 international quality management system certification. Achieved foreign trade qualification granted by Chinese government.
Beautiful appearance
The tank body is made of aluminium alloy 5083. After forming, it will be polished. The outside surface of the tank is like a mirror. It is very beautiful and does not need any paint.

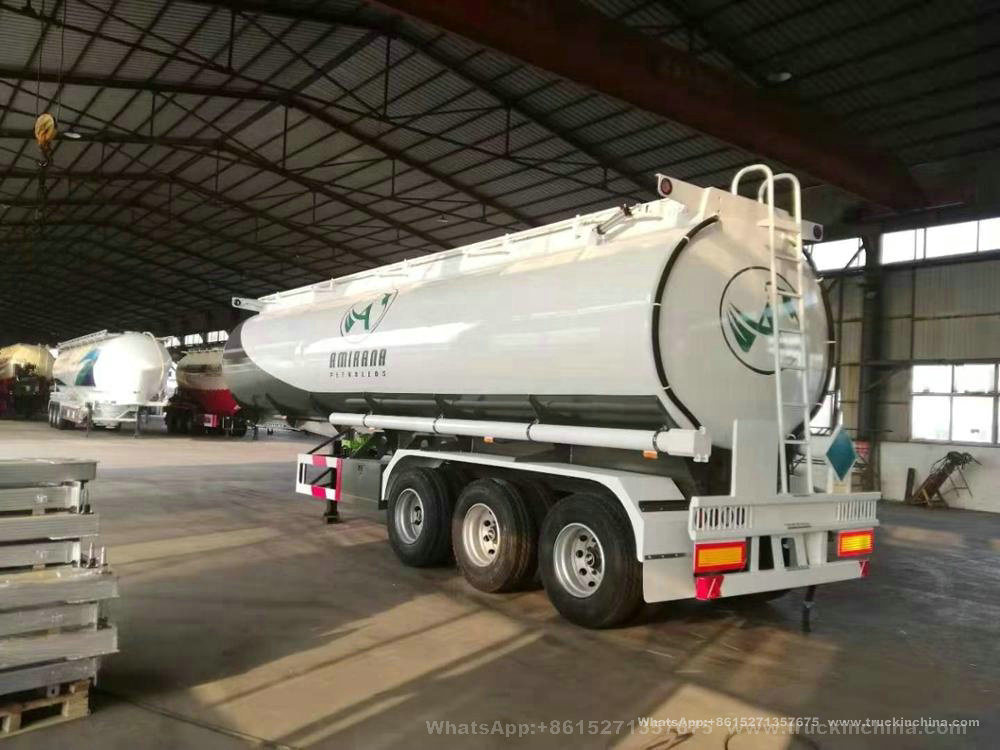

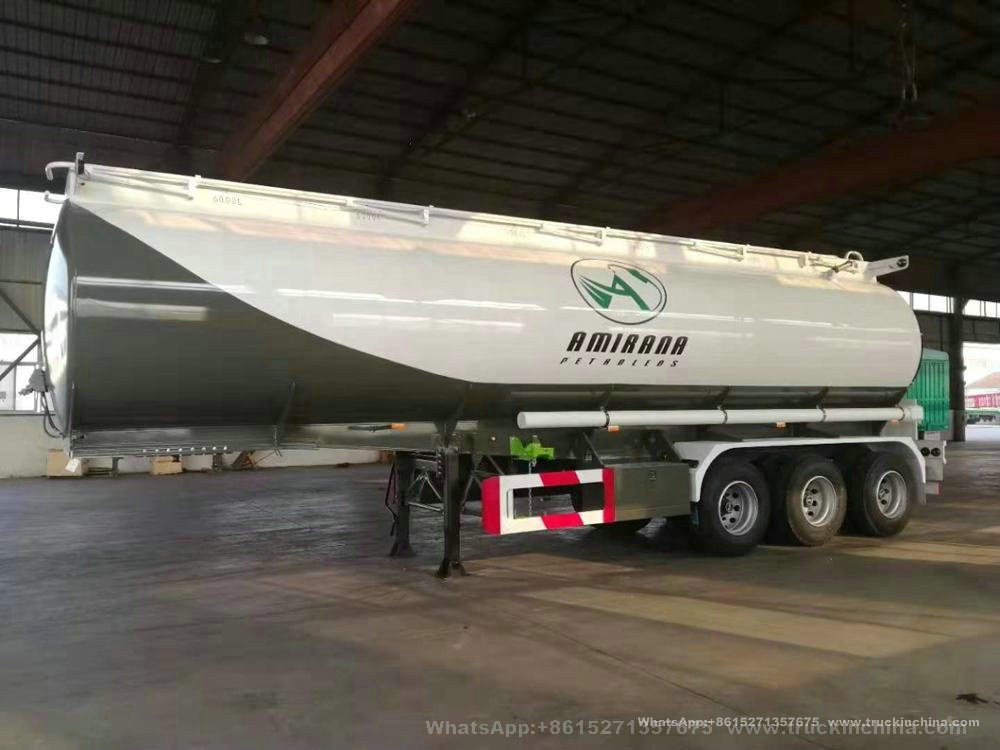

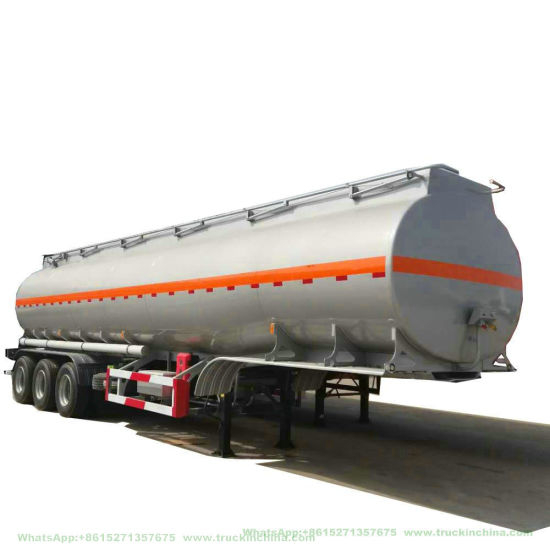

Aluminum Tank Trailer Aluminum Fuel Tanker Semi-trailer 3 axles, 36000L to 42000L
Tanker
Material Aluminium
Thickness of shell 7mm
Thickness of dish 7mm
Inside baffles 5mm
Compartments 5 to 7 compartments
Volume 40000L to 45000L+ 6% expansion

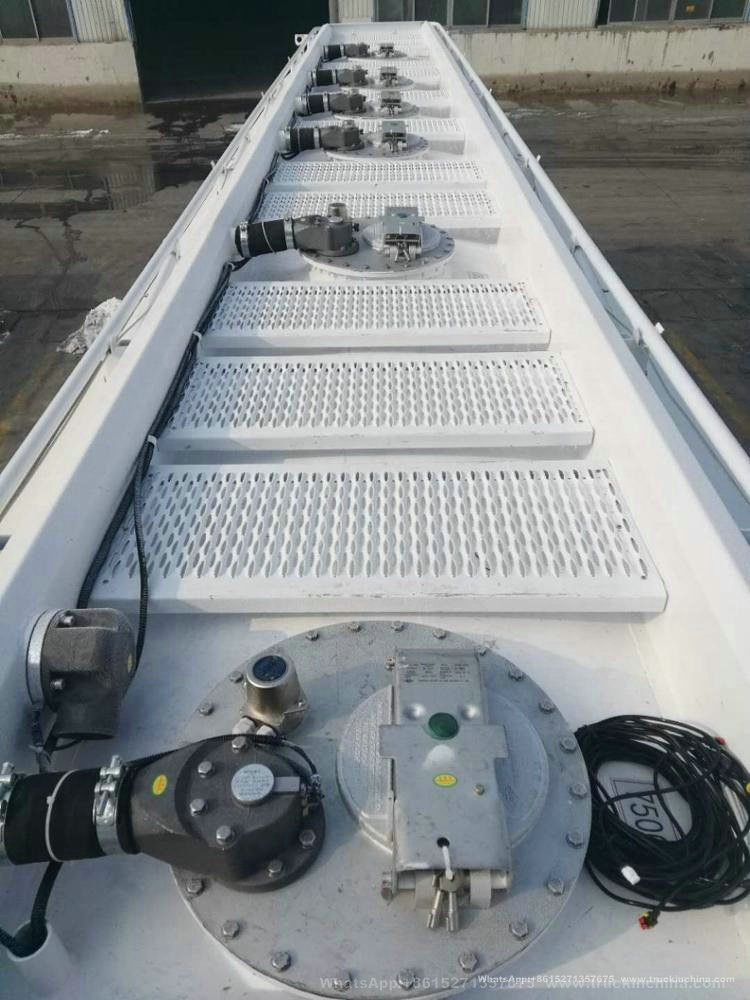

Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.

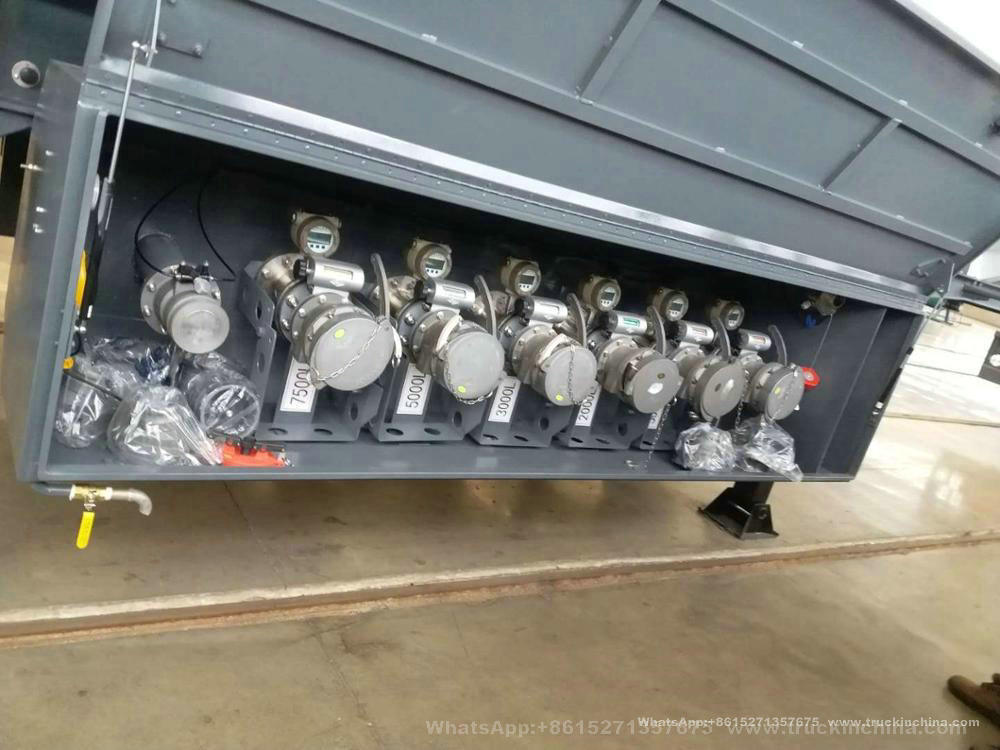

Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Running Gear
FUWA axle 13T*3 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
12+1 pcs tires 315/80R22.5 Tire (9.0*R22.5 steel rims)
3.5" Jost kingpin Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting.
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
