Shacman Heavy Duty Rotator Wrecker for Towing 50 Ton Truck Boom Lifting 25 Ton 12 Wheels
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T

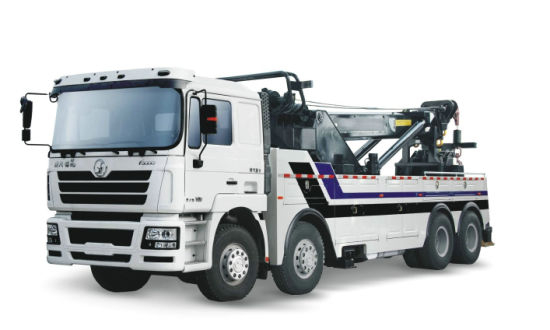

SHACMAN Heavy Duty Rotator Wrecker For Towing 50 Ton Truck 12 Wheels
Ask for better price
SHACMAN D'long 8*4 wrecker
Overall dimenssion: 10795*2500*3550
Wheelbase: 1800 + 4500 + 1350mm
Overhang(F/R): 1525/1620mm
Kerb weight: 25000kg
Total weight: 38000kg
Engine: WP10.380 (WEICHAI)
Rated power: 380hp
Gear box: 12JSD160T (Fast Gear)
Axle: 13 Ton double reduction-gear axle
Boom Lifting Capacity: 25 Ton
Boom Extension Range: 3100mm
Boom Lifting Height: 8800mm

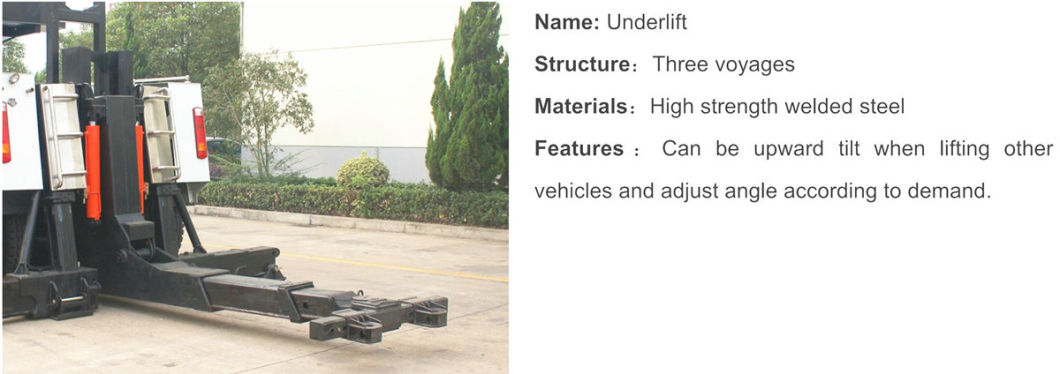

Underlift Lift & Draw Capacity: 25 Ton
Maximum Lift Capacity of Underlift: 16 Ton

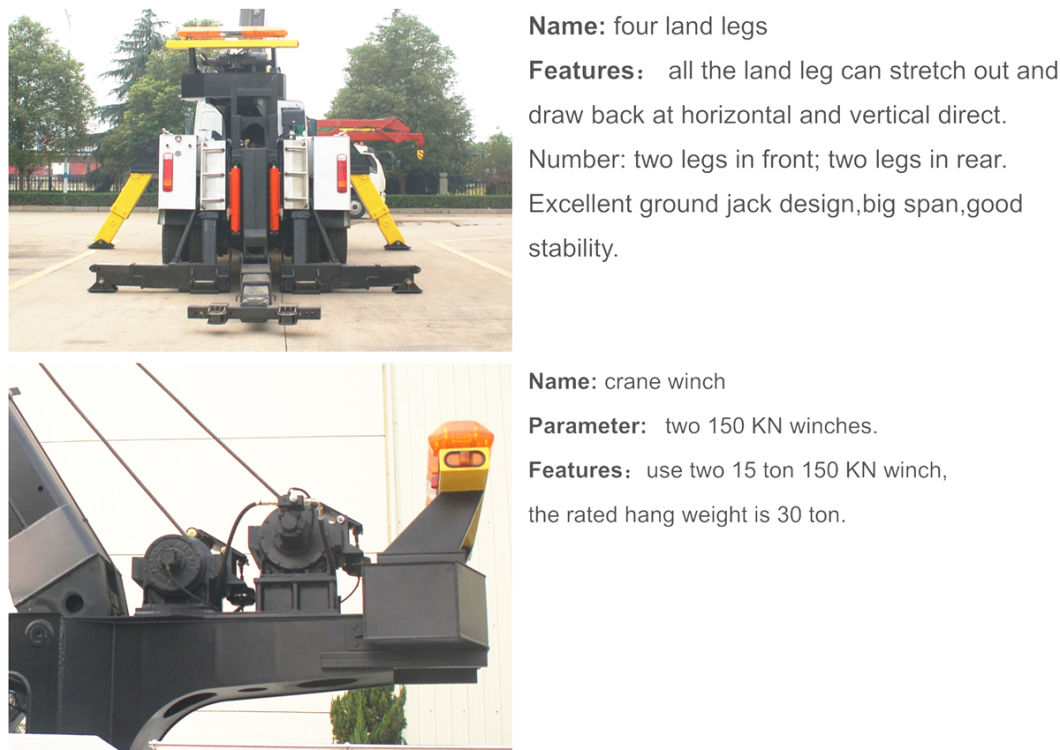

Outriggers: 2*150KN

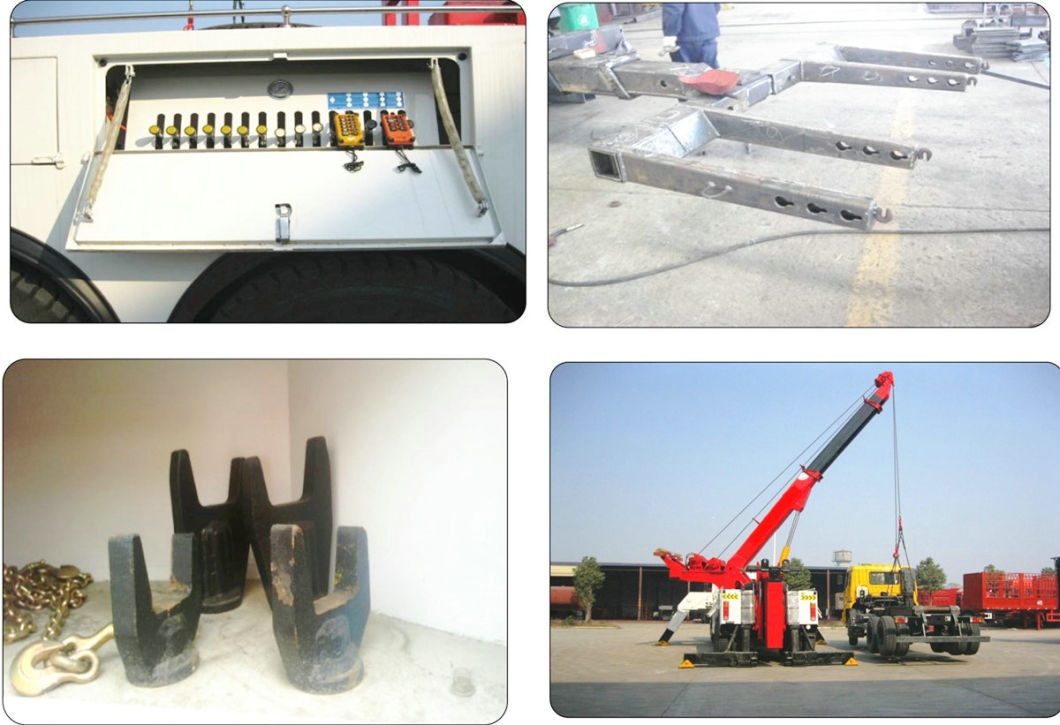

360 degree rotary wreckerdetails
The pictures are for your reference only.
SHACMAN 8x4 high tech 50tons loading capacity heavy duty road towing truck
Tech 1
| GVW31000kg Driving Type 8x4 | |||||
| Model | DRZ5313TQZZ | ||||
| Cab | Delong F3000 long a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, electronically controlled automatic constant temperature air conditioner, electric rocking window machine, ordinary air filter, air master seat, four point airbag, traveling data recorder | ||||
| Engine(Hp) | 375 | ||||
| Power(Kw) | 276 | ||||
| Wheelbase | 1800+4575+1400 | ||||
| Front/Rear Suspension | 1525/2220 | ||||
| Steering | Power steering | ||||
| Approach/departure angle | 16/14 | ||||
| Wheels & tire | 12.0R20 | ||||
| Tire number | 12+1 | ||||
| Loading capacity(kg) | |||||
| Plate dimension(mm) | no | ||||
| RHD or LHD | optional | ||||
| Overall Dimensions(mm) | 11520×2500×3500 | ||||
| Curb weight (Kg) | 22310 | ||||
| Engine | Model | WP12.375 | |||
| Horsepower | 375 | ||||
| Maximum output Kw | 276 | ||||
| Maximum torque N.m | |||||
| Type | 6 cylinders, in-line, diesel engine | ||||
| Displacement | 11.596L | ||||
| Weichai brand, Euro 4 | |||||
| Driving passenger | 2,3 | ||||
| Transmission | 12JSD180TA ,12 forwards,1 reverse | ||||
| Front Axle | 7.5T ,MAN | ||||
| Rear Axle | 16T ,MAN | ||||
| Brake System | air brake ,exhaust brake | ||||
| Color and LOGO | customized | ||||
| Electric system | 24V | ||||
| Major parameter | Winch capacity | 15000kg | Lift | three section | |
| Crane | 360° | Steel wire rope | 45m | ||
| Standard configuration | 2 unit of 15 ton winch, 1 unit of steel wire rope, with four sets of steel forks, a set of forks cover, a set of steel ear lifting forks, a set of tires. A long row of engineering lights. A set of auxiliary lights, a set of auxiliary air pipe assemblies 1 unit of spare tire, 1 unit of jack, famous hydraulic system, crane and others | ||||
| Delivery date | Within 20 days after receipt advance | ||||
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||||
Tech 2
8*4 Heavy Duty 30ton 40ton Winch Rotating Crane Wrecker Truck:
Cabin | A/C installed,2~3 persons,LHD | |
No load(kg) | Curb Weight | 28005 |
Front axle | 7000 | |
Rear axle | 18000*2 | |
Full load | Max. Overall Weight | 31000 |
Overall Dimensions(mm) | Length | 10900 |
Width | 2500 | |
Height | 3450 | |
Wheel base(mm) | 1800+4575+1400 | |
Track(mm) | 2022/1830 | |
F/R Suspension(mm) | 1500/2200 | |
A/D Angle(°) | 16/25 | |
Driving Model | 6*4 | |
Tyre | 12.00R20 steel tire | |
Max. Speed(km/h) | 102 | |
Max. Grade-ability(%) | 30 | |
Min. Turning Diameter(m) | 22.6 | |
Min. Ground clearance(mm) | 310 | |
Engine | Model | WP10.336 |
Power(kw) | 247 | |
Displacement(mL) | 9726 | |
Transmission | 10 forwards&2 reverses | |
Tech 3
| Wrecker structure parameters | ||
| Maximum under-pulling capacity (kg) | 40000 | |
| Maximum hoisting-pulling capacity (kg) | 20000 | |
| Furthest hoisting-pulling capacity (kg) | 6000 | |
| Telescopic stroke of boom (mm) | 3300 | |
| Maximum hoisting height (mm) | 6500 | |
| Maximum lift angle (°) | 35 | |
| Rated tractive force of winch (kN) | 80 | |
| Number of winch | 2 | |
| Maximum under-hoisting capacity (kg) | 7200 | |
| Maximum under-hoisting capacity in full-extension condition (kg) | 5000 | |
| Maximum efficient under-hoisting length (mm) | 3900 | |
| Telescopic stroke of support arm (mm) | 925x2 | |
| Folding angle of support arm (°) | -7~+92° | |
| Kerb mass of entire vehicle (Kg) | 17400 | |
| Equipment | High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch, tool case, manual operation device, two floodlight, one alarm lamp and basic accessories | |
Wrecker Equipment | |||
Max. Towing Weight(kg) | 25000 | ||
Lifting System | Max. Lifting Weight(kg) | 7470 | |
Max. Lifting Weight under all extension(kg) | 5500 | ||
Lifting Weight in Situ(kg) | 16000 | ||
Effective Length of Corbeling Arm(mm) | 1460~3099 | ||
Extend-retract of Corbeling Arm(mm) | 1639 | ||
Slope Angle of Corbeling Arm(°) | 7 | ||
Folding angle under no load(°) | -7~93 | ||
Folding angle under load(°) | -10~2 | ||
Max. Ground Distance(mm) | 900 | ||
Hoisting System | Max. Hoisting Weight(kg) | 16000 | |
Max. Hoisting Weight under all extension(kg) | 8000 | ||
Extension Distance of Oil Cylinder(mm) | 3300 | ||
Length of crane Arm(mm) | 8470 | ||
Max. Hoisting Height(mm) | 6500 | ||
Max. Hoisting Angle(°) | 5.0~33 | ||
Winch | No. | 2 | |
Curb Traction/Per(KN) | 100 | ||
DN of Steel Rope(mm) | 18 | ||
Length of Steel Rope(m) | 40*2 | ||
Min. Line Speed(m/min) | 5 | ||
Outrigger | No. | 2 | |
Outrigger Span(mm) | 1440 | ||
Landing Strength(KN) | 80*2 | ||

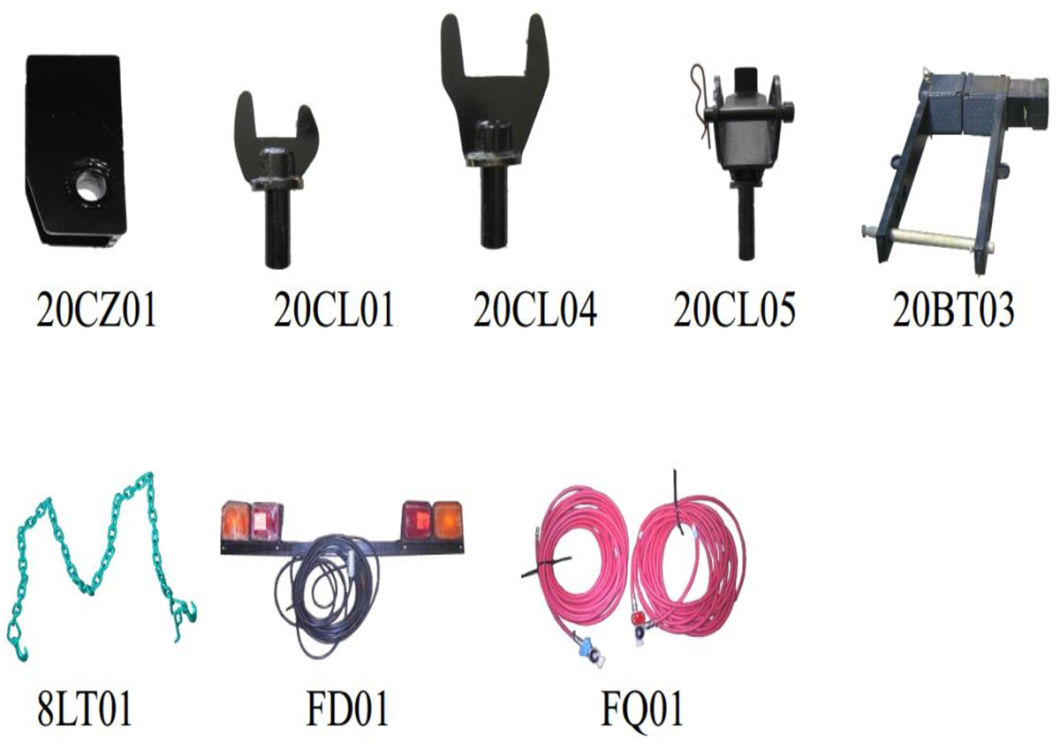

Lifting Forks | 5 pairs | ||
Lifting fork base | 1 pair | ||
Jump-start cables | 12~24 Volts | ||
Electric system | Rear working lamp(stop,tail,turning) | 3 | |
Revolving beacon | 1 | ||
Lamps for license plate | 1 set | ||
Pneumatic hoses | 1 set | ||
Key Parts | Multitandem Valve | Italy Hydro control | |
Balance Valve | Italy Hydro control | ||
Bump | Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd | ||
Hydraulic cylinder | Germany Rexroth technology and exported sealing rings | ||
Hydraulic Winch | Jiashan Huachuang Hydraulic technology Co., Ltd. | ||
Hydraulic Hose | Tianhe,Guangdong Province | ||
Hydraulic Joint | Germany technology and exported Sealing rings | ||
Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||
Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||
Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||
