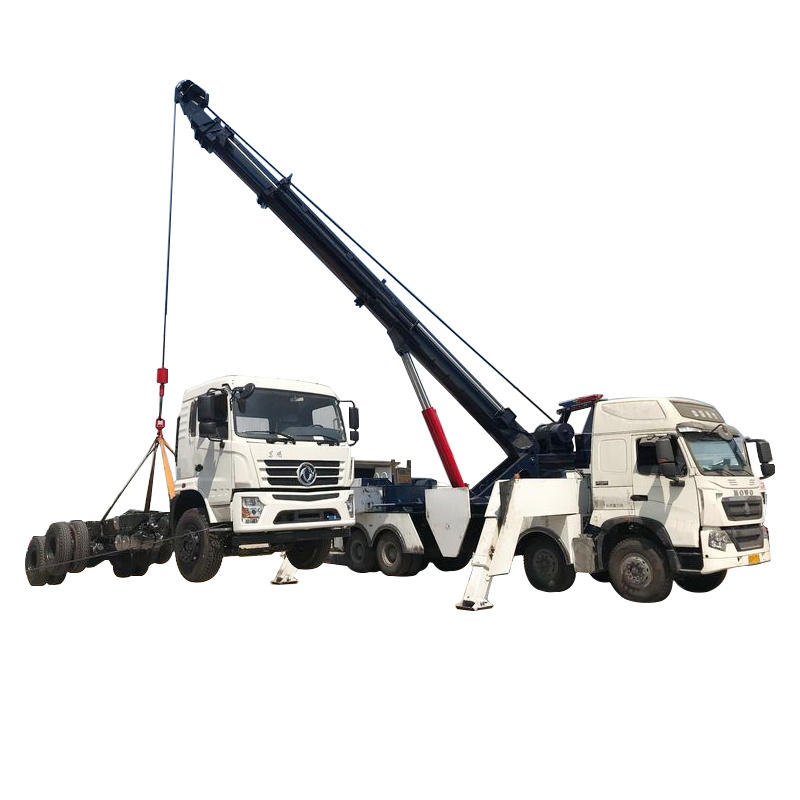

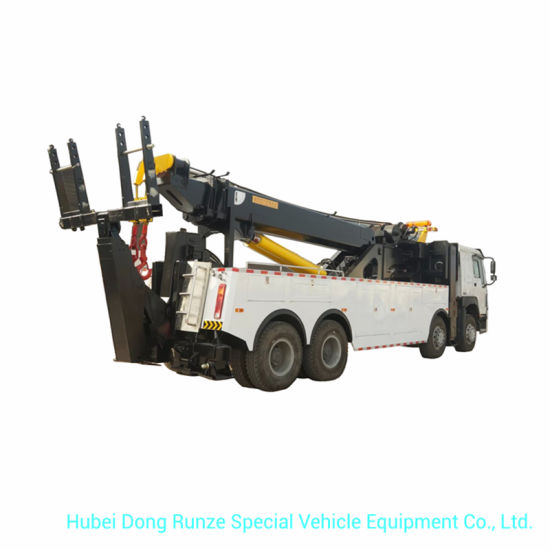

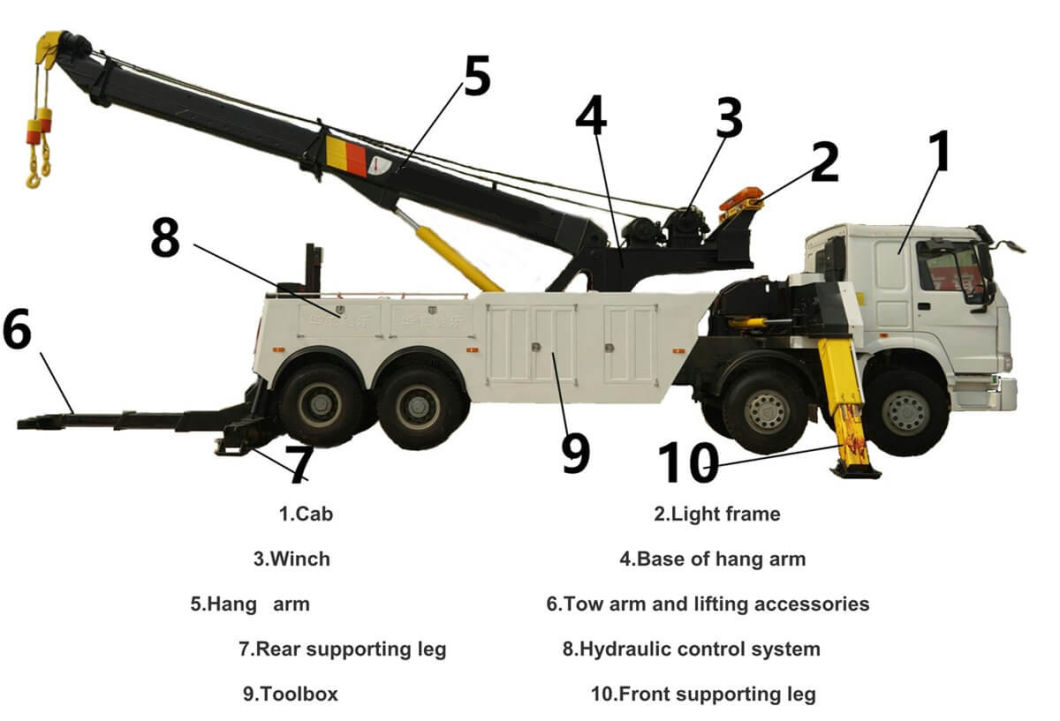

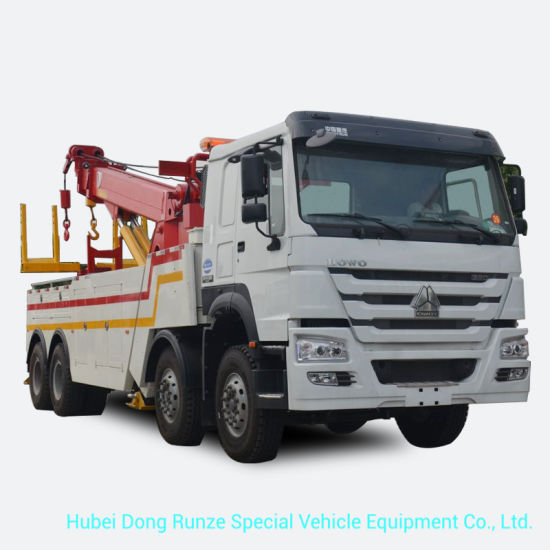

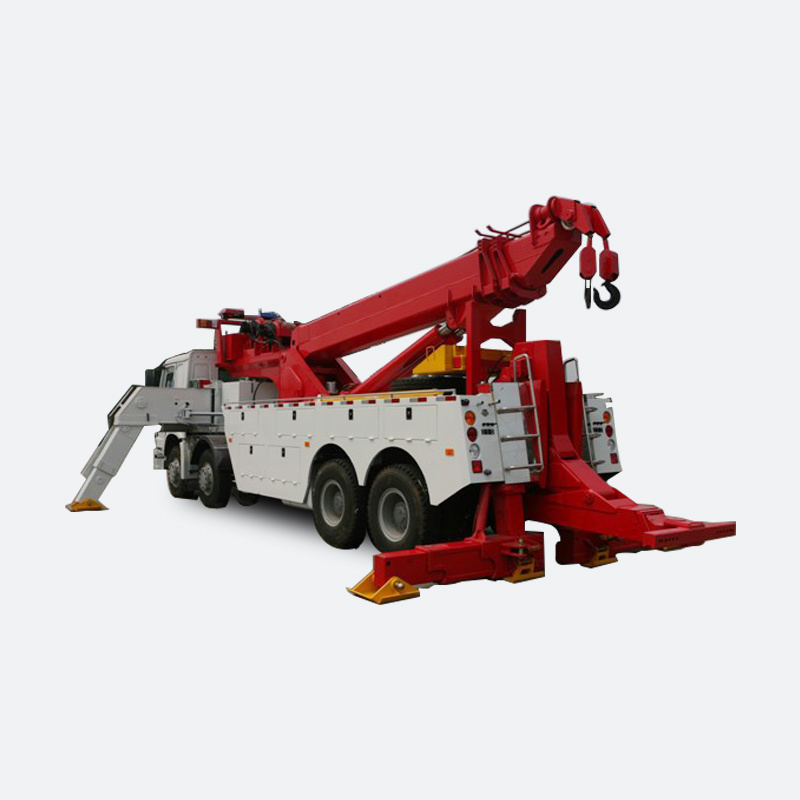

Sino Truck HOWO 360 Degree Rotation 50 Tons Heavy Duty Wrecker
Sino Truck HOWO 360 Degree Rotation 50 Tons Heavy Duty Wrecker
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T
Sino Truck HOWO 360 Degree Rotation 50 Tons Heavy Duty Wrecker
Ask for better price
360 degree rotary wreckerdetails
| Wrecker | Overall Size | 10925x2496x3600 mm |
| Curb Weight | 28620 kg | |
| Wheel Base | 1800+4600+1350 mm | |
| Front/Rear Overhang | 1500/1675 mm | |
| Approoach/Departure Angle | 14/15 degree | |
| Steel Spring | 11/11/12 | |
| Front Track | 2041/2041 mm | |
| Rear Track | 18530/1830 mm | |
| Max Speed | 102k m/h | |
| Chassis | Chassis Model | ZZ1317N4661V |
| Engine | WD615.69 | |
| Power | 247 KW | |
| Main Boom | Max Lifting Weight | 50000 kg |
| Max Lifting Height | 111000 mm | |
| Swing Angle of Boom | 360 degree | |
| Max Lifing Angle | 50 degree | |
| Winches Capacity | 20 ton | |
| Winches Number | 2 | |
| Front Rear Leg Track | 7360mm | |

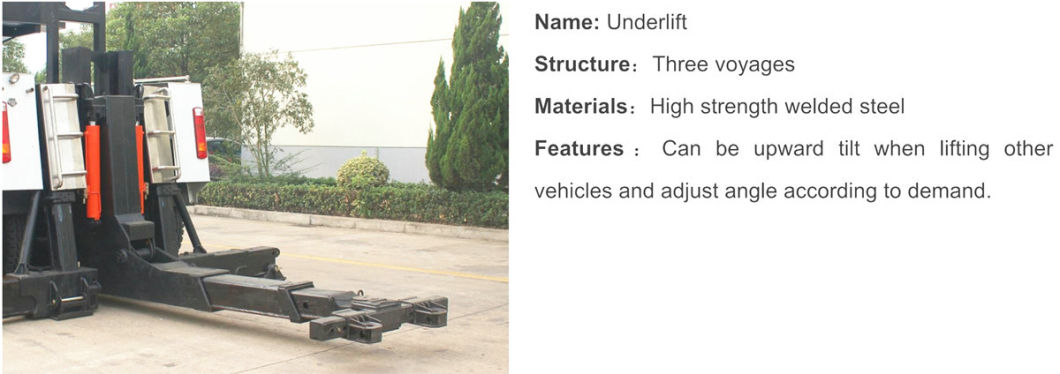

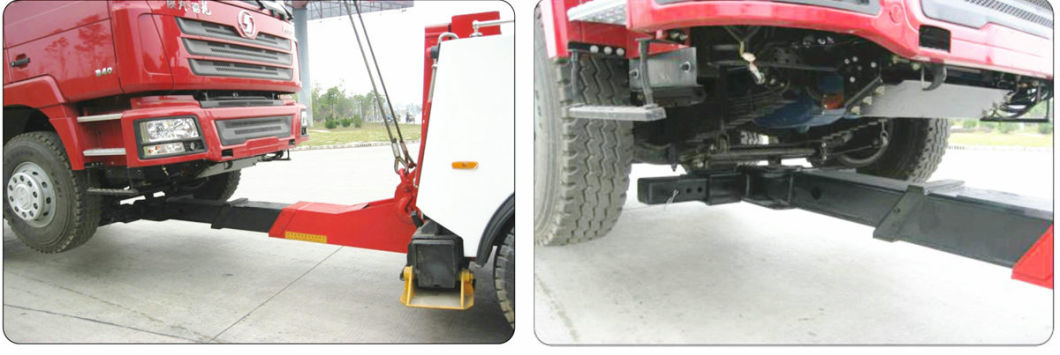

| Under-Lift | Original Lifting Weight | 50 ton |
| Rated Lifting Weight | 30 ton | |
| Extend Rated Lifting Weight | 12.5 ton | |
| Max efficient Length | 3870mm | |
| Front Leg Track | 6500mm | |
| Rear Leg Track | 4224 |
The pictures are for your reference only.

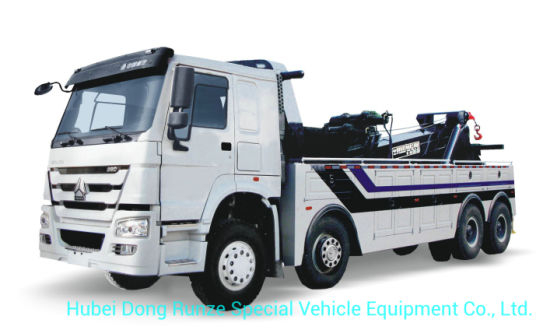

HOWO 8*4 Heavy Duty 30ton 40ton Winch Rotating Crane Wrecker Truck:
| Cabin | Driving type 8x4, Right hand drive | |||
HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for ref. | ||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11460×2500×3270 | ||
| Wheel base (mm) | 1800+4600+1350 | |||
| Wheel track (front/rear) (mm) | 2022/1830/1830 | |||
| Approach/Departure angle(°) | 16/18 | |||
| Weight in KGS | Tare Weight | 24870 | ||
| payload | 30000 | |||
| Front axles loading capacity | 2x9000 | |||
| Rear axles loading capacity | 2x16000 | |||
| Engine | Brand | Sinotruk | ||
| Model | WD615.47 | |||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 371 | |||
| Emission standard | Euro | |||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |||
| Tire | 12R22.5 tubeless tire with one spare | |||
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |||
| Steering | ZF8098 | |||
| Oil tank | 400L | |||
| Special Device For Wrecker System | ||||
| Hoisting Organ | Rated under-pulling capacity | 40000 | ||
| Max Under-hoisting Capacity (kg) | 16000 | |||
| Max Under-hoist length (mm) | 1630 | |||
| Under hoisting work angle | -10~85° | |||
| Lifting Organ | Max lifting capacity(kg) | 30000 | ||
| Max lifting high(mm) | 12000 | |||
| Telescope length(mm) | 6000 | |||
| Winch | 15000kgs×2 | |||
| Steel rope | 50M,Φ22 | |||
| Crane luffing angle | 5°~ 60° | |||
| Crane rotation angle | 360°All Rotation | |||

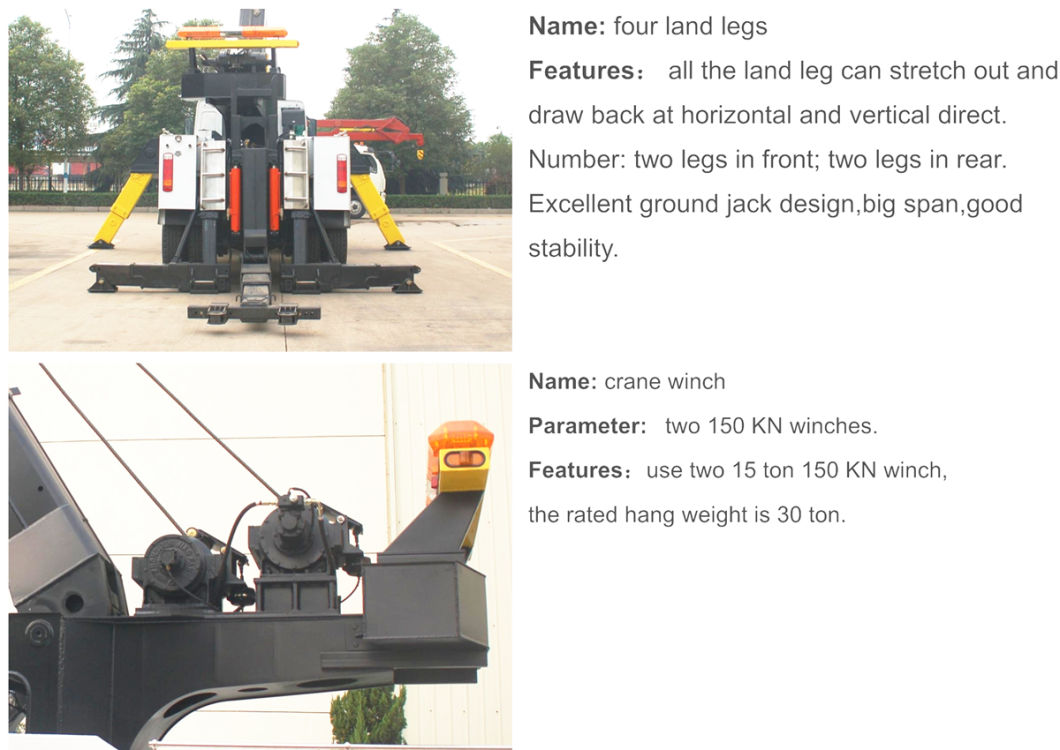

Landing Leg | Distance between front legs(mm) | 6100 | ||
| Distance between rear legs(mm) | 4000 | |||
