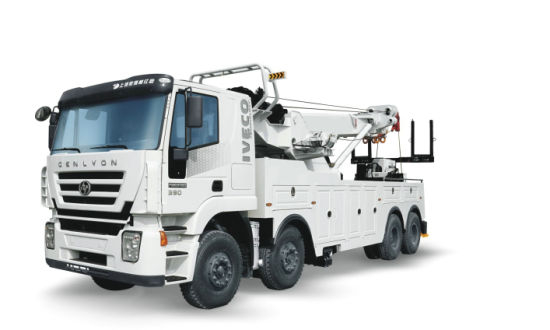

Iveco. Genlyon Recovery Trucks Heavy Duty Wrecker 50tons with Remote Control Rotatory Crane Wrecker for Towing Truck
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T
Ask for better price
Tech 1
Max under-pulling capacity 40000kg
Max under-hoist useful length 1630mm
Max lifting capacity 30000kg
Max lifting high 12000mm
Lift-hoist telescope length 3000+3000 mm
Winch rating pulling capacity 15000kg , 2pcs
Length of steel 45m

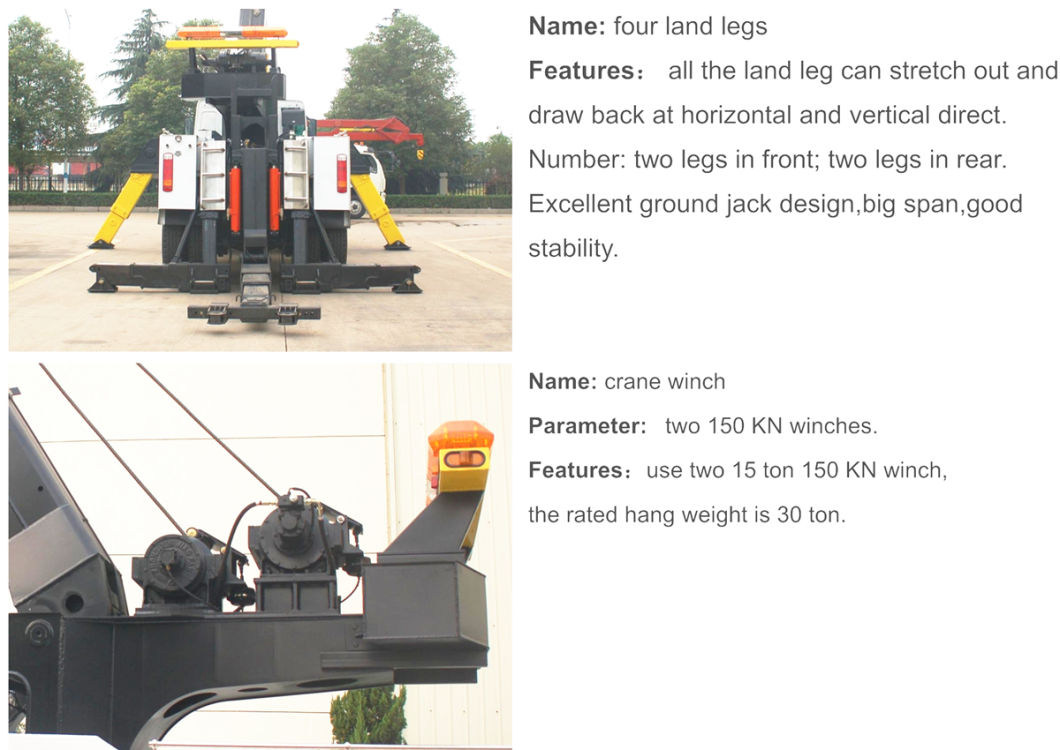

Distance between front legs 6100mm
Distance between rear legs 4200mm
2. flat bed model is mainly designed for cars, which could transport two units cars, with the weight design 5 tons around.
Tech 2
Boom Lifting Capacity: 25 Ton
Boom Extension Range: 3100mm
Boom Lifting Height: 8800mm

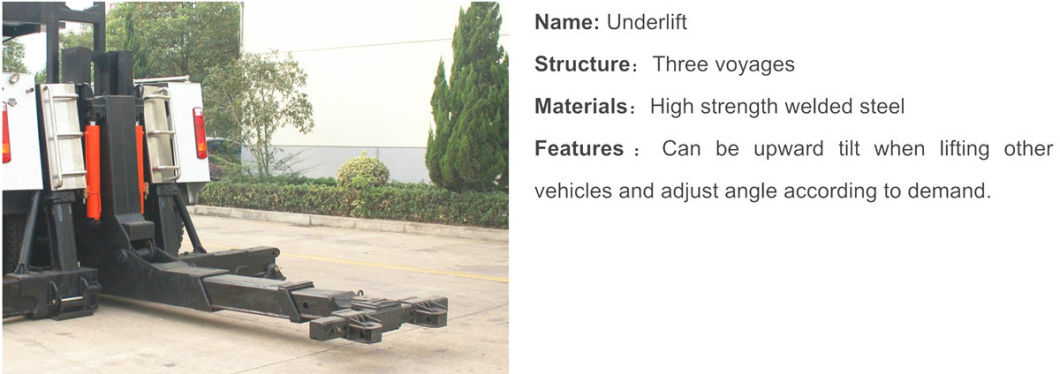

Underlift Lift & Draw Capacity: 25 Ton
Maximum Lift Capacity of Underlift: 16 Ton
Outriggers: 2*150KN
360 degree rotary wreckerdetails

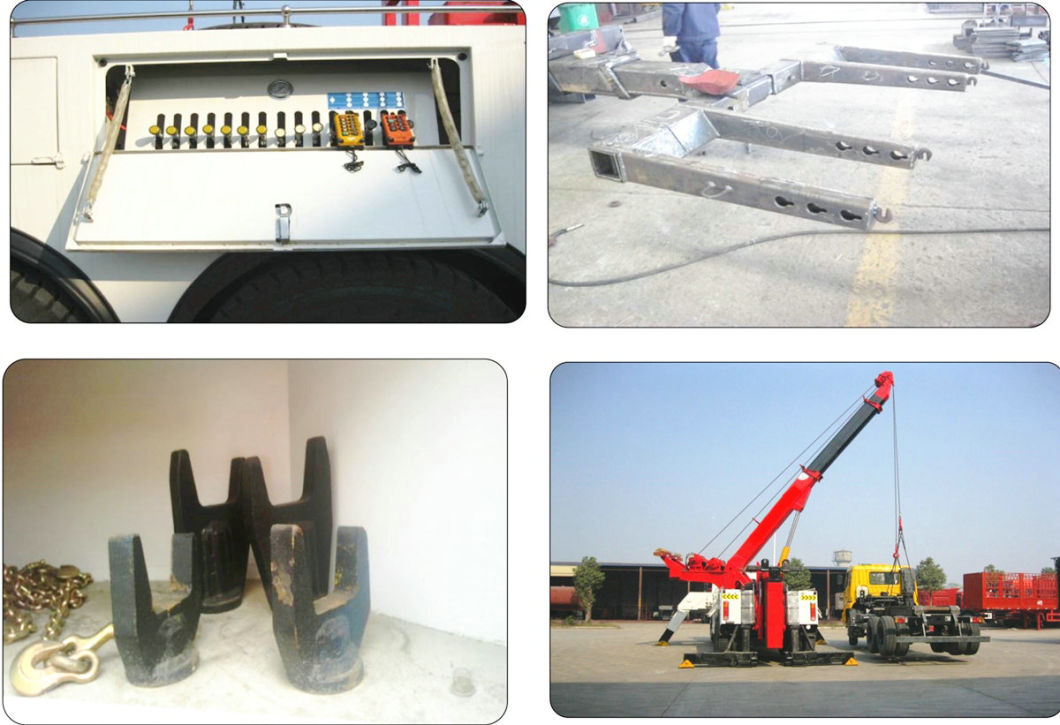

The pictures are for your reference only.
Tech 1
Vehcile information list | |||
Truck brand | Genlyon | ||
Truck model | CQ3254HTG384 | ||
Total mass | 25000 | Vehicle size | 8285×2500×3510 |
Rated mass | 12780 | Box size | 5600×2300×1500 |
Curb weight | 12090 | Cabin seat | 2 |
A/D angle | 23/20,23/18,23/16 | F/R hang | 1435/1675,1435/1765,1435/1865,1435/2175 |
Axles | 3 | Wheel base | 3825+1350,3775+1400 |
Axles loading | 7000/18000(rear double axles) | Max speed | 80 |
Ground clearance | 500mm | ||
Chassis information list | |||
Chassis model | CQ3254HTG384 | ||
Tyre quantity | 10 | Tyre size | 12.00R20 radial tyre |
Leaf spring quantity | 9/12,3/4,5/6 | Front track | 2006 |
Fuel type | Diesel | Rear track | 1850/1850 |
Standard | Euro III | ||
Engine model | F2CE0681C*B052 High pressure common rail system Efl engine 4-stroke 6-cylinder | Displacement/power | 9726ml/250kw |

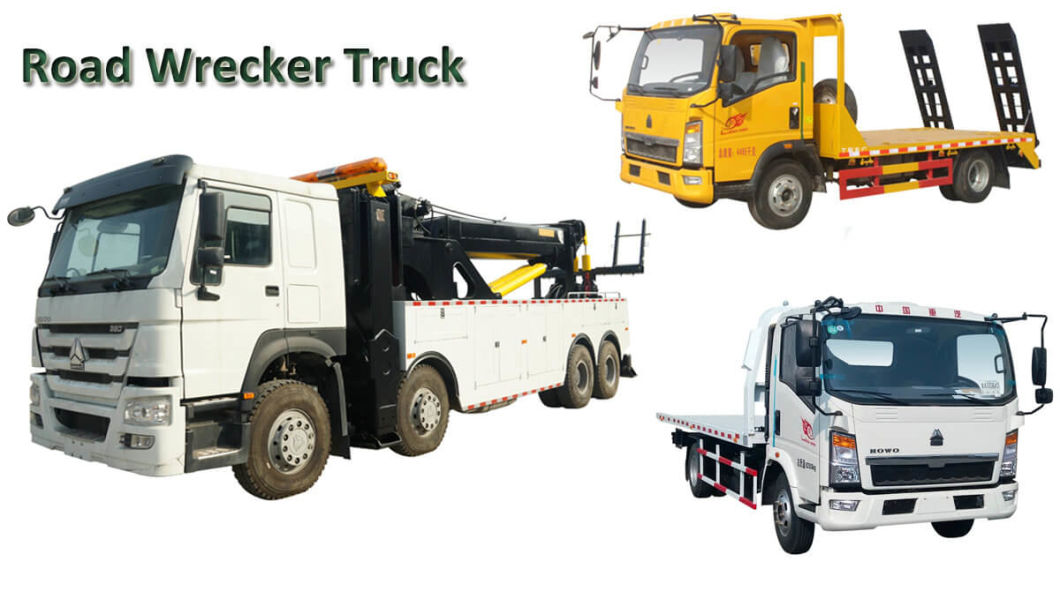

There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :
First type : Boom towing truck
- use adjustable arms and winches to retract vehicles from ditches, embankments, or any vehicle that cannot arrive safely. Some booms are fixed, some heavy rotating racks, hydraulic telescopic tubes, others. In the past boom, trucks used the "hook chain" system, the chain around the frame or axle, and then hoisted by the winch. A heavy rubber pad is attached to the truck and truck so that it can be towed onto other bridges." Slings and belts are an evolution, replacing parts of chains with rubber belts. slings did not use too much today because they could shave bumper cars. But they are sometimes used in wrecker accidents carrier or have one or two front wheels or rear wheels missing or pickups and other vehicles have steel bumpers. Equipped with all wheel drive, the truck is towed away, unable to use the machine string, because it can make the car power transmission system problems.
Second type :Wheel lift wrecker towing truck

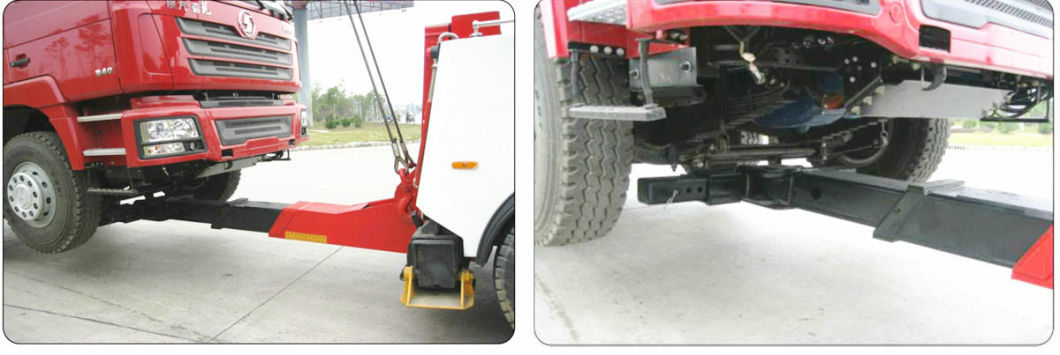

(also called "glasses") - from the chain hook technique to generate a large metal frame, can be installed in the front or rear under the cradle, rendering vehicles by pneumatic or hydraulic hoist can drag the ground clear front or rear. The device usually picks up the wheel of the vehicle (i.e., front wheel, if it is front wheel drive, rear wheel, if it is rear wheel drive), and contacts the tire. wheel lift wrecker tow truck are common in china; cradles are like glasses. Medium and heavy-duty trucks use variations, "underlift" or "chassis lift", in which the elevator shaft or frame is not the wheel. A forklift truck can be used as an adapter or a lift chassis.
Third type :Integration towing truck (also known as "Self Loader wrecker equipment", "Snatcher towing vehicle", "quick choice tow truck" or "roll back wrecker") - the arm and wheel lift together. Used of light trucks to recover or stop vehicles. Most of the truck's cab equipment is controlled so that the pickup truck does not leave the truck to connect the vehicle. heavy trucks are also manufactured using integrated lifts.
Forth type --Flat plates wrecker truck (also known as "rolling back tow truck" or "sliding tow truck") - the entire back of the truck is fitted with a bed that can be hydraulically tilted down to the ground, allowing the vehicle to be placed under its own power or pulled up by the winch. [9] because they carry, rather than traction vehicles, it can be completely fixed; in the United States, they carry serious damage to car accidents.
Fifth type ---Lifting platform wrecker truck the derricks lift the vehicle vertically and use the wheel lift to load it on the bed. In Europe, this car can eliminate the parallel parking of vehicles.
