P6 Outdoor Mobile LED Billboard Truck Forland (Vehicle Mounted LED Screen) for Advertising P8. P10 Full Color Screen, 4800X2080mm
| Quantity: | |
|---|---|
-
DRZ5
-
FOTON
-
8705
-
Shanghai, China
-
3000
-
T/T
P6 Outdoor Mobile LED Billboard Truck Forland (Vehicle Mounted LED Screen) For Advertising P8 .P10 full color screen ,4800x2080mm LED Display Truck
LED dispaly truck could be customerized: Cinema Displaying Vehicle
a. for the LED screen ,you can choose single color or full color , P6,P8 or P10.
b. also you can choose Rolling lights boxes for painting pictures.
c.Led screen could be lifting by hydaulic ;
Welcome to send your requirements to me ,we will give your details with offer within 24 hours !

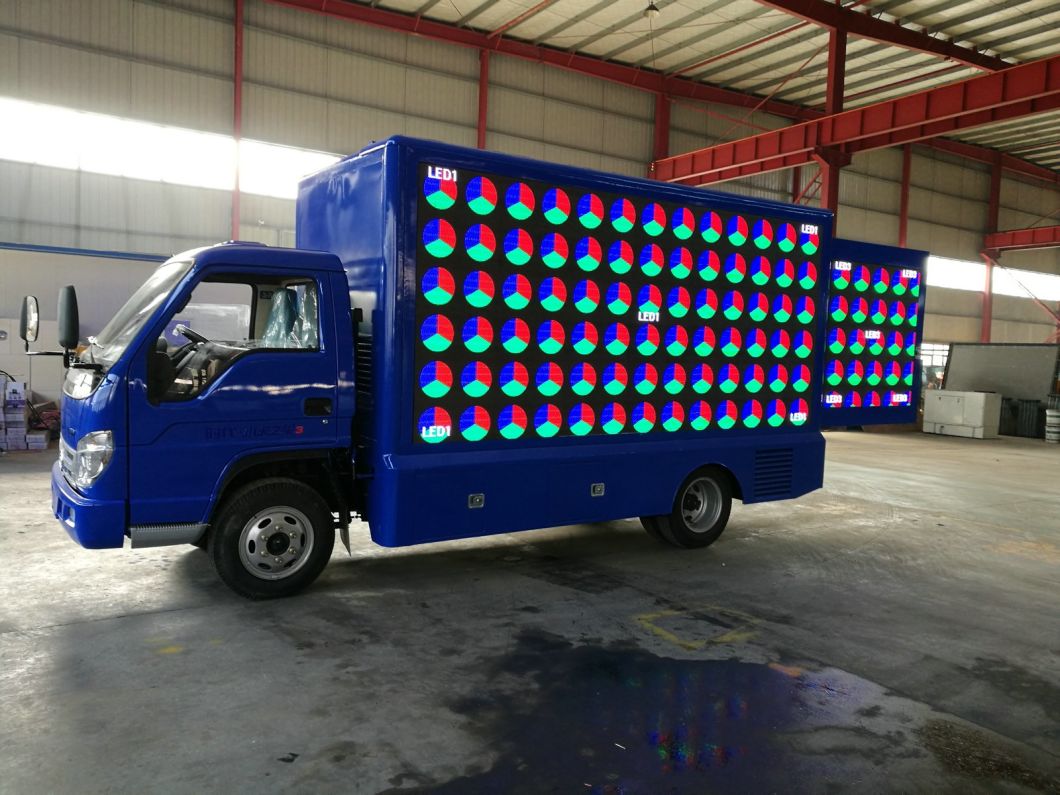

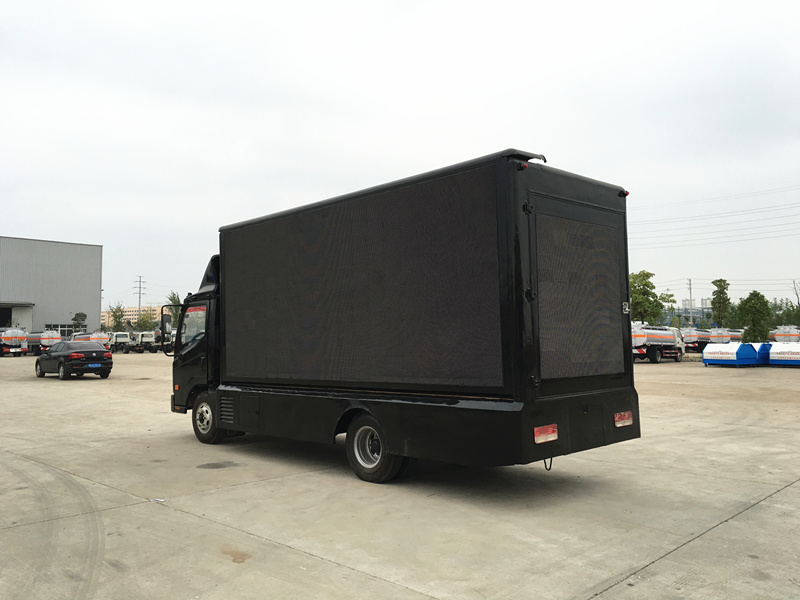

P6 Full color LED screen Truck

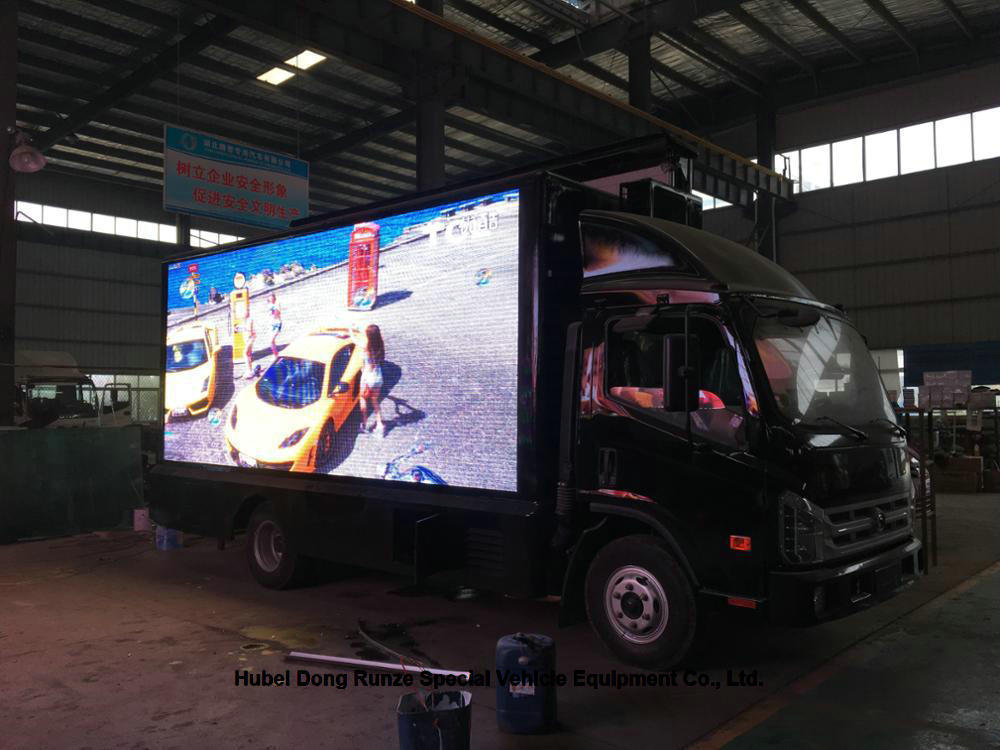

1.LED Truck's right Side:

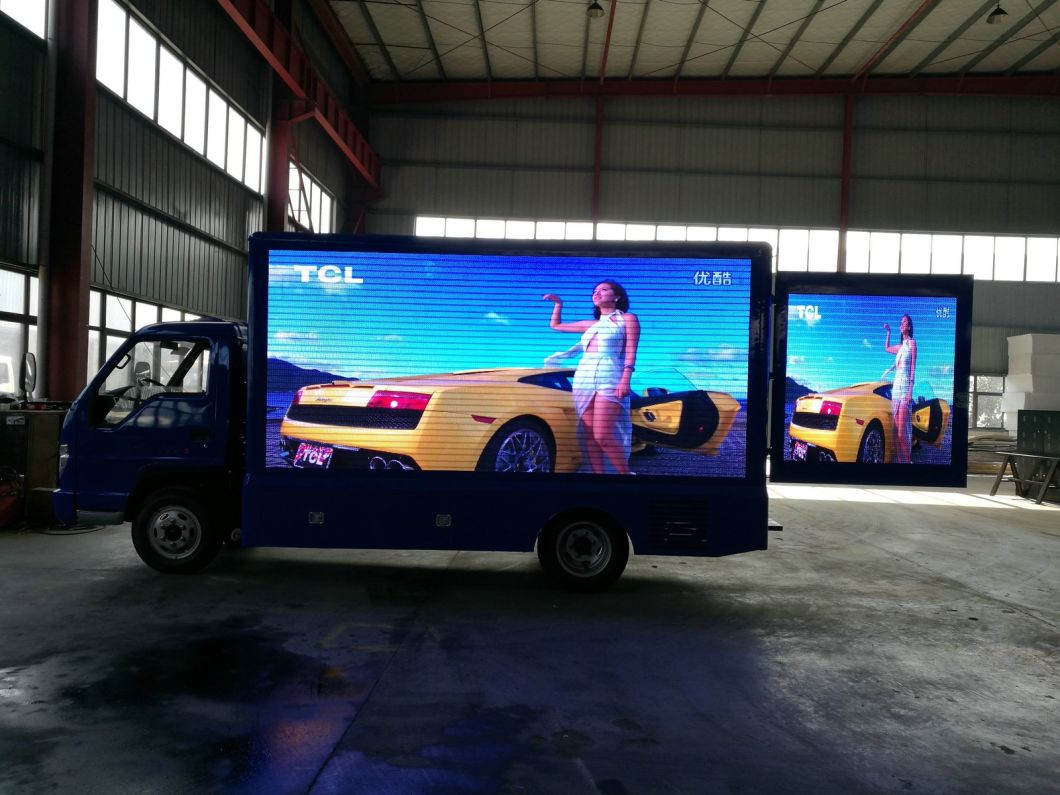

1) P8 Outdoor Full Color Waterproof LED Display Screen size: 4800x2080mm, to play the Videos for advertising and Movies.

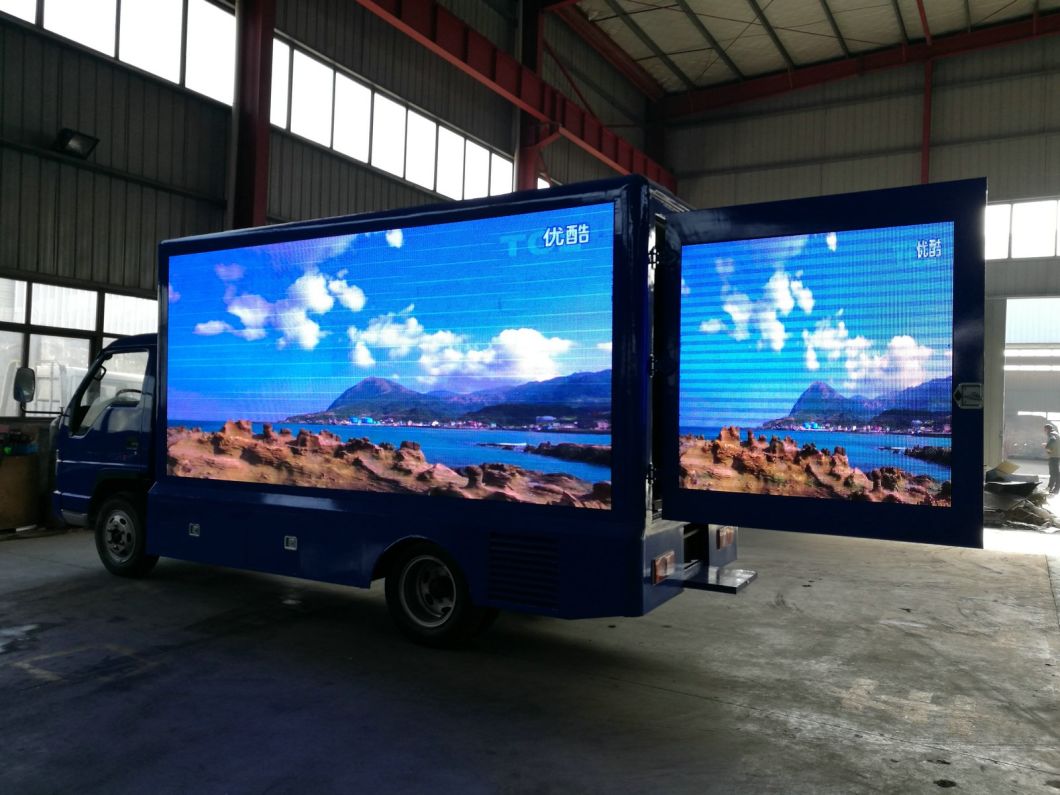

2) LED Display with Hydraulic Cylinder System that has the Route 1.5m High.
| tems | Descriptions | Specifications and Types |
| General | Truck Name | LED Advertising Truck |
| Drive Type | 4*2 | |
| Gross Vehicle Weight(kg) | 7140 | |
| Curb Weight (kg) | 5945 | |
| Overall Dimensions L*W*H(mm) | 7450×2380×3350 | |
| Engine | Engine Brand | Chaoyang |
| Fuel Type | Diesel | |
| Power | 92kw/125HP | |
| Emission Standard | Euro IV | |
| Displacement(ml) | 3900 | |
| Engine Type | 4 cylinders in line,water cooling, super charged ,inter-cooling,diesel engine | |
| Chassis | Chassis Brand | FOTON |
| Truck Cab | Flat roof, single cab with A/C | |
| Tire No. | 6 | |
| Tire Specification | 7.50R16 Radial tire | |
| Wheelbase (mm) ; | 3800 | |
| Steering Wheel | Left hand drive | |
| Gear Box | 5 speed forward with 1 reverse, manual | |
| Brake | Oil brake | |
| Radiator | Suitable for tropical climate | |
| Screen | Left Side | P8 full color screen ,4800x2080mm |
| Right Side | P8 full color screen ,4800x2080mm | |
| Rear Side | P8 full color screen ,1600x1600mm | |

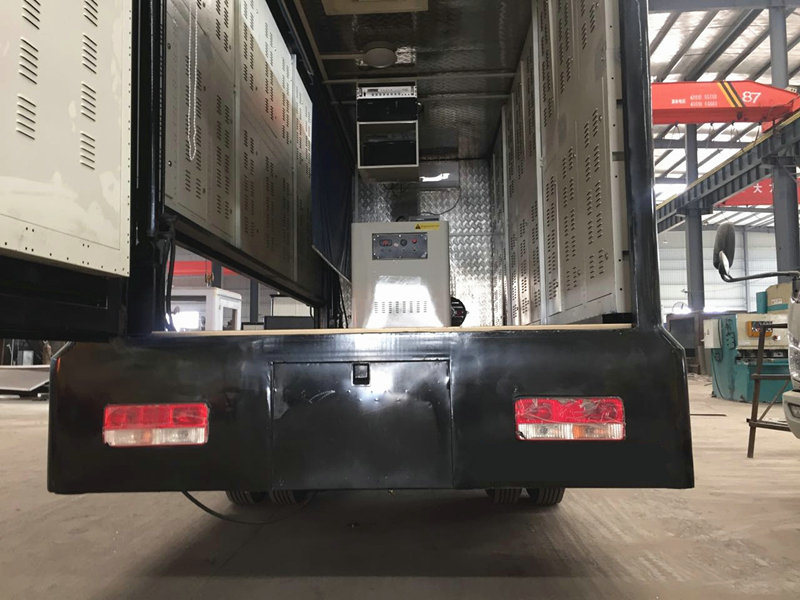

| Remarks | 1.Details of the LED cabinets : 1) Equipped with DELI 25kw super silent generator 2) ACER computer console 3) Malata 2x60W water-proof column loudspeaker 4) high power amplifier 5) With A/C in LED cabinet 6) Interior light 7) Front cabinet with cooling fan and shutters 8) Pattern aluminum plate roof and high quality wood floor 9) 2 ventilation outlet on roof 10) 220V external power outlet, plug, power cord 11) Retractable step on rear door | |

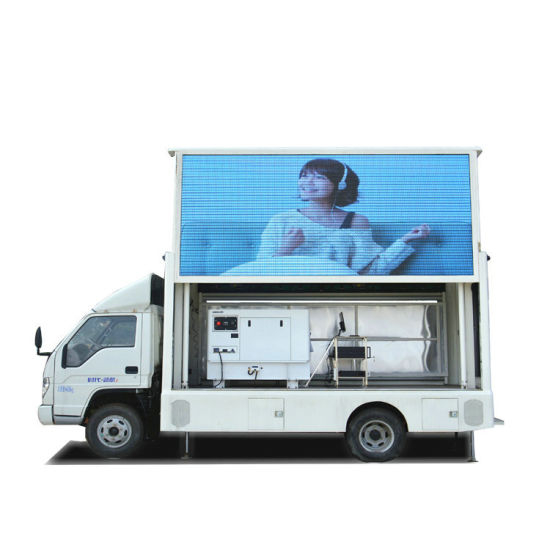

| 2.One side of led screen can be lifted by hydraulic. Lifting height : 1.5m | ||
Product price should be configured with different vehicles and different coat materials, we recommend that you contact us.
| billboard truck | ||
| # | Descriptions | Specifications and types |
| General | Truck Brand | DRZE |
| Chassis Brand | FOTON | |
| Approx. Dimension | 5430*1900*2750 mm | |
| GVW./Kerb Wt. | 3985 / 3855 kg | |
| Cab | Cab Capacity | 2 persons' seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,left hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | QUCHAI | |
| Power | 80 Ps / 60 KW | |
| Displacement | 2156 ml | |
| Emission Standard | Euro II or EURO III or EURO IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 2700,2800,3000 mm / 2 | |
| Tyre Specfication | 6.00-14,6.00-15 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Automative metallic paint | |
| Structure& Function | Equipped : one side P10 waterproof color screen , the other side many pictures automobile switcher light box advertising ,5mm steel frame box,wooden floor,internal and external electric distribution box,circulating ventilation cooling system,mute diesel alternator ,a control system working by computer,4 sets of waterproof sound, one power amplifier, one console. | |
LED Billboard Truck Box Boby Customizing
led screen left and right size 3840*1760mm ( 6.8m2) | rear door led screen size 1280*1440mm (1.84 m2) | ||

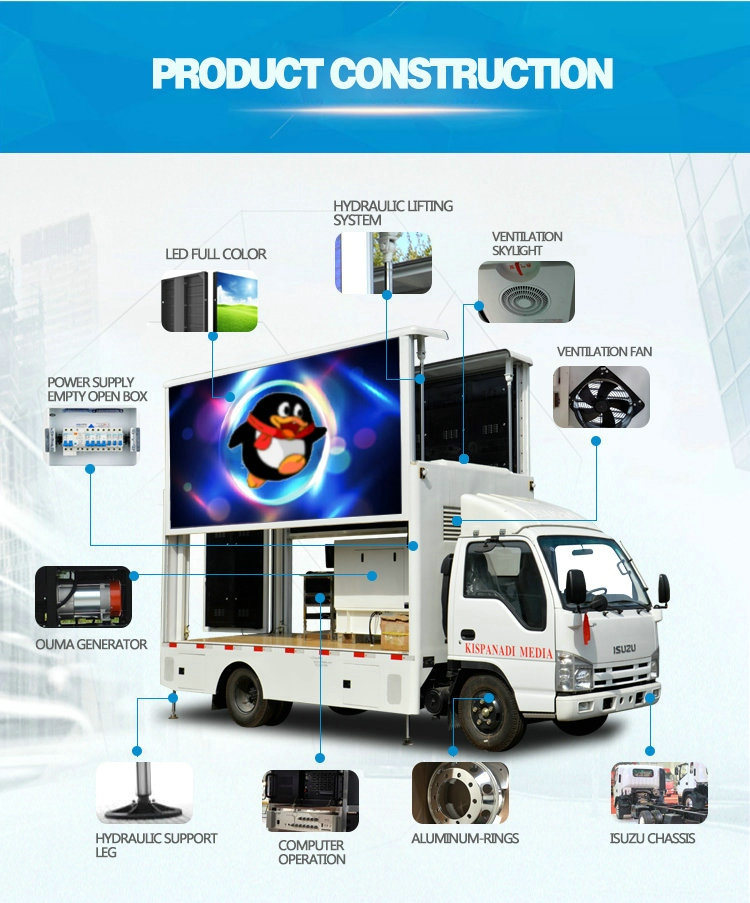

Equipment configuration | 1> All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen 2> 5cm composite steel box, wooden floor; 3> Inside and outside the electric distribution box; 4> Loop ventilation cooling system; 5> Ouma silent diesel generator; 6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier . | ||
Color & painting | According to customer's requirements | ||
Price | P5 full color screen x all 3 sides, $22000-$27000FOB | ||
P6 full color screen x all 3 sides, $20000-$25000FOB | |||
Options | (1) Lifting system 1.5m height for side led screen, add$900/one side | ||
other
LED Truck | wheelbase | LED Billboard body size |
5995×2030×2980 | 3300 | P8 :3840*1792=6.88 P6 : 3840*1728=6.65 Rear Screen :1280*1440=1.84 |
5995×2050×3100 | 3308 | |
5595*2025*2995 | 3360 | |
5995×2100×3050 | 3300 | |
5995×2000×2900 | 3360 | |
5995*2040*2990 | 3360 | |
5595*2025*2995 | 3360 | |
5990*1990*2950 | 3300 | |
5995*2030*3050 | 3360 | |
5995*2150*2900 | 3360 | |
8760*2365*3675 | 4700 | P8:5376*2304=12.38 P6: 5376*2304=12.38 Rear Screen 1600*1600=2.56 |
7290*2330*3350 | 3800 | P8:4864*2048=10 P6: 4800*2112=10.13 Rear Screen 1600*1600=2.56 |
5250*1900*2750 | 2800 | P8:2560*1536=3.93 P6:2496*1536=3.83 Rear Screen 960*1280=1.64 |
5100*1710*2640 | 3070 | P8:2304*1536=3.54 P6:2496*1536=3.83 Rear Screen 960*1280=1.64 |
5000*1960*2590 | 2900 | |
4650*1700*2400 | 2765 | P8:2304*1408=3.14 P6:2304*1345=3.1 |
1. Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.
2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
Cell :+8615271357675
