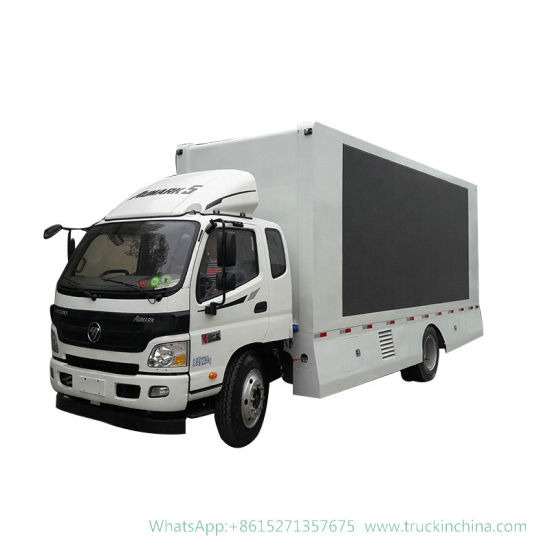

FOTON LED Advertisement Truck with LED Board (P4 P5 P6 Outdoor Mobile Advertising Truck Mobile LED Display Advertisement Truck Mobile Billboard Truck)
P4 P5 P6 Outdoor Mobile Full Color Display Screen LED Advertising Truck with Stage
LED Display Truck
LED dispaly truck could be customerized:
a. for the LED screen ,you can choose single color or full color , P6,P8 or P10.
b. also you can choose Rolling lights boxes for painting pictures.
c.Led screen could be lifting by hydaulic ;
Welcome to send your requirements to me ,we will give your details with offer within 24 hours !
FOTON P8 Full color LED screen Truck
1.LED Truck's right Side
1) P8 Outdoor Full Color Waterproof LED Display Screen size: 4800x2080mm, to play the Videos for advertising and Movies.
2) LED Display with Hydraulic Cylinder System that has the Route 1.5m High.
2.LED Truck's left Side:P8 Outdoor Full Color Waterproof LED Display Screen size: 4800x2080mm, to play the Videos for advertising and Movies.
3.LED Truck's rear Side:P8 Outdoor Full Color Waterproof LED Display Screen size:1600x1600mm, to play the Videos for advertising and Movies.
| General Technical Parameters | |||
| Overall Dimension | 5995×2190×3300(mm) | ||
| Gross Vehicle Weight | 4495(Kg) | ||
| Curb Weight | 4250(Kg) | ||
| Chassis Specification | |||
| Chassis parameters | Chassis Brand | FOTON | |
| Cabin | Single, Left Hand Driving, with A/C | ||
| Engine | Model | 4 Cylinders | |
| Power | 72KW/98HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 2.771L | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle load | 2.2T/5T | ||
| Wheel base | 3360(mm) | ||
| Overhang( Front/Rear) | 1095/1540(mm) | ||
| Angle(Approach/departure) | 22/16 (°) | ||
| Brake System | Oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 700R16, 6 Pieces with 1 Spare Tire | ||
| Maximum speed | 90(km/h) | ||
| Superstructure | |||
| LED Screen | Pixel | Outdoor full colour display screen P6 | |
| Dimension(LxW)(mm) | Both side: 3840*1728 Rear:1280*1440 | ||
| Description | Screen lift on both sides Waterproof, shake-proof, high brightness, long life | ||
| General configuration | 1. OUMA brand,Silent diesel generator, 15KW 2. One set industrial computer with control system 3. Sound system: Loudspeaker 4pcs, amplifier 1pc 4. Internal and external electrical distribution box. 5. Circulating ventilation and cooling systems. 6. 5CM composite steel frame body 7. Aluminum patterned floor | ||
| Remarks | Equipped with Hydraulic stage The color of the superstructure is oprional. | ||
LED billboard truck is combined with the truck and LED screen for mobile advertising.It's made of LED screen, electric system, hydraulic system, operate system, etc., which be widely used in product promotion, mini show, concert, sports events and so on.
The LED screen could be customized with single, double, triple due to different requirements.
| Vehicle Description | |
| Overall dimensions | 5995*2000*2900mm |
| GVW | 4495kg |
| Curb weight | 4300kg |
| Chassis brand | FOTON |
| Traction type | 4*2 |
| Up-parts Description | |
| LED screen | Left side/right side/rear side |
| Screen size | Side screen : 3840*1740mm |
| Rear board : 1280*1440mm | |
| Pixel pitch | P6/P8/P10 |
| Standard configuration | Equipped with diesel generator and industrial control computer; Equipped with anti-water wood floor; Equipped with speak box and amplifier; |
| Optional configuration | Single, double, triple screen, rolling advertising picture; Lifting function for side screen by hydraulic system with height of 1.5m; Extended floor to be show stage. |
Forland Outdoor Advertising P6 LED Screen Mobile Truck
| Chassis Description | ||
| Chassis model | BJ1049V | |
| Cab | Single row, with A/C | |
| Wheelbase | 3360mm | |
| Tire specification | 7.00R15 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | BJ493ZLQ |
| Emission level | Euro 2 | |
| Displacement/output | 2771ml/68kw | |
| Horse power | 93hp | |
| Gear box | Number of gears | 5 forward gears& 1 reverse |
| Brake system | Full air brake | |
| Axle | Front | 1.5T |
| Rear | 3.5T | |
| Suspension | Front | Leaf springs |
| Rear | Leaf springs | |
| Fuel tanker | Type | Carbon steel tanker, with lockable cap |
| Capacity | 100L | |
P4 P5 P6 Outdoor Mobile Full Color Display Screen LED Advertising Truck with Stage
SINOTRUK CHASSIS: First CLASS STEADY CHASSIS, SALES WITH BEST SERIVE.
LESS NOISE;
SINOTRUK CHASSIS: First CLASS STEADY CHASSIS, SALES WITH BEST SERIVE.
LESS NOISE;
Payload Platform | 0.75T | 1.0T | 1.5T | 2.0T | 3.0T | 4.0T | 6.0T | 6.0T | 8.0T | 10T | |
Vehicle model | BJ1020V3JV2 -X | BJ1010V0JA3 -2 | BJ1026V3JB4 -E | BJ1039V3JD3 -B | BJ1039V4JD3 -A | BJ1043V9AEA -A1 | BJ1043V9JEA -A1 | BJ1061VCJEA -F1 | BJ1061VCJEA -F1 | BJ1163VKPHK -2 | BJ5122V5PDC -A1 |
Cabin width | 1475 | 1475 | 1640 | 1800 | 1800 | 1850 | 1995 | 1995 | 1995 | 2200 | 2200 |
Cabin type | //Forward control/Single row/ Non-tilting type | //Forward control/Single row/ Non-tilting type | // Forward control/Single row/ Non-tilting type | // Forward control/Single row/ Non-tilting type | // Forward control/Single row/ Non-tilting type | /// Forward control/ Single or double row/Tilting type | // Forward control/Single row/ Non-tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | //Forward control/ One and half row/Tilting type | //Forward control/ One and half row/Tilting type |
Side of Steering wheel | Left | Right | Left | Left | Left | Left | Left | Left | Left | Left | Left |
Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
Wheelbase | 2370 | 2456 | 2500 | 2600 | 2600 | 3360 | 3360 | 3800 | 4200 | 5250 | 5700 |
Engine type/emis- sion standard | 465Q-2AE(Eu- ro III) | 480QB (Euro I) | N485QA (Euro I) | 490ZLQ (Euro II) | 490ZLQ (Euro II) | 498 (Euro I) | 4D120-20 (Euro II) | 4D130-33(Euro II) | 4D130-33(Euro II) | 6J160-33 (Euro II) | 6J190-20 (Euro II) |
Power (kw/rpm) | 45/5600 | 29/3000 | 36/3200 | 60/3200 | 60/3200 | 62.5/3200 | 90/2600 | 96/2800 | 96/2800 | 118/2500 | 140/2500 |
Max. Torque(N.m/rpm) | 98/3500-4000 | 97/2100-2240 | 125/2200 | 197/2000~2240 | 197/2000~2240 | 196/2000 | 350/1500-1800 | 380/1600-1900 | 380/1600-1900 | 520/1700 | 630/1400-1700 |
Displacement(L) | 1.051 | 1.809 | 2.088 | 2.672 | 2.672 | 3.168 | 4.214 | 4.214 | 4.214 | 6.494 | 6.494 |
Transmission | MR508A | 5T70 | 5T20 | 5JS30T | 5JS30T | 5-25 | 6TS55 | 6TS55 | 6TS55 | 8JS75TE | 8JS75TA |
Load of rear axle | 1T | 1T | 2.5T | 3T | 3T | 3T | 4T | 6T | 6T | 9T | 10T |
Overall dimensions (LxWxH)mm | 4340×1510×1780 | 4470×1508×1905 | 4865×1740×2080 | 5150×1930×2270 | 5150×1930×2270 | 5995×2120×2405 | 6110×2115×2345 | 6977×2205×2385 | 7517×2205×2385 | 8998×2495×2920 | 10000×2500×3720 |
Internal cargo body dimensions (LxWxH)mm | 2700×1410×320 | 2800×1410×320 | 2850×1650×360 | 3300×1810×360 | 3300×1810×360 | 4180×2000×400 3120×2000×400 | 4230×2000×400 | 5060×2060×550 | 5600×2060×550 | 6650×2300×600 | |
Curb weight (Kg) | 1120 | 1250 | 1680 | 2370 | 2370 | 2550 | 3360 | 3825 | 4025 | 6750 | 6500 |
Rated load capacity (Kg) | 750 | 750 | 1000 | 1500 | 1500 | 3000 | 4000 | 5000 | 5000 | 8000 | 10000 |
() Max. Speed(empty) | 90 | 90 | 90 | 95 | 95 | 95 | 95 | 90 | 90 | 110 | 100 |
Max. Gradeability | ≥25% | ≥25% | ≥25% | 30% | 30% | 30% | 30% | 30% | 29% | 29% | 29% |
/Tire spec/No. | 165/70R13/4+1 | 175/70R14/4+1 | 6.00-15/6+1 | 7.00R16/4+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.50R16/6+1 | 8.25-16/6+1 | 8.25-16/6+1 | 9.00-20/6+1 | 9.00-20/6+1 |
Option | A/C,Air deflector | A/C\380, A/C, 380 engine, Air deflector | Air deflector | A/C,, A/C, Air deflector | A/C,, A/C, Air deflector | Air deflector | A/C,, A/C, Air deflector | A/C,Air deflector | A/C,, A/C, radial tire, air deflector | ,radial tire, air deflector | A/C,, A/C, radial tire, air deflector |
Advertising Truck with Two Side LED Screen LED BOARD: HIGH QUALITY SCREEN ,WITH HIGH ANTI-SEISMIC AND HIGH RESOLUTION RATIO;
| Payload Platform | 2T | 3T | 4T | 6T | ||||||
| Vehicle model | BJ3043D8JB5-1 | BJ3045D9PBA-1 | BJ3042V3PBB-B3 | BJ3085DEJEA-3 | BJ3122V4PDB-F1 | BJ3122DE- PFA-G1 | ||||
| Cabin width | 1800 | 1800 | 1800 | 1800 | 1800 | 1995 | 1995 | 1995 | 1995 | 1995 |
/Cabin type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | //Forward control/ One and half row/Tilting type | //Forward control/ One and half row/Tilting type | // Forward control/Single row/Tilting type |
| Side of Steering wheel | /Left/right | Left | Left | Left | Left | / Left/right | right | / Left/right | Left | right |
| Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
| Wheelbase | 2600 | 2600 | 2600 | 3360 | 3360 | 3000 | 3360 | 3300 | 3300 | 3800 |
| Engine type/ emission standard | 493ZLQV1 (Euro) | 4J28TC(Euro III) | ISF2.8s3129T (Euro III) | 493ZLQV1 (Euro) | 4J28TC(Euro III) | F3.8s3141 (Euro ) | F3.8s3141 (Euro ) | F3.8s3141 (Euro ) | ISF3.8s4R154 (Euro ) | F3.8s3141 (Euro ) |
| Power (kw/rpm) | 76/3600 | 81/3600 | 96/3200 | 76/3600 | 81/3600 | 105/2600 | 105/2600 | 105/2600 | 115/2600 | 105/2600 |
| Max. Torque(N.m/ rpm) | 225/2200 | 285/2200 | 310/1600~2700 | 225/2200 | 285/2200 | 450/1500 | 450/1500 | 450/1500 | 500/1500 | 450/1500 |
| Displacement(L) | 2.771 | 2.771 | 2.78 | 2.771 | 2.771 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 |
| Transmission | 5TS32 | 5TS32 | 5T40 | 5TS32 | 5TS32 | 6TS55 | 6TS55 | 6TS55 | 6TS55 | 6TS55 |
| Load of rear axle | 3T | 3T | 3T | 3T | 3T | 6T | 6T | 7T | 7.8T | 6.5T |
| Overall dimen- sions (LxWxH)mm | 4790×1960×2260 | 4790×1960×2260 | 4790×1960×2260 | 5305×2000×2280 | 5305×2000×2280 | 5505×2465×2560 | 6085×2100×2365 | 6090×2240×2530 | 6090×2240×2530 | 6400×2200×2440 |
| Internal cargo body dimensions (LxWxH)mm | 3000×1860×450 | 3000×1860×450 | 3000×1860×450 | 3500×1860×450 | 3800×1860×400 | 3400×2070×600 | 4500×2070×600 | 3750×2070×600 | 3750×2070×600 | 4500×2070×600 |
| Curb weight (Kg) | 2560 | 2560 | 2560 | 2860 | 2860 | 4910 | 4970 | 5500 | 5500 | 5370 |
| Rated load capacity (Kg) | 2000 | 2000 | 2000 | 3000 | 3000 | 4000 | 4000 | 6000 | 6000 | 6000 |
| () Max. Speed(empty) | 105 | 105 | 100 | 100 | 100 | 90 | 92 | 85 | 85 | 100 |
| Max. Gradeability | 27% | 30% | 30% | 28% | 28% | 32% | 32% | 40% | 40% | 33% |
| /Tire spec/No. | 6.50R16/6+1 | 6.50R16/6+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.00R16/6+1 | 8.25R16/6+1 | 7.50R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 |
| Option | A/C | A/C | A/C | A/C | A/C | A/C | A/C | A/C | A/C | A/C |
| Drive type | 4 x 2, left hand drive | |
| Wheel base | 3360 mm | |
| Cabin | Single row, 2 seats, air conditioner, usb connection, radio | |
| Overall dimension (L*W*H) | 5995 x 2040 x2990 | |
| GVW | 4495 kg | |
| Curb weight | 4365 kg | |
| Engine | Engine model | 4JB1CN |
| Engine make | Forland | |
| Rated power | 72 kw / 98 hp | |
| Displacement | 2771 ml | |
| Emission standard | Euro 2 | |
| Type | Diesel engine, 4-cylinders in line, turbocharged water cooling, direct injection | |
| Gear box | Isuzu MSB, 5 speed forward, 1 speed reverse, manual | |
| Steering | Manual | |
| Front axle | 2 ton | |
| Rear axle | 4.8 ton | |
| Tire type | 7.00-16 | |
| Tire number | 6 pcs +1 spare tire | |
| Performance | Max speed | 98 km/h |
| Leaf spring number | 3/3+2 | |
| Wheel track(F/R) | 1377/1425 | |
| Approach / Departure angle (º) | 24/16 | |
| Suspension (F/R) | 1015/1525 | |
| LED Display Screen | Left and Right side | P6 color screen, Size 3840 x 1920 mm, both lifting type |
| Rear side | P6, Size 1920 x 1536 mm | |
| Steel box body | 5cm thickness composite steel box, wooden floor | |
| Generator | Ouma brand, 15 kw diesel type, silent type without any noisy | |
| Standard equipment | Loop ventilation cooling system (4 fans), 1 set of industrial computer with control system, 4 waterproof spearkers, 1 amplifier, 1 console. | |
| Aditional For free components | P6 outdoor SMD (10 Pieces), 30 meter length power wire for outdoor use. | |
| Payload Platform | 4T | 6T | 8T | 12T | 30T | |||
| Vehicle model | BJ3043D8JBA-3 | BJ3045D8PEA-2 | BJ3045D9PEA-1 | BJ3145DJPFA-1 | BJ3165DJPFA-1 | BJ3122DEPHD-G1 | BJ3258DLPJB-14 | |
| Cabin width | 1800 | 1800 | 1995 | 1995 | 1995 | 2200 | 2200 | 2400 |
Cabin type | // Forward control/Single row/Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type |
| Side of Steering wheel | Left | Left | Left | Left | Left | Left | Left | Left |
| Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 6×4 |
| Wheelbase | 2900 | 3300 | 3400 | 3400 | 3600 | 3800 | 3800 | 3700+1350 |
| Engine type/ emission standard | 4DW93-84 (Euro II) | 4102QB (Euro I) | 4102QBZL (Euro II) | 4D120-21 (Euro II) | 4D130-33 (Euro II) | WP6.210E32 (Euro II) | WP6.220E40 ((EuroIV) | WP10.340E32 (Euro II) |
| Power (kw/rpm) | 66/3000 | 70/3100 | 85/3200 | 90/2800 | 96/2800 | 155/2300 | 162/2300 | 250/2200 |
| Max. Torque(N.m/ rpm) | 190/(1900-2100) | 245/(1800-2100) | 320/1800~2200 | 350 /1600~1900 | 380 /(1400~1700) | 800/1400-1600 | 800/1400-1600 | 1350/1200-1600 |
| Displacement(L) | 2.54 | 3.76 | 3.76 | 4.214 | 4.214 | 6.7 | 6.7 | 9.726 |
| Transmission | 540ZHF | 545ZHF | 545ZHF | 545ZHF | 653ZHF | 8S1000 | 8S1000 | 10JSD160 |
| Load of rear axle | 4.5T | 6T | 7.6T | 8T | 9T | 10T | 10T | 16T |
| Overall dimensions (LxWxH)mm | 5237×2200×2440 | 6042×2200×2450 | 6040×2280×2355 | 6170×2280×2800 | 6480×2380×2280 | 6850×2570×2980 | 6850×2570×2980 | 8481×2550×3450 |
| Internal cargo body dimensions (LxWxH)mm | 3200×1900×600 | 3750×1970×(600+300) | 3800×2070×(800+200) | 3950×2070×(600+400) | 4200×2170×(800+400) | 4200×2300×1000 | 4200×2300×1000 | 5600×2300×1500 |
Curb weight (Kg) | 4360 | 4550 | 4830 | 5300 | 6330 | 8880 | 9000 | 15830 |
| Rated load capacity (Kg) | 4000 | 4000 | 6000 | 6000 | 8000 | 12000 | 12000 | 30000 |
() Max. Speed(empty) | 75 | 65 | 80 | 80 | 85 | 85 | 85 | 75 |
Max. Gradeability | 27% | 35% | 35% | 35% | 33% | 30% | 30% | 30% |
/Tire spec/No. | 8.25R16/6+1 | 8.25R16/6+1 | 8.25-20/6+1 | 8.25-20/6+1 | 9.00-20/6+1 | 11.00R20/6+1 | 11.00R20/6+1 | 12.00R20/10+1 |
Option | A/C | A/C | A/C | A/C | A/C | A/C | A/C | -- |
CUSTOMIZED DESIGN Mobile LED Screen Truck Pitch 10mm Vehicle Mounted LED Screen
Payload Platform | 6T | |
Vehicle model | BJ3122V4PDB-F2 | |
Cabin width | 1995 | 1995 |
/Cabin type | //Forward control/One and half row/Tilting type | // Forward control/One and half row/Tilting type |
Side of Steering wheel | / Left/right | Left |
Driving Type | 4×4 | 4×4 |
Wheelbase | 3400 | 3400 |
Engine type/emission standard | F3.8s3141(Euro ) | ISF3.8s4R141(Euro ) |
Power (kw/rpm) | 105/2600 | 105/2600 |
Max. Torque(N.m/rpm) | 450/1500 | 450/1500 |
Displacement(L) | 3.76 | 3.76 |
Transmission | 6TS55 | 6TS55 |
Load of rear axle | 8T | 8T |
Overall dimensions (LxWxH)mm | 6200×2300×2640 | 6200×2300×2640 |
Internal cargo body dimensions (LxWxH)mm | 3600×2070×800 | 3600×2070×800 |
Curb weight (Kg) | 5890 | 5890 |
Rated load capacity (Kg) | 6000 | 6000 |
() Max. Speed(empty) | 85 | 85 |
Max. Gradeability | 45% | 45% |
/Tire spec/No. | 8.25-20/6+1 | 8.25-20/6+1 |
Option | A/C,/Radial Tire | A/C,/Radial Tire |
Moblie Advertising Trucks for Sale
Payload Platform | 0.75T | 1.25T | 2T | 3T | 4T | 5T | 6T | 8T | ||||||
Vehicle model | BJ1030V- 4JV2-S1 | BJ1046V- 9JB6-A1 | BJ1039V- 3JD3-B | BJ1031V- 4JD3-F2 | BJ1059VC- JD6-3 | BJ1051VC- JDA-AA | BJ1069VD- JEA-FA | BJ1051VC- JEA-RF | BJ1043V- 9JEA-N1 | BJ1061VC- JEA-F1 | BJ1089VE- PEA-FA | BJ1129VHJEG-RF | ||
Cabin width | 1475 | 1760 | 1800 | 1800 | 1800 | 1800 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Cabin type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | /// Forward control/Single row/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type |
Side of Steering wheel | Left | Left | /Left/right | Left | Left/ right | Left | Left | right | Left | /Left/right | Left/ | Left | Left | Left |
Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
Wheelbase | 2370 | 2640 | 2600 | 2600 | 3360 | 3360 | 3360 | 3360 | 3360 | 3800 | 3800 | 4700 | 4700 | 4700 |
Engine type/emission standard | DAM15R | 493ZLQV1 (Euro II) | 493ZLQV1 (Euro II) | ISF2.8S4117V (Euro IV) | 493ZLQV1 (Euro II) | 4J28TC(Euro IV) | F3.8s3141 (Euro III) | F3.8s3141 (Euro III) | ISF3.8S4R154 (Euro IV) | F3.8s3141 (EuroIII) | ISF3.8S4R154 (Euro IV) | F3.8s3141(EuroIII) | ISF3.8S4R154 (Euro IV) | ISF3.8S4R168 (Euro IV) |
Power (kw/rpm) | 82/6000 | 80/3600 | 80/3600 | 87/3200 | 80/3600 | 81/3200 | 105/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 125/2600 |
Max. Torque(N.m/ rpm) | 142/4500 | 280/1900-2300 | 280/1900-2300 | 260/1300-3200 | 280/1900-2300 | 280/1700-2000 | 450/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 600/1300~1700 |
Displace- ment(L) | 1.498 | 2.771 | 2.771 | 2.78 | 2.771 | 2.771 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 |
Transmission | MR510 | 528 | 5TS32 | 5-28 | 5TS32 | 5TS32 | 6TS55 | 6TS55 | 6S500 | 6TS55 | 6S500 | 6TS55 | 6TS55 | 6TS55 |
Load of rear axle | 1T | 2T | 3T | 3T | 3T | 3T | 4T | 6T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T |
Overall dimensions (LxWxH)mm | 4335×1510×1837 | 5165×1760×2035 | 5140×1910×2250 | 5140×1910×2250 | 6131×2425×2260 | 6131×2425×2260 | 6140×2100×2345 | 6140×2100×2345 | 6140×2100×2345 | 6963×2170×2350 | 6963×2170×2350 | 8280×2210×2415 | 8280×2210×2415 | 8280×2210×2415 |
Internal cargo body dimensions (LxWxH)mm | 2700×1410×320 | 3110×1650×355 | 3300×1810×360 | 3300×1810×360 | 4230×1900×360 | 4230×1900×360 | 4230×2000×400 | 4230×2000×400 | 4230×2000×400 | 5160×2060×550 | 4800×2060×550 5160×2060×550 | 6200×2100×550 | 6200×2100×550 | 6200×2100×550 |
Curb weight (Kg) | 2100 | 850-1000 | 2180 | 2240 | 2350 | 2350 | 3240 | 3240 | 3240 | 3750 | 3750 | 5350 | 5370 | 5670 |
Rated load capacity (Kg) | 750 | 1900-2100 | 2000 | 2000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 | 5000 | 6000 | 6000 | 8000 |
( ) Max. Speed(empty) | 110 | 110 | 105 | 110 | 103 | 103 | 97 | 100 | 100 | 92 | 95 | 100 | 100 | 100 |
Max. Gradeability | 27% | 27% | 30% | 30% | 26% | 26% | 30% | 30% | 30% | 30% | 30% | 28% | 28% | 28% |
/Tire spec/No. | 165/70R14/4+1 | 195/70R15C/ 155R12/6+1 | 6.50R16/6+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.00R16/6+1 | 7.50R16/6+1 | 7.50R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R20/6+1 |
Option | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector |
Specifications
| BJ1049V8ADA-1 | BJ493ZLQ3 | 5995×2000×2860 | 2720*1760 | 4.8 | 2.56 |
| BJ1046V9JB5-H1 | 4A1-68C40 | 5130×1900×2750 | 2800*1600 | 4.6 | 2.56 |
| ZZ1047C3414D145 | 4B2-95C40 | 5995×2025×2995 | 3840*1760 | 6.8 | 2.6 |
| BJ1043V9JEA-A | 4B2-95C40 | 5995×2025×2990 | 3840*1760 | 6.8 | 2.6 |
| HFC1041K7T | 4D25F | 5995×2030×2900 | 3840*1760 | 6.8 | 2.6 |
| BJ1049V9PD6-FE | ISF2.8s4129T | 5995×2000×2860 | 3520*1760 | 6.8 | 2.56 |
| BJ1049V9PD6-FE | CY4102-CE4F | 5995×2000×2900 | 3840*1760 | 6.8 | 2.56 |
| BJ1089VDPFG-SD | YC4E140-31 | 7970×2190×3730 | 4800*2240 | 10.8 | 2.56 |
FORLAND LED Advertising Truck is also called Advertising Screen Truck , led advertising truck, mobile exhibition truck, led display truck, digital screening truck,etc. It generally consists of four parts, including generator sets, projectors, computers, LED screen .It is mainly used for film screening , also with two side LED Screen used in productpromotion, brand promotion, draft activities, sales live shows , sporting events, concerts with two side LEC Screen etc.
Product Note:
1.FORLAND 4*2 new type chassis, P8 fullcolor screen, optional P10, P6 fullcolor screen
2. Factory direct sale
3. Many kind of option, high quality low price
Production Features:
1.Compared to traditional media, it can accept more than one or dozens of customers and the
media placement .
2. Compared to traditional media, can reducing complex manufacturing processes and cost, and
could according to the customer requirements to update the vedio.
3.Using the medium size LED screen, optional single side screen, two sides screen or three side screen,also optional the lifting screen ,the cost is far lower than the large LED screen which was installed on the wall .
4. New design,pretty innovative, become a beautiful landscape line of the urban development
and construction .
5. Compared to traditional media ,associated activity and inertia ,close to the audience strong
visual impact ,good effect.
6.Truck Can receive the signals of Vedio and TV , could be used as the platform of outdoor
live broadcast and live broadcast .
Main Parameter of P8 fullcolor screen 4*2 FORLAND LED Advertising Truck for sale:
Whole Main Technical Parameter | |||
Product Model | FORLAND LED Advertising Truck | Overall Dimension(L*W*H)(mm) | 5995×2025×2995 |
Wheelbase(mm) | 3360 | Number of Axles | 2 |
Curb Weight (kg) | 4300 | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab Type | Flat proof, single row |
Chassis Technical Parameter | |||
Chassis Model | BJ1042 | Chassis manufacturer | BEIQI FONTON Motor Co., Ltd |
Transmission type | Manual | Gear Box | 5 speed forward and 1 reverse |
Steering Type | LHD with power steering | Traction Type | 4*2 |
Brake System | oil brake | Tire size/type | 6.50R16LT |
Rear axle loading capacity(Kg) | 5000 | Number of Tires | 6 with a spare |
Engine Technical Parameter | |||
Engine Model | 4B2-95C40 | Engine manufacturer | ANHUI Quanchai |
Fuel type | Diesel | Displacement( ml) | 2545 |
Emission stand | Euro 3 | Power/Horse power(KW)/(HP) | 70(95hp) |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Superstructure parameter | 1. main used in Advertising display Show, special devices: generator sets, projectors, computers, LED screen, two waterproof speaker, one side P8 lifting Led screen area: 6.8m2, another side is rolling type, rear Led screen area: 1.8m2 or 2.56m2 | ||
2. Thickness 5cm Composite steel box body, outside cold rolled steel sheet, inside aluminum alloy plate floor, wood floor or high-grade floor leather | |||
3. Four hydraulic legs, preciseness unilateral lifting-up LED screen, Electromechanical integration control | |||
4.Circulating ventilation cooling system | |||
5.Safe-intelligent inner and outer power distribution switch net system | |||
6.High-performance silent diesel generator unit 17KW | |||
7.Computer intelligent switch 2-7 pair pictures and lamp | |||
8. Full waterproof highlight P8 fullcolor car LED screen | |||
9. Gigabit streaming media control system | |||
Warranty | 12 months, from the date of supply | ||
Multi-faceted show of P8 fullcolor screen 4*2 FORLAND LED Advertising Truck for sale:
1.Stable capability for advertising truck led display
2.Super brightness waterproof shockproof led display
3.Good after-sales for Elnor mobile truck led display
4.True color reproduction for mobile advertising truck led display
5.Ultimate system reliability for vehicle/ trailer led display
6.Long life span and stable work
7.CE, RoHS, ISO9001 certification
8.9 years experience
9.Simple cabinet, easy to assemble, fast-set up
A) 17.2 sqm mobile advertising truck led display. 3.84m x 2.24m x2pcs.
B) Both side of the mobile truck are full color led displays.
C) The size of the waterproof cabinet is 960mm x1120mm, each weight 58kg/pcs.
| Payload Platform | 2T | 4T | 6T | ||
| Vehicle model | BJ3032V2JBB-A1 | BJ3052D8JEA-2 | BJ3072V4PDB-A2 | BJ3072DDPEA-G3 | BJ3062V3PDB-B2 |
| Cabin width | 1800 | 1995 | 1995 | 1995 | 1995 |
/Cabin type | //Forward control/Sin- gle row/Tilting type | //Forward control/Sin- gle row/Tilting type | //Forward control/Sin- gle row/Tilting type | //Forward control/One and half row/Tilting type | //Forward control/One and half row/Tilting type |
Side of Steering wheel | Left | Left | Left | Left | Left |
| Driving Type | 4×4 | 4×4 | 4×2 | 4×2 | 4×4 |
| Wheelbase | 2900 | 3300 | 3300 | 3500 | 3600 |
Engine type/emission standard | 4DW93-84(Euro II) | 4102QBZL(Euro II) | 4D130-33(Euro II) | 4D130-33(Euro II) | 4D130-20 (Euro II) |
| Power (kw/rpm) | 66/3000 | 85/3000 | 96/2800 | 96/2800 | 96/2800 |
Max. Torque(N.m/rpm) | 220/2000-2200 | 320/1800-2200 | 380/1700-2000 | 380/1700-2000 | 380/1700-2000 |
| Displacement(L) | 2.545 | 3.76 | 4.214 | 4.214 | 4.214 |
| Transmission | 540Z | 545 | 545ZHF | 545ZHF | 545 |
| Load of rear axle | 4T | 6T | 8T | 8T | 8T |
| Overall dimensions (LxWxH)mm | 5155×2075×2517 | 5770×2250×2630 | 5840×2395×2735 | 6115×2390×2745 | 6360×2300×2750 |
| Internal cargo body dimensions (LxWxH)mm | 3200×1970×600 | 3500×2050×600 | 3750×2200×800 | 3750×2200×800 | 3750×2200×800 |
| Curb weight (Kg) | 4130 | 5320 | 6080 | 6170 | 6990 |
| Rated load capacity (Kg) | 2000 | 4000 | 6000 | 6000 | 6000 |
| () Max. Speed(empty) | 80 | 76 | 80 | 80 | 85 |
| Max. Gradeability | ≥40% | ≥45% | ≥30% | ≥30% | ≥45% |
| /Tire spec/No. | 8.25R16/6+1 | 8.25-20/6+1 | 9.00-20/6+1 | 9.00-20/6+1 | 9.00R20/6+1 |
| Option | A/C | A/C | A/C | A/C | A/C |
Main features
1.Customized design
2.True color reproduction & authentic video quality
3.Ultimate system reliability
4.Fast set-up, easy service and full control
LED display parameter
Elnor Outdoor Mobile/Truck Full Color LED Display/Billboard | |||||
Module | Pitch/mm | P10 | P16 | P20 | P25 |
Module size/mm | 160x160 | 128x256 | 320x160 | 200x200 | |
Density of pixel/(dots/m2) | 10,000 | 3,906 | 2,500 | 1,600 | |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
Led encapsulation | DIP | DIP | DIP | DIP | |
Resolution of module | 16X16 | 32X16 | 32X16 | 8X8 | |
Main | Optimum viewing distance | ≥10 | ≥15 | ≥17 | ≥23 |
View angle / ° | 110 H,60 V | 110 H,60 V | 110 H,60 V | 110 H,60 V | |
Average power consumption/W/M2 | 300 | 300 | 350 | 400 | |
Max power consumption/W/M2 | 750 | 600 | 850 | 650 | |
Size of cabinet/mm | 960X960 | 1024X768 | 1280X960 | 1000x1000 | |
Resolution of cabinet | 96X96 | 64x48 | 64X48 | 40X40 | |
Weight of cabinet/kg | 58 | 60 | 65 | 80 | |
Driving method | 1/4 scan constant current | Static constant current | Static constant current | Static constant current | |
Frame frequency / Hz/S | ≥60 | ≥60 | ≥60 | ≥60 | |
Refresh rate Hz/S | ≥600 | ≥600 | ≥600 | ≥600 | |
Luminance of white balance | ≥7000 nits | ≥6500 nits | ≥6000 nits | ≥5500 nits | |
Operation of Environmental Temperature/°C | below 30 to above 50 | ||||
IP rating | IP65 | ||||
Working vlotage | 110-220 VAC/+/- 10% | ||||
Grey scale/color | displaying colors≥16.7M(synchronized) | ||||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||||
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | ||||
Control system | linsn(sending card,receiving cards and Hubs) | ||||
Average of non-failure life | >50,00h | ||||
Life span | >100,000h | ||||
Functionaless dot rate | <0.0001 | ||||
Advantages
1.High brightness and be adjustable.Built-in functional card support brightness automatically adjustment.
2.A turn-key solution including professional sports software and hardware.
3.Rich advertising LED display engineering experience both in domestic and oversea market.
4.Unbeatable product stability through strict quality control system.
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful & win
Trade terms
1. Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port:Shenzhen,mainland China
4. MOQ:1PC
Payload Platform | 0.75T | 1.25T | 2T | 3T | 4T | 5T | 6T | 8T | ||||||
Vehicle model | BJ1030V- 4JV2-S1 | BJ1046V- 9JB6-A1 | BJ1039V- 3JD3-B | BJ1031V- 4JD3-F2 | BJ1059VC- JD6-3 | BJ1051VC- JDA-AA | BJ1069VD- JEA-FA | BJ1051VC- JEA-RF | BJ1043V- 9JEA-N1 | BJ1061VC- JEA-F1 | BJ1089VE- PEA-FA | BJ1129VHJEG-RF | ||
Cabin width | 1475 | 1760 | 1800 | 1800 | 1800 | 1800 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Cabin type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | /// Forward control/Single row/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type |
Side of Steering wheel | Left | Left | /Left/right | Left | Left/ right | Left | Left | right | Left | /Left/right | Left/ | Left | Left | Left |
Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
Wheelbase | 2370 | 2640 | 2600 | 2600 | 3360 | 3360 | 3360 | 3360 | 3360 | 3800 | 3800 | 4700 | 4700 | 4700 |
Engine type/emission standard | DAM15R | 493ZLQV1 (Euro II) | 493ZLQV1 (Euro II) | ISF2.8S4117V (Euro IV) | 493ZLQV1 (Euro II) | 4J28TC(Euro IV) | F3.8s3141 (Euro III) | F3.8s3141 (Euro III) | ISF3.8S4R154 (Euro IV) | F3.8s3141 (EuroIII) | ISF3.8S4R154 (Euro IV) | F3.8s3141(EuroIII) | ISF3.8S4R154 (Euro IV) | ISF3.8S4R168 (Euro IV) |
Power (kw/rpm) | 82/6000 | 80/3600 | 80/3600 | 87/3200 | 80/3600 | 81/3200 | 105/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 125/2600 |
Max. Torque(N.m/ rpm) | 142/4500 | 280/1900-2300 | 280/1900-2300 | 260/1300-3200 | 280/1900-2300 | 280/1700-2000 | 450/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 600/1300~1700 |
Displace- ment(L) | 1.498 | 2.771 | 2.771 | 2.78 | 2.771 | 2.771 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 |
Transmission | MR510 | 528 | 5TS32 | 5-28 | 5TS32 | 5TS32 | 6TS55 | 6TS55 | 6S500 | 6TS55 | 6S500 | 6TS55 | 6TS55 | 6TS55 |
Load of rear axle | 1T | 2T | 3T | 3T | 3T | 3T | 4T | 6T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T |
Overall dimensions (LxWxH)mm | 4335×1510×1837 | 5165×1760×2035 | 5140×1910×2250 | 5140×1910×2250 | 6131×2425×2260 | 6131×2425×2260 | 6140×2100×2345 | 6140×2100×2345 | 6140×2100×2345 | 6963×2170×2350 | 6963×2170×2350 | 8280×2210×2415 | 8280×2210×2415 | 8280×2210×2415 |
Internal cargo body dimensions (LxWxH)mm | 2700×1410×320 | 3110×1650×355 | 3300×1810×360 | 3300×1810×360 | 4230×1900×360 | 4230×1900×360 | 4230×2000×400 | 4230×2000×400 | 4230×2000×400 | 5160×2060×550 | 4800×2060×550 5160×2060×550 | 6200×2100×550 | 6200×2100×550 | 6200×2100×550 |
Curb weight (Kg) | 2100 | 850-1000 | 2180 | 2240 | 2350 | 2350 | 3240 | 3240 | 3240 | 3750 | 3750 | 5350 | 5370 | 5670 |
Rated load capacity (Kg) | 750 | 1900-2100 | 2000 | 2000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 | 5000 | 6000 | 6000 | 8000 |
( ) Max. Speed(empty) | 110 | 110 | 105 | 110 | 103 | 103 | 97 | 100 | 100 | 92 | 95 | 100 | 100 | 100 |
Max. Gradeability | 27% | 27% | 30% | 30% | 26% | 26% | 30% | 30% | 30% | 30% | 30% | 28% | 28% | 28% |
/Tire spec/No. | 165/70R14/4+1 | 195/70R15C/ 155R12/6+1 | 6.50R16/6+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.00R16/6+1 | 7.50R16/6+1 | 7.50R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R20/6+1 |
Option | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector |
FOTON LED Advertisement Truck with LED Board (P4 P5 P6 Outdoor Mobile Advertising Truck Mobile LED Display Advertisement Truck Mobile Billboard Truck)
P4 P5 P6 Outdoor Mobile Full Color Display Screen LED Advertising Truck with Stage
LED Display Truck
LED dispaly truck could be customerized:
a. for the LED screen ,you can choose single color or full color , P6,P8 or P10.
b. also you can choose Rolling lights boxes for painting pictures.
c.Led screen could be lifting by hydaulic ;
Welcome to send your requirements to me ,we will give your details with offer within 24 hours !
FOTON P8 Full color LED screen Truck
1.LED Truck's right Side
1) P8 Outdoor Full Color Waterproof LED Display Screen size: 4800x2080mm, to play the Videos for advertising and Movies.
2) LED Display with Hydraulic Cylinder System that has the Route 1.5m High.
2.LED Truck's left Side:P8 Outdoor Full Color Waterproof LED Display Screen size: 4800x2080mm, to play the Videos for advertising and Movies.
3.LED Truck's rear Side:P8 Outdoor Full Color Waterproof LED Display Screen size:1600x1600mm, to play the Videos for advertising and Movies.
| General Technical Parameters | |||
| Overall Dimension | 5995×2190×3300(mm) | ||
| Gross Vehicle Weight | 4495(Kg) | ||
| Curb Weight | 4250(Kg) | ||
| Chassis Specification | |||
| Chassis parameters | Chassis Brand | FOTON | |
| Cabin | Single, Left Hand Driving, with A/C | ||
| Engine | Model | 4 Cylinders | |
| Power | 72KW/98HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 2.771L | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle load | 2.2T/5T | ||
| Wheel base | 3360(mm) | ||
| Overhang( Front/Rear) | 1095/1540(mm) | ||
| Angle(Approach/departure) | 22/16 (°) | ||
| Brake System | Oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 700R16, 6 Pieces with 1 Spare Tire | ||
| Maximum speed | 90(km/h) | ||
| Superstructure | |||
| LED Screen | Pixel | Outdoor full colour display screen P6 | |
| Dimension(LxW)(mm) | Both side: 3840*1728 Rear:1280*1440 | ||
| Description | Screen lift on both sides Waterproof, shake-proof, high brightness, long life | ||
| General configuration | 1. OUMA brand,Silent diesel generator, 15KW 2. One set industrial computer with control system 3. Sound system: Loudspeaker 4pcs, amplifier 1pc 4. Internal and external electrical distribution box. 5. Circulating ventilation and cooling systems. 6. 5CM composite steel frame body 7. Aluminum patterned floor | ||
| Remarks | Equipped with Hydraulic stage The color of the superstructure is oprional. | ||
LED billboard truck is combined with the truck and LED screen for mobile advertising.It's made of LED screen, electric system, hydraulic system, operate system, etc., which be widely used in product promotion, mini show, concert, sports events and so on.
The LED screen could be customized with single, double, triple due to different requirements.
| Vehicle Description | |
| Overall dimensions | 5995*2000*2900mm |
| GVW | 4495kg |
| Curb weight | 4300kg |
| Chassis brand | FOTON |
| Traction type | 4*2 |
| Up-parts Description | |
| LED screen | Left side/right side/rear side |
| Screen size | Side screen : 3840*1740mm |
| Rear board : 1280*1440mm | |
| Pixel pitch | P6/P8/P10 |
| Standard configuration | Equipped with diesel generator and industrial control computer; Equipped with anti-water wood floor; Equipped with speak box and amplifier; |
| Optional configuration | Single, double, triple screen, rolling advertising picture; Lifting function for side screen by hydraulic system with height of 1.5m; Extended floor to be show stage. |
Forland Outdoor Advertising P6 LED Screen Mobile Truck
| Chassis Description | ||
| Chassis model | BJ1049V | |
| Cab | Single row, with A/C | |
| Wheelbase | 3360mm | |
| Tire specification | 7.00R15 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | BJ493ZLQ |
| Emission level | Euro 2 | |
| Displacement/output | 2771ml/68kw | |
| Horse power | 93hp | |
| Gear box | Number of gears | 5 forward gears& 1 reverse |
| Brake system | Full air brake | |
| Axle | Front | 1.5T |
| Rear | 3.5T | |
| Suspension | Front | Leaf springs |
| Rear | Leaf springs | |
| Fuel tanker | Type | Carbon steel tanker, with lockable cap |
| Capacity | 100L | |
P4 P5 P6 Outdoor Mobile Full Color Display Screen LED Advertising Truck with Stage
SINOTRUK CHASSIS: First CLASS STEADY CHASSIS, SALES WITH BEST SERIVE.
LESS NOISE;
SINOTRUK CHASSIS: First CLASS STEADY CHASSIS, SALES WITH BEST SERIVE.
LESS NOISE;
Payload Platform | 0.75T | 1.0T | 1.5T | 2.0T | 3.0T | 4.0T | 6.0T | 6.0T | 8.0T | 10T | |
Vehicle model | BJ1020V3JV2 -X | BJ1010V0JA3 -2 | BJ1026V3JB4 -E | BJ1039V3JD3 -B | BJ1039V4JD3 -A | BJ1043V9AEA -A1 | BJ1043V9JEA -A1 | BJ1061VCJEA -F1 | BJ1061VCJEA -F1 | BJ1163VKPHK -2 | BJ5122V5PDC -A1 |
Cabin width | 1475 | 1475 | 1640 | 1800 | 1800 | 1850 | 1995 | 1995 | 1995 | 2200 | 2200 |
Cabin type | //Forward control/Single row/ Non-tilting type | //Forward control/Single row/ Non-tilting type | // Forward control/Single row/ Non-tilting type | // Forward control/Single row/ Non-tilting type | // Forward control/Single row/ Non-tilting type | /// Forward control/ Single or double row/Tilting type | // Forward control/Single row/ Non-tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | //Forward control/ One and half row/Tilting type | //Forward control/ One and half row/Tilting type |
Side of Steering wheel | Left | Right | Left | Left | Left | Left | Left | Left | Left | Left | Left |
Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
Wheelbase | 2370 | 2456 | 2500 | 2600 | 2600 | 3360 | 3360 | 3800 | 4200 | 5250 | 5700 |
Engine type/emis- sion standard | 465Q-2AE(Eu- ro III) | 480QB (Euro I) | N485QA (Euro I) | 490ZLQ (Euro II) | 490ZLQ (Euro II) | 498 (Euro I) | 4D120-20 (Euro II) | 4D130-33(Euro II) | 4D130-33(Euro II) | 6J160-33 (Euro II) | 6J190-20 (Euro II) |
Power (kw/rpm) | 45/5600 | 29/3000 | 36/3200 | 60/3200 | 60/3200 | 62.5/3200 | 90/2600 | 96/2800 | 96/2800 | 118/2500 | 140/2500 |
Max. Torque(N.m/rpm) | 98/3500-4000 | 97/2100-2240 | 125/2200 | 197/2000~2240 | 197/2000~2240 | 196/2000 | 350/1500-1800 | 380/1600-1900 | 380/1600-1900 | 520/1700 | 630/1400-1700 |
Displacement(L) | 1.051 | 1.809 | 2.088 | 2.672 | 2.672 | 3.168 | 4.214 | 4.214 | 4.214 | 6.494 | 6.494 |
Transmission | MR508A | 5T70 | 5T20 | 5JS30T | 5JS30T | 5-25 | 6TS55 | 6TS55 | 6TS55 | 8JS75TE | 8JS75TA |
Load of rear axle | 1T | 1T | 2.5T | 3T | 3T | 3T | 4T | 6T | 6T | 9T | 10T |
Overall dimensions (LxWxH)mm | 4340×1510×1780 | 4470×1508×1905 | 4865×1740×2080 | 5150×1930×2270 | 5150×1930×2270 | 5995×2120×2405 | 6110×2115×2345 | 6977×2205×2385 | 7517×2205×2385 | 8998×2495×2920 | 10000×2500×3720 |
Internal cargo body dimensions (LxWxH)mm | 2700×1410×320 | 2800×1410×320 | 2850×1650×360 | 3300×1810×360 | 3300×1810×360 | 4180×2000×400 3120×2000×400 | 4230×2000×400 | 5060×2060×550 | 5600×2060×550 | 6650×2300×600 | |
Curb weight (Kg) | 1120 | 1250 | 1680 | 2370 | 2370 | 2550 | 3360 | 3825 | 4025 | 6750 | 6500 |
Rated load capacity (Kg) | 750 | 750 | 1000 | 1500 | 1500 | 3000 | 4000 | 5000 | 5000 | 8000 | 10000 |
() Max. Speed(empty) | 90 | 90 | 90 | 95 | 95 | 95 | 95 | 90 | 90 | 110 | 100 |
Max. Gradeability | ≥25% | ≥25% | ≥25% | 30% | 30% | 30% | 30% | 30% | 29% | 29% | 29% |
/Tire spec/No. | 165/70R13/4+1 | 175/70R14/4+1 | 6.00-15/6+1 | 7.00R16/4+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.50R16/6+1 | 8.25-16/6+1 | 8.25-16/6+1 | 9.00-20/6+1 | 9.00-20/6+1 |
Option | A/C,Air deflector | A/C\380, A/C, 380 engine, Air deflector | Air deflector | A/C,, A/C, Air deflector | A/C,, A/C, Air deflector | Air deflector | A/C,, A/C, Air deflector | A/C,Air deflector | A/C,, A/C, radial tire, air deflector | ,radial tire, air deflector | A/C,, A/C, radial tire, air deflector |
Advertising Truck with Two Side LED Screen LED BOARD: HIGH QUALITY SCREEN ,WITH HIGH ANTI-SEISMIC AND HIGH RESOLUTION RATIO;
| Payload Platform | 2T | 3T | 4T | 6T | ||||||
| Vehicle model | BJ3043D8JB5-1 | BJ3045D9PBA-1 | BJ3042V3PBB-B3 | BJ3085DEJEA-3 | BJ3122V4PDB-F1 | BJ3122DE- PFA-G1 | ||||
| Cabin width | 1800 | 1800 | 1800 | 1800 | 1800 | 1995 | 1995 | 1995 | 1995 | 1995 |
/Cabin type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | //Forward control/ One and half row/Tilting type | //Forward control/ One and half row/Tilting type | // Forward control/Single row/Tilting type |
| Side of Steering wheel | /Left/right | Left | Left | Left | Left | / Left/right | right | / Left/right | Left | right |
| Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
| Wheelbase | 2600 | 2600 | 2600 | 3360 | 3360 | 3000 | 3360 | 3300 | 3300 | 3800 |
| Engine type/ emission standard | 493ZLQV1 (Euro) | 4J28TC(Euro III) | ISF2.8s3129T (Euro III) | 493ZLQV1 (Euro) | 4J28TC(Euro III) | F3.8s3141 (Euro ) | F3.8s3141 (Euro ) | F3.8s3141 (Euro ) | ISF3.8s4R154 (Euro ) | F3.8s3141 (Euro ) |
| Power (kw/rpm) | 76/3600 | 81/3600 | 96/3200 | 76/3600 | 81/3600 | 105/2600 | 105/2600 | 105/2600 | 115/2600 | 105/2600 |
| Max. Torque(N.m/ rpm) | 225/2200 | 285/2200 | 310/1600~2700 | 225/2200 | 285/2200 | 450/1500 | 450/1500 | 450/1500 | 500/1500 | 450/1500 |
| Displacement(L) | 2.771 | 2.771 | 2.78 | 2.771 | 2.771 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 |
| Transmission | 5TS32 | 5TS32 | 5T40 | 5TS32 | 5TS32 | 6TS55 | 6TS55 | 6TS55 | 6TS55 | 6TS55 |
| Load of rear axle | 3T | 3T | 3T | 3T | 3T | 6T | 6T | 7T | 7.8T | 6.5T |
| Overall dimen- sions (LxWxH)mm | 4790×1960×2260 | 4790×1960×2260 | 4790×1960×2260 | 5305×2000×2280 | 5305×2000×2280 | 5505×2465×2560 | 6085×2100×2365 | 6090×2240×2530 | 6090×2240×2530 | 6400×2200×2440 |
| Internal cargo body dimensions (LxWxH)mm | 3000×1860×450 | 3000×1860×450 | 3000×1860×450 | 3500×1860×450 | 3800×1860×400 | 3400×2070×600 | 4500×2070×600 | 3750×2070×600 | 3750×2070×600 | 4500×2070×600 |
| Curb weight (Kg) | 2560 | 2560 | 2560 | 2860 | 2860 | 4910 | 4970 | 5500 | 5500 | 5370 |
| Rated load capacity (Kg) | 2000 | 2000 | 2000 | 3000 | 3000 | 4000 | 4000 | 6000 | 6000 | 6000 |
| () Max. Speed(empty) | 105 | 105 | 100 | 100 | 100 | 90 | 92 | 85 | 85 | 100 |
| Max. Gradeability | 27% | 30% | 30% | 28% | 28% | 32% | 32% | 40% | 40% | 33% |
| /Tire spec/No. | 6.50R16/6+1 | 6.50R16/6+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.00R16/6+1 | 8.25R16/6+1 | 7.50R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 |
| Option | A/C | A/C | A/C | A/C | A/C | A/C | A/C | A/C | A/C | A/C |
| Drive type | 4 x 2, left hand drive | |
| Wheel base | 3360 mm | |
| Cabin | Single row, 2 seats, air conditioner, usb connection, radio | |
| Overall dimension (L*W*H) | 5995 x 2040 x2990 | |
| GVW | 4495 kg | |
| Curb weight | 4365 kg | |
| Engine | Engine model | 4JB1CN |
| Engine make | Forland | |
| Rated power | 72 kw / 98 hp | |
| Displacement | 2771 ml | |
| Emission standard | Euro 2 | |
| Type | Diesel engine, 4-cylinders in line, turbocharged water cooling, direct injection | |
| Gear box | Isuzu MSB, 5 speed forward, 1 speed reverse, manual | |
| Steering | Manual | |
| Front axle | 2 ton | |
| Rear axle | 4.8 ton | |
| Tire type | 7.00-16 | |
| Tire number | 6 pcs +1 spare tire | |
| Performance | Max speed | 98 km/h |
| Leaf spring number | 3/3+2 | |
| Wheel track(F/R) | 1377/1425 | |
| Approach / Departure angle (º) | 24/16 | |
| Suspension (F/R) | 1015/1525 | |
| LED Display Screen | Left and Right side | P6 color screen, Size 3840 x 1920 mm, both lifting type |
| Rear side | P6, Size 1920 x 1536 mm | |
| Steel box body | 5cm thickness composite steel box, wooden floor | |
| Generator | Ouma brand, 15 kw diesel type, silent type without any noisy | |
| Standard equipment | Loop ventilation cooling system (4 fans), 1 set of industrial computer with control system, 4 waterproof spearkers, 1 amplifier, 1 console. | |
| Aditional For free components | P6 outdoor SMD (10 Pieces), 30 meter length power wire for outdoor use. | |
| Payload Platform | 4T | 6T | 8T | 12T | 30T | |||
| Vehicle model | BJ3043D8JBA-3 | BJ3045D8PEA-2 | BJ3045D9PEA-1 | BJ3145DJPFA-1 | BJ3165DJPFA-1 | BJ3122DEPHD-G1 | BJ3258DLPJB-14 | |
| Cabin width | 1800 | 1800 | 1995 | 1995 | 1995 | 2200 | 2200 | 2400 |
Cabin type | // Forward control/Single row/Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type | //Forward control/ One and half row/ Tilting type |
| Side of Steering wheel | Left | Left | Left | Left | Left | Left | Left | Left |
| Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 6×4 |
| Wheelbase | 2900 | 3300 | 3400 | 3400 | 3600 | 3800 | 3800 | 3700+1350 |
| Engine type/ emission standard | 4DW93-84 (Euro II) | 4102QB (Euro I) | 4102QBZL (Euro II) | 4D120-21 (Euro II) | 4D130-33 (Euro II) | WP6.210E32 (Euro II) | WP6.220E40 ((EuroIV) | WP10.340E32 (Euro II) |
| Power (kw/rpm) | 66/3000 | 70/3100 | 85/3200 | 90/2800 | 96/2800 | 155/2300 | 162/2300 | 250/2200 |
| Max. Torque(N.m/ rpm) | 190/(1900-2100) | 245/(1800-2100) | 320/1800~2200 | 350 /1600~1900 | 380 /(1400~1700) | 800/1400-1600 | 800/1400-1600 | 1350/1200-1600 |
| Displacement(L) | 2.54 | 3.76 | 3.76 | 4.214 | 4.214 | 6.7 | 6.7 | 9.726 |
| Transmission | 540ZHF | 545ZHF | 545ZHF | 545ZHF | 653ZHF | 8S1000 | 8S1000 | 10JSD160 |
| Load of rear axle | 4.5T | 6T | 7.6T | 8T | 9T | 10T | 10T | 16T |
| Overall dimensions (LxWxH)mm | 5237×2200×2440 | 6042×2200×2450 | 6040×2280×2355 | 6170×2280×2800 | 6480×2380×2280 | 6850×2570×2980 | 6850×2570×2980 | 8481×2550×3450 |
| Internal cargo body dimensions (LxWxH)mm | 3200×1900×600 | 3750×1970×(600+300) | 3800×2070×(800+200) | 3950×2070×(600+400) | 4200×2170×(800+400) | 4200×2300×1000 | 4200×2300×1000 | 5600×2300×1500 |
Curb weight (Kg) | 4360 | 4550 | 4830 | 5300 | 6330 | 8880 | 9000 | 15830 |
| Rated load capacity (Kg) | 4000 | 4000 | 6000 | 6000 | 8000 | 12000 | 12000 | 30000 |
() Max. Speed(empty) | 75 | 65 | 80 | 80 | 85 | 85 | 85 | 75 |
Max. Gradeability | 27% | 35% | 35% | 35% | 33% | 30% | 30% | 30% |
/Tire spec/No. | 8.25R16/6+1 | 8.25R16/6+1 | 8.25-20/6+1 | 8.25-20/6+1 | 9.00-20/6+1 | 11.00R20/6+1 | 11.00R20/6+1 | 12.00R20/10+1 |
Option | A/C | A/C | A/C | A/C | A/C | A/C | A/C | -- |
CUSTOMIZED DESIGN Mobile LED Screen Truck Pitch 10mm Vehicle Mounted LED Screen
Payload Platform | 6T | |
Vehicle model | BJ3122V4PDB-F2 | |
Cabin width | 1995 | 1995 |
/Cabin type | //Forward control/One and half row/Tilting type | // Forward control/One and half row/Tilting type |
Side of Steering wheel | / Left/right | Left |
Driving Type | 4×4 | 4×4 |
Wheelbase | 3400 | 3400 |
Engine type/emission standard | F3.8s3141(Euro ) | ISF3.8s4R141(Euro ) |
Power (kw/rpm) | 105/2600 | 105/2600 |
Max. Torque(N.m/rpm) | 450/1500 | 450/1500 |
Displacement(L) | 3.76 | 3.76 |
Transmission | 6TS55 | 6TS55 |
Load of rear axle | 8T | 8T |
Overall dimensions (LxWxH)mm | 6200×2300×2640 | 6200×2300×2640 |
Internal cargo body dimensions (LxWxH)mm | 3600×2070×800 | 3600×2070×800 |
Curb weight (Kg) | 5890 | 5890 |
Rated load capacity (Kg) | 6000 | 6000 |
() Max. Speed(empty) | 85 | 85 |
Max. Gradeability | 45% | 45% |
/Tire spec/No. | 8.25-20/6+1 | 8.25-20/6+1 |
Option | A/C,/Radial Tire | A/C,/Radial Tire |
Moblie Advertising Trucks for Sale
Payload Platform | 0.75T | 1.25T | 2T | 3T | 4T | 5T | 6T | 8T | ||||||
Vehicle model | BJ1030V- 4JV2-S1 | BJ1046V- 9JB6-A1 | BJ1039V- 3JD3-B | BJ1031V- 4JD3-F2 | BJ1059VC- JD6-3 | BJ1051VC- JDA-AA | BJ1069VD- JEA-FA | BJ1051VC- JEA-RF | BJ1043V- 9JEA-N1 | BJ1061VC- JEA-F1 | BJ1089VE- PEA-FA | BJ1129VHJEG-RF | ||
Cabin width | 1475 | 1760 | 1800 | 1800 | 1800 | 1800 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Cabin type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | /// Forward control/Single row/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type |
Side of Steering wheel | Left | Left | /Left/right | Left | Left/ right | Left | Left | right | Left | /Left/right | Left/ | Left | Left | Left |
Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
Wheelbase | 2370 | 2640 | 2600 | 2600 | 3360 | 3360 | 3360 | 3360 | 3360 | 3800 | 3800 | 4700 | 4700 | 4700 |
Engine type/emission standard | DAM15R | 493ZLQV1 (Euro II) | 493ZLQV1 (Euro II) | ISF2.8S4117V (Euro IV) | 493ZLQV1 (Euro II) | 4J28TC(Euro IV) | F3.8s3141 (Euro III) | F3.8s3141 (Euro III) | ISF3.8S4R154 (Euro IV) | F3.8s3141 (EuroIII) | ISF3.8S4R154 (Euro IV) | F3.8s3141(EuroIII) | ISF3.8S4R154 (Euro IV) | ISF3.8S4R168 (Euro IV) |
Power (kw/rpm) | 82/6000 | 80/3600 | 80/3600 | 87/3200 | 80/3600 | 81/3200 | 105/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 125/2600 |
Max. Torque(N.m/ rpm) | 142/4500 | 280/1900-2300 | 280/1900-2300 | 260/1300-3200 | 280/1900-2300 | 280/1700-2000 | 450/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 600/1300~1700 |
Displace- ment(L) | 1.498 | 2.771 | 2.771 | 2.78 | 2.771 | 2.771 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 |
Transmission | MR510 | 528 | 5TS32 | 5-28 | 5TS32 | 5TS32 | 6TS55 | 6TS55 | 6S500 | 6TS55 | 6S500 | 6TS55 | 6TS55 | 6TS55 |
Load of rear axle | 1T | 2T | 3T | 3T | 3T | 3T | 4T | 6T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T |
Overall dimensions (LxWxH)mm | 4335×1510×1837 | 5165×1760×2035 | 5140×1910×2250 | 5140×1910×2250 | 6131×2425×2260 | 6131×2425×2260 | 6140×2100×2345 | 6140×2100×2345 | 6140×2100×2345 | 6963×2170×2350 | 6963×2170×2350 | 8280×2210×2415 | 8280×2210×2415 | 8280×2210×2415 |
Internal cargo body dimensions (LxWxH)mm | 2700×1410×320 | 3110×1650×355 | 3300×1810×360 | 3300×1810×360 | 4230×1900×360 | 4230×1900×360 | 4230×2000×400 | 4230×2000×400 | 4230×2000×400 | 5160×2060×550 | 4800×2060×550 5160×2060×550 | 6200×2100×550 | 6200×2100×550 | 6200×2100×550 |
Curb weight (Kg) | 2100 | 850-1000 | 2180 | 2240 | 2350 | 2350 | 3240 | 3240 | 3240 | 3750 | 3750 | 5350 | 5370 | 5670 |
Rated load capacity (Kg) | 750 | 1900-2100 | 2000 | 2000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 | 5000 | 6000 | 6000 | 8000 |
( ) Max. Speed(empty) | 110 | 110 | 105 | 110 | 103 | 103 | 97 | 100 | 100 | 92 | 95 | 100 | 100 | 100 |
Max. Gradeability | 27% | 27% | 30% | 30% | 26% | 26% | 30% | 30% | 30% | 30% | 30% | 28% | 28% | 28% |
/Tire spec/No. | 165/70R14/4+1 | 195/70R15C/ 155R12/6+1 | 6.50R16/6+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.00R16/6+1 | 7.50R16/6+1 | 7.50R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R20/6+1 |
Option | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector |

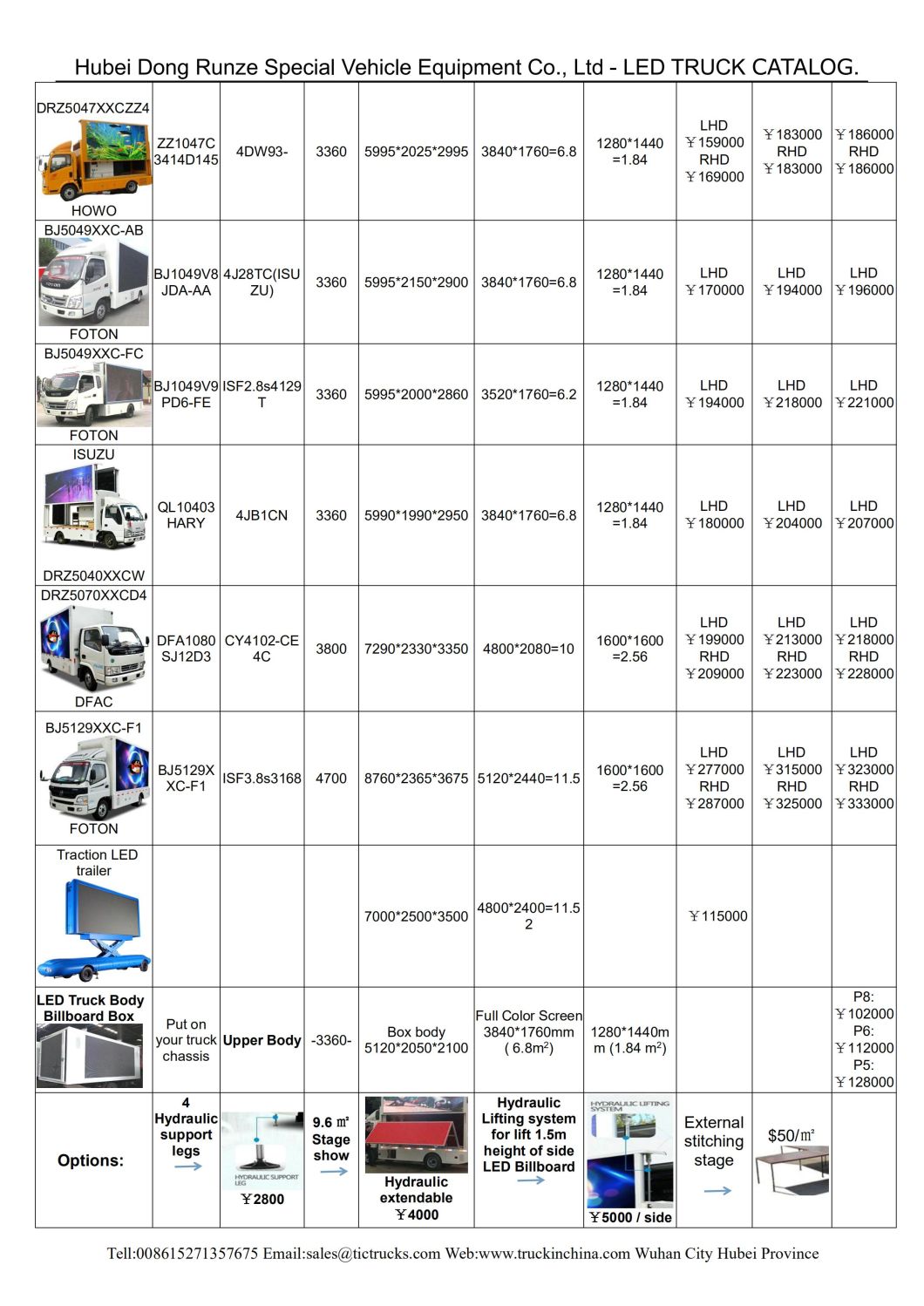

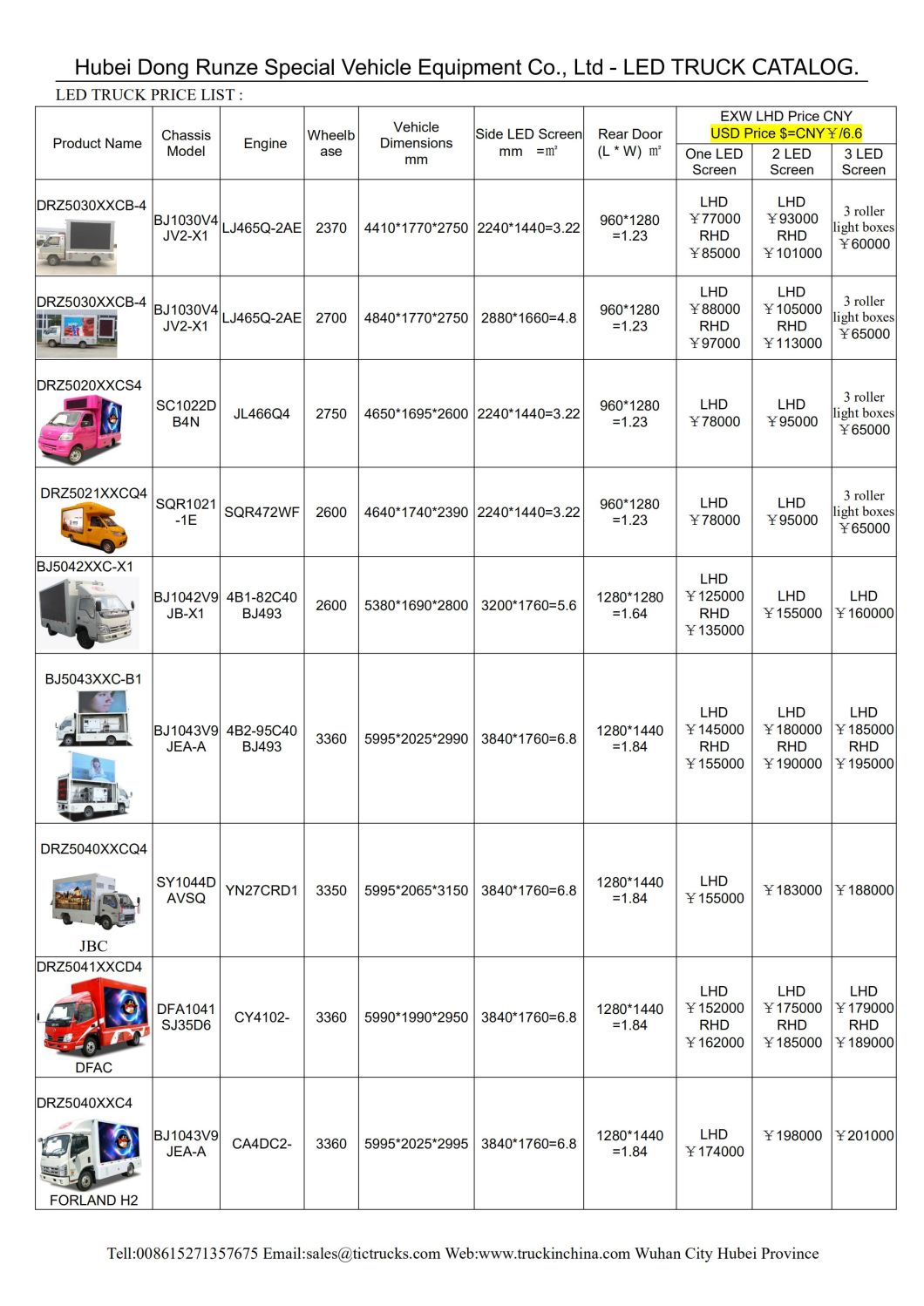

Specifications
| BJ1049V8ADA-1 | BJ493ZLQ3 | 5995×2000×2860 | 2720*1760 | 4.8 | 2.56 |
| BJ1046V9JB5-H1 | 4A1-68C40 | 5130×1900×2750 | 2800*1600 | 4.6 | 2.56 |
| ZZ1047C3414D145 | 4B2-95C40 | 5995×2025×2995 | 3840*1760 | 6.8 | 2.6 |
| BJ1043V9JEA-A | 4B2-95C40 | 5995×2025×2990 | 3840*1760 | 6.8 | 2.6 |
| HFC1041K7T | 4D25F | 5995×2030×2900 | 3840*1760 | 6.8 | 2.6 |
| BJ1049V9PD6-FE | ISF2.8s4129T | 5995×2000×2860 | 3520*1760 | 6.8 | 2.56 |
| BJ1049V9PD6-FE | CY4102-CE4F | 5995×2000×2900 | 3840*1760 | 6.8 | 2.56 |
| BJ1089VDPFG-SD | YC4E140-31 | 7970×2190×3730 | 4800*2240 | 10.8 | 2.56 |
FORLAND LED Advertising Truck is also called Advertising Screen Truck , led advertising truck, mobile exhibition truck, led display truck, digital screening truck,etc. It generally consists of four parts, including generator sets, projectors, computers, LED screen .It is mainly used for film screening , also with two side LED Screen used in productpromotion, brand promotion, draft activities, sales live shows , sporting events, concerts with two side LEC Screen etc.
Product Note:
1.FORLAND 4*2 new type chassis, P8 fullcolor screen, optional P10, P6 fullcolor screen
2. Factory direct sale
3. Many kind of option, high quality low price
Production Features:
1.Compared to traditional media, it can accept more than one or dozens of customers and the
media placement .
2. Compared to traditional media, can reducing complex manufacturing processes and cost, and
could according to the customer requirements to update the vedio.
3.Using the medium size LED screen, optional single side screen, two sides screen or three side screen,also optional the lifting screen ,the cost is far lower than the large LED screen which was installed on the wall .
4. New design,pretty innovative, become a beautiful landscape line of the urban development
and construction .
5. Compared to traditional media ,associated activity and inertia ,close to the audience strong
visual impact ,good effect.
6.Truck Can receive the signals of Vedio and TV , could be used as the platform of outdoor
live broadcast and live broadcast .
Main Parameter of P8 fullcolor screen 4*2 FORLAND LED Advertising Truck for sale:
Whole Main Technical Parameter | |||
Product Model | FORLAND LED Advertising Truck | Overall Dimension(L*W*H)(mm) | 5995×2025×2995 |
Wheelbase(mm) | 3360 | Number of Axles | 2 |
Curb Weight (kg) | 4300 | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab Type | Flat proof, single row |
Chassis Technical Parameter | |||
Chassis Model | BJ1042 | Chassis manufacturer | BEIQI FONTON Motor Co., Ltd |
Transmission type | Manual | Gear Box | 5 speed forward and 1 reverse |
Steering Type | LHD with power steering | Traction Type | 4*2 |
Brake System | oil brake | Tire size/type | 6.50R16LT |
Rear axle loading capacity(Kg) | 5000 | Number of Tires | 6 with a spare |
Engine Technical Parameter | |||
Engine Model | 4B2-95C40 | Engine manufacturer | ANHUI Quanchai |
Fuel type | Diesel | Displacement( ml) | 2545 |
Emission stand | Euro 3 | Power/Horse power(KW)/(HP) | 70(95hp) |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Superstructure parameter | 1. main used in Advertising display Show, special devices: generator sets, projectors, computers, LED screen, two waterproof speaker, one side P8 lifting Led screen area: 6.8m2, another side is rolling type, rear Led screen area: 1.8m2 or 2.56m2 | ||
2. Thickness 5cm Composite steel box body, outside cold rolled steel sheet, inside aluminum alloy plate floor, wood floor or high-grade floor leather | |||
3. Four hydraulic legs, preciseness unilateral lifting-up LED screen, Electromechanical integration control | |||
4.Circulating ventilation cooling system | |||
5.Safe-intelligent inner and outer power distribution switch net system | |||
6.High-performance silent diesel generator unit 17KW | |||
7.Computer intelligent switch 2-7 pair pictures and lamp | |||
8. Full waterproof highlight P8 fullcolor car LED screen | |||
9. Gigabit streaming media control system | |||
Warranty | 12 months, from the date of supply | ||
Multi-faceted show of P8 fullcolor screen 4*2 FORLAND LED Advertising Truck for sale:
1.Stable capability for advertising truck led display
2.Super brightness waterproof shockproof led display
3.Good after-sales for Elnor mobile truck led display
4.True color reproduction for mobile advertising truck led display
5.Ultimate system reliability for vehicle/ trailer led display
6.Long life span and stable work
7.CE, RoHS, ISO9001 certification
8.9 years experience
9.Simple cabinet, easy to assemble, fast-set up
A) 17.2 sqm mobile advertising truck led display. 3.84m x 2.24m x2pcs.
B) Both side of the mobile truck are full color led displays.
C) The size of the waterproof cabinet is 960mm x1120mm, each weight 58kg/pcs.
| Payload Platform | 2T | 4T | 6T | ||
| Vehicle model | BJ3032V2JBB-A1 | BJ3052D8JEA-2 | BJ3072V4PDB-A2 | BJ3072DDPEA-G3 | BJ3062V3PDB-B2 |
| Cabin width | 1800 | 1995 | 1995 | 1995 | 1995 |
/Cabin type | //Forward control/Sin- gle row/Tilting type | //Forward control/Sin- gle row/Tilting type | //Forward control/Sin- gle row/Tilting type | //Forward control/One and half row/Tilting type | //Forward control/One and half row/Tilting type |
Side of Steering wheel | Left | Left | Left | Left | Left |
| Driving Type | 4×4 | 4×4 | 4×2 | 4×2 | 4×4 |
| Wheelbase | 2900 | 3300 | 3300 | 3500 | 3600 |
Engine type/emission standard | 4DW93-84(Euro II) | 4102QBZL(Euro II) | 4D130-33(Euro II) | 4D130-33(Euro II) | 4D130-20 (Euro II) |
| Power (kw/rpm) | 66/3000 | 85/3000 | 96/2800 | 96/2800 | 96/2800 |
Max. Torque(N.m/rpm) | 220/2000-2200 | 320/1800-2200 | 380/1700-2000 | 380/1700-2000 | 380/1700-2000 |
| Displacement(L) | 2.545 | 3.76 | 4.214 | 4.214 | 4.214 |
| Transmission | 540Z | 545 | 545ZHF | 545ZHF | 545 |
| Load of rear axle | 4T | 6T | 8T | 8T | 8T |
| Overall dimensions (LxWxH)mm | 5155×2075×2517 | 5770×2250×2630 | 5840×2395×2735 | 6115×2390×2745 | 6360×2300×2750 |
| Internal cargo body dimensions (LxWxH)mm | 3200×1970×600 | 3500×2050×600 | 3750×2200×800 | 3750×2200×800 | 3750×2200×800 |
| Curb weight (Kg) | 4130 | 5320 | 6080 | 6170 | 6990 |
| Rated load capacity (Kg) | 2000 | 4000 | 6000 | 6000 | 6000 |
| () Max. Speed(empty) | 80 | 76 | 80 | 80 | 85 |
| Max. Gradeability | ≥40% | ≥45% | ≥30% | ≥30% | ≥45% |
| /Tire spec/No. | 8.25R16/6+1 | 8.25-20/6+1 | 9.00-20/6+1 | 9.00-20/6+1 | 9.00R20/6+1 |
| Option | A/C | A/C | A/C | A/C | A/C |
Main features
1.Customized design
2.True color reproduction & authentic video quality
3.Ultimate system reliability
4.Fast set-up, easy service and full control
LED display parameter
Elnor Outdoor Mobile/Truck Full Color LED Display/Billboard | |||||
Module | Pitch/mm | P10 | P16 | P20 | P25 |
Module size/mm | 160x160 | 128x256 | 320x160 | 200x200 | |
Density of pixel/(dots/m2) | 10,000 | 3,906 | 2,500 | 1,600 | |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
Led encapsulation | DIP | DIP | DIP | DIP | |
Resolution of module | 16X16 | 32X16 | 32X16 | 8X8 | |
Main | Optimum viewing distance | ≥10 | ≥15 | ≥17 | ≥23 |
View angle / ° | 110 H,60 V | 110 H,60 V | 110 H,60 V | 110 H,60 V | |
Average power consumption/W/M2 | 300 | 300 | 350 | 400 | |
Max power consumption/W/M2 | 750 | 600 | 850 | 650 | |
Size of cabinet/mm | 960X960 | 1024X768 | 1280X960 | 1000x1000 | |
Resolution of cabinet | 96X96 | 64x48 | 64X48 | 40X40 | |
Weight of cabinet/kg | 58 | 60 | 65 | 80 | |
Driving method | 1/4 scan constant current | Static constant current | Static constant current | Static constant current | |
Frame frequency / Hz/S | ≥60 | ≥60 | ≥60 | ≥60 | |
Refresh rate Hz/S | ≥600 | ≥600 | ≥600 | ≥600 | |
Luminance of white balance | ≥7000 nits | ≥6500 nits | ≥6000 nits | ≥5500 nits | |
Operation of Environmental Temperature/°C | below 30 to above 50 | ||||
IP rating | IP65 | ||||
Working vlotage | 110-220 VAC/+/- 10% | ||||
Grey scale/color | displaying colors≥16.7M(synchronized) | ||||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||||
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | ||||
Control system | linsn(sending card,receiving cards and Hubs) | ||||
Average of non-failure life | >50,00h | ||||
Life span | >100,000h | ||||
Functionaless dot rate | <0.0001 | ||||
Advantages
1.High brightness and be adjustable.Built-in functional card support brightness automatically adjustment.
2.A turn-key solution including professional sports software and hardware.
3.Rich advertising LED display engineering experience both in domestic and oversea market.
4.Unbeatable product stability through strict quality control system.
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful & win
Trade terms
1. Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port:Shenzhen,mainland China
4. MOQ:1PC
Payload Platform | 0.75T | 1.25T | 2T | 3T | 4T | 5T | 6T | 8T | ||||||
Vehicle model | BJ1030V- 4JV2-S1 | BJ1046V- 9JB6-A1 | BJ1039V- 3JD3-B | BJ1031V- 4JD3-F2 | BJ1059VC- JD6-3 | BJ1051VC- JDA-AA | BJ1069VD- JEA-FA | BJ1051VC- JEA-RF | BJ1043V- 9JEA-N1 | BJ1061VC- JEA-F1 | BJ1089VE- PEA-FA | BJ1129VHJEG-RF | ||
Cabin width | 1475 | 1760 | 1800 | 1800 | 1800 | 1800 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
Cabin type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | // Forward control/Single row/Tilting type | /// Forward control/Single row/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type | // Forward control/One and half row/ Tilting type |
Side of Steering wheel | Left | Left | /Left/right | Left | Left/ right | Left | Left | right | Left | /Left/right | Left/ | Left | Left | Left |
Driving Type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
Wheelbase | 2370 | 2640 | 2600 | 2600 | 3360 | 3360 | 3360 | 3360 | 3360 | 3800 | 3800 | 4700 | 4700 | 4700 |
Engine type/emission standard | DAM15R | 493ZLQV1 (Euro II) | 493ZLQV1 (Euro II) | ISF2.8S4117V (Euro IV) | 493ZLQV1 (Euro II) | 4J28TC(Euro IV) | F3.8s3141 (Euro III) | F3.8s3141 (Euro III) | ISF3.8S4R154 (Euro IV) | F3.8s3141 (EuroIII) | ISF3.8S4R154 (Euro IV) | F3.8s3141(EuroIII) | ISF3.8S4R154 (Euro IV) | ISF3.8S4R168 (Euro IV) |
Power (kw/rpm) | 82/6000 | 80/3600 | 80/3600 | 87/3200 | 80/3600 | 81/3200 | 105/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 105/2600 | 115/2600 | 125/2600 |
Max. Torque(N.m/ rpm) | 142/4500 | 280/1900-2300 | 280/1900-2300 | 260/1300-3200 | 280/1900-2300 | 280/1700-2000 | 450/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 450/1500 | 500/1500 | 600/1300~1700 |
Displace- ment(L) | 1.498 | 2.771 | 2.771 | 2.78 | 2.771 | 2.771 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 |
Transmission | MR510 | 528 | 5TS32 | 5-28 | 5TS32 | 5TS32 | 6TS55 | 6TS55 | 6S500 | 6TS55 | 6S500 | 6TS55 | 6TS55 | 6TS55 |
Load of rear axle | 1T | 2T | 3T | 3T | 3T | 3T | 4T | 6T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T | 6.5T |
Overall dimensions (LxWxH)mm | 4335×1510×1837 | 5165×1760×2035 | 5140×1910×2250 | 5140×1910×2250 | 6131×2425×2260 | 6131×2425×2260 | 6140×2100×2345 | 6140×2100×2345 | 6140×2100×2345 | 6963×2170×2350 | 6963×2170×2350 | 8280×2210×2415 | 8280×2210×2415 | 8280×2210×2415 |
Internal cargo body dimensions (LxWxH)mm | 2700×1410×320 | 3110×1650×355 | 3300×1810×360 | 3300×1810×360 | 4230×1900×360 | 4230×1900×360 | 4230×2000×400 | 4230×2000×400 | 4230×2000×400 | 5160×2060×550 | 4800×2060×550 5160×2060×550 | 6200×2100×550 | 6200×2100×550 | 6200×2100×550 |
Curb weight (Kg) | 2100 | 850-1000 | 2180 | 2240 | 2350 | 2350 | 3240 | 3240 | 3240 | 3750 | 3750 | 5350 | 5370 | 5670 |
Rated load capacity (Kg) | 750 | 1900-2100 | 2000 | 2000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 | 5000 | 6000 | 6000 | 8000 |
( ) Max. Speed(empty) | 110 | 110 | 105 | 110 | 103 | 103 | 97 | 100 | 100 | 92 | 95 | 100 | 100 | 100 |
Max. Gradeability | 27% | 27% | 30% | 30% | 26% | 26% | 30% | 30% | 30% | 30% | 30% | 28% | 28% | 28% |
/Tire spec/No. | 165/70R14/4+1 | 195/70R15C/ 155R12/6+1 | 6.50R16/6+1 | 6.50R16/6+1 | 7.00R16/6+1 | 7.00R16/6+1 | 7.50R16/6+1 | 7.50R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R16/6+1 | 8.25R20/6+1 |
Option | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | A/C Air deflector | A/C Air deflector | A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector | ABS A/C Air deflector |
