Availability: | |
---|---|
Quantity: | |
JAC JMC
8705
Shanghai, China
5000
T/T, Western Union

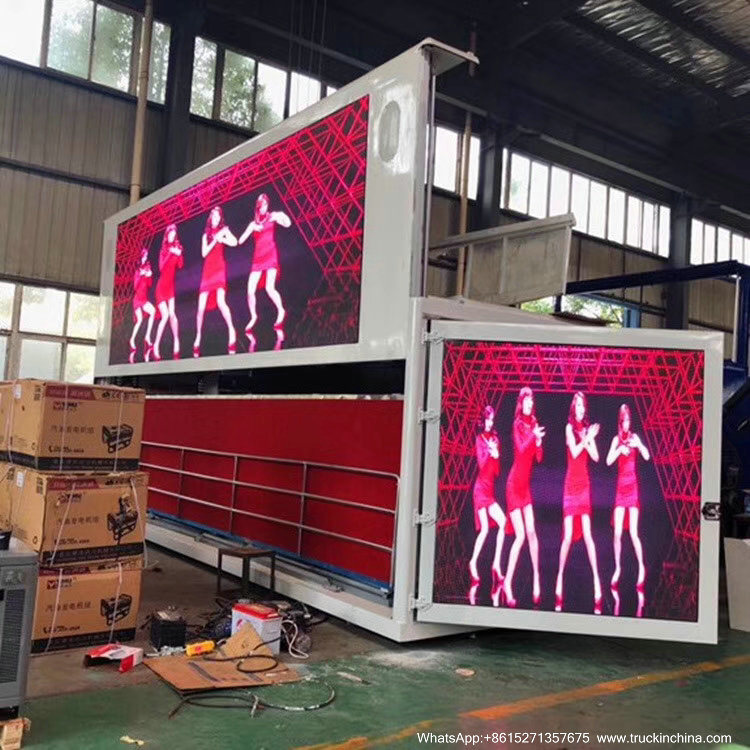

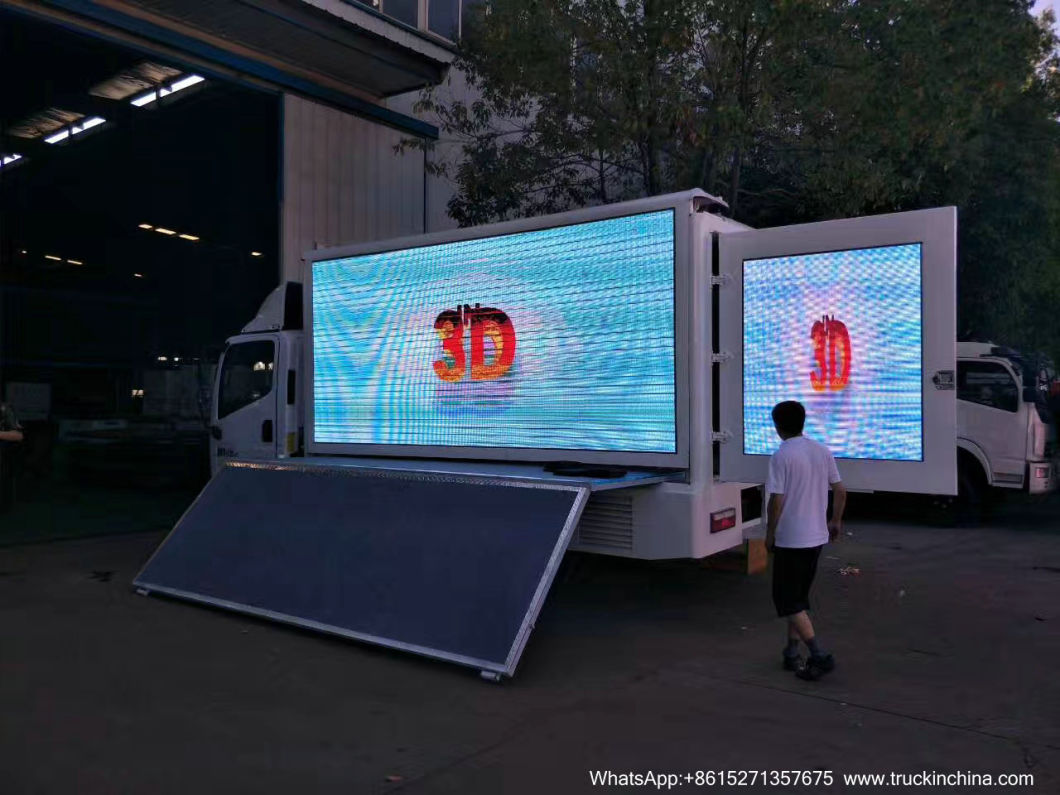

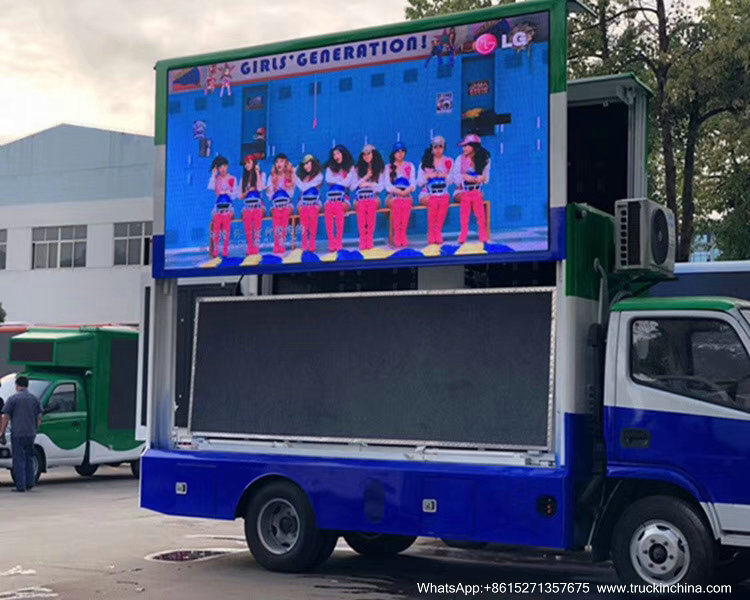

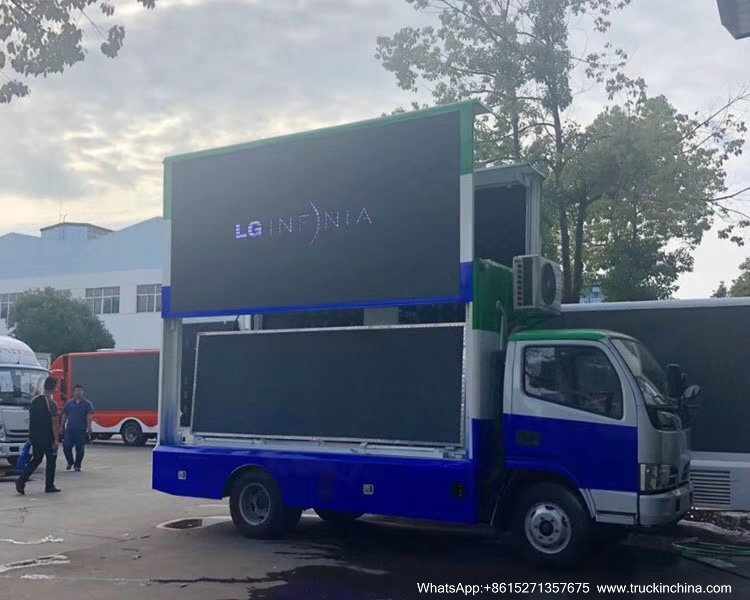

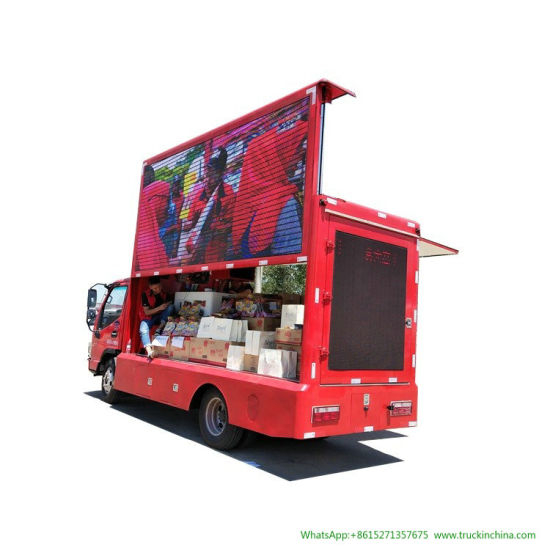

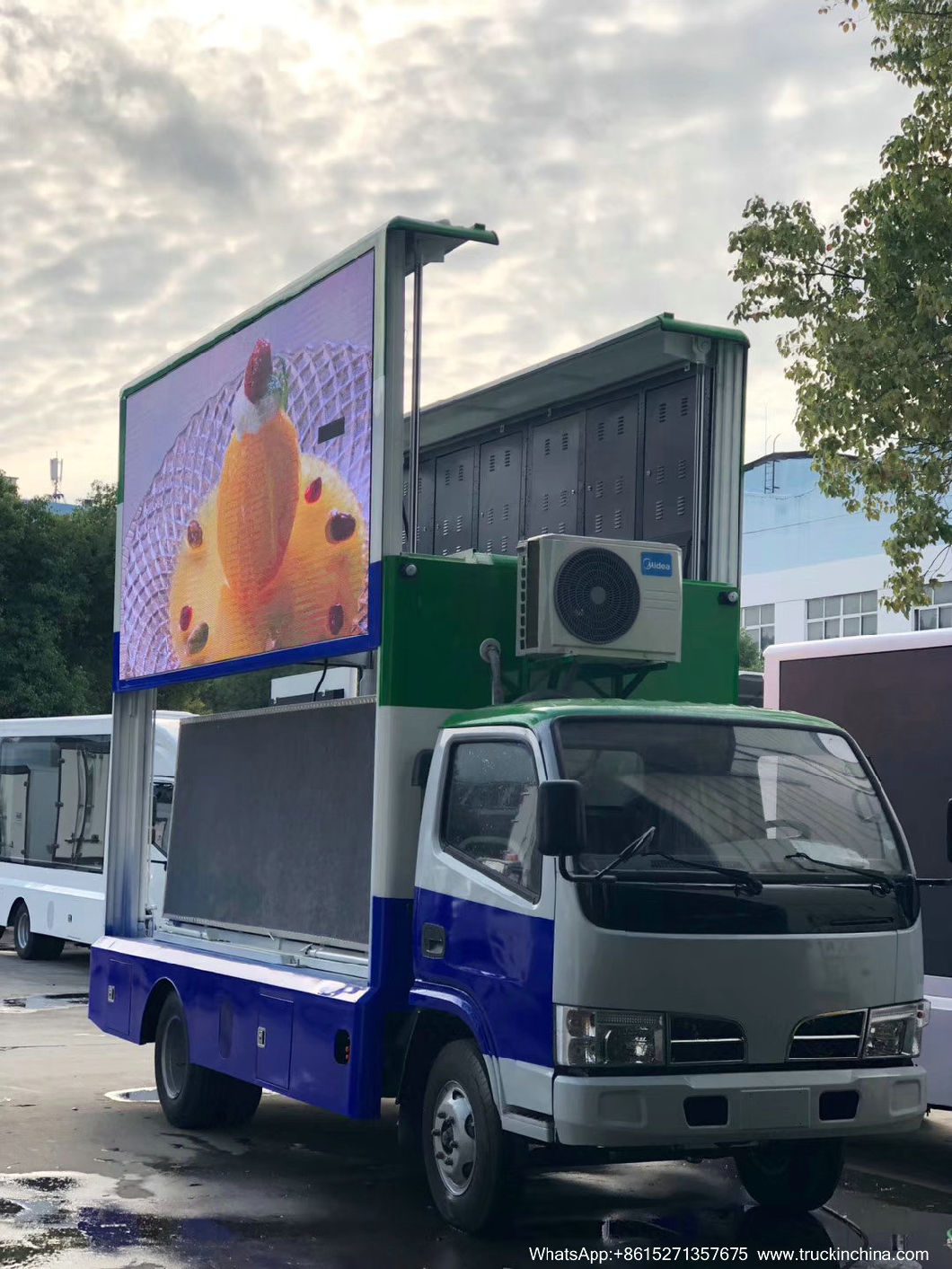

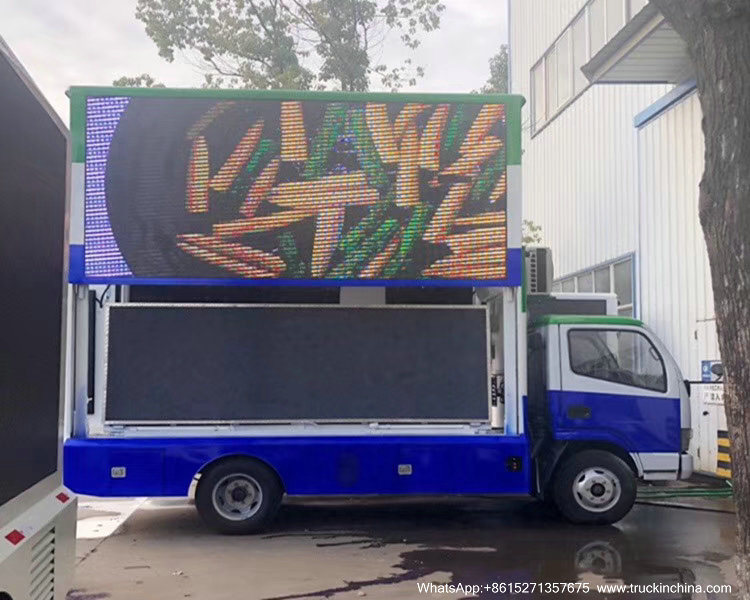

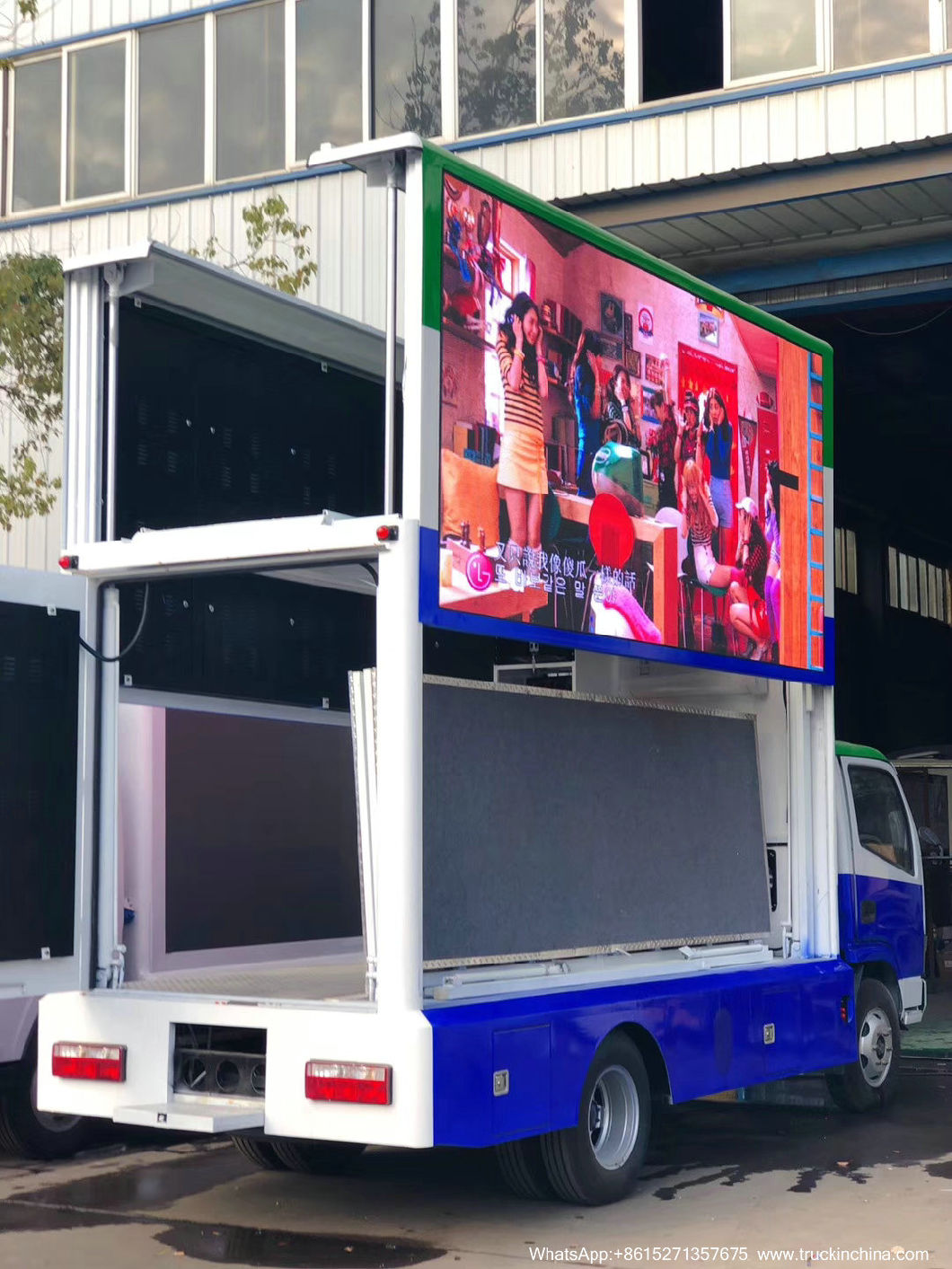

JAC / JMC LED Truck with LED Billboard and Sound System
Advertising Truck with Two Side LED Screen LED BOARD: HIGH QUALITY SCREEN ,WITH HIGH ANTI-SEISMIC AND HIGH RESOLUTION RATIO;
JAC 6m led mobile truck/truck led side marker | |||
Overall dimension | 5995×2020×3060(mm) | Driving type | 4×2 |
Wheel base | 3308,2800,3360(mm) | Tire type | 6.50-16LT 10PR,6.50R16LT 10PR,7.00R16LT 8PR,7.00-16LT 8PR |
Approach/ departure angle | 20/12(°) | Front/raer suspension | 1085/1602(mm) |
Axle load capacity | 1620/2875 | Max speed | 90(km/h) |
Engine power | 88kw | Emission stand | Euro III |
Fule | Dissel | Warranty | 2 years |
Rmark:The information above is just for your reference. We can manufacture trucks according to your demands. |
1.LED display can select P4/p5/p6
2.Single side, double side and three side LED screens are available
3.Single lifting, double lifting or no lifting can be selected

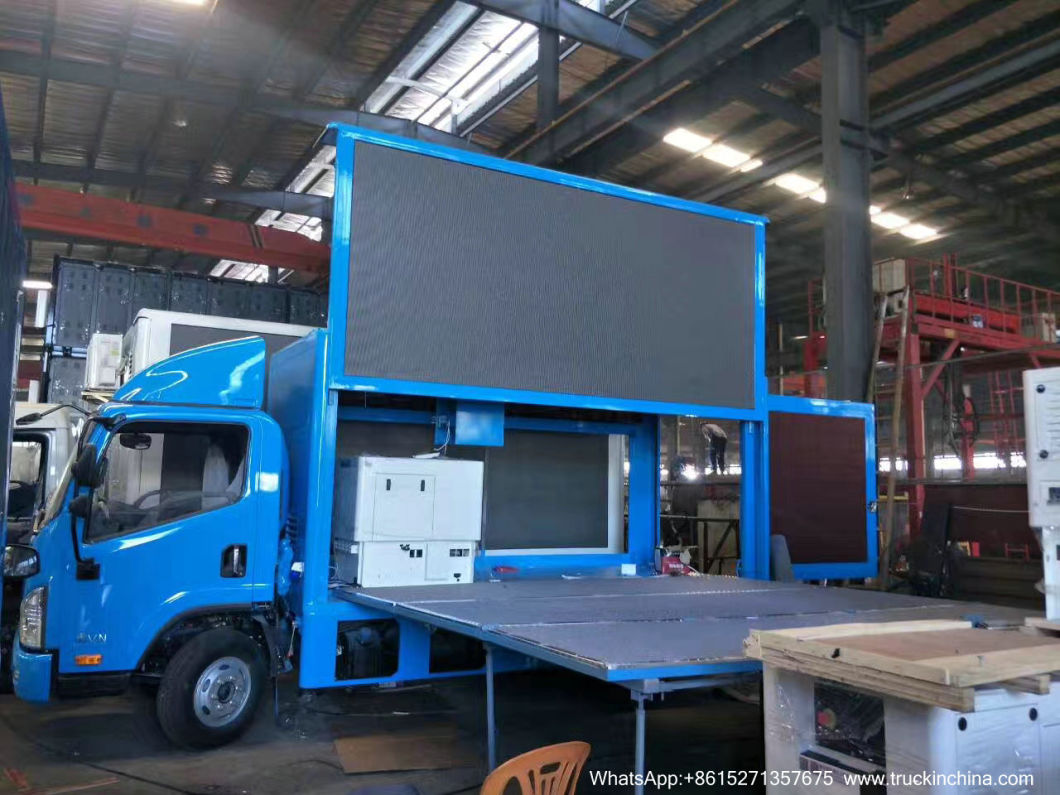

4.Optional side spread stage
2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
Outside body size (length × width × height mm) | 9600×2500×-- |
Stage size (mm) | Deep: 4880-7230; opening width: 9000-14780; height from ground: 1400 |
Stage area (m2) | 64 square meters - 84 square meters |
Stage step ladder | Aluminum pattern pedal + armrest |
Stage support | The stage legs are collected in the lower space of the stage frame, which can be directly screwed out and fixed. |
Extended connection | The hinge is hinged to the main stage panel, manually flipped and becomes part of the stage, making operation quick and easy |
Chassis leg | Hydraulic leg |
Wing, main and sub stage, ceiling | Hydraulic expansion |
Left background | Hydraulic expansion |
Chassis model | HFC1251P2K3D54S1V |
Emission Standards | Gb17691-2005 country v, gb3847-2005 |
Power (kw) | 179(240PS) |
Chassis configuration | Air conditioning, airbag seat, vehicle tools, fire extinguisher, warning triangle, semi-high ceiling cab |
Displacement | 6740mL |
Tire | 11.00R20,12R22.5 |
Overall dimensions (length × width × height mm) | 11950×2500×3950(mm)
|
Total vehicle mass (kg) | 19500 |
Loading mass (kg) | 2000 |
Led screen (optional) | The size is 8640*2880, and the screen folding is hydraulically expanded or closed (according to customer's optional) |
SINOTRUK CHASSIS: First CLASS STEADY CHASSIS,NO.1 SALES WITH BEST SERIVE.
LESS NOISE;
CUSTOMIZED DESIGN Mobile LED Screen Truck Pitch 10mm Vehicle Mounted LED Screen / Moblie Advertising Trucks for Sale
Specifications
To view the detail specification on this JMC 4*2 Cargo Truck as below:
Model | JX1043DLF2 (traction system: 4*2) | |
Dimensions | mm | 5955*1880*2140 |
Cargo box dimensions | 4220*1780*380 | |
Engine (Weichai Power Co., Ltd) | JX493ZQ4A (Euro2 emission standard) | |
Exhaust & engine power | 2771ml, 62kw | |
Max speed | 100km/h | |
Mass in working order | kg | 2165 |
Axle load | 1585/2205 | |
Wheel base | mm | 3360 |
F/R track base | 1385/1425 | |
Suspension | 1065/1530 | |
Approach/departure angel | ° | 27/17.5 |
Tire specification | 7.00R16LT | |
Number of axles | 2 | |
Equipments | LED sound system |
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you. Just contact us directallly, we will be more than happy to help and serve you.
TI M:8615271357675 M:8615271357635 www.truckinchina.com
BJ1049V8ADA-1 | BJ493ZLQ3 | 5995×2000×2860 | 2720*1760 | 4.8 | 2.56 |
BJ1046V9JB5-H1 | 4A1-68C40 | 5130×1900×2750 | 2800*1600 | 4.6 | 2.56 |
ZZ1047C3414D145 | 4B2-95C40 | 5995×2025×2995 | 3840*1760 | 6.8 | 2.6 |
BJ1043V9JEA-A | 4B2-95C40 | 5995×2025×2990 | 3840*1760 | 6.8 | 2.6 |
HFC1041K7T | 4D25F | 5995×2030×2900 | 3840*1760 | 6.8 | 2.6 |
BJ1049V9PD6-FE | ISF2.8s4129T | 5995×2000×2860 | 3520*1760 | 6.8 | 2.56 |
BJ1049V9PD6-FE | CY4102-CE4F | 5995×2000×2900 | 3840*1760 | 6.8 | 2.56 |
BJ1089VDPFG-SD | YC4E140-31 | 7970×2190×3730 | 4800*2240 | 10.8 | 2.56 |
1.Stable capability for advertising truck led display
2.Super brightness waterproof shockproof led display
3.Good after-sales for Elnor mobile truck led display
4.True color reproduction for mobile advertising truck led display
5.Ultimate system reliability for vehicle/ trailer led display
6.Long life span and stable work
7.CE, RoHS, ISO9001 certification
8.9 years experience
9.Simple cabinet, easy to assemble, fast-set up

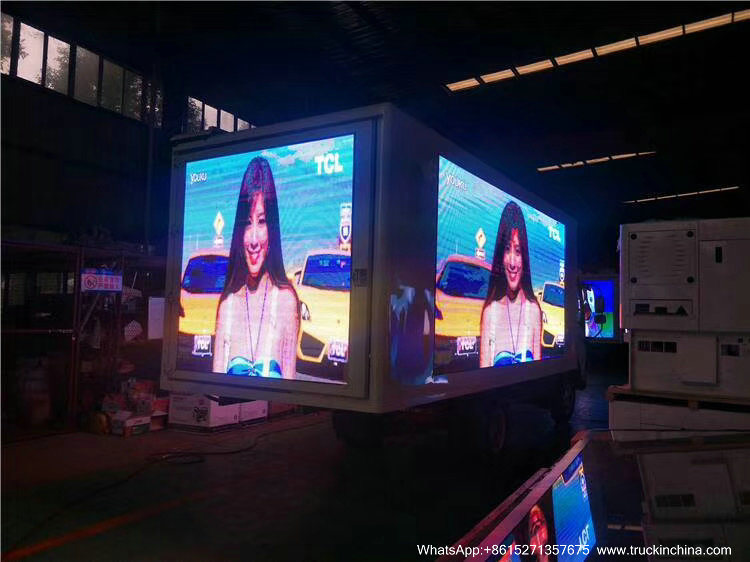

A) 17.2 sqm mobile advertising truck led display. 3.84m x 2.24m x2pcs.
B) Both side of the mobile truck are full color led displays.
C) The size of the waterproof cabinet is 960mm x1120mm, each weight 58kg/pcs.
Main features
1.Customized design
2.True color reproduction & authentic video quality
3.Ultimate system reliability
4.Fast set-up, easy service and full control
LED display parameter
Elnor Outdoor Mobile/Truck Full Color LED Display/Billboard | |||||
Module | Pitch/mm | P10 | P16 | P20 | P25 |
Module size/mm | 160x160 | 128x256 | 320x160 | 200x200 | |
Density of pixel/(dots/m2) | 10,000 | 3,906 | 2,500 | 1,600 | |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
Led encapsulation | DIP | DIP | DIP | DIP | |
Resolution of module | 16X16 | 32X16 | 32X16 | 8X8 | |
Main | Optimum viewing distance | ≥10 | ≥15 | ≥17 | ≥23 |
View angle / ° | 110 H,60 V | 110 H,60 V | 110 H,60 V | 110 H,60 V | |
Average power consumption/W/M2 | 300 | 300 | 350 | 400 | |
Max power consumption/W/M2 | 750 | 600 | 850 | 650 | |
Size of cabinet/mm | 960X960 | 1024X768 | 1280X960 | 1000x1000 | |
Resolution of cabinet | 96X96 | 64x48 | 64X48 | 40X40 | |
Weight of cabinet/kg | 58 | 60 | 65 | 80 | |
Driving method | 1/4 scan constant current | Static constant current | Static constant current | Static constant current | |
Frame frequency / Hz/S | ≥60 | ≥60 | ≥60 | ≥60 | |
Refresh rate Hz/S | ≥600 | ≥600 | ≥600 | ≥600 | |
Luminance of white balance | ≥7000 nits | ≥6500 nits | ≥6000 nits | ≥5500 nits | |
Operation of Environmental Temperature/°C | below 30 to above 50 | ||||
IP rating | IP65 | ||||
Working vlotage | 110-220 VAC/+/- 10% | ||||
Grey scale/color | displaying colors≥16.7M(synchronized) | ||||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||||
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | ||||
Control system | linsn(sending card,receiving cards and Hubs) | ||||
Average of non-failure life | >50,00h | ||||
Life span | >100,000h | ||||
Functionaless dot rate | <0.0001 |
Advantages
1.High brightness and be adjustable.Built-in functional card support brightness automatically adjustment.
2.A turn-key solution including professional sports software and hardware.
3.Rich advertising LED display engineering experience both in domestic and oversea market.
4.Unbeatable product stability through strict quality control system.
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful & win
Trade terms
1. Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port:Shenzhen,mainland China
4. MOQ:1PC
