MENWO 5G15 Transmission Power Take-Offs (PTOs) MW5G15Q LG515/5G15

MENWO MR70 Transmission Power Take-Offs (PTOs)
Price: $ 500
Discount Price: $ 250
Availability:
Quantity:

  • LG515/5G15 MW5G15Q

  • Shanghai, China

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

MENWO 5G15 Transmission Power Take-Offs (PTOs) MW5G15Q  LG515/5G155G15 MENWO PTO 15G15 MENWO PTO

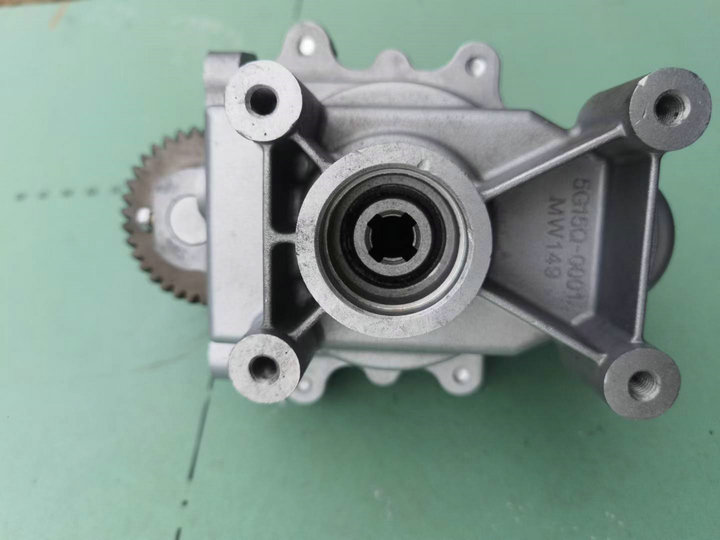

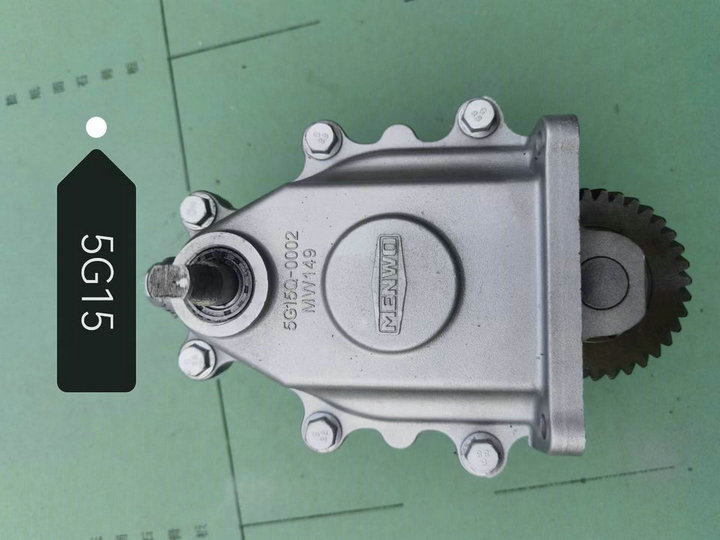

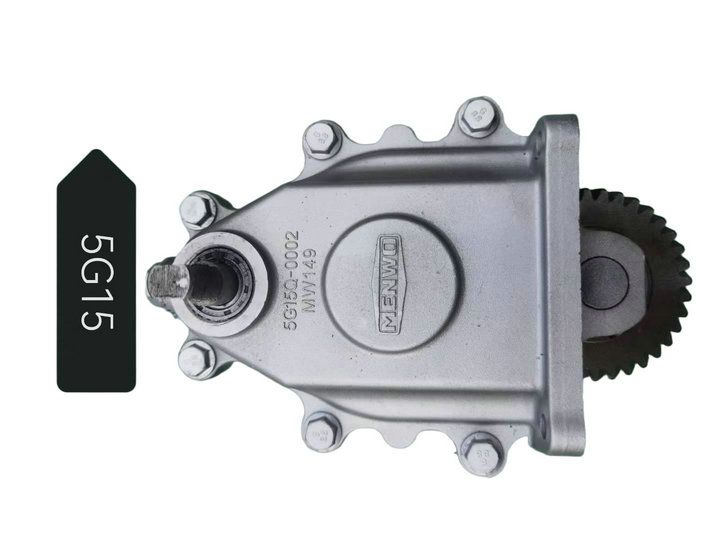

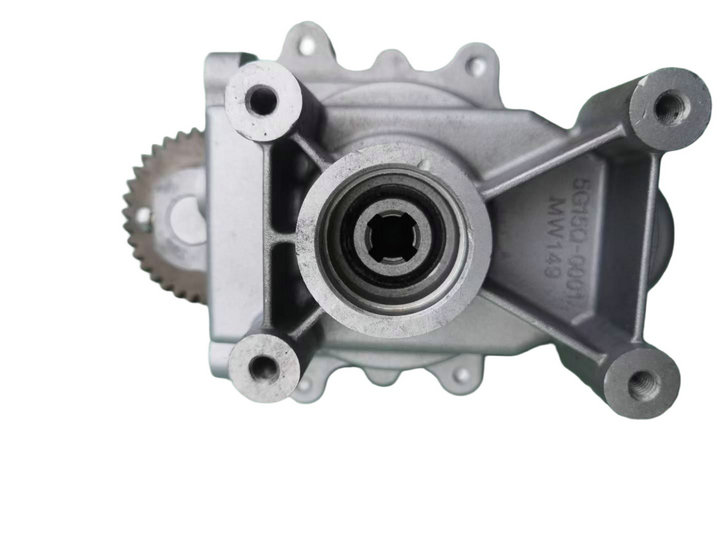

The Menwo 5G15 (Model: MW5G15Q) is a manual side-mounted power take-off (PTO),commonly known as "4-spline small shaft". It is specially designed for the Mengwo 5G15 series 5-speed transmission, widely applied on light-duty special vehicles.

Core Parameters

Model: MW5G15Q (Compatible with Mengwo LG515 / 5G15 transmission)
Type: Manual side PTO (Power taken from transmission countershaft)
Output Form: Manual 4-spline shaft (4-spline small shaft)
Material: Aluminum alloy housing, lightweight design
Application: Light trucks, sanitation vehicles (hook-lift / bin garbage trucks), aerial work platforms, light dump trucks, etc.

Applicable Vehicle Models

Dongfeng: Tiyi, Little Overlord, Forika
Changan: Kuayue King X5, Xinbao, Kuayue V3/V5
Others: Partial JAC & Foton light trucks and sanitation special vehicle chassis

Operation Instructions

Gear Position: Keep the vehicle stationary, depress the clutch, and shift the transmission into neutral or low gear.
Engagement: Ensure air pressure ≥ 0.6 MPa, turn on the PTO switch, then release the clutch slowly.
Prohibition: Forcible engagement with gear engaged is strictly prohibited; stop operation and depress the clutch immediately if gear grinding noise occurs.
Inspection: Check the transmission oil level before use; inspect for oil leakage after operation.

Installation Notes

Clean the mounting surface thoroughly; apply sealant on the gasket and anaerobic thread locker on bolts for anti-loosening.
Run no-load test for 20 minutes after installation to ensure no abnormal noise and no fluid leakage.
