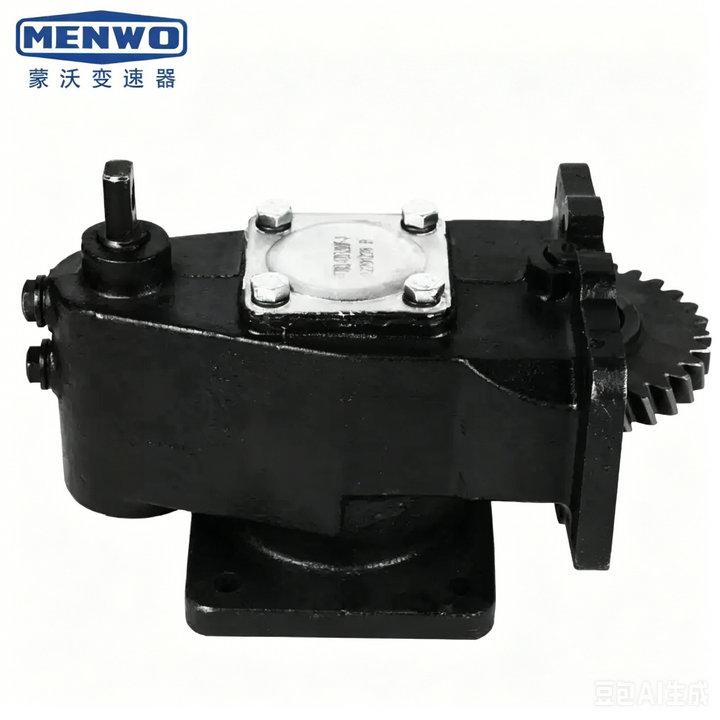

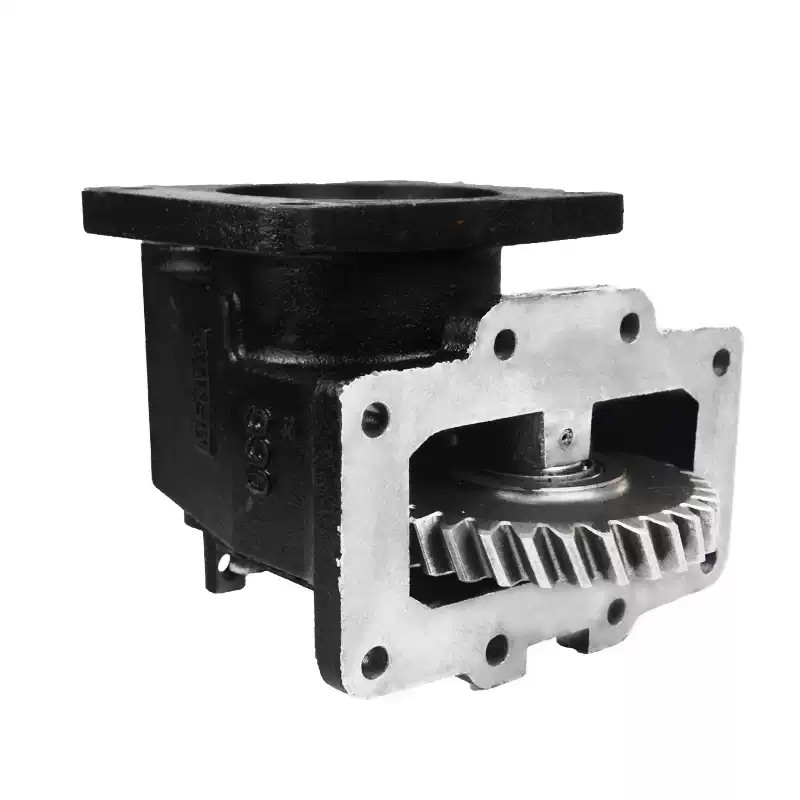

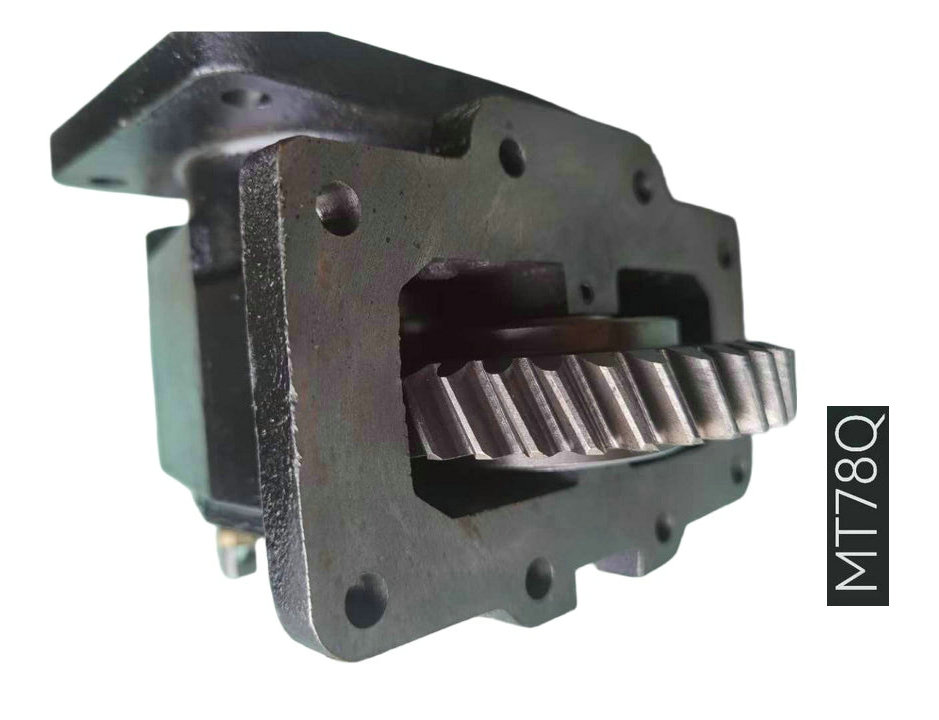

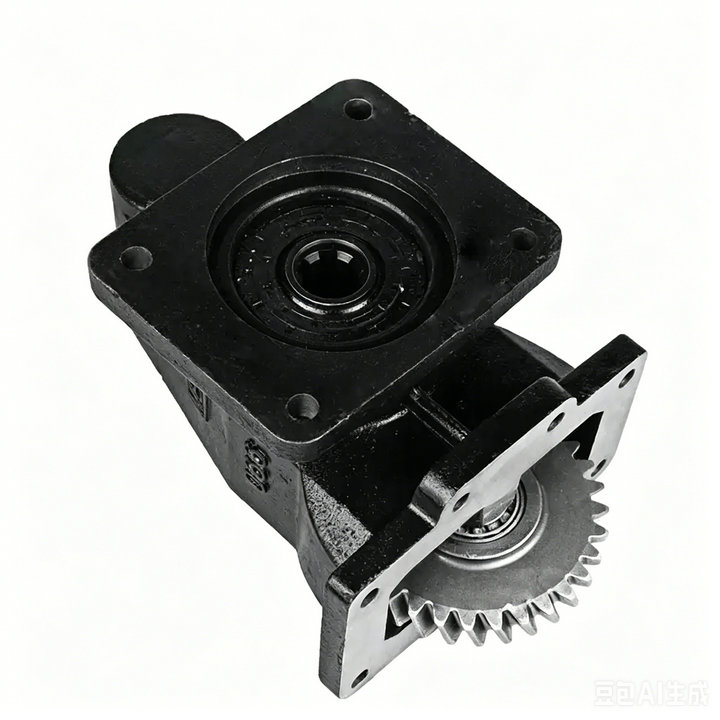

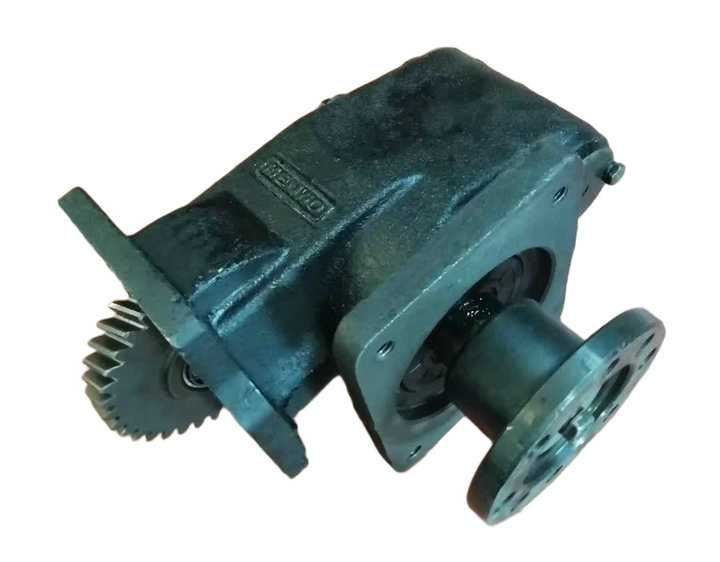

MENWO MT78Q Transmission Power Take-Offs (PTOs)

MENWO MT78Q Transmission Power Take-Offs (PTOs)
Price: $ 500
Discount Price: $ 250
Availability:
Quantity:

  • MT78Q

  • Shanghai, China

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

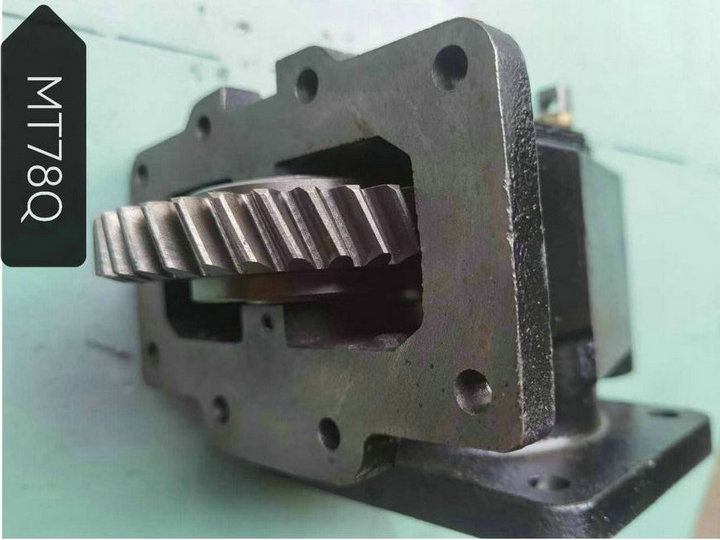

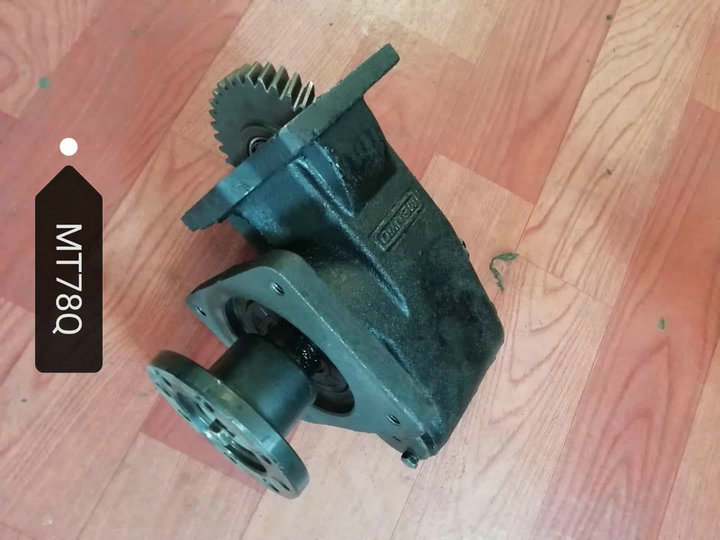

 MENWO MT78Q Transmission Power Take-Offs (PTOs)MT78Q MENWO PTOMT78Q MENWO PTO.j 1

Menwo MT78Q Transmission (With PTO Interface)

The MT78Q is a 5-speed manual aluminum-alloy transmission developed by Menwo (a subsidiary of Lingong Group) specifically for light/mini trucks. It features a side-mounted PTO interface, focusing on lightweight design and suitability for engineering vehicles such as dump trucks, water sprinklers, and sanitation trucks.

1. Basic Parameters

Model: MT78Q (Common variants: MT78Q‑NQL, MT78Q‑AL20)
Brand: Menwo / Shandong Lingong
Gear: 5 forward gears + 1 reverse gear, full synchronizer design
Housing: Full aluminum alloy, lightweight structure
Application: 2–3 ton class light/mini trucks, compatible with 485/490 / Yunnei D19 diesel engines
Max input torque: Approximately 220–250 N·m
PTO interface: Reserved on the left side, compatible with MT78Q dedicated PTO (31-tooth helical gear)

2. Gear Ratio (Overdrive Version, Typical)

1st gear: 4.845
2nd gear: 2.844
3rd gear: 1.624
4th gear: 1.000 (Direct drive)
5th gear: 0.845 (Overdrive, fuel-saving)
Reverse gear: 4.110

3. PTO Matching Key Points (MT78Q Dedicated)

Interface position: Left side of transmission (co-driver side), countershaft power take-off
PTO model: MT78Q‑31 (31-tooth helical gear, manual / pneumatic optional)
Output type: Spline / flat key optional, for driving hydraulic pumps (dump / sprinkler vehicles)
Installation: Direct bolt-on mounting, no gearbox casing modification required, easy maintenance

4. Common Compatible Vehicle Models

Foton: Shidai Jingang, Aoling Transit, Small Star Series
Shifeng: Fengling D Version, Fengshun (Dump / Sanitation Vehicles)
Yuejin: Fuyun S80, Small Lucky Star (MT78Q‑NQL)
Sinotruk: Wangpai W1, Howo Light Truck
Tangjun / Kaima: Jinlika, Junchi (Engineering Vehicles)

5. Difference from Standard MT78

MT78Q: Equipped with left-side PTO interface, dedicated for engineering vehicles, compatible with MT78Q PTO.
