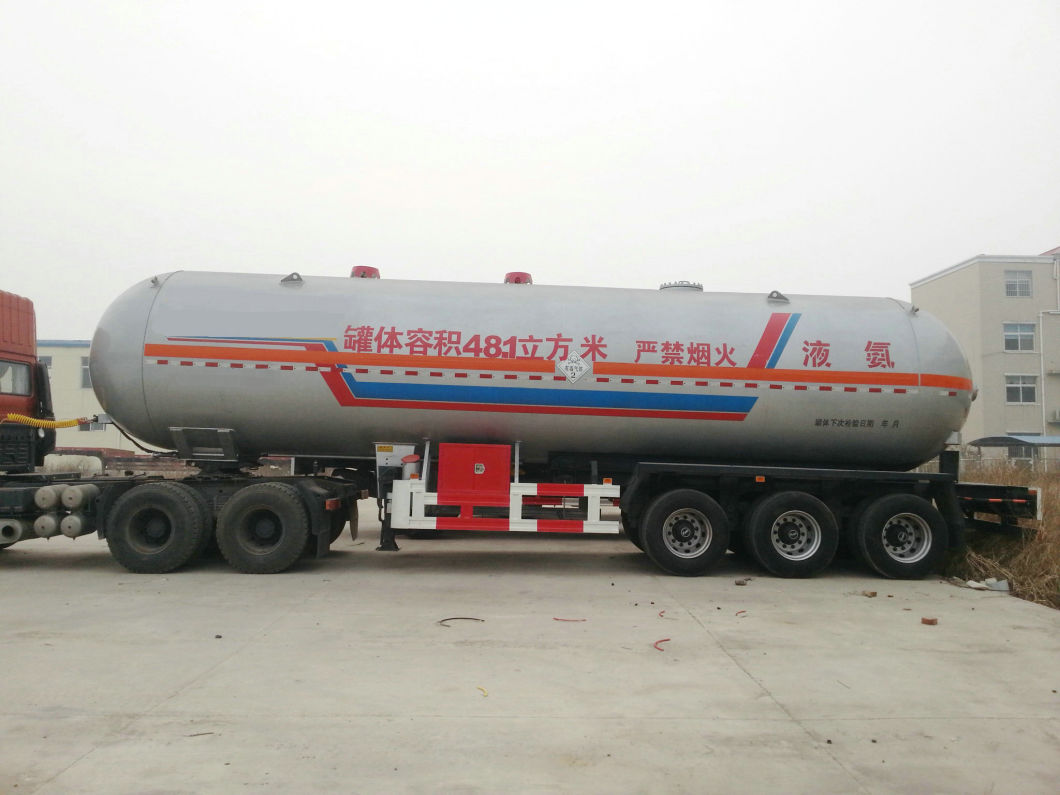

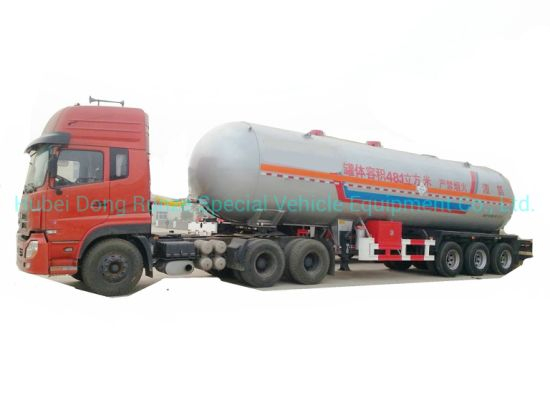

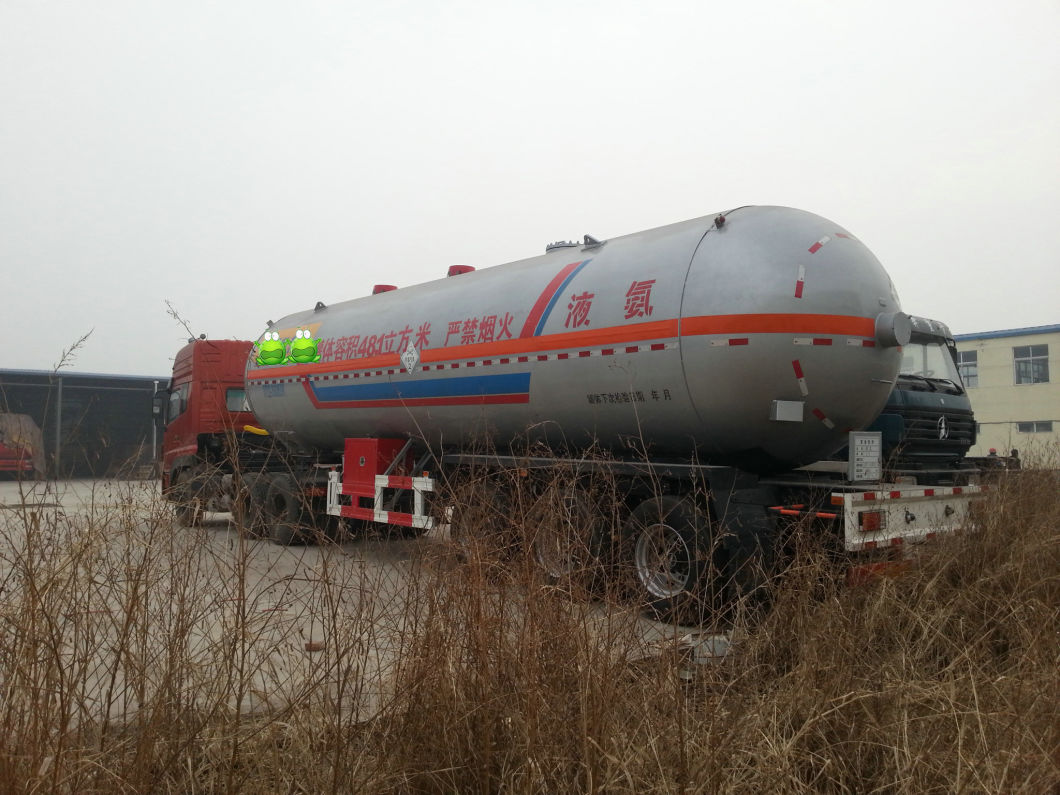

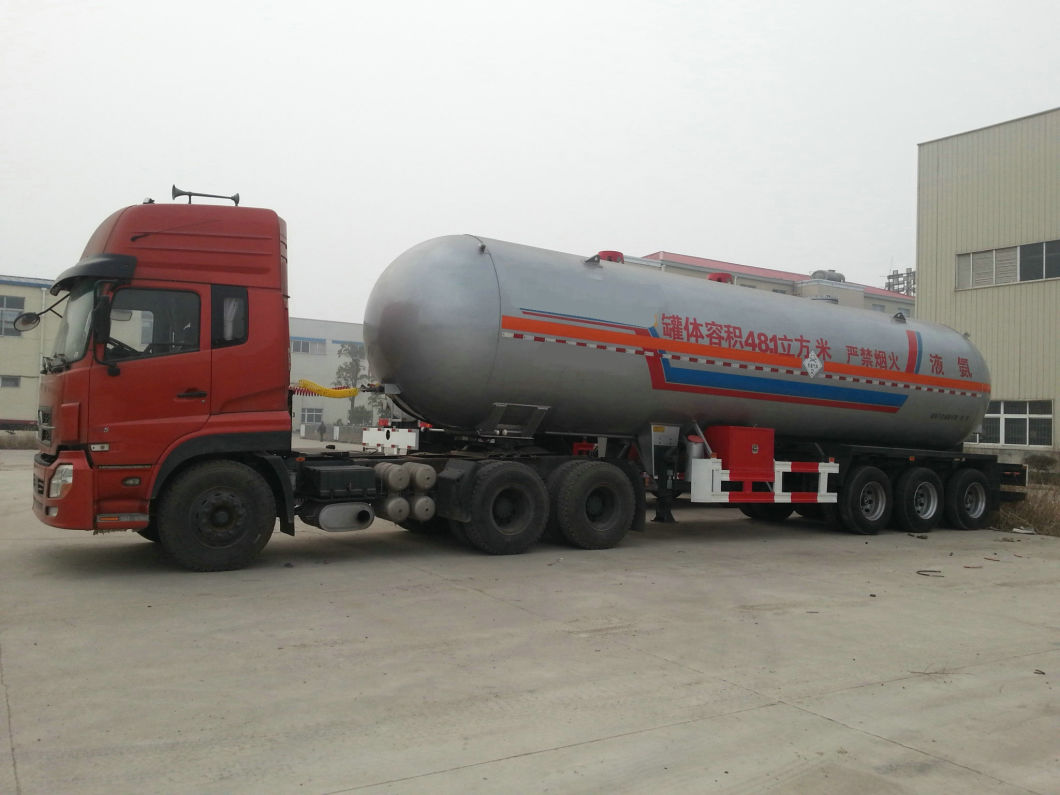

Model | 9400GYQ | Liquid Ammonia Tank semi trailer | |
Items | Data | ||
Transport Semi-Trailer | Curb Weight | ~15510kg/ air suspension ~16080 kg/spring suspension | |
Rated Loading Weight | 23900kg;24750kg;25000kg | ||
Maximum Gross Weight | ~40000kg | ||
Front Fitting Radius mm | 1710mm | ||
Interstice Radius mm | 2300mm | ||
Wheel Base mm | 5290+1310+1310; 6020+1310+1310; 6200+1310+1310; 6940+1310+1310 | ||
Minimum Ground Clearance mm | 320mm-540mm | ||
Water Pressure Mpa | 2.49Mpa | ||
Airtight Test Pressure Mpa | 1.91Mpa | ||
Stroke Of Support Unit mm | 483mm | ||
King Pin Diameter Mm | φ50 ; φ90; | ||
Dimension(L×W×H) mm | 11845x2500x3850; 11505 ×2500 × 3940; 12606 × 2500 × 3750 ; 12000×2500×3900mm | ||
Tank Body | Maximum Work Pressure Mpa | 1.91 | |
Design Pressure Mpa | 1.91 | ||
Design Temperature ºC | -19ºC to 50ºC | ||
Loading weight per unit capacity kg/L | 0.52-0.53 ( 530kg/m3) | ||
Tank Capacity m3 | 46M3; 46.7M3; | ||
Loading Medium | Liquid Ammonia | ||
Medium Characteristics | Moderate Harm | ||
Body Material | Shell mm | Q345R 13.95~14mm | |
Head mm | Q345R 13.92~14mm | ||
Corrosion Allowance | Shell mm | 2 | |
Head mm | 2 | ||
Negative Deviation Of Thickness | Shell mm | 0 | |
Head mm | 0.3 | ||
Welded Joint Coefficient | 1 | ||
Hydraulic Test Pressure Mpa | 2.49 | ||
Design Service Life | 15 Years | ||
Heating Method | Integrally Annealing | ||

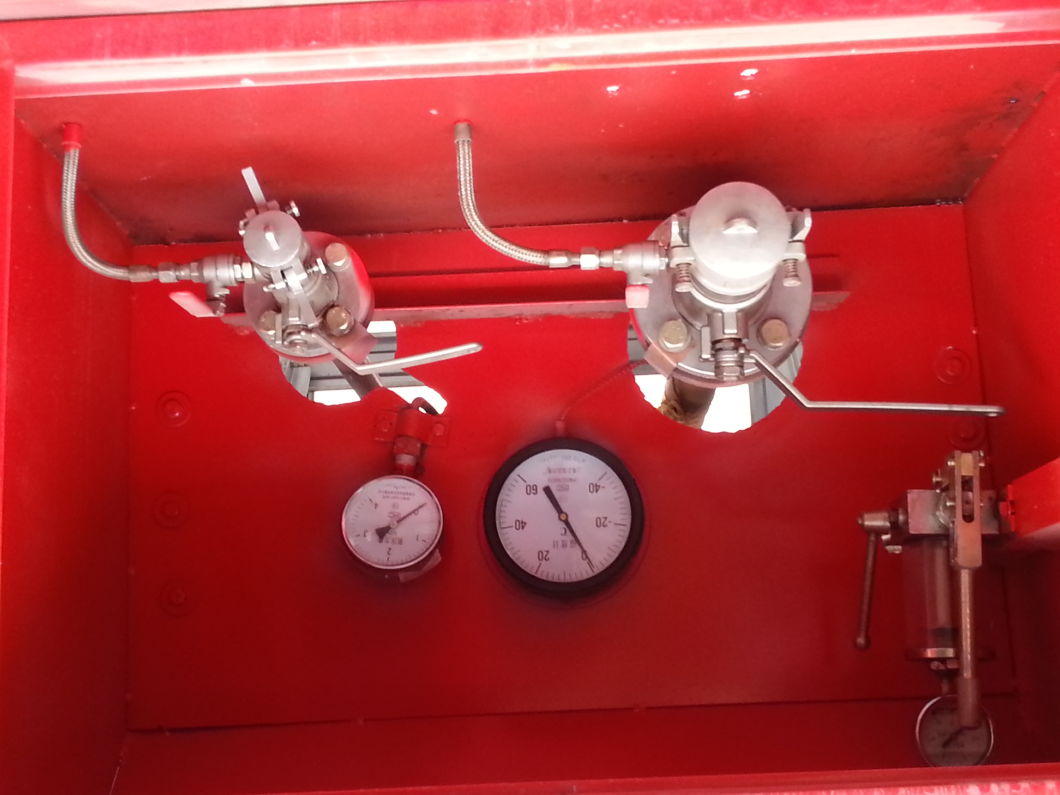

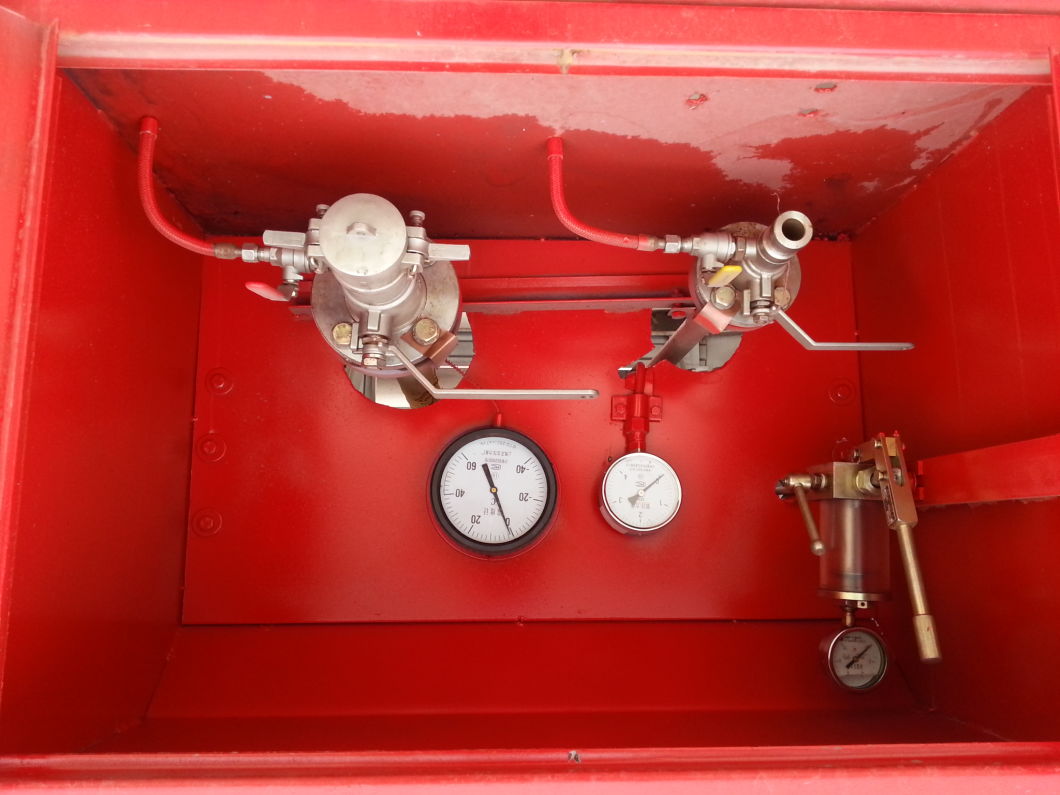

Safety Valve | Type | Built-In Spring Full-Open Type | |
Specification | DN80 | ||
Set Pressure Mpa | 2.13 | ||
Liquid Level Meter | Type | Floating Ball Rotation | |
Range m | 0~2.38 | ||
Nominal Presure Mpa | |||
Pressure Gauge | Dial Diameter mm | ≥100 | |
Accuracy | Level 1.6 | ||
Range Mpa | 0~4.0 | ||
1. Manhole Quantity One Dimensions 450mm Id DN450 Specification Q345R ; Bolted Type (24 x M24) Gasket PTFE 2. Safety Relief Valve Assembly Quantity One DN80 Gasket PTFE Location Top Of The Tank. 3. Gas Line Dimensions DN 25 Gasket PTFE 4. Liquid Line Dimensions DN 50 (2") Gasket PTFE |
Tank | Volume (m³) | loading mass (ton) | standard and configuration | |
1 | Liquid ammonia tank | 10 | 5.2 | Execution standard: GB150 "pressure vessel" and "fixed pressure vessel safety technology and supervision code" design pressure: 21.6 design temperature: 50 ° c filling ratio: 0.52 corrosion allowance: material: 2 mm subject Q345R |
2 | 20 | 10.4 | ||
3 | Liquid ammonia tank | 25 | 13 | |
4 | 32 | 16.64 | ||
5 | Liquid ammonia tank | 50 | 26 | |
6 | 60 | 32.2 | ||
7 | Liquid ammonia tank | 80 | 41.6 | |
8 | 100 | 46.8 |
Product Model | T-LPG-TK |
Structural form | Integral type, separated type |
Install Method | Above-ground, |
System Approach OPTIONAL: | Double pump system, single pump system |
Storage Tank Volume(M 3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60,80, 100 , 125 , 150 |
Design pressure of storage tank | 1.77Mpa |
Design pressure of pipe | 2.5Mpa |
Opening pressure of safety valve | 1.75Mpa |
Ambient Temperature | -40-55°C |
Ambint Humidity | 10~95% |
Dimension of skid-mounted body | Up to customer's requirement |
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
Horizontal Oil Tank | Horizontal Oil Tank |
SS Double Oil Tank | |
SF Double Oil Tank | |
Industrial Condenser | U shape Condenser |
Tubular surface condenser | |
Reaction Tower | Pressure Reactor |
Pyrolysis Reactor |
Horizontal Fuel Storage Tank Cbm For Petroleum Oil,Gasoline, Petrol, Diesel Steel Q235 or Q345 .Q245.R20 thinckness 5.6.8mm - 10.12mm Custermizing 1-100CBM
Acid Storage Tank for Oil Fied Chemical Contain Hydrochloric Acid 120CBM Horizontal
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
water tank | stainless steel tank /water pump/ High pressure squirt gun |
---|---|
steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |
Capaicty | Shell length | Total length | Diameter | Weight | Shell thickness | EXW Price |
1m3 | 750 mm | 930 mm | 1300 mm | 95(KG) | 15 mm | $1355~$2060 |
2m3 | 1800 mm | 1980 mm | 1300 mm | 150(KG) | 15 mm | $1565~$2260 |
5m3 | 1100 mm | 1400 mm | 2400 mm | 260(KG) | 15 mm | $1880~$2560 |
10m3 | 2200 mm | 2500 mm | 2400 mm | 500(KG) | 20 mm | $2508~$3560 |
15m3 | 3300 mm | 3600 mm | 2400 mm | 680(KG) | 20 mm | $3850~$5560 |
20m3 | 4400 mm | 4700 mm | 2400 mm | 850(KG) | 22 mm | $5480~$7180 |
30m3 | 4400 mm | 5040 mm | 3000 mm | 1350(KG) | 25 mm | $6490~$8190 |
40m3 | 4900 mm | 5500 mm | 3450 mm | 2000(KG) | 32 mm | $6860~$8560 |
50m3 | 6000 mm | 6600 mm | 3450 mm | 2300(KG) | 32 mm | $11520~$13920 |
5 cbm/m3 | Q235A 5mm+ PE (Plastic )16mm | US$7,200.00 |
10 m3 | Q235A 5mm+PE16mm | US$9,200.00 |
20 m3 | Q235A 5mm+PE16mm | US$11,200.00 |
30 | Q235A 6mm+PE16mm | US$13,200.00 |
40 | Q235A 6mm+PE16mm | US$15,200.00 |
50 | Q235A 6mm+PE16mm | US$17,200.00 |
60 | Q235A 6mm+PE16mm | US$19,200.00 |
70 | Q235A 6mm+PE16mm | US$21,200.00 |
80 | Q235A 8mm+PE16mm | US$23,200.00 |
90 | Q235A 8mm+PE16mm | US$25,200.00 |
100 | Q235A 8mm+PE16mm | US$27,200.00 |
110 | Q235A 8mm+PE16mm | US$29,200.00 |
120 | Q235A 8mm+PE16mm | US$30,800.00 |
130 | Q235A 8mm+PE16mm | US$32,400.00 |
135 | Q235A 8mm+PE16mm | US$34,400.00 |
