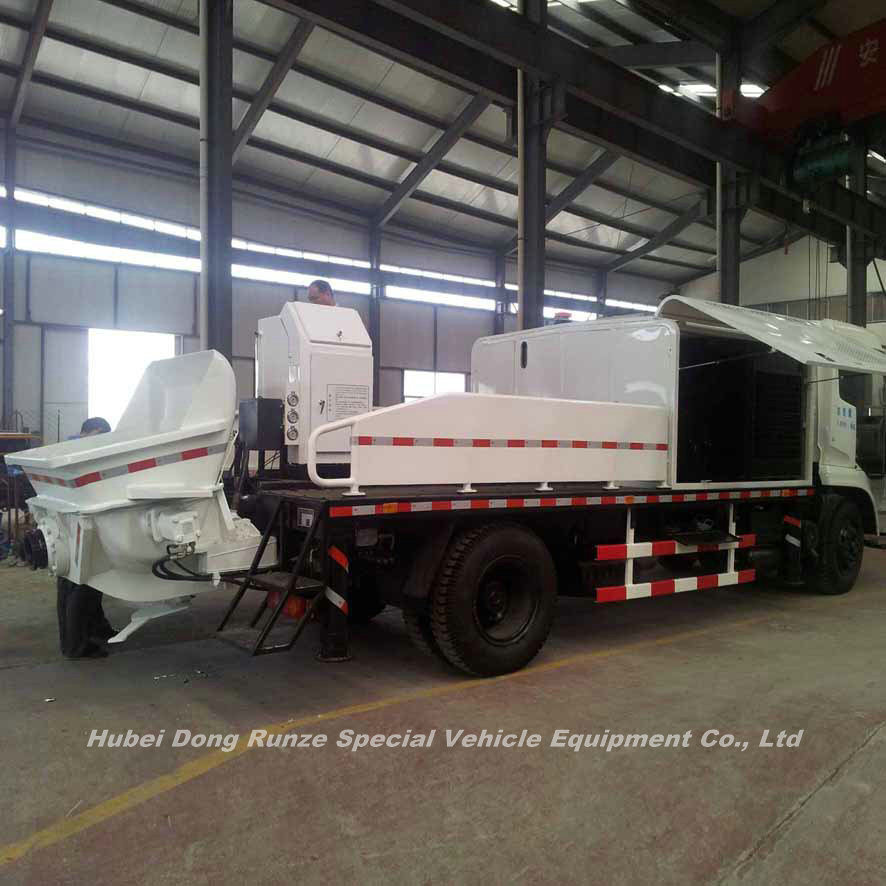

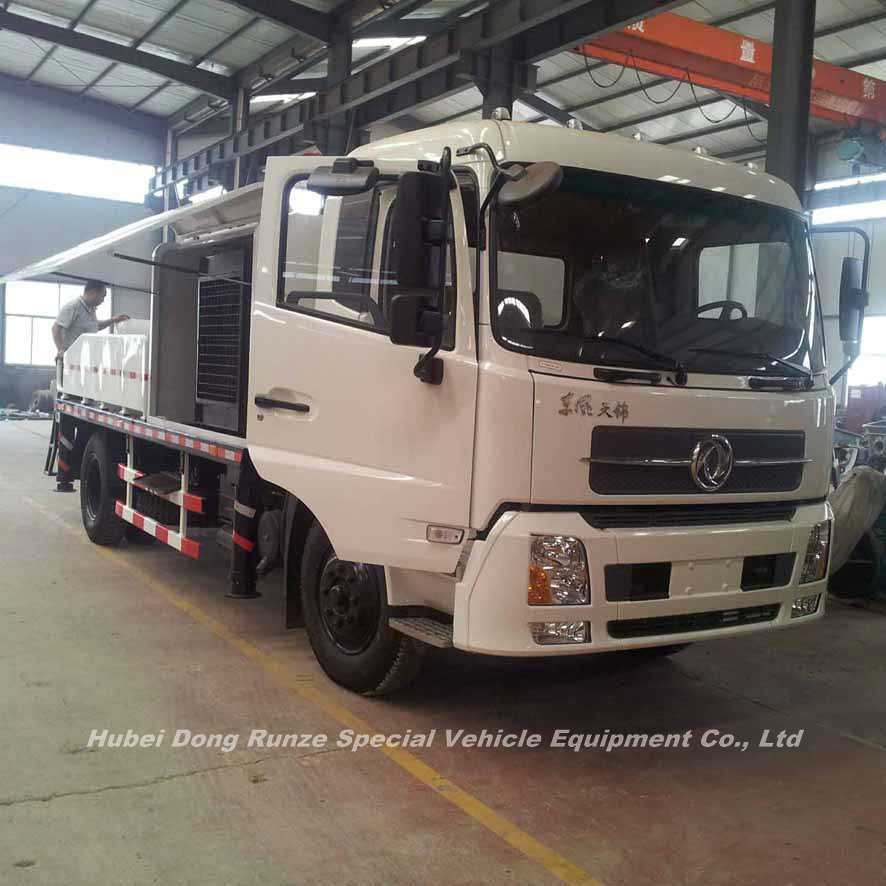

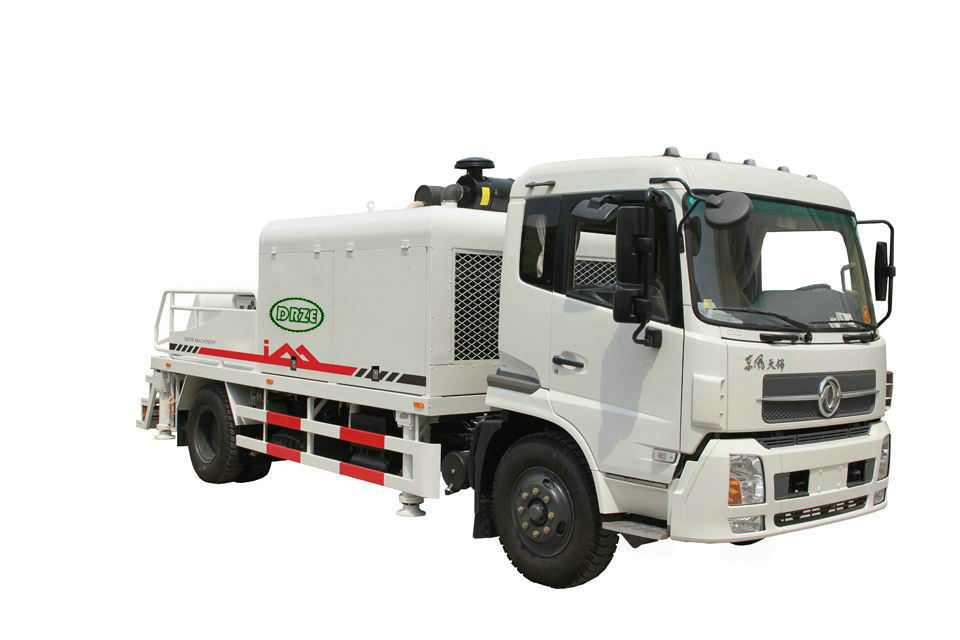

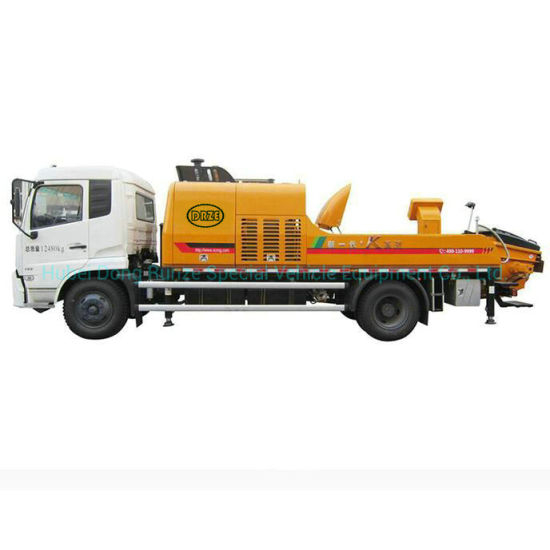

King Run Truck Mounted Concrete Pump 30-90m3 / h RHD.LHD. 4X2.4X4

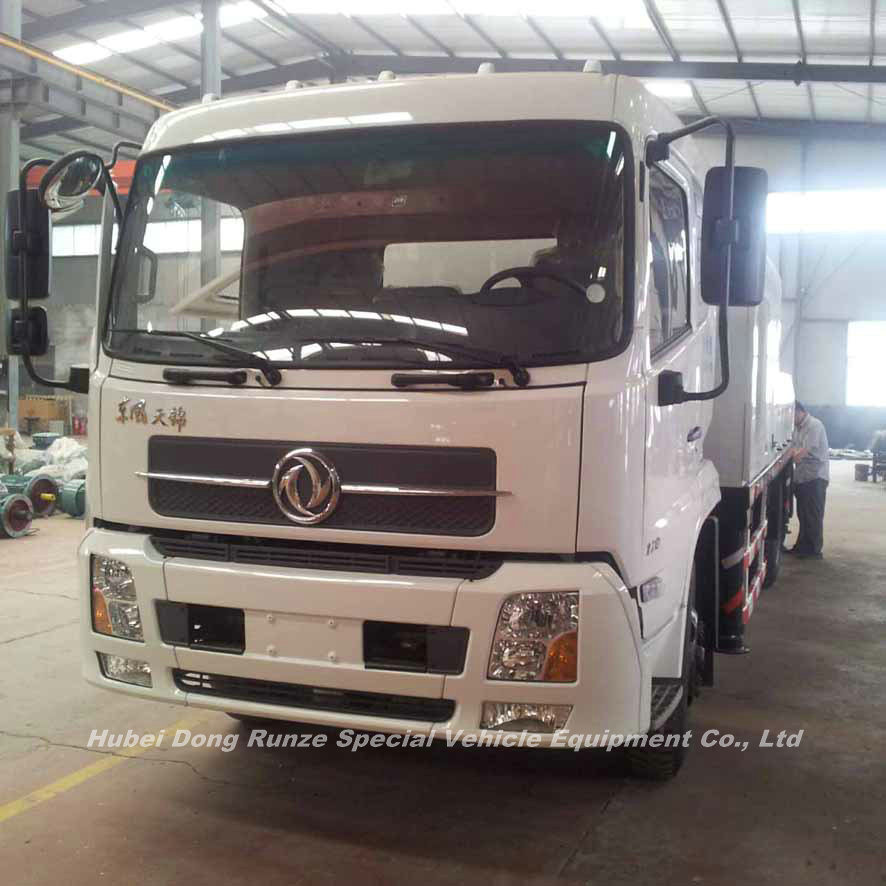

Dongfeng chassis, power strong, good mechanical performance, the emission standards.
World brands: Siemens motor, Volvo and Deutz diesel engines. Large storage space for spare parts. Double pump double loop open hydraulic system, using world brand German Rexroth
Pump set and valve set
Schneider smart soft starter (optional for electric vehicle pump).
Wind cooling, especially suitable for water and cold environment.
Intelligent integrated control system, good man-machine interface, function and fault display.
Unique wide flange, large diameter, long guide, large stroke of its own technology special pumping system, pumping capacity, extend the life of concrete piston, glasses plate, cutting ring and hydraulic components.
Variable variable follow-up lubrication system, hopper and concrete cylinder parts concentrated automatic lubrication.
The linear stepping motor can automatically drive the throttle of diesel engine.
Automatic stirring reversal, can remove the phenomenon of dead aggregate in time.
The pictures are for your reference only.

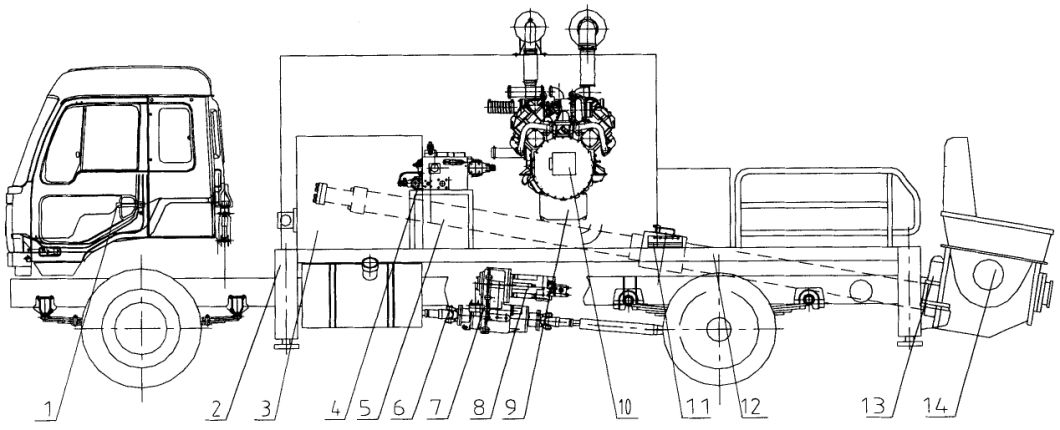

Truck-mounted Concrete Pump Series
Details:
1 .Hydraulic system: we adopt the double open hydraulic loops system. For the pump parts we adopt the famous brand Rexroth. And for the valve parts, we adopt the brand America Eton.
2. Power system: we adopt Siemens motor,Swden Volvo and weichai DEUTZ engine system. so it has the characteristic of high cost performance, strong powder, energy saving, repair timely.
3. Chasis: we adopt the domestic famous brand: Dongfeng chasis and Foton chasis.
4. S tube is made of high manganese steel molding, with high wear-resistant materials of the runner. Glasses plate and cutting ring adopts unique hard alloy material and technology, make the surface hardness and toughness increased significantly prolong service life.
5. Control system, operating system: wired and wireless remote control, the operation is flexible,convenient.
Item | HBCS80 | HBCS90 |
Maximum Theoretical Concrete Output ( m3/h) | 80/50 | 90/58 |
Maximum Concrete Pumping Pressure (Mpa) | 7/13 | 7/14 |
Concrete slump (mm) | 80-230 | 80-230 |
Aggregate Size (mm) | pebble≤50 gravel≤40 | pebble≤50 gravel≤40 |
Power (KW) | 110 | 176 |
Speed (r/min) | 1480 | 2300 |
Conveying Cylinder Diameter (mm) | Φ230/1650 | Φ230/1650 |
type of distribution valve | S valve | S valve |
Main oil pump | A11V190 | A11V260 |
Fuel Tank Capacity (L) | 600 | 600 |
Hopper Capacity (m³) | 0.8 | 0.8 |
Filling Height (mm) | 1400 | 1400 |
Maximum Theoretical Conveying Distance(m) | Horizontal:1200 Vertical:180 | Horizontal:1200 Vertical:180 |
Hydraulic system pressure(MPa) | 32 | 32 |
Overall Dimension (mm) | 9080×2490×2960 | 9080×2490×3050 |
Total Weight (kg) | 11000 | 11260 |

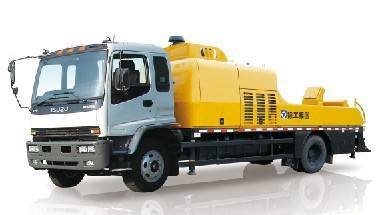

mini concrete pump truck
1. Hydraulic system:adopt double open hydraulic loops system.
2. Power system :adopt Siemens Motor, Swden Volvo and Weichai DEUTZ engine system.
3 .Chasis: adopt the domestic famous brand : Dongfeng chasis and Foton Chasis.
4S tube is made of high manganese steel molding, with high wear-resistant materials of the runner. Glass plate and cutting ring adopt unique hard alloy material and technology, make the surface hardness and toughness increased significantly prolong service life.
5Control system, operating system: wired and wireless remote control, the operation is flexible, convenient.
Performance
1Use hydraulic pump group from Germany, or best hydraulic pump from china.
2High pressure tube and tube's connector adopts foreign advanced products to make sure there is No booster or oil leakage in the hydraulic system.
3Oneway valve is installed in the two main oil cylinder's piston stroke end, which can forbid bumping cylinder and also fill oil into the closed cavity of the oil cylinder.
4Imported electric device substantially ensures the high reliability of electric controlling system.
5Master cylinder adopts imported approach switch to extend its long service life.
Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 |

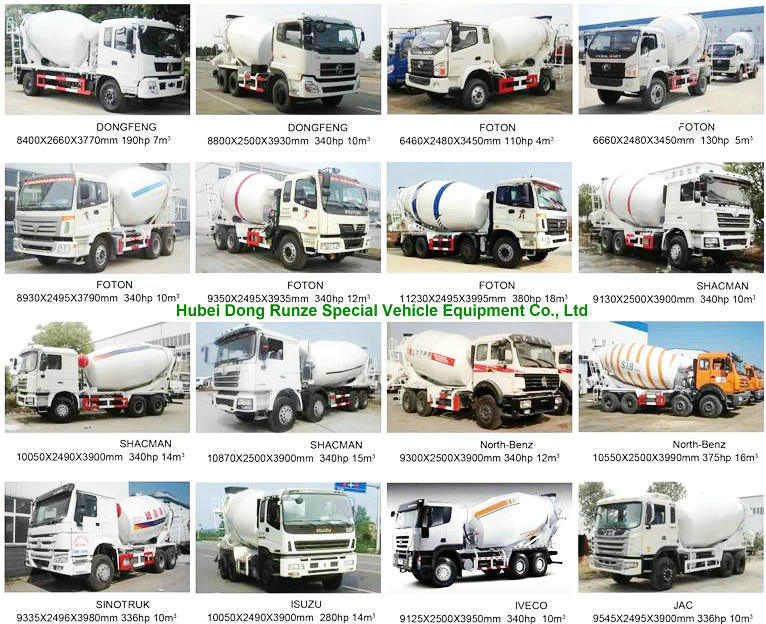

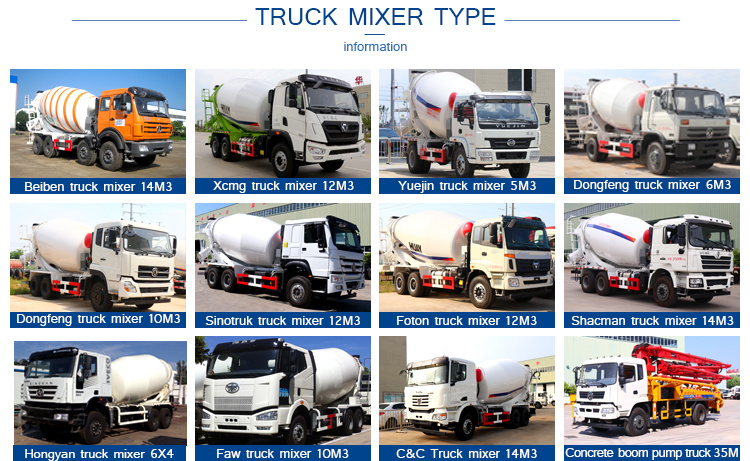

Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)

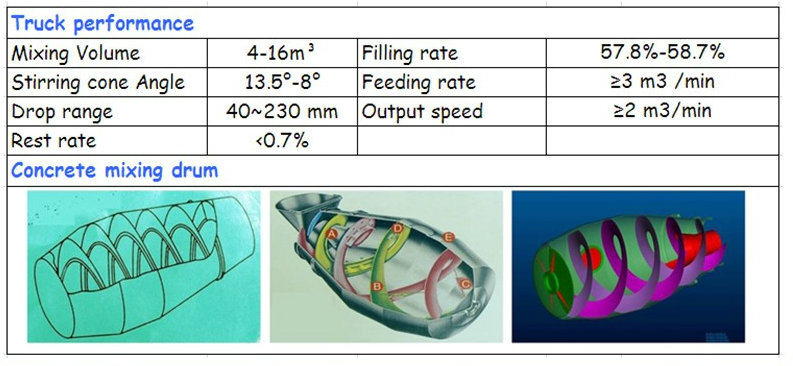

Concrete mixer truck structure parameters | ||||
Loading capacity | 8m3 | Tank material | 5mm steel | |
Tank front head | 8mm steel | Reducer | Germany ZF | |
Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
Radiator | KAIPENG | Color and Logo | Optional | |
Standard configuration | sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
8m3 | Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material) | |||
Selective ENGINE | YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min) |

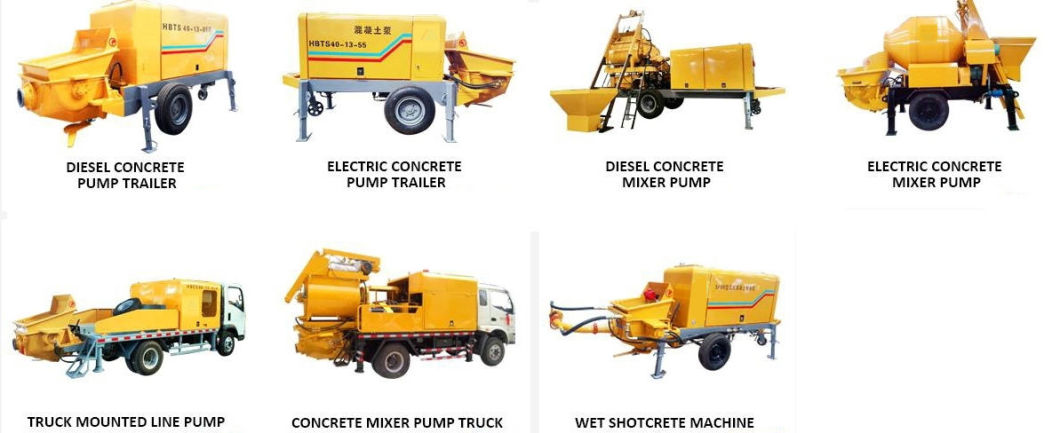

Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
Aluminum / midd Steel Stainless Steel Vaccum Tank
