Small Truck Mounted Concrete Pump 24m -27M CDW 60-90m3 / h RHD.LHD. 4X2.4X4 .6x4
SPECIFICATIONS FOR A8 25M Concrete Pump Truck | |||
Overall Specification | Length | mm | 9950 |
Width | mm | 2300 | |
height | mm | 3550 | |
Dead Weight | kg | 16400 | |
Boom & Outrigger Specification | Vertical Reach | m | 25 |
Horizontal Reach | m | 21 | |
Reach Depth | m | 11 | |
Unfolding Reach | m | 5.5 | |
Rotation | ±360 | ||
Outrigger Spread L-R-----Front | mm | 5200 | |
Outrigger Spread L-R-----Rear | mm | 3440 | |
Pumping System Specification | Pumping Pressure | KPa | 6.4 |
Output | M³/h | 60 | |
Hydraulic system Oil pressure | KPa | 32 | |
Oil Tank Capacity | L | 400 | |
Water Tank Capacity | L | 300 | |
End Hose Lenht | m | 3 | |
Chassis Specification | Chassis Model | CDW/DFM | |
Engine Type | Yuchai | ||
Engine power | kw/rpm | 132 | |
Max. Speed | km/h | 80 |
Truck-Mounted Concrete Boom Pump Technical Parameters
A8 Boom Pump | ||||
System | Item | 25M | 28M | 33M |
Underpan | Underpan | Sinotruk /Dongfeng Shenyu | Sinotruk /Dongfeng Shenyu | Sinotruk /Dongfeng Shenyu |
Emission Standard | Four Stage | Four Stage | Four Stage | |
Engine | Yuchai | Yuchai | Yuchai | |
Engine Rated Speed / Power | 132KW/2000rpm | 160KW/2000rpm | 160KW/2000rpm | |
Wheelbase | 5200mm | 5200mm | 5700mm | |
The Max Driving Speed | 80km/h | 80km/h | 80km/h | |
Approach/Far Away Angle | 24.6°/15.6° | 20°/10° | 24.6°/15.6° | |
Specification of Tyre | 9.00R20 (18 layer ) | 9.00R20 (18 layer ) | 11.00R20 (18 layer ) | |
Placing Boom System | Max Vertical Height of Placing Boom | 25m | 27.3m | 33m |
Horizontal Radiu of Placing Boom | 21.45m | 23.95m | 32.3m | |
Placing Depth | 11.6m | 16.9m | 23.5m | |
The length of First Boom Section (MM) | 6700 | 7000 | 8000 | |
The length of Second Boom Section (MM) | 5150 | 5500 | 5500 | |
The length of Third Boom Section (MM) | 5000 | 5500 | 5500 | |
The length of Fourth Boom Section (MM) | 4600 | 5950 | 5500 | |
Turning Angle of Boom Section | 90/180/234/214 | 90/180/234/214 | 90/180/234/214 | |
Control Style of Placing Boom | Load Sensitive Proportional control | Load Sensitive Proportional control | Load Sensitive Proportional control | |
Boom Folding Style | Z | M | Z | |
Rotary Range of Distributing Boom | 360° | 360° | 360° | |
Distance between Front Landing Legs | 5490mm | 5490mm | 6080mm | |
Distance between Rear Landing Legs | 4738mm | 4738mm | 5300mm | |
Distance between Front and Rear Landing Legs | 6376mm | 6376mm | 7100mm | |
Support Openning Style | X | H | X | |
Length of Rubber Hose | 3000mm | 3000mm | 3000mm | |
Diameter of Boom Pipe | 125mm | 125mm | 125mm | |
Electric Control System | Control Source | 24v | 24v | 24v |
Control Module | PWM | PWM | PWM | |
Working Pressure | 24v | 24v | 24v | |
Intermediate Appliance Brand | Sweden (ABB) | Sweden (ABB) | Sweden (ABB) | |
Remote Control Brand | China(Ji Jing) | China(Ji Jing) | China(Ji Jing) | |
Hydraulic Transmission System | Hydraulic System Style | Opening | Opening | Opening |
System Working Pressure | 31.5Mpa | 31.5Mpa | 31.5Mpa | |
Main Hydraulic Oil Pump Brand | Germa (Rexroth) | Germa (Rexroth) | Germa (Rexroth) | |
Main Hydraulic Oil Pump Style | A11VO190/K5V140 | A11VO190/K5V140 | A11VO190/K5V140 | |
Output Volume of Mail Oil Pump | 190/140 | 190/140 | 190/140 | |
Filter Brand | China (LEEMIN ) | China (LEEMIN ) | China (LEEMIN ) | |
Placing Boom Multiple Unit Valve Brand | Germa(HAWE) | Germa(HAWE) | Germa(HAWE) | |
Placing Boom Balanced Valve Brand | Germa (Rexroth) | Germa (Rexroth) | Germa (Rexroth) | |
Placing Boom Oil Pump Brand | Germa (Rexroth) | Germa (Rexroth) | Germa (Rexroth) | |
Supported Leg Multiple Unit Valve Brand | Italy (WALVOIL) | Italy (WALVOIL) | Italy (WALVOIL) | |
Safety Valve Brand | America (SUNNY) | America (SUNNY) | America (SUNNY) | |
Hydraulic Oil Cylinder Seal Kits Brand | America (SKF) | America (SKF) | America (SKF) | |
Volume of Hydraulic Oil Tank | 450 | 450 | 450 | |
Hydraulic Oil Cooling Style | Wind Cooled | Wind Cooled | Wind Cooled | |
Main Oil Cylinder | China (Xie Li) | China (Xie Li) | China (Xie Li) | |
Transfer Case Brand | Germa (STIEBEL) | Germa (STIEBEL) | Germa (STIEBEL) | |
Rotary Speed Reducer | China (Zhong Yi) | China (Zhong Yi) | China (Zhong Yi) | |
Rubber Hose Connector Brand | Italy (MANULI ) | Italy (MANULI ) | Italy (MANULI ) | |
Cleaning System | Gas Pressure & Ram Pump | Gas Pressure & Ram Pump | Gas Pressure & Ram Pump | Gas Pressure & Ram Pump |
Size | Length(MM) | 9950 | 9950 | 10870 |
Width(MM) | 2300 | 2300 | 2300 | |
Height(MM) | 3550 | 3650 | 3900 | |
Weight(T) | 16.4 | 17.6 | 19 | |
Pumping Delievery System | Concrete Distribution Vavle Style | S Valve | S Valve | S Valve |
Piston Brand | China | China | China | |
Max Concrete Output High Pressure & Low Pressure | 13 & 7 | 13 & 7 | 13 & 7 | |
Delivery Cylinder Inner Dia / Stroke | 200/1600 | 200/1650 | 200/1650 | |
Max Hopper Height (MM) | 1450 | 1480 | 1480 | |
Hopper Volume(m³) | 0.55 | 0.55 | 0.55 | |
Concrete Slump | 160-220 | 160-220 | 160-220 | |
Max Stone Size(MM) | 40 | 40 | 40 | |
Lubrication Style | Centralization Lubrication | Centralization Lubrication | Centralization Lubrication |

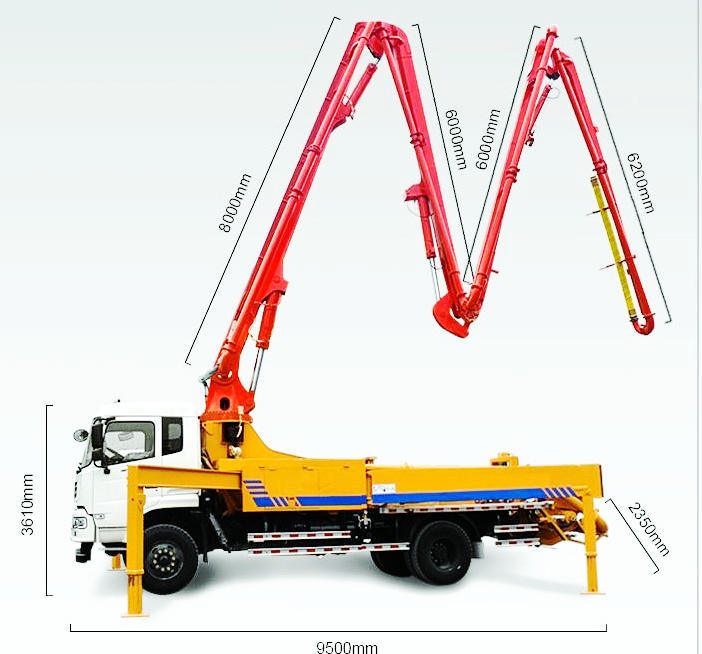

30m concrete pump truck technical parameters | |
Name | DRZ5190THB-30m concrete pump truck |
Machine parameters | |
Overall length of the vehicle | 9500 mm |
Overall width of the vehicle | 2350 mm |
Overall height of the vehicle | 3610 mm |
Vehicle weight | 19000 kg |
Boom system | |
Maximum vertical height of boom | 29.7 m |
Boom horizontal fabric radius | 27.2 m |
The depth of the fabric | 19.1 m |
First arm length | 8000 mm |
Second arm length | 6000 mm |
Third arm length | 6000 mm |
Fourth arm length | 6200 mm |
Rotation Angle of each arm | 90°/180°/270°/240° |
Boom control mode | Load sensitive proportional control |
Boom folding method | M type |
Turret rotation angle | 360° |
Front leg spanning distance | 5840 mm |
Rear leg across the distance | 4050 mm |
Front and rear leg longitudinal distance | 6300 mm |
Leg opening method | X |
Tail hose length | 3000 mm |
Concrete pipe diameter | 125 mm |
Electrical control system | |
Control power supply | 24 V |
Control module brand | Siemens, Germany |
Operating Voltage | 24 V |
Intermediate electrical appliance brand | Omron |
Wireless remote control brand | Shanghai Technology(Sany Heavy Industry (optional)) |
Hydraulic drive system | |
Hydraulic system type | Closed hydraulic system |
System work pressure | 35.0 Mpa |
Main hydraulic pump brand | Rexroth |
Main oil pump model | Rexroth A4VG125 |
Main electro-hydraulic reversing valve brand | Import |
Suction and return oil filter element brand | Xugong |
Boom multi-way valve brand | Harvey, Germany |
Boom balance valve brand | US SUN |
Boom oil pump brand | Domestic |
Outrigger multi-way valve brand | Italy |
Safety valve brand | Import |
Cylinder hydraulic seal brand | Parker |
Hydraulic tank volume | 450 L |
Hydraulic oil cooling method | Air cooled |
Main cylinder | Xieli 1400 mmX80 mmX130 mm |
Transfer case brand | German Sibao |
Slewing reducer brand | Domestic |
Hose connector brand | Eaton, United States |
Chassis | |
Chassis model | Dongfeng |
Emission standards | EU standard |
Engine | Yuchai 240 |
Wheelbase | 4700 mm |
Maximum travel speed | 83 km/h |
Vehicle approach/away angle | 24.6°/15.6° |
Tire specifications | 11.00R20 18 layer |
Pumping system | |
Concrete distribution valve form | S valve |
Concrete piston brand | Domestic |
Maximum concrete outlet pressure | 10.5-20 Mpa |
Conveying cylinder inner diameter/stroke | 230 mmX1450 mm |
Maximum feeding height | 1450 mm |
Bucket capacity | 0.65 m² |
Pumpable concrete slump | 160--220 |
Maximum aggregate size allowed | 40 mm |
Lubrication method | Centralized lubrication |

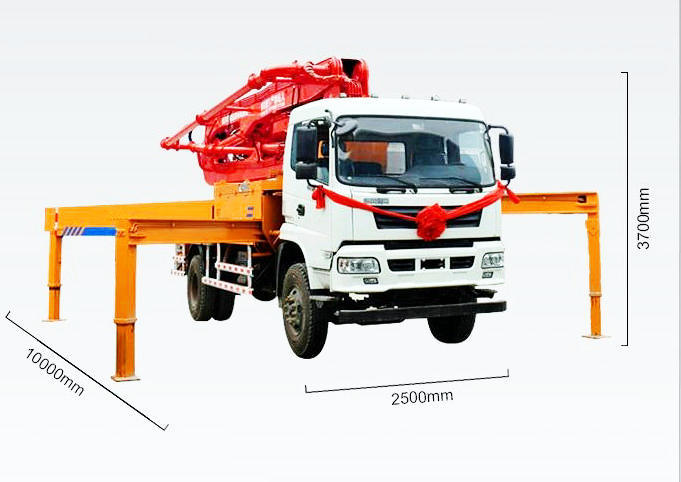

34m concrete pump truck | |
Name | DRZ5190THB-34m concrete pump truck |
Machine parameters | |
Overall length of the vehicle | 10000 mm |
Overall width of the vehicle | 2550 mm |
Overall height of the vehicle | 3700 mm |
Wheelbase Vehicle quality | 21000 kg |
Boom system | |
Maximum vertical height of boom | 33.7 m |
Boom horizontal fabric radius | 32.4 m |
The depth of the fabric | 23.9 m |
First arm length | 7200 mm |
Second arm length | 6300 mm |
Third arm length | 5900 mm |
Fourth arm length | 5400 mm |
Fifth arm length | 5200 mm |
Rotation Angle of each arm | 90°/180°/270°/360°/240° |
Boom control mode | Load sensitive proportional control |
Boom folding method | R/Z type |
Turret rotation angle | 360° |
Front leg spanning distance | 6000 mm |
Rear leg across the distance | 7000 mm |
Front and rear leg longitudinal distance | 6300 mm |
Leg opening method | X |
Tail hose length | 3000 mm |
Concrete pipe diameter | 125 mm |
Electrical control system | |
Control power supply | 24 V |
Control module brand | Siemens, Germany |
Operating Voltage | 24 V |
Intermediate electrical appliance brand | Omron |
Wireless remote control brand | Sany Heavy Industry |
Hydraulic drive system | |
Hydraulic system type | Closed hydraulic system |
System work pressure | 35.0 Mpa |
Main hydraulic pump brand | Rexroth |
Main oil pump model | Rexroth A4VG125 |
Main electro-hydraulic reversing valve brand | Import |
Suction and return oil filter element brand | Xugong |
Boom multi-way valve brand | Harvey, Germany |
Boom balance valve brand | US SUN |
Boom oil pump brand | Import |
Outrigger multi-way valve brand | Italy |
Safety valve brand | Import |
Cylinder hydraulic seal brand | Parker |
Hydraulic tank volume | 450 L |
Hydraulic oil cooling method | Air cooled |
Main cylinder | Xieli 1400 mmX80 mmX130 mm |
Transfer case brand | German Sibao |
Slewing reducer brand | Domestic |
Hose connector brand | Eaton, United States |
Chassis | |
Chassis model | Dongfeng |
Emission Standards | EU standard |
Engine | Yuchai 240 |
Wheelbase | 4700 mm |
Maximum travel speed | 83 km/h |
Vehicle approach/away angle | 24.6°/15.6° |
Tire specifications | 11.00R20 18 layer |
Pumping system | |
Concrete distribution valve form | S valve |
Concrete piston brand | Domestic |
Maximum concrete outlet pressure | 10.5-20 Mpa |
Conveying cylinder inner diameter/stroke | 230 mmX1450 mm |
Maximum feeding height | 1450 mm |
Bucket capacity | 0.65 m² |
Pumpable concrete slump | 160--220 |
Maximum aggregate size allowed | 40 mm |
Lubrication method | Centralized lubrication |
Stirring system | |
Customized JS750 mixer |
The pictures are for your reference only.
Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 |
Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
Concrete mixer truck structure parameters | ||||
Loading capacity | 8m3 | Tank material | 5mm steel | |
Tank front head | 8mm steel | Reducer | Germany ZF | |
Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
Radiator | KAIPENG | Color and Logo | Optional | |
Standard configuration | sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
8m3 | Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material) | |||
Selective ENGINE | YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min) |
Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
Cell :+8615271357675

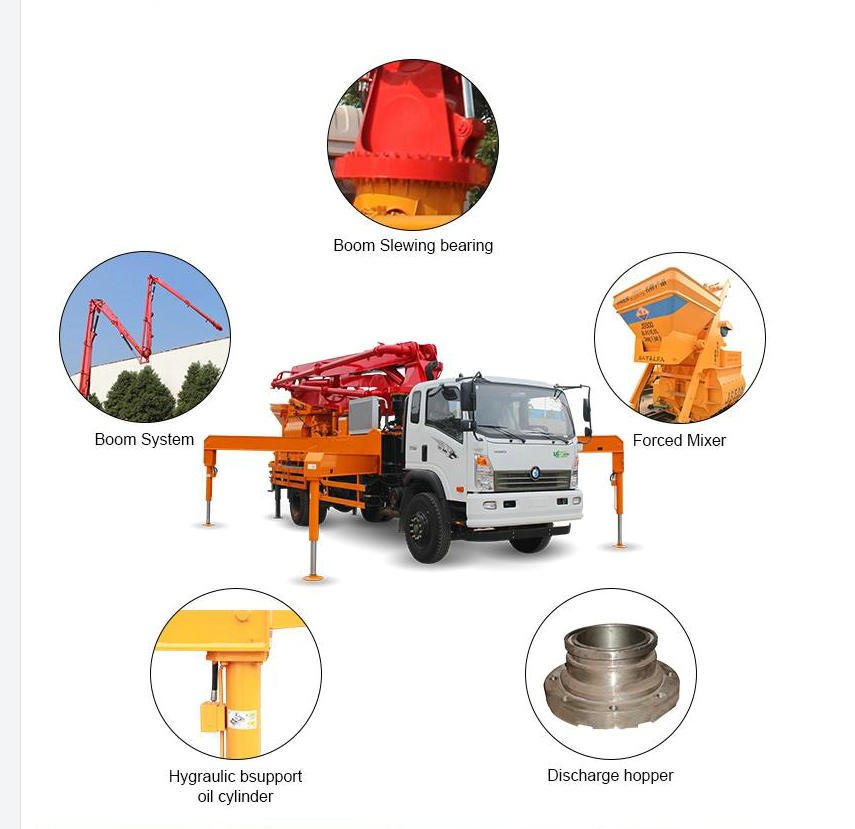

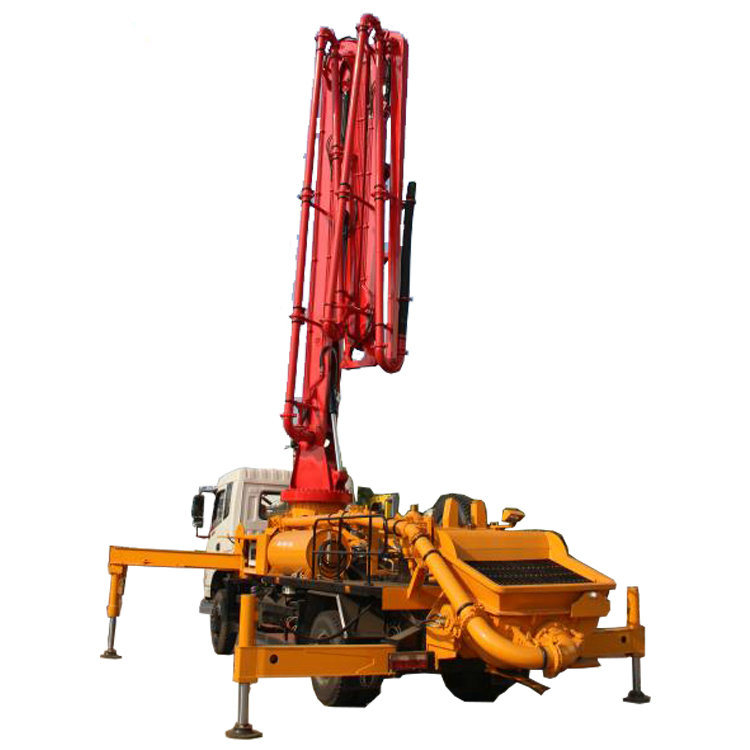

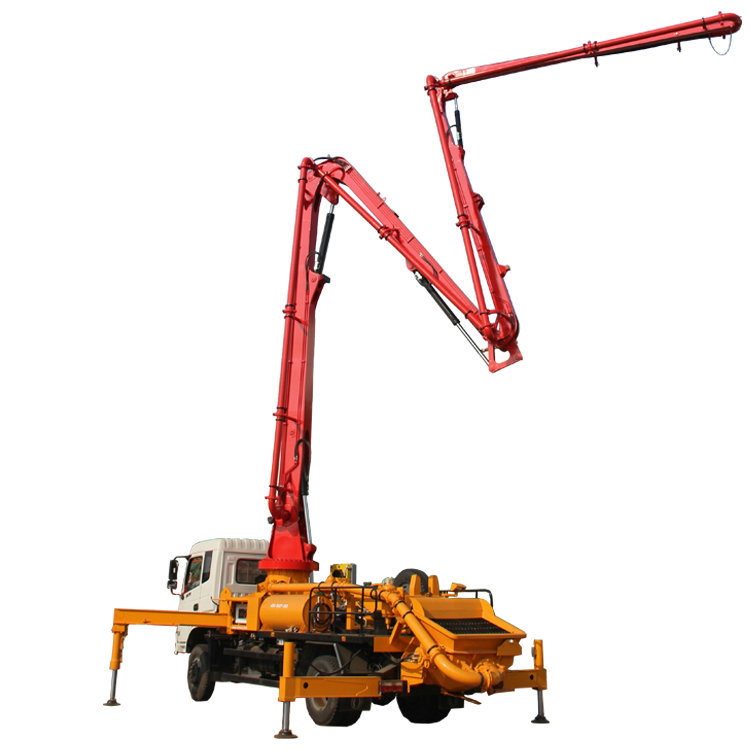

Small Truck Mounted Concrete Pump 24m -27M CDW 60-90m3 / h RHD.LHD. 4X2.4X4 .6x4
SPECIFICATIONS FOR A8 25M Concrete Pump Truck | |||
Overall Specification | Length | mm | 9950 |
Width | mm | 2300 | |
height | mm | 3550 | |
Dead Weight | kg | 16400 | |
Boom & Outrigger Specification | Vertical Reach | m | 25 |
Horizontal Reach | m | 21 | |
Reach Depth | m | 11 | |
Unfolding Reach | m | 5.5 | |
Rotation | ±360 | ||
Outrigger Spread L-R-----Front | mm | 5200 | |
Outrigger Spread L-R-----Rear | mm | 3440 | |
Pumping System Specification | Pumping Pressure | KPa | 6.4 |
Output | M³/h | 60 | |
Hydraulic system Oil pressure | KPa | 32 | |
Oil Tank Capacity | L | 400 | |
Water Tank Capacity | L | 300 | |
End Hose Lenht | m | 3 | |
Chassis Specification | Chassis Model | CDW/DFM | |
Engine Type | Yuchai | ||
Engine power | kw/rpm | 132 | |
Max. Speed | km/h | 80 |
Truck-Mounted Concrete Boom Pump Technical Parameters
A8 Boom Pump | ||||
System | Item | 25M | 28M | 33M |
Underpan | Underpan | Sinotruk /Dongfeng Shenyu | Sinotruk /Dongfeng Shenyu | Sinotruk /Dongfeng Shenyu |
Emission Standard | Four Stage | Four Stage | Four Stage | |
Engine | Yuchai | Yuchai | Yuchai | |
Engine Rated Speed / Power | 132KW/2000rpm | 160KW/2000rpm | 160KW/2000rpm | |
Wheelbase | 5200mm | 5200mm | 5700mm | |
The Max Driving Speed | 80km/h | 80km/h | 80km/h | |
Approach/Far Away Angle | 24.6°/15.6° | 20°/10° | 24.6°/15.6° | |
Specification of Tyre | 9.00R20 (18 layer ) | 9.00R20 (18 layer ) | 11.00R20 (18 layer ) | |
Placing Boom System | Max Vertical Height of Placing Boom | 25m | 27.3m | 33m |
Horizontal Radiu of Placing Boom | 21.45m | 23.95m | 32.3m | |
Placing Depth | 11.6m | 16.9m | 23.5m | |
The length of First Boom Section (MM) | 6700 | 7000 | 8000 | |
The length of Second Boom Section (MM) | 5150 | 5500 | 5500 | |
The length of Third Boom Section (MM) | 5000 | 5500 | 5500 | |
The length of Fourth Boom Section (MM) | 4600 | 5950 | 5500 | |
Turning Angle of Boom Section | 90/180/234/214 | 90/180/234/214 | 90/180/234/214 | |
Control Style of Placing Boom | Load Sensitive Proportional control | Load Sensitive Proportional control | Load Sensitive Proportional control | |
Boom Folding Style | Z | M | Z | |
Rotary Range of Distributing Boom | 360° | 360° | 360° | |
Distance between Front Landing Legs | 5490mm | 5490mm | 6080mm | |
Distance between Rear Landing Legs | 4738mm | 4738mm | 5300mm | |
Distance between Front and Rear Landing Legs | 6376mm | 6376mm | 7100mm | |
Support Openning Style | X | H | X | |
Length of Rubber Hose | 3000mm | 3000mm | 3000mm | |
Diameter of Boom Pipe | 125mm | 125mm | 125mm | |
Electric Control System | Control Source | 24v | 24v | 24v |
Control Module | PWM | PWM | PWM | |
Working Pressure | 24v | 24v | 24v | |
Intermediate Appliance Brand | Sweden (ABB) | Sweden (ABB) | Sweden (ABB) | |
Remote Control Brand | China(Ji Jing) | China(Ji Jing) | China(Ji Jing) | |
Hydraulic Transmission System | Hydraulic System Style | Opening | Opening | Opening |
System Working Pressure | 31.5Mpa | 31.5Mpa | 31.5Mpa | |
Main Hydraulic Oil Pump Brand | Germa (Rexroth) | Germa (Rexroth) | Germa (Rexroth) | |
Main Hydraulic Oil Pump Style | A11VO190/K5V140 | A11VO190/K5V140 | A11VO190/K5V140 | |
Output Volume of Mail Oil Pump | 190/140 | 190/140 | 190/140 | |
Filter Brand | China (LEEMIN ) | China (LEEMIN ) | China (LEEMIN ) | |
Placing Boom Multiple Unit Valve Brand | Germa(HAWE) | Germa(HAWE) | Germa(HAWE) | |
Placing Boom Balanced Valve Brand | Germa (Rexroth) | Germa (Rexroth) | Germa (Rexroth) | |
Placing Boom Oil Pump Brand | Germa (Rexroth) | Germa (Rexroth) | Germa (Rexroth) | |
Supported Leg Multiple Unit Valve Brand | Italy (WALVOIL) | Italy (WALVOIL) | Italy (WALVOIL) | |
Safety Valve Brand | America (SUNNY) | America (SUNNY) | America (SUNNY) | |
Hydraulic Oil Cylinder Seal Kits Brand | America (SKF) | America (SKF) | America (SKF) | |
Volume of Hydraulic Oil Tank | 450 | 450 | 450 | |
Hydraulic Oil Cooling Style | Wind Cooled | Wind Cooled | Wind Cooled | |
Main Oil Cylinder | China (Xie Li) | China (Xie Li) | China (Xie Li) | |
Transfer Case Brand | Germa (STIEBEL) | Germa (STIEBEL) | Germa (STIEBEL) | |
Rotary Speed Reducer | China (Zhong Yi) | China (Zhong Yi) | China (Zhong Yi) | |
Rubber Hose Connector Brand | Italy (MANULI ) | Italy (MANULI ) | Italy (MANULI ) | |
Cleaning System | Gas Pressure & Ram Pump | Gas Pressure & Ram Pump | Gas Pressure & Ram Pump | Gas Pressure & Ram Pump |
Size | Length(MM) | 9950 | 9950 | 10870 |
Width(MM) | 2300 | 2300 | 2300 | |
Height(MM) | 3550 | 3650 | 3900 | |
Weight(T) | 16.4 | 17.6 | 19 | |
Pumping Delievery System | Concrete Distribution Vavle Style | S Valve | S Valve | S Valve |
Piston Brand | China | China | China | |
Max Concrete Output High Pressure & Low Pressure | 13 & 7 | 13 & 7 | 13 & 7 | |
Delivery Cylinder Inner Dia / Stroke | 200/1600 | 200/1650 | 200/1650 | |
Max Hopper Height (MM) | 1450 | 1480 | 1480 | |
Hopper Volume(m³) | 0.55 | 0.55 | 0.55 | |
Concrete Slump | 160-220 | 160-220 | 160-220 | |
Max Stone Size(MM) | 40 | 40 | 40 | |
Lubrication Style | Centralization Lubrication | Centralization Lubrication | Centralization Lubrication |
30m concrete pump truck technical parameters | |
Name | DRZ5190THB-30m concrete pump truck |
Machine parameters | |
Overall length of the vehicle | 9500 mm |
Overall width of the vehicle | 2350 mm |
Overall height of the vehicle | 3610 mm |
Vehicle weight | 19000 kg |
Boom system | |
Maximum vertical height of boom | 29.7 m |
Boom horizontal fabric radius | 27.2 m |
The depth of the fabric | 19.1 m |
First arm length | 8000 mm |
Second arm length | 6000 mm |
Third arm length | 6000 mm |
Fourth arm length | 6200 mm |
Rotation Angle of each arm | 90°/180°/270°/240° |
Boom control mode | Load sensitive proportional control |
Boom folding method | M type |
Turret rotation angle | 360° |
Front leg spanning distance | 5840 mm |
Rear leg across the distance | 4050 mm |
Front and rear leg longitudinal distance | 6300 mm |
Leg opening method | X |
Tail hose length | 3000 mm |
Concrete pipe diameter | 125 mm |
Electrical control system | |
Control power supply | 24 V |
Control module brand | Siemens, Germany |
Operating Voltage | 24 V |
Intermediate electrical appliance brand | Omron |
Wireless remote control brand | Shanghai Technology(Sany Heavy Industry (optional)) |
Hydraulic drive system | |
Hydraulic system type | Closed hydraulic system |
System work pressure | 35.0 Mpa |
Main hydraulic pump brand | Rexroth |
Main oil pump model | Rexroth A4VG125 |
Main electro-hydraulic reversing valve brand | Import |
Suction and return oil filter element brand | Xugong |
Boom multi-way valve brand | Harvey, Germany |
Boom balance valve brand | US SUN |
Boom oil pump brand | Domestic |
Outrigger multi-way valve brand | Italy |
Safety valve brand | Import |
Cylinder hydraulic seal brand | Parker |
Hydraulic tank volume | 450 L |
Hydraulic oil cooling method | Air cooled |
Main cylinder | Xieli 1400 mmX80 mmX130 mm |
Transfer case brand | German Sibao |
Slewing reducer brand | Domestic |
Hose connector brand | Eaton, United States |
Chassis | |
Chassis model | Dongfeng |
Emission standards | EU standard |
Engine | Yuchai 240 |
Wheelbase | 4700 mm |
Maximum travel speed | 83 km/h |
Vehicle approach/away angle | 24.6°/15.6° |
Tire specifications | 11.00R20 18 layer |
Pumping system | |
Concrete distribution valve form | S valve |
Concrete piston brand | Domestic |
Maximum concrete outlet pressure | 10.5-20 Mpa |
Conveying cylinder inner diameter/stroke | 230 mmX1450 mm |
Maximum feeding height | 1450 mm |
Bucket capacity | 0.65 m² |
Pumpable concrete slump | 160--220 |
Maximum aggregate size allowed | 40 mm |
Lubrication method | Centralized lubrication |
34m concrete pump truck | |
Name | DRZ5190THB-34m concrete pump truck |
Machine parameters | |
Overall length of the vehicle | 10000 mm |
Overall width of the vehicle | 2550 mm |
Overall height of the vehicle | 3700 mm |
Wheelbase Vehicle quality | 21000 kg |
Boom system | |
Maximum vertical height of boom | 33.7 m |
Boom horizontal fabric radius | 32.4 m |
The depth of the fabric | 23.9 m |
First arm length | 7200 mm |
Second arm length | 6300 mm |
Third arm length | 5900 mm |
Fourth arm length | 5400 mm |
Fifth arm length | 5200 mm |
Rotation Angle of each arm | 90°/180°/270°/360°/240° |
Boom control mode | Load sensitive proportional control |
Boom folding method | R/Z type |
Turret rotation angle | 360° |
Front leg spanning distance | 6000 mm |
Rear leg across the distance | 7000 mm |
Front and rear leg longitudinal distance | 6300 mm |
Leg opening method | X |
Tail hose length | 3000 mm |
Concrete pipe diameter | 125 mm |
Electrical control system | |
Control power supply | 24 V |
Control module brand | Siemens, Germany |
Operating Voltage | 24 V |
Intermediate electrical appliance brand | Omron |
Wireless remote control brand | Sany Heavy Industry |
Hydraulic drive system | |
Hydraulic system type | Closed hydraulic system |
System work pressure | 35.0 Mpa |
Main hydraulic pump brand | Rexroth |
Main oil pump model | Rexroth A4VG125 |
Main electro-hydraulic reversing valve brand | Import |
Suction and return oil filter element brand | Xugong |
Boom multi-way valve brand | Harvey, Germany |
Boom balance valve brand | US SUN |
Boom oil pump brand | Import |
Outrigger multi-way valve brand | Italy |
Safety valve brand | Import |
Cylinder hydraulic seal brand | Parker |
Hydraulic tank volume | 450 L |
Hydraulic oil cooling method | Air cooled |
Main cylinder | Xieli 1400 mmX80 mmX130 mm |
Transfer case brand | German Sibao |
Slewing reducer brand | Domestic |
Hose connector brand | Eaton, United States |
Chassis | |
Chassis model | Dongfeng |
Emission Standards | EU standard |
Engine | Yuchai 240 |
Wheelbase | 4700 mm |
Maximum travel speed | 83 km/h |
Vehicle approach/away angle | 24.6°/15.6° |
Tire specifications | 11.00R20 18 layer |
Pumping system | |
Concrete distribution valve form | S valve |
Concrete piston brand | Domestic |
Maximum concrete outlet pressure | 10.5-20 Mpa |
Conveying cylinder inner diameter/stroke | 230 mmX1450 mm |
Maximum feeding height | 1450 mm |
Bucket capacity | 0.65 m² |
Pumpable concrete slump | 160--220 |
Maximum aggregate size allowed | 40 mm |
Lubrication method | Centralized lubrication |
Stirring system | |
Customized JS750 mixer |
The pictures are for your reference only.
Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 |
Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
Concrete mixer truck structure parameters | ||||
Loading capacity | 8m3 | Tank material | 5mm steel | |
Tank front head | 8mm steel | Reducer | Germany ZF | |
Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
Radiator | KAIPENG | Color and Logo | Optional | |
Standard configuration | sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
8m3 | Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material) | |||
Selective ENGINE | YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min) |

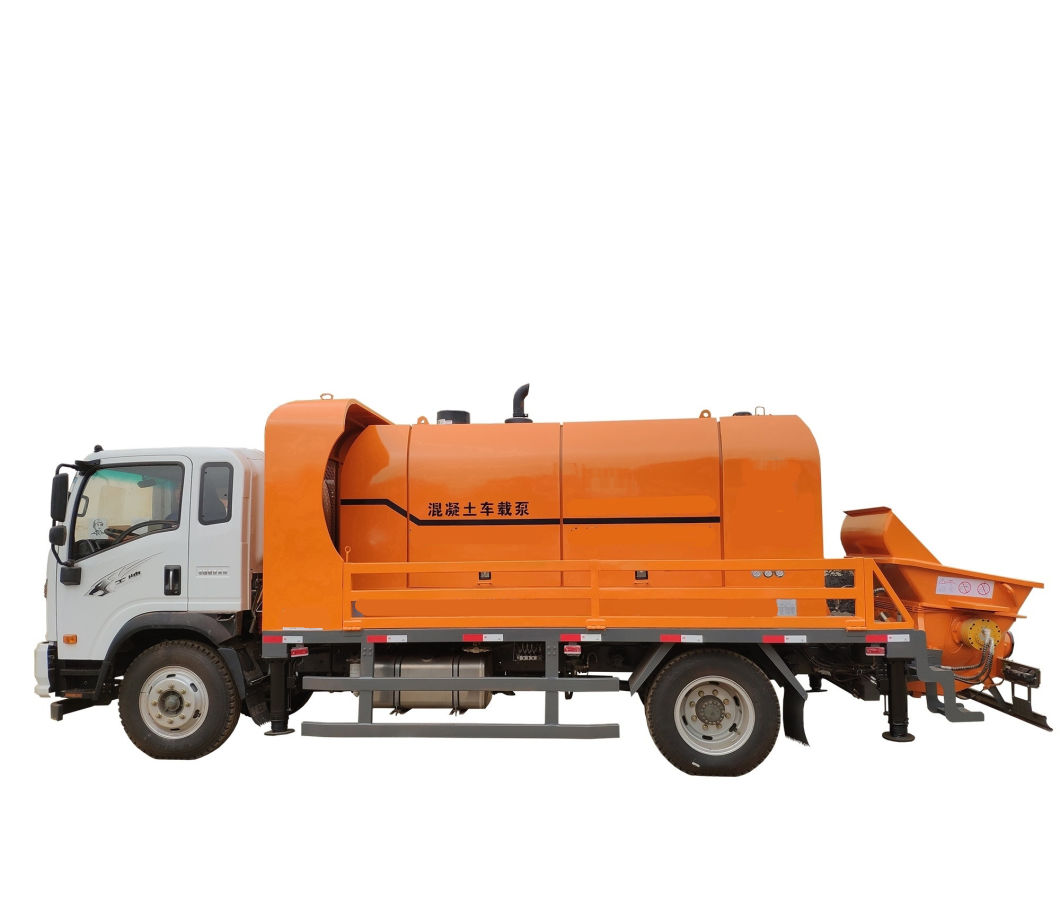

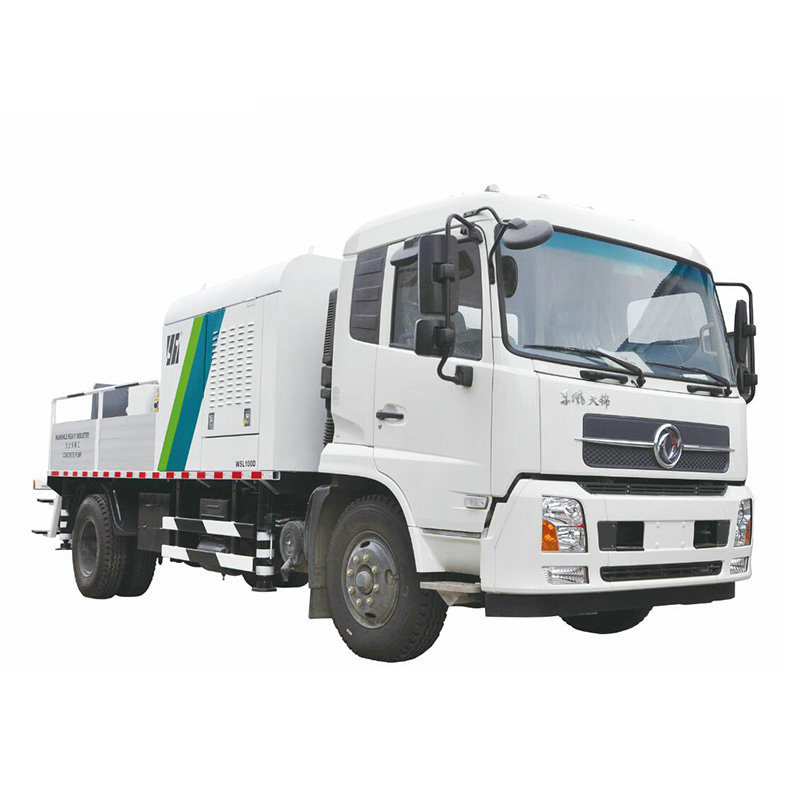

Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
Cell :+8615271357675
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
6 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. Port of loading : WUHAN PORT + Port of unloading :DAMMAM DONG RUN ZE CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000 9.7x2.2x2.5*6
2 Sets Hydrochloric Acid HCL Tank Container Lined PE 24m3 Trailer Mounted to Vietnam
10 Units 22KL 20FT ISO Steel Lined PE Hydrochloric Acid HCL Tank Container to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,000 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE 01pc butterfly valve CS/F46 and 01pc ball valve CS/F46 DRAU2209015 DRAU2209020 DRAU2209036 DRAU2209041 DRAU2209057 DRAU2209062 DRAU2209078 DRAU2209083 DRAU2209099 DRAU2209102
2 Sets Hydrochloric Acid Hydrofluoric Acid Road transport 20Ft Tank Container to Chennai India DTAU2200916 DTAU2200921
20Ft Nitric Acid (Hno3)Tank Container Pure 1060 Aluminum Tank DAF Huu Nghi ALUMINUM TANK FOR NITRIC ACID (HNO3 98%) ROAD TRANSPORT TANK THICKNESS 12MM CAPACITY18,000LITRES TANK SIZE Φ2000×5500 TANK SHELL MATERIAL AAA ALUMINUM / 12.00 MM HEAD PLATE MATERIAL AAA ALUMINUM / 14.00 MM WAVE PLATE AAA ALUMINUM / 8.00 MM CONTAINER FRAME 6058×2438×2591 LOCK BASE STEEL CASTING 45 #(180×165×120) CONTAINER COLUMN SQUARE TUBE Q235 / 4.00MM(120×120×4) CONTAINER CROSS FRAME SQUARE TUBE Q235 / 4.00MM(120×100×4) DATE OF MANUFACTURER 2022-09-06 MANHOLE COVER 316L STAINLESS STEEL,DN500, 0.4MPA, -40C~150C, MADE 2022-06 DISCHARGE VALVE Q41F-16C4/DN65,1.6MPA,<80C. MADE 2022-04 BUTTERFLY VALVE D71F-16RL,1.6MPA, MADE 2022-09 BREATHER VALVE 316L STAINLESS STEEL HXF-50,-20C~150C, MADE 2022-04
3 Sets Hydrochloric Acid HCL Tanker Lined PE Tank body for Cargo Truck 13m3 -16.5m3 to Vietnam TWO (2) UNITS OF TANK FOR HCL CARGO TRUCK 3 COMPARTMENTS TANK CAPACITY:16500 LITERS HS CODE: 7309.00 ONE (1) UNITS OF TANK FOR HCL CARGO TRUCK3 COMPARTMENTS TANK CAPACITY:13000LITERS HS CODE: 7309.00 THIRTY (30) UNITS OF LID WITH FLANGE #37CMTHREAD CAP PE LID VORTEX SCREW STRUCTURE HS CODE: 3923.50 PACKING: TOTAL 9 PACKAGES(3 NUDE PACKAGES +6BOXES) ONLY
20Sets Power take-offs (PTOs) WLY5G32 ,6DS60T-D ,8JS85 ,DC7J120T to Ecuador C&F GUAYAQUIL, EC LCL. CFS-CFS Part No. Description Quantity SDQ 24/63-B LGQ1 PTO For WLY5G32 5.595 7 SDQ34/29LGQ1 " PTO FOR 8JS85E GEAR SPLINE" 3 SDQ34/29PQ1 " PTO FOR 8JS85E GEAR FLANGE" 2 SDQ211-60LGQ1 "PTO FOR 6DS60T-D GEAR SPLINE" 3 SDQ211-60PQ1 "PTO FOR 6DS60T-D GEAR SPLINE" 2 DC7J120T "PTO for DC7J120T (DC7J120TC )1a10.307" 3
6000Liters Lined PE Mobile Hydrochloric Acid (HCl) Tank For Truck Lorry Ready for Export STEEL SHELL 5MM, HEAD 6MM TANK SIZE :3800*1900*1230MM, OVER ALL SIZE3800*1900*1800MM DISCHARGE VALVE ND80/DN 65
