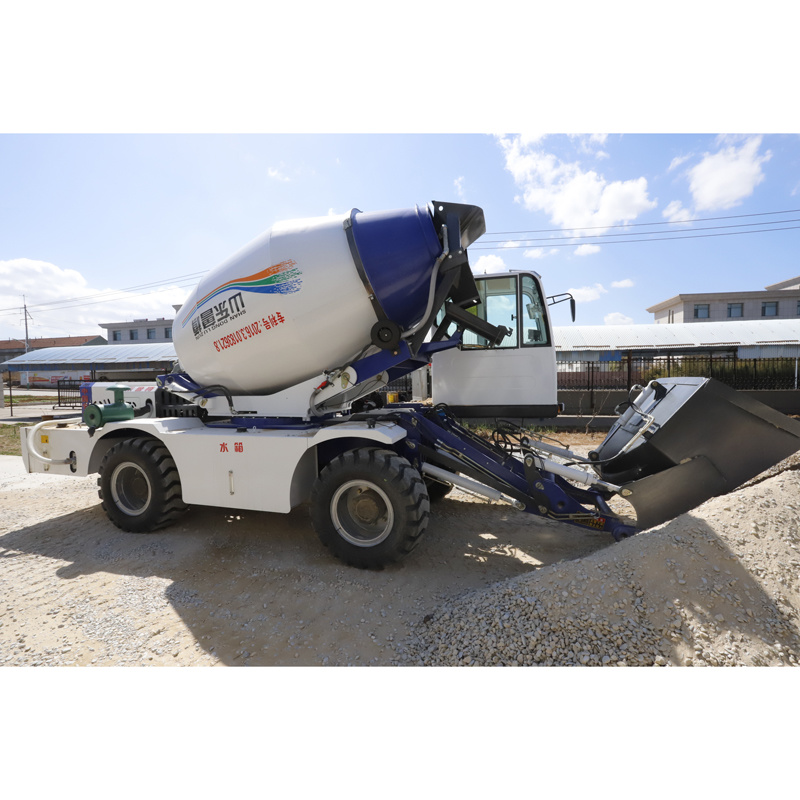

Self Loading Concrete Mixer 4m3 with Cab Rotating 180-270d and Air Conditioning (Electronic Sensors, Automatic weighing scale) EXW Wholesale Price List
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
Self Loading Concrete Mixer 4M3 With Cab Rotating 180-270D And Air Conditioning ( Electronic Sensors,Automatic weighing scale )
EXW Wholesale Price List
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Product Description
Product Application

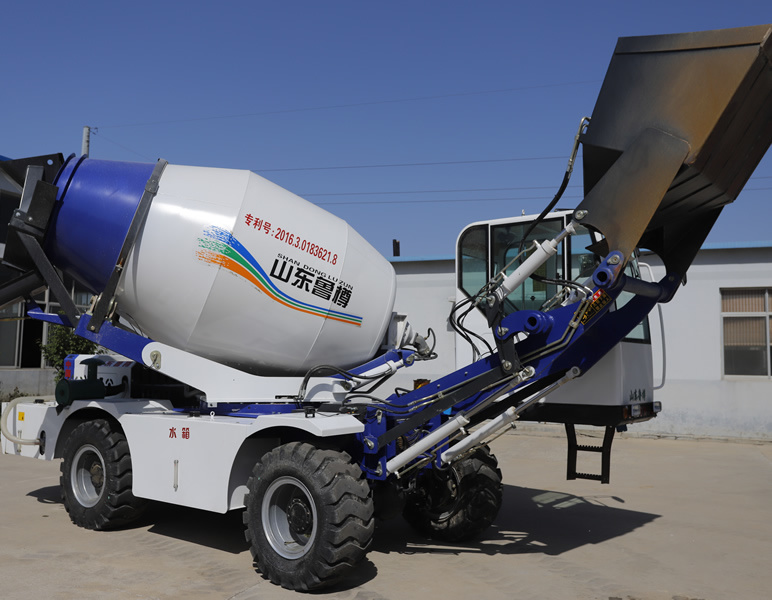

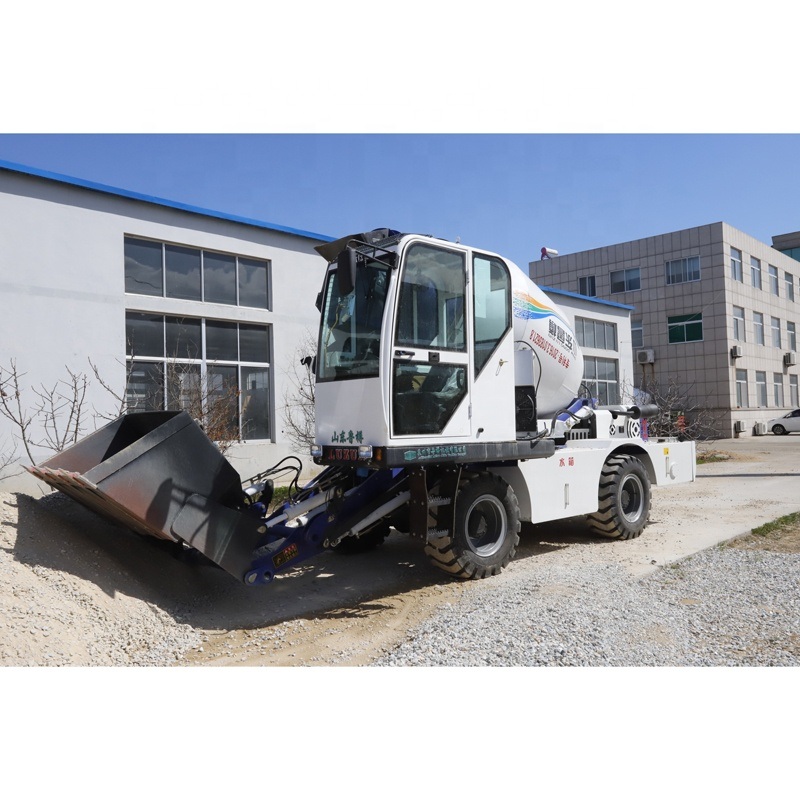

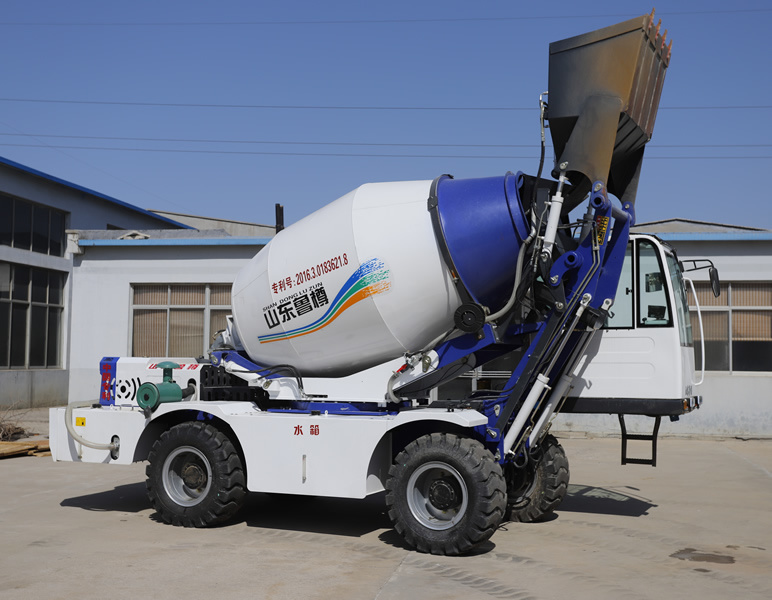

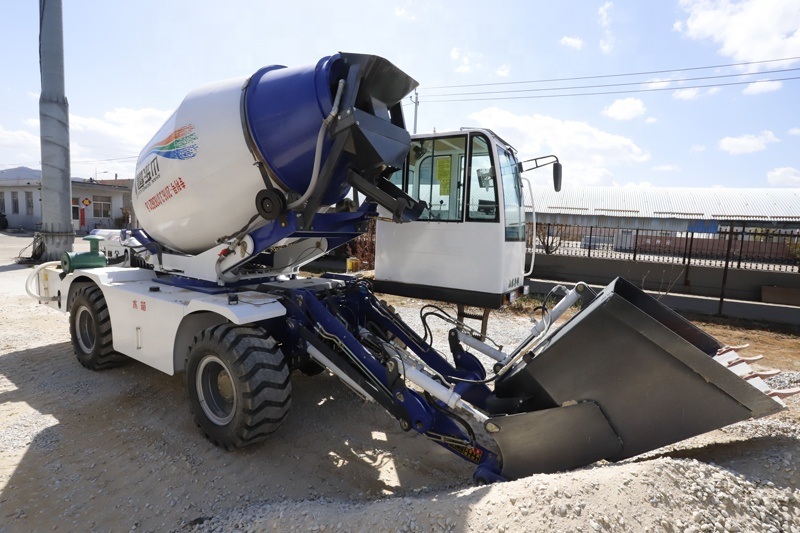

Self loading concrete mixer truck is the combination of concrete mixer truck and cement mixer.
It can automatically feed, measure, mix and discharge concrete mixture.
Equipped with a powerful engine and 4 wheel steering . Operator can drive it to where it needs to go.
It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.
Functions:
Auto Weighting Scale system (English / Russian / Spanish Version) (optional)
Drum Bottom lifting up for increasing speed of discharging concrete
Water Pump

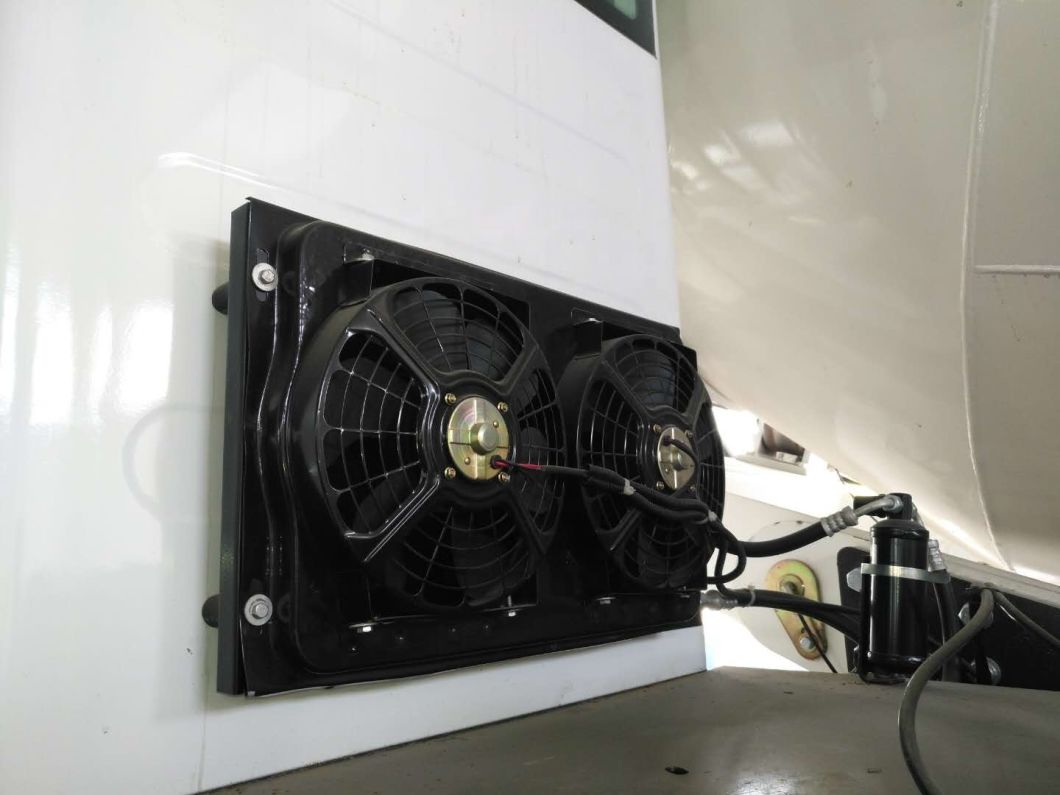

Air-condition (optional)
270 degrees discharge angle
Auto adding Lubricating Oil system(optional)
Piston main pump and Motor
JBC4.0 Self Propelled Concrete Mixer
Functions:
Auto Weighting Scale system (English / Russian / Spanish Version)
Drum Bottom lifting up for increasing speed of discharging concrete
Water Pump
Air-condition
Auto adding Lubricating Oil system
Piston main pump and Motor
Parameters:
DIESEL ENGINE
Model: YCD4J22G
Total displacement, no Cylinders: 4330cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85Kw(116Hp)
Max. torque: 390Nm@2800rpm
ELECTRIC SYSTEM
Alternator:28V--1500Wa (53.5A)
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
STEERING
2 steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels.
4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0-7 Km/h 0 - 7 Km/h
IInd 7-25 Km/h 7 - 25 Km/h
AXLES AND WHEELS
Front wheel is steering with planetary reduction gears on the Wheel reduction Axle with flanged gearbox.
Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires:... 16-70-20,Max. L: 5150kg , 450kPa
BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Negative type parking brake, with internal wheel hub discs on the front axle.
WATER SYSTEM
24V "Self-priming" volumetric water pump with quick-suction.
Max. capacity: ............................180 liters/min.
Two tank with a total capacity of ......................2×450 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pressure water pump.
MIXING AND UNLOADING
Double-cone drum with double-spiral mixing screws and convex bottom.
Geometrical drum volume: ............. 6100 liters
Drum rotation speed: .........................16 rpm.
Concrete produced as : ........4.0m³
Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
2 unloading chute extensions provided as standard equipment.
EQUIPMENT HYDRAULIC SYSTEM
Pump: Hydraulic Piston pump (SUNNY made in USA)
Max. flow rate: ............................. 56 cm³/REV
Maximum pressure: ........................35MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.

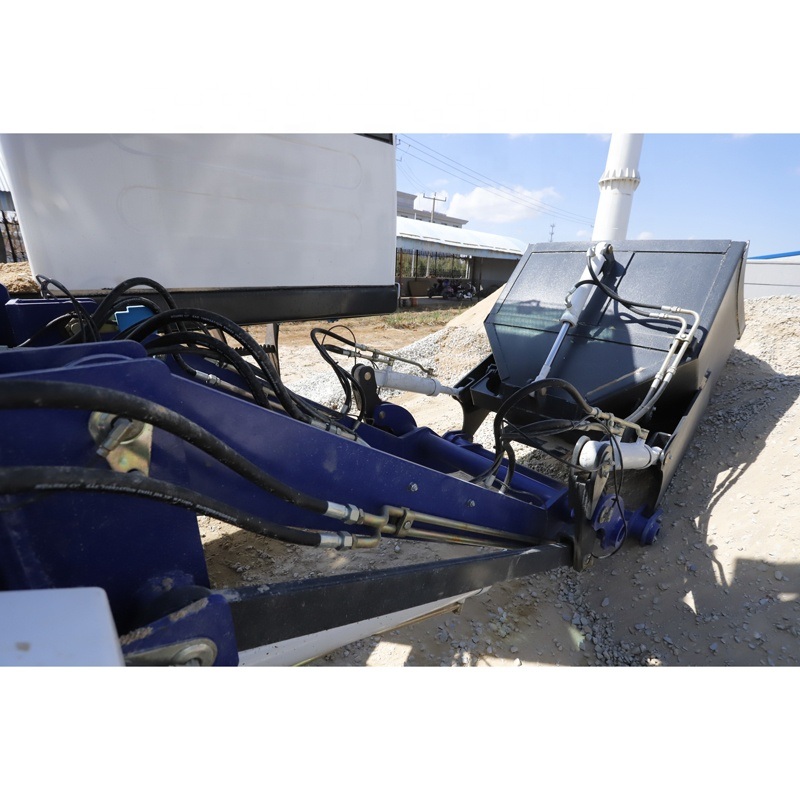

LOADER
Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.
Volumetric capacity: ...........................800 liters
Number of loading times: .......... around 5
CAB
Closed cab with Tilting front window, Anatomic seat with flexible suspension and height adjustment,
SERVICE REFILL CAPACITIES
Fuel tank: .............................................240 liters
Total hydraulic system capacity: ........ 240 liters
Engine oil: .............................................16 liters
WEIGHTS
Operating weight ...............................8500 kg
Max gross weight:..............................18100 kg
load-carrying capacity: ...................... 9600 kg
DIMENSIONS
Length × Width × Height .........................8200 × 2900 × 3260 mm
JBC4.0R Auto Charging Concrete Mixer
Features:
Auto Weighting Scale system (English / Russian / Spanish Version)
Drum Bottom lifting up for increasing speed of discharging concrete
Water Pump
Auto adding Lubricating Oil system
Air-condition
180 degrees Two directions discharge materials
Parameters:
DIESEL ENGINE
Model: Weichai Deutz 6105 turbo charging Engine (WP6G125E23)
Total displacement, No Cylinders: 4330cc-6 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 92Kw(120Hp)
ELECTRIC SYSTEM
Alternator:28V--1500Wa (53.5A)
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
STEERING
2 steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels.
4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0-7 Km/h 0 - 7 Km/h
IInd 7-25 Km/h 7 - 25 Km/h
AXLES AND WHEELS
Front wheel is steering with planetary reduction gears on the Wheel reduction Axle with flanged gearbox.
Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires:... 16-70-20,Max. L: 5550kg , 450kPa
BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Negative type parking brake, with internal wheel hub discs on the front axle.
WATER SYSTEM
24V "Self-priming" volumetric water pump with quick-suction.
Max. capacity: ............................180 liters/min.
Two tank with a total capacity of ......................2×450 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pressure water pump.
MIXING AND UNLOADING
Double-cone drum with double-spiral mixing screws and convex bottom.
Geometrical drum volume: ............. 6100 liters
Drum rotation speed: .........................16 rpm.
Concrete produced as : ........4.0m³
Counter frame mounted on "heavy-duty" ball fifth wheel, with 180° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
2 unloading chute extensions provided as standard equipment.
EQUIPMENT HYDRAULIC SYSTEM
Pump: Hydraulic Piston pump (SUNNY made in USA)
Max. flow rate: ............................. 56 cm³/REV
Maximum pressure: ........................35MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.
LOADER
Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.
Volumetric capacity: ...........................800 liters
Number of loading times: .......... around 5
CAB
Closed cab with Tilting front window, Anatomic seat with flexible suspension and height adjustment, SERVICE REFILL CAPACITIES
Fuel tank: .............................................240 liters
Total hydraulic system capacity: ........ 240 liters
Engine oil: .............................................16 liters
WEIGHTS
Operating weight ...............................8900 kg
Max gross weight:..............................18500 kg
load-carrying capacity: ...................... 9600 kg
DIMENSIONS
Length × Width × Height .........................8600 × 2900 × 3260 mm
DIESEL ENGINE | Model: YCD4J22G |
| Total displacement, no Cylinders: 4330cc-4 in line | |
| Injection: direct with mechanical control | |
| Max. power: 85Kw(116Hp) | |
| Max. torque: 390Nm@2800rpm | |
ELECTRIC SYSTEM | Alternator:28V--1500Wa (53.5A) |
| Battery: 2×12V--100AH (453A) | |
| Road light system, rear working lights | |
| STEERING | 2 steering wheels |
DRIVE | 4X4 FOUR-WHEEL DRIVE |
| 2 forward gears/Ist 0-7 Km/h/IInd 7-25 Km/h | |
| 2 reverse gears/0 - 7 Km/h/7 - 25 Km/h | |
| AXLES AND WHEELS | Tires:... 16-70-20,Max. L: 5150kg , 450kPa |
BRAKES | Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit. Negative type parking brake, with internal wheel hub discs on the front axle. |
WATER SYSTEM | 24V "Self-priming" volumetric water pump with quick-suction |
| Max. capacity: ............................90 liters/min | |
| Two tank with a total capacity of ......................2×450 liters | |
| MIXING AND UNLOADING | Geometrical drum volume: ............. 6100 liters |
| Drum rotation speed: .........................16 rpm | |
| Concrete produced as : ........4.0m³ | |
EQUIPMENT HYDRAULIC SYSTEM | Gear pump: Hydraulic Piston pump |
| Max. flow rate: ............................. 63/50 liters/min | |
| Maximum pressure: ........................42MPa | |
| Pressurized open-circuit intake with oil filter replaceable from the outside | |
LOADER | Volumetric capacity: ...........................700 liters |
| Number of loading times: .......... around 6 | |
| CAB | Closed cab with heating system, Tilting front window, Anatomic seat with flexible suspension and height adjustment |
SERVICE REFILL CAPACITIES | Fuel tank: .............................................135 liters |
| Total hydraulic system capacity: ........ 240 liters | |
| Engine oil: .............................................16 liters |
Self Loading Concrete Mixer EXW Wholesale Price List
| 4.0 cubic 6 cylinder rotating automatic feeding mixer | It adopts 6-cylinder 92 kW engine, 320 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, with With automatic lubrication system, air conditioning, the tank can be rotated 180° | ¥310000 |
| 4 cubic 6 cylinder automatic feeding mixer | It adopts 6-cylinder 92 kW engine, 320 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, with There is automatic lubrication system, air conditioning. | ¥258000 |
| 4.0 cubic 4 cylinder with rotating automatic feeding mixer | It uses Yuchai 85 kW engine, 280 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic weighing, with There is automatic lubrication system, air conditioning, the tank can be rotated 180 ° or 270 °. | ¥290000 |
| 4.0 cubic 4 cylinder automatic feeding mixer | It uses Yuchai 85 kW engine, 280 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic weighing, with With automatic lubrication system, air conditioning, | ¥238000 |
| 3.0 cubic rotating automatic feeding mixer | It adopts Yuchai 78 kW supercharged engine, 280 split torque converter, 8T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic scale With automatic lubrication system, air conditioning, the tank can be rotated 180 ° or 270 °. | ¥268000 |
| 2.6 cubic automatic feeding mixer | It adopts Yuchai 78 kW supercharged engine, 280 split torque converter, 8T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic scale With automatic lubrication system, air conditioning, | ¥218000 |
| 2.0 cubic automatic feeding belt rotating mixer | It adopts 78 kW engine, 265 split torque converter, 7T drive Isuzu bridge, 20.5-16 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, tank can be rotated 180 ° or 270°. | ¥238000 |
| 2.0 cubic automatic feeding mixer | It adopts 78 kW engine, 265 split torque converter, 7T drive Isuzu bridge, 20.5-16 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic scale | ¥198000 |
| 1.6 cubic belt rotating automatic feeding mixer | It adopts 78 kW engine, full hydraulic 265 split torque converter, front wheel steering hydraulic wheel bridge, integral frame, 20.5-16 tires, with driving image, automatic water supply controller, electronic hydraulic scale, tank can be rotated 270° | ¥158000 |
| 1.6 cubic automatic feeding mixer | It adopts 78 kW engine, full hydraulic 265 split torque converter, front wheel steering hydraulic wheel bridge, integral frame, 20.5-16 tires, with driving image, automatic water supply controller, electronic hydraulic scale | ¥148000 |
| 3.0 cubic automatic feeding mixer | It adopts 85 kW engine, full hydraulic 280 integral torque converter, large wheel side bridge, 1670-20 engineering tires, with driving image, automatic water supply controller, articulated steering, the tank can be rotated 270°, the tank can be lifted and lowered , with external suction pump | ¥168000 |
| 2.0 cubic automatic feeding mixer | It adopts 78 kW engine, full hydraulic 280 integral torque converter, small wheel side bridge, large 20.5 engineering tires, equipped with driving image, automatic water supply controller, articulated steering, the tank can be rotated 270°, the tank can be lifted and lowered. Out-of-band suction pump | ¥148000 |
| 3.5 cubic automatic feeding mixer | It adopts 85 kW engine, full hydraulic 280 integral torque converter, large wheel side bridge, 1670-20 engineering tires, with driving image, automatic water supply controller, articulated steering, the tank can be rotated 270°, the tank can be lifted and lowered , with external suction pump | ¥188000 |
| 1.6 cubic transfer rotary automatic feeding mixer | It adopts 78 kW engine, full hydraulic 265 torque converter, cross steering, small wheel side drive axle, 20.5-16 tires, automatic water supply controller, rotating 270°, new tank rack can be raised and lowered to increase the price by 3,000 yuan, add external suction The pump needs to increase the price by 3,000 yuan. | ¥118 000 |
| 1.6 cubic transfer automatic feeding mixer | 78 kW engine, full hydraulic 265 torque converter, crossover steering, small wheel side drive axle, 20.5-16 tires, automatic water supply controller, | ¥108000 |
| 1.2 cubic transfer automatic feeding mixer | It adopts 55 kW engine in the cloud, 12-16.5 engineering machinery tires, wheel side deceleration bridge, crossover steering, full hydraulic 265 torque converter, and automatic water supply. The tank rotates 270° and the price increases by 10,000 yuan. | ¥88000 |
| 3.5 cubic automatic feeding mixer | It adopts Yuchai 85 kW engine, 10T hydraulic wheel side drive axle, 15.5/60-18PR tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, heating and cooling air conditioning, tank body Rotating 270°, imported closed plunger hydraulic system | ¥360000 |
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
| LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
| DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
| DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
| DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
| DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
| DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
| DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
| DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
| DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
| DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 | |||||||||||||||||||||
Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
| Concrete mixer truck structure parameters | ||||
| Loading capacity | 8m3 | Tank material | 5mm steel | |
| Tank front head | 8mm steel | Reducer | Germany ZF | |
| Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
| Radiator | KAIPENG | Color and Logo | Optional | |
| Standard configuration | sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
| 8m3 | Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material) | |||
| Selective ENGINE | YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min) | |||
Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
Aluminum / midd Steel Stainless Steel Vaccum Tank
Jbc1.6r Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
Chinese Manufacturer Jbc4.0 Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
3.0 M3 Self Loading Concrete Mixer Chinese Factory
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
1.6 Cbm Chinese Factory Self Load Concrete Mixer Construction Machine
FOB Price: US $22,000-23,000 / Piece
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
1.6m3 Self Propelled Mobile Concrete Mixer Truck Chinese Factory
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
Jbc2.0r Mixer Truck Made in China Construction Machines
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
2m3 Concrete Mixer Chinese Manufacturer Self Propelled Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
Hot Sales 4 M3 Self Loading Concrete Mixer Chinese Manufacturer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Chinese Manufacturer of Self Loading Concrete Mixer with Professional Service
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
2.6-3.0 M3 Self Propelled Concrete Mixer with Professional Design
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
1.2m3 Small Self Loading Concrete Mixer for Road Building
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
Chinese Factory of Self Propelled Concrete Mixer with 1.2m3/Batch
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
3m3 Working Capacity Self Propelled Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
3.0 M3 Portable Concrete Mixers in Chinese Manufacturer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
1.6 Cbm Working Capacity of Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
1.6m3 Self Loading Cement Mixers Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
4 M3 Self Loading Concrete Mixer with Sunny Hydraulic System
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Hot Sale Products of Self Load Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Chinese Factory of Self Loading Concrete Mixer with Top Quality
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
2.0 M3 Self Propelled Concrete/Cement Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
3.5 M3 Self Propelled Concrete Mixer/Cement Mixer/Self Load Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
Portable Concrete Mixer Jbc3.5r Self Loading Construction Machine
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
Construction Machinery of Self Loading Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Jbc3.5 Articulated Steering Self Load Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
4 Cbm 180 Rotation Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Chinese Factory of 4cbm Self Propelled Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Jbc 4.0r Chinese Manufacturer of Transit Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
4 Cbm Construction Machine of Self Loading Cement Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
4 Cbm Self Load Concrete/Cement Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25mJbc4.0 Self Loading Concrete Mixer 4cbm Working Capacity
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Professional Products of Self Propelled Concrete Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
No Rotation Type of 4 M3 Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25mTop Quality of 4 Cbm Working Capacity Transit Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
1.2 Cbm Professional Technology of Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
Small Type of 1.2 Cbm Self Propelled Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
1.2 Working Capacity of Self Loading Transit Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
4ws/4WD 3.5 Cbm Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
self loading concrete mixer 4M3 with cab rotating and air conditioning
$36,500.00 - $38,500.00/Set
4.0cbm auto feeding cement concrete mixer truck with air conditioning
$32,500.00 - $33,500.00/Set
Factory price sale in South Africa 4.0m3 self loading concere mixer truck with CE
$32,500.00 - $33,500.00/Set
4.0 CUBIC METER Road Paving Mixer Truck /Self Loading Concrete Mixer For Sale
$32,500.00 - $33,500.00/Set
New condition Ready mix concrete machine 4.0cbm auto-feeding Mobile Concrete Mixer with air conditioning
$32,800.00 - $33,800.00/Set
4 cubic meter auto feeding cement concrete mixer truck for sale in Kenya
$32,500.00 - $33,500.00/Set
4.0cbm Automatic weighing scale self loading concrete mixer truck with electronic sensors
$32,500.00 - $33,500.00/Set
4.0 cubic meter auto feeding mobile cement concrete mixer truck sale in
$32,500.00 - $33,500.00/Set
4.0 cbm automatic charging mobile concrete mixer truck for sale in Mozambique
$32,500.00 - $33,500.00/Set
4.0 cubic meter self loading cement concrete mixer truck for sale in Azerbaijan
$32,500.00 - $33,500.00/Set
4 cubic meter auto feeding cement concrete mixer truck for sale in Ukraine
$32,500.00 - $33,500.00/Set
4 M3 Mobile Self Loading concrete mixer truck for sale in Georgia
$32,500.00 - $33,500.00/Set
4 M3 Diesel mobile concrete mixer/Mobile Self Loading concrete mixer truck for sale
$32,500.00 - $33,500.00/Set
4.0 cbm Portable diesel self loading mobile concrete mixer truck
$32,500.00 - $33,500.00/Set
High Efficiency 4 cubic meter self-loading concrete mixer concrete mixer truck
$32,500.00 - $33,500.00/Set
4M3 85KW Automatic feeding concrete mixer with wheel side deceleration bridge
$32,500.00 - $33,500.00/Set
4 cubic meter self loading cement concrete mixer truck for sale in Cyprus
$32,500.00 - $33,500.00/Set
4 M3 Diesel mobile concrete mixer/Mobile Self Loading concrete mixer truck for sale
$32,500.00 - $33,500.00/Set
4m3 manufacturing self loading concrete mixer truck machines with pump
$32,500.00 - $33,500.00/Set
cheap price concrete mixer machine mobile self loading concrete mixer truck price 4.0 CBM
$32,500.00 - $33,500.00/Set
4 cubic meter self loading cement concrete mixer truck for sale in Mongolia
$32,500.00 - $33,500.00/Set
4m3 self loading concrete mixer truck/self loading truck
$32,500.00 - $33,500.00/Set
4.0 CUBIC concrete mixer with pump/portable concrete mixer truck
$32,500.00 - $33,500.00/Set
cheap price 4.0 cbm 4 wheel driving auto weighing self- priming water self loading concrete mixer truck sale in Nepal
$32,500.00 - $33,500.00/Set
4.0cbm 270 degrees rotation mobile self propelled concrete mixer truck
$32,500.00 - $33,500.00/Set
Integrated chassis weighing system auto feeding and discharging concrete mixer truck 4M3
$32,500.00 - $33,500.00/Set
Cell :+8615271357675

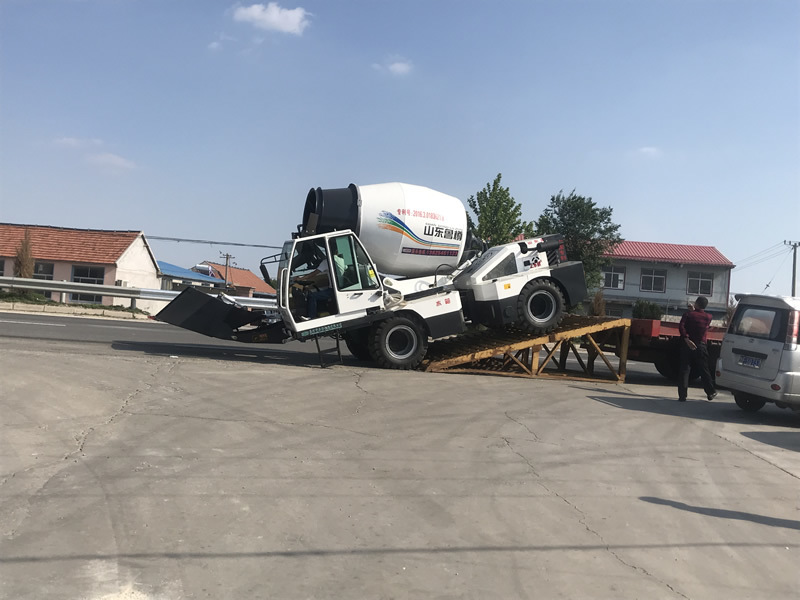

Self Loading Concrete Mixer 4M3 With Cab Rotating 180-270D And Air Conditioning ( Electronic Sensors,Automatic weighing scale )
EXW Wholesale Price List
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Product Description
Product Application
Self loading concrete mixer truck is the combination of concrete mixer truck and cement mixer.
It can automatically feed, measure, mix and discharge concrete mixture.
Equipped with a powerful engine and 4 wheel steering . Operator can drive it to where it needs to go.
It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.
Functions:
Auto Weighting Scale system (English / Russian / Spanish Version) (optional)
Drum Bottom lifting up for increasing speed of discharging concrete
Water Pump
Air-condition (optional)
270 degrees discharge angle
Auto adding Lubricating Oil system(optional)
Piston main pump and Motor
JBC4.0 Self Propelled Concrete Mixer
Functions:
Auto Weighting Scale system (English / Russian / Spanish Version)
Drum Bottom lifting up for increasing speed of discharging concrete
Water Pump
Air-condition
Auto adding Lubricating Oil system
Piston main pump and Motor
Parameters:
DIESEL ENGINE
Model: YCD4J22G
Total displacement, no Cylinders: 4330cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85Kw(116Hp)
Max. torque: 390Nm@2800rpm
ELECTRIC SYSTEM
Alternator:28V--1500Wa (53.5A)
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
STEERING
2 steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels.
4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0-7 Km/h 0 - 7 Km/h
IInd 7-25 Km/h 7 - 25 Km/h
AXLES AND WHEELS
Front wheel is steering with planetary reduction gears on the Wheel reduction Axle with flanged gearbox.
Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires:... 16-70-20,Max. L: 5150kg , 450kPa
BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Negative type parking brake, with internal wheel hub discs on the front axle.
WATER SYSTEM
24V "Self-priming" volumetric water pump with quick-suction.
Max. capacity: ............................180 liters/min.
Two tank with a total capacity of ......................2×450 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pressure water pump.
MIXING AND UNLOADING
Double-cone drum with double-spiral mixing screws and convex bottom.
Geometrical drum volume: ............. 6100 liters
Drum rotation speed: .........................16 rpm.
Concrete produced as : ........4.0m³
Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
2 unloading chute extensions provided as standard equipment.
EQUIPMENT HYDRAULIC SYSTEM
Pump: Hydraulic Piston pump (SUNNY made in USA)
Max. flow rate: ............................. 56 cm³/REV
Maximum pressure: ........................35MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.
LOADER

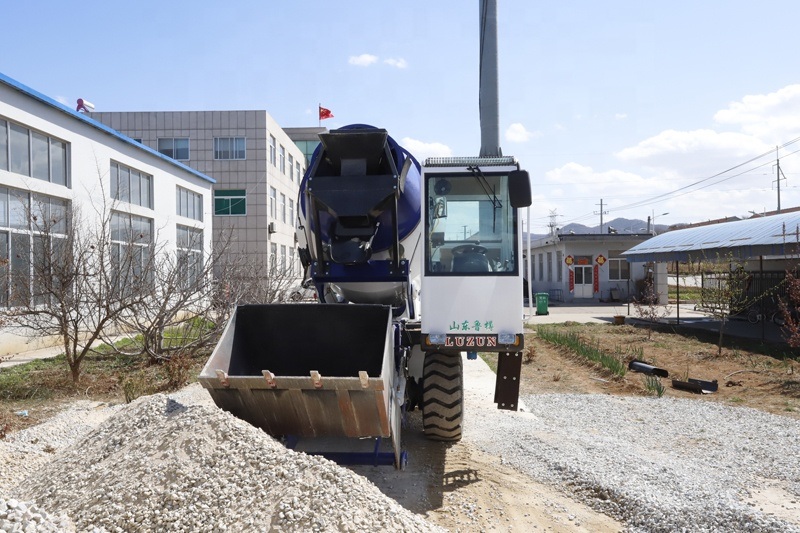

Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.
Volumetric capacity: ...........................800 liters
Number of loading times: .......... around 5
CAB
Closed cab with Tilting front window, Anatomic seat with flexible suspension and height adjustment,
SERVICE REFILL CAPACITIES
Fuel tank: .............................................240 liters
Total hydraulic system capacity: ........ 240 liters
Engine oil: .............................................16 liters
WEIGHTS
Operating weight ...............................8500 kg
Max gross weight:..............................18100 kg
load-carrying capacity: ...................... 9600 kg
DIMENSIONS
Length × Width × Height .........................8200 × 2900 × 3260 mm
JBC4.0R Auto Charging Concrete Mixer
Features:
Auto Weighting Scale system (English / Russian / Spanish Version)
Drum Bottom lifting up for increasing speed of discharging concrete
Water Pump
Auto adding Lubricating Oil system
Air-condition
180 degrees Two directions discharge materials
Parameters:
DIESEL ENGINE
Model: Weichai Deutz 6105 turbo charging Engine (WP6G125E23)
Total displacement, No Cylinders: 4330cc-6 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 92Kw(120Hp)
ELECTRIC SYSTEM
Alternator:28V--1500Wa (53.5A)
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
STEERING
2 steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels.
4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0-7 Km/h 0 - 7 Km/h
IInd 7-25 Km/h 7 - 25 Km/h
AXLES AND WHEELS
Front wheel is steering with planetary reduction gears on the Wheel reduction Axle with flanged gearbox.
Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires:... 16-70-20,Max. L: 5550kg , 450kPa
BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Negative type parking brake, with internal wheel hub discs on the front axle.
WATER SYSTEM
24V "Self-priming" volumetric water pump with quick-suction.
Max. capacity: ............................180 liters/min.
Two tank with a total capacity of ......................2×450 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pressure water pump.
MIXING AND UNLOADING
Double-cone drum with double-spiral mixing screws and convex bottom.
Geometrical drum volume: ............. 6100 liters
Drum rotation speed: .........................16 rpm.
Concrete produced as : ........4.0m³
Counter frame mounted on "heavy-duty" ball fifth wheel, with 180° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
2 unloading chute extensions provided as standard equipment.
EQUIPMENT HYDRAULIC SYSTEM
Pump: Hydraulic Piston pump (SUNNY made in USA)
Max. flow rate: ............................. 56 cm³/REV
Maximum pressure: ........................35MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.
LOADER
Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.
Volumetric capacity: ...........................800 liters
Number of loading times: .......... around 5
CAB
Closed cab with Tilting front window, Anatomic seat with flexible suspension and height adjustment, SERVICE REFILL CAPACITIES
Fuel tank: .............................................240 liters
Total hydraulic system capacity: ........ 240 liters
Engine oil: .............................................16 liters
WEIGHTS
Operating weight ...............................8900 kg
Max gross weight:..............................18500 kg
load-carrying capacity: ...................... 9600 kg
DIMENSIONS
Length × Width × Height .........................8600 × 2900 × 3260 mm
DIESEL ENGINE | Model: YCD4J22G |
| Total displacement, no Cylinders: 4330cc-4 in line | |
| Injection: direct with mechanical control | |
| Max. power: 85Kw(116Hp) | |
| Max. torque: 390Nm@2800rpm | |
ELECTRIC SYSTEM | Alternator:28V--1500Wa (53.5A) |
| Battery: 2×12V--100AH (453A) | |
| Road light system, rear working lights | |
| STEERING | 2 steering wheels |
DRIVE | 4X4 FOUR-WHEEL DRIVE |
| 2 forward gears/Ist 0-7 Km/h/IInd 7-25 Km/h | |
| 2 reverse gears/0 - 7 Km/h/7 - 25 Km/h | |
| AXLES AND WHEELS | Tires:... 16-70-20,Max. L: 5150kg , 450kPa |
BRAKES | Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit. Negative type parking brake, with internal wheel hub discs on the front axle. |
WATER SYSTEM | 24V "Self-priming" volumetric water pump with quick-suction |
| Max. capacity: ............................90 liters/min | |
| Two tank with a total capacity of ......................2×450 liters | |
| MIXING AND UNLOADING | Geometrical drum volume: ............. 6100 liters |
| Drum rotation speed: .........................16 rpm | |
| Concrete produced as : ........4.0m³ | |
EQUIPMENT HYDRAULIC SYSTEM | Gear pump: Hydraulic Piston pump |
| Max. flow rate: ............................. 63/50 liters/min | |
| Maximum pressure: ........................42MPa | |
| Pressurized open-circuit intake with oil filter replaceable from the outside | |
LOADER | Volumetric capacity: ...........................700 liters |
| Number of loading times: .......... around 6 | |
| CAB | Closed cab with heating system, Tilting front window, Anatomic seat with flexible suspension and height adjustment |
SERVICE REFILL CAPACITIES | Fuel tank: .............................................135 liters |
| Total hydraulic system capacity: ........ 240 liters | |
| Engine oil: .............................................16 liters |
Self Loading Concrete Mixer EXW Wholesale Price List
| 4.0 cubic 6 cylinder rotating automatic feeding mixer | It adopts 6-cylinder 92 kW engine, 320 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, with With automatic lubrication system, air conditioning, the tank can be rotated 180° | ¥310000 |
| 4 cubic 6 cylinder automatic feeding mixer | It adopts 6-cylinder 92 kW engine, 320 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, with There is automatic lubrication system, air conditioning. | ¥258000 |
| 4.0 cubic 4 cylinder with rotating automatic feeding mixer | It uses Yuchai 85 kW engine, 280 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic weighing, with There is automatic lubrication system, air conditioning, the tank can be rotated 180 ° or 270 °. | ¥290000 |
| 4.0 cubic 4 cylinder automatic feeding mixer | It uses Yuchai 85 kW engine, 280 split torque converter, 10T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic weighing, with With automatic lubrication system, air conditioning, | ¥238000 |
| 3.0 cubic rotating automatic feeding mixer | It adopts Yuchai 78 kW supercharged engine, 280 split torque converter, 8T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic scale With automatic lubrication system, air conditioning, the tank can be rotated 180 ° or 270 °. | ¥268000 |
| 2.6 cubic automatic feeding mixer | It adopts Yuchai 78 kW supercharged engine, 280 split torque converter, 8T hydraulic wheel drive axle, 1670-20 tires, hydraulic control hopper for forward and backward, with driving image, automatic water supply controller, electronic hydraulic scale With automatic lubrication system, air conditioning, | ¥218000 |
| 2.0 cubic automatic feeding belt rotating mixer | It adopts 78 kW engine, 265 split torque converter, 7T drive Isuzu bridge, 20.5-16 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, tank can be rotated 180 ° or 270°. | ¥238000 |
| 2.0 cubic automatic feeding mixer | It adopts 78 kW engine, 265 split torque converter, 7T drive Isuzu bridge, 20.5-16 tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic scale | ¥198000 |
| 1.6 cubic belt rotating automatic feeding mixer | It adopts 78 kW engine, full hydraulic 265 split torque converter, front wheel steering hydraulic wheel bridge, integral frame, 20.5-16 tires, with driving image, automatic water supply controller, electronic hydraulic scale, tank can be rotated 270° | ¥158000 |
| 1.6 cubic automatic feeding mixer | It adopts 78 kW engine, full hydraulic 265 split torque converter, front wheel steering hydraulic wheel bridge, integral frame, 20.5-16 tires, with driving image, automatic water supply controller, electronic hydraulic scale | ¥148000 |
| 3.0 cubic automatic feeding mixer | It adopts 85 kW engine, full hydraulic 280 integral torque converter, large wheel side bridge, 1670-20 engineering tires, with driving image, automatic water supply controller, articulated steering, the tank can be rotated 270°, the tank can be lifted and lowered , with external suction pump | ¥168000 |
| 2.0 cubic automatic feeding mixer | It adopts 78 kW engine, full hydraulic 280 integral torque converter, small wheel side bridge, large 20.5 engineering tires, equipped with driving image, automatic water supply controller, articulated steering, the tank can be rotated 270°, the tank can be lifted and lowered. Out-of-band suction pump | ¥148000 |
| 3.5 cubic automatic feeding mixer | It adopts 85 kW engine, full hydraulic 280 integral torque converter, large wheel side bridge, 1670-20 engineering tires, with driving image, automatic water supply controller, articulated steering, the tank can be rotated 270°, the tank can be lifted and lowered , with external suction pump | ¥188000 |
| 1.6 cubic transfer rotary automatic feeding mixer | It adopts 78 kW engine, full hydraulic 265 torque converter, cross steering, small wheel side drive axle, 20.5-16 tires, automatic water supply controller, rotating 270°, new tank rack can be raised and lowered to increase the price by 3,000 yuan, add external suction The pump needs to increase the price by 3,000 yuan. | ¥118 000 |
| 1.6 cubic transfer automatic feeding mixer | 78 kW engine, full hydraulic 265 torque converter, crossover steering, small wheel side drive axle, 20.5-16 tires, automatic water supply controller, | ¥108000 |
| 1.2 cubic transfer automatic feeding mixer | It adopts 55 kW engine in the cloud, 12-16.5 engineering machinery tires, wheel side deceleration bridge, crossover steering, full hydraulic 265 torque converter, and automatic water supply. The tank rotates 270° and the price increases by 10,000 yuan. | ¥88000 |
| 3.5 cubic automatic feeding mixer | It adopts Yuchai 85 kW engine, 10T hydraulic wheel side drive axle, 15.5/60-18PR tires, and adopts hydraulic control hopper forward and backward, equipped with driving image, automatic water supply controller, electronic hydraulic weighing, heating and cooling air conditioning, tank body Rotating 270°, imported closed plunger hydraulic system | ¥360000 |
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | CIF | |||||||||||||||||||||
| LHD RHD price add $2000 | m3 | mm | mm | USD | 100%TT 50%+50% | ||||||||||||||||||||||||||
| DRZ5250GJBD | DONGFENG | DFL5250GJBA | 10 | 8800X2500X3930 | 3650+1350 | L340-30 | 340/Euro 3 | 11.00R20 | 353000 | $51920 | $57970 | ||||||||||||||||||||
| DRZ5142GJBB | FOTON | BJ5142GJB-G1 | 4 | 6460X2480X3450 | 3400 | YCD4F22-110 | 110/Euro 2 | 8.25-16 | 112300 | 16520 | $20500 | ||||||||||||||||||||
| DRZ5142GJBB1 | FOTON | BJ5142GJB-G1 | 5 | 6660X2480X3450 | 3600 | YCD4D130-33 | 130/ Euro 2 | 8.25-20 | 129300 | 19020 | $23090 | ||||||||||||||||||||
| DRZ5162GJBB | FOTON | BJ5162GJB-F1 | 7 | 6980X2490X3750 | 4200 | YC6J190-33 | 190/Euro 2 | 10.00R20 | 199500 | $29340 | $33930 | ||||||||||||||||||||
| DRZ5252GJBB | FOTON | BJ5252GJB-S | 10 | 8930X2495X3790 | 3575+1350 | WP10.340E32 | 340/Euro 3 | 11.00R20 | 338900 | $49840 | $55820 | ||||||||||||||||||||
| DRZ5253GJBB | FOTON | BJ5253GJB-S2 | 12 | 9350X2495X3935 | 4100+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 357000 | $52500 | |||||||||||||||||||||
| DRZ5318GJBB | FOTON | BJ5318GJB-1 | 14 | 10752X2495X3998 | 1800+3450+1350 | WP10.340E32 | 340/Euro 3 | 12.00R20 | 422200 | $62090 | |||||||||||||||||||||
| DRZ5313GJBB | FOTON | BJ5313GJB-11 | 18 | 11230X2495X3995 | 1800+3650+1350 | WP12.380E32 | 380/Euro 3 | 12.00R20 | 450300 | $66230 | |||||||||||||||||||||
| DRZ5250GJBQ | I.S.U.Z.U | QL1250DAFZY | 14 | 10050X2490X3900 | 4000+1300 | 6HK1-TCSG50 | 280/Euro 5 | 11.00R20 | 496400 | 73000 | |||||||||||||||||||||
Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
| Concrete mixer truck structure parameters | ||||
| Loading capacity | 8m3 | Tank material | 5mm steel | |
| Tank front head | 8mm steel | Reducer | Germany ZF | |
| Hydraulic pump | Germany REXROTH | Hydraulic motor | Germany REXROTH | |
| Radiator | KAIPENG | Color and Logo | Optional | |
| Standard configuration | sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
| 8m3 | Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material) | |||
| Selective ENGINE | YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min) | |||
Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator
Aluminum / midd Steel Stainless Steel Vaccum Tank
Jbc1.6r Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
Chinese Manufacturer Jbc4.0 Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
3.0 M3 Self Loading Concrete Mixer Chinese Factory
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
1.6 Cbm Chinese Factory Self Load Concrete Mixer Construction Machine
FOB Price: US $22,000-23,000 / Piece
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
1.6m3 Self Propelled Mobile Concrete Mixer Truck Chinese Factory
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
Jbc2.0r Mixer Truck Made in China Construction Machines
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
2m3 Concrete Mixer Chinese Manufacturer Self Propelled Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
Hot Sales 4 M3 Self Loading Concrete Mixer Chinese Manufacturer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Chinese Manufacturer of Self Loading Concrete Mixer with Professional Service
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
2.6-3.0 M3 Self Propelled Concrete Mixer with Professional Design
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
1.2m3 Small Self Loading Concrete Mixer for Road Building
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
Chinese Factory of Self Propelled Concrete Mixer with 1.2m3/Batch
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
3m3 Working Capacity Self Propelled Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
3.0 M3 Portable Concrete Mixers in Chinese Manufacturer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 12m3/H Feeding Height: 3.4m
1.6 Cbm Working Capacity of Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
1.6m3 Self Loading Cement Mixers Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 8m3/H Feeding Height: 2.4m
4 M3 Self Loading Concrete Mixer with Sunny Hydraulic System
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Hot Sale Products of Self Load Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Chinese Factory of Self Loading Concrete Mixer with Top Quality
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
2.0 M3 Self Propelled Concrete/Cement Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Brick Production Line Structure: Cylinder Type
Productivity: 10m3/H Feeding Height: 2.5m
3.5 M3 Self Propelled Concrete Mixer/Cement Mixer/Self Load Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
Portable Concrete Mixer Jbc3.5r Self Loading Construction Machine
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
Construction Machinery of Self Loading Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Jbc3.5 Articulated Steering Self Load Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
4 Cbm 180 Rotation Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Chinese Factory of 4cbm Self Propelled Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Jbc 4.0r Chinese Manufacturer of Transit Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
4 Cbm Construction Machine of Self Loading Cement Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
4 Cbm Self Load Concrete/Cement Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25mJbc4.0 Self Loading Concrete Mixer 4cbm Working Capacity
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
Professional Products of Self Propelled Concrete Mixer Truck
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
No Rotation Type of 4 M3 Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25mTop Quality of 4 Cbm Working Capacity Transit Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Welded Molding Machine Structure: Cylinder Type
Productivity: 16m3/H Feeding Height: 3.25m
1.2 Cbm Professional Technology of Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
Small Type of 1.2 Cbm Self Propelled Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
1.2 Working Capacity of Self Loading Transit Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 6m3/H Feeding Height: 2.4m
4ws/4WD 3.5 Cbm Self Loading Concrete Mixer
Min. Order: 1 Piece
Type: Concrete Mixer Shotcrete Type: Wet
Machining Process: Hydraulic Structure: Cylinder Type
Productivity: 14m3/H Feeding Height: 3.5m
self loading concrete mixer 4M3 with cab rotating and air conditioning
$36,500.00 - $38,500.00/Set
4.0cbm auto feeding cement concrete mixer truck with air conditioning
$32,500.00 - $33,500.00/Set
Factory price sale in South Africa 4.0m3 self loading concere mixer truck with CE
$32,500.00 - $33,500.00/Set
4.0 CUBIC METER Road Paving Mixer Truck /Self Loading Concrete Mixer For Sale
$32,500.00 - $33,500.00/Set
New condition Ready mix concrete machine 4.0cbm auto-feeding Mobile Concrete Mixer with air conditioning
$32,800.00 - $33,800.00/Set
4 cubic meter auto feeding cement concrete mixer truck for sale in Kenya
$32,500.00 - $33,500.00/Set
4.0cbm Automatic weighing scale self loading concrete mixer truck with electronic sensors
$32,500.00 - $33,500.00/Set
4.0 cubic meter auto feeding mobile cement concrete mixer truck sale in
$32,500.00 - $33,500.00/Set
4.0 cbm automatic charging mobile concrete mixer truck for sale in Mozambique
$32,500.00 - $33,500.00/Set
4.0 cubic meter self loading cement concrete mixer truck for sale in Azerbaijan
$32,500.00 - $33,500.00/Set
4 cubic meter auto feeding cement concrete mixer truck for sale in Ukraine
$32,500.00 - $33,500.00/Set
4 M3 Mobile Self Loading concrete mixer truck for sale in Georgia
$32,500.00 - $33,500.00/Set
4 M3 Diesel mobile concrete mixer/Mobile Self Loading concrete mixer truck for sale
$32,500.00 - $33,500.00/Set
4.0 cbm Portable diesel self loading mobile concrete mixer truck
$32,500.00 - $33,500.00/Set
High Efficiency 4 cubic meter self-loading concrete mixer concrete mixer truck
$32,500.00 - $33,500.00/Set
4M3 85KW Automatic feeding concrete mixer with wheel side deceleration bridge
$32,500.00 - $33,500.00/Set
4 cubic meter self loading cement concrete mixer truck for sale in Cyprus
$32,500.00 - $33,500.00/Set
4 M3 Diesel mobile concrete mixer/Mobile Self Loading concrete mixer truck for sale
$32,500.00 - $33,500.00/Set
4m3 manufacturing self loading concrete mixer truck machines with pump
$32,500.00 - $33,500.00/Set
cheap price concrete mixer machine mobile self loading concrete mixer truck price 4.0 CBM
$32,500.00 - $33,500.00/Set
4 cubic meter self loading cement concrete mixer truck for sale in Mongolia
$32,500.00 - $33,500.00/Set
4m3 self loading concrete mixer truck/self loading truck
$32,500.00 - $33,500.00/Set
4.0 CUBIC concrete mixer with pump/portable concrete mixer truck
$32,500.00 - $33,500.00/Set
cheap price 4.0 cbm 4 wheel driving auto weighing self- priming water self loading concrete mixer truck sale in Nepal
$32,500.00 - $33,500.00/Set
4.0cbm 270 degrees rotation mobile self propelled concrete mixer truck
$32,500.00 - $33,500.00/Set
Integrated chassis weighing system auto feeding and discharging concrete mixer truck 4M3
$32,500.00 - $33,500.00/Set
Cell :+8615271357675
