WTJ5140JSP

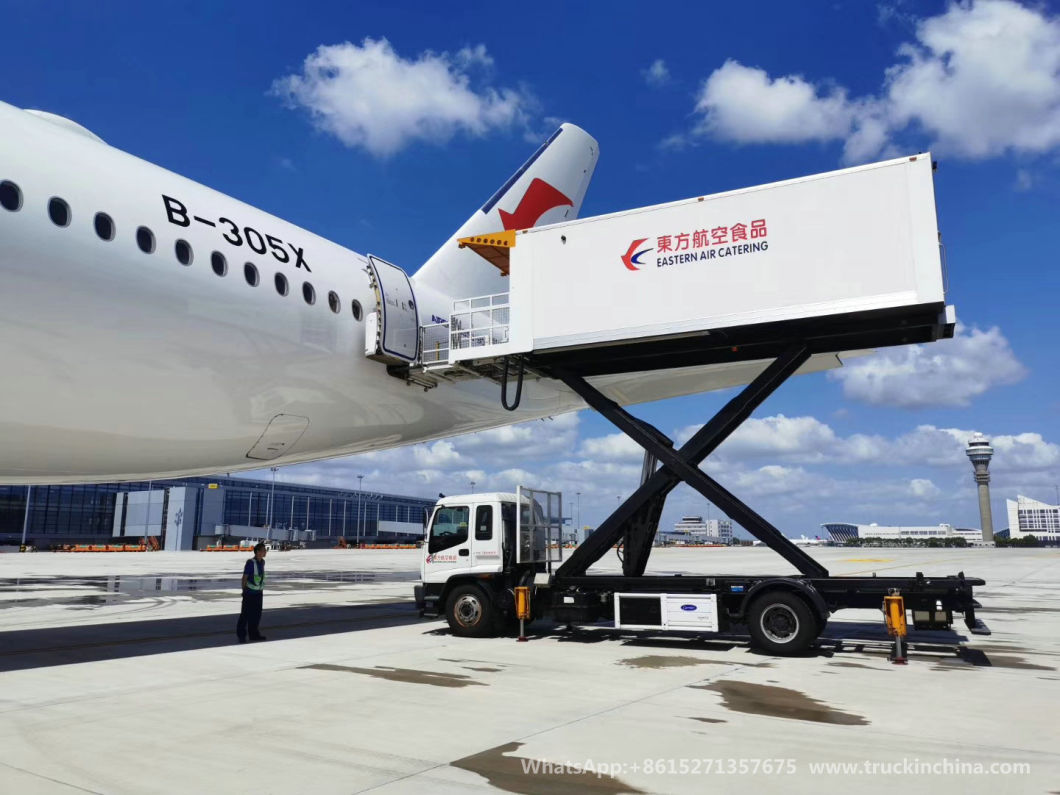

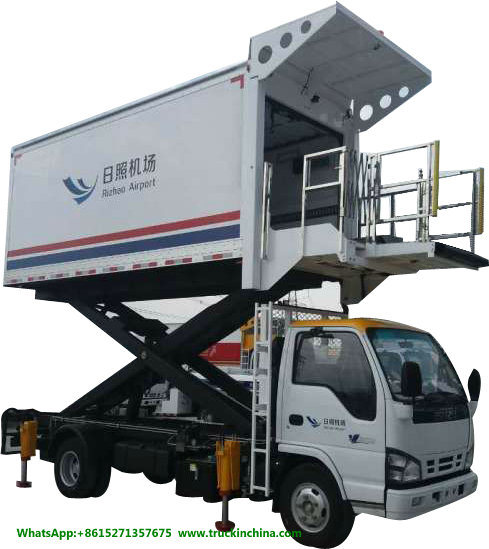

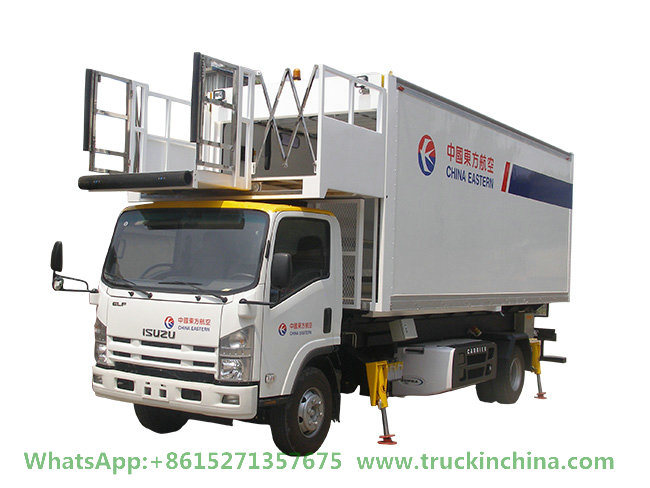

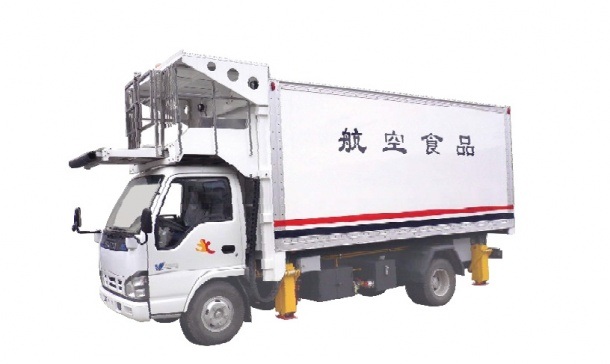

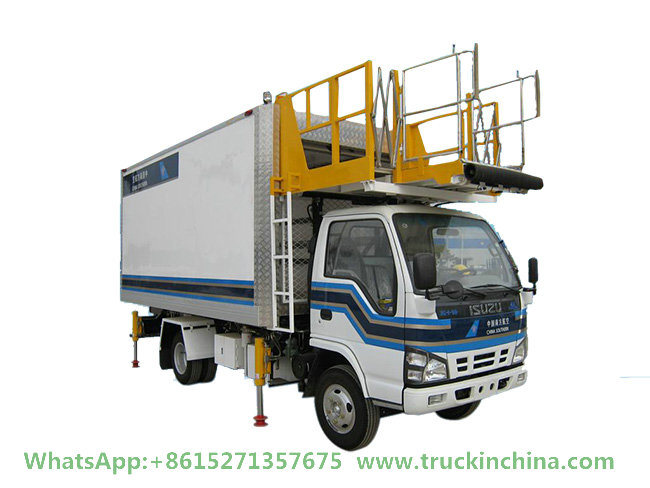

Retrofitted from ISUZU second class chassis, WTJ5140JSP catering truck is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis.
It is applicable to A300,A310,A318,A319,A320,A330,A340,B707,B727,B737,
B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,MD80 type aircraft except A380.
Outside dimension L W H mm: 7080 2000 3300
Outside dimension of compartment L W H mm: 5000 2000 2130
Fixed platform L W mm: 1150 1720
Left-right movable platform L W mm :700 1 000
Left-right moving distance: 0~300mm
Front-rear extensible platform L W mm: 500 8 84
Front-rear extension: 0~500 mm
Lowest: 1250 40mm
Lowest: 2400mm Highest: 4500 mm
Max. loading mass of compartment (uniform distribution)1500 kg
Loading mass of platform (uniform distribution): 500 kg
Complete vehicle kerb mass: 6100 kg
Model of engine: 4KH1-TC
Max. power of engine: 96 KW/3400 r/pm
Rear turn type working platform
Upper rain-proof shed of front platform
Allison automatic transmission gear
Optional chassis: Qingling, Dongfeng
WXQ5060JSP aircraft catering vehicle comprises automobile chassis,lifting mechanism,compartment, working platform, supporting, hydraulic system and electrical system.
For the automobile chassis, it can select Qingling or Dongfeng as required by users. Allison transmission gear is optional. Lifting mechanism comprises scissors lift, hydraulic cylinder and guide.
The compartment is made of steel frame composite materials. It contains lights, compartment lifting, front and rear extension of the front platform and left and right moving of the platform, emergency flameout control switch of the engine in the compartment. Both front and rear of the compartment are fitted with roller-blind doors.
Hydraulic system comprises power take off, oil tank, gear oil pump, emergency hand pump, emergency electrical pump, electromagnetic valve, hydraulic lock, oil cylin
Electrical control system adopts 12V/24V DC control system and comprises control switch, operation panel, relay, light fixture, lead wire, etc. Safety protection and emergency measures
Lifting hydraulic cylinder is fitted with hydraulic lock. When the compartment lifts, there are 6 flashing indicator lights at the bottom of the compartment, indicating that the compartment is lifting.
The indicator light used for indicating the stabilizer in position is installed in the cab. The lifting of the compartment and retracting and extending of the stabilizer are equipped with interlocking function.
The upper and lower operation panels are designed with emergency flameout switches. It is supplied with emergency electrical pump and emergency hand pump.
Product Standard
MH/T6016-2017 Aircraft Catering truck
JG5099-1988Safety Regulations for Aerial Work MachineryGB7258-2004Safety Technical Conditions of Motor VehicleAHM910Basic Requirements of Ground Support EquipmentAHM927Basic Safety Requirements of Ground Support Equipment
Project | Performance Index | |
Engine | Manufacturer | Qingling Isuzu (Chongqing) Engine Co., Ltd |
Model | 4KH1CN5HS | |
Transmission case | Manufacturer | Qingling Motors Company Limited |
Model | MSB-5SM | |
Working height of platform (mm) | 2400~4500 | |
Rated load of car body (kg) | 1500 | |
Rated load of front platform (kg) | 600 | |
Rated load of movable part of front platform (kg) | 300 | |
Left and right adjustment range of front platform moving part (mm) | 0~300 | |
Expansion and adjustment range of movable part of front platform (mm) | 0~500 | |
Fixed part size of front platform (L × w) (mm) | 1150×1720 | |
Front platform movable part size (L × w) (mm) | 700×1000 | |
Curb weight (kg) | 6600 | |
Boundary dimension (L × w × h) (mm) | 7170×2000×3300 | |
Other properties | -- | |
Chassis | Manufacturer | Qingling Isuzu (Chongqing) Engine Co., Ltd |
Model | QL1070A5KAY | |
External dimension of car body (L × w × h) (mm) | 5000×2000×2245 | |
Engine emissions | GB17691-2005 GB 3847-2005 EURO 5 | |
Rated load of fixed part of front platform (kg) | 300 |
Refrigeration system
Equipped with US carrier or thermo king cooling system, it can automatically open/stop and self-inspection.
Refrigeration system form: independence, diesel drive, coupling drive, semi-closed compressor unit, pipe coil evaporator
Monitoring system
The monitoring system is made of mainframe and camera.
Equipped with 500G hard disc.
It also equip with GPS positioning system.
Electric system
Install ground operation cabinet on the left truck and set up control box in van body , in the driving cab have safety indicated lights.
Adopt relay logic control circuit.
Set up safety protection for circuit.
Install the indicated light in the driving cab, it can show the change of outriggers.
Set up the emergency quenching circuit and control circuit with emergency electric pump.
Both the relay and switches are imported from Europe and the United States, and the switch is waterproof.
The emergency stop switch (and the indicator light) is installed in the upper right corner of van body ,the emergency stop switch has two levels
The solenoid valve and overflow valve is equipped with emergency button, which can be used to realize the movement of hydraulic cylinder when the solenoid valve is broken.
Attach power switch of emergency electric pump.
Hydraulic system
The structure is simple and reasonable layout, it adopt Park seamless steel pipe and hose fitting. It has two set of hydraulic system, one is control van body and outriggers; another is control platform scale, it has main power system, electric pump, hand pump, artificial overpower system, it can offer emergency operation.
Main hydraulics is used of American and European brands, the hydraulic reversing valve is
one-piece with hand and electrics. There area filter between hydraulic pump and control valve, every outlet has two-way lockup valve.
The whole lifting weight reach 4000kg, in rated load, lifting speed is 80mm/s-150mm/s, the electric pump for German can lift 4000kg.
Adopt Park hydraulic pipeline and famous hydraulic cylinders
Adopt hydraulic gear pump, its drive by power takeoff.
Adopt I or II class lifting cylinder with chrome layer.
The outriggers adopt "H" type.
Control valve adopt hand and electric magnetic valve.
Equipped with two pieces of operation platform.
The volume is hydraulic oil tank is 100L, oil-box install on hand valve.
Hydraulic system is equipped with pressure gauge.
Hydraulic system is equipped with emergency pump, hand pump.
Emergency and traction
It can operate the lifting and lowing of platform and van body and outriggers.
Electric emergency system
Manual emergency system
It can make the van body up and down and take back outriggers, completion time is more than 5 minutes.
Traction equipment
The front and rear end vehicle are installed coupling device.
Safety interlock and other safety devices
Equip with PTO switch and indicator light .
It is equipped with indicator light, which can take back the outriggers
Driving cab
6.1.2 Equip with temperature display of refrigerating unit and temperature control panel 6.1.3Install the display screen of monitor system
6.1.4 As per requirement of clients, it can equip with the necessary switches
Ground operation box
The operation box is located in the left outrigger.
Should equip with button of outriggers and van body, power switch, lighting switch, emergency electric pump switch, stop button, indicator light.
Control box for van body
The operation box is located at the right side of van body.
The van body should be settled up the button of extensive and movable platform, van body, emergency pump, stop button, engine switch, lighting switch and power indicator lights
Safety interlock
When PTO is workable, if the transmission put into gear, the vehicle can't be moved.
If the supporting legs can't back to the original location, the vehicle can't be moved.
When the van body lifting, will sent sound and light alarm
If the van body can't back to the original location, the outriggers can't be taken back.
If extensive platform can't back to the original location, the van body can't be lowed down.
When reversing, should equip with audible warning signal.
Should equip with joint control button
If the supporting legs can't back to the original location, the van body can't be lifted.
The rubber-sleeve of front platform install proximity switch, sensing distance is 100mm
The internal and external van body control interlock device of its lifting.
Other safety devices
Equip with two pieces of 55W spot lightings, and install on the both sides of van body(option) 6.5.2 The rear of the vehicle is fitted with a collision tube,the thickness is 10mm,the length is 850mm. 6.5.3 There is a mechanical safety brace at the rear end of the van body .
As per the customer's request, it can equip with crash barrier on air condition(option)
As per the customer's request, it can equip with crash barrier on hydraulic system(option)
As per the customer's request, it can equip with protective cover on hydraulic outriggers
(option)
WTJ5140JSP
Retrofitted from ISUZU second class chassis, WTJ5140JSP catering truck is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis.
It is applicable to A300,A310,A318,A319,A320,A330,A340,B707,B727,B737,
B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,MD80 type aircraft except A380.
Outside dimension L W H mm: 7080 2000 3300
Outside dimension of compartment L W H mm: 5000 2000 2130
Fixed platform L W mm: 1150 1720
Left-right movable platform L W mm :700 1 000
Left-right moving distance: 0~300mm
Front-rear extensible platform L W mm: 500 8 84
Front-rear extension: 0~500 mm
Lowest: 1250 40mm
Lowest: 2400mm Highest: 4500 mm
Max. loading mass of compartment (uniform distribution)1500 kg
Loading mass of platform (uniform distribution): 500 kg
Complete vehicle kerb mass: 6100 kg
Model of engine: 4KH1-TC
Max. power of engine: 96 KW/3400 r/pm
Rear turn type working platform
Upper rain-proof shed of front platform
Allison automatic transmission gear
Optional chassis: Qingling, Dongfeng
WXQ5060JSP aircraft catering vehicle comprises automobile chassis,lifting mechanism,compartment, working platform, supporting, hydraulic system and electrical system.
For the automobile chassis, it can select Qingling or Dongfeng as required by users. Allison transmission gear is optional. Lifting mechanism comprises scissors lift, hydraulic cylinder and guide.
The compartment is made of steel frame composite materials. It contains lights, compartment lifting, front and rear extension of the front platform and left and right moving of the platform, emergency flameout control switch of the engine in the compartment. Both front and rear of the compartment are fitted with roller-blind doors.
Hydraulic system comprises power take off, oil tank, gear oil pump, emergency hand pump, emergency electrical pump, electromagnetic valve, hydraulic lock, oil cylin
Electrical control system adopts 12V/24V DC control system and comprises control switch, operation panel, relay, light fixture, lead wire, etc. Safety protection and emergency measures
Lifting hydraulic cylinder is fitted with hydraulic lock. When the compartment lifts, there are 6 flashing indicator lights at the bottom of the compartment, indicating that the compartment is lifting.
The indicator light used for indicating the stabilizer in position is installed in the cab. The lifting of the compartment and retracting and extending of the stabilizer are equipped with interlocking function.
The upper and lower operation panels are designed with emergency flameout switches. It is supplied with emergency electrical pump and emergency hand pump.
Product Standard
MH/T6016-2017 Aircraft Catering truck
JG5099-1988Safety Regulations for Aerial Work MachineryGB7258-2004Safety Technical Conditions of Motor VehicleAHM910Basic Requirements of Ground Support EquipmentAHM927Basic Safety Requirements of Ground Support Equipment
Project | Performance Index | |
Engine | Manufacturer | Qingling Isuzu (Chongqing) Engine Co., Ltd |
Model | 4KH1CN5HS | |
Transmission case | Manufacturer | Qingling Motors Company Limited |
Model | MSB-5SM | |
Working height of platform (mm) | 2400~4500 | |
Rated load of car body (kg) | 1500 | |
Rated load of front platform (kg) | 600 | |
Rated load of movable part of front platform (kg) | 300 | |
Left and right adjustment range of front platform moving part (mm) | 0~300 | |
Expansion and adjustment range of movable part of front platform (mm) | 0~500 | |
Fixed part size of front platform (L × w) (mm) | 1150×1720 | |
Front platform movable part size (L × w) (mm) | 700×1000 | |
Curb weight (kg) | 6600 | |
Boundary dimension (L × w × h) (mm) | 7170×2000×3300 | |
Other properties | -- | |
Chassis | Manufacturer | Qingling Isuzu (Chongqing) Engine Co., Ltd |
Model | QL1070A5KAY | |
External dimension of car body (L × w × h) (mm) | 5000×2000×2245 | |
Engine emissions | GB17691-2005 GB 3847-2005 EURO 5 | |
Rated load of fixed part of front platform (kg) | 300 |
Refrigeration system
Equipped with US carrier or thermo king cooling system, it can automatically open/stop and self-inspection.
Refrigeration system form: independence, diesel drive, coupling drive, semi-closed compressor unit, pipe coil evaporator
Monitoring system
The monitoring system is made of mainframe and camera.
Equipped with 500G hard disc.
It also equip with GPS positioning system.
Electric system
Install ground operation cabinet on the left truck and set up control box in van body , in the driving cab have safety indicated lights.
Adopt relay logic control circuit.
Set up safety protection for circuit.
Install the indicated light in the driving cab, it can show the change of outriggers.
Set up the emergency quenching circuit and control circuit with emergency electric pump.
Both the relay and switches are imported from Europe and the United States, and the switch is waterproof.
The emergency stop switch (and the indicator light) is installed in the upper right corner of van body ,the emergency stop switch has two levels
The solenoid valve and overflow valve is equipped with emergency button, which can be used to realize the movement of hydraulic cylinder when the solenoid valve is broken.
Attach power switch of emergency electric pump.
Hydraulic system
The structure is simple and reasonable layout, it adopt Park seamless steel pipe and hose fitting. It has two set of hydraulic system, one is control van body and outriggers; another is control platform scale, it has main power system, electric pump, hand pump, artificial overpower system, it can offer emergency operation.
Main hydraulics is used of American and European brands, the hydraulic reversing valve is
one-piece with hand and electrics. There area filter between hydraulic pump and control valve, every outlet has two-way lockup valve.
The whole lifting weight reach 4000kg, in rated load, lifting speed is 80mm/s-150mm/s, the electric pump for German can lift 4000kg.
Adopt Park hydraulic pipeline and famous hydraulic cylinders
Adopt hydraulic gear pump, its drive by power takeoff.
Adopt I or II class lifting cylinder with chrome layer.
The outriggers adopt "H" type.
Control valve adopt hand and electric magnetic valve.
Equipped with two pieces of operation platform.
The volume is hydraulic oil tank is 100L, oil-box install on hand valve.
Hydraulic system is equipped with pressure gauge.
Hydraulic system is equipped with emergency pump, hand pump.
Emergency and traction
It can operate the lifting and lowing of platform and van body and outriggers.
Electric emergency system
Manual emergency system
It can make the van body up and down and take back outriggers, completion time is more than 5 minutes.
Traction equipment
The front and rear end vehicle are installed coupling device.
Safety interlock and other safety devices
Equip with PTO switch and indicator light .
It is equipped with indicator light, which can take back the outriggers
Driving cab
6.1.2 Equip with temperature display of refrigerating unit and temperature control panel 6.1.3Install the display screen of monitor system
6.1.4 As per requirement of clients, it can equip with the necessary switches
Ground operation box
The operation box is located in the left outrigger.
Should equip with button of outriggers and van body, power switch, lighting switch, emergency electric pump switch, stop button, indicator light.
Control box for van body
The operation box is located at the right side of van body.
The van body should be settled up the button of extensive and movable platform, van body, emergency pump, stop button, engine switch, lighting switch and power indicator lights
Safety interlock
When PTO is workable, if the transmission put into gear, the vehicle can't be moved.
If the supporting legs can't back to the original location, the vehicle can't be moved.
When the van body lifting, will sent sound and light alarm
If the van body can't back to the original location, the outriggers can't be taken back.
If extensive platform can't back to the original location, the van body can't be lowed down.
When reversing, should equip with audible warning signal.
Should equip with joint control button
If the supporting legs can't back to the original location, the van body can't be lifted.
The rubber-sleeve of front platform install proximity switch, sensing distance is 100mm
The internal and external van body control interlock device of its lifting.
Other safety devices

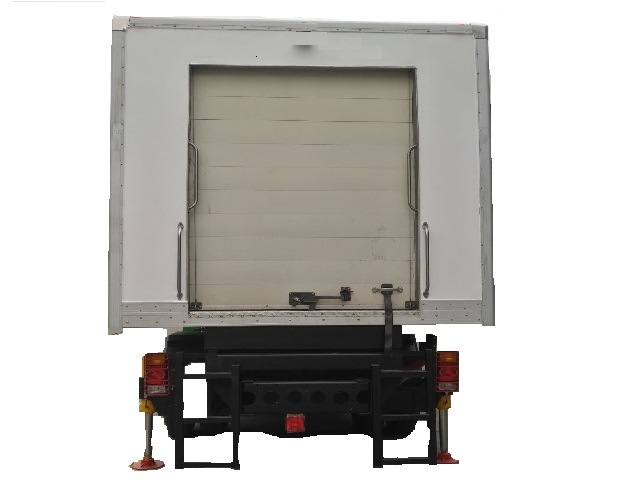

Equip with two pieces of 55W spot lightings, and install on the both sides of van body(option) 6.5.2 The rear of the vehicle is fitted with a collision tube,the thickness is 10mm,the length is 850mm. 6.5.3 There is a mechanical safety brace at the rear end of the van body .
As per the customer's request, it can equip with crash barrier on air condition(option)
As per the customer's request, it can equip with crash barrier on hydraulic system(option)
As per the customer's request, it can equip with protective cover on hydraulic outriggers
(option)
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
6 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. Port of loading : WUHAN PORT + Port of unloading :DAMMAM DONG RUN ZE CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000 9.7x2.2x2.5*6
