HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t
Availability:
Quantity:
  • Shanghai, China

  • 8000

  • T/T, Western Union

  • 1 Piece

HOWO 10x4  Truck Mounted Knuckle Boom 160T -260T Crane

Truck-mounted Cranes

with telescopic boom / Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck mounted crane
 trucks mounted crane.
Customization, Cost Control Built How You Want it,   Price You Can Afford.

ZZ1167M4617C 266EGR,HW76,HW13710CL,MCY13,HF7,ZF8098,,
300EGR,HW76,HW13710CL,MCY13,HF7,ZF8098,,
ZZ1167M4617C 270EFR,,HW13710,ST16,HF7,ZF8098,11.00,
300EFR,,HW13710,ST16,HF7,ZF8098,12.00,


HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t



HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t
HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260tHOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

Model # SQ600ZB4 /Knuckle Crane 30 Ton At 2 m
Max Lifting Moment 600Kn.m
Max Lifting Capacity( kg / m) 30000 /2.0
13600/4.4
8600/4.07
6538/7.89
Max Lifting Height 14.7m
Max Working Radius 11.5m
Hydraulic extension boom No.s 4 stages
Rotation Angle 360º continuous
Rated Working Pressure 28 Mpa
Oil Tank Capacity 250L
Related Oil Flow 80 L/min
Outrigger Span 2308-6120mm
Outrigger 4 ,Extension, Hydraulic operating.
Crane Weight 6900kg
Installation Space 1450mm
Swing Type Planetary gear reduction
Safety Device Load Indicator,Hydraulic Safety Valve,Counter Balance Valve,
Overwinding Alanm Device,Automatic Swing Brake,Hook Safety Device
Options Aux.winch,Aux.Boom,Remote control
Material HG785


HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

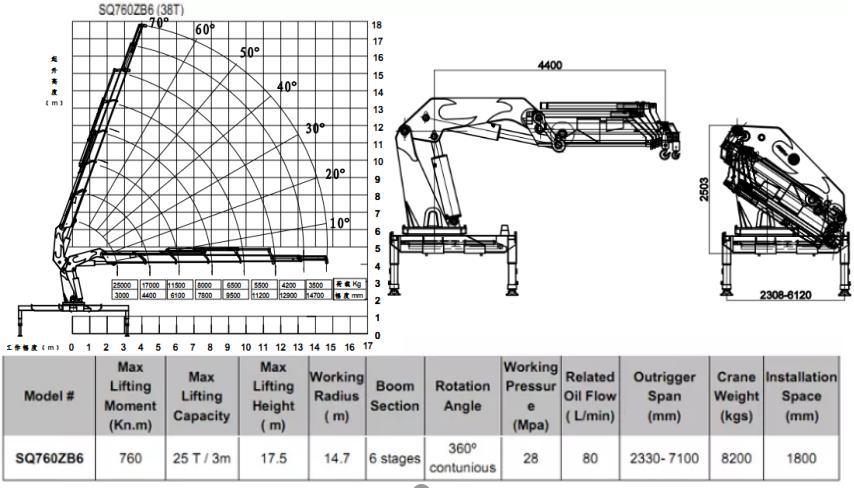

Model # SQ760ZB6/Knuckle Crane 38 Ton At 2 m
Max Lifting Moment 760 Kn.m
Max Lifting Capacity  ( kg / m) 25000/3.0
6500/9.5
4200/12.9
3500/14.7
Max Lifting Height 17.5m
Max Working Radius 14.7m
Boom Section 6stages
Rotation Angle 360 continuous
Rated Working Pressure 28 Mpa
Oil Tank Capacity 250L
Related Oil Flow 80 L/min
Outrigger Span 2330-7100mm
Outrigger Extension, Hydraulic operating.
Crane Weight 8200kg
Installation Space 1800mm
Swing Type Planetary gear reduction
Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.
Options Aux.winch,Aux.Boom,Remote control
Material HG785

1600KN.M 80ton mounted truck crane SQ1600ZB6


HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

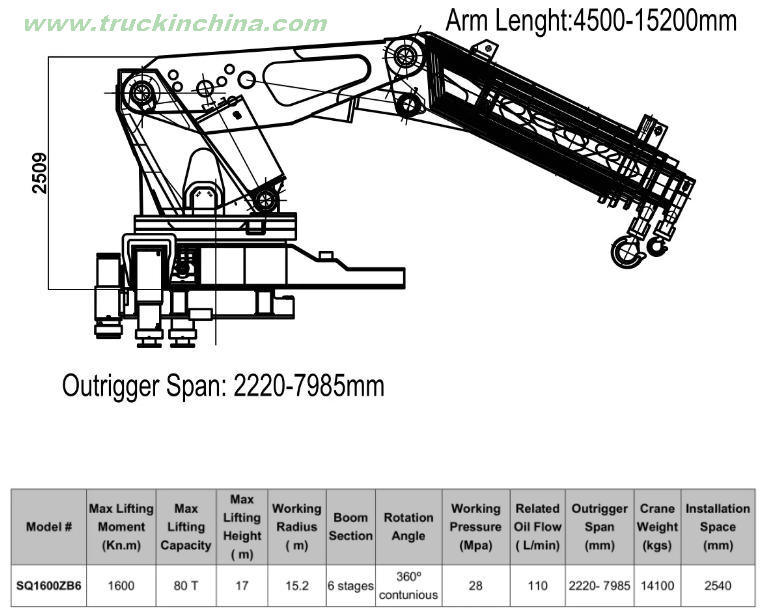

Model # SQ1600ZB6 /knuckle crane 80 ton at 2 m
Max Lifting Moment 1600Kn.m
Max Lifting Capacity ( kg / m) 40000/4.0
23500/6.26
14500/9.56
5000/15.1
Max Lifting Height 17m
Max Working Radius 15.2m
Boom Section 6 stages
Rotation Angle 360 continuous
Rated Working Pressure 28 Mpa
Oil Tank Capacity 400L
Related Oil Flow 110 L/min
Outrigger Span 2220-7985mm
Outrigger Extension, Hydraulic operating.
Crane Weight 14100kg
Installation Space 2540mm
Swing Type Planetary gear reduction
Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.
Options Aux.winch,Aux.Boom,Remote control
Material HG785


1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability




SQ1800ZB6(45T) at 4 m Knuckle Boom Truck Mounted Crane

HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

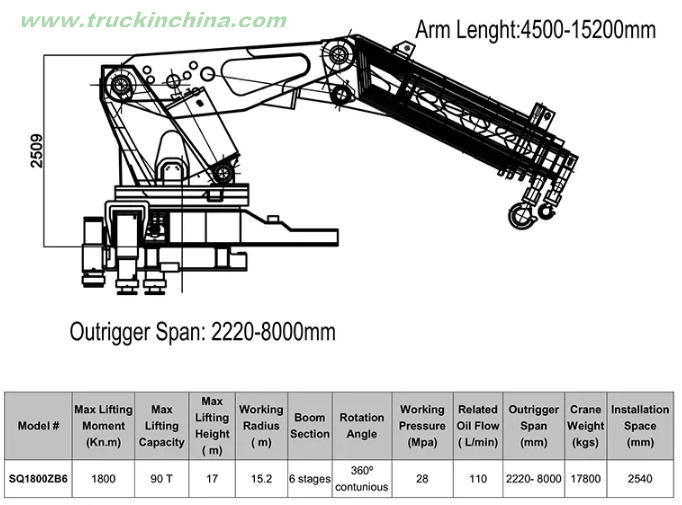

Model # SQ1800ZB6 /Knuckle Crane 90 Ton At 2 m
Max Lifting Moment 1800 Kn.m
Max Lifting Capacity(kg/m) 45000/4
21000/7.86
13500/11.26
6100/15.1
Max Lifting Height 17m
Max Working Radius 15.2m
Boom Section 6 stages
Rotation Angle 360 continuous
Rated Working Pressure 28 Mpa
Oil Tank Capacity 400L
Related Oil Flow 110 L/min
Outrigger Span 2220-8000mm
Outrigger Extension, Hydraulic operating.
Crane Weight 17800kg
Installation Space 2540mm
Swing Type Planetary gear reduction
Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.
Options Aux.winch,Aux.Boom,Remote control
Material HG785




1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

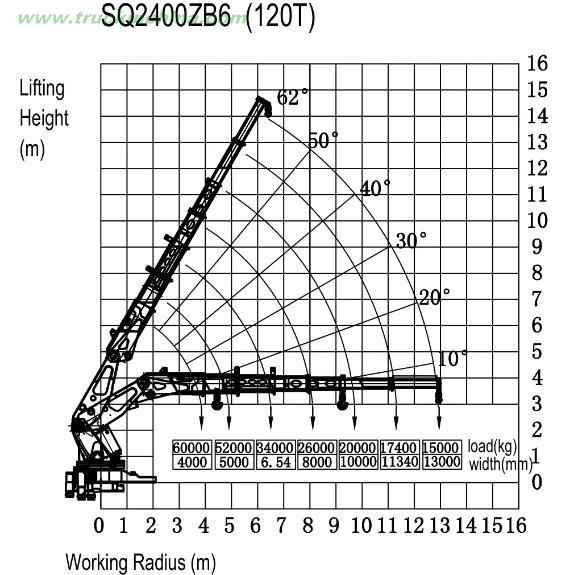

SQ2400ZB6 / 2400 KN.M 120 Ton Mounted Truck Crane
HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260tHOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

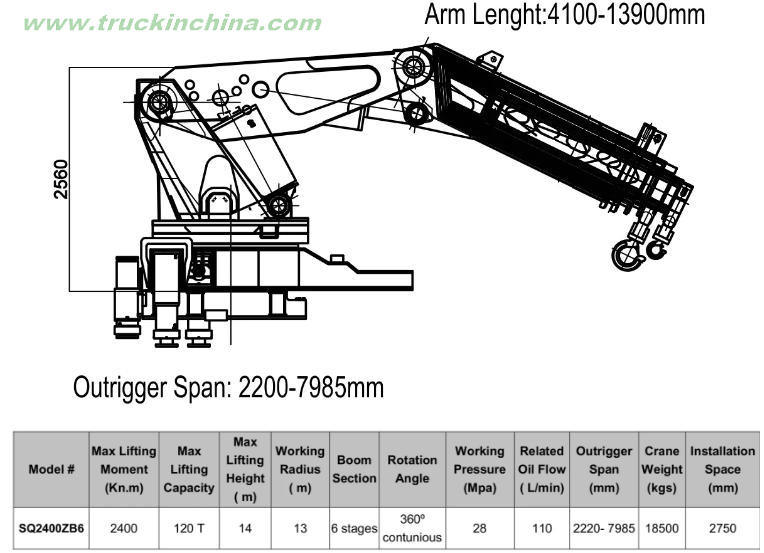

Model # SQ2400ZB6/Knuckle Boom Crane 120ton At 2m
Max Lifting Moment 2400Kn.m
Max Lifting Capacity(kg/m) 60000/4.0
26000/8
17400/11.34
15000/13
Max Lifting Height 14m
Working Radius 13m
Boom Section 6 stages
Rotation Angle 360 continuous
Working Pressure 28Mpa
Oil Tank Capacity 400L
Rated Oil Flow 110L/min
Outrigger Span 2220- 7985mm
Outrigger 5,Extension, Hydraulic operating.
Swing Type Planetary gear reduction.
Options Aux.winch,Aux.Boom,Remote control
Crane Weight 18500kg
Installation Space 2750mm
Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.
Material HG785


1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

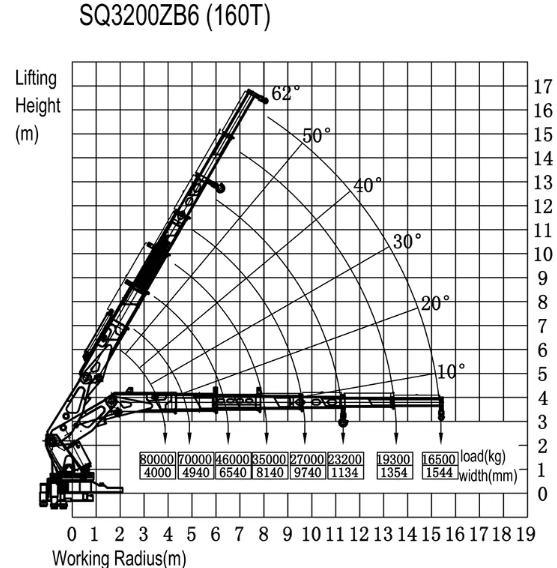

SQ3200ZB6  /knuckle crane 160  ton at 2 m
HOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260tHOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

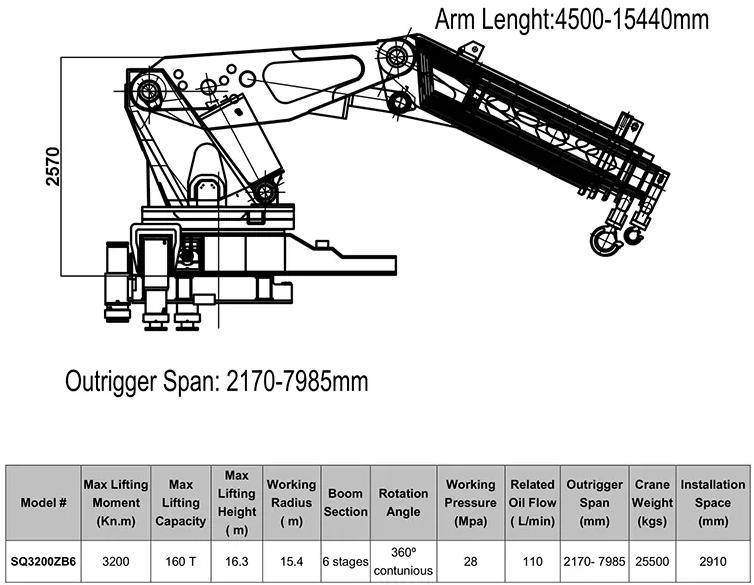

Model # SQ3200ZB6  /knuckle crane 160  ton at 2 m
Max Lifting Moment 3200Kn.m
Max Lifting Capacity (kg/m) 80000/4.0
70000/4.94
27000/9.74
16500/15.4
Max Lifting Height 14.7m
Max Working Radius 13.2m
Boom Section 6 stages
Rotation Angle 360 continuous
Rated Working Pressure 28 Mpa
Oil Tank Capacity 400L
Related Oil Flow 110 L/min
Outrigger Span 2170-8000mm
Outrigger Extension, Hydraulic operating.
Crane Weight 24700kg
Installation Space 2910mm
Swing Type Planetary gear reduction
Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.
Options Aux.winch,Aux.Boom,Remote control
Material HG785

1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

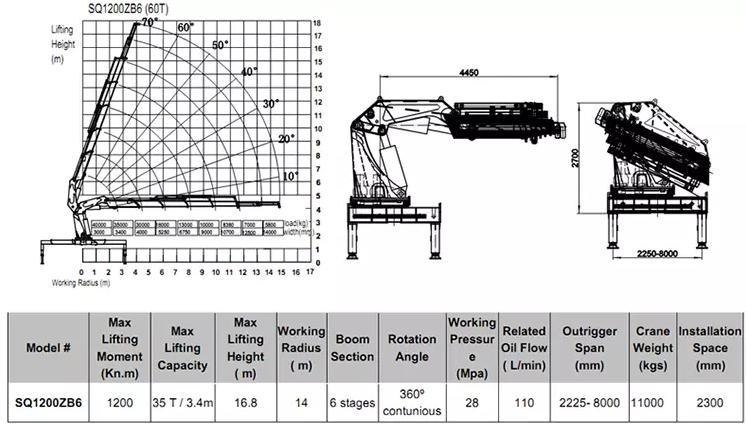

SQ1200ZB6 /Knuckle Crane 60 Ton At 2 mHOWO 10X4 Truck Mounted Knuckle Crane Boom 160t -260t

Model # SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m
Max Lifting Moment 1200Kn.m
Max Lifting Capacity (kg/m) 40000/3.0
18000/5.25
7000/12.5
5000/15.5
Max Lifting Height 18.5m
Max Working Radius 15.5m
Boom Section 7 stages
Rotation Angle 360 continuous
Rated Working Pressure 28 Mpa
Oil Tank Capacity 400L
Related Oil Flow 110 L/min
Outrigger Span 2250-8000mm
Outrigger Extension, Hydraulic operating.
Crane Weight 11600kg
Installation Space 2300mm
Swing Type Planetary gear reduction
Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.
Options Aux.winch,Aux.Boom,Remote control
Material HG785


1,Use HG70 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability




Truck Model 5311JSQLV 5311JSQB 5310JSQH7FB
Chassis EQ1311GLJ(24) STQ1311L16Y3B5 (24) LZ1310M5FBT(33)
Engine YC6A290- YC6A270- YC6L350-
Transmission 9JS119TA 9JS119TA 10JSD120TB
Wheelbase 2150+4400+1350 2150+4300+1350 1950+4500+1350
Front Axle 5.5Tx 2 6.5T x 2 6.5T x 2
Rear Axle 12T x 2  (tandem axle) 18T x 2 (tandem axle) 18T x 2 (tandem axle)
Tire 11.00R20*13 11.00R20*13 11.00R20*13
Crago box(mm) 8000*2300*550 8000*2300*550 8000*2470*550
Crane  30T
600 Kn.m
SQ600ZB4 /30T at 2m
$88800FOB ~$103800CIF

$88800FOB ~$103800CIF

$103000FOB ~$118000CIF
Crane  38T
760 Kn.m
(25T at 3m)
SQ760ZB6/ 38 ton at 2 m
$93800FOB ~$108800CIF
$93800FOB ~$108800CIF $108000FOB ~$123000CIF
Crane  60T
1200 Kn.m
40T at 3m
SQ1200ZB6 /60 Ton At 2 m
35T at 3.4m ,40T at 3m
$112900FOB ~$127900CIF
$112900FOB ~$127900CIF $127000FOB ~$142000CIF
Crane  80T
1600 Kn.m
(40T at 4m)
SQ1600ZB6 / 80 ton at 2 m
$116000FOB ~$131000CIF
$116000FOB ~$131000CIF $130000FOB ~$145000CIF
Crane  90T
1800 Kn.m
(45T at 4m)
SQ1800ZB6 /90T at 2 m
$131000FOB ~$146000CIF
$131000FOB ~$146000CIF $136000FOB ~$151000CIF
Crane  120T
2400 Kn.m
(60T at 4m)
SQ2400ZB6/ 120ton at 2m
$142000FOB ~$157000CIF
$142000FOB ~$157000CIF $156500FOB ~$171500CIF
Crane  160T
3200 Kn.m
SQ3200ZB6(160T) at 2m
(80T at 4m)
$164000FOB ~$179000CIF
$164000FOB ~$179000CIF $169000FOB ~$184000CIF
Truck Model 8x4 8x4 8x4 8*8 10*4
Chassis HINO /ISUZU /HYUNDAI BEIBEN / SHACMAN /FOTON/SINOTRUCK JAC /FAW/DFL /IVECO/ CAMC / C&C BEIBEN / SHACMAN / SINOTRUCK SINOTRUCK HOWO / DFL/C&C
Engine 380HP /460HP 380HP /420HP/460HP 380HP /420HP 336HP / 380HP 380HP /420HP
Wheelbase **** **** **** **** *****
Front Axle 7Tx 2 7.5T x 2 7.5T x 2 7.5T x 2 7.5T x 2+6.5T
Rear Axle 16T x 2  (tandem axle) 18T x 2 (tandem axle) 18T x 2 (tandem axle) 18T x 2 (tandem axle) 18T x 2 (tandem axle)
Tire 11.00R20*13 12.00R20*13 12.00R20*13 12.00R20*13 12.00R20*13
Crago box(mm) 8000*2300*550 8000*2300*550 8000*2470*550 8000*2300*550 8000*2470*550
Crane  30T
600 Kn.m
SQ600ZB4 /30T at 2m
$126000FOB ~$141000CIF

$103000FOB ~$118000CIF

$103000FOB ~$118000CIF
$113000FOB ~$128000CIF $108000FOB ~$123000CIF
Crane  38T
760 Kn.m
(25T at 3m)
SQ760ZB6/ 38 ton at 2 m $131000FOB ~$146000CIF $108000FOB ~$123000CIF $108000FOB ~$123000CIF $118000FOB ~$133000CIF $113000FOB ~$128000CIF
Crane  60T
1200 Kn.m
40T at 3m
SQ1200ZB6 /60 Ton At 2 m
35T at 3.4m ,
$150000FOB ~$165000CIF
$127000FOB ~$142000CIF $127000FOB ~$142000CIF

Crane  80T
1600 Kn.m
SQ1600ZB6 / 80 ton at 2 m
(40T at 4m) $153000FOB ~$168000CIF
$130000FOB ~$145000CIF $130000FOB ~$145000CIF $140000FOB ~$155000CIF $135000FOB ~$150000CIF
Crane  90T
1800 Kn.m
SQ1800ZB6 /90T at 2 m
(45T at 4m) $159000FOB ~$174000CIF
$136000FOB ~$151000CIF $136000FOB ~$151000CIF $146000FOB ~$151000CIF $141000FOB ~$156000CIF
Crane  120T
2400 Kn.m
SQ2400ZB6/ 120ton at 2m
(60T at 4m) $$179500FOB ~$194500CIF
$156500FOB ~$171500CIF $156500FOB ~$171500CIF

Crane  160T
3200 Kn.m
SQ3200ZB6(160T) at 2m
(80T at 4m) $192000FOB ~$207000CIF
$169000FOB ~$184000CIF $169000FOB ~$184000CIF $179000FOB ~$194000CIF $174000FOB ~$189000CIF

All Price For Refer Only . Final Price Will Confirm Order With Discount 3~5%.
boom Cranes list:


Modle Modle ( TM ) (M) (T)
1 SQZ020K2Q SQ1ZK2Q 2 3.2 1
2 SQZ030K1 SQ2ZK1 4 5.05 2
3 SQZ068K1 SQ3.2ZK1 6.72 5.5 3.2
4 SQZ068K2 SQ3.2ZK2 6.72 7.6 3.2
5 SQZ086K2 SQ4ZK2 8.4 7.6 4
6 SQZ106K2Q SQ5ZK2Q 10.5 8.01 5
7 SQZ106K3Q SQ5ZK3Q 10.5 9.92 5
8 SQZ132K2Q SQ6.3ZK2Q 13.23 8.01 6.3
9 SQZ132K3Q SQ6.3ZK3Q 13.23 9.92 6.3
10 SQZ160K3Q SQ8ZK3Q 16 9.75 8
11 SQZ200K3Q SQ10ZK3Q 20 9.75 10
12 SQZ300K3Q SQ12ZK3Q 30 9.78 15
13 SQZ350K3Q SQ14ZK3Q 35 9.52 18
14 SQZ350K4Q SQ14ZK4Q 35 11.4 18
15 SQZ400K3Q SQ16ZK3Q 40 9.62 20
16 SQZ400K4Q SQ16ZK4Q 40 11.52 20
17 SQZ625K6Q SQ25ZK6Q 62.5 15.45 32

The parameter of  crane (Optional)

Crane model

Max. lifting weight(KG)

Max. working height (m)

SQ5SK2Q, SQ5ZK2Q
5000 10.5   , 8.01
SQ5SK3Q ,SQ5ZK3Q 5000 12.5  , 9.92
SQ6.3SK2Q, SQ6.3ZK2Q 6000 11.0  , 8.01
SQ6.3SK3Q, SQ6.3ZK2Q 6000 12.8  , 9.92
SQ8SK3Q,SQ8ZK3Q 8000 13.5   , 9.755
SQ10SK3Q,SQ10SK3Q 10000 14.0    ,9.75
SQ12SK3Q ,SQ12SK3Q 12000 14.5   ,9.78
SQ14SK4Q ,SQ14SK3Q 14000 17.8  ,  11.4
SQ16SK4Q , SQ16SK3Q 16000 17.85 , 11.518
FOB(Shanghai)/CIF $ 58600  ~  118800




XCMG boom Cranes list:


Modle Modle ( TM ) (M) (T)
1 SQZ020K2Q SQ1ZK2Q 2 3.2 1
2 SQZ030K1 SQ2ZK1 4 5.05 2
3 SQZ068K1 SQ3.2ZK1 6.72 5.5 3.2
4 SQZ068K2 SQ3.2ZK2 6.72 7.6 3.2
5 SQZ086K2 SQ4ZK2 8.4 7.6 4
6 SQZ106K2Q SQ5ZK2Q 10.5 8.01 5
7 SQZ106K3Q SQ5ZK3Q 10.5 9.92 5
8 SQZ132K2Q SQ6.3ZK2Q 13.23 8.01 6.3
9 SQZ132K3Q SQ6.3ZK3Q 13.23 9.92 6.3
10 SQZ160K3Q SQ8ZK3Q 16 9.75 8
11 SQZ200K3Q SQ10ZK3Q 20 9.75 10
12 SQZ300K3Q SQ12ZK3Q 30 9.78 15
13 SQZ350K3Q SQ14ZK3Q 35 9.52 18
14 SQZ350K4Q SQ14ZK4Q 35 11.4 18
15 SQZ400K3Q SQ16ZK3Q 40 9.62 20
16 SQZ400K4Q SQ16ZK4Q 40 11.52 20
17 SQZ625K6Q SQ25ZK6Q 62.5 15.45 32

The parameter of  x.c.m.g crane (Optional)

Crane model

Max. lifting weight(KG)

Max. working height (m)

SQ5SK2Q, SQ5ZK2Q
5000 10.5   , 8.01
SQ5SK3Q ,SQ5ZK3Q 5000 12.5  , 9.92
SQ6.3SK2Q, SQ6.3ZK2Q 6000 11.0  , 8.01
SQ6.3SK3Q, SQ6.3ZK2Q 6000 12.8  , 9.92
SQ8SK3Q,SQ8ZK3Q 8000 13.5   , 9.755
SQ10SK3Q,SQ10SK3Q 10000 14.0    ,9.75
SQ12SK3Q ,SQ12SK3Q 12000 14.5   ,9.78
SQ14SK4Q ,SQ14SK3Q 14000 17.8  ,  11.4
SQ16SK4Q , SQ16SK3Q 16000 17.85 , 11.518
FOB(Shanghai)/CIF $ 58600  ~  118800

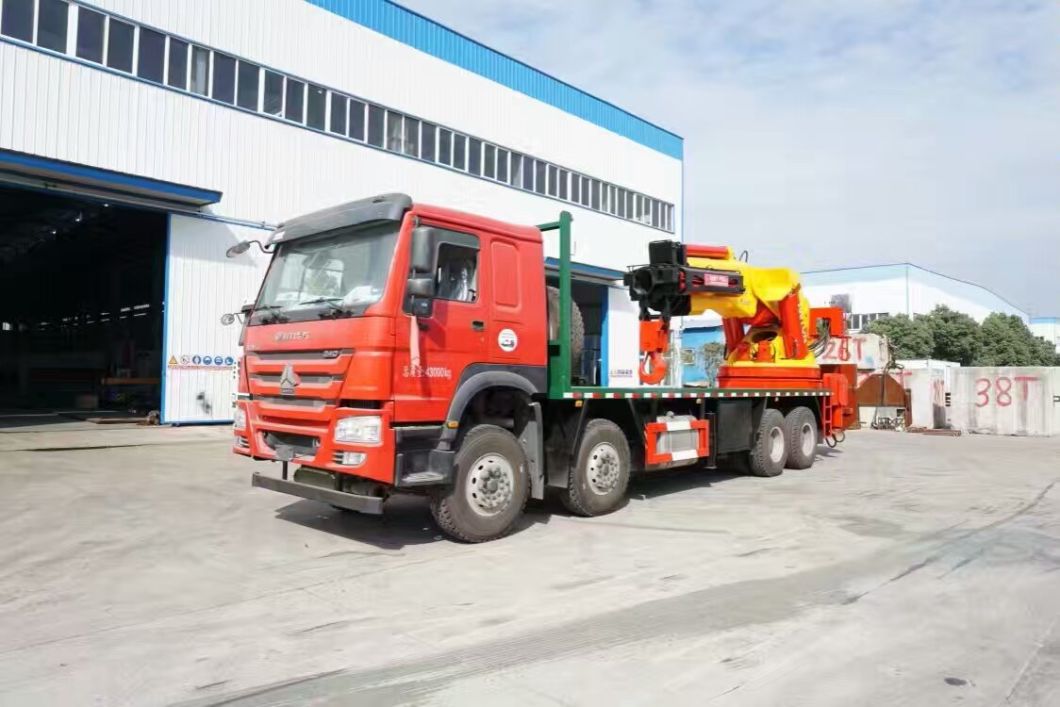

(1) Product name: Truck with crane, truck mounted crane 1 to 25tons
(2) Keyword: Truck with crane, truck mounted crane
(3) Crane brand: XCMG 1 to 25T, 100% New
(4) The crane is including telescopic boom and knukled boom:
5: Transmission system: high efficiency, bigger torque, climbing superior performance
6: Steering system:high safe and reliable, and flexible
7:Braking system, high security, brake with high efficiency
8: Electric system: stronger load ability, high reliability and easy maintenance

excellent performance with reasonable price.

Previous:
Next:

Related Products

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Contract Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Contract Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300
Address Keystone Vessel :R 23, F4,New Factory (4), B1, Phase II, Dashu Industrial Village , Liufang Street ,Wuhan East Lake Hi-tech Development Zone, Wuhan City, Hubei Province,P.R.China  .......
 Hubei Dong Runze Special Vehicle Equipment Co., Ltd.  Keystone Vessel (Wuhan) Co., Ltd ;Keystone Vessel Manufacturing Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/  www.truckinchina.com ,www.tictrucks.com, https://ks-vessel.com
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
