Foton 4x2 5000L water spray truck LHD / RHD

Foton 4x2 5000L water spray truck LHD / RHD
Overall dimensions 5990X1955X2300mm Curb weight 3200kg
Tank dimensions 3500×1700×1280mm Tank volume 5000L
Price: $ 10500  -  16500
Discount Price: $ 9500  -  14500
FOB:
Availability:
Quantity:

  • DRZ5...GSS..

  • DRZ

  • 8705309000

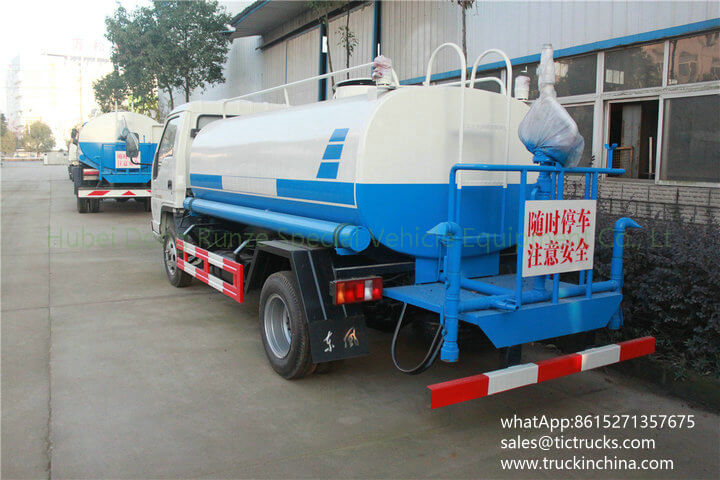

  Foton 4x2 5000L water spray truck LHD / RHD Water Truck structure_1RHD stainless water Truck 9000L- RHD Foton water_1.jpg

Standard configuration

Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze,


water hose, climbing ladder.

Selective configuration

Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda

pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights



Extended model

water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.


- See more at: http://www.truckinchina.com/6000L-30000L-95HP-340HP-Water-tank-truck-Customization-CAMC-Dongfeng-FAW-Foton-ISUZU-JAC-Beiben-SHACMAN-Siotruck-pd582817.html#sthash.uTeC9dJZ.dpuf



  Foton 4x2 5000L water spray truck LHD / RHD

Overall dimensions 5990X1955X2300mm Curb weight 3200kg
Tank dimensions 3500×1700×1280mm Tank volume 5000L

Chassis parameters
Chassis model BJ1073VEJEA-A Chassis brand FOTON
Overall dimensions 5875x1915x2150mm Wheel base 3360mm
Front/rear wheel track 1415/1485mm Front/rear suspension 1085/1430mm
Approach/departure angle 23/19° Maximum speed 95km/h
Chassis Manufacturer BEIQI FOTON MOTOR CO.,LTD
Cab Configuration D1695 single row cab, allowable 2 passengers, with warm air, all English signs in car body, English instruction ,international general accessories, double front windshield, power switch
Color White, other color is optional
Engine Model 4DW91-63NG2 /4DW92-73
Emission Euro 2
Type 4 cylinders, in-line, turbo charger, diesel engine
Rated power 65HP-78hp
Displacement 2545ml
Bore x stroke 90x100mm
Manufacturer Wuxi Diesel Engine Branch
Tire Size 6.50-16 Double star nylon tire
Number 6+1 nos
Fuel tank 70L iron oil tank
Rear axle 4.0 tons
Drive form 4X2
Rated voltage Camel brand,24V,DC
Transmissions 5 speed forward 1 reverse
Steering device Steering wheel
Steering wheel Right hand drive RHD
Selective configuration Steel wire tire, air conditioner
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water spray truck structure
Tank dimensions 3500×1700×1280mm Tank volume 5000L
Tank material Carbon steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.

Foton 4x2 Stainless Steel Drinking Water Truck LHD

Overall dimensions 5990X1955X2300mm Curb weight 3200kg
Tank dimensions 3500×1700×1280mm Tank volume 5000L

Tank material stainless  steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

FOTON stainless steel water tank truck 6cbm LHD

Overall dimensions 5990X1955X2300mm Curb weight 3200kg

Tank dimensions 3850X1700X1280mm Tank volume 6000L
Tank material stainless  steel Tank thickness 4/5mm


1, Attached parts and tools put into standard export box.

2, Water tank truck will be cleaned and covered with wax before delivery.

3, Water tank truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,Some small water tank truck can be put into container according to its overall dimensions.

Packaging & Shipping_1.jpg

- See more at: http://www.truckinchina.com/6000L-30000L-95HP-340HP-Water-tank-truck-Customization-CAMC-Dongfeng-FAW-Foton-ISUZU-JAC-Beiben-SHACMAN-Siotruck-pd582817.html#sthash.uTeC9dJZ.dpuf
