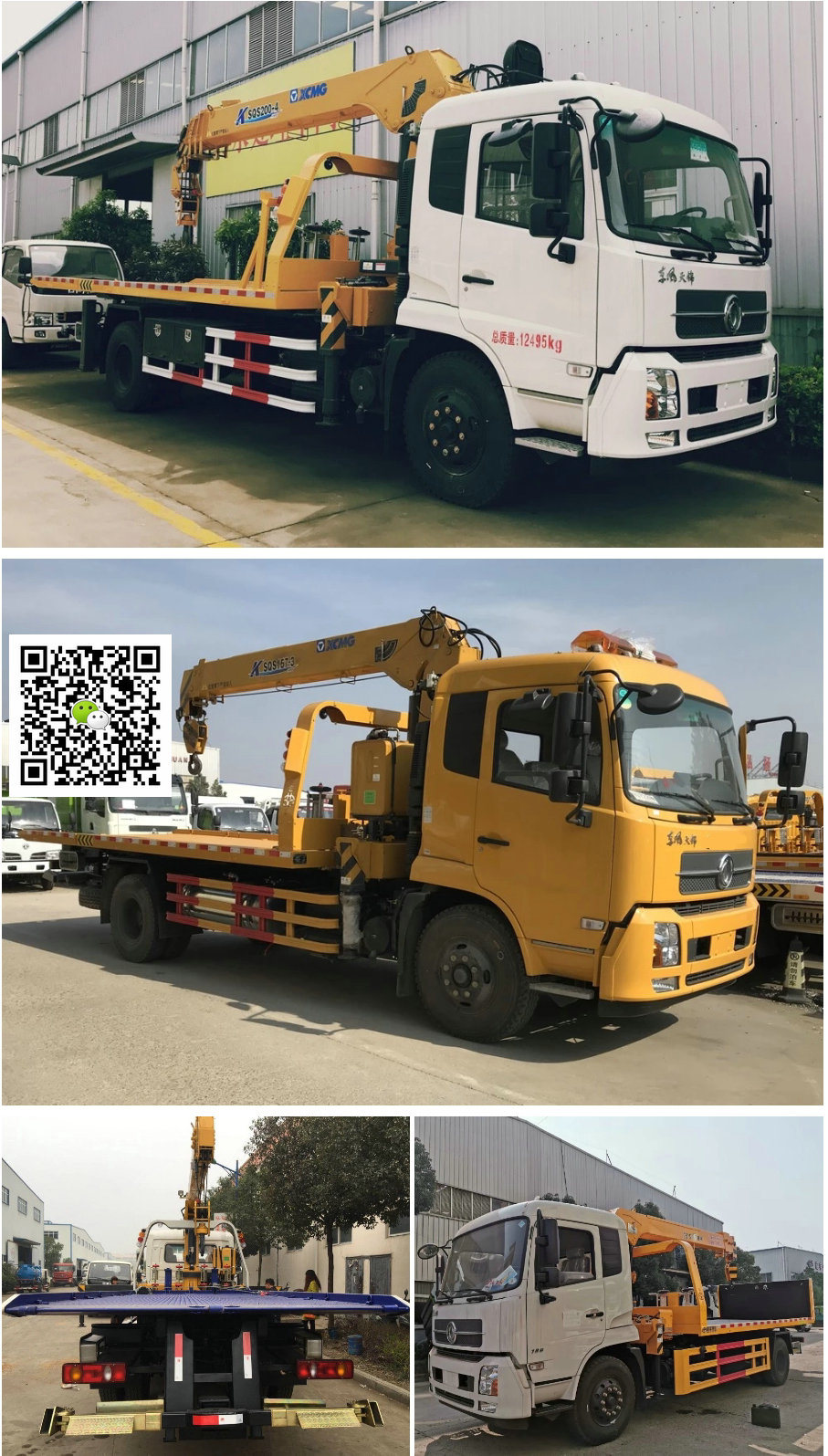

Flat Bed Wrecker with Loading Crane for Car Recovery on Road (5T -6T Crane Car carrier)
tow truck with a flatbed platform and an hydraulic system. The system allows the bed to tilt so can be used in various environments and spaces, the vehicle or object being towed can be driven or pulled onto the bed.
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T
| Vehicle technical parameters | |||
| product name | Dongfeng tianjin 10 tons wrecker truck with 8 tons telescopic crane | Dimensions (mm) | 9440x2480x2760 |
| Total mass (kg) | 12495 | Curb weight (Kg) | 10000 |
| Flat size (mm) | 6000x2400 | Plate thickness | 4 thick |
| Hoisting specification | 6 tons | Tops | 6 tons |
| Chassis technical parameters | |||
| Chassis name | Dongfeng Tianjin | Chassis model | DFL1120B21 |
| Number of axes | 2 | Number of tires | 7 (including spare tire) |
| Wheelbase (mm) | 4700,5000 | Tire specifications | 9.00R20 wire tire |
| Gearbox | 6-speed shift | Rear axle (kg) | 9000 |
| Fuel type | Diesel | brake | Air brake |
| Emission basis | GB17691-2005 country V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | horsepower |
| ISD180 50 | Dongfeng Cummins Engine Co., Ltd. | 4500 | 180 horsepower |
| Top basic configuration | |||
| The standard configuration | 6 tons of tops, with 6 tons of winches, 35 meters of steel wire rope, a pair of auxiliary wheel trolleys, a pair of 7-fork, a pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronic engineering warning lights, A set of car tools. | ||
| Optional configuration | It can be installed with imported parts, tow forks, towed forks, hand washing boxes, LED long row strobe lights, all falling floors. | ||
Top loading configuration:
Dongfeng Special Deal tianjin has a lifting and wrecking vehicle with a length of 6 meters and a width of 2.4 meters. The flat plate can be used with a tread plate or a one-time forming punching plate. It is equipped with a 5 ton to 8 ton crane, and a 6 ton support arm plate with a 5 ton hoist. Full hydraulic full swing, 6-ton joint top loading, imported hydraulic system, double-sided linkage operating device. With floor hooks, with a set of car tools, 2 auxiliary wheel trolleys, a pair of L-shaped clasps, 4 sets of straps, with a yellow long row of LED engineering lights. Our company's wrecker adopts advanced foreign product technology and production technology, all imported hydraulic parts for seals, fixed beam fixing, enhanced carrying capacity, more stable trailer process.

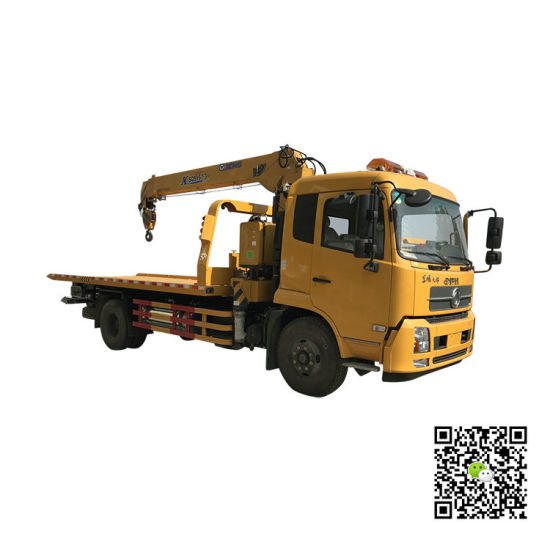

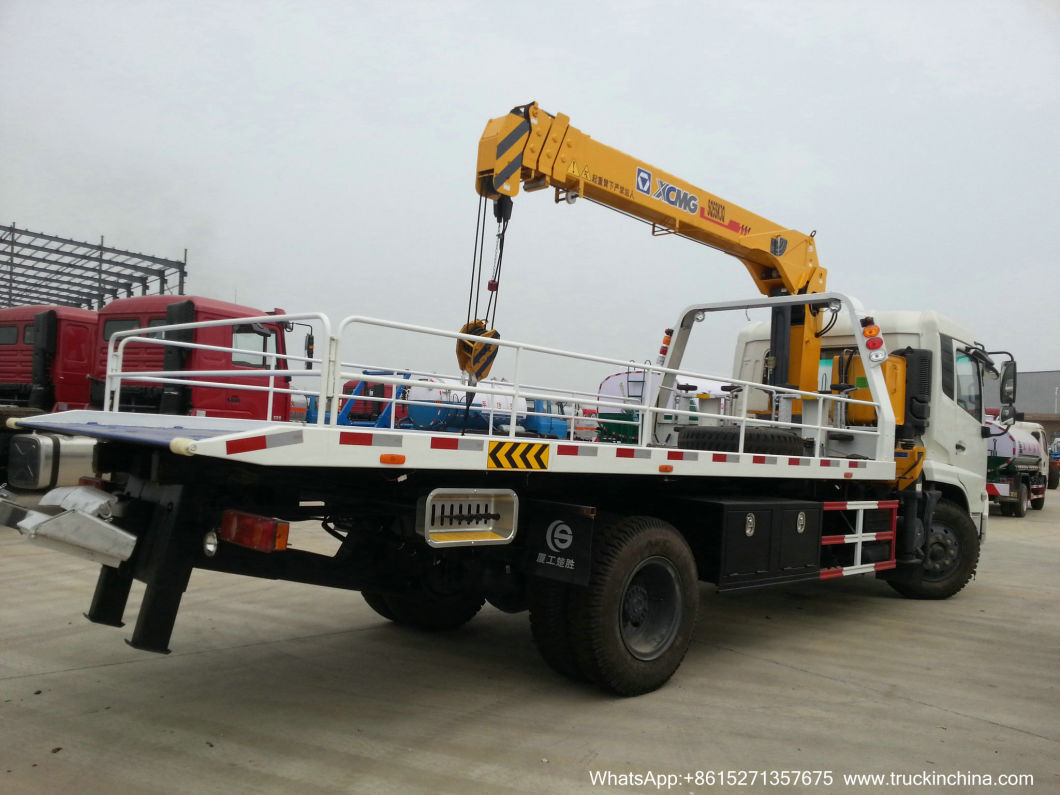

Rolling Back Dongfeng Wrecker With Crane Max loading weight 6300 kgTowing weight 5710KG
Crane Crane mode SQ6.3SA
Crane weight 2500 kg
Max loading weight 6300 kg

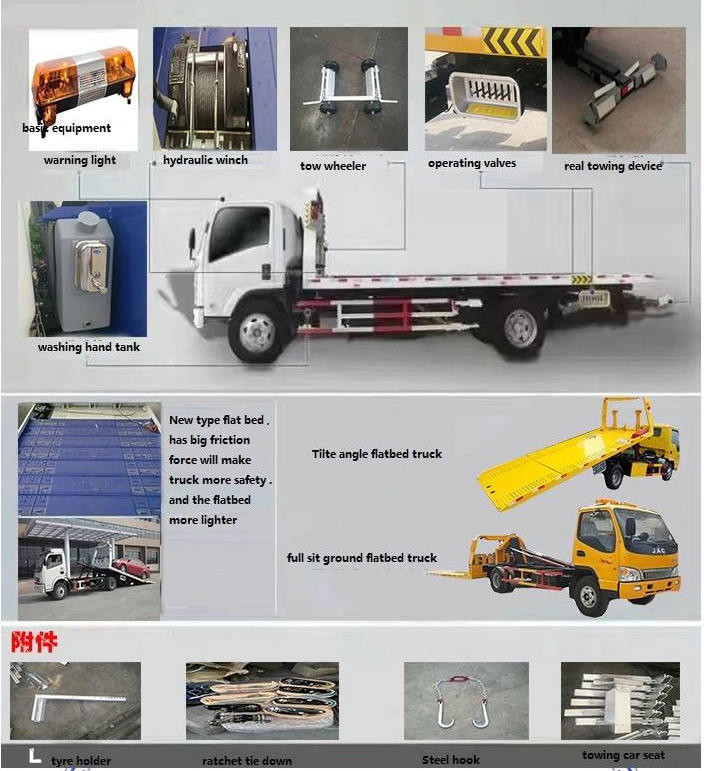

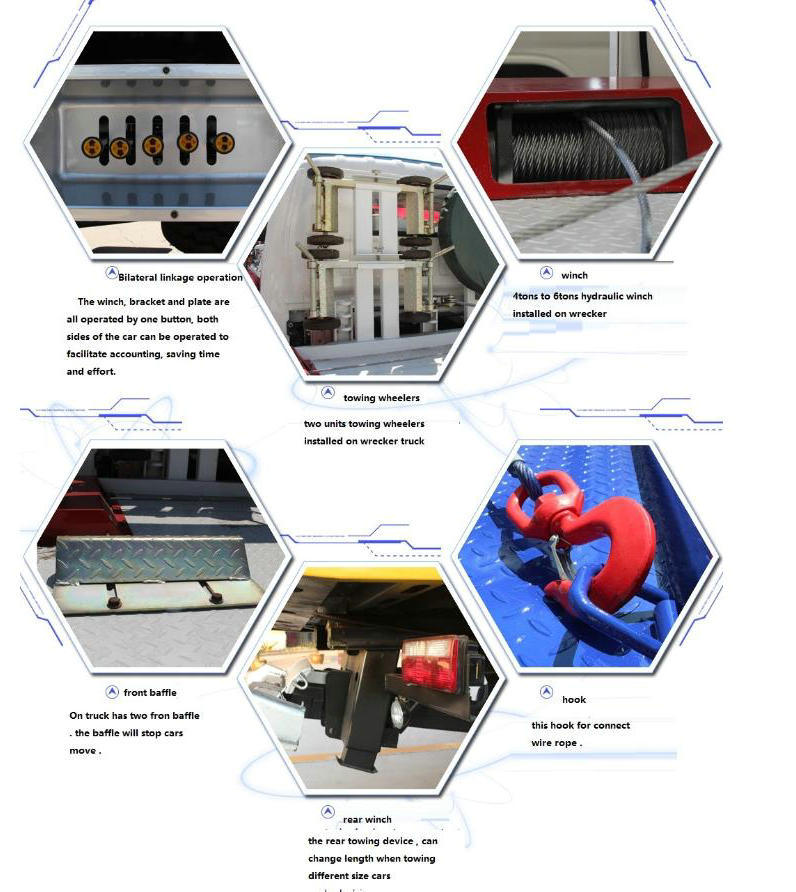

Equipments
Equipped with hydraulic pressure system
Equipped with high-altitude signal lamp
Equipped with one winch, steel wire rope length=21M
Ask for better price
The pictures are for your reference only.
Flat plate wrecker information
WRECKER TRUCK WITH CRANE | ||
# | Descriptions | Specifications and types |
General | Truck Brand | Chengliwei (our brand) |
Chassis Brand | Dongfeng | |
Approx. Dimension | 9200*2500*3500 mm | |
GVW./Kerb Wt. | 16000 / 9995kg | |
Cab | Cab Capacity | 3 persons' seat |
Air Conditioner | Air Conditioner is optional | |
Chassis | Drive Type | 4X2,left hand drive |
Fuel Type | Diesel | |
Engine Make & Model | Dongfeng /Yuchai engine | |
Power | 220 Ps / 162KW | |
Displacement | 6700 ml | |
Emission Standard | EURO III or Euro IV | |
Wheelbase/No.of axle | 4200,4500,4700,5100 mm / 2 | |
Tyre Specfication | 10.00-20,10.00R20 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90 km/h | |
Paint | Automative metallic paint | |
Operation control system | Electrically hydraulic control | |
Towing weight | 5710KG | |
Crane | Crane mode | SQ6.3SA |
Crane weight | 2500 kg | |
Max loading weight | 6300 kg | |
Equipments | Equipped with hydraulic pressure system Equipped with high-altitude signal lamp Equipped with one winch, steel wire rope length=21M | |
The above information is for reference only. We can produce according to your needs so,
| Specification of DF 145 Wrecker / Recovery Truck | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | Wrecker / Recovery Truck | Overall Dimension (mm) | 7800,8000×2498×2960 |
| Truck Brand | Dongfeng | Gross / Curb Weight (kg) | 15700 / 11205 |
| Truck Model | EQ5161GFJ6 | Approach / Departure Angle (°) | 32 / 17, 32 / 15 |
| Max. Speed (km/h) | 85 | Front / Rear Overhang (mm) | 1245 / 2255, 1245 / 2655 |
| Chassis | |||
| Chassis Brand | Dongfeng | Chassis Model | EQ5161GFJ6 |
| Wheel Base (mm) | 4700; 5100 | Leaf Spring | 9/14+10 |
Traction System | 4 x 2 | Quantity of Axles | 2 |
| Cab Capacity | 1+1+4 | Front / Rear Axle Load (kg) | 5900 / 9800; 5700 / 10000 |
| Transmission | manual | Front / Rear Wheel Tread (mm) | 1940 / 1860 |
| Tyre Model | 9.00-20, 9.00R20, 10.00-20, 10.00R20 | Quantity of Tyre | 6 |
| Engine (Motor) | |||
| Brand | Dongfeng | Type of Fuel | Diesel |
| Model | ISDe160 30 ISDe185 30 YC6J170-31 B170 30 B190 30 YC6J170-33 B190 33 B170 33 | Displacement (ml) | 4500 6700 6500 5900 5900 6494 5900 5900 |
| Max. Power (KW) | 118 136 125 125 140 125 140 125 | Emission Standard | Euro 3-5-6 |
| Cylinder Stator | 4 | Max Torque (N.m) | 600 |
| Quantity of Valves Per Cylinder | * | Maximum Torque Speed (rpm) | 1400 |
| Cylinder Diameter × Stroke (mm) | 107 x 124 | Motor Rated Rotating Speed (rmp) | 2500 |
| Full Load Minimum Fuel Consumption Rate (g/KW.h) | * | Air Intake Form | Turbocharged inter-cooled |
| Compression Ratio | 17.3 : 1 | Noise From 1 Meter (dB) | * |
| Motor Net Weight (kg) | * | ABS | yes |
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit | |||
If you have any questions you can contact me at any time
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :
First type : Boom towing truck
- use adjustable arms and winches to retract vehicles from ditches, embankments, or any vehicle that cannot arrive safely. Some booms are fixed, some heavy rotating racks, hydraulic telescopic tubes, others. In the past boom, trucks used the "hook chain" system, the chain around the frame or axle, and then hoisted by the winch. A heavy rubber pad is attached to the truck and truck so that it can be towed onto other bridges." Slings and belts are an evolution, replacing parts of chains with rubber belts. slings did not use too much today because they could shave bumper cars. But they are sometimes used in wrecker accidents carrier or have one or two front wheels or rear wheels missing or pickups and other vehicles have steel bumpers. Equipped with all wheel drive, the truck is towed away, unable to use the machine string, because it can make the car power transmission system problems.
Second type :Wheel lift wrecker towing truck
(also called "glasses") - from the chain hook technique to generate a large metal frame, can be installed in the front or rear under the cradle, rendering vehicles by pneumatic or hydraulic hoist can drag the ground clear front or rear. The device usually picks up the wheel of the vehicle (i.e., front wheel, if it is front wheel drive, rear wheel, if it is rear wheel drive), and contacts the tire. wheel lift wrecker tow truck are common in china; cradles are like glasses. Medium and heavy-duty trucks use variations, "underlift" or "chassis lift", in which the elevator shaft or frame is not the wheel. A forklift truck can be used as an adapter or a lift chassis.
Third type :Integration towing truck (also known as "Self Loader wrecker equipment", "Snatcher towing vehicle", "quick choice tow truck" or "roll back wrecker") - the arm and wheel lift together. Used of light trucks to recover or stop vehicles. Most of the truck's cab equipment is controlled so that the pickup truck does not leave the truck to connect the vehicle. heavy trucks are also manufactured using integrated lifts.
Forth type --Flat plates wrecker truck (also known as "rolling back tow truck" or "sliding tow truck") - the entire back of the truck is fitted with a bed that can be hydraulically tilted down to the ground, allowing the vehicle to be placed under its own power or pulled up by the winch. [9] because they carry, rather than traction vehicles, it can be completely fixed; in the United States, they carry serious damage to car accidents.
Fifth type ---Lifting platform wrecker truck the derricks lift the vehicle vertically and use the wheel lift to load it on the bed. In Europe, this car can eliminate the parallel parking of vehicles.
