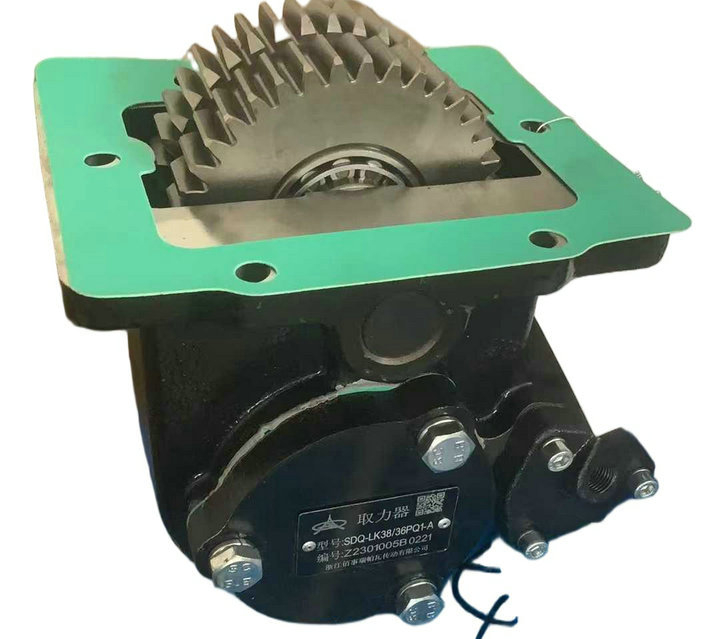

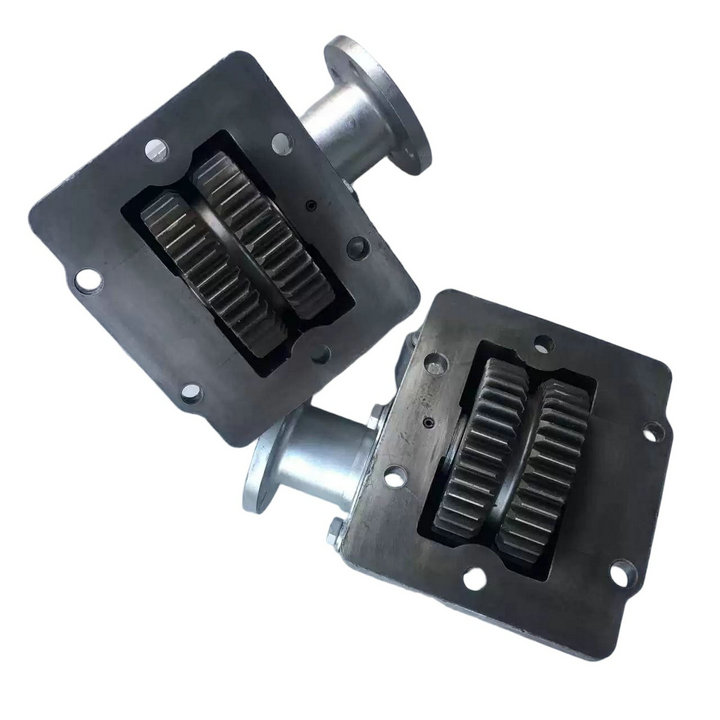

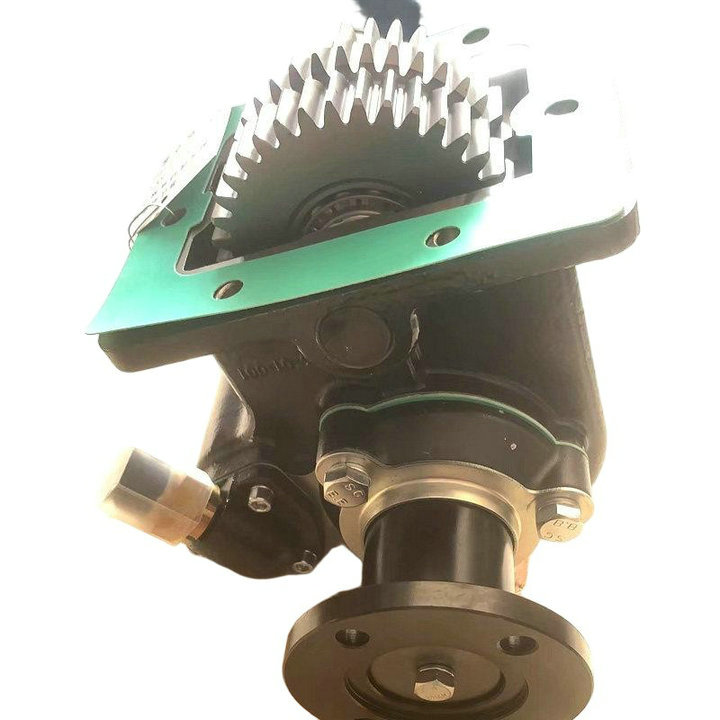

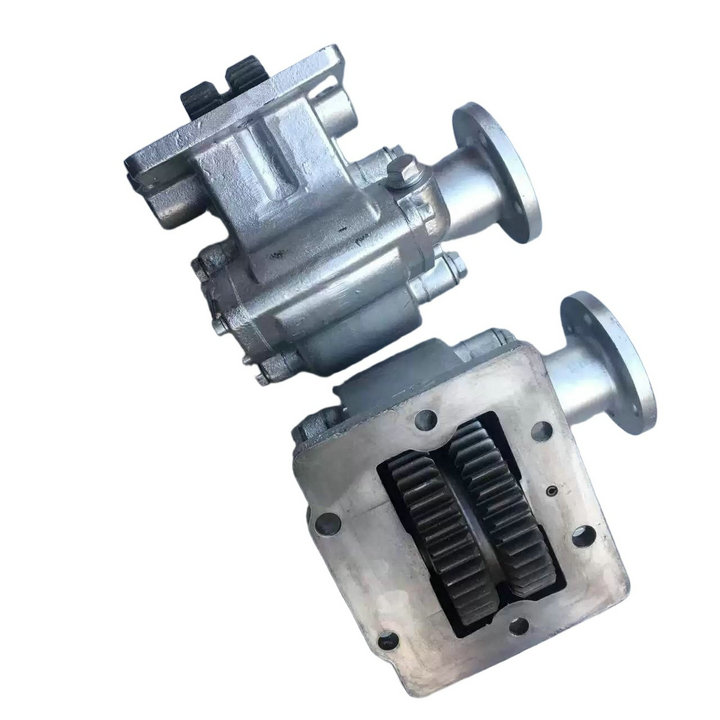

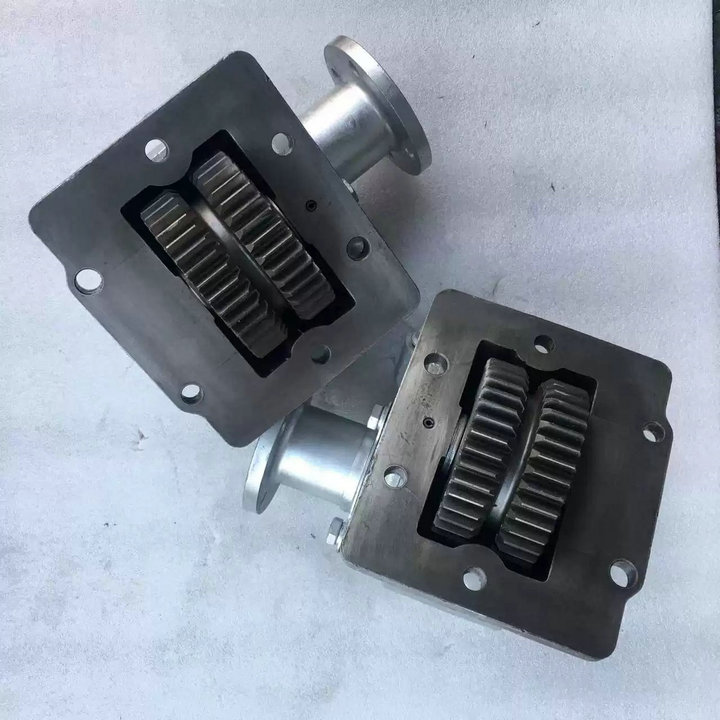

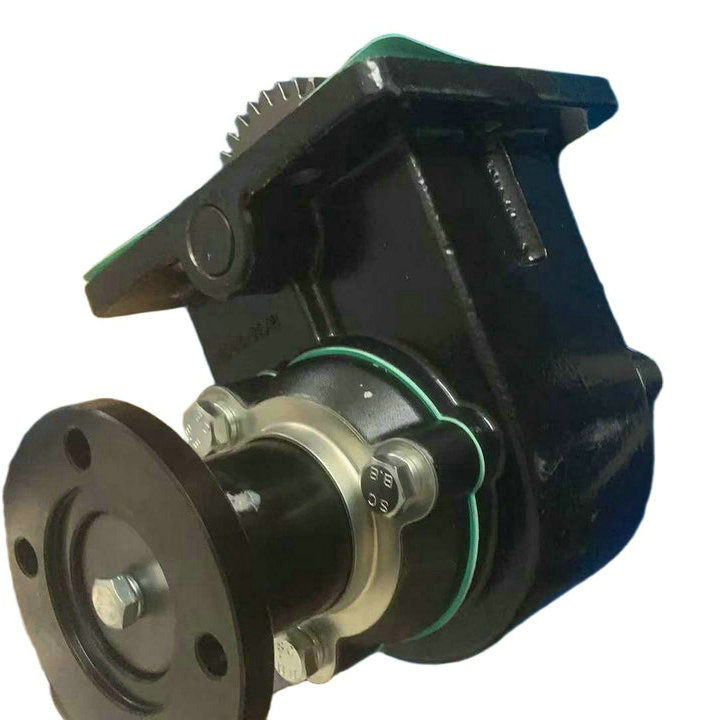

EV PTO Power Take-off SDQ-LK38/36 for Suzhou Lvkon Transmission 6JS95

EV PTO Power Take-off SDQ-LK38/36 for Suzhou Lvkon Transmission 6JS95
Price for refer only. Final Price Offer Discount.
Price: $ 880
Discount Price: $ 400
Availability:
Quantity:

  • SDQ-LK38/36PQ1-A /SDQ-LK24/36

  • SDQ

  • Shanghai, China

  • 10000

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

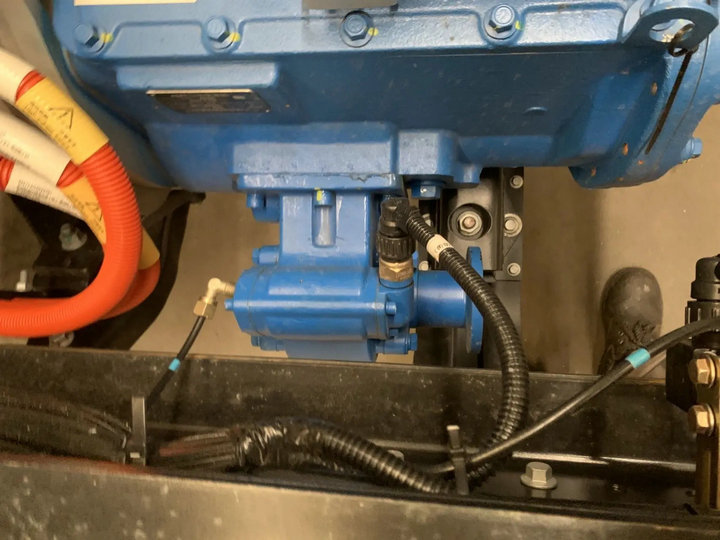

 EV PTO Power Take-off SDQ-LK38/36 for Suzhou Lvkon Transmission 6JS95EV PTO Power Take-off SDQ-LK38-36 for Suzhou Lvkon Transmission 6JS95 (15)EV PTO Power Take off SDQ-LK3836 for Lvkon Transmission 6JS95 (9)EV PTO Power Take off SDQ-LK3836 for Lvkon Transmission 6JS95 (3)

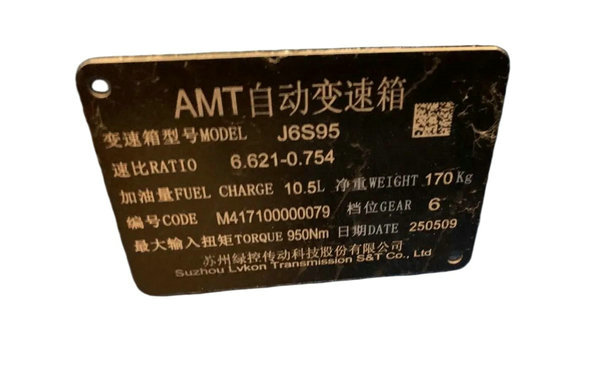

Suzhou Lvkong ( LVKON) J6S95 (6-speed AMT) + PTO Overview

The J6S95 is a 6-speed AMT transmission developed by Suzhou Lvkong for 950N·m class pure electric medium trucks and coaches. It is suitable for sanitation vehicles, city buses and 14–18 ton special vehicles, with SDQ-LK38/36, SDQ-LK24/36 as the standard optional PTO.

I. Core Transmission Parameters (J6S95)

Model: J6S95 (6-speed AMT)Max Input Torque: 950N·mMax Power: 160kW (218 HP)Gears: 6 forward gears + 1 reverse gearGear Ratio: 6.621/3.725/2.303/1.514/1/0.754 (Reverse gear ratio: 6.045)Max Input Speed: 3000rpmMatching Motor: Lvkong TZ370XS series (peak power 160kW)Applicable Vehicles: 10–12m city buses, 14–18 ton sanitation / water sprinkler / garbage trucks (e.g., FAW J6L)

II. PTO (SDQ-LK38/36;SDQ-LK24/36 Power Take-off) Parameters

Model: SDQ-LK38/36,SDQ-LK24/36 (OEM optional)Max Output Torque: 300N·mGear Ratio: 1.136Weight: Approx. 15kgInterface: Standard internal spline / flange, compatible with hydraulic pumps and water pumpsControl Mode: Pneumatic engagement, operated via cab switchOperation Mode: Engageable both in driving and static state

III. Application Scenarios

Pure Electric Sanitation Vehicles: FAW J6L 4×2, Dongfeng Tianjin (9–12m³ sprinkler trucks / garbage trucks)City Buses: 10–12m pure electric buses (low-floor design with high torque demand)Special Operation Vehicles: Aerial work trucks, power supply trucks (power source for hydraulic systems)Features: Dense gear ratios and smooth shifting, ideal for urban frequent start-stop working conditions

IV. Advantages

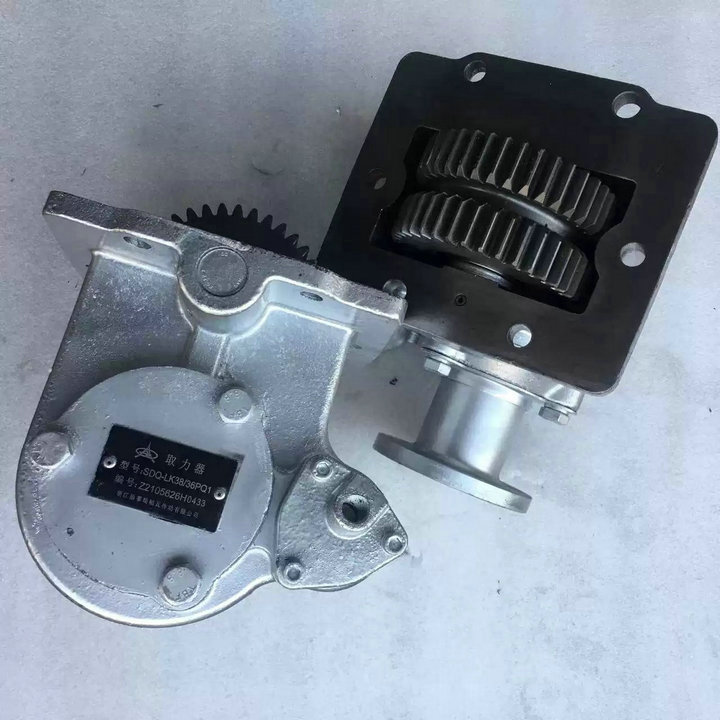

OEM matched design: Transmission efficiency ≥95%, high reliability, perfectly compatible with Lvkong medium-torque motorsExcellent PTO adaptability: 300N·m output can drive hydraulic systems and water pumps for 9–12m³ sprinkler trucksSuperior working condition adaptability: Wide coverage of 6 gear ratios, balancing low-speed heavy load and high-speed cruisingLow maintenance cost: Lightweight aluminum alloy housing (164kg) with good heat dissipation and lower energy consumptionEV PTO Power Take off SDQ-LK3836 for Lvkon Transmission 6JS95 (6)

This power take-off unit is specifically designed for the LK New Energy electric truck DET8S480 transmission.

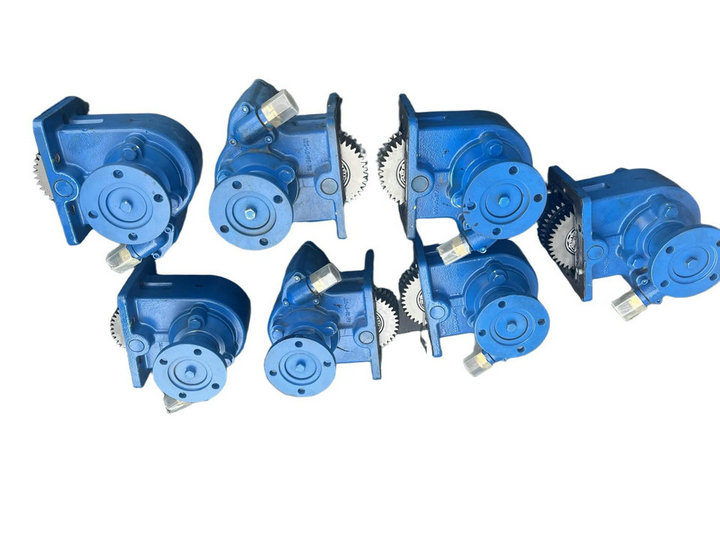

New energy series power take off

Serial number

Model of power take-off

speed ratio

Output (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-LK31/38

1.043

300

Suzhou Lvkon transmission

6s100

Spline / shaft

Pneumatics

2

SDQ-LK24/36

SDQ38/36

1.136

300

Suzhou Lvkon transmission

j6s95,J6S95 PTO SDQ-LK38/36LGQ1

Spline / shaft

Pneumatics

3

SDQ-LK20/56

1.148

300

Suzhou Lvkon transmission

j2s130

Spline / shaft

Pneumatics

Model number PTO Total Ratio of  PTO Output torque(N.m) Matching Transmission Output method Peration mode
SDQ-LK13/56 1.175 300 J2S130 Internal Splines/
Flanged Flanges
Pneumatic
SDQ-LK21/70 0.809 700 J4S240/J4S280/DET4S260/
DET6S360/DET8S330
Internal Splines/
Flanged Flanges
Pneumatic /
Electric
SDQ-LK34/75 1.263 750 DET8S480 Internal Splines/
Flanged Flanges
Electric
SDQ-LK38/36 1.136 - J6S95 Internal Splines/
Flanged Flanges
Pneumatic

HW

HWP-L19/35CHQ

1.024

300N.M

J4S100A

inner Spline

Pneumatical

HWP-L19/35TQ

1.024

300N.M

J4S100A

Cardan Flange Shaft

Pneumatical

HWP-L31/38CHQ

1.047

400N.M

LKT6S100

inner Spline

Pneumatical

HWP-L31/38TQ

1.047

400N.M

LKJ6S100

Cardan Flange Shaft

Pneumatical


PTO Gearbox Power Take off Pto
