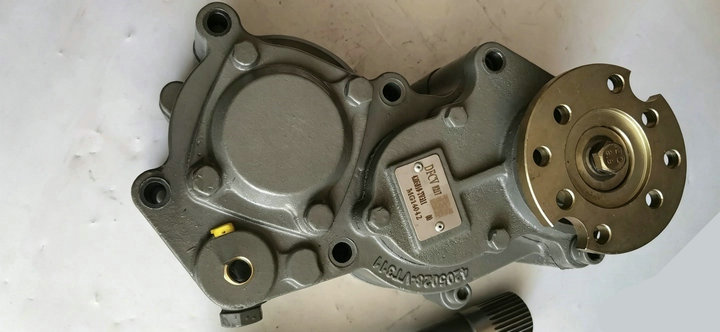

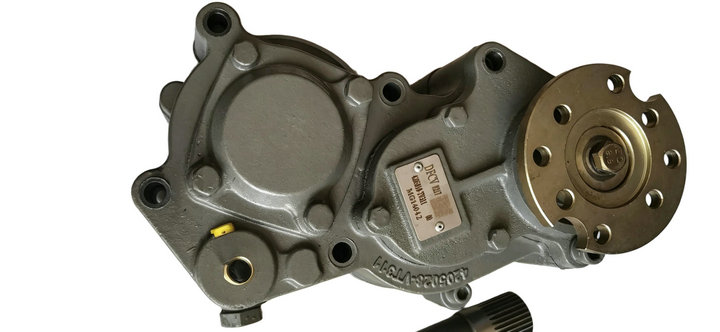

DT1420/DT1422/DT1425 Dongfeng Transmission Power Take-off 4205010-TV311 4205010-TV312

DT1420/DT1422/DT1425 Dongfeng Transmission Power Take-off
4205010-TV311 4205010-TV312
Price for refer only. Final Price Offer Discount.
Price: $ 880
Discount Price: $ 600
Availability:
Quantity:

  • 4205010-TV311、4205010-TV312

  • PATE

  • Shanghai, China

  • 10000

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

DT1420/DT1422/DT1425 Dongfeng  Transmission Power Take-off

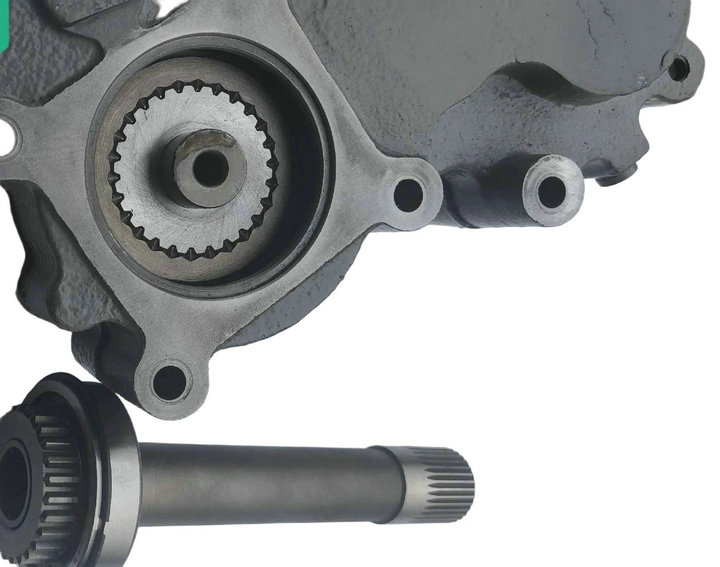

4205010-TV311 4205010-TV312DT1420DT1422DT1425 Dongfeng Transmission Power Take-off 4205010-TV311 4205010-TV3124205010-TV311 TV312 PTO for DT14 (9)

Matching DT1420/DT1422/DT1425 Dongfeng series transmission power take-off is rear secondary power take-off

Which is installed on the power take-off window of the middle shaft of the rear auxiliary box of the gearbox, and the power is supplied by the power take-off device and the gearbox

The power-taking shaft connected with the intermediate shaft is taken out, and transmitted to the input shaft of the power-taking device through the nibbling gear sleeve, and passed through the intermediate shaft

The intermediate shaft is transmitted to the output shaft of the power take-off device, and the power is output through the output shaft.

This series of power take-off devices are electrically controlled with air pressure of 0.6MPa-1.0MPa, which requires power take-off devices

When working, the air valve is connected, and the piston fork of the power take-off device moves the gear sleeve, so that the pharynx sleeve connects the input shaft and

When the output shaft is integrated, the power can be taken out. When backing out, only the intake solenoid valve should be turned off to take out the power

The device stops working.

4205010-TV405 (24-tooth) 8-tooth plug pump

4205010-TV404 (24-tooth) 6-tooth plug pump

4205010-TV401 (24 tooth) disc drive Cardan Shaft

4205010-TV311 Tertiary Disc Cardan Shaft

Rear three-stage with retarder Please note

4205010-TV312 Inner Spline 80 Pump

4205010-TV403 AMT/ Side 212 flange

4205010-TV406 AMT/ Side spline

QH50-G5467 PTO 12JS160T
4205.6B1-010 PTO DF5S470
4205D33-010 PTO
4205FT-010 PTO
4205M-010 PTO
4205FT7-010-B PTO
4205K16-010-B PTO
4205KP-010 PTO
4205KP1-010 PTO
4205.6B1-010A PTO
4205FT7-010 PTO
4205Q13-010 PTO
4205R25-010 PTO
4205KP2-010 PTO
4205NB2-010 PTO
4205KBA-010 PTO
4205M-010A PTO
4205D1-010A PTO
4205M-010B PTO
4205F34-010B PTO
4205F34-010Q PTO
4205Q08-010A PTO
4205KP1-010A PTO
4205KP1-010B PTO
4205KP2-010A PTO
4205KP2-010B PTO
4205NB4-010 PTO
4205NB-010C PTO
4205KT1-010 PTO
4205L03-010 PTO

 WLY 5TS40 Transmission Power Take-Off PTO SDQ-WL31/46LGQ1 for Dongfeng Truck

PTO Gearbox Power Take off Pto (5)PTO Gearbox Power Take off Pto
