WLY6GS42 FZ35/45 WLY6GS42B FZ35/47 QC-QH Transmission Power Take-Offs (PTOs)

WLY6GS42 FZ35/45 WLY6GS42B FZ35/47 QC-QH
Transmission Power Take-Offs (PTOs)
Price for refer only. Final Price Offer Discount.
Price: $ 380
Discount Price: $ 280
Availability:
Quantity:

  • WLY6GS42 FZ35/45 WLY6GS42B FZ35/47

  • PATE

  • Shanghai, China

  • 10000

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

WLY6GS42 FZ35/45 WLY6GS42B  FZ35/47  QC-QH Transmission Power Take-Offs (PTOs)

WLY6GS42 + FZ35/45Matching Transmission: WLY6GS42 (6-speed, 420N·m grade)Output Gear: 35 teeth, tooth height 45mmMounting Hole Spacing: 140×105×70mmControl Mode: Pneumatic (QH) / Manual optionalOutput Type: ISO flange / Internal spline
WLY6GS42B + FZ35/47Matching Transmission: WLY6GS42B (Reinforced Version)Output Gear: 35 teeth, tooth height 47mm (higher design, higher torque capacity)Mounting Hole Spacing: 140×105×70mmControl Mode: Pneumatic (QH)Output Type: ISO flange / Internal spline

 Core Parameter Comparison

Parameter FZ35/45 (6GS42) FZ35/47 (6GS42B)
Max Output Torque 250~350N·m 250~400N·m
Gear Ratio 1.0 (Direct Drive) 1.0 (Direct Drive)
Operating Air Pressure 0.7–0.8MPa 0.7–0.8MPa
Application Working Condition Water sprinkler truck, wrecker truck, light truck hydraulic pump Dump truck, truck-mounted crane, heavy truck hydraulic pump

Mounting & Interface

Installation Position: Left side of transmission (co-pilot side)Driving Mode: Direct meshing with transmission 42-tooth drive gearOutput Interface: φ35mm flange (4×M10 bolts) or 16-tooth internal spline

Common Applications

  • Sanitation Vehicles: Water spray pump, high-pressure cleaning pump

  • Engineering Vehicles: Hydraulic winch, lifting cylinder, crane

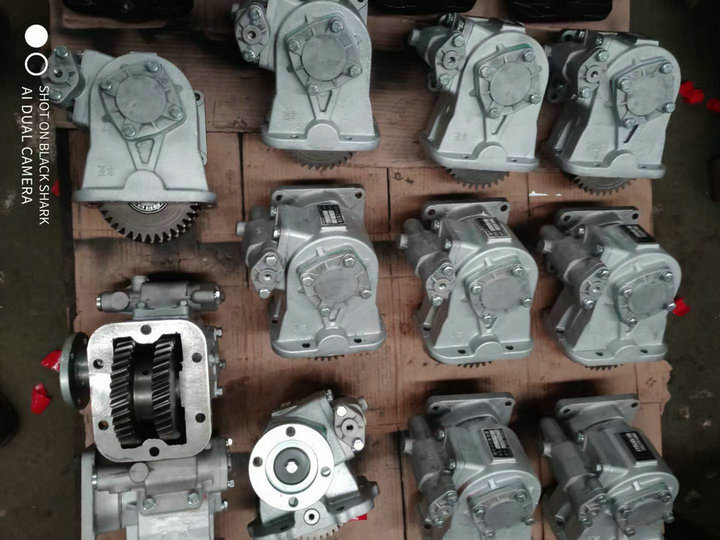

WLY6GS42 FZ35-45 WLY6GS42B FZ35-47 QC-QH
