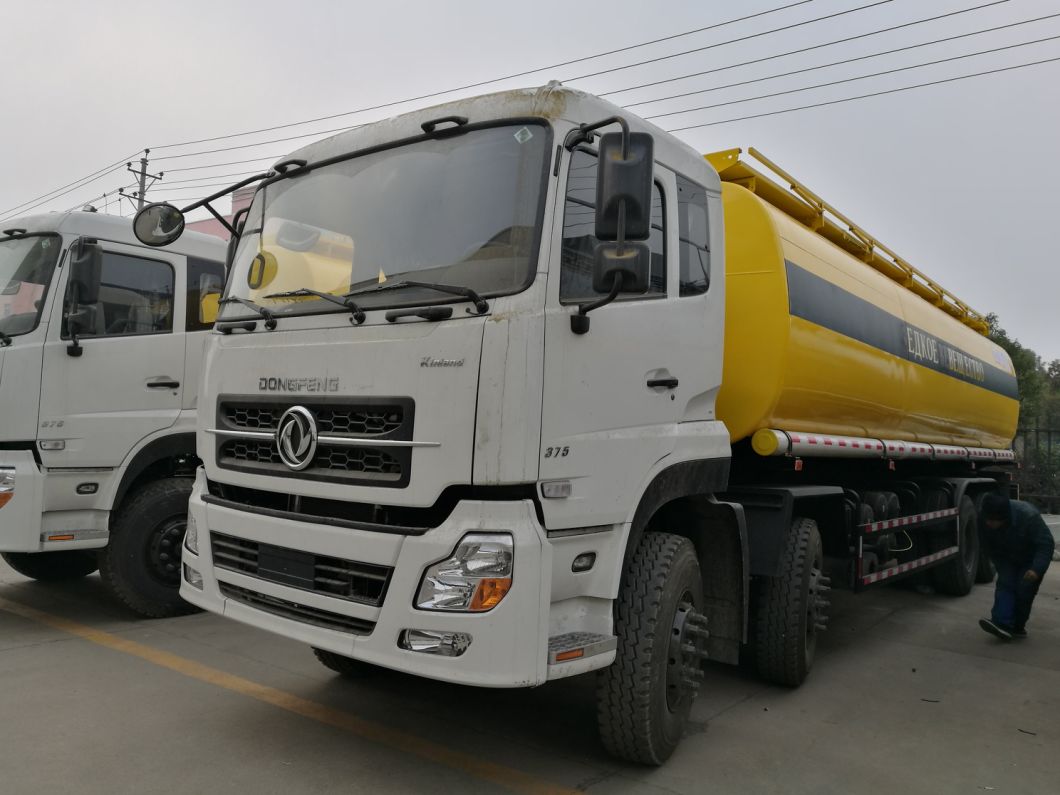

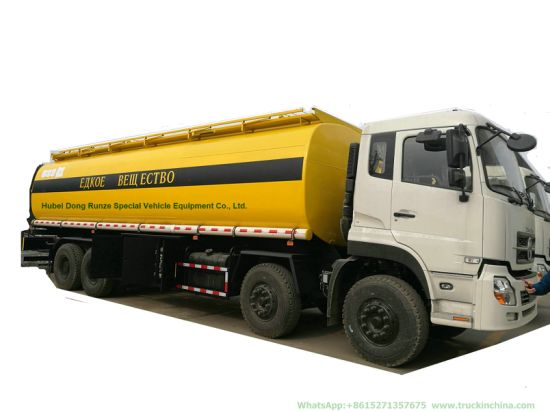

Dongfeng Chemical Acid Liquid Trucks 28T HCL Acid tanker 12 Wheels ( For Chemical Acid Liquid ,Drink Water,Carbon Steel Lined PE Tank with Acid Chemical Pump)Tanker Truck
Road tanker truck 375HP
25000 ~30000Litres
Acid oil tanker truck for HCL, NaCIO acid Tank hydrochloric acid -HCL, dilute sulphuric acid WEAK SULFURIC ACID -H2SO4 ,sodium hypochlorite - NaCIO ,Caustic soda-NaOH
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale 86-152 -7135-7675 Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
transport media name: hydrochloride, hydrogen chlorate, sodium hydroxide,
acrylic (media density are for 1190 kilograms/cubic metres),
acetic acid, glacial acetic acid, hydrogen peroxide (media density are for 1140 kilograms/cubic metres)
Propionic acid, (density for 1110 kilograms/cubic metres),
ammonia, (NH3·H2Odensity for 1090 kilograms/cubic metres),

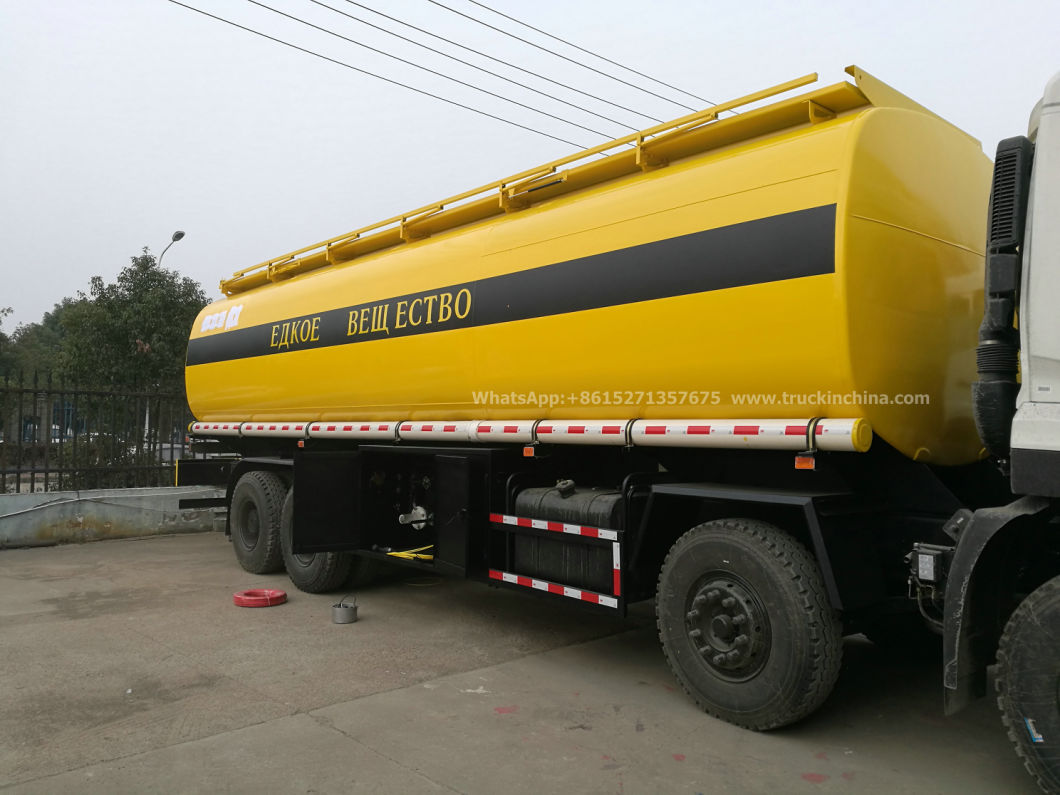

Hydrochloric acid tank
Type : | 8x4 Truck chassis | |||
Product Name : | DFL1310AX13A | |||
Development Code : | K83V-975 | K83V-976 | ||
Chassis Dimensions(mm) | ||||
Overall chassis length | 11720 | ← | ||
Cab width | 2500 | ← | ||
Cab height (unladen) () | 3700 | ← | ||
Wheel base | 1850+4800+1350 | ← | ||
Front overhang | 1480 | ← | ||
Rear overhang | 2240 | ← | ||
Maximum velocity (Km/h) | 85 | ← | ||
vehicle weights(kg) | ||||
G.V.W | 31000 | ← | ||
Curb weight | 10000 | ← | ||
Frame profile Dimensions(mm) | ||||
Frame width (front ) | 940 | ← | ||
Frame width ( rear ) | 860 | ← | ||
Section height | 300 | ← | ||
Section width | 90 | ← | ||
Engine | Type | L375-30 | ← | |
Emission level | Euro (EGR) | ← | ||
Maximum power | 276kw at 2200rpm | ← | ||
Maximum torque | 1480Nm at 1400 rpm | ← | ||
Number of cylinders | 6 | ← | ||
Displacement (lit) | 8.9 | ← | ||
Cylinder bore (mm) | 114 | ← | ||
Stroke (mm) | 145 | ← | ||
System | Water cooled , turbocharged , after cooled , mechanical pump , no heating for starting. | |||
Clutch | Type | SACHS | ||
Plate's diameter | ¢430mm | |||
operating system | Hydraulic control with air booster, pulling | |||
Gear box | Type | 12JSD180T DD | ||
Number of gears | 12forward gears& 2 reverse ,synchronized | |||
Ratios | Forward:15.53;12.08;9.39;7.33;5.73;4.46;3.48;2.71;2.10;1.64;1.28;1 Reverse:14.86;3.33 | |||
Brake System | Full air brake system, split pneumatic circuit ; parking spring brake acting on rear axles ,exhaust brake system. | |||
Cab | Sleeper cab, two bunks ,forward control type , High roof,new face, all welded steel cab , front and rear mechanical cab suspension , adjustable driver's seat, air conditioner ; optional Electrical cab tilting, electric windows, central lock. D310 | |||
Axle | Front | Elliot type, I beam section | ||
Load capacity(ton) | 7 | |||
Rear | K83V-975:Single reduction ,tandem axle, with axle lock, ratio 5.143. K83V-976:Hub reduction,tandem axle, with axle lock and wheel lock , ratio 5.26. | |||
Load capacity(ton) | 13 | |||
Tyres | 12.00-20/12.00R20 | |||
Suspension | Front | 9- Leaf spring with shock absorber | ||
Rear | 13-leaf spring | |||
Battery | Voltage (V) | 24 | ||
Battery capacity (A.h) | 165X2 | |||
Fuel Tank | Type | Steel fuel tank, with lockable cap , | ||
Capacity | 350lit |
Dongfeng Chassis optional LHD RHD
DFL1250AW2-K03U-923-012J | 6X4 | 5600+1350 | D310 | ISLe375 30 | 3 | 12JSD180T | 7 | 13+13 | 4.44 | 400L |
DFL1250A9-K04V-975-012J | 6X4 | 5850+1350 | D310 | C260 33 | 2 | 9JS119T-B | 7 | 10+10 | 4.44 | 350L |
DFL1250A8-K01E-403-022J | 6X4 | 4350+1350 | D310 | C260 33 | 2 | 9JS119T-B | 7 | 10+10 | 5.143 | 350L |
DFL1250A9-K03E-403-022J | 6X4 | 5650+1350 | D310 | C260 33 | 2 | 9JS119T-B | 7 | 10+10 | 4.44 | 3500L |
DFL1310AX13A-K83V-976-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.26 | 350L |
DFL1310AX13A-K83V-977-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.143 | 350L |
DFL1310AX13A-K83V-975-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.143 | 350L |
DFL1310AX13A-K83V-978-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.26 | 350L |
DFL1311A4-K14E-975-012J | 8X4 | 1950+4250+1300 | D310 | L315 30 | 2 | 9JS119T-B | 5+5 | 10+10 | 4.44 | 350L |
DFL1311A4-K14E-976-012J | 8X4 | 1950+4250+1300 | D310 | L315 30 | 2 | 9JS119T-B | 5+5 | 10+10 | 4.44 | 350L |
DFL1311A4-K14E-301-022J | 8X4 | 1950+4250+1350 | D310 | L315 30 | 2 | 9JS119T-B | 7+7 | 13+13 | 5.143 | 350L |
DFL1311A4-K14E-434-022J | 8X4 | 1950+4250+1350 | D310 | L340 30 | 2 | 12JS160TA | 7+7 | 13+13 | 4.44 | 350L |
DFL1311A4-K13W-975-012J | 8X4 | 1850+5150+1350 | D310 | L340 30 | 2 | 9JS135T-B | 5+5 | 10+10 | 4.44 | 400L |
DFL1311A4-K14W-975-012J | 8X4 | 1850+5150+1350 | D310 | YC6L310-33 | 2 | 9JSD135T-B | 5+5 | 10+10 | 4.44 | 400L |
DFL3251AWJ1-K21R-931-012J | 6X4 | 3800+1450 | D310 | ISLe340 40 | 4 | 12JS180T | 7 | 13+13 | 5.92 | 400L |
DFH3250A81-K26U-920-012J | 6X4 | 3800+1350 | D310 | dCi420-30 | 3 | 12JSD200T | 9 | 13+13 | 5.92 | 400L |
DFL3251A1-K43R-931-010J | 6X4 | 3800+1350 | D310 | ISLe375 30 | 3 | 12JS160T | 7 | 13+13 | 5.26 | 400L |
DFL3160BX6A-KM6H-100-030J | 4X2 | 4200 | D530 | YC6J200-42 | 4 | 8JS118 DD | 6 | 13 | 6.33 | 280L |
DFL3258A3W-K20U-956-000J | 6X4 | 3800+1450 | D310 | L340 20 | 2 | RT-11509G | 7 | 13+13 | 5.26 | 400L |
DFL3258A3-K22V-975-032J | 6X4 | 3800+1350 | D310 | YC6MK375-33 | 2 | 12JSD180T | 9 | 13+13 | 5.92 | 280L |
DFL3258A3-K20V-978-032J | 6X4 | 3800+1450 | D310 | L375 30 | 2 | 12JS180T | 7 | 13+13 | 6.73 | 350L |
DFL3258A6-K25W-975-012J | 6X4 | 3800+1350 | D901 | YC6MK375 33 | 2 | 12JSD180T | 9+9 | 13+13 | 5.92 | 280L |
DFL3258A6-K26W-975-012J | 6X4 | 3400+1350 | D901 | YC6MK375 33 | 2 | 12JSD180T | 9+9 | 13+13 | 5.92 | 280L |
DFL3310A10-K36K-999-012J | 8X4 | 1850+3400+1350 | D310 | ISLe375 30 | 3 | DC12J165T | 7+7 | 13+13 | 5.92 | 400L |
DFL3310A14-K37E-001-012J | 8X4 | 1850+4200+1350 | D310 | L375 30 | 2 | 12JSD160T | 7+7 | 13+13 | 5.26 | 350L |
DFL3310A14-K37V-975-012J | 8X4 | 1850+4200+1350 | D310 | YC6MK375-33 | 2 | 12JSD180T | 7+7 | 13+13 | 5.26 | 350L |
DFL5251GJBA4-K09R-930-012J | 6X4 | 3800+1350 | D310 | ISLe340 40 | 4 | 9JS150T | 7 | 13+13 | 4.875 | 400L |
DFL5251GJBA1-K47G-000-012 | 6X4 | 4000+1350 | D310 | ISLe340 30 | 3 | 9JS150T-B | 7 | 13+13 | 5.571 | 400L |
DFL5250GJBA-K09E-004-022J | 6X4 | 3650+1350 | D310 | L340 30 | 2 | 9JS150T-B | 7 | 13+13 | 5.571 | 350L |
DFL5250GJBA1-K09G-000-022J | 6X4 | 4000+1350 | D310 | L340 30 | 2 | 9JS150T-B | 7 | 13+13 | 5.571 | 280L |
DFL5250GJBA-K09F-100-002J | 6X4 | 3800+1350 | D310 | L340 30 | 2 | 9JS150T-B | 7 | 13+13 | 5.571 | 200L |
DFL1120B13-KD2H-000-210J | 4X2 | 5000 | D530 | ISB180 40 | 4 | DF6S900 | 4.5 | 9 | 5.286 | 200L |
DFH5080B80-KE2R-930-012J | 4X2 | 3800 | D530 | ISD140 50 | 5 | DF6S650 | 3.6 | 6 | 4.33 | 200L |
DFL1080B-KE3K-923-002J | 4X2 | 4500 | D530 | ISDe140 30 | 3 | DF6S650 | 3.6 | 6 | 4.33 | 145L |
DFL1080B2-KE5E-000-032J | 4X2 | 4500 | D530 | YC4E140-33 | 2 | DF6S650 OD | 3.6 | 6 | 4.875 | 145L |
DFH5120B80-KX2R-930-012J | 4X2 | 5000 | D530 | ISD185 50 | 5 | DF6S900 | 4.5 | 9 | 4.56 | 200L |
DFL1140BW1-KW3Z-925-012J | 4X2 | 5000 | D530 | ISDe210 40 | 4 | DF6S900 | 6 | 10 | 4.44 | 280L |
DFL1120B-KD1-924-010J | 4X2 | 4700 | D530 | ISDe180 30 | 3 | DF6S900 | 4.5 | 9 | 4.56 | 200L |
DFL1140B-KD5-923-010J | 4X2 | 5000 | D530 | ISDe210 30 | 3 | DF6S900 | 6 | 10 | 4.44 | 160L |
DFL5120XXYB1-KD3W-975-010J | 4X2 | 6100 | D530 | B170 33 | 2 | DF6S900 | 4.5 | 9 | 5.286 | 160L |
DFL1120B-KD1E-010-022J | 4X2 | 4700 | D530 | B170 33 | 2 | DF6S900 | 4.5 | 9 | 5.286 | 160L |
DFL1120B-KD2E-010-022J | 4X2 | 5000 | D530 | B170 33 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL5120XXYB1-KD3E-010-012J | 4X2 | 5600 | D530 | B170 33 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL1140B-KD4E-000-012J | 4X2 | 4700 | D530 | B190 33 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 160L |
DFL1140B-KD5E-000-012J | 4X2 | 5000 | D530 | B190 33 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 160L |
DFL5140XXYB1-KD6E-975-012J | 4X2 | 5600 | D530 | B190 33 | 2 | DF8S1000 | 6 | 10 | 4.875 | 160L |
DFL5140XXYB1-KD6W-975-012J | 4X2 | 6100 | D530 | B190 33 | 2 | DF8S1000 | 6 | 10 | 4.875 | 160L |
DFH1160B80-KW4Z-925-012J | 4X2 | 5000 | D530 | ISD210 50 | 5 | DF6S900 | 6 | 10 | 4.44 | 280L |
DFH1180B80-KD6Z-925-012J | 4X2 | 5000 | D530 | ISD270 50 | 5 | DC7J120TD | 6 | 13 | 4.44 | 280L |
DFL1160BW1-KD5Z-925-012J | 4X2 | 5000 | D530 | ISDe270 40 | 4 | DC7J120T | 6 | 13 | 4.44 | 280L |
DFL1160BW-KD6U-923-012J | 4X2 | 5600 | D530 | ISDe270 30 | 3 | 9JS119T-B | 6 | 13 | 4.44 | 280L |
DFL1203A-K44E-977 | 6X2 | 1950+5350 | D310 | C230 33 | 3 | 9JS119TB | 10 | 13 | 4.875 | 350L |
DFL3310AW1-K51R | 8X4 | 1850+3400+1350 | D310 | ISLe375 40 | 4 | 12JS180T DD | 7+7 | 13+13 | 5.92 | 400L |
DFL3120B-KL2E-200-012J | 4X2 | 3800 | D530 | YC4E160-33 | 2 | 8JS85J | 4.5 | 10 | 5.571 | 160L |
DFL3120B1-KM3E-000-012J | 4X2 | 4200 | D530 | B190 33 | 2 | 8JS118 | 6 | 13 | 6.33 | 200L |
DFL3250B-KQ5W-975-002J | 6X4 | 3800+1350 | D530 | YC6A260 33 | 2 | 9JS119TB | 6 | 10+10 | 5.571 | 280L |
DFL3160-KM5M-923-012J | 4X2 | 5500 | D530 | ISDe270 30 | 3 | DC7J120T | 6 | 13 | 4.77 | 200L |
DFL3120B2-KM8-000-022J | 4X2 | 4500 | D530 | YC6A240-33 | 2 | 8JS118 DD | 6 | 13 | 5.92 | 280L |
DFL3120B-KL3E-975-012J | 4X2 | 3800 | D530 | YC6J180 33 | 2 | DF8S1000 DD | 6 | 10 | 5.571 | 200L |
DFL3120B-KL3E-976-012J | 4X2 | 3800 | D530 | YC6J180 33 | 2 | DF8S1000 DD | 6 | 13 | 5.571 | 200L |
DFL3120B-KL3W-975-012J | 4X2 | 4200 | D530 | YC6J180 33 | 2 | DF8S1000 DD | 6 | 13 | 5.571 | 200L |
DFL3120B1-KL5E-000-022J | 4X2 | 4500 | D530 | B210 33 | 2 | 8JS118 | 6 | 13 | 6.33 | 200L |
DFH3258A11-ZG3L | 6X4 | 3800+1350 | D901 | YC6MK340-33 | 2 | DC10J190T | 9 | 22 | 5.92 | 280L |
DFL3250B-KQ4-975-010J | 6X4 | 3800+1350 | D530 | YC260 33 | 2 | 9JS119TB | 6 | 13+13 | 5.26 | 280L |
DFL3140-KG1K-923-000J | 4X2 | 3800 | D530 | ISDe210 30 | 3 | DC6J95T | 6 | 10 | 5.143 | 200L |
DFL1140B2-KG2E-101-012J | 4X2 | 4500 | D530 | B190 33 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 160L |
DFL1160BX1-KL3T-020-012J | 4X2 | 3800 | D530 | YC6J180-33 | 2 | 8JS85F DD | 6 | 10 | 5.571 | 200L |
DFL4181A-K02Y-981-012J | 4X2 | 3500 | D310 | C230 33 | 2 | RT-11509C DD | 7 | 13 | 5.143 | 400L |
DFL4250A1-K04Y-981-002B | 6X4 | 3400+1300 | D310 | C260 33 | 2 | RT-11509C DD | 7 | 10+10 | 5.143 | 350L |
DFL4251A8-T04Y-981-00CB | 6X4 | 3400+1350 | D310 | L340 30 | 2 | 12JS160TA OD | 7 | 13+13 | 5.571 | 400L |
DFL4251A8-T04Y-982-B02J | 6X4 | 3400+1350 | D310 | L375 30 | 2 | 12JS160TA OD | 7 | 13+13 | 5.571 | 400L |
DFL1208B1Y-KY4-980-010J | 6X4 | 6000+1350 | D310 | EQB210-20 | 2 | DC6J95T | 6 | 10+10 | 6.5 | 280L |
DFL1250A8-K01Y-981-012J | 6X4 | 4350+1300 | D310 | C260 33 | 2 | RT-11509C DD | 7 | 10+10 | 5.143 | 350L |
DFL3258A6-K23Y-981-012J | 6X4 | 3800+1350 | D310 | LK375 33 | 2 | 12JSD180T DD | 9 | 13+13 | 5.26 | 280L |
DFL3258A6-K24Y-981-012J | 6X4 | 4050+1350 | D310 | LK375 33 | 2 | 12JSD180T DD | 9 | 13+13 | 5.26 | 280L |
DFL3318A12-K36Y-981-012J | 8X4 | 1850+4200+1350 | D310 | LK375 33 | 2 | 12JSD180T DD | 9+9 | 13+13 | 5.26 | 350L |
DFL1080BY-KE3Y-001-012J | 4X2 | 4500 | D530 | EQ140-20 | 2 | DF6S650 OD | 3.6 | 6 | 4.875 | 145L |
DFL1120BY-KD1Y-101-012J | 4X2 | 4700 | D530 | EQ180-20 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL1120BY-KD3Y-101-012J | 4X2 | 5600 | D530 | EQ180-20 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL1180BY-KY1-002-012J | 4X2 | 6100 | D530 | ISDe270 30 | 3 | 9JS119T-B | 6 | 13 | 4.11 | 280L |
DFH1160B81(KW8Y-910) | 4X2 | 6200 | D530 | ISD270 50 | 5 | ZF6S1000 TD | 6 | 10 | 5.286 | 400L |
DFH1160B81(KW7Y-910) | 4X2 | 5200 | D530 | ISD270 50 | 5 | ZF6S1000 TD | 6 | 10 | 5.286 | 400L |
DFH5160B80(KW6Y-910) | 4X2 | 4200 | D530 | ISD270 50 | 5 | ZF6S1000 TD | 6 | 10 | 5.286 | 280L |
DFL1180BY1-KU2Y-981-002J | 4X2 | 4500 | D530 | B210 33 | 2 | DC7J100TC DD | 6 | 13 | 5.571 | 200L |
DFL1180BY-KU1Y-981-002J | 4X2 | 4500 | D530 | EQB210-20 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 200L |
DFL3140BY-KM1Y-001-012J | 4X2 | 4200 | D530 | EQ210-20 | 2 | DF6S900 OD | 6 | 6/10 | 5.286 | 200L |
DFL3250B-KQ5Y-970-012J | 6X4 | 4100+1350 | D530 | YC6A260-33 | 2 | 9JS119T-B | 6 | 13+13 | 5.92 | 280L |
DFL1208BY-KY3-980-010J | 6X4 | 4150+1350 | D530 | EQB210-20 | 2 | DC6J95T | 6 | 10+10 | 6.5 | 280L |
DFL3140BY-KG1Y-982-010J | 4X2 | 4200 | D530 | ISDe210 30 | 3 | DC6J95T | 6 | 10 | 5.143 | 200L |
EQ1141KJ-B49DM0 | 4X4 | 4500 | CPB12 | EQB190-20 | 2 | DF6S750 | 3.5 | 9 | 5.29 | 140L |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.

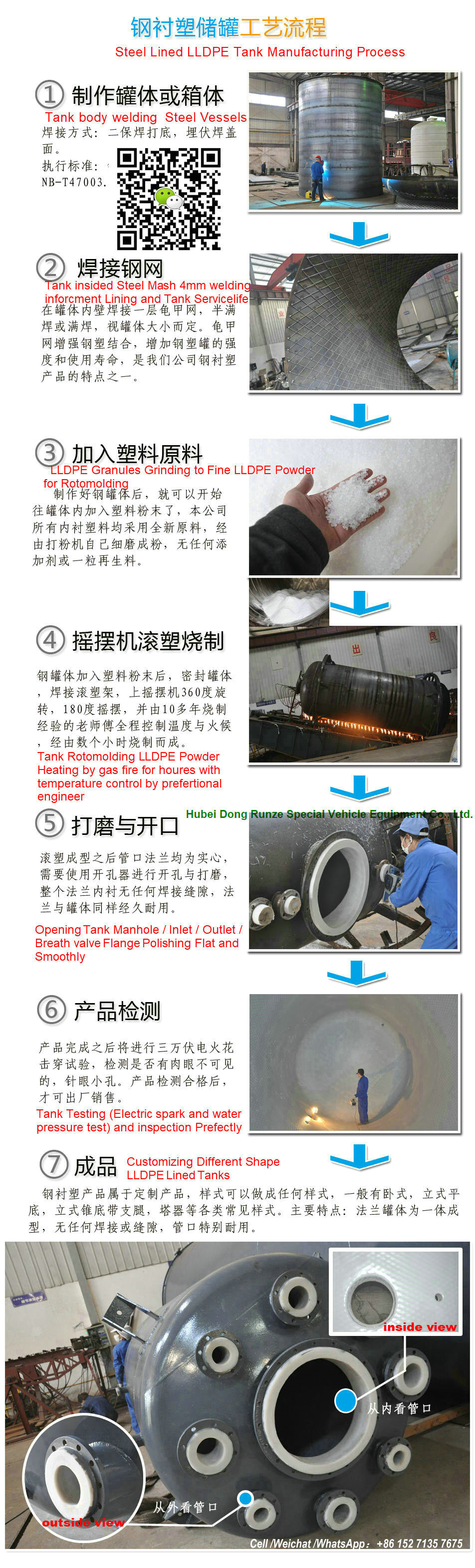

Rotationally Molded LLDPE TANK
chemical resistance of LLDPE Cell / :+8615271357675
www.truckinchina.com
The chemical compatibility of LDPE and HDPE on this chart is tested at 20°C: and 50°C: for 7 days and 30 days (if applicable) with constant exposure.
LDPE & HDPE resistance listed by chemical | |
1.4-dioxane | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days. |
Acetaldehyde | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. LDPE at 50°C: immediate damage may occur. |
Acetic Acid 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Acetic Acid, glacial 50% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50 °C: immediate damage may occur. |
Acetone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Allyl Alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Aluminum salts | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amino acids | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonia | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium carbonate saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium phosphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amyl chloride | HDPE at 20°C: shows some effect after 7 days. HDPE at 50°C & LDPE at 20°C-50°C: immediate damage may occur. Not recommended for continuous use. |
Aniline | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. |
Benzene | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Benzyl alcohol | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Boric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Bromine | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Butyric acid | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Calcium chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Calcium hydroxide saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Carbon tetrachloride | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C & HDPE at 50°C: show some effect after 7 days. LDPE at 50°C: not recommended. |
Chlorine 10% in water | LDPE / HDPE at 20°C: shows little or no damage after 30 days. LDPE at 50°C: shows damage and is not recommended. |
Chlorobenzene | Immediate damage may occur. Not recommended for continuous use. |
Chloroform | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: immediate damage may occur. Not recommended for continuous use. |
Chromic acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Chromic acid 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Citric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Cresol | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Cyclohexane | LDPE / HDPE at 50°C: immediate damage may occur. LDPE / HDPE at 20°C: show some effect after 7 days. |
Diethyl ketone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Dimethylsulfoxide | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethanol 95% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl benzene | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Ethylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethylene oxide | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: and LDPE/ HDPE at 50°C: show some effect after 7 days. |
Ferric chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluoride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluorine | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: shows some effect after 7 days. Not recommended at 50°C. |
Formaldehyde 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Formaldehyde 40% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Glycerol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hexane | HDPE at 20°C: shows little or no damage after 30 days continuous use. HDPE at 50 °C: shows some effect after 7 days. LDPE not recommended at any temperature. |
Hydrochloric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 35% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 5% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrocyanic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 4% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 48% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 3% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 30% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isobutyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isopropyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Kerosene | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE not recommended at 50°C, as immediate damage may occur. |
Lactic Acid 10 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lactic Acid 90 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lead acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methanol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methyl ethyl ketone | Immediate damage may occur. Not recommended for continuous use. |
Methyl propyl ketone | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Methylene chloride | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Mineral oil | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: may show immediate damage and is not recommended. |
n-amyl acetate | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days or constant exposure. |
n-butyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Nitric acid 50 % | LDPE at 20°C: shows little or damage after 30 days. HDPE at 20°C & LDPE at 50°C: show effect after 7 days. HDPE at 50°C: shows immediate damage and is not recommended. |
Nitric acid 70 % | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
n-octane | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Oleic acid | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C-50°C: shows immediate damage and is not recommended. |
Oxalic acid | LDPE at 20°C: shows some effect after 7 days. HDPE at 20°C and LDPE / HDPE at 50°C: shows little/ no damage after 30 days. |
Ozone | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric acid | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric ethylene | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phenol | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phosphoric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Phosphoric acid 85% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows immediate damage and is not recommended. |
Phosphorous trichloride | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: has no data available. HDPE at 50°C: shows some effect after 7 days. |
Potassium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide concentrated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium permanganate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Propylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Pyridine | Immediate damage may occur. Not recommended for continuous use. |
Salicylic acid, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium chloride, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium dichromate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hydroxide 1% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C-50°C: shows some effect after 7 days. |
Sodium hydroxide 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hypochlorite 15% | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C: is suitable but at 50°C: shows some effect after 7 days. |
Sodium nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sucrose | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 6% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 60% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 98% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C: shows effect after 7 days. Not recommended for use at 50°C. |
Tannic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Tetrahydrofuran | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Toluene | LDPE at 20°C: show some effect after 7 day of constant exposure. HDPE at 20°C-50°C & LDPE at 50°C: show immediate damage. Not recommended. |
Trichloracetic acid | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Trichlorethane | Immediate damage may occur. Not recommended for continuous use. |
Turpentine oil | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Urea | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Xylene | HDPE at 20°C: shows some effect after 7 day of constant exposure. LDPE at 20-50°C and HDPE at 50°C: show immediate damage. Not recommended. |
Zinc chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |

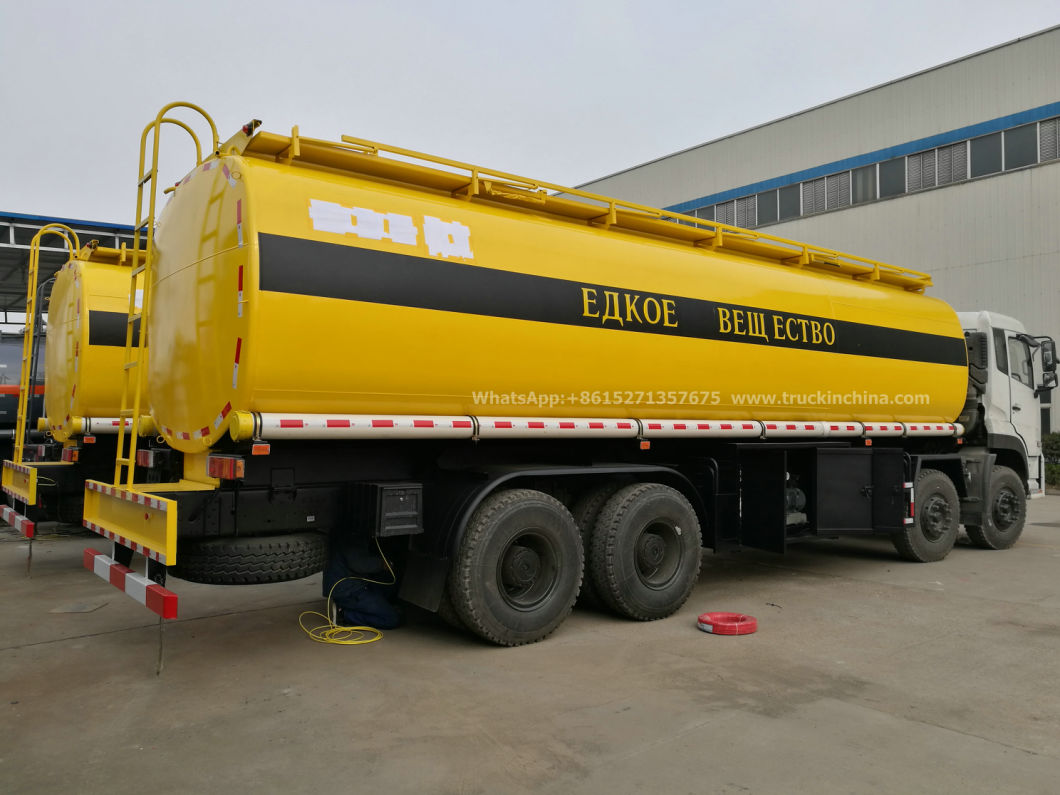

Dongfeng Chemical Acid Liquid Trucks 28T HCL Acid tanker 12 Wheels ( For Chemical Acid Liquid ,Drink Water,Carbon Steel Lined PE Tank with Acid Chemical Pump)Tanker Truck
Road tanker truck 375HP
25000 ~30000Litres

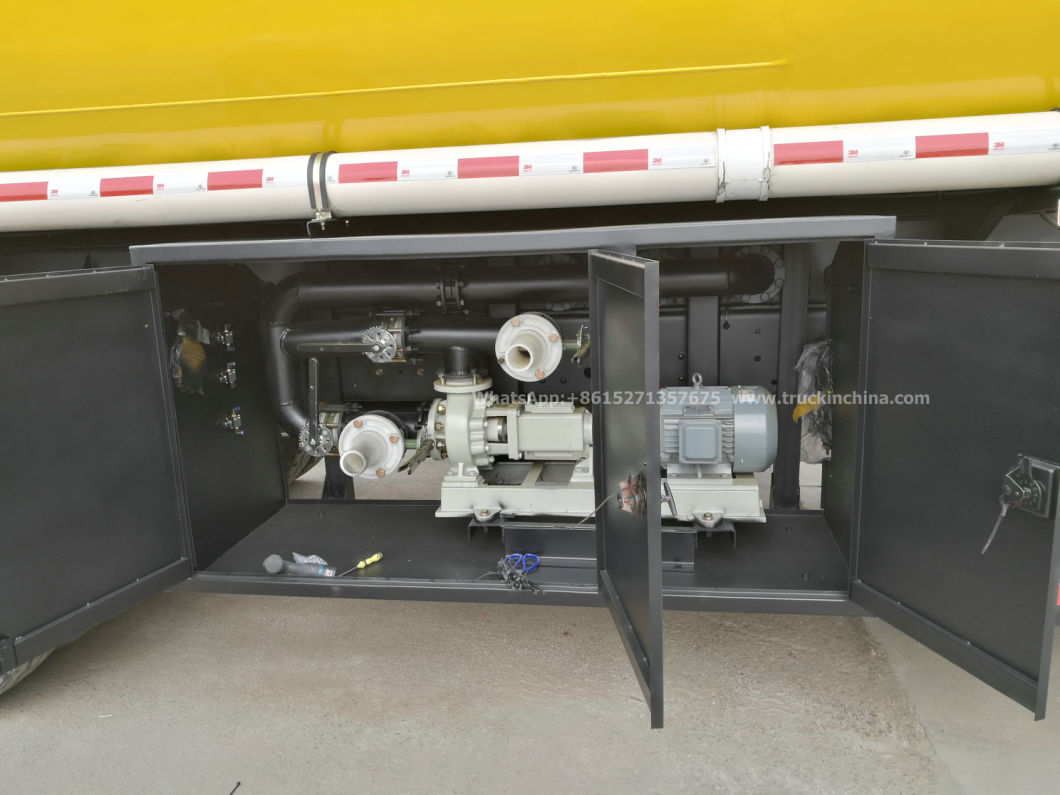

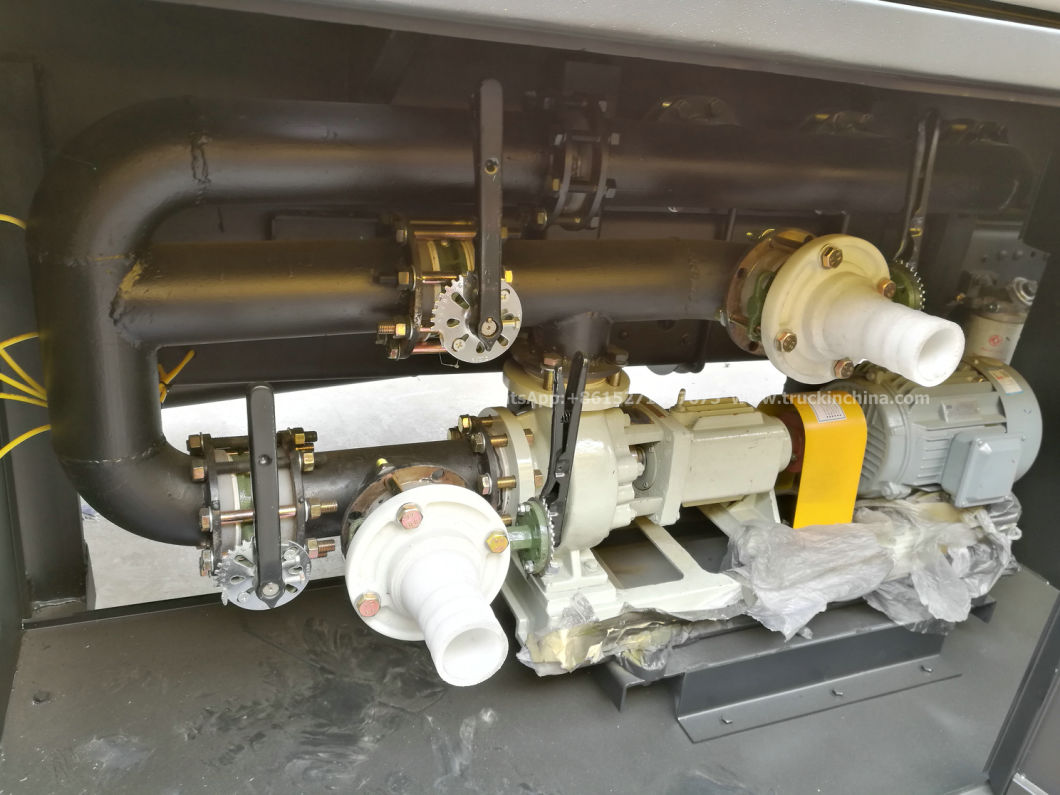

Acid oil tanker truck for HCL, NaCIO acid Tank hydrochloric acid -HCL, dilute sulphuric acid WEAK SULFURIC ACID -H2SO4 ,sodium hypochlorite - NaCIO ,Caustic soda-NaOH
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale 86-152 -7135-7675 Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
transport media name: hydrochloride, hydrogen chlorate, sodium hydroxide,
acrylic (media density are for 1190 kilograms/cubic metres),
acetic acid, glacial acetic acid, hydrogen peroxide (media density are for 1140 kilograms/cubic metres)
Propionic acid, (density for 1110 kilograms/cubic metres),
ammonia, (NH3·H2Odensity for 1090 kilograms/cubic metres),

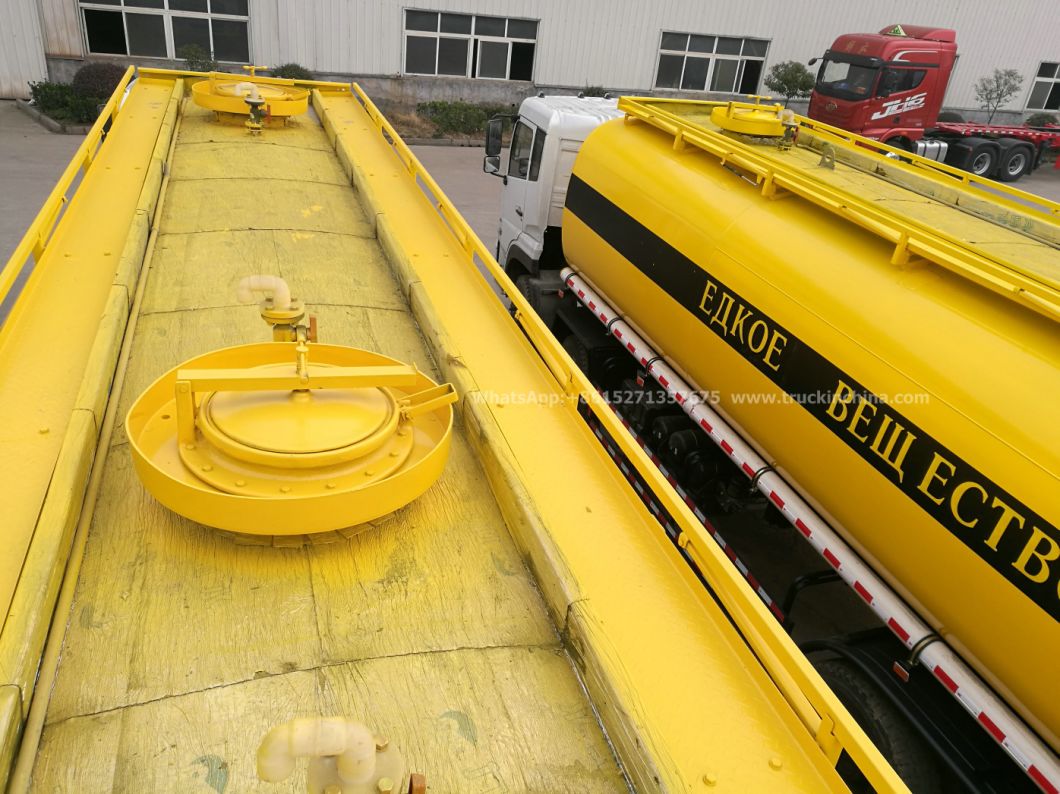

Hydrochloric acid tank
Type : | 8x4 Truck chassis | |||
Product Name : | DFL1310AX13A | |||
Development Code : | K83V-975 | K83V-976 | ||
Chassis Dimensions(mm) | ||||
Overall chassis length | 11720 | ← | ||
Cab width | 2500 | ← | ||
Cab height (unladen) () | 3700 | ← | ||
Wheel base | 1850+4800+1350 | ← | ||
Front overhang | 1480 | ← | ||
Rear overhang | 2240 | ← | ||
Maximum velocity (Km/h) | 85 | ← | ||
vehicle weights(kg) | ||||
G.V.W | 31000 | ← | ||
Curb weight | 10000 | ← | ||
Frame profile Dimensions(mm) | ||||
Frame width (front ) | 940 | ← | ||
Frame width ( rear ) | 860 | ← | ||
Section height | 300 | ← | ||
Section width | 90 | ← | ||
Engine | Type | L375-30 | ← | |
Emission level | Euro (EGR) | ← | ||
Maximum power | 276kw at 2200rpm | ← | ||
Maximum torque | 1480Nm at 1400 rpm | ← | ||
Number of cylinders | 6 | ← | ||
Displacement (lit) | 8.9 | ← | ||
Cylinder bore (mm) | 114 | ← | ||
Stroke (mm) | 145 | ← | ||
System | Water cooled , turbocharged , after cooled , mechanical pump , no heating for starting. | |||
Clutch | Type | SACHS | ||
Plate's diameter | ¢430mm | |||
operating system | Hydraulic control with air booster, pulling | |||
Gear box | Type | 12JSD180T DD | ||
Number of gears | 12forward gears& 2 reverse ,synchronized | |||
Ratios | Forward:15.53;12.08;9.39;7.33;5.73;4.46;3.48;2.71;2.10;1.64;1.28;1 Reverse:14.86;3.33 | |||
Brake System | Full air brake system, split pneumatic circuit ; parking spring brake acting on rear axles ,exhaust brake system. | |||
Cab | Sleeper cab, two bunks ,forward control type , High roof,new face, all welded steel cab , front and rear mechanical cab suspension , adjustable driver's seat, air conditioner ; optional Electrical cab tilting, electric windows, central lock. D310 | |||
Axle | Front | Elliot type, I beam section | ||
Load capacity(ton) | 7 | |||
Rear | K83V-975:Single reduction ,tandem axle, with axle lock, ratio 5.143. K83V-976:Hub reduction,tandem axle, with axle lock and wheel lock , ratio 5.26. | |||
Load capacity(ton) | 13 | |||
Tyres | 12.00-20/12.00R20 | |||
Suspension | Front | 9- Leaf spring with shock absorber | ||
Rear | 13-leaf spring | |||
Battery | Voltage (V) | 24 | ||
Battery capacity (A.h) | 165X2 | |||
Fuel Tank | Type | Steel fuel tank, with lockable cap , | ||
Capacity | 350lit |
Dongfeng Chassis optional LHD RHD
DFL1250AW2-K03U-923-012J | 6X4 | 5600+1350 | D310 | ISLe375 30 | 3 | 12JSD180T | 7 | 13+13 | 4.44 | 400L |
DFL1250A9-K04V-975-012J | 6X4 | 5850+1350 | D310 | C260 33 | 2 | 9JS119T-B | 7 | 10+10 | 4.44 | 350L |
DFL1250A8-K01E-403-022J | 6X4 | 4350+1350 | D310 | C260 33 | 2 | 9JS119T-B | 7 | 10+10 | 5.143 | 350L |
DFL1250A9-K03E-403-022J | 6X4 | 5650+1350 | D310 | C260 33 | 2 | 9JS119T-B | 7 | 10+10 | 4.44 | 3500L |
DFL1310AX13A-K83V-976-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.26 | 350L |
DFL1310AX13A-K83V-977-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.143 | 350L |
DFL1310AX13A-K83V-975-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.143 | 350L |
DFL1310AX13A-K83V-978-012J | 8X4 | 1850+4800+1350 | D310 | L375 30 | 2 | 12JSD180T | 7 | 13+13 | 5.26 | 350L |
DFL1311A4-K14E-975-012J | 8X4 | 1950+4250+1300 | D310 | L315 30 | 2 | 9JS119T-B | 5+5 | 10+10 | 4.44 | 350L |
DFL1311A4-K14E-976-012J | 8X4 | 1950+4250+1300 | D310 | L315 30 | 2 | 9JS119T-B | 5+5 | 10+10 | 4.44 | 350L |
DFL1311A4-K14E-301-022J | 8X4 | 1950+4250+1350 | D310 | L315 30 | 2 | 9JS119T-B | 7+7 | 13+13 | 5.143 | 350L |
DFL1311A4-K14E-434-022J | 8X4 | 1950+4250+1350 | D310 | L340 30 | 2 | 12JS160TA | 7+7 | 13+13 | 4.44 | 350L |
DFL1311A4-K13W-975-012J | 8X4 | 1850+5150+1350 | D310 | L340 30 | 2 | 9JS135T-B | 5+5 | 10+10 | 4.44 | 400L |
DFL1311A4-K14W-975-012J | 8X4 | 1850+5150+1350 | D310 | YC6L310-33 | 2 | 9JSD135T-B | 5+5 | 10+10 | 4.44 | 400L |
DFL3251AWJ1-K21R-931-012J | 6X4 | 3800+1450 | D310 | ISLe340 40 | 4 | 12JS180T | 7 | 13+13 | 5.92 | 400L |
DFH3250A81-K26U-920-012J | 6X4 | 3800+1350 | D310 | dCi420-30 | 3 | 12JSD200T | 9 | 13+13 | 5.92 | 400L |
DFL3251A1-K43R-931-010J | 6X4 | 3800+1350 | D310 | ISLe375 30 | 3 | 12JS160T | 7 | 13+13 | 5.26 | 400L |
DFL3160BX6A-KM6H-100-030J | 4X2 | 4200 | D530 | YC6J200-42 | 4 | 8JS118 DD | 6 | 13 | 6.33 | 280L |
DFL3258A3W-K20U-956-000J | 6X4 | 3800+1450 | D310 | L340 20 | 2 | RT-11509G | 7 | 13+13 | 5.26 | 400L |
DFL3258A3-K22V-975-032J | 6X4 | 3800+1350 | D310 | YC6MK375-33 | 2 | 12JSD180T | 9 | 13+13 | 5.92 | 280L |
DFL3258A3-K20V-978-032J | 6X4 | 3800+1450 | D310 | L375 30 | 2 | 12JS180T | 7 | 13+13 | 6.73 | 350L |
DFL3258A6-K25W-975-012J | 6X4 | 3800+1350 | D901 | YC6MK375 33 | 2 | 12JSD180T | 9+9 | 13+13 | 5.92 | 280L |
DFL3258A6-K26W-975-012J | 6X4 | 3400+1350 | D901 | YC6MK375 33 | 2 | 12JSD180T | 9+9 | 13+13 | 5.92 | 280L |
DFL3310A10-K36K-999-012J | 8X4 | 1850+3400+1350 | D310 | ISLe375 30 | 3 | DC12J165T | 7+7 | 13+13 | 5.92 | 400L |
DFL3310A14-K37E-001-012J | 8X4 | 1850+4200+1350 | D310 | L375 30 | 2 | 12JSD160T | 7+7 | 13+13 | 5.26 | 350L |
DFL3310A14-K37V-975-012J | 8X4 | 1850+4200+1350 | D310 | YC6MK375-33 | 2 | 12JSD180T | 7+7 | 13+13 | 5.26 | 350L |
DFL5251GJBA4-K09R-930-012J | 6X4 | 3800+1350 | D310 | ISLe340 40 | 4 | 9JS150T | 7 | 13+13 | 4.875 | 400L |
DFL5251GJBA1-K47G-000-012 | 6X4 | 4000+1350 | D310 | ISLe340 30 | 3 | 9JS150T-B | 7 | 13+13 | 5.571 | 400L |
DFL5250GJBA-K09E-004-022J | 6X4 | 3650+1350 | D310 | L340 30 | 2 | 9JS150T-B | 7 | 13+13 | 5.571 | 350L |
DFL5250GJBA1-K09G-000-022J | 6X4 | 4000+1350 | D310 | L340 30 | 2 | 9JS150T-B | 7 | 13+13 | 5.571 | 280L |
DFL5250GJBA-K09F-100-002J | 6X4 | 3800+1350 | D310 | L340 30 | 2 | 9JS150T-B | 7 | 13+13 | 5.571 | 200L |
DFL1120B13-KD2H-000-210J | 4X2 | 5000 | D530 | ISB180 40 | 4 | DF6S900 | 4.5 | 9 | 5.286 | 200L |
DFH5080B80-KE2R-930-012J | 4X2 | 3800 | D530 | ISD140 50 | 5 | DF6S650 | 3.6 | 6 | 4.33 | 200L |
DFL1080B-KE3K-923-002J | 4X2 | 4500 | D530 | ISDe140 30 | 3 | DF6S650 | 3.6 | 6 | 4.33 | 145L |
DFL1080B2-KE5E-000-032J | 4X2 | 4500 | D530 | YC4E140-33 | 2 | DF6S650 OD | 3.6 | 6 | 4.875 | 145L |
DFH5120B80-KX2R-930-012J | 4X2 | 5000 | D530 | ISD185 50 | 5 | DF6S900 | 4.5 | 9 | 4.56 | 200L |
DFL1140BW1-KW3Z-925-012J | 4X2 | 5000 | D530 | ISDe210 40 | 4 | DF6S900 | 6 | 10 | 4.44 | 280L |
DFL1120B-KD1-924-010J | 4X2 | 4700 | D530 | ISDe180 30 | 3 | DF6S900 | 4.5 | 9 | 4.56 | 200L |
DFL1140B-KD5-923-010J | 4X2 | 5000 | D530 | ISDe210 30 | 3 | DF6S900 | 6 | 10 | 4.44 | 160L |
DFL5120XXYB1-KD3W-975-010J | 4X2 | 6100 | D530 | B170 33 | 2 | DF6S900 | 4.5 | 9 | 5.286 | 160L |
DFL1120B-KD1E-010-022J | 4X2 | 4700 | D530 | B170 33 | 2 | DF6S900 | 4.5 | 9 | 5.286 | 160L |
DFL1120B-KD2E-010-022J | 4X2 | 5000 | D530 | B170 33 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL5120XXYB1-KD3E-010-012J | 4X2 | 5600 | D530 | B170 33 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL1140B-KD4E-000-012J | 4X2 | 4700 | D530 | B190 33 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 160L |
DFL1140B-KD5E-000-012J | 4X2 | 5000 | D530 | B190 33 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 160L |
DFL5140XXYB1-KD6E-975-012J | 4X2 | 5600 | D530 | B190 33 | 2 | DF8S1000 | 6 | 10 | 4.875 | 160L |
DFL5140XXYB1-KD6W-975-012J | 4X2 | 6100 | D530 | B190 33 | 2 | DF8S1000 | 6 | 10 | 4.875 | 160L |
DFH1160B80-KW4Z-925-012J | 4X2 | 5000 | D530 | ISD210 50 | 5 | DF6S900 | 6 | 10 | 4.44 | 280L |
DFH1180B80-KD6Z-925-012J | 4X2 | 5000 | D530 | ISD270 50 | 5 | DC7J120TD | 6 | 13 | 4.44 | 280L |
DFL1160BW1-KD5Z-925-012J | 4X2 | 5000 | D530 | ISDe270 40 | 4 | DC7J120T | 6 | 13 | 4.44 | 280L |
DFL1160BW-KD6U-923-012J | 4X2 | 5600 | D530 | ISDe270 30 | 3 | 9JS119T-B | 6 | 13 | 4.44 | 280L |
DFL1203A-K44E-977 | 6X2 | 1950+5350 | D310 | C230 33 | 3 | 9JS119TB | 10 | 13 | 4.875 | 350L |
DFL3310AW1-K51R | 8X4 | 1850+3400+1350 | D310 | ISLe375 40 | 4 | 12JS180T DD | 7+7 | 13+13 | 5.92 | 400L |
DFL3120B-KL2E-200-012J | 4X2 | 3800 | D530 | YC4E160-33 | 2 | 8JS85J | 4.5 | 10 | 5.571 | 160L |
DFL3120B1-KM3E-000-012J | 4X2 | 4200 | D530 | B190 33 | 2 | 8JS118 | 6 | 13 | 6.33 | 200L |
DFL3250B-KQ5W-975-002J | 6X4 | 3800+1350 | D530 | YC6A260 33 | 2 | 9JS119TB | 6 | 10+10 | 5.571 | 280L |
DFL3160-KM5M-923-012J | 4X2 | 5500 | D530 | ISDe270 30 | 3 | DC7J120T | 6 | 13 | 4.77 | 200L |
DFL3120B2-KM8-000-022J | 4X2 | 4500 | D530 | YC6A240-33 | 2 | 8JS118 DD | 6 | 13 | 5.92 | 280L |
DFL3120B-KL3E-975-012J | 4X2 | 3800 | D530 | YC6J180 33 | 2 | DF8S1000 DD | 6 | 10 | 5.571 | 200L |
DFL3120B-KL3E-976-012J | 4X2 | 3800 | D530 | YC6J180 33 | 2 | DF8S1000 DD | 6 | 13 | 5.571 | 200L |
DFL3120B-KL3W-975-012J | 4X2 | 4200 | D530 | YC6J180 33 | 2 | DF8S1000 DD | 6 | 13 | 5.571 | 200L |
DFL3120B1-KL5E-000-022J | 4X2 | 4500 | D530 | B210 33 | 2 | 8JS118 | 6 | 13 | 6.33 | 200L |
DFH3258A11-ZG3L | 6X4 | 3800+1350 | D901 | YC6MK340-33 | 2 | DC10J190T | 9 | 22 | 5.92 | 280L |
DFL3250B-KQ4-975-010J | 6X4 | 3800+1350 | D530 | YC260 33 | 2 | 9JS119TB | 6 | 13+13 | 5.26 | 280L |
DFL3140-KG1K-923-000J | 4X2 | 3800 | D530 | ISDe210 30 | 3 | DC6J95T | 6 | 10 | 5.143 | 200L |
DFL1140B2-KG2E-101-012J | 4X2 | 4500 | D530 | B190 33 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 160L |
DFL1160BX1-KL3T-020-012J | 4X2 | 3800 | D530 | YC6J180-33 | 2 | 8JS85F DD | 6 | 10 | 5.571 | 200L |
DFL4181A-K02Y-981-012J | 4X2 | 3500 | D310 | C230 33 | 2 | RT-11509C DD | 7 | 13 | 5.143 | 400L |
DFL4250A1-K04Y-981-002B | 6X4 | 3400+1300 | D310 | C260 33 | 2 | RT-11509C DD | 7 | 10+10 | 5.143 | 350L |
DFL4251A8-T04Y-981-00CB | 6X4 | 3400+1350 | D310 | L340 30 | 2 | 12JS160TA OD | 7 | 13+13 | 5.571 | 400L |
DFL4251A8-T04Y-982-B02J | 6X4 | 3400+1350 | D310 | L375 30 | 2 | 12JS160TA OD | 7 | 13+13 | 5.571 | 400L |
DFL1208B1Y-KY4-980-010J | 6X4 | 6000+1350 | D310 | EQB210-20 | 2 | DC6J95T | 6 | 10+10 | 6.5 | 280L |
DFL1250A8-K01Y-981-012J | 6X4 | 4350+1300 | D310 | C260 33 | 2 | RT-11509C DD | 7 | 10+10 | 5.143 | 350L |
DFL3258A6-K23Y-981-012J | 6X4 | 3800+1350 | D310 | LK375 33 | 2 | 12JSD180T DD | 9 | 13+13 | 5.26 | 280L |
DFL3258A6-K24Y-981-012J | 6X4 | 4050+1350 | D310 | LK375 33 | 2 | 12JSD180T DD | 9 | 13+13 | 5.26 | 280L |
DFL3318A12-K36Y-981-012J | 8X4 | 1850+4200+1350 | D310 | LK375 33 | 2 | 12JSD180T DD | 9+9 | 13+13 | 5.26 | 350L |
DFL1080BY-KE3Y-001-012J | 4X2 | 4500 | D530 | EQ140-20 | 2 | DF6S650 OD | 3.6 | 6 | 4.875 | 145L |
DFL1120BY-KD1Y-101-012J | 4X2 | 4700 | D530 | EQ180-20 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL1120BY-KD3Y-101-012J | 4X2 | 5600 | D530 | EQ180-20 | 2 | DF6S900 OD | 4.5 | 9 | 5.286 | 160L |
DFL1180BY-KY1-002-012J | 4X2 | 6100 | D530 | ISDe270 30 | 3 | 9JS119T-B | 6 | 13 | 4.11 | 280L |
DFH1160B81(KW8Y-910) | 4X2 | 6200 | D530 | ISD270 50 | 5 | ZF6S1000 TD | 6 | 10 | 5.286 | 400L |
DFH1160B81(KW7Y-910) | 4X2 | 5200 | D530 | ISD270 50 | 5 | ZF6S1000 TD | 6 | 10 | 5.286 | 400L |
DFH5160B80(KW6Y-910) | 4X2 | 4200 | D530 | ISD270 50 | 5 | ZF6S1000 TD | 6 | 10 | 5.286 | 280L |
DFL1180BY1-KU2Y-981-002J | 4X2 | 4500 | D530 | B210 33 | 2 | DC7J100TC DD | 6 | 13 | 5.571 | 200L |
DFL1180BY-KU1Y-981-002J | 4X2 | 4500 | D530 | EQB210-20 | 2 | DF6S900 OD | 6 | 10 | 5.286 | 200L |
DFL3140BY-KM1Y-001-012J | 4X2 | 4200 | D530 | EQ210-20 | 2 | DF6S900 OD | 6 | 6/10 | 5.286 | 200L |
DFL3250B-KQ5Y-970-012J | 6X4 | 4100+1350 | D530 | YC6A260-33 | 2 | 9JS119T-B | 6 | 13+13 | 5.92 | 280L |
DFL1208BY-KY3-980-010J | 6X4 | 4150+1350 | D530 | EQB210-20 | 2 | DC6J95T | 6 | 10+10 | 6.5 | 280L |
DFL3140BY-KG1Y-982-010J | 4X2 | 4200 | D530 | ISDe210 30 | 3 | DC6J95T | 6 | 10 | 5.143 | 200L |
EQ1141KJ-B49DM0 | 4X4 | 4500 | CPB12 | EQB190-20 | 2 | DF6S750 | 3.5 | 9 | 5.29 | 140L |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
Rotationally Molded LLDPE TANK
chemical resistance of LLDPE Cell / :+8615271357675
www.truckinchina.com
The chemical compatibility of LDPE and HDPE on this chart is tested at 20°C: and 50°C: for 7 days and 30 days (if applicable) with constant exposure.
LDPE & HDPE resistance listed by chemical | |
1.4-dioxane | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days. |
Acetaldehyde | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. LDPE at 50°C: immediate damage may occur. |
Acetic Acid 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Acetic Acid, glacial 50% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50 °C: immediate damage may occur. |
Acetone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Allyl Alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Aluminum salts | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amino acids | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonia | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium carbonate saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium phosphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amyl chloride | HDPE at 20°C: shows some effect after 7 days. HDPE at 50°C & LDPE at 20°C-50°C: immediate damage may occur. Not recommended for continuous use. |
Aniline | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. |
Benzene | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Benzyl alcohol | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Boric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Bromine | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Butyric acid | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Calcium chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Calcium hydroxide saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Carbon tetrachloride | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C & HDPE at 50°C: show some effect after 7 days. LDPE at 50°C: not recommended. |
Chlorine 10% in water | LDPE / HDPE at 20°C: shows little or no damage after 30 days. LDPE at 50°C: shows damage and is not recommended. |
Chlorobenzene | Immediate damage may occur. Not recommended for continuous use. |
Chloroform | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: immediate damage may occur. Not recommended for continuous use. |
Chromic acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Chromic acid 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Citric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Cresol | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Cyclohexane | LDPE / HDPE at 50°C: immediate damage may occur. LDPE / HDPE at 20°C: show some effect after 7 days. |
Diethyl ketone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Dimethylsulfoxide | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethanol 95% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl benzene | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Ethylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethylene oxide | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: and LDPE/ HDPE at 50°C: show some effect after 7 days. |
Ferric chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluoride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluorine | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: shows some effect after 7 days. Not recommended at 50°C. |
Formaldehyde 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Formaldehyde 40% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Glycerol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hexane | HDPE at 20°C: shows little or no damage after 30 days continuous use. HDPE at 50 °C: shows some effect after 7 days. LDPE not recommended at any temperature. |
Hydrochloric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 35% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 5% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrocyanic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 4% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 48% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 3% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 30% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isobutyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isopropyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Kerosene | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE not recommended at 50°C, as immediate damage may occur. |
Lactic Acid 10 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lactic Acid 90 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lead acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methanol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methyl ethyl ketone | Immediate damage may occur. Not recommended for continuous use. |
Methyl propyl ketone | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Methylene chloride | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Mineral oil | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: may show immediate damage and is not recommended. |
n-amyl acetate | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days or constant exposure. |
n-butyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Nitric acid 50 % | LDPE at 20°C: shows little or damage after 30 days. HDPE at 20°C & LDPE at 50°C: show effect after 7 days. HDPE at 50°C: shows immediate damage and is not recommended. |
Nitric acid 70 % | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
n-octane | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Oleic acid | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C-50°C: shows immediate damage and is not recommended. |
Oxalic acid | LDPE at 20°C: shows some effect after 7 days. HDPE at 20°C and LDPE / HDPE at 50°C: shows little/ no damage after 30 days. |
Ozone | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric acid | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric ethylene | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phenol | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phosphoric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Phosphoric acid 85% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows immediate damage and is not recommended. |
Phosphorous trichloride | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: has no data available. HDPE at 50°C: shows some effect after 7 days. |
Potassium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide concentrated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium permanganate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Propylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Pyridine | Immediate damage may occur. Not recommended for continuous use. |
Salicylic acid, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium chloride, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium dichromate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hydroxide 1% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C-50°C: shows some effect after 7 days. |
Sodium hydroxide 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hypochlorite 15% | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C: is suitable but at 50°C: shows some effect after 7 days. |
Sodium nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sucrose | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 6% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 60% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 98% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C: shows effect after 7 days. Not recommended for use at 50°C. |
Tannic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Tetrahydrofuran | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Toluene | LDPE at 20°C: show some effect after 7 day of constant exposure. HDPE at 20°C-50°C & LDPE at 50°C: show immediate damage. Not recommended. |
Trichloracetic acid | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Trichlorethane | Immediate damage may occur. Not recommended for continuous use. |
Turpentine oil | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Urea | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Xylene | HDPE at 20°C: shows some effect after 7 day of constant exposure. LDPE at 20-50°C and HDPE at 50°C: show immediate damage. Not recommended. |
Zinc chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
