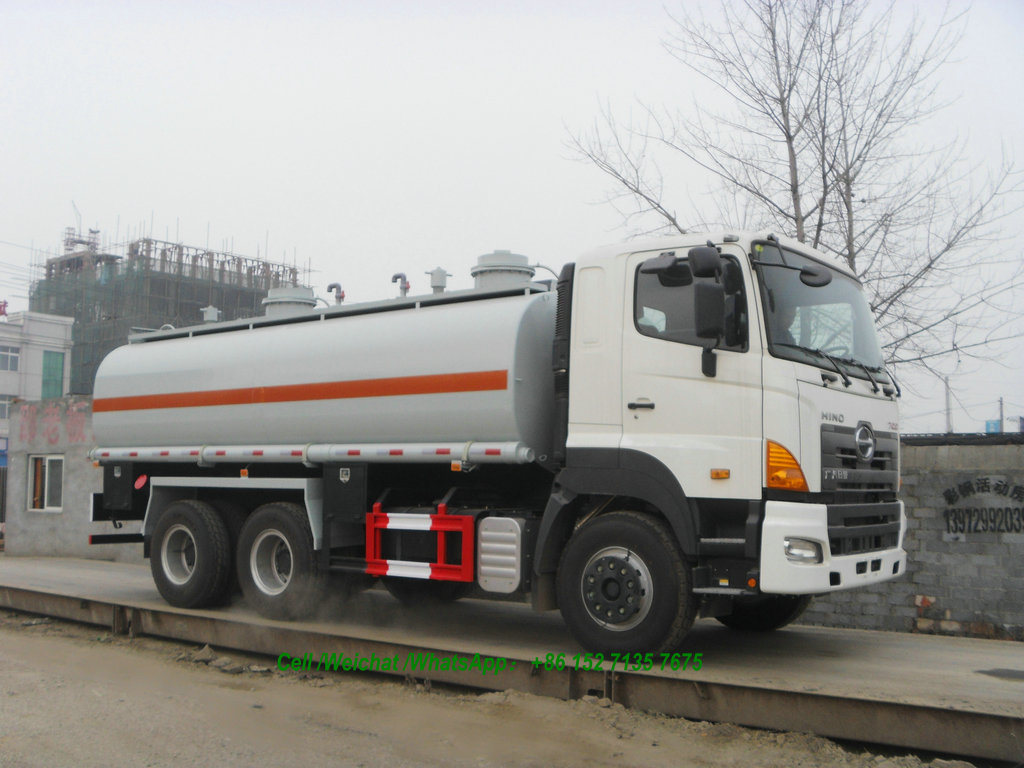

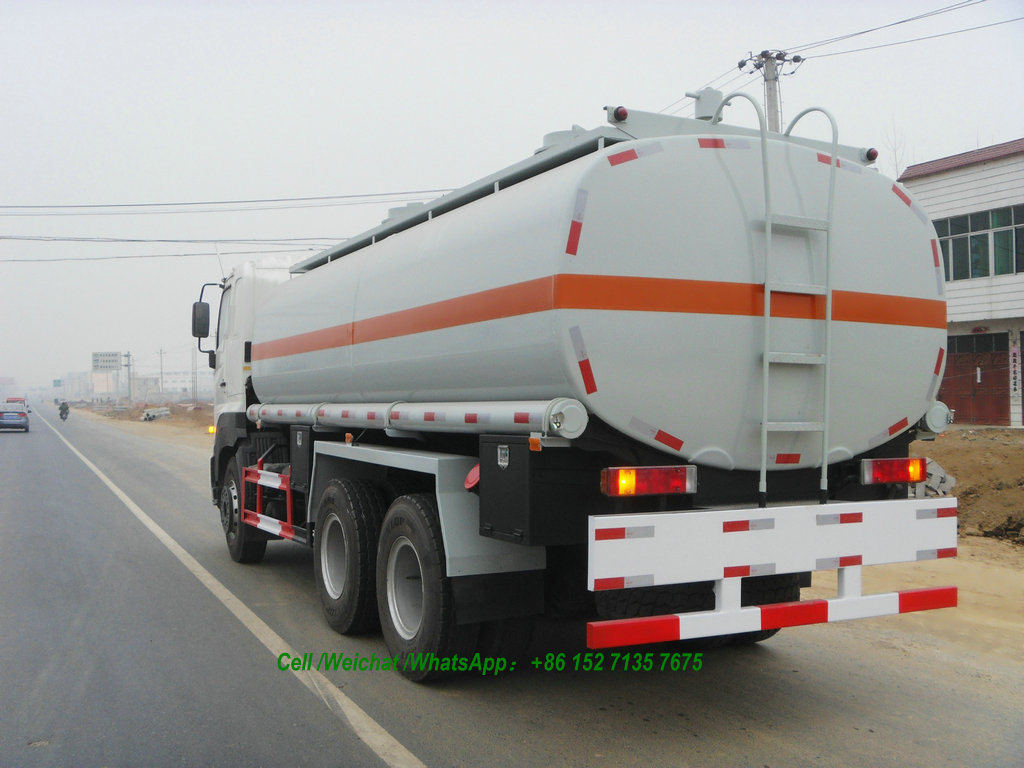

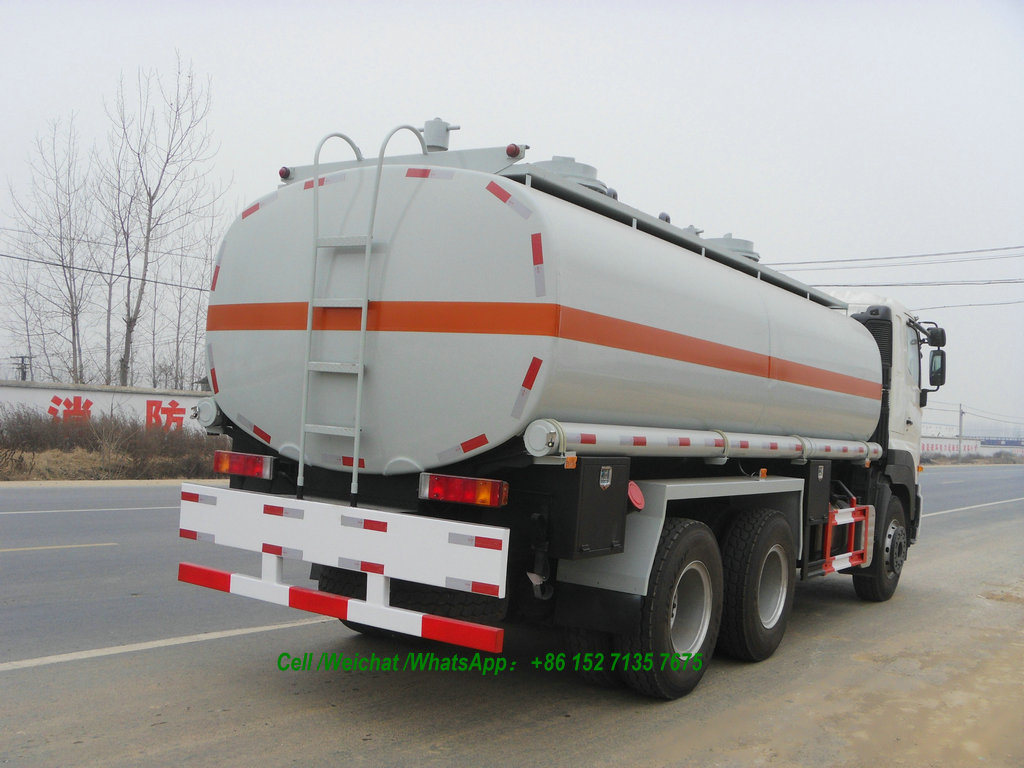

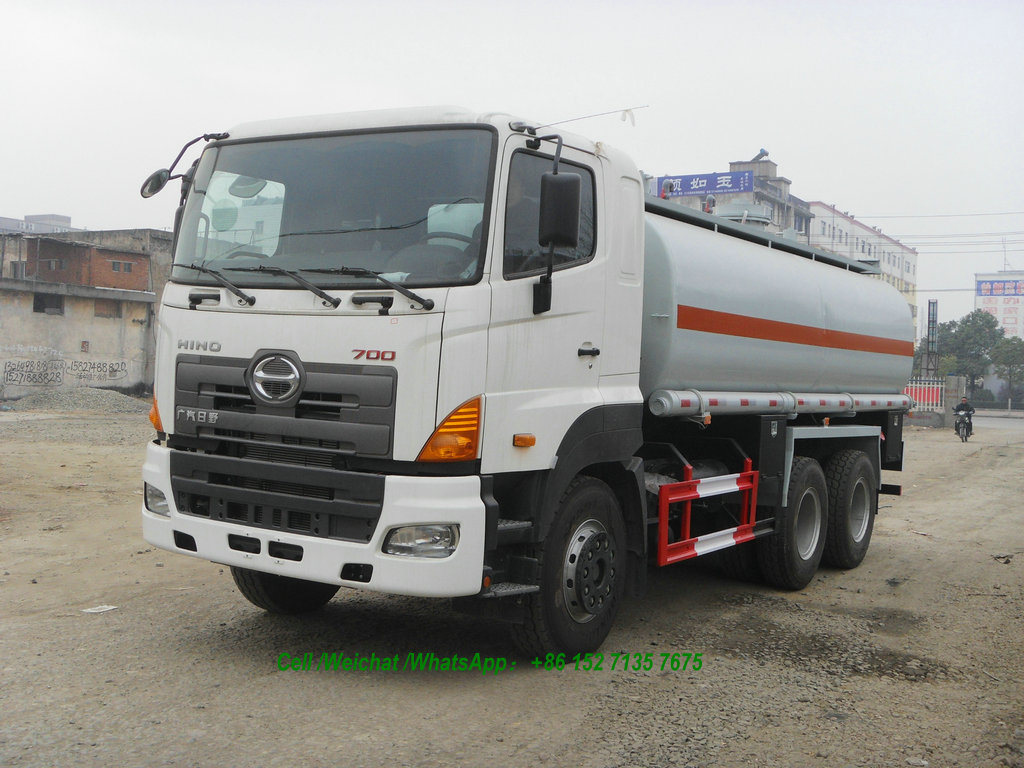

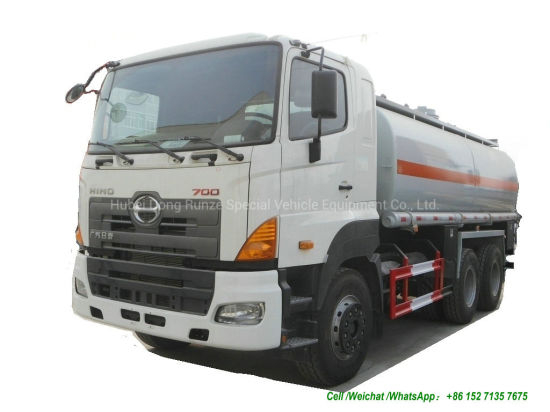

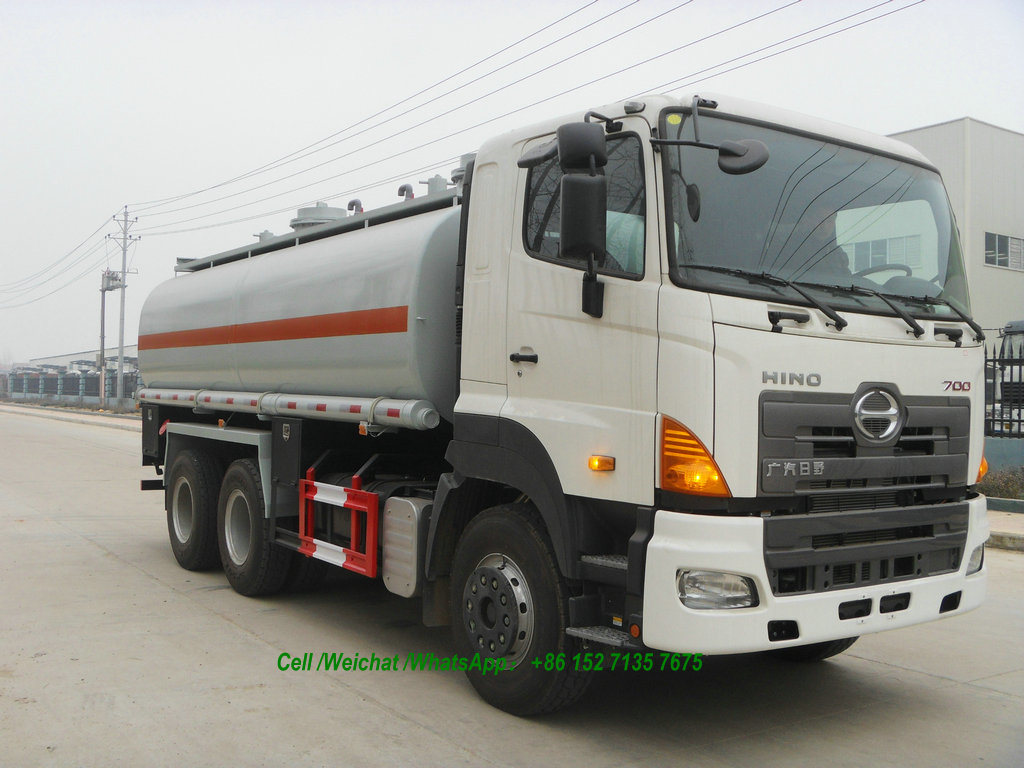

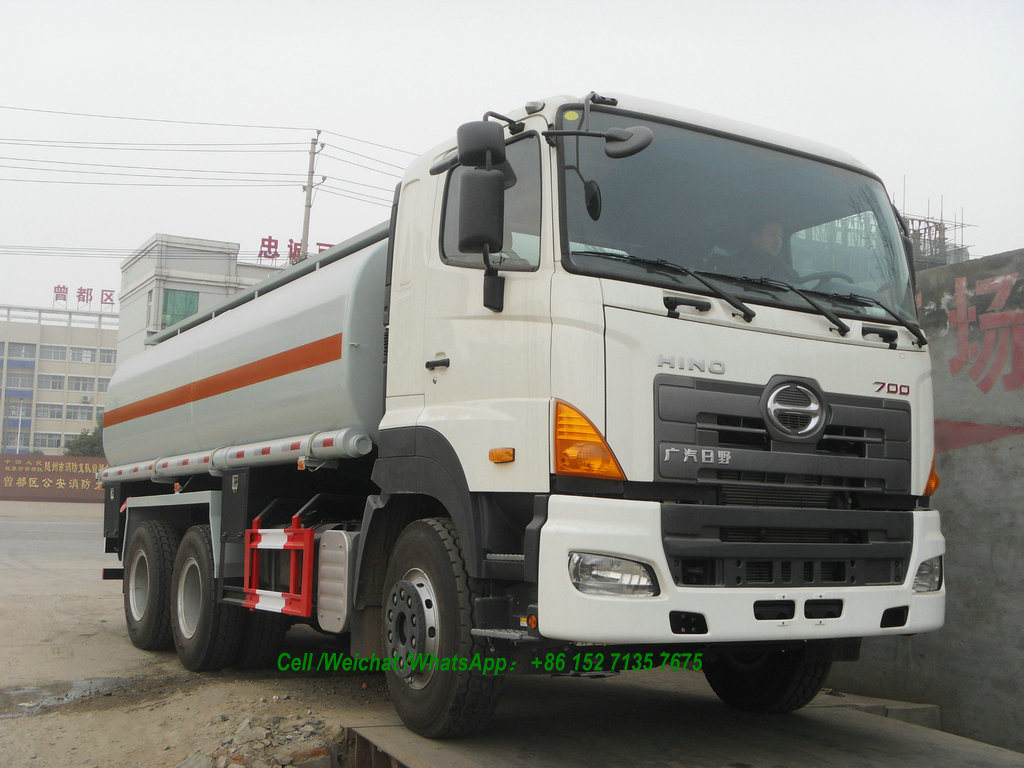

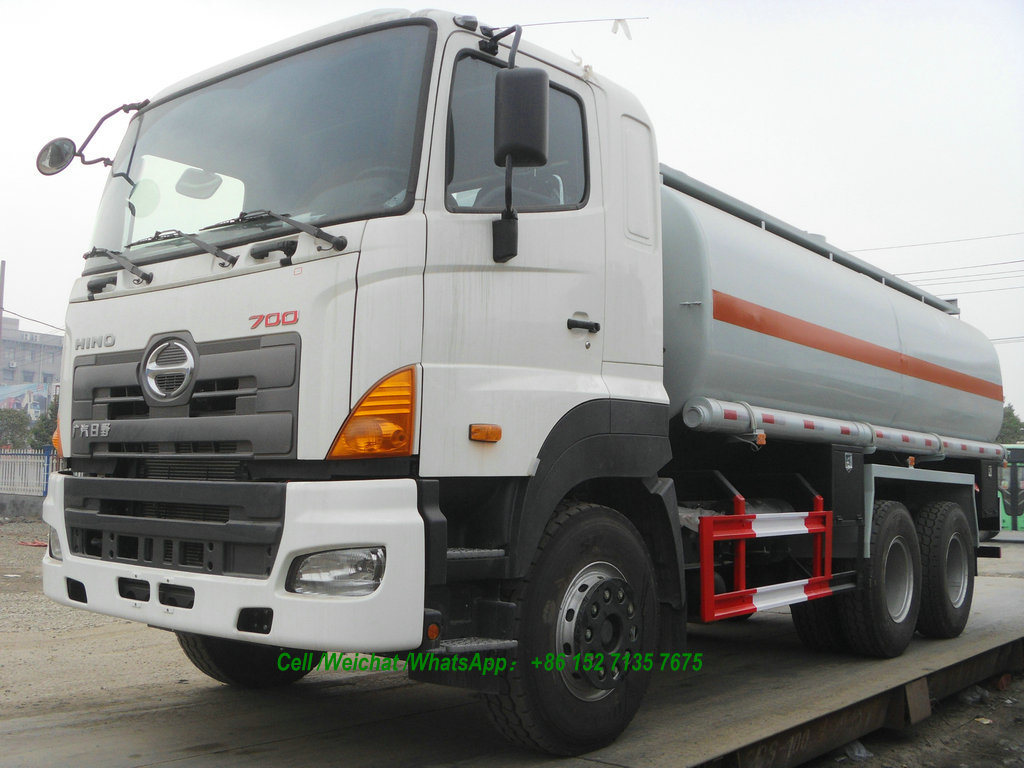

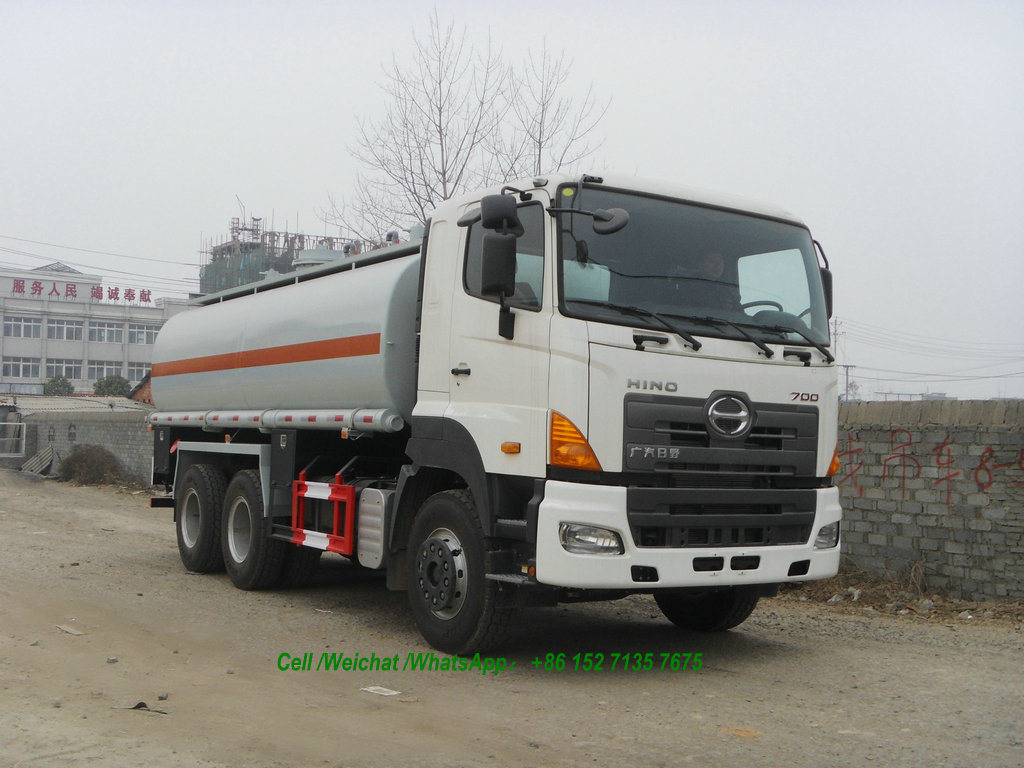

Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)

Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Availability:
Quantity:
Inquire Add to Basket

  • Shanghai, China

  • 10000

  • T/T, Western Union

Hino 700 6X4 Tanker Truck 350HP 15000~16000L ( For Chemical Acid Liquid ,Drink Water,Oil , Carbon Steel / Stainless Steel ,Lined PE Tank)
HINO 700 18cbm road tanker  truck 350HP
15000 ~16000Litres
 HINO 700Acid oil tanker truck for HCL, NaCIO acid Tank hydrochloric acid -HCL, dilute sulphuric acid WEAK SULFURIC ACID -H2SO4 ,sodium hypochlorite - NaCIO ,Caustic soda-NaOH
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale  86-152 -7135-7675            Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)

Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)


Technical specifications YC2250FS2PM5
# Engine model Engine displacement Engine power Engine manufacturer
1 P11C-WB 10520 cc 10.5 L 642 cuin 240 kW 327 hp Shanghai Hino Engine Co., Ltd.


Performance
Fuel diesel fuel
Maximum speed 80 km/h 50 mph
ABS have


Weights and Ground pressure
Curb weight 14500 kg 14.5
Gross vehicle weight rating 25000 kg 25 t 55,000 lbs
Axle load distribution

7000 kg / 18000 kg (tandem axle)


7 t / 18 t (tandem axle)


15,000 lbs / 40,000 lbs (tandem axle)


Dimensions 9.42×2.5×3.97
Overall length 9420 mm
Overall width 2490 mm
Overall height 3970 mm


Undercarriage and Suspension
Number of axles 3
Wheelbase 3350+1410 mm
Front track 2060 mm 6′10″
Rear track 1855 mm / 1855 mm 6′2″ / 6′2″
Front overhang 1460 mm 4′10″
Rear overhang 1290 mm 4′3″
Angle of approach 27°
Angle of departure 39°
Leaf springs 11/13,10/13


Tyres and Wheels
Number of tyres 10
Tyres dimension 11R22.5


Miscellaneous
Seating capacity 2
Steering control steering wheel
Hino 700 6X4 Tanker Truck 350HP 15000~16000L (For Chemical Acid Liquid, Drink Water, Oil, Carbon Steel / Stainless Steel, Lined PE Tank)

transport media   name: hydrochloride, hydrogen chlorate, sodium hydroxide,

acrylic (media   density are for 1190 kilograms/cubic metres),

acetic acid,   glacial acetic acid, hydrogen peroxide (media density are for 1140   kilograms/cubic metres)

Propionic acid, (density for   1110 kilograms/cubic metres),

ammonia, (NH3·H2Odensity for 1090 kilograms/cubic metres),

Hydrochloric acid  tank


HINO Chassis optional


Product Categories		 HINO chassis 700 chassis
Product Type FS2PMUM-TQZ FS2PMUM-SQZ FY2PUUM-MQZ
Configuration coding W1-NR00 W1-BL00 W1-DL00
Drive mode 6x4 8x4
Maximum gross weight (kg) 25,000 25,000 31000
Cab Standard Standard Standard
Dimensions
(Length x width x height) (mm)		 8050x2495x3070 8050x2495x3070 9380x2495x3130
Wheelbase (mm) 3640 + 1410 3640 + 1410 1850 + 3400 + 1410
Front / rear track (mm) 2060/1855/1855 2060/1855/1855 2060/2060/1855/1855
Front / rear overhang (mm) 1410/1590 1410/1591 1410/1310
Minimum ground clearance (mm) ≥220 ≥220 ≥240
Minimum turning diameter (m) ≤18.4 ≤18.4 ≤20
Curb weight (kg) 9200,9400 9200,9400 11000
Engine Model P11C-VK P11C-VK P11C-VK
Rated Power (PS) kW / r / min (350) 259/1900 (350) 259/1900 (350) 259/1900
Maximum torque Nm / r / min 1483/1100 1483/1100 1483/1100
Post-processing system SCR
Displacement L 10.520 10.520 10.520
Clutch Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430
Transmission 12JSD160TA RT-11509C 12JSD160TA
Front / rear axle THD17 THD17 THD18
Rear axle Save Ratio 4.625 4.625 5.285
Tire 11.00R20 11.00R20 11.00R20
Emission standards State IV State IV State IV




Our  water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.

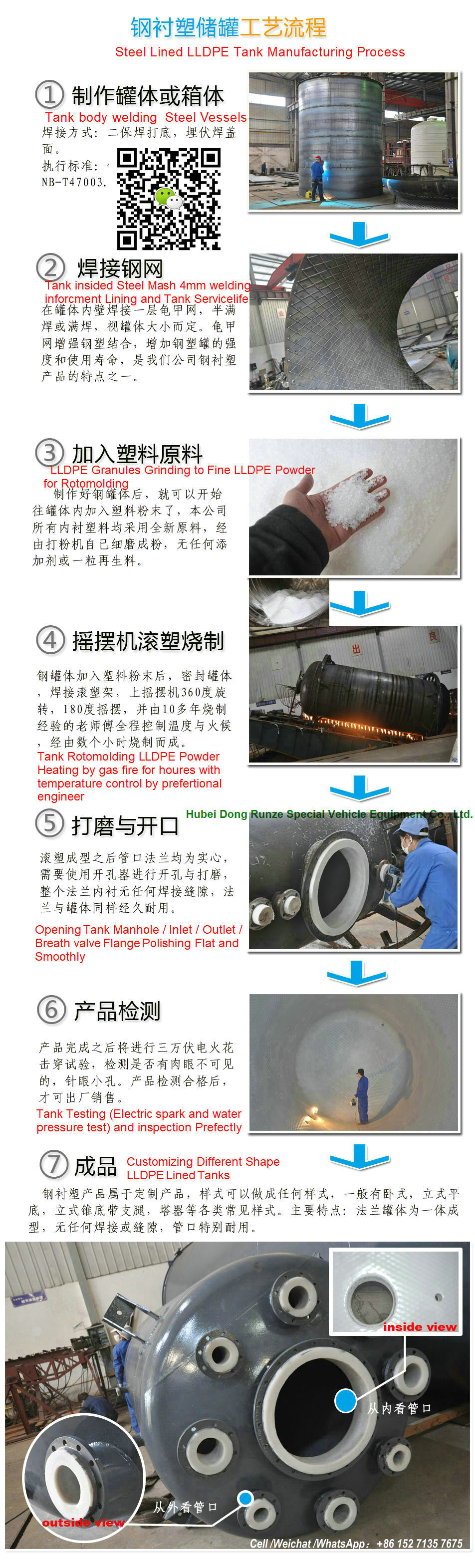

Rotationally Molded LLDPE TANK
chemical resistance of LLDPE   Cell / :+8615271357675
www.truckinchina.com

LDPE / HDPE Chemical Resistance Chart

The chemical compatibility of LDPE and HDPE on this chart is tested at 20°C: and 50°C: for 7 days and 30 days (if applicable) with constant exposure.

LDPE & HDPE resistance listed by chemical
1.4-dioxane LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE at 50°C: shows some effect after 7 days.
Acetaldehyde LDPE / HDPE at 20°C: little or no damage after 30 days.
HDPE at 50°C: shows some effect after 7 days.
LDPE at 50°C: immediate damage may occur.
Acetic Acid 5 % LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Acetic Acid, glacial 50% LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE at 50 °C: immediate damage may occur.
Acetone LDPE / HDPE at 20°C-50°C: damage may occur.
Not recommended for continuous use.
Allyl Alcohol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Aluminum salts LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Amino acids LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ammonia LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ammonium carbonate saturated LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ammonium phosphate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ammonium sulphate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Amyl chloride HDPE at 20°C: shows some effect after 7 days.
HDPE at 50°C & LDPE at 20°C-50°C: immediate damage may occur.
Not recommended for continuous use.
Aniline LDPE / HDPE at 20°C: little or no damage after 30 days.
HDPE at 50°C: shows some effect after 7 days.
Benzene LDPE / HDPE at 20°C-50°C: damage may occur.
Not recommended for continuous use.
Benzyl alcohol LDPE / HDPE at 50°C: immediate damage may occur.
HDPE at 20°C: shows some effect after 7 days.
Boric acid LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Bromine LDPE / HDPE at 50°C: immediate damage may occur.
HDPE at 20°C: shows some effect after 7 days.
Butyric acid LDPE / HDPE at 50°C: immediate damage may occur.
HDPE at 20°C: shows some effect after 7 days.
Calcium chloride LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Calcium hydroxide saturated LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Carbon tetrachloride HDPE at 20°C: shows little or no damage after 30 days.
LDPE at 20°C & HDPE at 50°C: show some effect after 7 days.
LDPE at 50°C: not recommended.
Chlorine 10% in water LDPE / HDPE at 20°C: shows little or no damage after 30 days.
LDPE at 50°C: shows damage and is not recommended.
Chlorobenzene Immediate damage may occur.
Not recommended for continuous use.
Chloroform LDPE / HDPE at 20°C: show some effect after 7 days.
LDPE / HDPE at 50°C: immediate damage may occur.
Not recommended for continuous use.
Chromic acid 10% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Chromic acid 50% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Citric acid 10% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Cresol HDPE at 20°C: shows some effect after 7 days.
LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage.
Not recommended for continuous use.
Cyclohexane LDPE / HDPE at 50°C: immediate damage may occur.
LDPE / HDPE at 20°C: show some effect after 7 days.
Diethyl ketone LDPE / HDPE at 20°C-50°C: damage may occur.
Not recommended for continuous use.
Dimethylsulfoxide LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ethanol 95% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ethyl acetate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ethyl benzene HDPE at 20°C: shows some effect after 7 days.
LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage.
Not recommended for continuous use.
Ethylene glycol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Ethylene oxide HDPE at 20°C: shows little or no damage after 30 days.
LDPE at 20°C: and LDPE/ HDPE at 50°C: show some effect after 7 days.
Ferric chloride LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Fluoride LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Fluorine HDPE at 20°C: shows little or no damage after 30 days.
LDPE at 20°C: shows some effect after 7 days.
Not recommended at 50°C.
Formaldehyde 10% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Formaldehyde 40% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Glycerol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hexane HDPE at 20°C: shows little or no damage after 30 days continuous use.
HDPE at 50 °C: shows some effect after 7 days.
LDPE not recommended at any temperature.
Hydrochloric acid 20% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrochloric acid 35% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrochloric acid 5% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrocyanic acid LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrofluoric acid LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrofluoric acid 4% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrofluoric acid 48% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrogen peroxide 3% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Hydrogen peroxide 30% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Isobutyl alcohol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Isopropyl alcohol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Kerosene LDPE / HDPE at 20°C: show some effect after 7 days.
LDPE / HDPE not recommended at 50°C, as immediate damage may occur.
Lactic Acid 10 % LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Lactic Acid 90 % LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Lead acetate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Methanol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Methyl ethyl ketone Immediate damage may occur.
Not recommended for continuous use.
Methyl propyl ketone HDPE at 20°C: shows some effect after 7 days.
LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur.
Not recommended for continuous use.
Methylene chloride HDPE at 20°C: shows some effect after 7 days.
LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur.
Not recommended for continuous use.
Mineral oil LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE at 50°C: may show immediate damage and is not recommended.
n-amyl acetate LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE at 50°C: shows some effect after 7 days or constant exposure.
n-butyl alcohol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Nitric acid 50 % LDPE at 20°C: shows little or damage after 30 days.
HDPE at 20°C & LDPE at 50°C: show effect after 7 days.
HDPE at 50°C: shows immediate damage and is not recommended.
Nitric acid 70 % LDPE / HDPE at 20°C: show some effect after 7 days.
LDPE / HDPE at 50°C: show immediate damage.
Not recommended.
n-octane LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Oleic acid HDPE at 20°C-50°C: little or no damage after 30 days.
LDPE at 20°C-50°C: shows immediate damage and is not recommended.
Oxalic acid LDPE at 20°C: shows some effect after 7 days.
HDPE at 20°C and LDPE / HDPE at 50°C: shows little/ no damage after 30 days.
Ozone LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE / HDPE at 50°C: show immediate damage.
Not recommended.
Perchloric acid LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE / HDPE at 50°C: show immediate damage.
Not recommended.
Perchloric ethylene LDPE / HDPE at 20°C-50°C: show immediate damage.
Not recommended.
Phenol LDPE / HDPE at 20°C-50°C: show immediate damage.
Not recommended.
Phosphoric acid 10% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Phosphoric acid 85% LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE at 50°C: shows immediate damage and is not recommended.
Phosphorous trichloride LDPE / HDPE at 20°C: little or no damage after 30 days.
LDPE at 50°C: has no data available. HDPE at 50°C: shows some effect after 7 days.
Potassium carbonate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Potassium hydroxide 5 % LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Potassium hydroxide concentrated LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Potassium permanganate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Propylene glycol LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Pyridine Immediate damage may occur.
Not recommended for continuous use.
Salicylic acid, saturated LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Silver acetate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Silver nitrate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sodium carbonate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sodium chloride, saturated LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sodium dichromate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sodium hydroxide 1% LDPE at 20°C-50°C: shows little or no damage after 30 days.
HDPE at 20°C-50°C: shows some effect after 7 days.
Sodium hydroxide 50% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sodium hypochlorite 15% HDPE at 20°C-50°C: little or no damage after 30 days.
LDPE at 20°C: is suitable but at 50°C: shows some effect after 7 days.
Sodium nitrate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sodium sulphate LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sucrose LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sulfuric acid 20% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sulfuric acid 6% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sulfuric acid 60% LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Sulfuric acid 98% LDPE at 20°C-50°C: shows little or no damage after 30 days.
HDPE at 20°C: shows effect after 7 days.
Not recommended for use at 50°C.
Tannic acid LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Tetrahydrofuran LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure.
LDPE / HDPE at 50°C: show immediate damage.
Not recommended.
Toluene LDPE at 20°C: show some effect after 7 day of constant exposure.
HDPE at 20°C-50°C & LDPE at 50°C: show immediate damage.
Not recommended.
Trichloracetic acid LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure.
LDPE / HDPE at 50°C: show immediate damage.
Not recommended.
Trichlorethane Immediate damage may occur.
Not recommended for continuous use.
Turpentine oil LDPE / HDPE at 20°C: show some effect after 7 days.
LDPE / HDPE at 50°C: show immediate damage.
Not recommended.
Urea LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.
Xylene HDPE at 20°C: shows some effect after 7 day of constant exposure.
LDPE at 20-50°C and HDPE at 50°C: show immediate damage.
Not recommended.
Zinc chloride LDPE / HDPE at 20°C-50°C: little or no damage after 30 days.


Previous:
Next:

Related Products

Dongfeng Chemical Tanker Truck Hydrochloric Acid Tank (16000 -25000Liters Steel Lined LLDPE Tank) for Chemical Factory Transport
Dongfeng Chemical Tanker Truck Hydrochloric Acid Tank (16000 -25000Liters Steel Lined LLDPE Tank) for Chemical Factory Transport
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
Dongfeng Chemical Acid Liquid Trucks 28t HCl Acid Tanker 12 Wheels (For Chemical Acid Liquid, Drink Water, Carbon Steel Lined PE Tank with Acid Chemical Pump)
Dongfeng Chemical Acid Liquid Trucks 28t HCl Acid Tanker 12 Wheels (For Chemical Acid Liquid, Drink Water, Carbon Steel Lined PE Tank with Acid Chemical Pump)
Customised Chemical Resources Recycling Acid Tank Truck (Chemical Liquid Hydrochloric Acid Delivery Tanker)
Customised Chemical Resources Recycling Acid Tank Truck (Chemical Liquid Hydrochloric Acid Delivery Tanker)

SUCCESS CASES

More >>

Navigation

Home About Us Products News Contact Us Sign In Register Cart

Contact Us

EMAIL:Sale@tictrucks.com
truck in china weichat made in china truck
Hubei Yufengyuan Special Vehicle Factory :  No. 66 Yumin Avenue, Zengdu Economic Development Zone, Suizhou City,Hubei Province,P.R.China
Keystone Vessel (Wuhan) :R 23, F4,New Factory (4), B1, Phase II, Dashu Industrial Village , Liufang Street ,Wuhan East Lake Hi-tech Development Zone, Wuhan City, Hubei Province,P.R.China
Keystone Vessel Manufacturing Co., Ltd
Factory Add :No. 333 Youyi Second Road, Suixian Economic Development Zone, Suizhou City, Hubei Province, 441315, People's Republic of China. .......
 Hubei Dong Runze Special Vehicle Equipment Co., Ltd. Hubei Yufengyuan Special Vehicle; Keystone Vessel (Wuhan) Co., Ltd ;Keystone Vessel Manufacturing Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/  www.truckinchina.com ,www.dtatruck.com, https://ks-vessel.com
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
