DTA crude oil bitumen tanker semitrailer 30cbm

DTA crude oil bitumen tanker semitrailer
1.Use Burner heater continuous heating at back of the tanker
2.One Italian BALTUR diesel oil burner
Capacity: 14*104Kcal/h, brand new
3.One general-purpose diesel generator.
4.According to continuos diesel burning to keep warm for the tanker
Price: $ 26000
Discount Price: $ 22000
FOB:
Availability:
Quantity:

  • DTA9403GLQ

  • Dong run ze

  • 8716319000

DTA crude oil  bitumen tanker semitrailer  30cbm    Customization, Cost  Control Built How You Want it, at a Price You

 Can Afford. for sale call:+86-152 -7135-7675

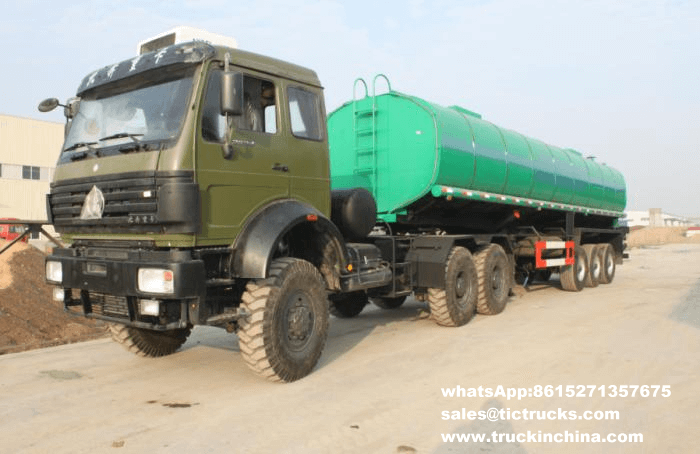

bitumen tank trailer -29000L-Liquid asphalt_1.pngbitumen tank trailer -30000L-Liquid asphalt_1.png33000 liters 3 axle bitumen tank semi-trailer_1.png bitumen tanker semitrailer  bitumen tanker semitrailer  bitumen tanker semitrailer








   heated bitumen tank trailer, heated bitumen transport, hot asphalt tanker, Insulation asphalt tanker, Liquid Asphalt tank, semi-trailer hot asphalt tanker, Shacman, SHACMAN Tractor, tractor heard,





          Asphalt tanker truck / trailer/ tank containers



         applied to transport liquid asphalt in a short or long distance. It's an ideal equipment to transport asphalt from asphalt storage depot to asphalt plant, and transport asphalt from oil refinery and wharf to asphalt storage depot. Besides the above functions, also suitable to transport crude oil and residual oil and viscous oil



         1. lower center of gravity, driving stably and safely.



         2. Rock wool insulation100mm, average temp. drop<1°C/h.



         3. equipped with diesel-oil Burner and a 4. Equipped 220V generator, supply continuous power for systems.



         5. Reliable monitoring system of heating.



         6. Stainless steel tank shell or cold plate



         7. Heating and control functions can be on semi-trailer, and be independently used on tractor.OEM ,OBM, ODM HEATED BITUMEN TANK ,HEATED ASPHALT TANK Trailer




         Tare Weight(kg)




         10500




         Pay Load(kg)




         35000




         Total Weight(kg)




         46000




         LxWxH (mm)




         11000x2495x3680




         Wheelbase(mm)




         6800+1310+1310




         Tanker




         Shape




         Cylinder,roundness,etc




         Total Volume(m3)




         35




         Valid Volume(m3)




         35




         Material




         Q235A/6mm




         End plate




         Q235A/8mm, by punching




         Isolated steel plate




         Q235A/6mm, 20 inch manhole




         Parts for Tank




         Manhole cover




         2 sets of 500mm/Q235 manhole fixed on top of Tank,



         with breather valve




         Unloading valve




         2 sets of DN80 fixed at bottom of Tank




         Pipeline at bottom of tank




         4〃seamless steel tube/Q235




         Anti-static electricity



         system




         pulling, wire carrier, sheet copper (6 sheet-standard layout)




         Other Parts




         Ladder




         2 unit at front and rear of Tank




         Guard on top of Tank




         Zinc galvanized guard- net




         Oil hose box




         single hole tube, 1 unit on each side




         Oil hose




         2 unit, 3〃x 6m size in black rubber




         Side guard




         cross bar-structure




         Rear bottom guard




         Fixed type




         Work tank deck




         Box type




         Fire extinguisher box




         2 unit at the back of each side




         Mud guard




         Steel structure in trapezoid form




         Lights and wire




         24V, 7 coils with lights for parking, reverse, instruction,head lamp and end lamp




         Chassis




         Main Beam




         Heavy duty and extra durability designed;Opting for high tensile steel



         Q345B,welded by automatic Submerged-Arc processes




         Axle




         3 units of FUWA(band) or BPW or L1



         Axle load capacity:13 ton/axle




         Landing Gear




         JOST Brand two Speed Manual Operation




         King Pin




         JOST brand,one unit of 2〃SAE standard Jost bolt-in king pin




         Suspension




         FUWA(band) mechanical tandem suspension with 16mm x 90mm



          8 leafs spring




         Pneumatic Braking System




         A system with emergency brake and parking brake;



         Dual line - air brake, piggyback spring on all axles;



         One units of WABCO RE 6 relay valve; four units of T30/30 chamber;



         one units of 40L air tank,two units of standard copper airconnector.




         Wheel rim




         12 units of 8.25R22.5 rim




         Tire




         12 units of 11R22.5 tubeless tyre




         Painting




         Sand blasting processing on rust cleaning



         One coat of anticorrosive



         Two coats of finish urethane paint



         Colour as customer choice




         Heating and insulation system



         of tanker




         Insulating layer



         1. Tank containing keep warm by insulation layer



         2. Insulation layer composed of: 80mm rock wool and 1.2mm



         stainless cold plate covered, it can prevent the heat losing.



         Heating system



         1.Use Burner heater 24 hours continuous heating at back of the tanker



         2.One Italian BALTUR diesel oil burner



         Capacity: 14*104Kcal/h, brand-new



         3. One general-purpose diesel generator



         4.According to continuous diesel burning to keep warm



         for the crude oil (Diesel consumption:150kg/24hours)



         Note: It’s not necessary to adopt 24 hours continuous burning,



         you just only need begin to heat ahead of 2-3 hours while approach the



         destination site.It will save oil consumption and cost for you



 TIC TRUCKS , www.truckinchina.com

DTA crude oil/bitumen tanker semitrailer  30cbm

Heating system method 1

1.Use Burner heater 24 hours continuous heating at back of the tanker

2.One Italian BALTUR diesel oil burner

Capacity: 14*104Kcal/h, brand new

3.One general-purpose diesel generator.

4.According to continuos diesel burning to keep warm for the tanker

(Diesel consumption:150kg/24hours)

Heating system method 2

Water Vapour heating syetem.

Tank inner installed U type heating pipeline,according to continous water vapour injection to tank to heating.

Bitumen pump is optional by client's required
