DTA Liquid Asphalt Bitumen Tanker Trailer

DTA Liquid Asphalt Bitumen Tanker Trailer
Availability:
Quantity:

DTA liquid Asphalt Bitumen Tanker trailer
insulation layer  Italian BALTUR diesel oil burner
ODM stainless  Option:bitumen Pump
EXW $22000~43000

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 Asphalt tanker truck / trailer/ tank containers












   heated bitumen tank trailer, heated bitumen transport, hot asphalt tanker, Insulation asphalt tanker, Liquid Asphalt tank, semi-trailer hot asphalt tanker, Shacman, SHACMAN Tractor, tractor heard,


 applied to transport liquid asphalt in a short or long distance. It's an ideal equipment to transport asphalt from asphalt storage depot to asphalt plant, and transport asphalt from oil refinery and wharf to asphalt storage depot. Besides the above functions, also suitable to transport crude oil and residual oil and viscous oil

 1. lower center of gravity, driving stably and safely.

 2. Rock wool insulation100mm, average temp. drop <1&deg;C/h.

 3. equipped with diesel-oil Burner and a 4. Equipped 220V generator, supply continuous power for systems.

 5. Reliable monitoring system of heating.

 6. Stainless steel tank shell or cold plate

 7. Heating and control functions can be on semi-trailer, and be independently used on tractor.OEM ,OBM, ODM HEATED BITUMEN TANK ,HEATED ASPHALT TANK 3 axle 50cbm asphalt tank trailer

 Load bitumen,asphalt,crude oil
 Have heating device and insulation layer
 Option:bitumen Pump

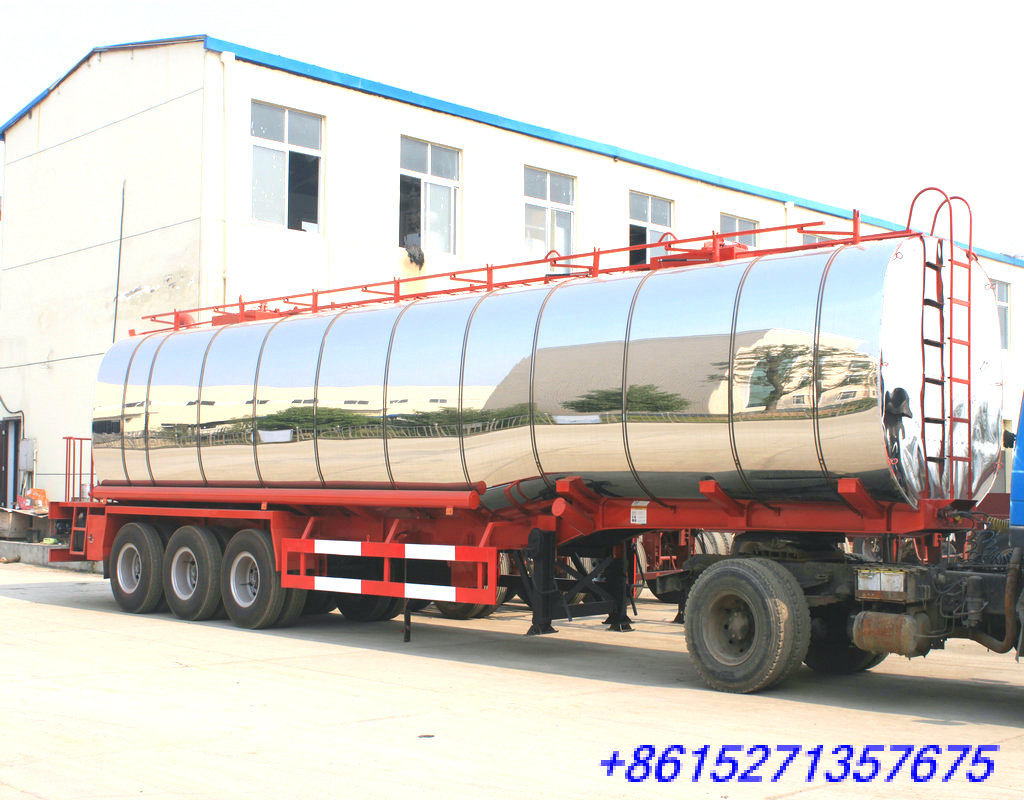

   3 axle 50cbm asphalt tanker trailer



   We export to Kazakhstan,Nigeria and other Africa country with many bitumen tank trailer,bitumen tanker,asphalt tanker trailer.



   This type of trailer usually use to transport liquid bitumen and crude oil in cold region area,etc








           Overall weight




           Kg




           60,000




           Curb weight




           Kg




           10,800




           Rated loading weight




           Kg




           50,000




           Overall  dimension




           mm




           13000x2500x3800




           Tank volume




           M3




           50m3,50cbm bitumen tanker,50000 liters bitumen tanker trailer




           Front/Rear overhang




           mm




           /900




           Track span




           mm




           1310




           Chassis description





           Heavy duty and extra durability designed I beam; Middle Flange 6 or 8mm; Bottom Flange 16mm,width 140mm




           Axles





           3 axle with FUWA brand, axle load:13Tonx3




           Suspension type





           Mechanical suspension or air suspension-upon customer's requirement




           King pin




           Inch




           50mm or 90mm 2 or 3.5 inch Bolt-in King Pin on your requirement




           Landing gear





           42 Ton, Two-speed manual, heavy duty landing gear



            (JOST or FUWA brand-optional)




           Leaf of spring




           Piece




           8/8/8,or 10/10/10




           Breaking system





           WABCO re 6 relay valve, Spring brake chamber




           Electric system





           Voltage 24V,7 pin socket




           Tire specification





           Triangle brand tire,12.00R20,Total 12 tires




           Tank material





           Q235A carbon steel from WISCO




           End plate material





           Q235A carbon steel from WISCO




           Rated work Pressure





           0.2Mpa




           Manhole Cover




           Set




           500mm manhole cover, 2 set




           Outlet discharge Pipe





           2 unit,6m




           Inlet hole





           2 unit 500mm inlet hole




           Discharge hole





           2 unit discharge hole




           Accessories




           Set




           A. One set of spare tire including a carrier, one tool box



           B. Ladder: In left and rear position, width>250



           C. Walkway: Width>1500mm



           D.Two fire hydrant




           Paint



           (shot and blasting )





           Chassis is shot blasted, and painted with first layer of Zinc Epoxy primer, second layer high built polyurethane under coat, third and forth layers alkyd finish top coat.












           Heating and insulation system













           Insulating layer



           1. Tank containing keep warm by insulation layer



           2. Insulation layer composed of: 80mm rock wool and 1.2mm stainless cold plate covered, it can prevent the heat losing.



           Heating system



           1.Use Burner heater 24 hours continuous heating at back of the tanker



           2.One Italian BALTUR diesel oil burner



           Capacity: 14*104Kcal/h, brand-new, made in 2011



           3. One general-purpose diesel generator,



           4.According to continuous diesel burning to keep warm for the crude oil



           (Diesel consumption:150kg/24hours)



           Note: It&rsquo;s not necessary to adopt 24 hours continuous burning, you just only need begin to heat ahead of 4-5 hours while approach the destination site.



           It will save oil consumption and cost for you



 liquid asphalt tanker
 Our factory produce heated bitumen tanker
 Liquid asphalt transport truck
 asphalt transport tank
