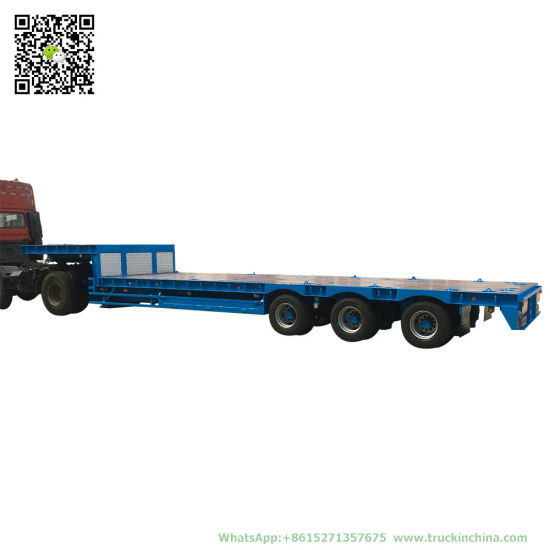

Customizing 60t Lowboy 3 Axles Air Suspension Plateform Semi Trailer
| Quantity: | |
|---|---|
- Shanghai, China
- 200
- T/T, Western Union
Customizing 60T Lowboy 3 Axles Air Suspension Plateform Semi Trailer
↵
| Product Name | 2/3 axle semi trailer |
| Tare Weight | (customized) |
| Dimension | (customized) |
| Max payload (T) | 30T-5000T(customized) |
| Axles | 3,4,5,6 multi(customized) |
| wheel base | (customized) |
| Rim | 6.75-17.5 |
| Tire | 235/ 75R17.5 143/141 |
| Tire Wheelbase | 2475mm |
| Tire No. | (customized) |
| Suspension | (customized) |
| King pin | JOST brand 2.5 inch and 3.5inch |
| Main beam | Material is WELTEN80 Steel ,Height: 400mm (customized) |
| upper plate is 25mm, middle plate is 12mm, down plate is 25mm(customized) | |
| Towing Pin Material | Alloy steel |
| Towing Pin Type | "I" type |
| Brake chamber | N0.30 (type) |
| Anti-lock Braking System and material | ABS and EBS Aluminum |
| ABS | WABCO (Brand) |
| Light | LED |
| Voltage | 24V |
| Painting | As customer's request |
40-100Ton heavy duty lowbed semi-trailers/low bed trailer
FUWA axle (Chinese brand) or BPW axle (German brand), JOST landing gear (American brand), JOST kingpin, Orient star valve (Chinese brand), WABCO ABS system (optional component). All of the parts can choose Chinese brand or famous brands from Germany, Japan, US or UK, just according to customer's requirement. Special size for your design
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)
Trailer Model | 4 Axle Low bed Trailer |
Dimension(Lx W x H)(mm) | 13000*2500*1750 |
Wheelbase(mm) | 8580+1310+1310+1310 |
Curb Weight(KG) | 9,000 |
Loading capacity(KG) | 100,000 |
Axle Brand | FUWA or BPW 13/16/20Ton Axle |
Axle Number | 4 |
Rim type | 9.0 22.5 x 16 pcs |
Tyre type | 12.00R20 x 16 pcs |
Suspension system | Mechanical leaf spring suspension / pneumatic suspension |
Steel Spring | 10/10/10/10 |
Frame | The height of the beam(Carling ) is 500mm,upper plate is 18mm,down plate is 20mm,middle plate is 14mm.according to the buyer's requirement |
Platform plate | 3-8mm Diamond Plate |
Traction Pin | 90# (3.5'') or 50#(2.0'') |
Landing Leg | 28T load landing leg |
3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
