Changan Mini 3 Cbm Road Sweeper Truck 2cbm Garbage +0.5cbm Water
| Quantity: | |
|---|---|
- Shanghai, China
- 10000
- T/T

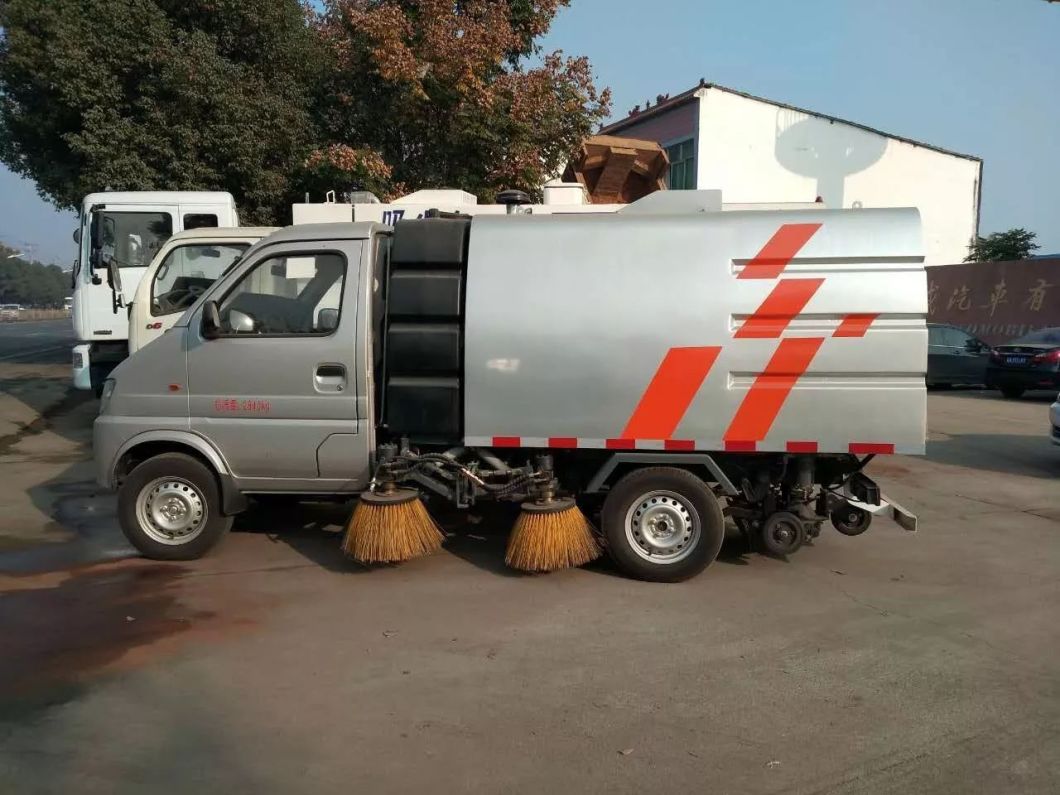

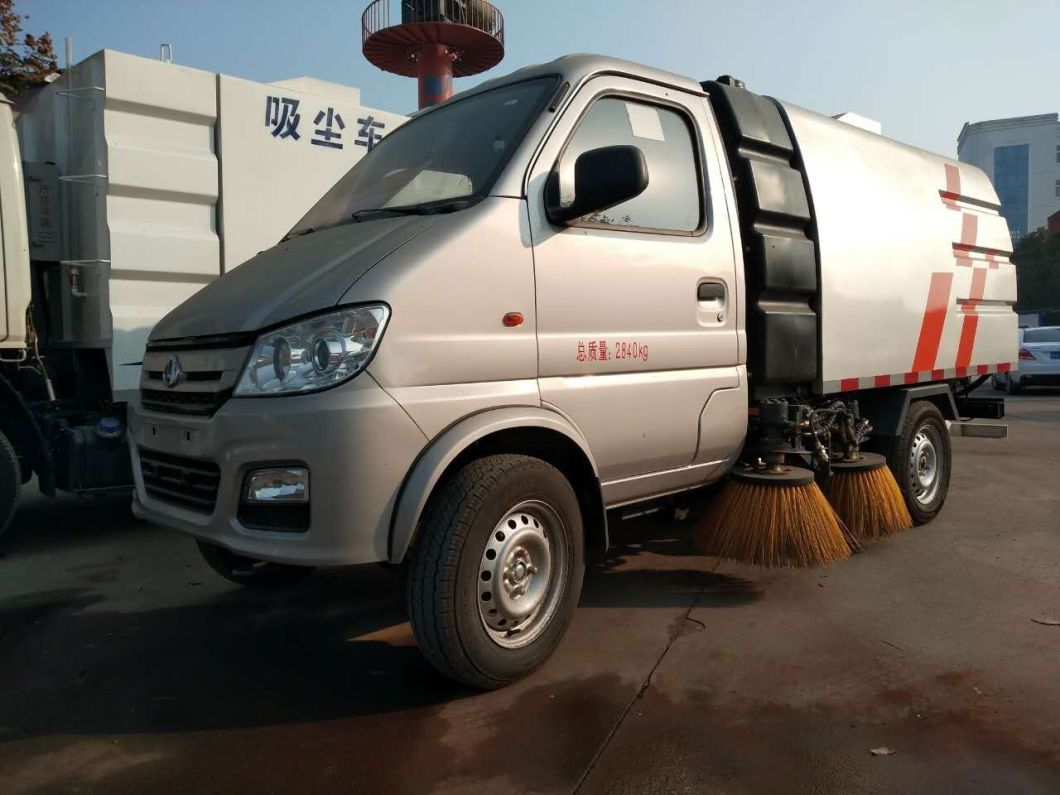

Changan Mini 3 Cbm Road Sweeper Truck
Stainless Steel 304 For Airport Yard Cleaning
Cleaning Street Road Sweeper Truck Ask for better price
The pictures are for your reference only.
Product Application
China Sweeper Truck , with dongfeng chassis , 1.2 cbm water tanker volume and 4 cbm debris , four main broom ( broom has 3 speed control ) , I.S.U.Z.U sub-engine , maintenance free clutch and fan .

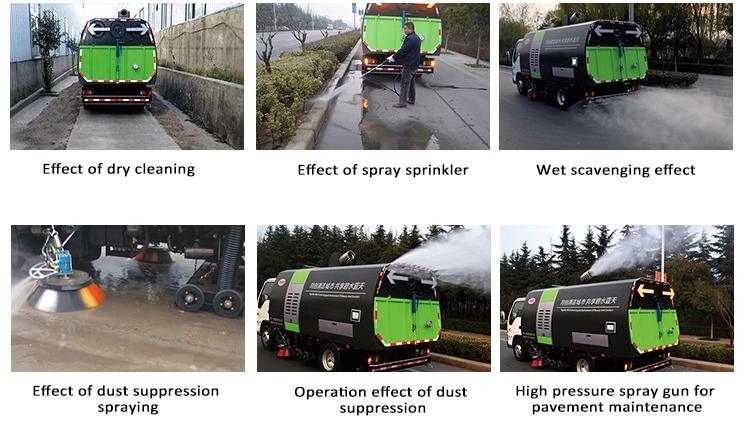

Normally used in Airport , Factories , Countries , Event place , Stadiums , Hospital , Buildings , Power Plants , Collages , Parks , Schools , Highways , Cities , Ports , Parking decks , Malls , Paved trails , Construction etc.
Our Advantages
1) Advanced hydraulic : Generate power and reliability where you need most
2) Customized Application --dual steering , custom painting we can build your perfect unit .
3) Innovative controls user friendly controls customized for operators .
4) Drive Friendly simple operation , training and no CDL requirements.
Cell /+8615271357675
SPECIFICATION
changan mini 3 cbm road sweeper truck artificial grass sweeper
| Main parameters | Brand | DONG RUN ZE |
| Product model | DRZ5030TSL5SC | |
| Gross weight (Kg) | 3495 | |
| Curb weight (Kg) | 2750 | |
| Cab seats | 3 | |
| Number of axles | 2 | |
| Overall dimension(mm) | 5110*1610*2310 | |
| Wheel base(mm) | 2990 | |
| Max speed (Km/h) | 90 | |
| Chassis parameters | Chassis model | SC1031GDD53 |
| Brand | Changan | |
| Fuel | diesel | |
| Number of wheels (mm) | 4 | |
| Tire specification | 165R14LT | |
| Engine capacity (ml) | 1240 | |
| Emission standard | Euro III |
Road sweeper truck is also called road sweeper truck, it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle
| Specifications | |||
| Item | Specifications | Item | Specifications |
| Truck | |||
| Name | Mini road sweeper | ||
| Model | DRZ5030TSLSC5 | Gross Weight | 3495kg |
| Overall dimensions | 5200*1650*2300mm | Curb Weight | 2800kg |
| Wheelbase | 2990mm | Approach angle | 40° |
| Front Track | 1330mm | Departure Angle | 19° |
| Rear Track | 1210mm | Front Overhang | 640mm |
| Number of axles | 2 | Rear Overhang | 1570mm |
| Max speed | 90km/h | Number of Tyres | 6 |
| Traction system | 4×2 | Tyre | 165R14LT |
| Transmission | manual | Allowable Cab Passengers | 2 |
| Chassis | |||
| Model | SC1031GDD53 | Brand | Changan |
| Engine (Motor) | |||
| Brand | Chongqing Xiaokang | Type | Diesel |
| Model | DK12-10 | Displacement | 1240ml |
| Horse power | 88 | Emission standard | Euro 5 |
| Equipment | |||
| Water Tank | 0.5cbm | Tank Material | Carbon or Stainless |
| Garbage Tank | 2cbm | Sweep width | 2.5m |
| Sweep rate | ≥95% | Sweeping speed | 3-25km/h |
| Remarks | |||
| Leadtime | Within 30 days | ||
| Warranty | 12 months | ||

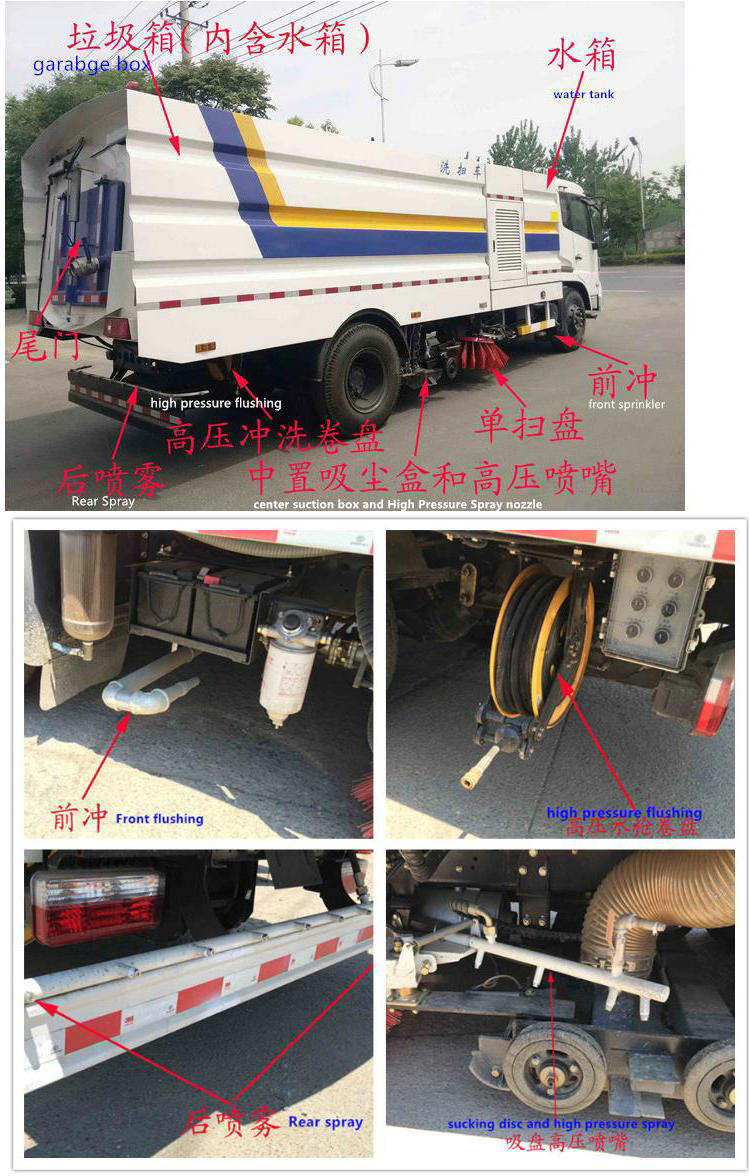

Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck
Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant

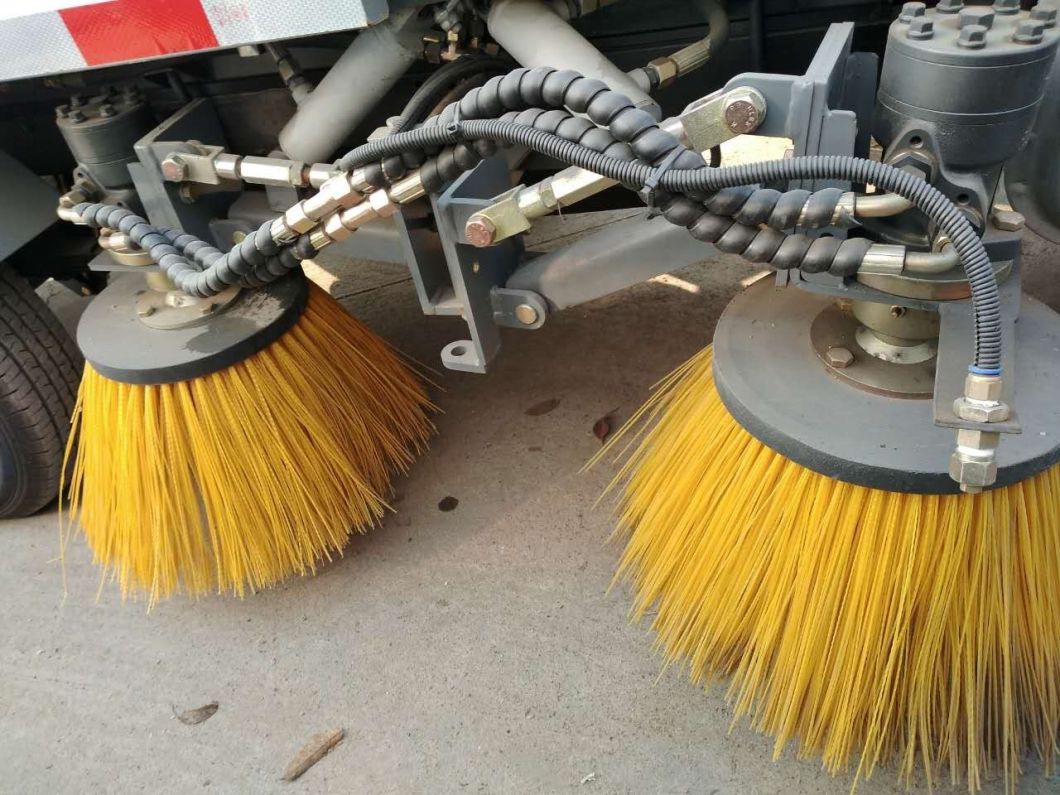

Four Booms Sweeping System And Suction System Combine Working ,High Efficient.
Water Sprinklers Equipped On Brooms,Suction Nozzle.

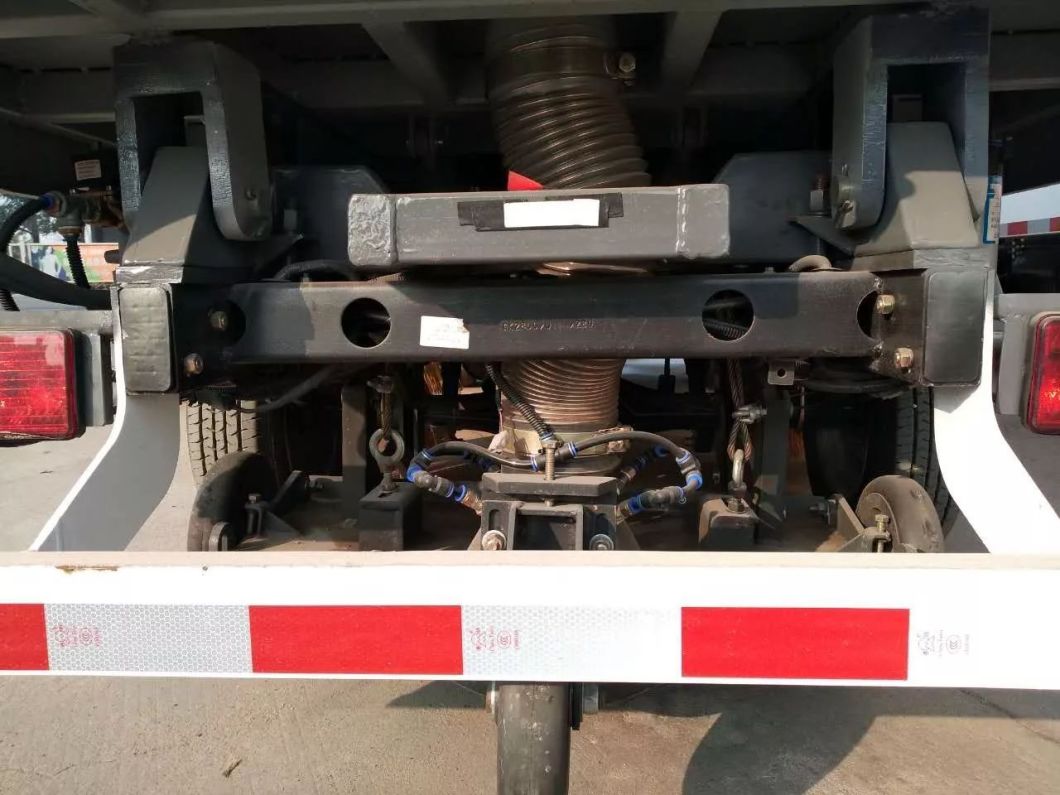

Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.
Air Blower Is Special For Road Sweeper,High Efficient,Low Noise
4x2 Howo road sweeper truck street sweeper truck vacuum road sweeper
Sinotruk HOWO light truck road sweeper truck hot sale factory price
1.production name:road truck, road sweeper truck, road sweeping truck,road sweeper machine,road sweeper,road sweeper vehicle,road sweeper car.
2.driving style:4x2 ,4x4, 6x4, 6x6, 8x4 ,8x8
3.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH JAPAN CHASSIS
1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 -90000square meters.
| Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. Selective configuration surveillance system,rolling brush. | |||||||||||
| Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | EXW Price RMB /USD=6.3 | ||
| Dust | Water | mm | mm | RMB | USD | ||||||
| DRZ5160TSLD | DONGFENG LHD/RHD RHD price add $2000 | DFL1160BX | 6000;7000 | 4000; 3500 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 309800 | US$49,175 |
| DRZ5060TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 159400 | US$25,302 |
| DRZ5090TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 200500 | US$31,825 |
| DRZ5108TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 257700 | US$40,905 |
| DRZ5126TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 279800 | US$44,413 |
| DRZ5141TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 272700 | US$43,286 |
| DRZ5073TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 149400 | US$23,714 |
| DRZ5163TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 299800 | US$47,587 |
| DRZ5070TSLQ | ISUZU LHD | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 255700 | US$40,587 |
| DRZ511009TSLQ | ISUZU LHD | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 331400 | US$52,603 |
| DRZ51609TSLQ | ISUZU LHD | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 403100 | US$63,984 |
| DRZ5161TSLH | JAC LHD/RHD RHD price add $2000 | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 337900 | US$53,635 |
| DRZ5165TSLS | SHACMAN LHD/RHD RHD price add $2000 | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 362000 | US$57,460 |
