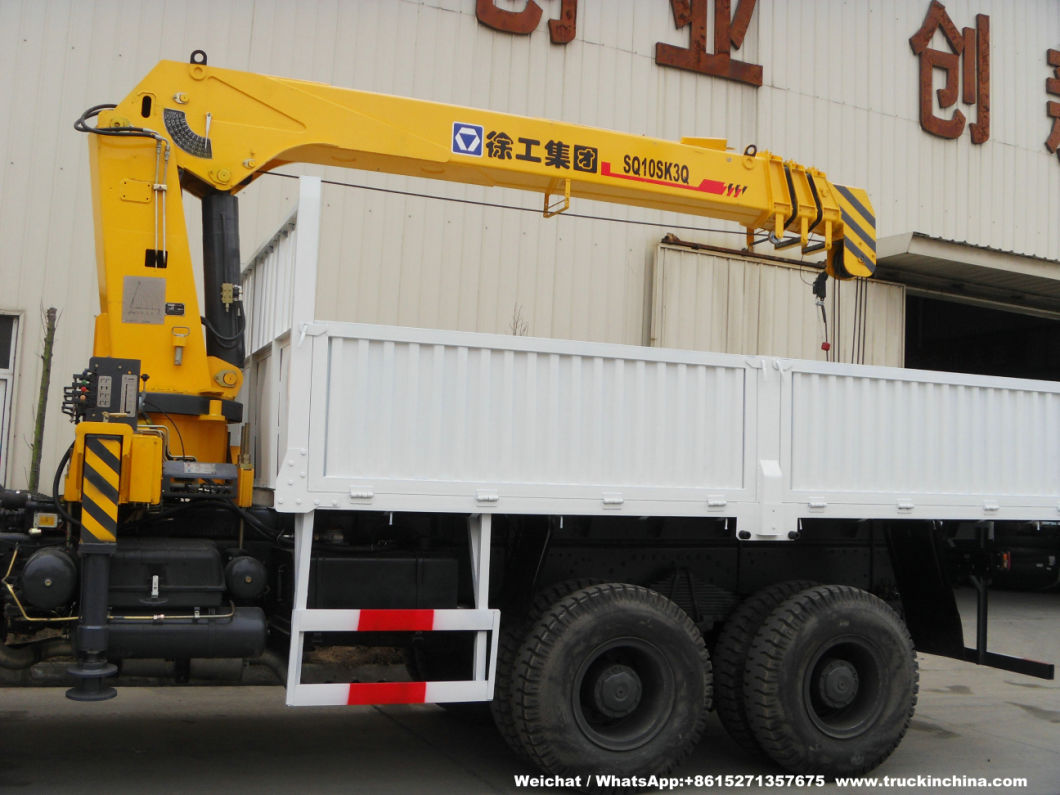

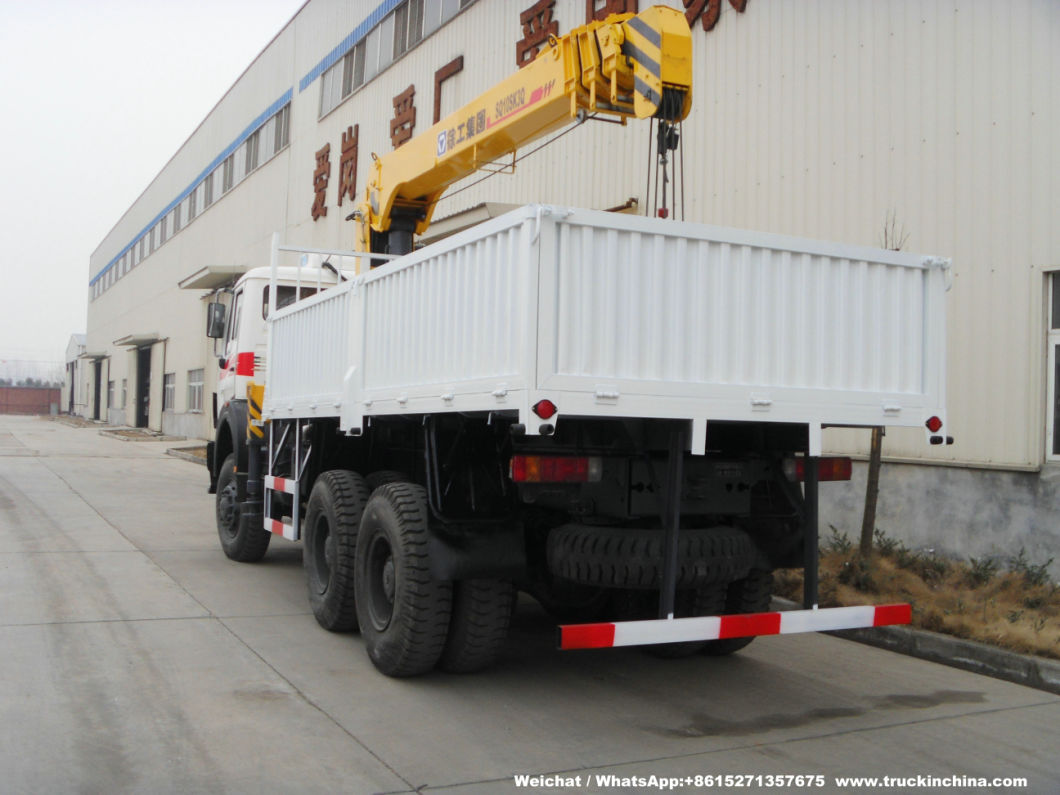

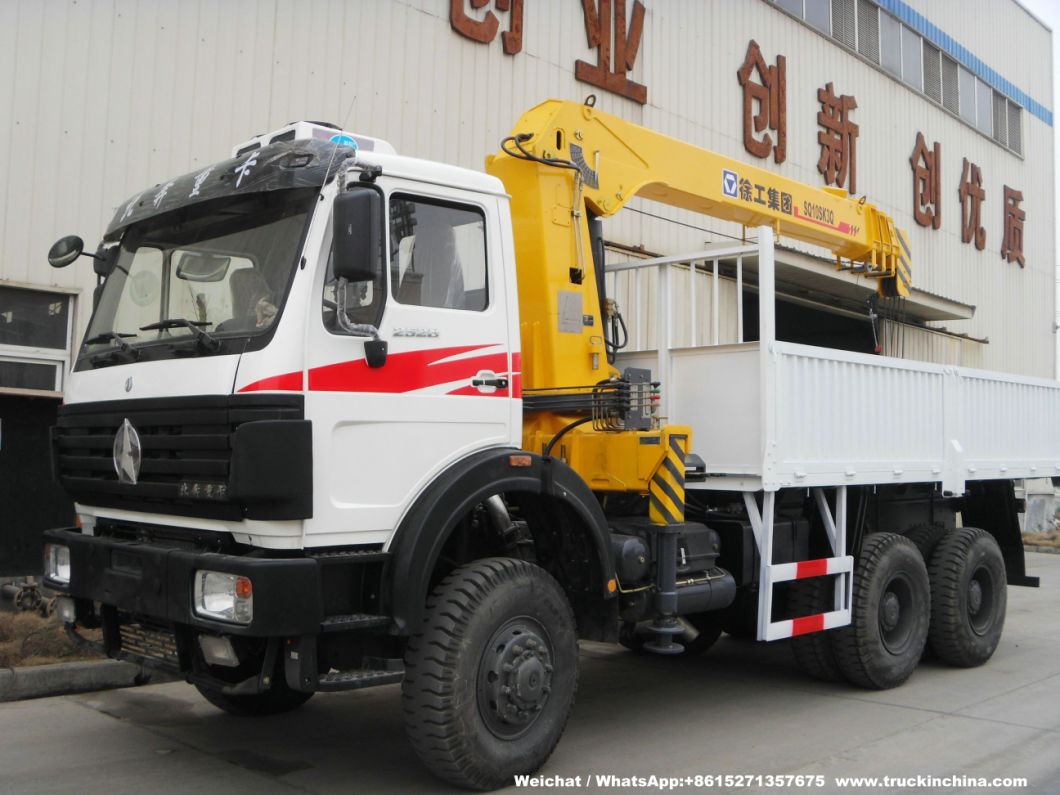

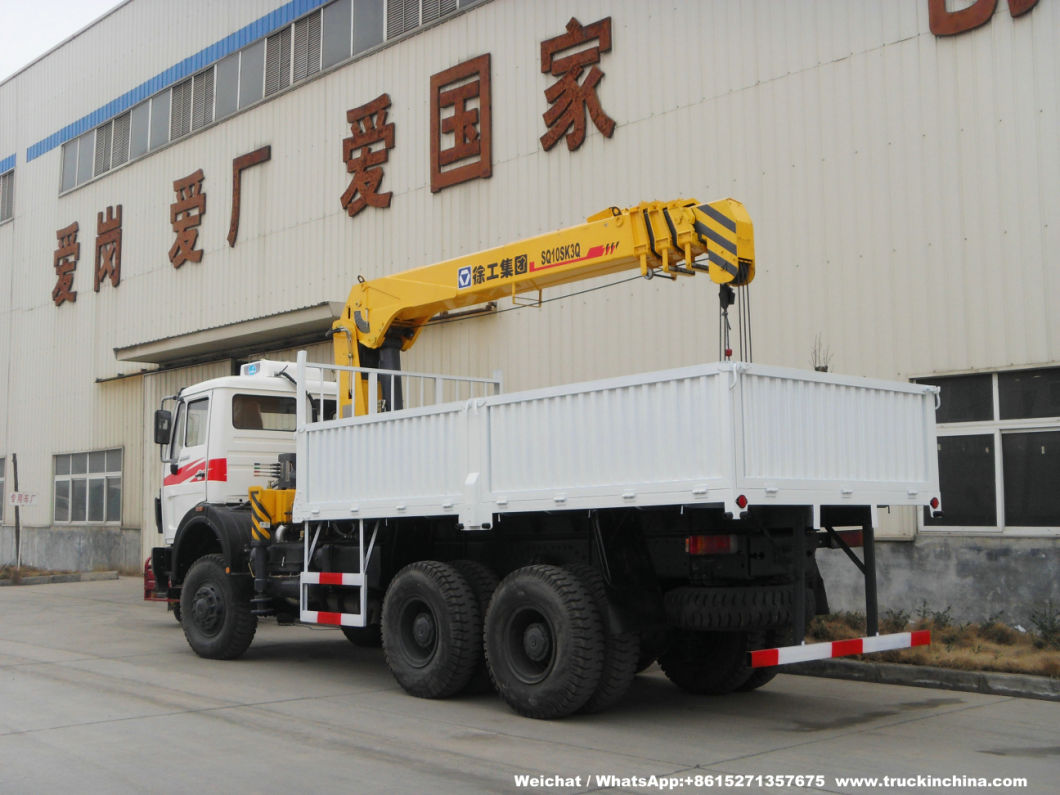

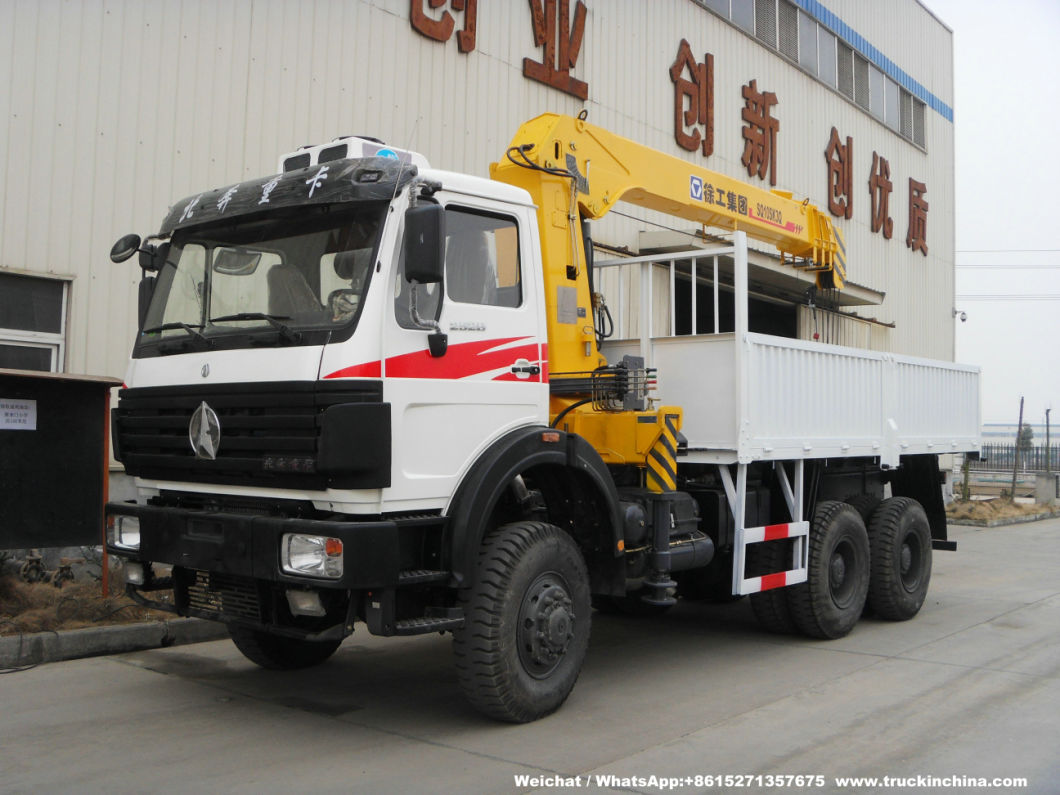

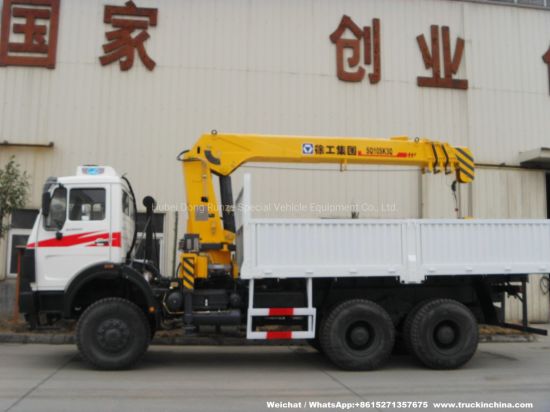

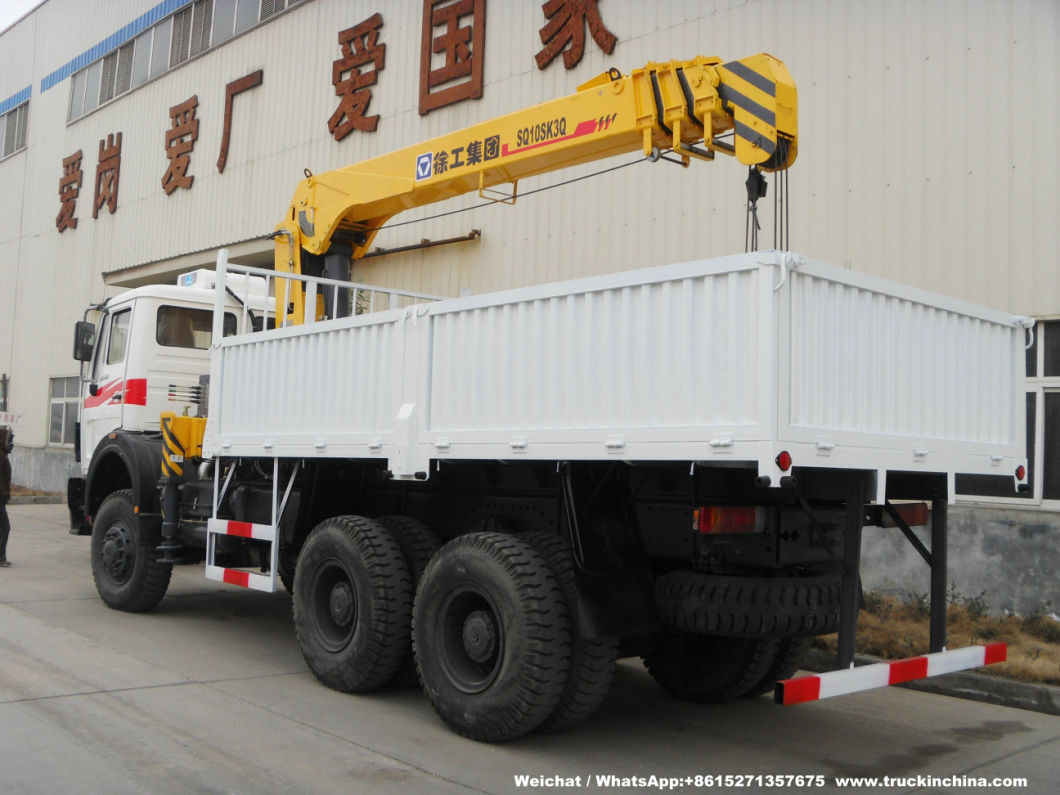

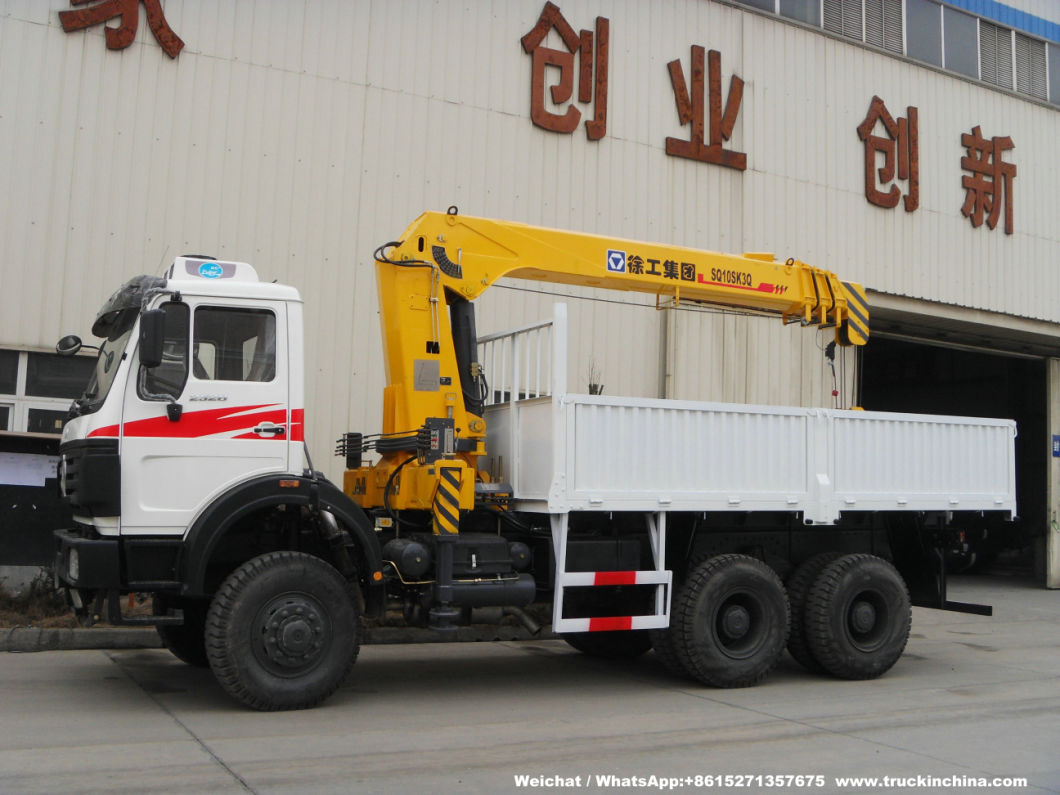

Beiben off Road Crane Truck with 10t Telescopic Boom (6X6 Trucks Mounted Crane)
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T, Western Union
Beiben off Road Crane Truck with 10T Telescopic Boom (6X6 Trucks Mounted Crane)
beiben 6x6 military trucks with telescopic boom / Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck mounted crane
Beiben trucks mounte crane , also call as beiben crane trucks, north benz trucks mounted crane. As the most professinal beiben crane trucks manufacturer in china, we can produce the beiben 5 T trucks mounted crane, beiben 6.3 T truck mounted crane, beiben 8 T trucks mounted crane , and beiben 16 T trucks mounted crane.
The north benz trucks mounted can be on north benz 4*2 /4x4 trucks chassis, 6*4/ 6x6 and 8*4 /8x8 trucks chassis. Customer can choose X-CMG, PALFINGER,UNIC, HIAB crane system to install on these north benz trucks chassis.

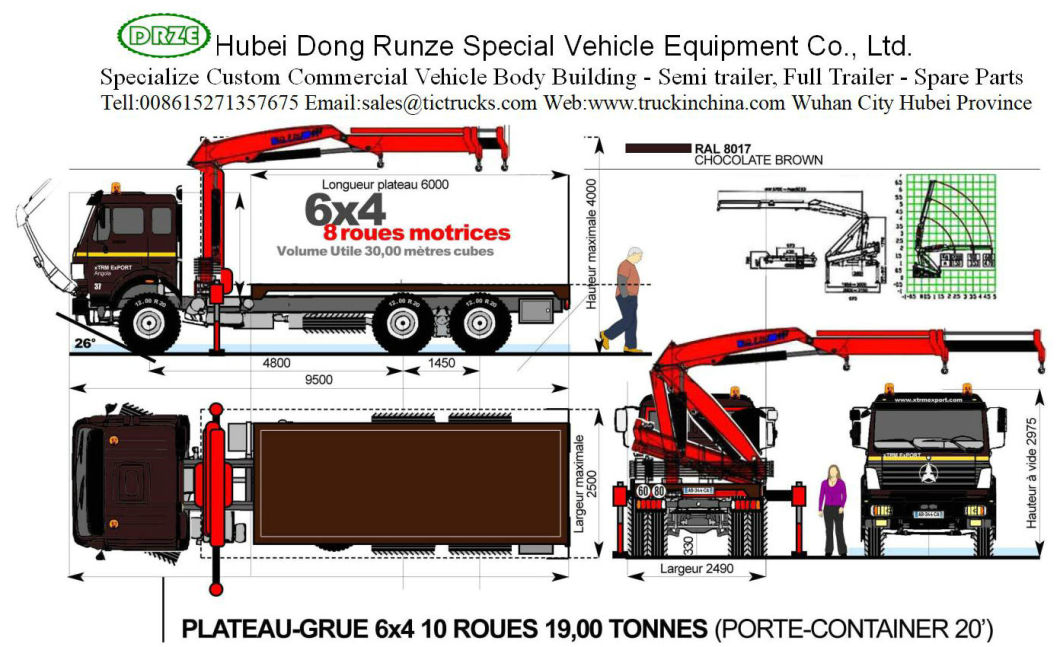

Dimension (Length*width*height) (mm) | 10660×2500×3800(mm) | |||
| Chassis: | Optional 2534 /2535/2538 6x6 / 6x4 | |||
| Track(front/rear) (mm) | 1990/1800/1800 | |||
Approaching angle/ Departure angle(˚) | 16/25(°) | |||
| Suspension(front/rear) (mm) | 1410/2555(mm) | |||
| Min distance to the ground(mm) | 399 | |||
| Wheel distance(front/rear) (mm) | 4450+1450(mm) ;5050+1450(mm) ;5650+1450(mm) ;5950+1450(mm) | |||
| GVW (KG) | Named 25000kg, practical 37000kg | |||
| Kerb weight (kg) | 15270kg | |||
| Configuration | 6*6 /6*4 | |||
| Front slope fully laden (%) | 60 | |||
| Turning Radius (M) | 20 | |||
| Max speed (km/h) | 90 | |||
| Ground Clearance (mm) | 339 | |||
Engine option 340 HP;350HP; 380HP WP10.336 WP10.375 Diesel, water cooler, 4strokes direct injection with EVB, 6 cylinder in line, inter cooler turbocharger Characterized by strong power, high reliability, good economy and low noise | ||||
| Clutch | GFX420 Dry single plate, hydraulic control booster GFX420 | |||
Gear box RT11509C or 9JS Mechanism, 9 forward gears,1 reverse gear. Optional:12JS Mechanism, 12 forward gears,2 reverse gear. | ||||
| Brake | Service Brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
| Assistant brake | Engine exhaust brake | |||
| Park brake | Spring loaded press on rear wheels | |||
| Steering | D50 circulating ball tooth fan power steering, hydraulic assisted , | |||
| Vehicle Frame | Fish belly shape, variable width, variable section, side beam trapezium structure German Benz technology | |||
| Front axle | German Benz technology. Double hoof chip air brake, | |||
| Rear axle | German Benz technology. Double hoof chip air brake, hyperbola gear, driving axle, Edge reducer | |||
| Front overhang rack | German Benz technology. Longitudinal offset plate spring, with hydraulic shock absorber cavitation effect, transverse stabilizer | |||
| Rear overhang rack | German Benz technology .Longitudinal offset plate spring, with hydraulic shock absorber, transverse stabilizer | |||
| Tire size | 12.00-20 , | |||
| PTO | N71/1B | |||
Electrical | Battery | 2x12V/135Ah * | ||
| Generator | 28V-35A | |||
| Starter | 5.4KW/24V | |||
| Cab | JD1 Tilting forward65˚,driver's seat adjustable German Benz technology | |||
| Cargo body 5800~6800 *2300*300mm | ||||
| Main body material | Q235A/6MM carbon steel from WISCO | |||
| Optional telestick -boom 10T crane : SQ10SK3Q | ||||
↵
10T crane : SQ10SK3Q
| MODLE | Name of Goods | Description | Quantity | Unit Price | Amount |
| 2534 | 6X6 Truck Mounted Crane | 6X6 Truck Mounted Crane WP10 engine 340HP max lift 10ton | 1 | $86000 FOB | $86000 FOB |
| 2538 | 6X6 Truck Mounted Crane | 6X6 Truck Mounted Crane WP10 engine 380HP max lift 10ton | 1 | $88000 FOB | $88000 FOB |
| MODLE | Name of Goods | Description | Quantity | Unit Price | Amount |
| 2534 | 6X4 Truck Mounted Crane | 6X4 Truck Mounted Crane WP10 engine 340HP SQ10ZK3Q max lift 10ton | 1 | $78000 FOB | $78000 FOB |
| 2538 | 6X4 Truck Mounted Crane | 6X4 Truck Mounted Crane WP10 engine 380HP SQ10ZK3Q max lift 10ton | 1 | $80000 FOB | $80000 FOB |
knuckle-boom 10T crane : SQ10ZK3Q
| MODLE | Name of Goods | Description | Quantity | Unit Price | Amount |
| 2534 | 6X6 Truck Mounted Crane | 6X6 Truck Mounted Crane WP10 engine 340HP max lift 10ton | 1 | $89000 FOB | $89000 FOB |
| 2535 | 6X6 Truck Mounted Crane | 6X6 Truck Mounted Crane 350HP max lift 10ton | 1 | $90000 FOB | $90000 FOB |
| 2538 | 6X6 Truck Mounted Crane | 6X6 Truck Mounted Crane WP10 engine 380HP max lift 10ton | 1 | $91000 FOB | $91000 FOB |

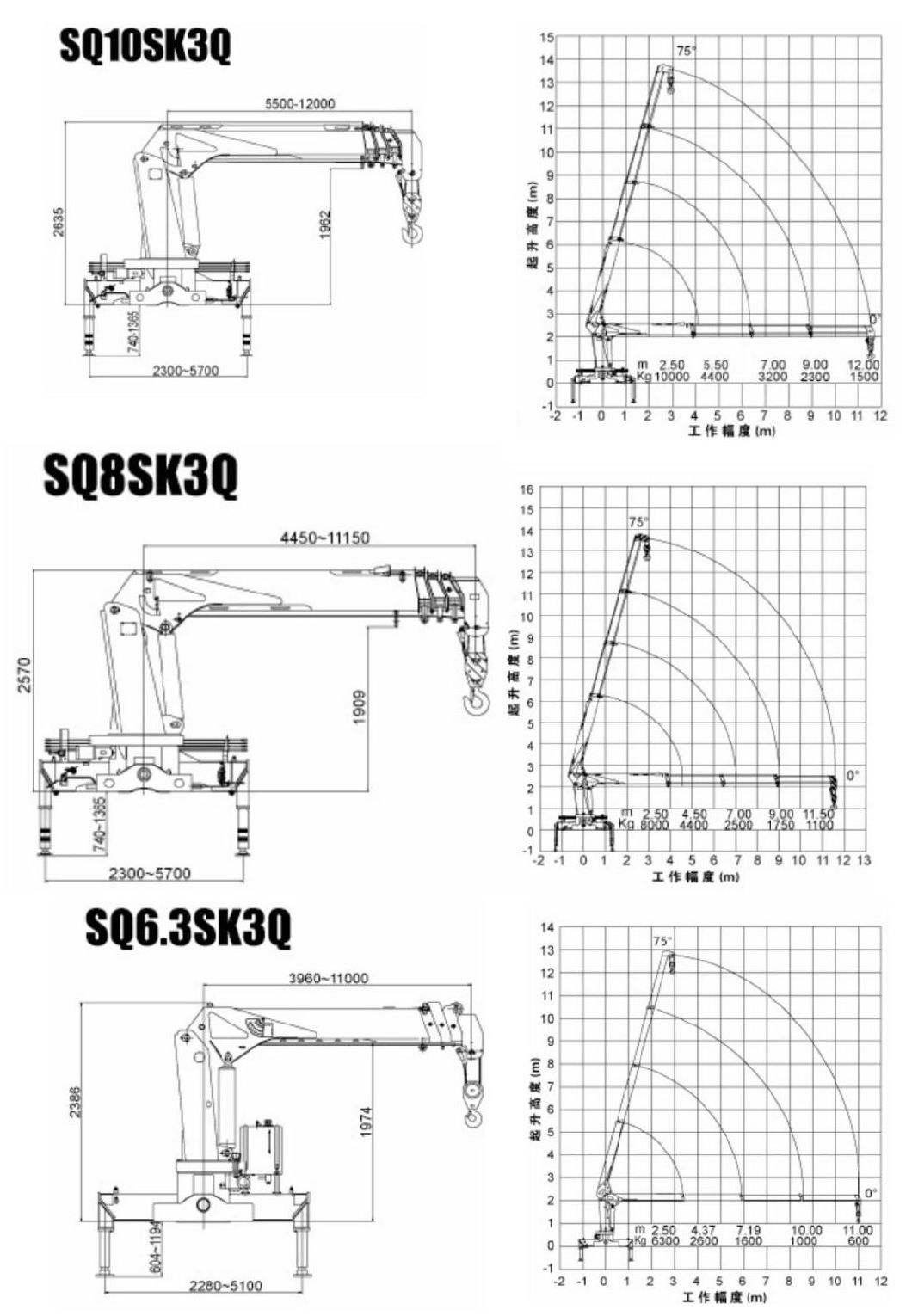

| SQ6.3SK3Q | 4-section | Lift capacity | 6.3t@2.5m | Lift capacity | 12m with 600KGS | 2270KGS |
| SQ8SK3Q | 4-section | Lift capacity | 8t@2.5m | Lift capacity | 12.5m with 1100KGS | 3300KGS |
| SQ10SK3Q | 4-section | Lift capacity | 10t@2.5m | Lift capacity | 12.5m with 1500KGS | 3800KGS |
SQ12SK3Q | 4-section | Lift capacity | 12t@2.5m | 12.5m | 13.5m with 1800KGS | 4200KGS |
SQ14SK4Q | 5-section | Lift capacity | 14t@2.5m | Lift capacity | 17.8m with 1200KGS | 4800KGS |
SQ16SK4Q | 5-section | 43.2T.M | 16t@2.7m | 18.5m with 1000KGS | 18.8m with 1000KGS | 6020KGS |
Beiben 3 T ~25 T trucks mounted crane.
| 6*4 | ND1255B44 | 4450+1450 | WP10.290 |
| ND1252B44 | WP10.336 | ||
| 6*4 | ND1253B45J | 4500+1350 | WP7.270E30 |
Customization, Cost Control Built How You Want it, Price You Can Afford.
The parameter of x.cmg crane (Optional) | Crane model | Max. lifting weight(KG) | Max. working height (m) |
SQ5SK2Q, SQ5ZK2Q | 5000 | 10.5 , 8.01 | |
| SQ5SK3Q ,SQ5ZK3Q | 5000 | 12.5 , 9.92 | |
| SQ6.3SK2Q, SQ6.3ZK2Q | 6000 | 11.0 , 8.01 | |
| SQ6.3SK3Q, SQ6.3ZK2Q | 6000 | 12.8 , 9.92 | |
| SQ8SK3Q,SQ8ZK3Q | 8000 | 13.5 , 9.755 | |
| SQ10SK3Q,SQ10SK3Q | 10000 | 14.0 ,9.75 | |
| SQ12SK3Q ,SQ12SK3Q | 12000 | 14.5 ,9.78 | |
| SQ14SK4Q ,SQ14SK3Q | 14000 | 17.8 , 11.4 | |
| SQ16SK4Q , SQ16SK3Q | 16000 | 17.85 , 11.518 | |
| FOB(Shanghai)/CIF | $ 58600 ~ 118800 | ||
Optional winch: | Install 10 tons of hydraulic winch | 1 | $6,600 | $6,600USD |
Beiben truck features and advantages:
1: Driving room: the steel structure, high safety,lower wind resistance coefficient
2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high intensity
4: Benz axle: double deceleration bridge, high efficiency, carrying large
5: Transmission system: high efficiency, bigger torque, climbing superior performance
6: Steering system:high safe and reliable, and flexible
7:Braking system, high security, brake with high efficiency
8: Electric system: stronger load ability, high reliability and easy maintenance
Beiben truck manufactured under the license of Mercedes Benz technology, which has excellent performance with reasonable price.
