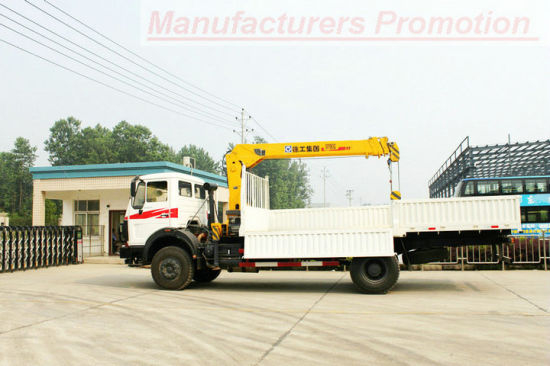

Beiben 4X2 Truck Mounted 5t Crane

Beiben 4X2 Truck Mounted 5t Crane
  • 1000
  • T/T, Western Union
  • Nil

1627,1629 beiben 4*2 military trucks with telescopic boom / Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck mounted crane

Beiben trucks mounte crane , also call as beiben crane trucks, north benz trucks mounted crane. As the most professinal beiben crane trucks manufacturer in china, we can produce the beiben 5 T trucks mounted crane, beiben 6.3 T truck mounted crane, beiben 8 T trucks mounted crane , and beiben 16 T trucks mounted crane.
The north benz trucks mounted can be on north benz 4*2 trucks chassis, 6*4 and 8*4 trucks chassis. Customer can choose XCMG, PALFINGER,UNIC, HIAB crane system to install on these north benz trucks chassis.
Beiben 3 T and 5 T trucks mounted crane.

DRIVE type4x2
Dimension(Lx W x H) (unloaded) (mm)8026x2500x3645
Inner dimension (mm)5500x2300x600
Approaching angle/Departure angle(°)30/41(°)
Overhang(front/rear) (mm)1410/1880(mm)
Wheel base (mm)4100,4800(mm)
Max speed (km/h)90
Curb weight (kg)7980
Engine Styr technologyModel (WP10.270)WEICHAI Diesel engine, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection
Displacement (L)9.726/Diesel
Bore x stroke (mm)126/130
Max power (kw/rpm)198/2200
Max torque (Nm/rpm)1390/1200-1500
EmissionEURO III
ClutchModelSingle dry frictional disc, Hydraulic boosting
GearboxModel9JS, mechanism,9gears,1reverse gear, manual
Brake systemService brakeDouble circulation air brake system
Assistant brakeEngine exhaust brake
Park brakePotential springs pressing on middle and rear wheels
Steering system
(ZF company)
ModelTAS85,whole circulation in ball, hydraulic booster
FrameFish belly, shape, variable width, variable sections, side beam structure
Front axle
(Mercedes Benz)

Double-shoe pneumatic brake, non-driving steering axle
Rear axle
(Mercedes Benz Technology)
Double-shoe pneumatic brake, casting, double reduction driving axle
Tyretyres 12.00r20
Electrical systemBattery2X12V/135Ah
CabFull steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly, long cabin with sleeper

Optional winch:
Install  10 tons of hydraulic winch1$6,600$6,600USD

Beiben truck features and advantages:
1: Driving room: the steel structure, high safety,lower wind resistance coefficient
2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high intensity
4: Benz axle: double deceleration bridge, high efficiency, carrying large
5: Transmission system: high efficiency, bigger torque, climbing superior performance
6: Steering system:high safe and reliable, and flexible
7:Braking system, high security, brake with high efficiency
8: Electric system: stronger load ability, high reliability and easy maintenance

Beiben truck manufactured under the license of Mercedes Benz technology, which has excellent performance with reasonable price.
