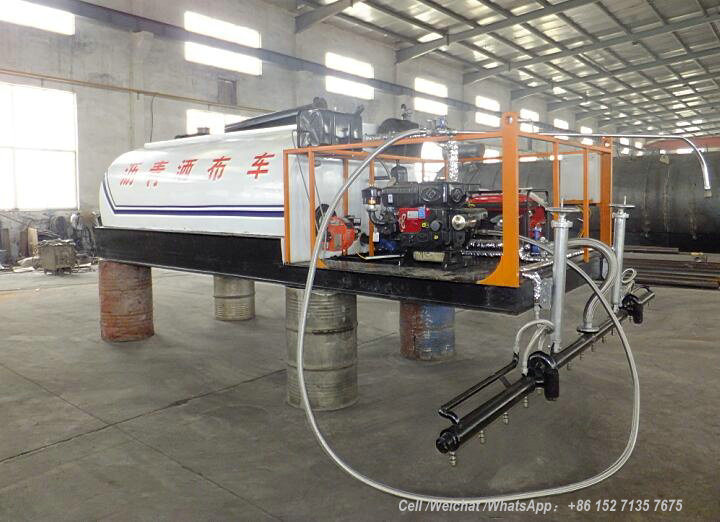

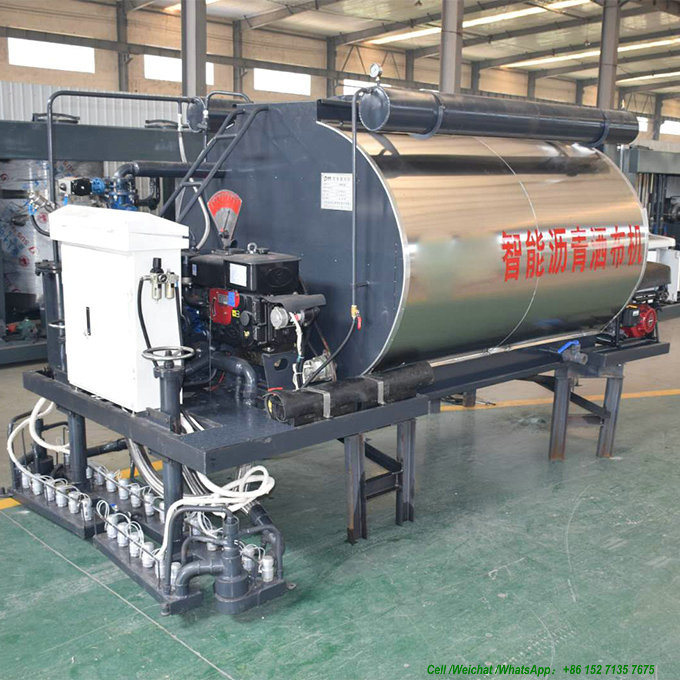

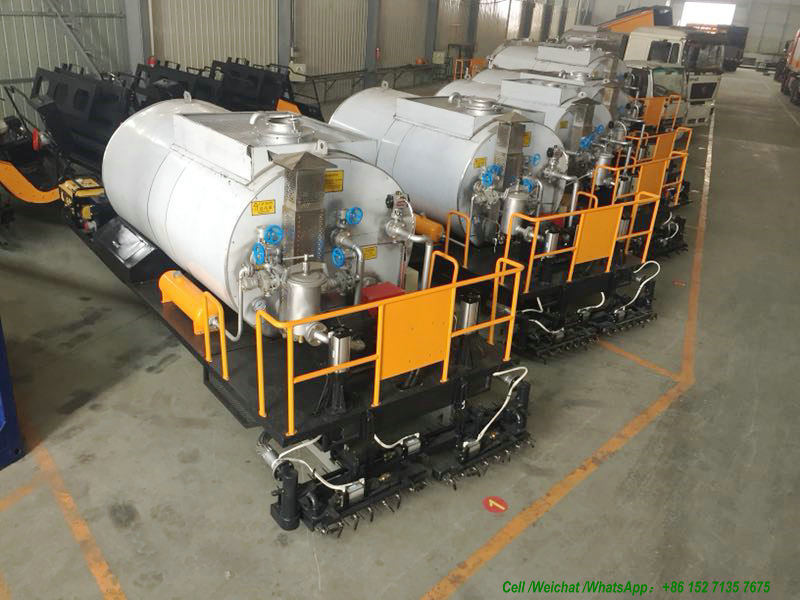

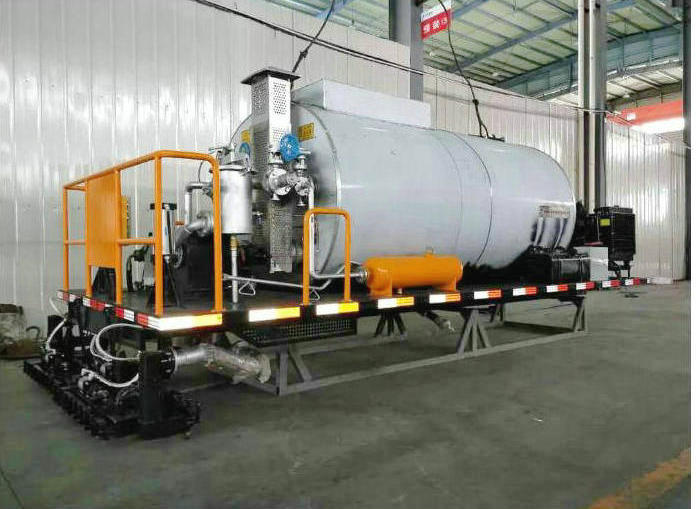

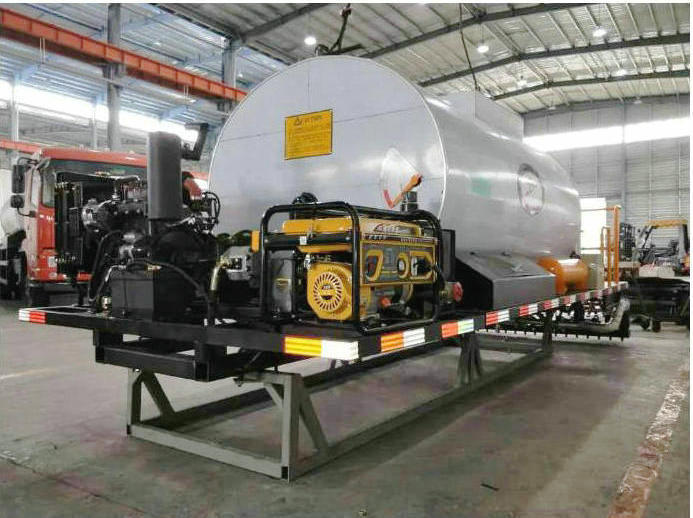

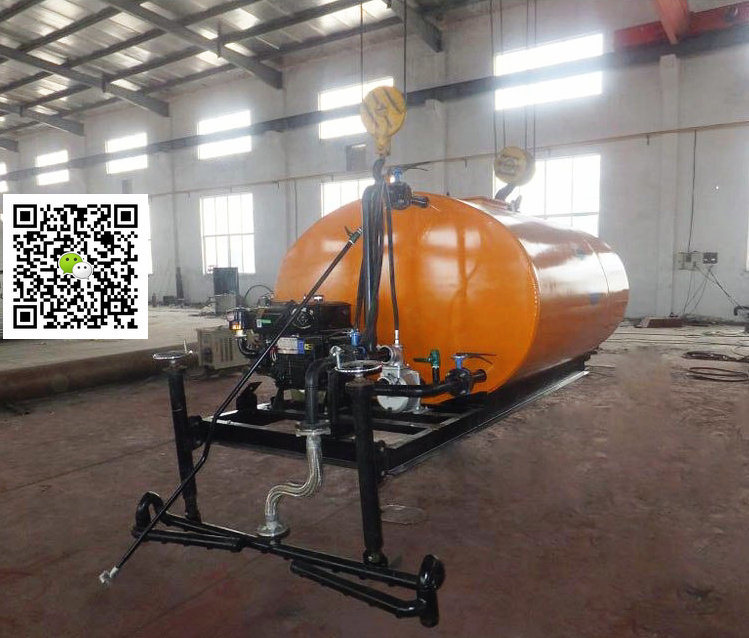

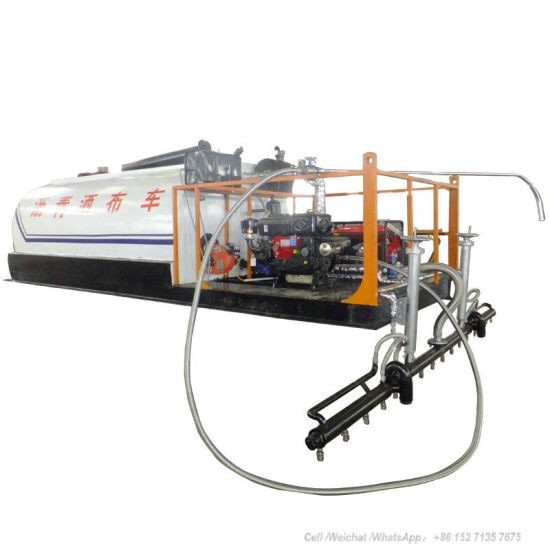

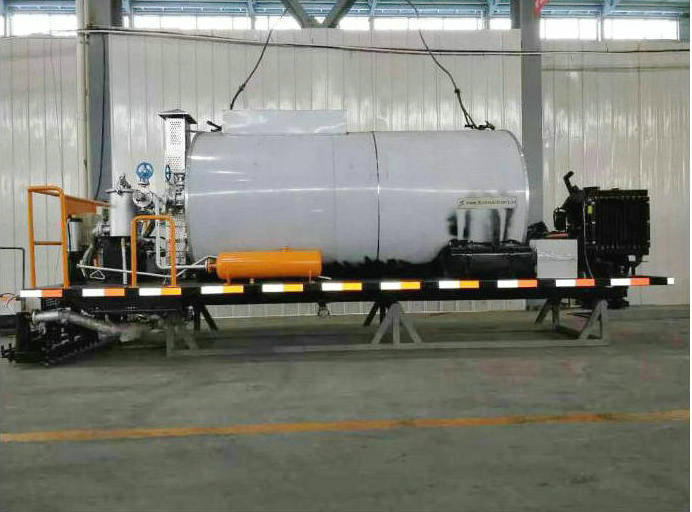

Asphalt Distributor Tank SKD for Truck with Spraying Equipment (2000L, 4000L, 5000L Bitumen Tank Asphalt Sprayer for Truck Mounted Body)
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
Asphalt Distributor Tank SKD for Truck with Spraying Equipment( Bitumen Tank Asphalt Sprayer for Truck Mounted Body )
Body Parts Asphalt Tank SKD For Asphalt Spray Truck (Asphalt Distributor Truck Body Part 4000L, Bitumen Distributor Tank )
Cell /+8615271357675
| Model number | DRZ/LS-2 | DRZ/LS-4 | DRZ/LS-5 |
| Tank capacity(L) | 2000 | 4000 | 5000 |
| Spreading Width(m) | 4 | 4 | 4 |
| Spreading Volume(L/m sq) | 0.3-3 | 0.3-3 | 0.3-3 |
| Asphalt Pump Output(L/min) | 400 | 400 | 400 |
| Asphalt Spray Nozzle(Ea) | 24 | 24 | 24 |

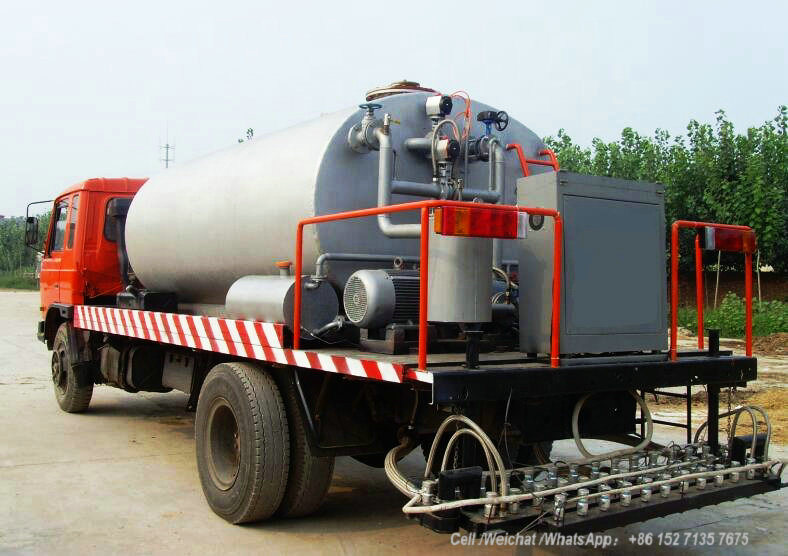

The pictures are for your reference only. Bitumen Sprayer
| 5110GLQ5 | |||
| Product name: | Bitumen Distributor | Dimensions (mm): | 7180x2250x2650 |
| Chassis model: | EQ1110SJ8BDC | Tank capacity : | 5.6m3 |
| Total quality : (kg) | 11450 | Approach/departure angle | 21/14 |
| Rated quality: (kg) | 4805 | Front overhang / rear overhang (mm): | 1130/2250,1150/2230 |
| Curb weight: (kg) | 6450 | Maximum speed (km/h): | 103 |
| Axle load: | 4360/7090 | ||
| Chassis | |||
| Chassis model: | EQ1110SJ8BDC | ||
| Number of axes: | 2 | Fuel type: | Diesel |
| Shaft distance (mm): | 3800 | Front wheel distance (mm): | 1745,1747,1823 |
| Rated passenger (including driver): | Rear wheel distance (mm): | 1620,1806,1800,1715 | |
| Number of tires: | 6 | Number of springs: | 8/10+7 |
| Tire specifications: | 8.25R20 14PR,245/70R19.5 | ||
| Vehicle description: | Tank effective volume :5.6 cubic meters, transport medium is liquid asphalt, density :900 kg/cubic meters. External dimensions of tank(mm):3500/1950/1380(internal dimensions of tank: 3400/1850/1280) | ||
| Engine parameters Emission standard: GB17691-2005 EURO V, GB3847-2005 | ||||
| Engine type | Engine manufacturer | Displacement (ml) | Power (kw) | |
| CY4SK251 YC4S150-50 ISF3.8s5154 4DX23-140E5 YN38CRE1 YC4Y22-15050 YNF40E1 | Dongfeng Chaoyang Chaochai Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Beijing Futian Cummins Engine Co., Ltd. FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory Kunming Yunnei Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Kunming Yunnei Power Co., Ltd. | 3856 3767 3760 3857 3760 2169 3920 | 115 110 115 105 95 110 125 | |
| Configuration Type | Details of Asphalt truck | |||
| Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
| Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
| Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlapping Spray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
| Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration imported Pump |
3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, | |||
Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air

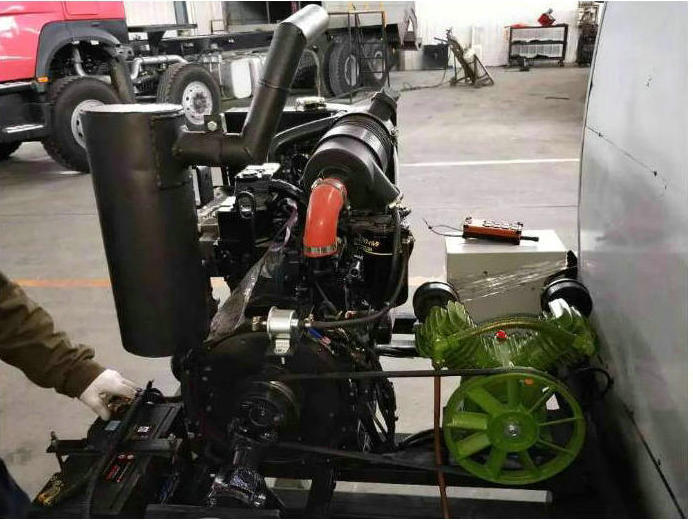

5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
Technical Specifications:
Electronic control series
| Model | P3 | P4 | P6 | P8 | P10 | P12 | |
| Chassis | BJ1073 BJ1083 | BJ1103 BJ1120 | BJ1163 BJ5163 | SX1255 | ND1254 | ND1255 | |
| Capacity of asphalt tank (L) | 3000 | 4000 | 6000 | 8000 | 11000 | 12000 | |
| Max. distribution width(m) | 4 | 4.5 | 6 | 6 | 6 | 6 | |
| Distribution capacity (kg/m2) | 0.3-1.8 | 0.3-2.5 | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | |
| Distribution precision (%) | ≤2 | ||||||
| Heating mode | Diesel burner Heat capacity | ||||||
| 8×104Kcal/h | 8×104Kcal/h | 10×104Kcal/h | 15×104Kcal/h | 19×104Kcal/h | 19×104Kcal/h | ||
| Average Temp. Drop (°C/h) | ≤1 | ≤1 | ≤1 | ≤1.5 | ≤1.5 | ≤1.5 | |
Before sales:
1.Gratis professional consultant service,multi solution options, and most suitable product recommendation.
2.Special product design and manufacture based on your requirements.
3.Gratis professtional technology consultant,and detailed equipment working scheme as reference,for your special project.
After sales:
1.Gratis professional technology training,to train qualified operator for you.
2.Satisfying solution response in 2 hours after your quality feedback.
3.Equipment repair warranty(details in contract attachment),life time repair service(only free of charge of labour cost).
4.Save your individual product records.Asphalt distributor
Smart Intelligent control series
Major features:The distributor is made up by chassis, asphalt tank, asphalt pump, conduction oil
heating system, electrical and automatic control system and cleaning system, etc. with main units
made of the most up-to-date components in the international community, all-round control with
micro-computer, high distribution precision.
Three layers of overlapped cloth for spray, adjustable distribution capacity based on the
traveling speed, totally operable in the cabin for distribution
Separate control with computer at each spraybar of adjustable width.
Two control systems in the control process for the whole truck (cabin and rear operating platform) to ensure reliable and successful asphalt distribution.
All-round heating of pump, spraybar and tank with conduction oil or separate heating.
Optional radar speed measurement system
Safe and reliable conduction oil heating system for fully automatic control
| Model | S4 | S7 | S8 | S10 | S12 | |
| Chassis | BJ1103 BJ1120 | BJ5163 | SX1165 | SX1255 | ND1254 | |
| Capacity of asphalt tank (L) | 4000 | 6800 | 8000 | 10000 | 12000 | |
| Max. distribution width(m) | 4.5 | 6 | 6 | 6 | 6 | |
| Distribution capacity (kg/m2) | 0.3-2.5 | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | |
| Heating Mode | Diesel Burner Heat capacity | |||||
| 8×104Kcal/h | 12×104Kcal/h | 14×104Kcal/h | 19×104Kcal/h | 19×104Kcal/h | ||
Cell :+8615271357675
