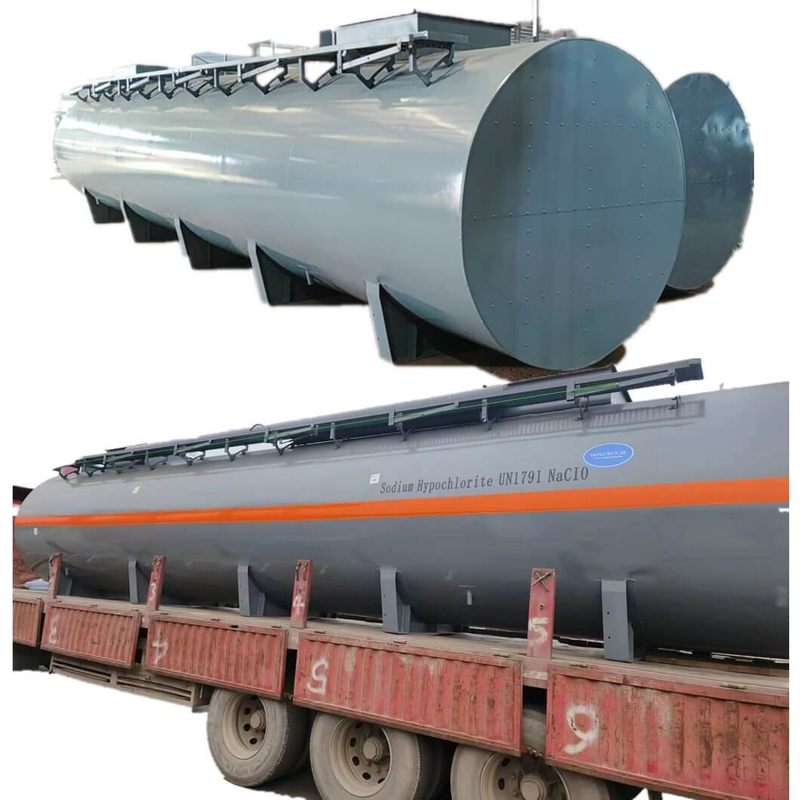

Lined PE Storage Transport Sodium Hypo Tanks For Truck Trailer Mounted with Insulation Layer 6604 Gallon Bleach NaOCL

Share to:

Lined PE Storage Transport Sodium Hypo Tanks For Truck Trailer Mounted with Insulation Layer 6604 Gallon Bleach NaOCL

Lined PE Storage Transport Sodium Hypochlorite Tanks 6604 Gallon For Truck Trailer Mounted with Insulation Layer
Steel Lined LDPE also for HCl (max 35%)UN1789, Sulfuric acid 93%UN1830 ,Sodium Hypochlorite (Bleach) UN1791 NaCLO NaOCL
Price for refer only. Final Price Offer Discount.

Price: $ 18800 / set

Discount Price: $ 16800 / set

Availability:

Quantity:

Brand:
Dong Run Ze
Code:
730900000
Port:
Shanghai, China
Production Capacity:
3000
Payment Terms:
T/T

Product Description

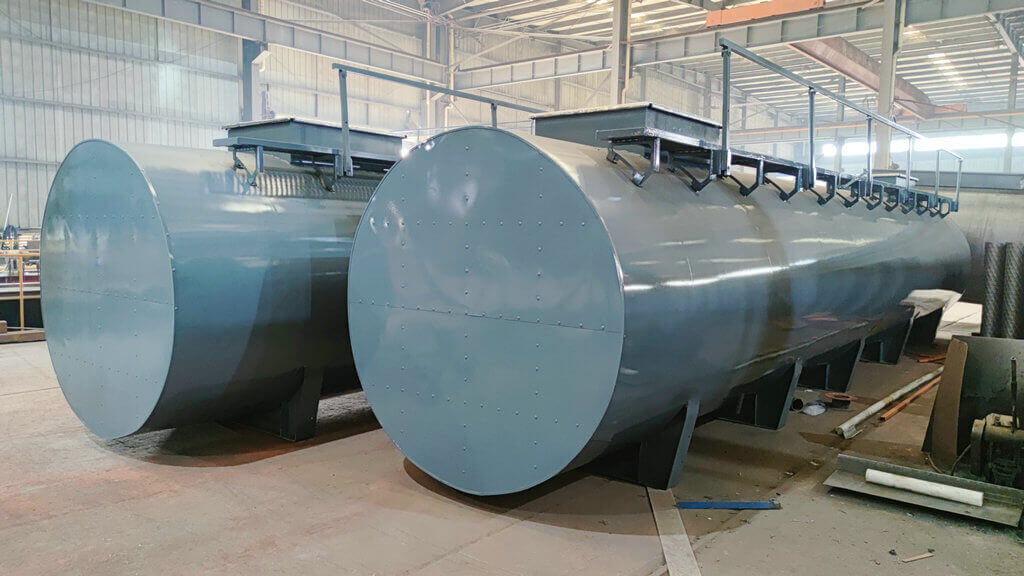

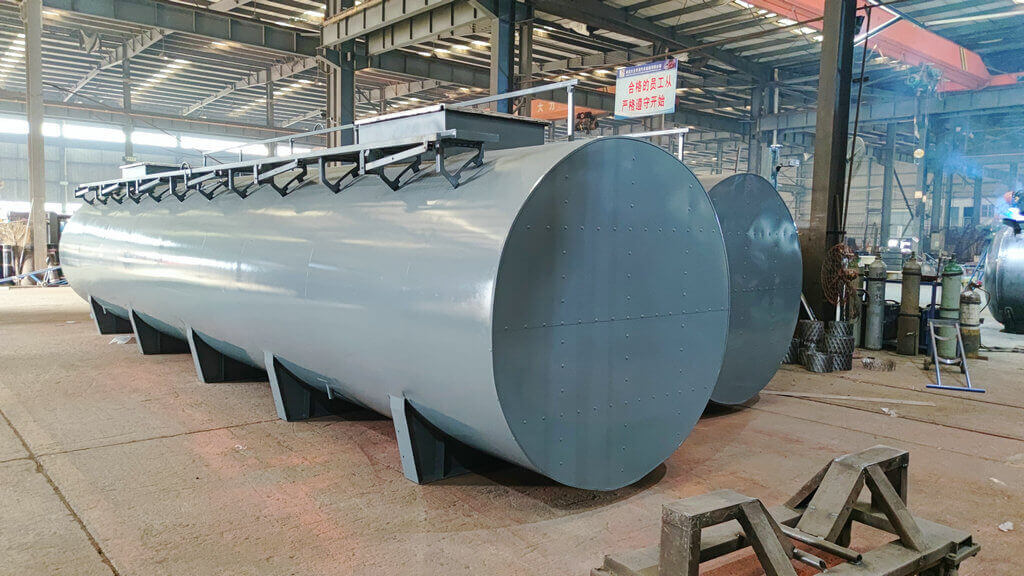

Lined PE Storage Transport Sodium Hypochlorite Tanks 6604 Gallon For Saudi Arabia Trailer Mounted with Insulation Layer

PE lined Tank (without chassis)

for transport: Sodium Hypochlorite (NAOCL 15%) (Bleach) UN1791 NaCLO

Tank capacity: 25m3

Liner thickness: 22 LLDPE

with rockwool thermal insulation 50mm

LDPE Liner Steel Acid Tank Container 25m3 ( for 10m Container Trailer Mounted Without Frame) Q235B+PE

Steel Lined LDPE also for HCl (max 35%)UN1789, Sulfuric acid 93%UN1830,Sodium Hypochloride(NAOCL 15%)

PRODUCT DIMENSION	OVER ALL SIZE 1050021002500MM
(Bleach) UN1791 NaCLO VOLUME：	25M³
WEIGHT	6800KGS
THICKNESS OF PLASTIC LINING	20~22MM Lining for Sodium Hypochlorite Tank
PRODUCT TRYPE	STEEL LINED LLDPE TANK Q235+PE
MATERIALS OF THE LINING LAYER	PE7042

Lined PE Mobile Hydrochloric Acid (HCl) Tank 2 PE lined tank For transport Sodium Hypo Chloride 25m3 (103)

Steel Lined PE Acid Corrosive Liquid Transport Tank Body 11000liter (Hydrochloric Acid Tanker) Hydrochloric acid tank, Sodium hypochlorite Tank body 2 - 3 compartments Elliptic shape for transport Ammonia liquid, glacial acetic acid, dilute sulfuric acid, hydrochloric acid,Caustic soda ,etc L4bh Hydrochloric Acid Tanker Trailer 3000USG-8000Gallon Lined PE HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)etc

Tank containers should be filled accurately and according to the requirements. Excessive filling should not be allowed. The maximum filling rate should be guaranteed not to exceed 90% of the effective volume of tank containers (the effective volume of this batch of tank containers after deduction of lining is 20454L, 90%*20454=l 8408L), and calculated according to the following formula, the two values are small.

Keywords :ISO-lined Tank,lined tank, Lined LLDPE tank, hcl Tank, acid tank, tank container, 20ft tank container , iso tank,isotank, iso tank container, t14 tank, imdg tank,acid tank container,Horizontal Tank in Rectangular Frame,acid tank in Rectangular Frame,Hydrochloric Acid tank,hydrochloric acid fluid tank, lined with Linear Low Density Polyethylene tank,T14 Sulfuric Acid Tank Container,Steel Lined LDPE Tanker,Hypochlorite Ferric tank,tanks containers for Hydrofluoric acid , FECL3 tank,Offshore Acid Tank,offshore tanks suitable for transporting acid,offshore tanks, IMO 1 tank,Ferric Chloride tank,Sodium hydrogen sulphite solution tank,20ft tank ,20ft container tank

View more at Youtu.be and follow us.

https://youtu.be/77W3oSM7KAU

https://youtu.be/pAEXHFBdGdY

https://youtu.be/3Y0tT7nknXM

https://youtu.be/3Yb2diEGXyY

https://youtu.be/VKVIcC02974

https://youtu.be/uqva7K_GLB4

https://youtu.be/YViOkhVwMKg

https://youtu.be/II0khjBNAPs

https://youtu.be/sUpZG9wYqnU

https://youtu.be/x4GxDsDI1N0

ISOTANK List

The Main Technical Parameters of Tanks (ASME Standard)
Item	Loading Medium	Model	Capacity (m3)	Design Pressure (Mpa)	Design Temperature (c)	Tank Material	Nominal Tank Thickness (mm)	Insulation	Tare weight (Kg)	Max. Gross Weight (Kg)	Dimension (LX WX H)(mm)	Loading Method
1	R134a	T50	24	1.38	-40 /+55	SA-612N	11	Sunshade	6400	34000	6058 X 2438 X2591	Down load unload
2	R22		22	2.1	-40/+50		18		8800
3	R143a		22	2.42			20		9500
4	R125		22	2.75			21		9500
5	R32		20	3.44			25		10900
6	AHF	T19	21	1.0	-40/+55	SA516M NGr.485	12	No	6900			Up load unload
7	Trichlorosilan	T14	21	0.5	-40/+50	Q345R (16MnR)	12	No	6780	34000	6058 X 2438 X2591
8	Liquid Chlorine	T50	20	1.7	-40/+50		16		8300
9	Liquid Chlorine	T50	21.72	1.62	-40/+50		16		8900
10	Liquid Ammonia	T50	21.6	2.2	-40/+50	06Cr19Ni10	22	Packing Insulation	11970
11	SO2	T20	21	1.03	40 /+60	16MnDR	12	No	6900
12	Cryogenic Liquid	T75	19.8,20	0.75-2.35	-196/+50	Inner Tank: 06Cr19Ni10 Outside Tank:Q345R		Vacuum With Mutli-wrapped	8600/12880			Down load unload
The Main Technical Parameters of Tanks (China Standard)
Item	Loading Medium	Model	Capacity (m3)	Design Pressure (Mpa)	Design Temperature (c)	Tank Material	Nominal Tank Thickness (mm)	Insulation	Tare weight (Kg)	Max. Gross Weight (Kg)	Dimension (LX WX H)(mm)	Loading Method
1	R134a	T50	24	1.38	-40 /55	Q345 (16MnR)	12	Sunshade	6500	34000	6058 X 2438 X2591	Down load unload
2	R22		20	2.1	-40/+50		16		7850
3	R22		24	2.1			18		9100
4	R125		22	2.75			22		9900
5	R32		22	3.44			28		12000
6	R32		23.7	3.44	-40 /55		28		12700
