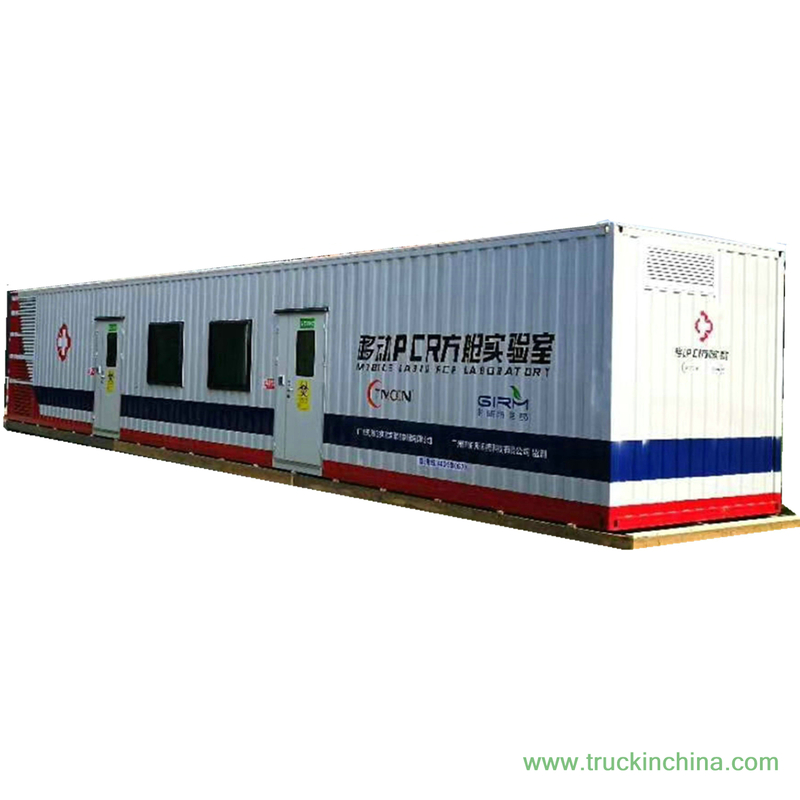

Molecular Laboratory with PCR System Molecular Diagnostics Platform Container House PCR Shelters
Mobile PCR Shelters
External dimension of box: 9 * 3 * 2.5 (m, L * w * h)
Box size: 8.8 * 2.8 * 2.3 (m, L * w * h) https://youtu.be/yJubxKESdx8
Floor area of the box: 27 ㎡,
About 4 standard car parking spaces
Total box weight: about 8 tons
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
Mobile PCR Molecular Lab
-
OC LAB
-
Shanghai / Shenzheng
-
50%/50%
-
1
Customize Molecular Laboratory with PCR system Molecular Diagnostics Platform Container Type House
Mobile PCR Shelters
Specifications:

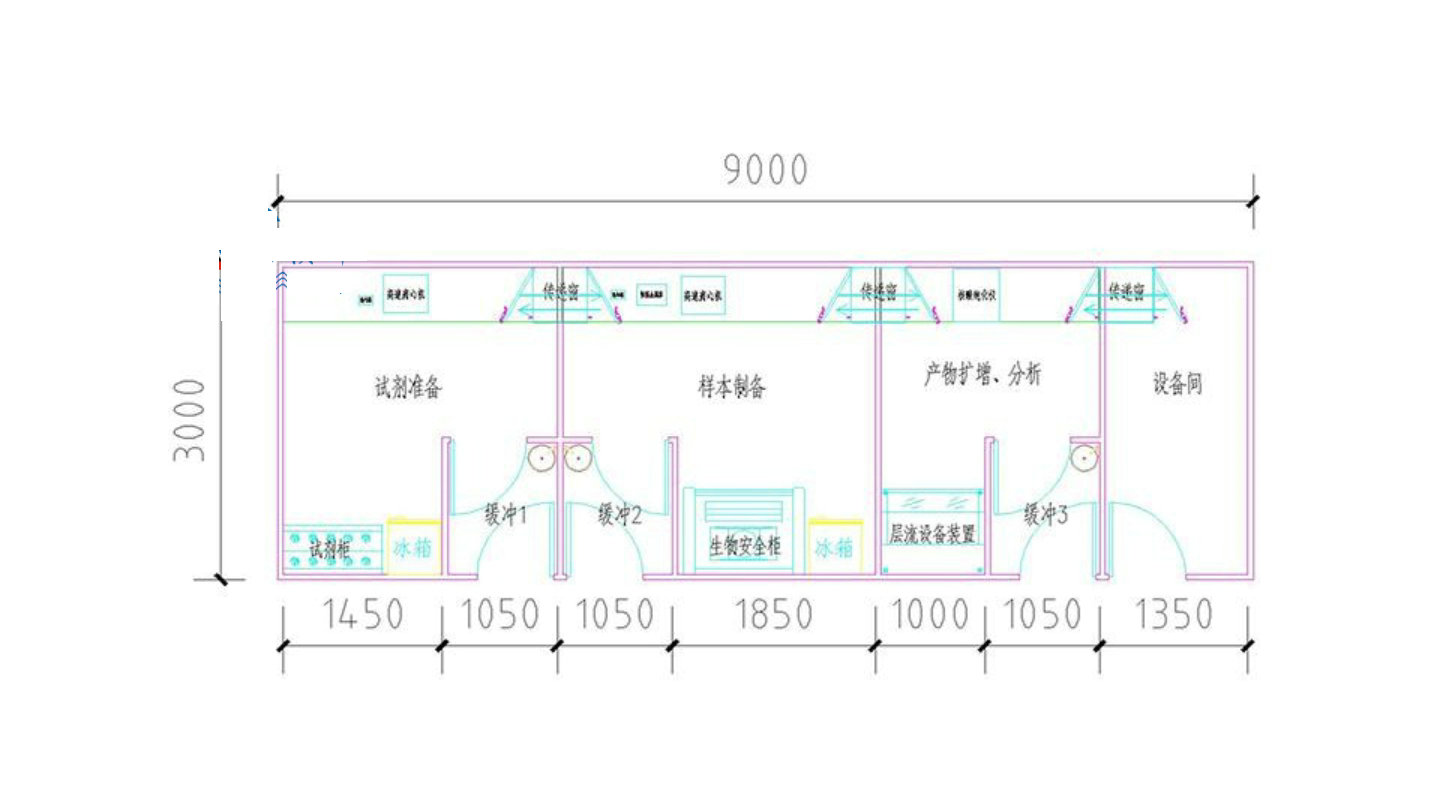

External dimension of box: 9 * 3 * 2.5 (m, L * w * h)
Box size: 8.8 * 2.8 * 2.3 (m, L * w * h)
Floor area of the box: 27 ㎡,
About 4 standard car parking spaces
Total box weight: about 8 tons
Technical standard for construction of secondary Laboratory of medical biosafety
Code for design of heating ventilation and air conditioning of civil buildings
Code for construction and acceptance of clean room
Limits for dimensions, axle loads and masses of motor vehicles, trailers and motor vehicles
High efficiency air filter
Hygienic standard for hospital disinfection
General requirements for laboratory biosafety
Technical code for construction of biosafety laboratory
General guidelines for Biosafety in microbiological and biomedical laboratories
General principles of clinical laboratory design
General technical specification for mobile laboratory test cabin
General test method for military shelter
General specification for military shelter
Technical code for disinfection of medical institutions
Menagement measures for clinical laboratories of medical institutions
Interim Measures for the management of clinical gene amplification Laboratory
Interim Measures for the management of clinical gene amplification laboratory in medical institutions
| Standards Configuration list | ||||
| No. | Configuration | Brief Introduction | Quantity | Unit |
1 | Box outside structure | 1. The wall is made of 80mm thick reinforced wave plate, and the ground plate is made of 30mm thick reinforced anti-corrosion plate, suitable for various terrain transportation conditions;
3. It is equipped with lifting clamps to meet the transportation needs and has the function of box stacking; 4. High strength exterior door, good sealing performance, strong and durable, suitable for all Weather service conditions; 5. The surface is treated with rust removal, antirust paint and three times of fluoronitrogen paint, all-weather durable. | 1 | set |

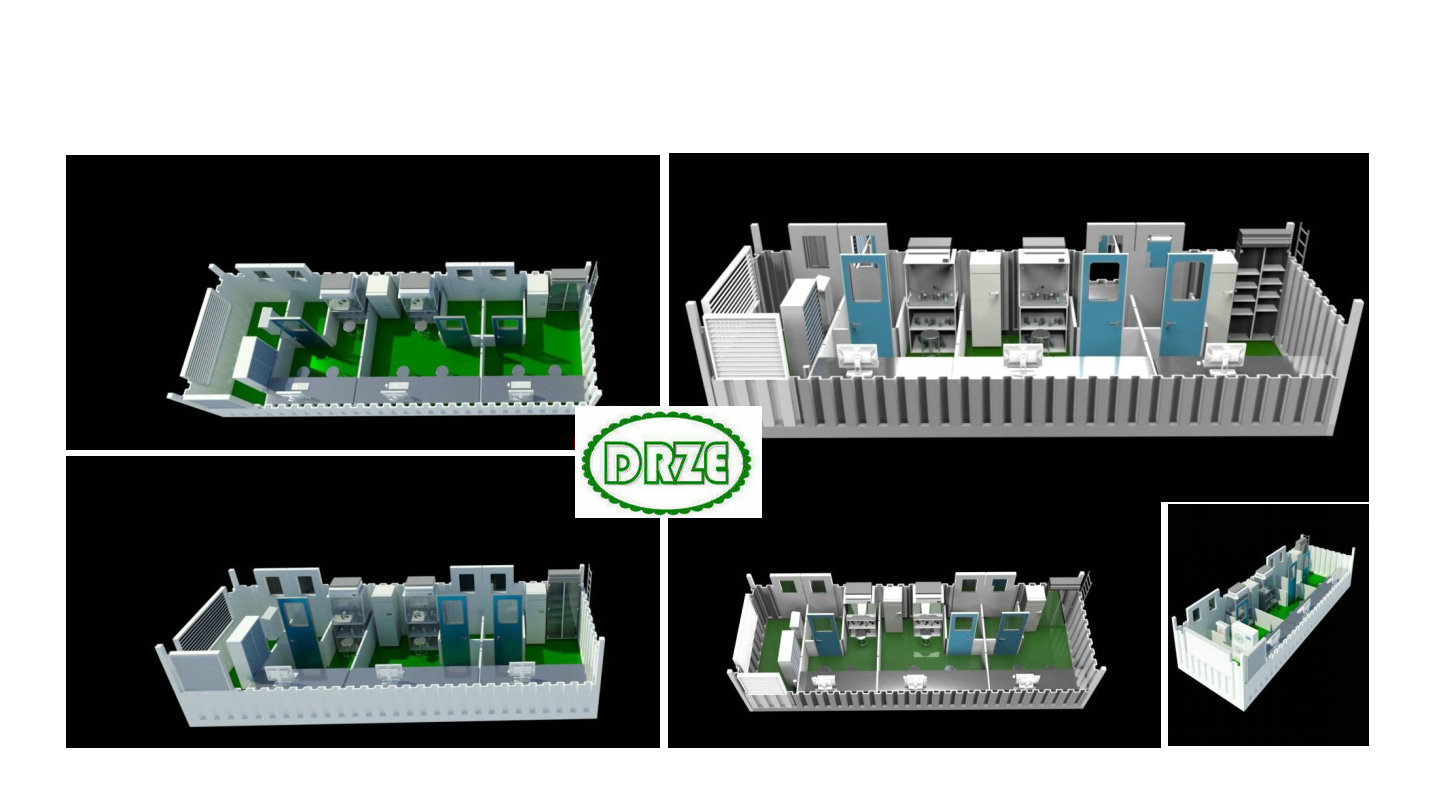

2 | Box inner structure | 1.50 mm thick laboratory special antibacterial purification board is used for partition and ceiling. The thickness of the board is 50 mm, with good antibacterial effect, good fire prevention and moisture-proof, Anti degumming, high strength, heat preservation, heat insulation, sound absorption and other features; 2. The internal and external corners of the box body are equipped with arc-shaped aluminum profiles for cleaning room to ensure that the box body is smooth without dead corners, without dust accumulation, and is not easy to produce mold; 3. The doors and windows are equipped with air tight anti-bacterial purification board; 4. The ground is equipped with the same quality and transparent core 2mm rubber floor, which is fire-proof, anti-bacterial, wear-resistant and anti-skid; 5. Led ceiling type cleaning is equipped Lamp, power saving, energy saving and easy to maintain; 6. Equipped with special UV lamp for laboratory And equipped with time delay function to protect the personal safety of laboratory personnel; 7. Box Orderly distribution of internal electrical lines, hidden installation, using high-quality brand materials | 1 | set |
3 | Laboratory cabinet | Table top position: double sided board, table top: 1.2mm stainless steel plate, middle: 12mm wood plate, 0.8mm stainless steel plate for back plate; 38 * 38 square tube for main frame; 304 material | 1 | set |

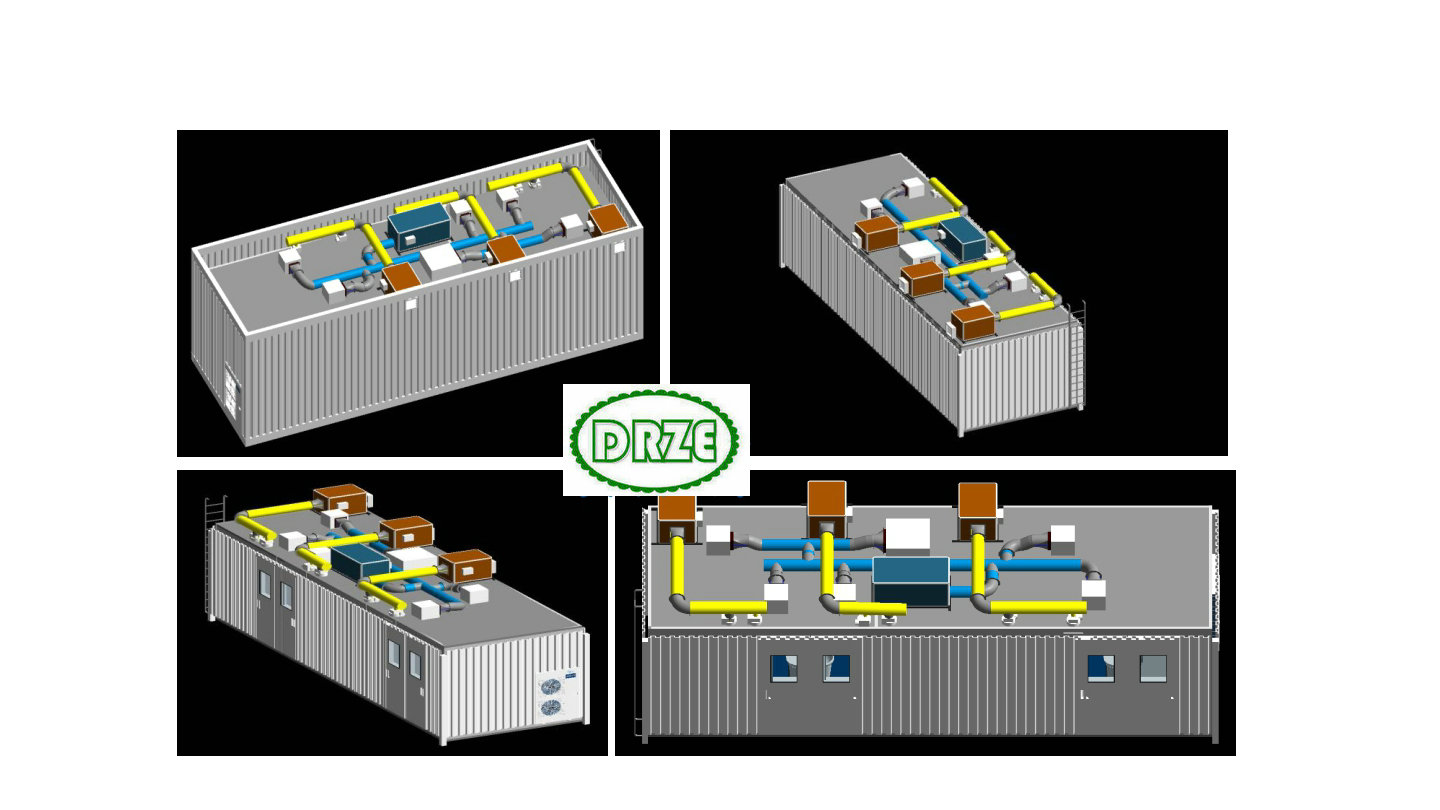

4 | HVAC engineering |
4. Each main operation room adopts one-to-one exhaust equipment to ensure no cross contamination of air flow in each room The exhaust equipment is equipped with high efficiency and ultraviolet sterilization, meeting the biosafety exhaust standard. | 1 | set |
Optional instruments and equipment
C-nucleic acid amplification region
1. Gene amplification instrument A300 sets 1
2. Nucleic acid extractor auto pure32a, 1
3. Pipette manual single channel adjustable research plus Branch 1
D. product analysis area
1. Fluorescent quantitative PCR instrument q2000c set 1
2. Pipette, manual single channel adjustable research plus Branch 1
3. Horizontal electrophoresis instrument wix-ep600 + wix-mididna platform 1
4 Gel imaging system DLJ-1000 1
5. Electric heating plate hp550-s set 1 set 1
mobile box PCR laboratory
