3m3-10m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part)

Share to:

3m3-10m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part)

Availability:

Quantity:



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
3000
Payment Terms:
T/T

Product Description

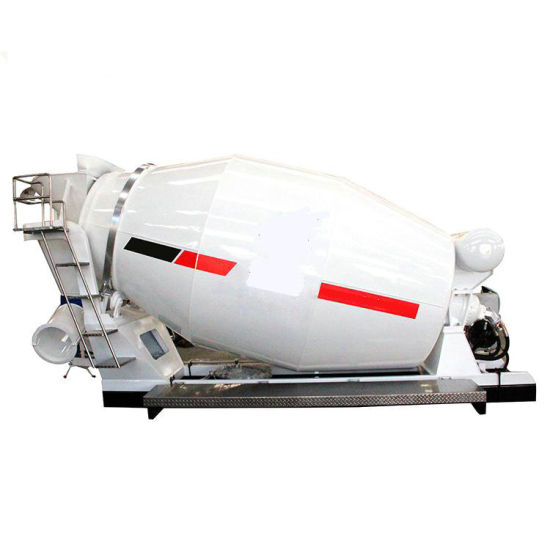

3m3-10m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part )

Concrete Mixer For Tunnels (Cement Agitator Tank) 3-12CBM

Ask for better price

Cell /+8615271357675

The pictures are for your reference only.

3m3-10m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part )

Concrete Mixer Tunnels
8 CUBIC METERS BODY WITH FULL YUCHAI 130HP ENGINE AND PUMP Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)
MIXERS 8 CUBIC METERS BODY WITH FULL 130HP ENGINE AND PUMP
( USE THE MIXER INDIVIDUAL WITHOUT ANY CONNECTION FOR THE TRUCK)

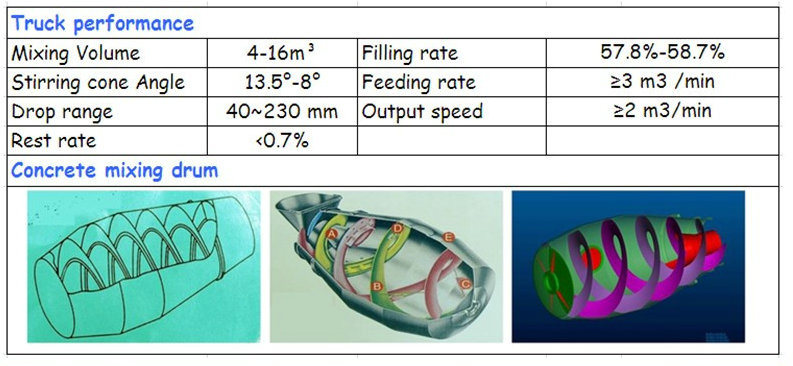

Concrete mixer truck structure parameters
Loading capacity	8m3		Tank material	5mm steel
Tank front head	8mm steel		Reducer	Germany ZF
Hydraulic pump	Germany REXROTH		Hydraulic motor	Germany REXROTH
Radiator	KAIPENG		Color and Logo	Optional
Standard configuration	sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
	8m3	Germany ZF reducer,Germany REXROTH hydraulic pump, KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm steel wear resistant material)
Selective ENGINE	YUCHAI ENGINE 130HP Model :YC4D /YC4E Series Displacement(L)4.214 Emission Euro 2/ 3/4 Rated Power96/2800 (kw/rpm)MaximumTorque380/1700-2000(Nm/r/min)

Concrete Pump
Concrete Pump main motor 30kw/Horizontal pumping distance 200 meters, vertical 50 meters,100kw diesel generator

Aluminum / midd Steel Stainless Steel Vaccum Tank

3m3-10m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part)

3m3-10m3 Concrete Mixer Tank (Concrete Truck Mixer Upper Part)

Cell :+8615271357675
