Availability: | |
---|---|
Quantity: | |
Shanghai, China
3000
T/T

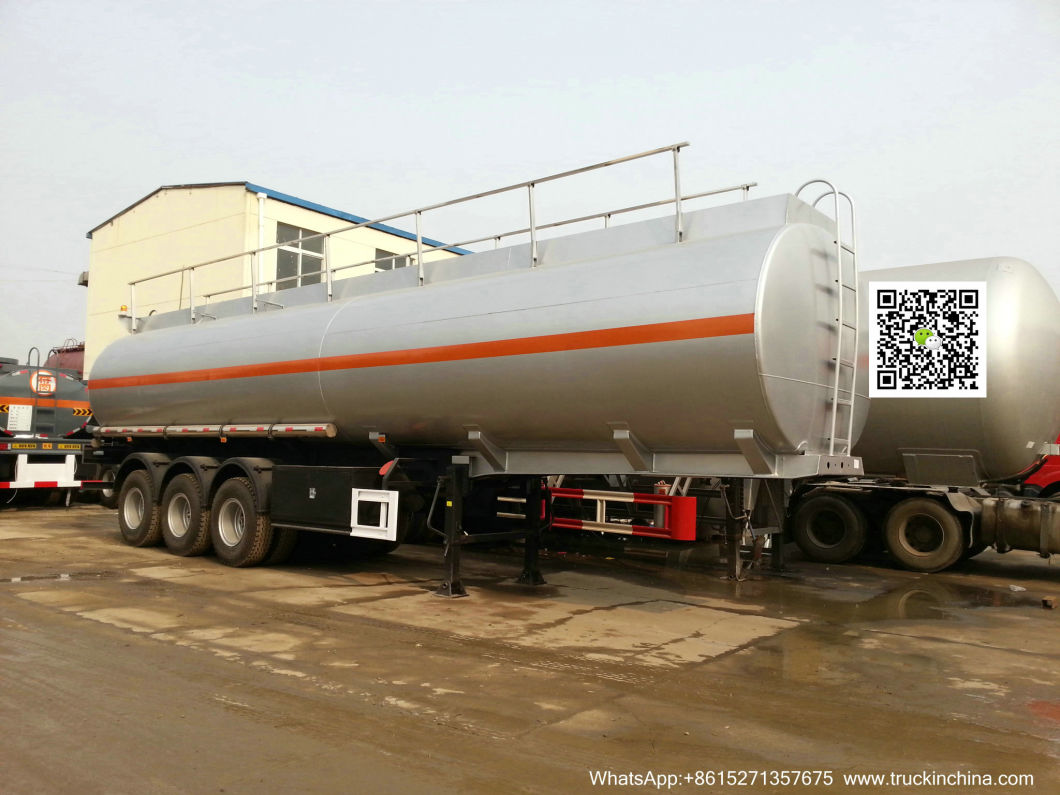

Stainless steel tank trailer is suitable for different types of liquid transport, like water, drinks, chemical liquid.
The tank is made of food grade stainless steel meeting standards of food security. The reaction between toxic metal and acid-base is avoided.
According to customer's requirement, the tank body could be divided into several compartments for the loading of different liquid. It is option to have flow meter and pump for pumping in and out.
There is also option to have the heating system for discharging.
304, 430 or 316L Body | ST Quality Steel useage |
ADR Compatible Tankers | BPW, FUWA or Certificated Axles |
Pnemautic Discharging Valve | Air and Mechanical Suspension |
ABS and EBS brake system | Steel or Aluminum Rims |
JOST or Turkish brand parking leg and king pin |
STRUCTURE
- It is manufactured in volumes of 28.000-65.000 lt. according to request.
- Length 10.000 mm-13.000 mm
- Width 2550 mm
- 2-3-4-5-6 -7compartments dividers
- Our tankers are ellipse, round, double "D", bottle type shaped
- 4 mm Stainless Steel plate is used on tanker body
LOADING AND UNLOADING SYSTEM
- Proofed and sealed manhole cap for every cell divider

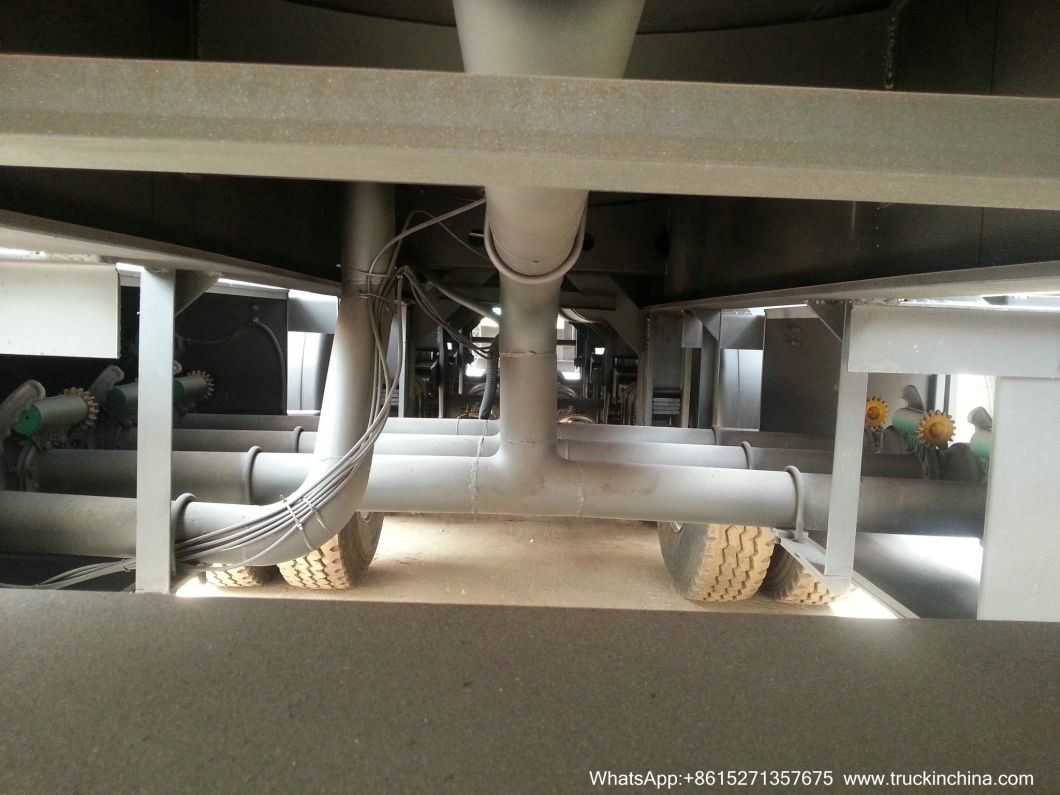

- 3" in diameter pipes that connects every cell divider to valve box
- Independent natural unloading system with 3" in diameter spherical valves
Chassis: Strengthened "I" section centre members are welded automatically by submerged welding machine. They are welded between 120/14 mm bottom or top steel plate and 5 mm hub plate.
Axles: Brand, BPW or FUWA 3 x 9,12,14,16 Ton axles brake drum or disc
There are brake shoes and heavy brake levers
uspensions ; It is supplied with Turkish brand of 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x12 pcs of layer with 100 mm width
Brake System ; Wabco brand ABS or EBS braking system will be used.
Brake Chambers ; 1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers
Electrical system ; Hella, Aspöck, Sa-Ba or Sertplas brand 2×7 pin sockets - 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear
2 tail & stop combined lamps (red)
2 turn signal combined lamps (orange)
1 license lamp (white)
Tires; 385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5 Dongfeng ,Bridgestone, Goodyear,
Rims; 11.75 R22.5 China Brand
King Pin ; Jost or equivelent Turkish brand OMS DIN 74080 standards 2'' or 3,5'' king pin detachable from below made by SAE standards 8 bolt type. With E certificate.
Landing Gear ; Jost or equivelent Turkish brand front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity
Painting ;
Before the painting trailer is sand blasted
ZincRich epoxy gray is used for first protecting.
1-2 Times of high quality paints are applied on trailer protects against humadity
The color of trailer is selected by our customer according to RAL codes
Standar Accossories
- Multi-piece plastic fenders that covers trailing axle tires
- 1 plate unloading valve box
- 1 plate tool box
- 1 non-slip floor walking platform
- 1 ladder (climbed from behind)
- 2 PVC pipes to carry unloading hoses
- Control Panel(Mob, air clock, access ramp lever)
- Plastic water tank
- Roller or basket stare tire conveyor
- Aluminum bike impact absorber
- Mounting and mounting space
Ask for better price
The pictures are for your reference only.
1.Fifth wheel height 1300mm.
2.wheelbase:5790+1360+1360mm,king pin size 50# or 90#,
3. 3*13ton fuwa axles with airbag suspension , with ABS ,16T Brake Pads,
1. Brief Introduction : |
This Tanker is applied to transport liquid Ethanol in a short or long distance. |
2. Main Performance Characteristics: |
Rectangular/Oval cross-section oil tank, low center of gravity and large load capacity. |
Based on the following |
WEIGHT RATTING: |
Tare Weight: 10T |
Rated Payload: 30T |
Actual payload: 30~38T |
G.V.W.R.: 40T |
Shape of tank: Elip straight |
Tank material: 304 Stainless steel thickness of the carbon stell:5 mm |
Vehicles Oil Semi trailer |
Types of vehicles Semi-trailer |
Over side |
Dimensions(mm) 10500x2500x3400;10620×2480×3800(mm);11300×2500×3900(mm |
Rated loading weight(kg) 30000 30~38T |
Total mass(Kg) 45000 Kerb weight (kg) 10000 |
Wheelbase(mm) 5100+1310+1310; 5600+1310+1310 |
Axle number 3 Fuwa |
Tire specifications 12R-22.5 Goodyear G-149 16 ply radials Suspension type Mechanical suspension |
Number of tire 12 Track rear(mm) 1840/1840/1840 |
Departure angle 12 degree Rear overhang(mm) 1600 |
Number of Leaf spring -8/8/8, Tanker capacity(L) 36000 |
Axle load(T) 13T*3 (3 axles ) King Pin standard JOST brand 2 or 3.5 inch |
Landing leg |
H-girder, JOST brand |
Two-speed, Manual operation |
heavy-duty landing gear |
Braking system WABCO RE 6 relay valve |
Dual line pneumatic brake system |
Inlet hole 2 pcs,DN100 Breather valve 2 pcs,DN80 |
Discharge hole 2 pcs, DN100 with 3 inch coupling Manhole(mm) 2pcs,DN500mm |
Floor description 3mm checker plate Fuel tanker cabin Single (the tanker can divided into several sections)Painting Prime and Paint all mild steel parts black |
Accessories |
1. Two climbing ladders on the front and rear of the tanker; one tool box |
2.Two tire carriers |
3. one water tank |
4. Outlet valve, 2 pcs,DN80 |
5. Two 1 1/2 diameter Tiger flex drain hoses located one per side |
6.One Tool box |
SS304 or 316L Tank Body Stainless Tanker Trailer for Acid, Chemicals, Edible Oil, Liquid Food, Milk, Alcohol 8000USG -15000USG
Main Dimensions | |
Tank Body | |
Shape | Optional(Round or Suare) |
Dimension | 12000mm*2490mm*3990mm(Exact size depend on the final design) |
Tare Weight | About 8000Kg-12800Kg |
Total Volume(m3) | 25m3-60m3 |
Tanker Body Material | 5mm or 6mm Stailess steel |
End Plate | 5mm or 6mm/Q235 Stailess steel |
Manhole Cover | Stailess steel API manhole cover ,500mm |
Bottom Volume | Stailess steel API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4" rubber hose,2 pcs,6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding design or special design I beam ,connected by bolts and nuts Q345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOSTD200T or China brand 28T |
King Pin | JOST 2.00 OR 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension(Germany or American type)/air suspension |
Leaf spring | 90(w)mm*13(Thickness0mm*10 layer or 100mm*12mm*12/without |
Pneumatic Braking System | WABCO RE 6 relay valve;Spring brake chamber;2 pieces of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
ABS | Optional |
Painting | Complete Chassis and blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
Accessories | One standard tool lox |
Shipping Terms | By bulk cargo ship, RORO or 40HQ container |
2
30,000L-45,000L 3-axle Tank Semi-trailer | |||
Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid | ||
Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L) | ||
Model | DRZ9350GRY | ||
Material: | Carbon Steel | Stainless Steel | Aluminum |
Compartment: | 3-6 | ||
Capacity(kgs): | 35,000L-45,000L | ||
Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
Kingpin | The world-famous JOST brand bolt-in/welded type 3.5"/2" | ||
Landing gear | JOST brand two-speed manual operation 19" | ||
Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 | ||
Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 | ||
Axle | Original BPW-12T/ FUWA-13T | ||
Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension | ||
Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | ||
Manhole: | Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; | ||
Discharge Valve | Aluminum alloy discharge valve with cover | ||
Foot Valve | Pneumatic control DN80 aluminum alloy foot valves | ||
Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch | ||
Discharge Hose | 2 units 3"×6M factory PVC hose with quick coupling on both ends | ||
Vapor Recovery & Overfill system | Optional | ||
Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | ||
Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | ||
Prime & Topcoat painting | S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting | ||
We can build the trailers according to customer's design and requirement |
3.
Specifications:
Tare Weight | 8000kg -- 14000kg |
Loading Capacity | 316L |
Axle Weight Load | 13T/16T |
Axle Brand | FUWA/BPW/others |
Suspension | Common mechanical or Air Suspension |
King Pin | JOST 3.5" traction pin |
Dimensions | 10500-13000mm*2500mm*3800mm |
Support Legs | JOST Single 28T heavy duty |
Wheel Rim | 9.0-20 |
Wheelbase | 1310mm |
Ladder | Mechanical ladder |
Accessories | 1 Set standard tool box |
Light | Tail lamp with turn signal; brake light & reflector, side lamp etc. |
Painting | 1coat of anticorrosive prime, twice coats of final paint |
Tire Spec. | 12R22.5 Vacuum tire |
Number of Tire | 8/12 pieces |
Spare Tire Carriers | 2 pieces |
Manhole Cover | 500mm manhole cover .2 sets with 2 breather valve |
Discharge Valve & Pipe | 4 inch disc valve & 4inch seamless steel tube |
Brake Chamber | 4 big chamber |
Brake System | Dual Line Brake system |
Application of the stainless tank drinking water tank trailer
The stainless tank drinking water tank trailer is to load and transport the drinking water. It works with the tractor head for haulage and transport. The tank volume could be from 30000L to 50000L. The tank material is stainless steel to keep the water clean and keep the tank from corrosive.
Description of the stainless tank drinking water tank trailer
This is a 35000L stainless steel tank for drinking water transportation. There are two types of tank used for drinking water transportation. One is carbon steel tank with non-toxic painting inside, one is the stainless steel tank. The carbon steel tank is cheaper, but considering the safety and long time usage, the stainless tank should be the top priority.
Advantages of the stainless tank drinking water tank trailer
1.Stainless tank to keep the water clean, and to keep the tank from corrosive
2.Long time usage and durable
Specification
Dimension | |
Overall dimension | 12500x2500x3580mm |
Tare weight | 10800kgs |
Tank | |
Shape | Round shape |
Total volume | 35000L |
Tank body material | Stainless steel 304 |
Tank end plate | Stainless steel 304 |
Compartment | Single compartments |
Discharge system | Stainless steel pipes and discharge valve |
Trailer chassis | |
Main beam | Heavy duty special design I beam, made by carbon steel |
Axle | China brand HJ axle, 13Ton capacity |
Landing gear | FUWA landing gear |
Kingpin | FUWA kingpin 2 inches |
Suspension | Mechanical suspension with leaf spring |
Braking system | WABCO RE 6 replay valve, T30/30 air chamber |
Tire | 12R22.5 |
Wheel rim | 9.0R22.5 |
Accessories | One tool box, one spare tyre carrier |
Truck Model | Chassis Model | m³ | Steel lined PE Tank | Steel Tank | Steel lined PE Tank Steel | Stainless Steel tank | Carbon Steel Tank | Aluminium alloy | Medium | ||
DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A9 | 19.36 | 18.5 | / | 5 | / | / | Sulphuric Acid | |||
DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1161RAPAT | 10.5 | 10.5 | 11.56/12 | 5 | 5 | 6 | Ammonia | 8600kg | ||
DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 13.13 | 14 | / | 5 | / | / | Hydrochloric Acid | |||
DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1311QELAT | 22.73 | 20.5 | / | 5 | / | / | Hydrochloric Acid | 14300kg | ||
DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP66K2L7T4E4 | 19.88 | 22.3 | / | 5 | / | / | Hydrochloric Acid | |||
DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1167PK2BE4A80 | 8.2 | 8.5 | / | 5 | / | / | Hydrochloric Acid | 7500kg | ||
DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | DFA1110SJ11D3 | 6.1 | 6.1 | / | 5 | / | / | Hydrochloric Acid | 5200kg | ||
DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1311P1K2L6T10BE4A80 | 17.7 | 18 | / | 5 | / | / | Hydrochloric Acid | 13260kg | ||
DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K1L6T4E4 | 19.2 | 20.5 | 21.6 | 5 | 5 | 6 | Ammonia | 14630kg | ||
DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | 18.83 | 18.5 | 20 | 5 | / | 6 | Sulphuric Acid | 7620kg | |||
DTA9407GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 35 | 37 | 39 | 5 | 5 | 6 | Ammonia | 10340kg | ||
DTA9401GFWC TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 18.83 | 19.5 | 20.5 | 5 | / | 6 | Sulphuric Acid | 9360kg | ||
DTA9406GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 29.5 | 31 | / | 5 | / | / | Hydrochloric Acid | 11380kg | ||
DTA9401GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.95 | 22 | 23.5 | 5 | / | 5 | Dilute Sulphuric Acid | |||
DTA9402GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 25.67 | 25 | 26.3 | 5 | 5 | 6 | Caustic Soda | |||
DTA9403GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 27.84 | 27.8 | / | / | / | 5 | Hydrochloric Acid | |||
DTA9400GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.98 | 18 | 20 | 5 | / | 6 | Dilute Sulphuric Acid | 7620kg | ||
DTA9350GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 23.82 | 23 | / | 5 | / | / | Hydrochloric Acid | |||
DTA5310GRYL4 FLAMMABLE LIQUID TANK TRUCK | LZ1311QELAT | 23.78 | / | 28.6 | / | 5 | 6 | Diesel Oil | 12200kg | ||
DTA5310GRYD10 FLAMMABLE LIQUID TANK TRUCK | DFL1311A10 | 29.15 | / | 30 | / | 5 | 6 | Hexane | |||
DTA5310GRYD9 FLAMMABLE LIQUID TANK TRUCK | DFL1311A9 | 29.15 | / | 30 | / | 5 | 6 | Hexane | |||
DTA5310GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP63K2L6T4E4 | 29.25 | / | 29.5 | / | 5 | 6 | Hexane | |||
DTA5311GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP66K2L7T4E4 | 28.46 | / | 29.5 | / | 5 | 6 | Hexane | |||
DTA5160GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5163GYY-AB | 13.44 | / | 14.5 | / | 4 | 5 | Hexane | |||
DTA5250GRYBH4 FLAMMABLE LIQUID TANK TRUCK | BJ5253GYY-XA | 25.3 | / | 25 | / | 5 | 6 | Hexane | |||
DTA5160GRYD5 FLAMMABLE LIQUID TANK TRUCK | DFL1160BX5 | 14.22 | / | 17/17/15.13 | / | 4 | 5 | Hexane | |||
DTA5160GRYE4 FLAMMABLE LIQUID TANK TRUCK | EQ1168GLJ3 | 15 | / | 15.7/16.4/16.7 | / | 4 | 5 | Hexane | |||
DTA5310GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5317GYY-XB | 28.45 | / | 29.8 | / | 5 | 6 | Hexane | |||
DTA5251GRYC4P62 FLAMMABLE LIQUID TANK TRUCK | CA5250GYYP62K1L6T3E4 | 17.09 | 19.7 | / | 4 | 5 | Butyl Acetate | 10420kg | |||
DTA5311GRYYBJ4 FLAMMABLE LIQUID TANK TRUCK | BJ5312GYY-XB | 21 | 21.7 | / | 4 | 5 | Butyl Acetate | 12800kg | |||
DTA9390GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 41.34 | / | 44.5 | / | 5 | 6 | Alcohol | ||||
DTA9401GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 45.25 | / | 43.5 | / | 5 | 6 | Ethanol | ||||
DTA9402GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 40.18 | / | 47.5 | / | 5 | 6 | Butanol | ||||
DTA9403GRYB FLAMMABLE LIQUID TANK SEMI-TRAILER | 45 | / | 44.5 | / | 5 | 6 | Butyl Ether | 8820kg | |||
DTA9401GRYD FLAMMABLE LIQUID TANK SEMI-TRAILER | 42.6 | / | 40.5 | / | 5 | 6 | Methanol | ||||
DTA9402GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | 42.39 | / | 47.8 | / | / | / | 9 | Methanol | |||
DTA9406GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | 47.67 | / | 47.67 | / | / | / | 6 | Butyl Ether | |||
DTA9351GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Round tank | 36.87 | / | 36.5 | / | / | / | 9 | Methanol | ||
DTA9405GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Announcement needs to be changed | 46 | / | 47.3 | / | / | / | 6 | Butyl Ether | ||
DTA9401GYYC ALUMINUM ALLOY OIL SEMI-TRAILER | 42 | / | 47 | / | / | / | 6 | Diesel Oil | 6800kg | ||
DTA9401GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | sample vehicle | 42 | / | 42 | / | / | / | 8 | Methanol | 7280kg | |
DTA9351GYY ALUMINUM ALLOY OIL SEMI-TRAILER | 43.5 | / | 39.9 | / | / | / | 6 | Gasoline | |||
DTA9401GYYB TYPE ALUMINUM ALLOY OIL SEMI-TRAILER | 47.5 | / | 49 | / | / | / | 6 | Gasoline | |||
DTA9400GSY ALUMINUM ALLOY EDIBLE OIL TRANSPORTATION SEMI-TRAILER | 43.8 | / | 43.5 | / | / | / | 6 | Edible Oil | |||
DTA5310GYYS4 ALUMINUM ALLOY TANKER | SQR1311D5T6-E1 | 28.2 | / | 30 | / | / | / | 6 | Gasoline | ||
DTA9400GYW TYPE TANK SEMI-TRAILER FOR OXIDIZING GOODS TRANSPORTATION | 27.3 | / | 32.5 | / | 6 | / | / | Liquid Ammonium Nitrate | 11650kg | ||
DTA9401GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 42 | / | 43.5 | / | 5 | 6 | Methanol | |||
DTA9402GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 21.99 | 20 | 21.7 | 5 | / | 6 | Sodium Hydroxide | |||
DTA9405GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 45.73 | / | 43.2 | / | 5 | 6 | Sec-Butylamine | ||||
DTA9406GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 49.89 | / | 55.1 | / | 5 | 6 | Hexane | ||||
DTA9403GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 39.37 | / | 39.5 | / | 5 | 6 | Methanol | |||
DTA9407GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 33 | 33 | / | 5 | / | / | Diluted Hydrochloric Acid | ||||
DTA5251GHYDD CHEMICAL LIQUID TRANSPORT VEHICLE | DFL1250A11 | 21.45 | / | 22 | / | 5 | 6 | Xylene | |||
DTA9400GYY OIL SEMI-TRAILER | 47.7 | / | 51.5 | / | 5 | 6 | Gasoline | ||||
DTA5251GYYDD TANKER | DFL1250A11 | 21.6 | / | 20.5 | / | 5 | 6 | Gasoline | |||
DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 22.5 | / | 22/21.7 | / | 5 | 6 | Gasoline | |||
DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A10 | 27.65 | / | 29.6 | / | 5 | 6 | Gasoline | |||
DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K2L6T4E4 | 28.5 | / | 30.4 | / | 5 | 6 | Gasoline | |||
DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1168GLJ3 | 14.24 | / | 15.7/16.3/16.6 | / | 4 | 6 | Gasoline | |||
DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1070 | 4.8 | / | 7 | / | 4 | 5 | Gasoline | 4270kg | ||
DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 29.9 | 31.5 | 33 | 5 | 6 | 6 | Sodium Hydroxide | |||
DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | 34.26 | / | 38.7 | / | 5 | 6 | Glycol | ||||
DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | 31.5 | 33 | 36 | 5 | 5 | 6 | Water | ||||
DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 38.39 | / | 39 | / | 5 | 6 | Methanol Formaldehyde, | |||
DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 28.8 | 31.5 | 33 | 5 | 5 | / | Hydrogen Peroxide Solution |
Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

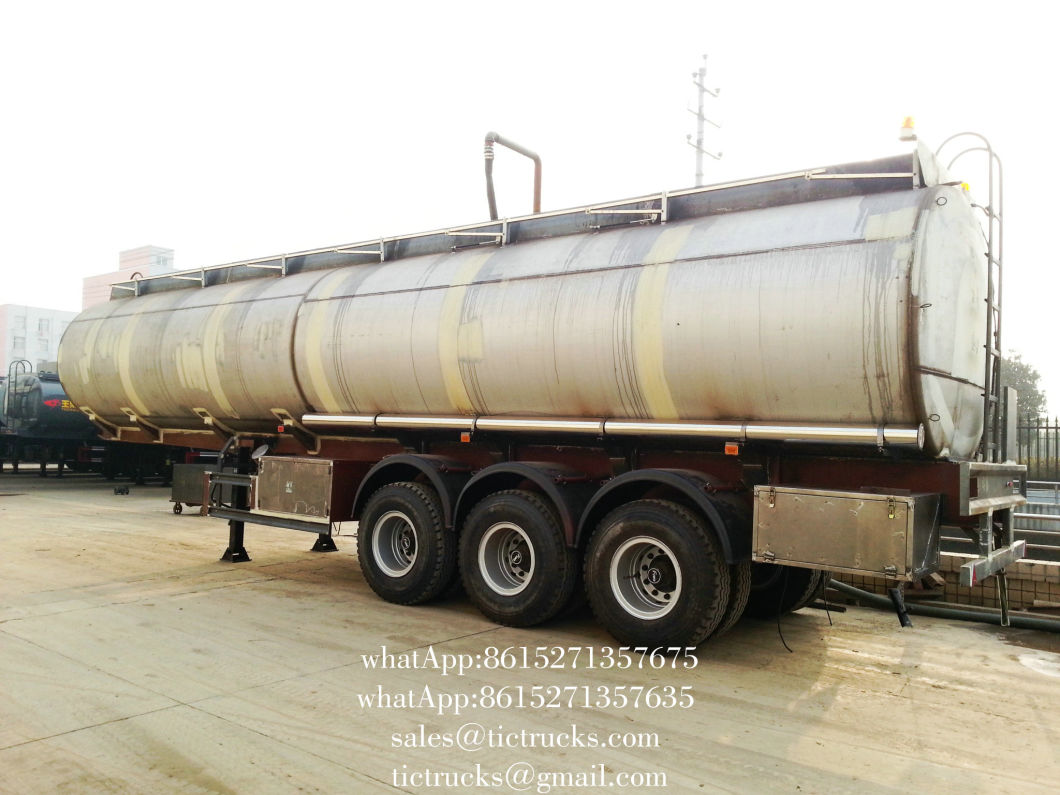

Stainless steel tank trailer is suitable for different types of liquid transport, like water, drinks, chemical liquid.
The tank is made of food grade stainless steel meeting standards of food security. The reaction between toxic metal and acid-base is avoided.
According to customer's requirement, the tank body could be divided into several compartments for the loading of different liquid. It is option to have flow meter and pump for pumping in and out.
There is also option to have the heating system for discharging.
304, 430 or 316L Body | ST Quality Steel useage |
ADR Compatible Tankers | BPW, FUWA or Certificated Axles |
Pnemautic Discharging Valve | Air and Mechanical Suspension |
ABS and EBS brake system | Steel or Aluminum Rims |
JOST or Turkish brand parking leg and king pin |
STRUCTURE
- It is manufactured in volumes of 28.000-65.000 lt. according to request.
- Length 10.000 mm-13.000 mm
- Width 2550 mm
- 2-3-4-5-6 -7compartments dividers
- Our tankers are ellipse, round, double "D", bottle type shaped
- 4 mm Stainless Steel plate is used on tanker body
LOADING AND UNLOADING SYSTEM
- Proofed and sealed manhole cap for every cell divider
- 3" in diameter pipes that connects every cell divider to valve box
- Independent natural unloading system with 3" in diameter spherical valves
Chassis: Strengthened "I" section centre members are welded automatically by submerged welding machine. They are welded between 120/14 mm bottom or top steel plate and 5 mm hub plate.
Axles: Brand, BPW or FUWA 3 x 9,12,14,16 Ton axles brake drum or disc
There are brake shoes and heavy brake levers
uspensions ; It is supplied with Turkish brand of 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x12 pcs of layer with 100 mm width
Brake System ; Wabco brand ABS or EBS braking system will be used.
Brake Chambers ; 1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers
Electrical system ; Hella, Aspöck, Sa-Ba or Sertplas brand 2×7 pin sockets - 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear
2 tail & stop combined lamps (red)
2 turn signal combined lamps (orange)
1 license lamp (white)
Tires; 385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5 Dongfeng ,Bridgestone, Goodyear,
Rims; 11.75 R22.5 China Brand
King Pin ; Jost or equivelent Turkish brand OMS DIN 74080 standards 2'' or 3,5'' king pin detachable from below made by SAE standards 8 bolt type. With E certificate.
Landing Gear ; Jost or equivelent Turkish brand front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity
Painting ;
Before the painting trailer is sand blasted
ZincRich epoxy gray is used for first protecting.
1-2 Times of high quality paints are applied on trailer protects against humadity
The color of trailer is selected by our customer according to RAL codes
Standar Accossories
- Multi-piece plastic fenders that covers trailing axle tires
- 1 plate unloading valve box
- 1 plate tool box
- 1 non-slip floor walking platform
- 1 ladder (climbed from behind)
- 2 PVC pipes to carry unloading hoses
- Control Panel(Mob, air clock, access ramp lever)
- Plastic water tank
- Roller or basket stare tire conveyor
- Aluminum bike impact absorber
- Mounting and mounting space
Ask for better price
The pictures are for your reference only.
1.Fifth wheel height 1300mm.
2.wheelbase:5790+1360+1360mm,king pin size 50# or 90#,
3. 3*13ton fuwa axles with airbag suspension , with ABS ,16T Brake Pads,
1. Brief Introduction : |
This Tanker is applied to transport liquid Ethanol in a short or long distance. |
2. Main Performance Characteristics: |
Rectangular/Oval cross-section oil tank, low center of gravity and large load capacity. |
Based on the following |
WEIGHT RATTING: |
Tare Weight: 10T |
Rated Payload: 30T |
Actual payload: 30~38T |
G.V.W.R.: 40T |
Shape of tank: Elip straight |
Tank material: 304 Stainless steel thickness of the carbon stell:5 mm |
Vehicles Oil Semi trailer |
Types of vehicles Semi-trailer |
Over side |
Dimensions(mm) 10500x2500x3400;10620×2480×3800(mm);11300×2500×3900(mm |
Rated loading weight(kg) 30000 30~38T |
Total mass(Kg) 45000 Kerb weight (kg) 10000 |
Wheelbase(mm) 5100+1310+1310; 5600+1310+1310 |
Axle number 3 Fuwa |
Tire specifications 12R-22.5 Goodyear G-149 16 ply radials Suspension type Mechanical suspension |
Number of tire 12 Track rear(mm) 1840/1840/1840 |
Departure angle 12 degree Rear overhang(mm) 1600 |
Number of Leaf spring -8/8/8, Tanker capacity(L) 36000 |
Axle load(T) 13T*3 (3 axles ) King Pin standard JOST brand 2 or 3.5 inch |
Landing leg |
H-girder, JOST brand |
Two-speed, Manual operation |
heavy-duty landing gear |
Braking system WABCO RE 6 relay valve |
Dual line pneumatic brake system |
Inlet hole 2 pcs,DN100 Breather valve 2 pcs,DN80 |
Discharge hole 2 pcs, DN100 with 3 inch coupling Manhole(mm) 2pcs,DN500mm |
Floor description 3mm checker plate Fuel tanker cabin Single (the tanker can divided into several sections)Painting Prime and Paint all mild steel parts black |
Accessories |
1. Two climbing ladders on the front and rear of the tanker; one tool box |
2.Two tire carriers |
3. one water tank |
4. Outlet valve, 2 pcs,DN80 |
5. Two 1 1/2 diameter Tiger flex drain hoses located one per side |
6.One Tool box |
SS304 or 316L Tank Body Stainless Tanker Trailer for Acid, Chemicals, Edible Oil, Liquid Food, Milk, Alcohol 8000USG -15000USG
Main Dimensions | |
Tank Body | |
Shape | Optional(Round or Suare) |
Dimension | 12000mm*2490mm*3990mm(Exact size depend on the final design) |
Tare Weight | About 8000Kg-12800Kg |
Total Volume(m3) | 25m3-60m3 |
Tanker Body Material | 5mm or 6mm Stailess steel |
End Plate | 5mm or 6mm/Q235 Stailess steel |
Manhole Cover | Stailess steel API manhole cover ,500mm |
Bottom Volume | Stailess steel API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4" rubber hose,2 pcs,6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding design or special design I beam ,connected by bolts and nuts Q345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOSTD200T or China brand 28T |
King Pin | JOST 2.00 OR 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension(Germany or American type)/air suspension |
Leaf spring | 90(w)mm*13(Thickness0mm*10 layer or 100mm*12mm*12/without |
Pneumatic Braking System | WABCO RE 6 relay valve;Spring brake chamber;2 pieces of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
ABS | Optional |
Painting | Complete Chassis and blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
Accessories | One standard tool lox |
Shipping Terms | By bulk cargo ship, RORO or 40HQ container |
2
30,000L-45,000L 3-axle Tank Semi-trailer | |||
Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid | ||
Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L) | ||
Model | DRZ9350GRY | ||
Material: | Carbon Steel | Stainless Steel | Aluminum |
Compartment: | 3-6 | ||
Capacity(kgs): | 35,000L-45,000L | ||
Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
Kingpin | The world-famous JOST brand bolt-in/welded type 3.5"/2" | ||
Landing gear | JOST brand two-speed manual operation 19" | ||
Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 | ||
Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 | ||
Axle | Original BPW-12T/ FUWA-13T | ||
Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension | ||
Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | ||
Manhole: | Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; | ||
Discharge Valve | Aluminum alloy discharge valve with cover | ||
Foot Valve | Pneumatic control DN80 aluminum alloy foot valves | ||
Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch | ||
Discharge Hose | 2 units 3"×6M factory PVC hose with quick coupling on both ends | ||
Vapor Recovery & Overfill system | Optional | ||
Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | ||
Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | ||
Prime & Topcoat painting | S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting | ||
We can build the trailers according to customer's design and requirement |
3.
Specifications:
Tare Weight | 8000kg -- 14000kg |
Loading Capacity | 316L |
Axle Weight Load | 13T/16T |
Axle Brand | FUWA/BPW/others |
Suspension | Common mechanical or Air Suspension |
King Pin | JOST 3.5" traction pin |
Dimensions | 10500-13000mm*2500mm*3800mm |
Support Legs | JOST Single 28T heavy duty |
Wheel Rim | 9.0-20 |
Wheelbase | 1310mm |
Ladder | Mechanical ladder |
Accessories | 1 Set standard tool box |
Light | Tail lamp with turn signal; brake light & reflector, side lamp etc. |
Painting | 1coat of anticorrosive prime, twice coats of final paint |
Tire Spec. | 12R22.5 Vacuum tire |
Number of Tire | 8/12 pieces |
Spare Tire Carriers | 2 pieces |
Manhole Cover | 500mm manhole cover .2 sets with 2 breather valve |
Discharge Valve & Pipe | 4 inch disc valve & 4inch seamless steel tube |
Brake Chamber | 4 big chamber |
Brake System | Dual Line Brake system |
Application of the stainless tank drinking water tank trailer

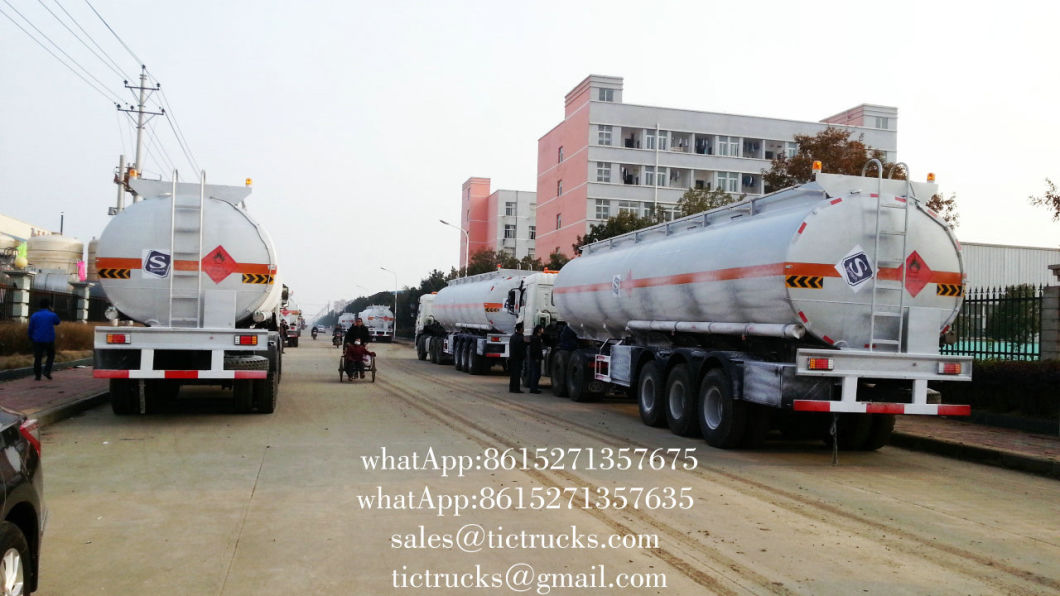

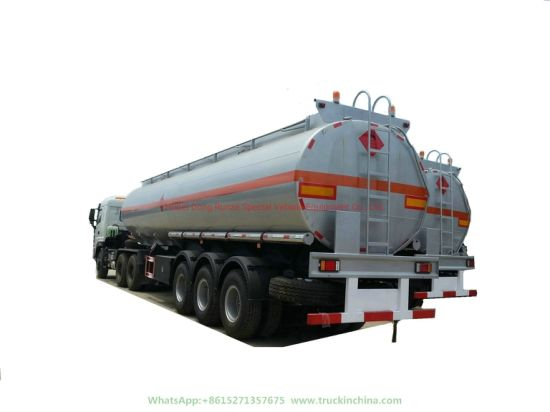

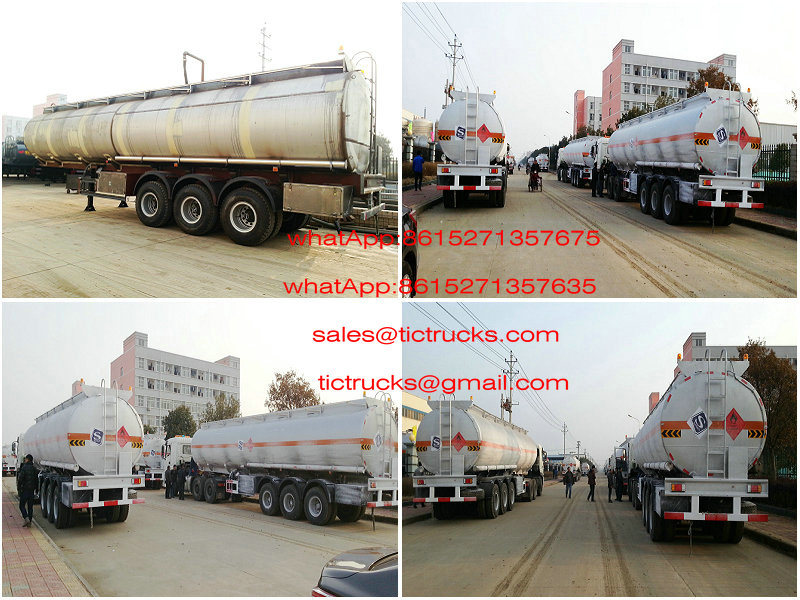

The stainless tank drinking water tank trailer is to load and transport the drinking water. It works with the tractor head for haulage and transport. The tank volume could be from 30000L to 50000L. The tank material is stainless steel to keep the water clean and keep the tank from corrosive.
Description of the stainless tank drinking water tank trailer
This is a 35000L stainless steel tank for drinking water transportation. There are two types of tank used for drinking water transportation. One is carbon steel tank with non-toxic painting inside, one is the stainless steel tank. The carbon steel tank is cheaper, but considering the safety and long time usage, the stainless tank should be the top priority.
Advantages of the stainless tank drinking water tank trailer
1.Stainless tank to keep the water clean, and to keep the tank from corrosive
2.Long time usage and durable
Specification
Dimension | |
Overall dimension | 12500x2500x3580mm |
Tare weight | 10800kgs |
Tank | |
Shape | Round shape |
Total volume | 35000L |
Tank body material | Stainless steel 304 |
Tank end plate | Stainless steel 304 |
Compartment | Single compartments |
Discharge system | Stainless steel pipes and discharge valve |
Trailer chassis | |
Main beam | Heavy duty special design I beam, made by carbon steel |
Axle | China brand HJ axle, 13Ton capacity |
Landing gear | FUWA landing gear |
Kingpin | FUWA kingpin 2 inches |
Suspension | Mechanical suspension with leaf spring |
Braking system | WABCO RE 6 replay valve, T30/30 air chamber |
Tire | 12R22.5 |
Wheel rim | 9.0R22.5 |
Accessories | One tool box, one spare tyre carrier |
Truck Model | Chassis Model | m³ | Steel lined PE Tank | Steel Tank | Steel lined PE Tank Steel | Stainless Steel tank | Carbon Steel Tank | Aluminium alloy | Medium | ||
DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A9 | 19.36 | 18.5 | / | 5 | / | / | Sulphuric Acid | |||
DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1161RAPAT | 10.5 | 10.5 | 11.56/12 | 5 | 5 | 6 | Ammonia | 8600kg | ||
DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 13.13 | 14 | / | 5 | / | / | Hydrochloric Acid | |||
DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1311QELAT | 22.73 | 20.5 | / | 5 | / | / | Hydrochloric Acid | 14300kg | ||
DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP66K2L7T4E4 | 19.88 | 22.3 | / | 5 | / | / | Hydrochloric Acid | |||
DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1167PK2BE4A80 | 8.2 | 8.5 | / | 5 | / | / | Hydrochloric Acid | 7500kg | ||
DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | DFA1110SJ11D3 | 6.1 | 6.1 | / | 5 | / | / | Hydrochloric Acid | 5200kg | ||
DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1311P1K2L6T10BE4A80 | 17.7 | 18 | / | 5 | / | / | Hydrochloric Acid | 13260kg | ||
DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K1L6T4E4 | 19.2 | 20.5 | 21.6 | 5 | 5 | 6 | Ammonia | 14630kg | ||
DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | 18.83 | 18.5 | 20 | 5 | / | 6 | Sulphuric Acid | 7620kg | |||
DTA9407GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 35 | 37 | 39 | 5 | 5 | 6 | Ammonia | 10340kg | ||
DTA9401GFWC TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 18.83 | 19.5 | 20.5 | 5 | / | 6 | Sulphuric Acid | 9360kg | ||
DTA9406GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 29.5 | 31 | / | 5 | / | / | Hydrochloric Acid | 11380kg | ||
DTA9401GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.95 | 22 | 23.5 | 5 | / | 5 | Dilute Sulphuric Acid | |||
DTA9402GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 25.67 | 25 | 26.3 | 5 | 5 | 6 | Caustic Soda | |||
DTA9403GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 27.84 | 27.8 | / | / | / | 5 | Hydrochloric Acid | |||
DTA9400GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.98 | 18 | 20 | 5 | / | 6 | Dilute Sulphuric Acid | 7620kg | ||
DTA9350GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 23.82 | 23 | / | 5 | / | / | Hydrochloric Acid | |||
DTA5310GRYL4 FLAMMABLE LIQUID TANK TRUCK | LZ1311QELAT | 23.78 | / | 28.6 | / | 5 | 6 | Diesel Oil | 12200kg | ||
DTA5310GRYD10 FLAMMABLE LIQUID TANK TRUCK | DFL1311A10 | 29.15 | / | 30 | / | 5 | 6 | Hexane | |||
DTA5310GRYD9 FLAMMABLE LIQUID TANK TRUCK | DFL1311A9 | 29.15 | / | 30 | / | 5 | 6 | Hexane | |||
DTA5310GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP63K2L6T4E4 | 29.25 | / | 29.5 | / | 5 | 6 | Hexane | |||
DTA5311GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP66K2L7T4E4 | 28.46 | / | 29.5 | / | 5 | 6 | Hexane | |||
DTA5160GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5163GYY-AB | 13.44 | / | 14.5 | / | 4 | 5 | Hexane | |||
DTA5250GRYBH4 FLAMMABLE LIQUID TANK TRUCK | BJ5253GYY-XA | 25.3 | / | 25 | / | 5 | 6 | Hexane | |||
DTA5160GRYD5 FLAMMABLE LIQUID TANK TRUCK | DFL1160BX5 | 14.22 | / | 17/17/15.13 | / | 4 | 5 | Hexane | |||
DTA5160GRYE4 FLAMMABLE LIQUID TANK TRUCK | EQ1168GLJ3 | 15 | / | 15.7/16.4/16.7 | / | 4 | 5 | Hexane | |||
DTA5310GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5317GYY-XB | 28.45 | / | 29.8 | / | 5 | 6 | Hexane | |||
DTA5251GRYC4P62 FLAMMABLE LIQUID TANK TRUCK | CA5250GYYP62K1L6T3E4 | 17.09 | 19.7 | / | 4 | 5 | Butyl Acetate | 10420kg | |||
DTA5311GRYYBJ4 FLAMMABLE LIQUID TANK TRUCK | BJ5312GYY-XB | 21 | 21.7 | / | 4 | 5 | Butyl Acetate | 12800kg | |||
DTA9390GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 41.34 | / | 44.5 | / | 5 | 6 | Alcohol | ||||
DTA9401GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 45.25 | / | 43.5 | / | 5 | 6 | Ethanol | ||||
DTA9402GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | 40.18 | / | 47.5 | / | 5 | 6 | Butanol | ||||
DTA9403GRYB FLAMMABLE LIQUID TANK SEMI-TRAILER | 45 | / | 44.5 | / | 5 | 6 | Butyl Ether | 8820kg | |||
DTA9401GRYD FLAMMABLE LIQUID TANK SEMI-TRAILER | 42.6 | / | 40.5 | / | 5 | 6 | Methanol | ||||
DTA9402GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | 42.39 | / | 47.8 | / | / | / | 9 | Methanol | |||
DTA9406GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | 47.67 | / | 47.67 | / | / | / | 6 | Butyl Ether | |||
DTA9351GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Round tank | 36.87 | / | 36.5 | / | / | / | 9 | Methanol | ||
DTA9405GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Announcement needs to be changed | 46 | / | 47.3 | / | / | / | 6 | Butyl Ether | ||
DTA9401GYYC ALUMINUM ALLOY OIL SEMI-TRAILER | 42 | / | 47 | / | / | / | 6 | Diesel Oil | 6800kg | ||
DTA9401GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | sample vehicle | 42 | / | 42 | / | / | / | 8 | Methanol | 7280kg | |
DTA9351GYY ALUMINUM ALLOY OIL SEMI-TRAILER | 43.5 | / | 39.9 | / | / | / | 6 | Gasoline | |||
DTA9401GYYB TYPE ALUMINUM ALLOY OIL SEMI-TRAILER | 47.5 | / | 49 | / | / | / | 6 | Gasoline | |||
DTA9400GSY ALUMINUM ALLOY EDIBLE OIL TRANSPORTATION SEMI-TRAILER | 43.8 | / | 43.5 | / | / | / | 6 | Edible Oil | |||
DTA5310GYYS4 ALUMINUM ALLOY TANKER | SQR1311D5T6-E1 | 28.2 | / | 30 | / | / | / | 6 | Gasoline | ||
DTA9400GYW TYPE TANK SEMI-TRAILER FOR OXIDIZING GOODS TRANSPORTATION | 27.3 | / | 32.5 | / | 6 | / | / | Liquid Ammonium Nitrate | 11650kg | ||
DTA9401GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 42 | / | 43.5 | / | 5 | 6 | Methanol | |||
DTA9402GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 21.99 | 20 | 21.7 | 5 | / | 6 | Sodium Hydroxide | |||
DTA9405GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 45.73 | / | 43.2 | / | 5 | 6 | Sec-Butylamine | ||||
DTA9406GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 49.89 | / | 55.1 | / | 5 | 6 | Hexane | ||||
DTA9403GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 39.37 | / | 39.5 | / | 5 | 6 | Methanol | |||
DTA9407GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | 33 | 33 | / | 5 | / | / | Diluted Hydrochloric Acid | ||||
DTA5251GHYDD CHEMICAL LIQUID TRANSPORT VEHICLE | DFL1250A11 | 21.45 | / | 22 | / | 5 | 6 | Xylene | |||
DTA9400GYY OIL SEMI-TRAILER | 47.7 | / | 51.5 | / | 5 | 6 | Gasoline | ||||
DTA5251GYYDD TANKER | DFL1250A11 | 21.6 | / | 20.5 | / | 5 | 6 | Gasoline | |||
DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 22.5 | / | 22/21.7 | / | 5 | 6 | Gasoline | |||
DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A10 | 27.65 | / | 29.6 | / | 5 | 6 | Gasoline | |||
DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K2L6T4E4 | 28.5 | / | 30.4 | / | 5 | 6 | Gasoline | |||
DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1168GLJ3 | 14.24 | / | 15.7/16.3/16.6 | / | 4 | 6 | Gasoline | |||
DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1070 | 4.8 | / | 7 | / | 4 | 5 | Gasoline | 4270kg | ||
DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 29.9 | 31.5 | 33 | 5 | 6 | 6 | Sodium Hydroxide | |||
DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | 34.26 | / | 38.7 | / | 5 | 6 | Glycol | ||||
DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | 31.5 | 33 | 36 | 5 | 5 | 6 | Water | ||||
DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 38.39 | / | 39 | / | 5 | 6 | Methanol Formaldehyde, | |||
DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 28.8 | 31.5 | 33 | 5 | 5 | / | Hydrogen Peroxide Solution |
Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
