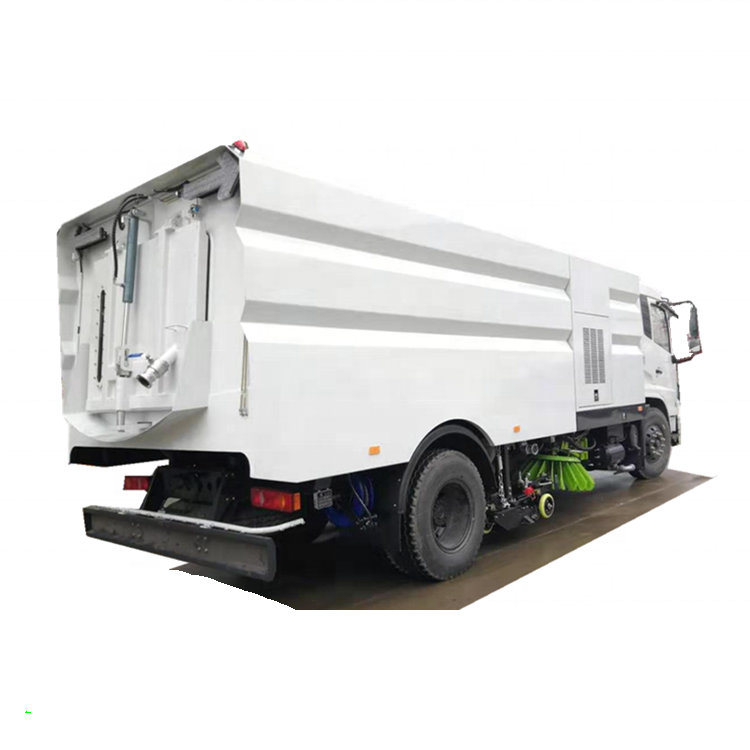

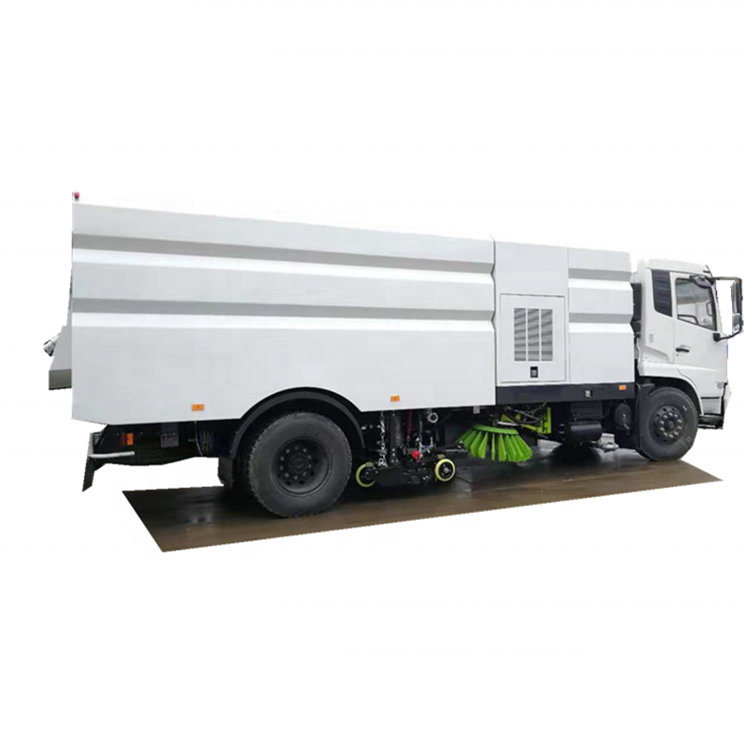

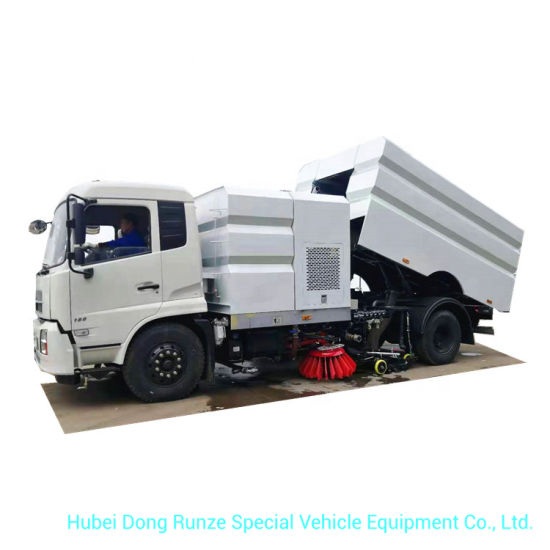

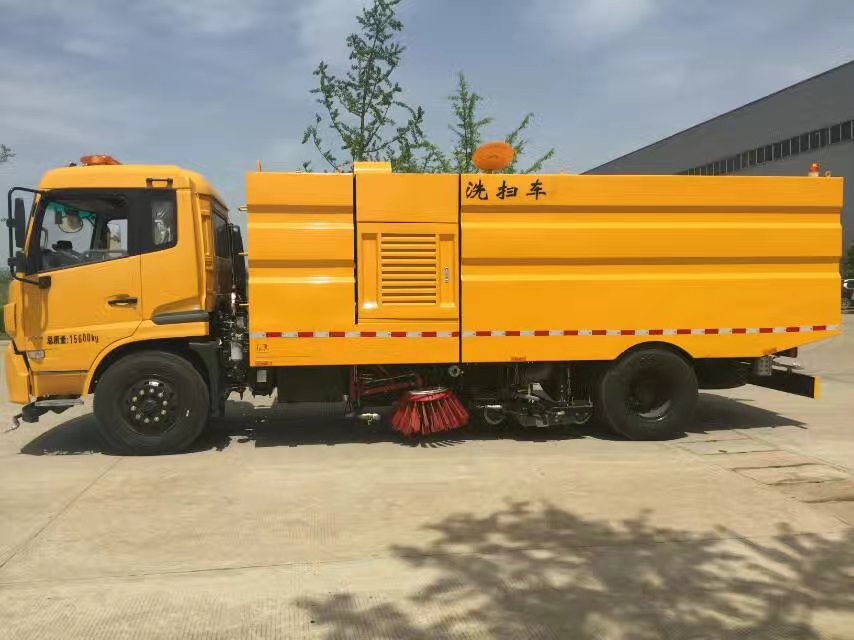

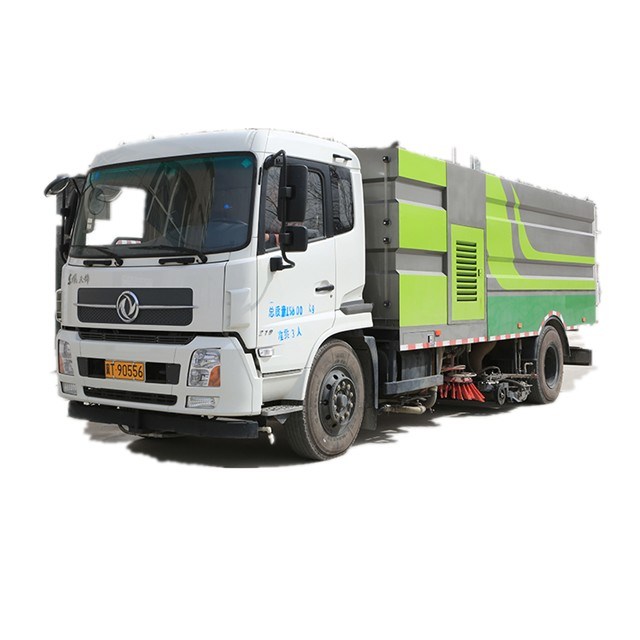

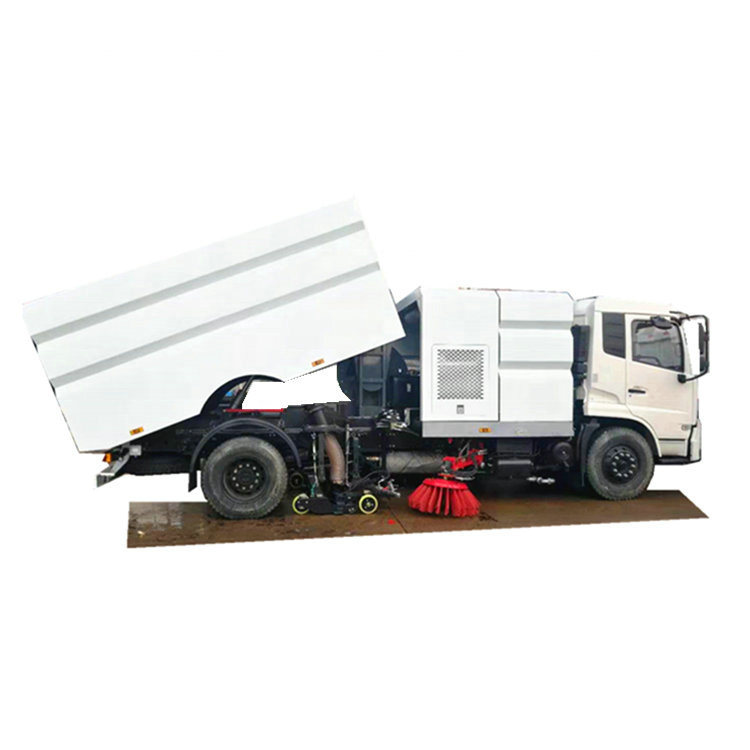

King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • King Run Efficent Street Vacuum Road Sweeper 7
  • Burnishing
  • Cold Water Cleaning
  • New
  • 9.00-20,9.00r20,10.00-20,10.00r20,10r22.5,275/80r2
  • 82000m2/H
  • >95%
  • 8
  • 2
  • 3650, 3800,4200,4500,4700,5000,5200mm
  • 4100
  • 5705,5055,3955
  • Video Technical Support, Field Installation, Commi
  • 12 Months
  • 8030,8230,8600*2500*2990,3150
  • 3 ~ 20km/H
  • DRZE
  • Nil
  • cleaning road sweeper
  • China
  • 8705909990
  • Wet-type
  • ISO9000, CCC
  • Manual
  • Euro 3-5 -6 -7
  • Diesel
  • 7cbm Garbage +9cbm Water
Dongfeng Street Sweeping Truck 4.5cbm Garbage 1.5 Cbm Water Stainless Steel 4X2 -RHD. LHD

Righ hand Drive Road Sweeper Truck 5m3 Stainless Steel 304 For Airport Yard Cleaning


Cleaning Street Road Sweeper Truck Ask for better price


The pictures are for your reference only.
King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD
King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD
King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD
King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD
King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD





King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD




King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD
King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD






King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD
Main parameters Product model ZLRU453S037
Gross weight (Kg) 15800
Curb weight (Kg) 5705,5055,3955
Cab seats 3
Number of axles 2
Overall dimension(mm) 8030,8230,8600*2500*2990,3150
Wheel base(mm) 3800,4200,4500,4700,5000
Max speed (Km/h) 98
Chassis parameters Chassis model DFL1160BX1V
Brand DongFeng
Fuel diesel
Number of wheels (mm) 6
Tire specification 9.00-20,9.00R20,10.00-20,10.00R20,10R22.5,275/80R22.5
Engine capacity (ml) 6700
Emission standard Euro III

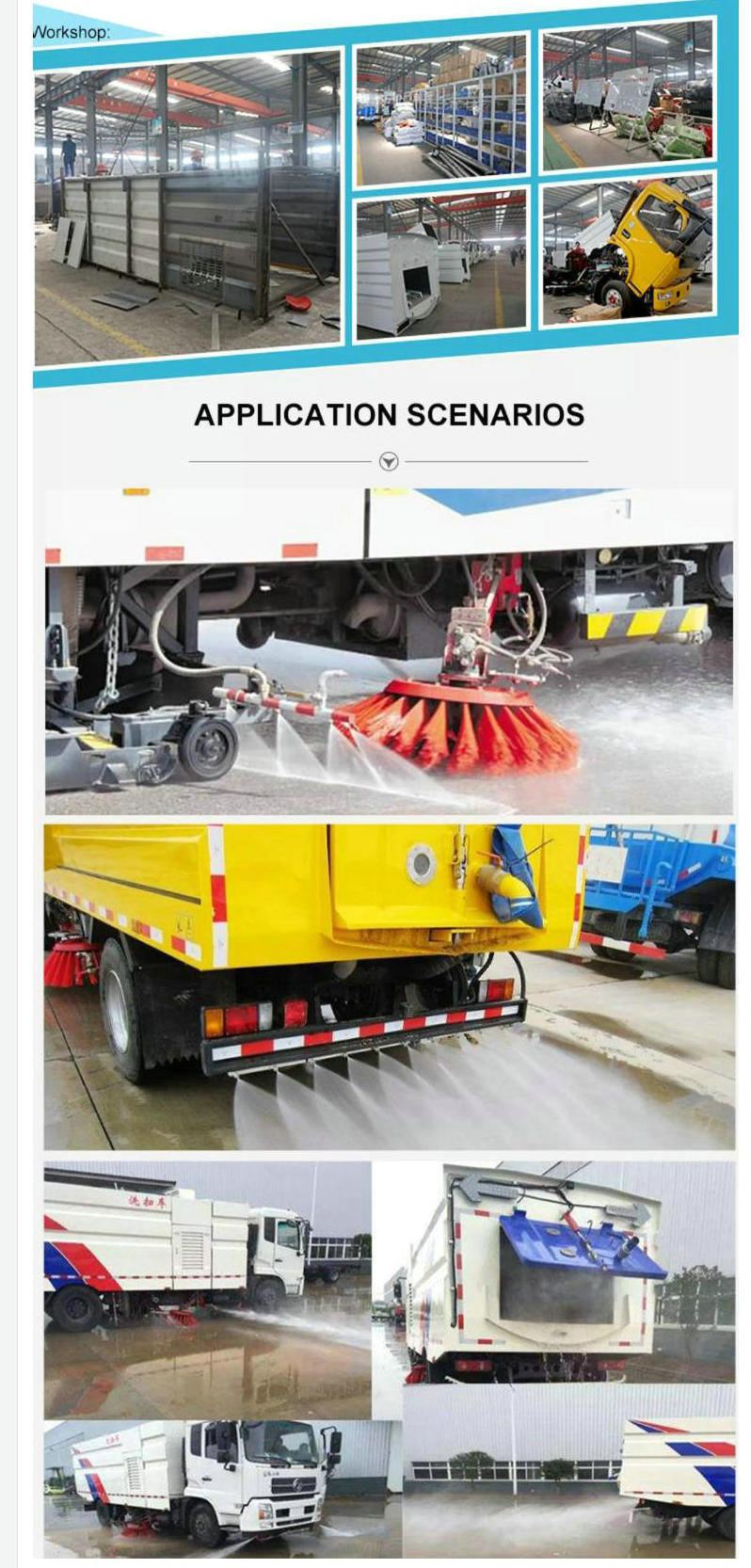

Product Application

China Sweeper Truck , with dongfeng chassis , 1.2 cbm water tanker volume and 4 cbm debris , four main broom ( broom has 3 speed control ) , I.S.U.Z.U sub-engine , maintenance free clutch and fan .

Normally used in Airport , Factories , Countries , Event place , Stadiums , Hospital , Buildings , Power Plants , Collages , Parks , Schools , Highways , Cities , Ports , Parking decks , Malls , Paved trails , Construction etc.

Our Advantages

1) Advanced hydraulic : Generate power and reliability where you need most

2) Customized Application --dual steering , custom painting we can build your perfect unit .

3) Innovative controls user friendly controls customized for operators .

4) Drive Friendly simple operation , training and no CDL requirements.



King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD
Cell /+8615271357675
SPECIFICATION
Specification of Dong run Ze Road Sweeper 145
Item Specification Item Specification
General
Truck Name DF Road Sweeper 145 Overall Dimension (mm) 7000×2480×3000
Truck Model EQ1110GLJ Wheel Base (mm) 3950

Traction System

4 x 2 Gross Weight (kg) 11495
Cab Capacity 1+1 Curb Weight (kg) 6800
Transmission manual Front Wheel Tread (mm) 1900;
1810
Chassis Brand DF Rear Wheel Tread (mm) 1800;
1800
Tyre Model 9.00-20 Approach Angle (°) 33
Quantity of Tyre 6 Departure Angle (°) 22
Quantity of Axles 2 Front Overhang (mm) 1250
Max Speed (km/h) 90 Rear Overhang (mm) 1920
Chassis
Chassis Model EQ1110GLJ Leaf Spring 8/11+8
Engine (Motor)
Brand DF Type of Fuel Diesel
Model YC6J180-30;
YC4E160-30;
ISDe185 30;
ISDe180 30;
ISDe16030;
YC4E160-31;
B170 30;
YC4E160-33;
B170 33
Displacement (ml) 6500;
4260;
6700;
4500;
4500;
4260;
5900;
4257;
5900
Max. Power (kw/hp) 132;
118;
136;
132;
118;
118;
125;
118;
125
Emission Standard Euro
Cylinder Stator

6, all cylinders arranged vertically in line

Max Torque (N.m) 650
Quantity of Valves Per Cylinder * Maximum Torque Speed (rpm) 1200-1700
Cylinder Diameter × Stroke (mm) 105 x 125 Motor Rated Rotating Speed (rmp) 2500
Full Load Minimum Fuel Consumption Rate (g/kW.h) ≤200 Air Intake Form

inter-cooling, water-cooling

Compression Ratio * Noise From 1 Meter

≤99dB

Motor Net Weight (kg) 733 ABS yes
Equipments
Water tank capacity (cbm) 1.5 Max. suction particle (mm) 120mm
Dustbin tank capacity (cbm) 4.0 Min. clearance of suction nozzle (mm) 200mm
Cleaning capacity (m2/h) 9000-60000 Max. Unloading angle 45°
Sweep width (mm) 3300 Unloading height (mm) 970
Cleaning speed (km/h) 3-20 Brooms 2 sets at each side
sweeping efficiency ≥96% Sucking disc 1 set in the middle
The maximum water flow (L/min) 21 Unilateral water flow (L/min) 11.7
High pressure cleaning system High-pressure plunger pump Application road, street, highway, airport etc.

NOTE:

1. Any part can be customized depending on customers' demand.

2. 12 months whole vehicle warranty

3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.

4. MOQ: 1 unit

ROAD SWEEPER TRUCK 6 wheel 6tons RHD sweeper truck For Airport Yard Cleaning

Items

Descriptions

Specifications and Types

General

Truck Name

Road sweeper truck

Drive Type

4*2

Gross Vehicle Weight(kg)

16000

Curb Weight(kg)

9045

Overall Dimensions L*W*H(mm)

7950×2480×3100

Engine

Engine Model

B190 33

Engine Brand

Cammins

Fuel Type

Diesel

Power

140KW/190HP

Emission Standard

Euro III

Displacement(ml)

5900

Engine Type

6 cylinders in line,4 stroke,water cooling,charged diesel engine,inter-cooling

Chassis

Chassis Brand

DONGFENG

Cabin

Single and half row cab

Front/Rear Axle(kg)

5950/9950

Tire No.

6

Tire Specification

10.00-20 Nylon tire

Wheelbase (mm)

4500

Axle No.

2

Gear Box

6 speed forward with 1 reverse, manual

Brake

Air brake

Steering Wheel

left hand drive

Air conditional

Optional

Sweeping System

Dust tank volume(m3)

6

Water tank volume(m3)

4

Tank material

SUS304 stainless steel

Sweeping width

More than 3.5m

Sweeping capacity

About 52500m2/h



King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD

Pictures of 4x2 good performance RHD y

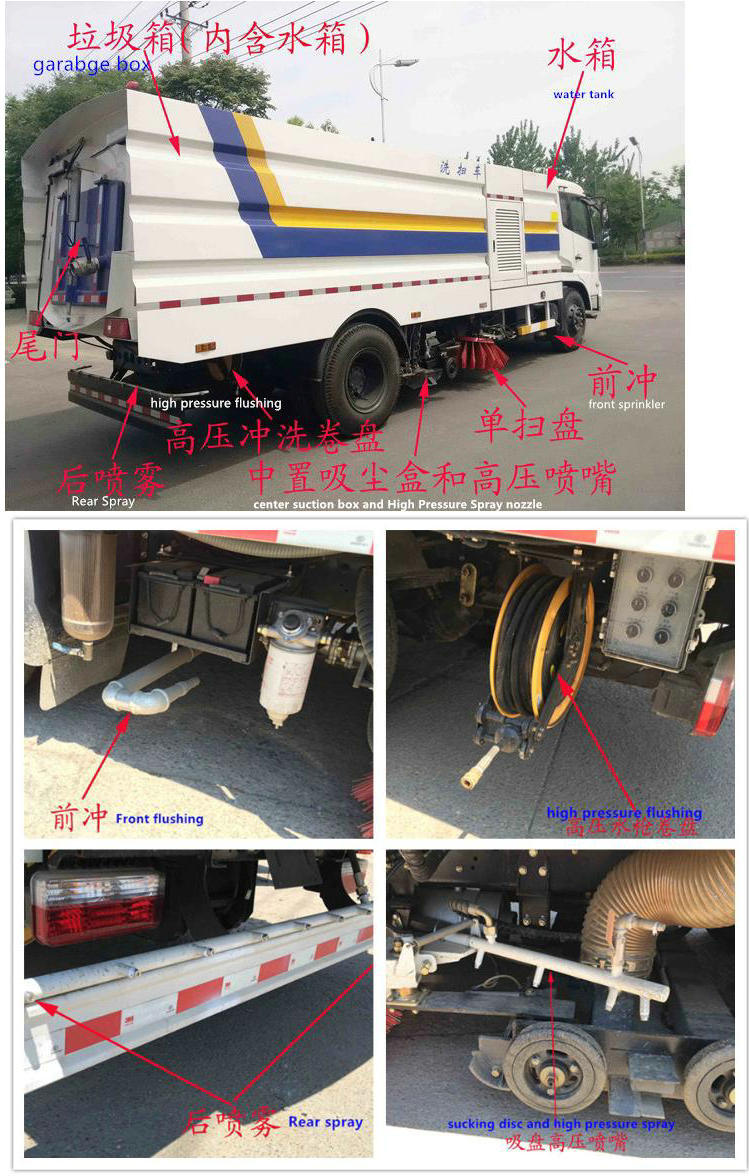

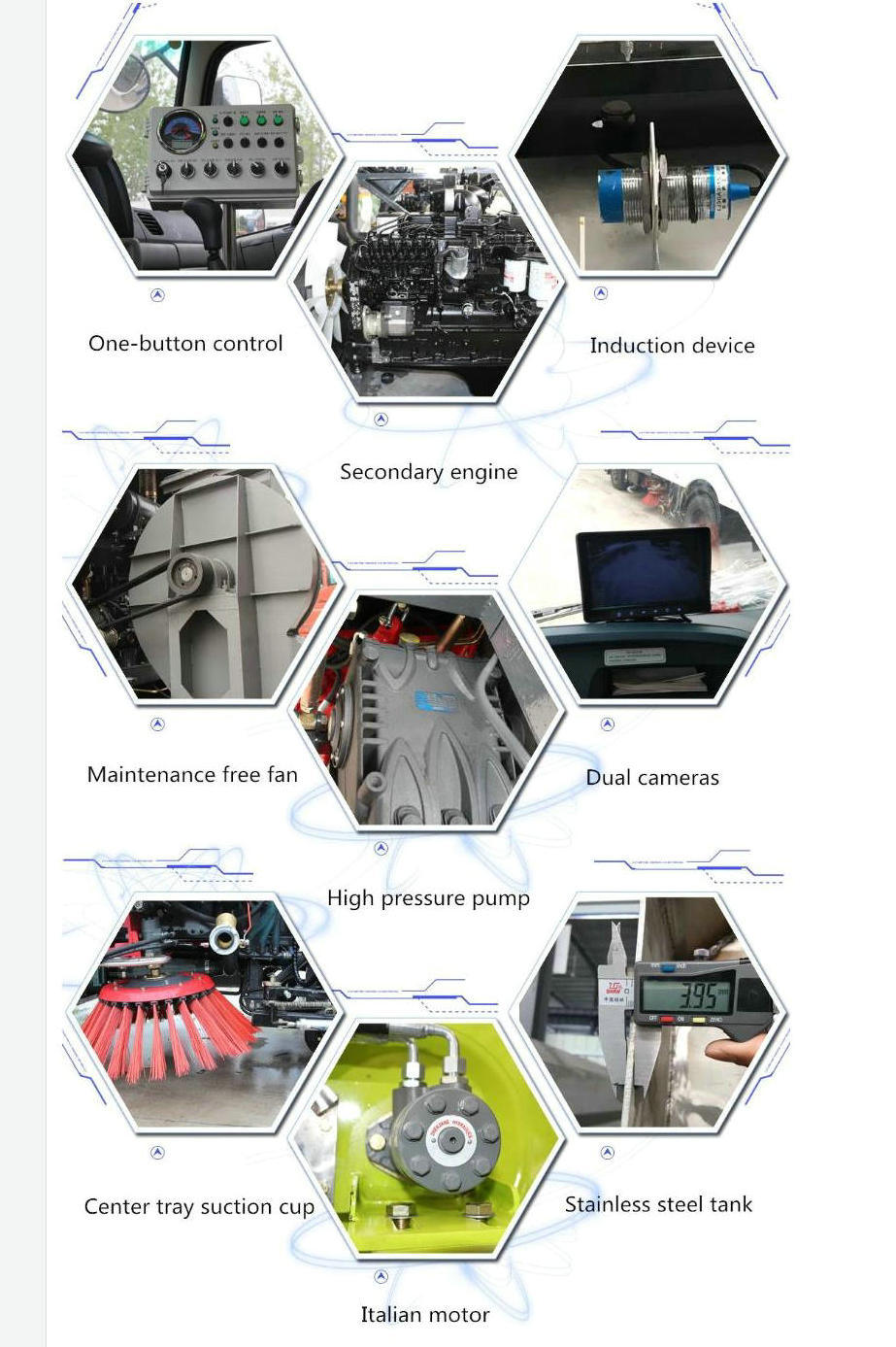

Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck

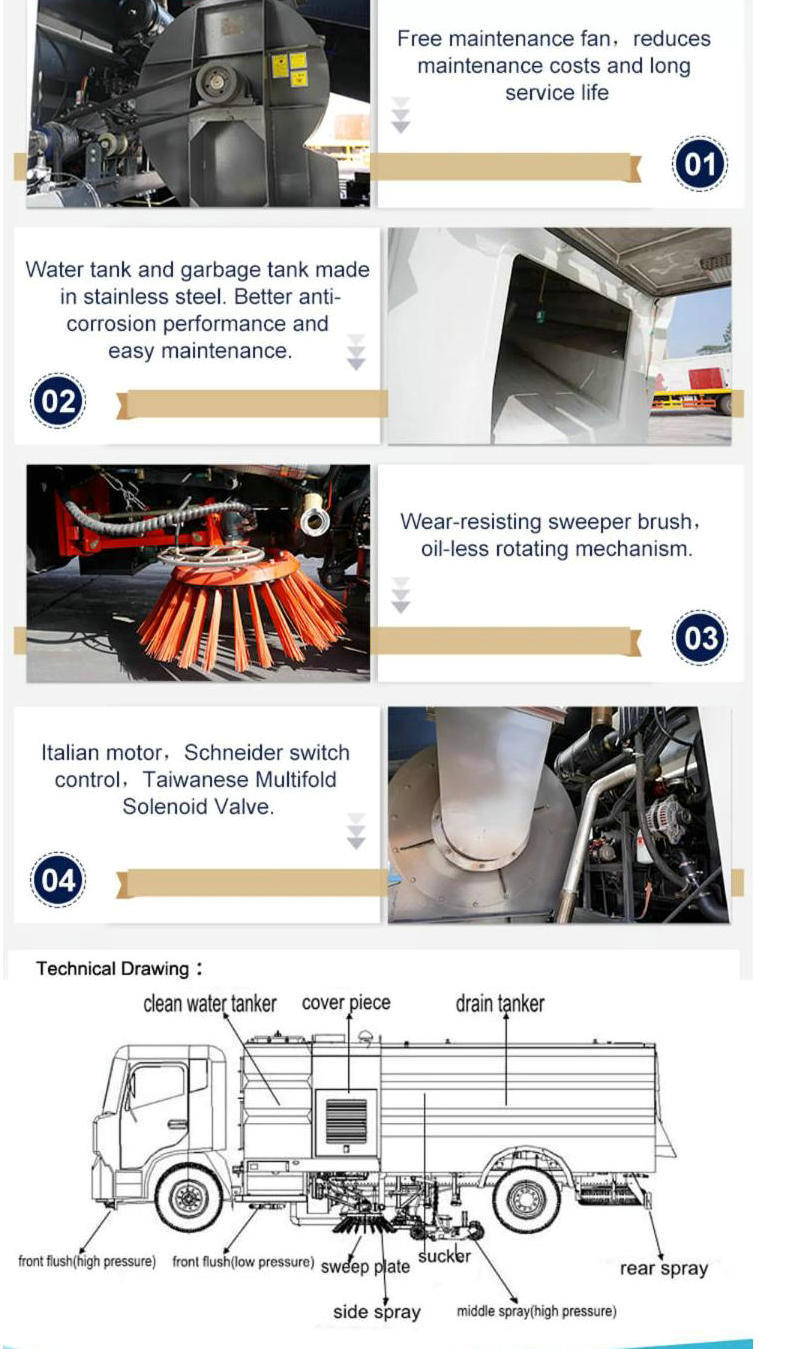

Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant

Four Booms Sweeping System And Suction System Combine Working ,High Efficient.

Water Sprinklers Equipped On Brooms,Suction Nozzle.

Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.

Air Blower Is Special For Road Sweeper,High Efficient,Low Noise
King Run Efficent Street Vacuum Road Sweeper 7 Cbm Garbage 9 Cbm Water Stainless Steel 4X2 -4X4 -Rhd. LHD

4x2 Howo road sweeper truck street sweeper truck vacuum road sweeper

Sinotruk HOWO light truck road sweeper truck hot sale factory price

1.production name:road truck, road sweeper truck, road sweeping truck,road sweeper machine,road sweeper,road sweeper vehicle,road sweeper car.
2.driving style:4x2 ,4x4, 6x4, 6x6, 8x4 ,8x8
3.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH JAPAN CHASSIS


1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 -90000square meters.


Standard configuration
Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,
hydraulic system and electrical system.
Selective configuration
surveillance system,rolling brush.
Vehicle model Chassis brand Chassis model Load (L) Overall dimensions Wheel base Engine model hp/standard Tire EXW Price
RMB /USD=6.3
Dust Water mm mm RMB USD
DRZ5160TSLD DONGFENG LHD/RHD RHD price add $2000 DFL1160BX 6000;7000 4000;
3500
8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 309800 US$49,175
DRZ5060TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1060TJ20D3 3500 800 5970X2000X2400 3300 CY4102-C3F 95/Euro 3 11.00R20 159400 US$25,302
DRZ5090TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1090T9ADJ3AC 4500 1000 6700X2290X2500 3800 CY4102-E3C 120/Euro 3 7.50R16 200500 US$31,825
DRZ5108TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1108KJ 5000 3000 7000X2480X3000 3950 B170 33 170/Euro 3 9.00-20 257700 US$40,905
DRZ5126TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1126KJ1 6000 4000 8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 279800 US$44,413
DRZ5141TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1141KJ 6000 4000 7650X2480X3000 4500 B190 33 190/Euro 3 10.00-20 272700 US$43,286
DRZ5073TSLB FOTON LHD/RHD RHD price add $2000 BJ1073VEJEA-A 3500 800 5995X1900X2680 3360 4DW91-63NG2 98/Euro 2 6.50-16 149400 US$23,714
DRZ5163TSLB FOTON LHD/RHD RHD price add $2000 BJ1163VKPGG-1 6000 4000 7810X2495X3160 5000 Phaser160Ti-33 160/Euro 3 9.00R20 299800 US$47,587
DRZ5070TSLQ ISUZU
LHD
QL1070A1KAY 4500 1000 6465X1980X2435 3815 4KH1-TCG40 120/Euro 4 7.00-15 255700 US$40,587
DRZ511009TSLQ ISUZU LHD QL11009LARY 5000 3000 6910X2200X2640 4175 4HK1-TCG40 190/Euro 4 8.25-20 331400 US$52,603
DRZ51609TSLQ ISUZU LHD QL11609MFRY 6000 4000 7705X2500X3060 4500 4HK1-TCG40 190/Euro 4 10.00-20 403100 US$63,984
DRZ5161TSLH JAC LHD/RHD RHD price add $2000 HFC1161P3K2A47F 6000 4000 8155X2495X3070 4700 YC4E160-42 160/Euro 4 11.00R20 337900 US$53,635
DRZ5165TSLS SHACMAN LHD/RHD RHD price add $2000 SX1165UN461 6000 4000 8040X2490X3270 4600 WP10.270E32 270/Euro 3 12.00R20 362000 US$57,460
