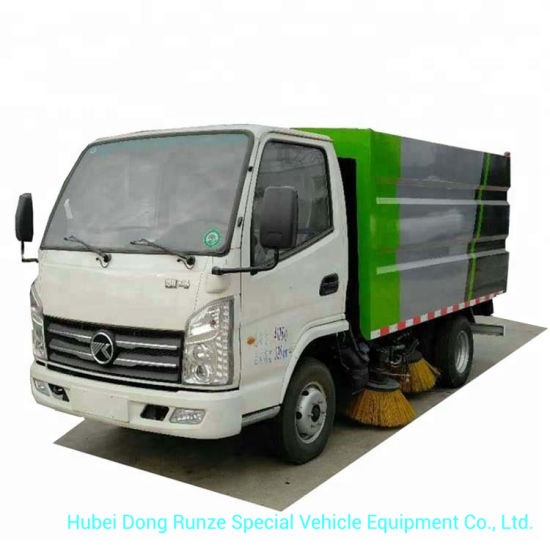

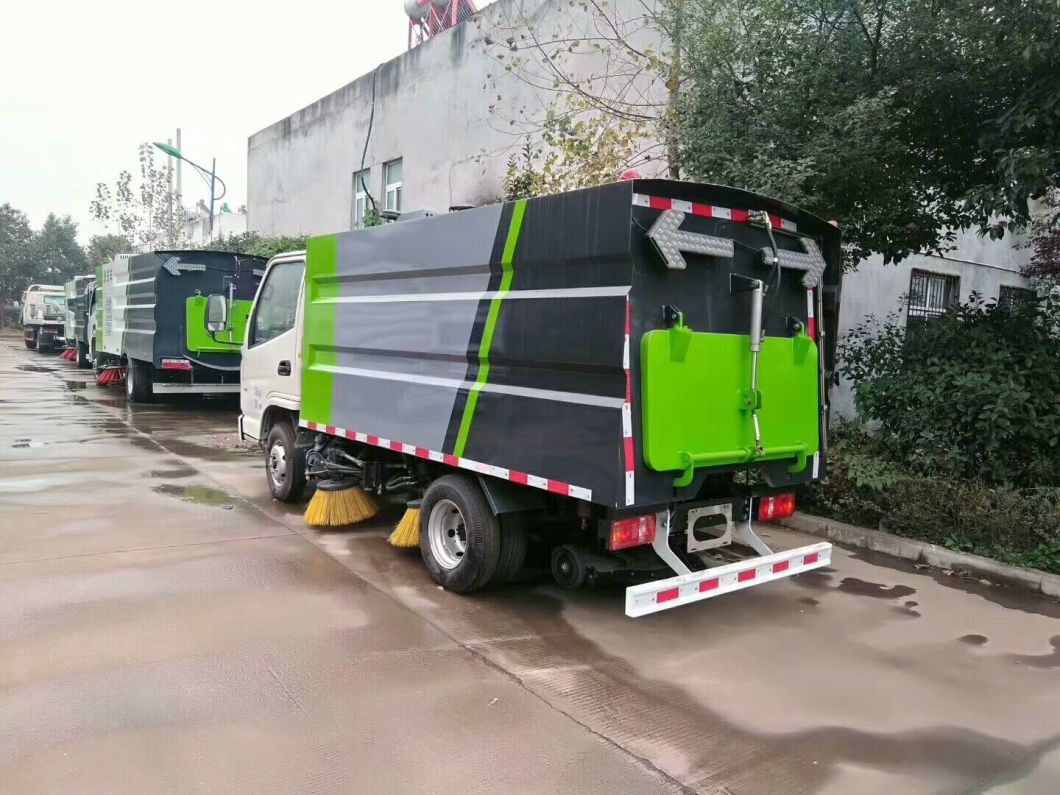

MINI KAMA Road Sweepers 1.7m3 Dustbin,0.8m3 Clean Water Tank
Stainless Steel 304 For Airport Yard Cleaning
The pictures are for your reference only.
China Sweeper Truck , with dongfeng chassis , 1.2 cbm water tanker volume and 4 cbm debris , four main broom ( broom has 3 speed control ) , I.S.U.Z.U sub-engine , maintenance free clutch and fan .

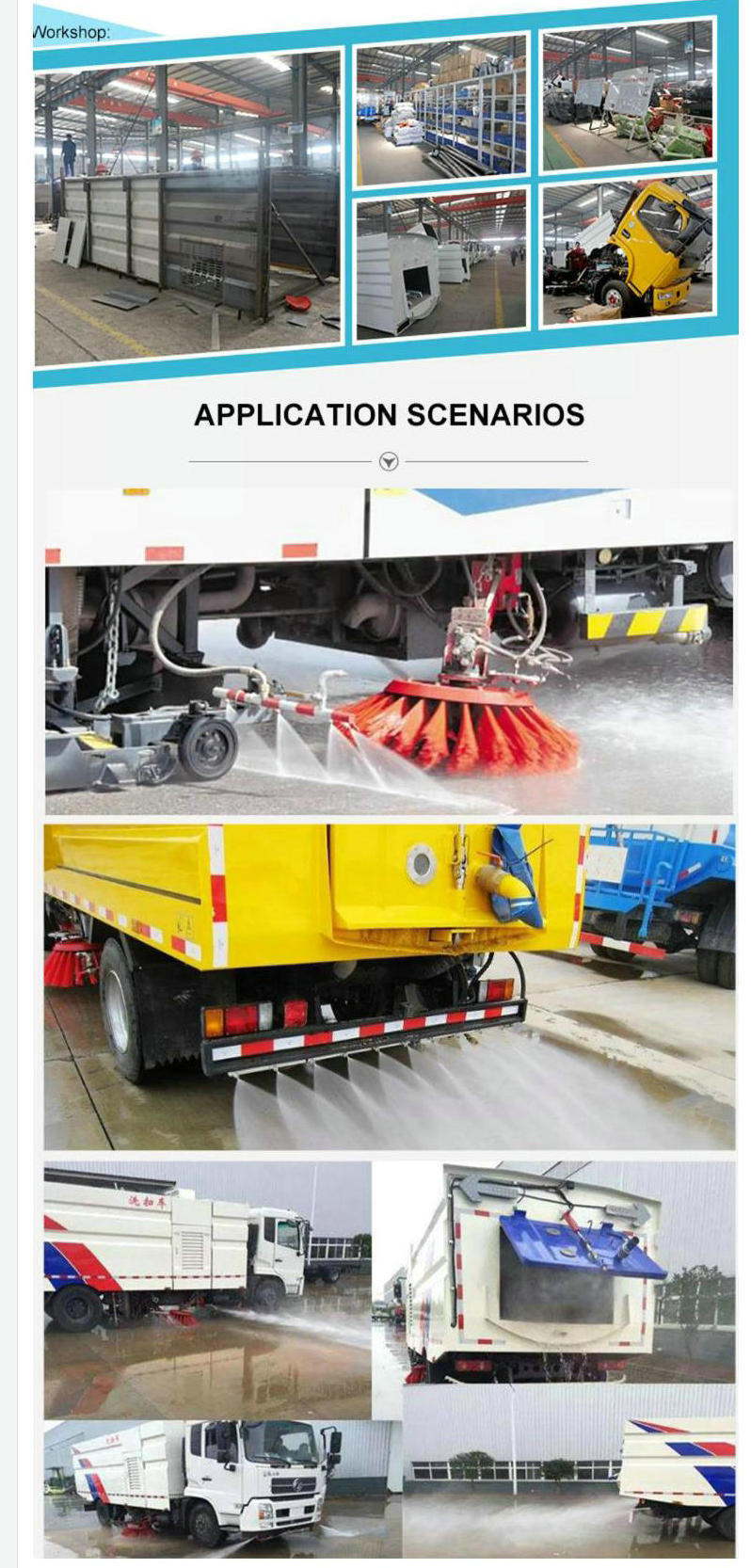

Normally used in Airport , Factories , Countries , Event place , Stadiums , Hospital , Buildings , Power Plants , Collages , Parks , Schools , Highways , Cities , Ports , Parking decks , Malls , Paved trails , Construction etc.
1) Advanced hydraulic : Generate power and reliability where you need most
2) Customized Application --dual steering , custom painting we can build your perfect unit .
3) Innovative controls user friendly controls customized for operators .
4) Drive Friendly simple operation , training and no CDL requirements.
road sweeper truck china for sales
|Product name||KAMA Road Sweepe Truck||Option|
|Certificate||SGS CCC ISO|
|Driving cab:||2 people|
|Dust bin volume||1.7 cubic meters|
|Water tank capacity||0.8 cubic meters|
|Box / tank material:||stainless steel|
|Maximum inhalation particle size||80mm|
|Maximum inhalation mass||1kg|
|Fan form||special high-pressure centrifugal fan|
|Number of sweeps||4|
|Suction cup ground clearance||5-10mm|
|Trash bin tilting angle||45°|
The working principle of the sweeping car:
|The auxiliary engine drives the hydraulic oil pump and the fan to work. The hydraulic oil pump drives the left and right sweeping disks to expand, retract, rotate and rotate. The left and right sweeping disks sweep the garbage on both sides to the sweeping car and the front of the nozzle. The fan generates a high-speed airflow in the air passage formed by the garbage can, the suction pipe and the suction nozzle. Under the action of the airflow, the garbage is sucked into the suction nozzle and enters the garbage can. The chassis engine drives the sweeping car to move forward, and the garbage swept to the front of the nozzle continuously enters into the nozzle, and is continuously sucked into the garbage bin to realize the road surface cleaning.|
|Emission standard||Euro 3- 4 -5-6|
|Operation Method||Manual or Automatic|
|1. Collecting garbage by means of suction and mixing, wet dust removal, electro-hydraulic dumping and discharging operation to clean the road surface. |
2. The auxiliary engine is used to drive the fan and hydraulic system. Ensure that the work can continue during the journey to ensure the continuity of the cleaning process.
3. Adopting the structural arrangement of "medium four-disc brush + rear nozzle" or "medium two-disc brush + medium-width wide nozzle", which is convenient for adjustment and maintenance of cleaning device and nozzle, and the whole vehicle passes through the transition. Good sex.
4. The automatic clutch is arranged between the auxiliary engine and the fan to ensure the automatic separation of the auxiliary engine from the start and stop of the auxiliary engine, reduce the impact on the auxiliary engine, and improve the working reliability and service life of the auxiliary engine.
5, the disc has obstacles to automatically avoid the protection function and automatic reset function, automatically retract after encountering obstacles, automatically reset after crossing the obstacle.
6, sweeping speed can be adjusted according to various cleaning conditions, to ensure that in a variety of pollution conditions have a good cleaning effect.

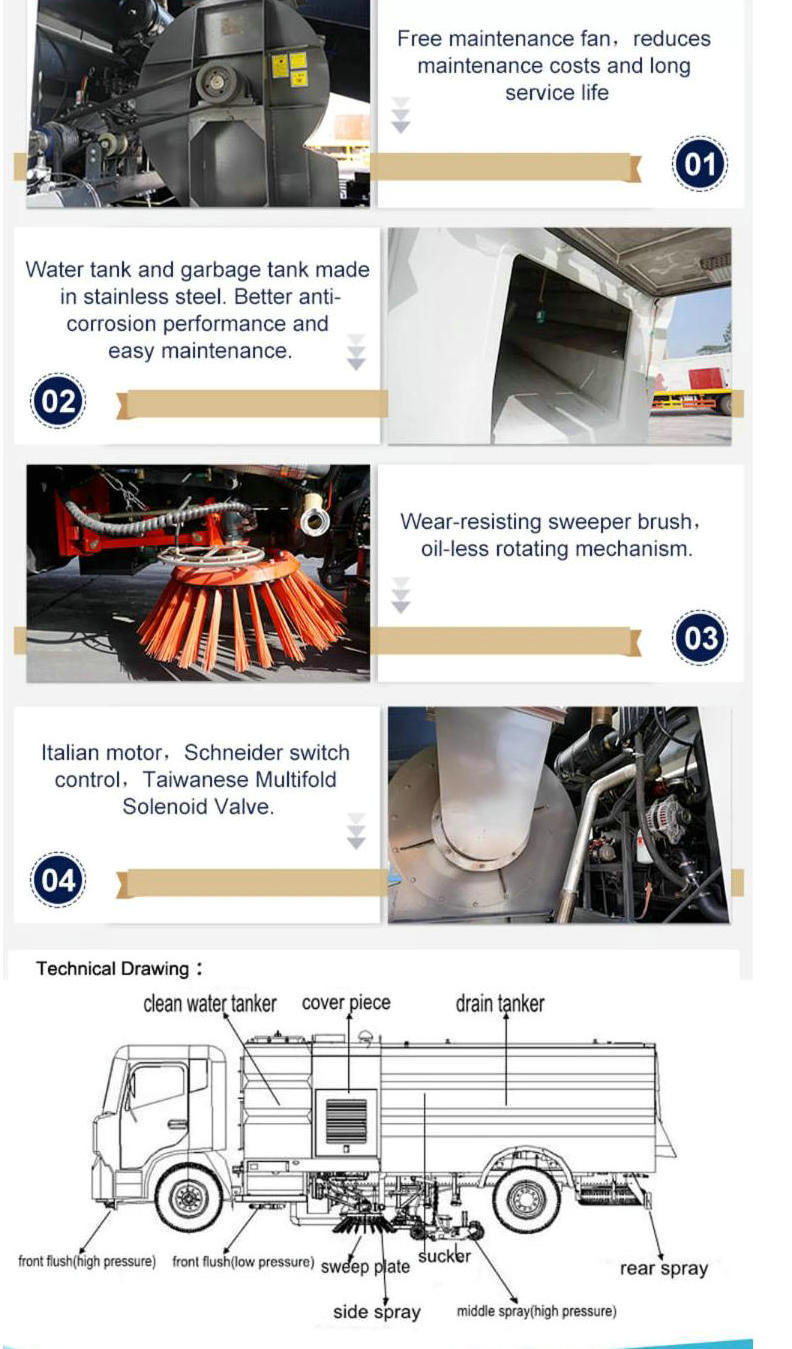

7. It adopts advanced and efficient special fan and fully floating nozzle which can be leveled automatically with the road surface. It has good cleaning effect and long service life.

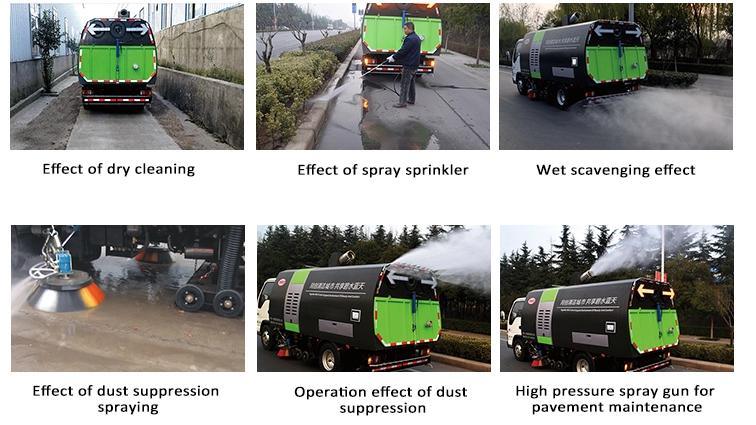

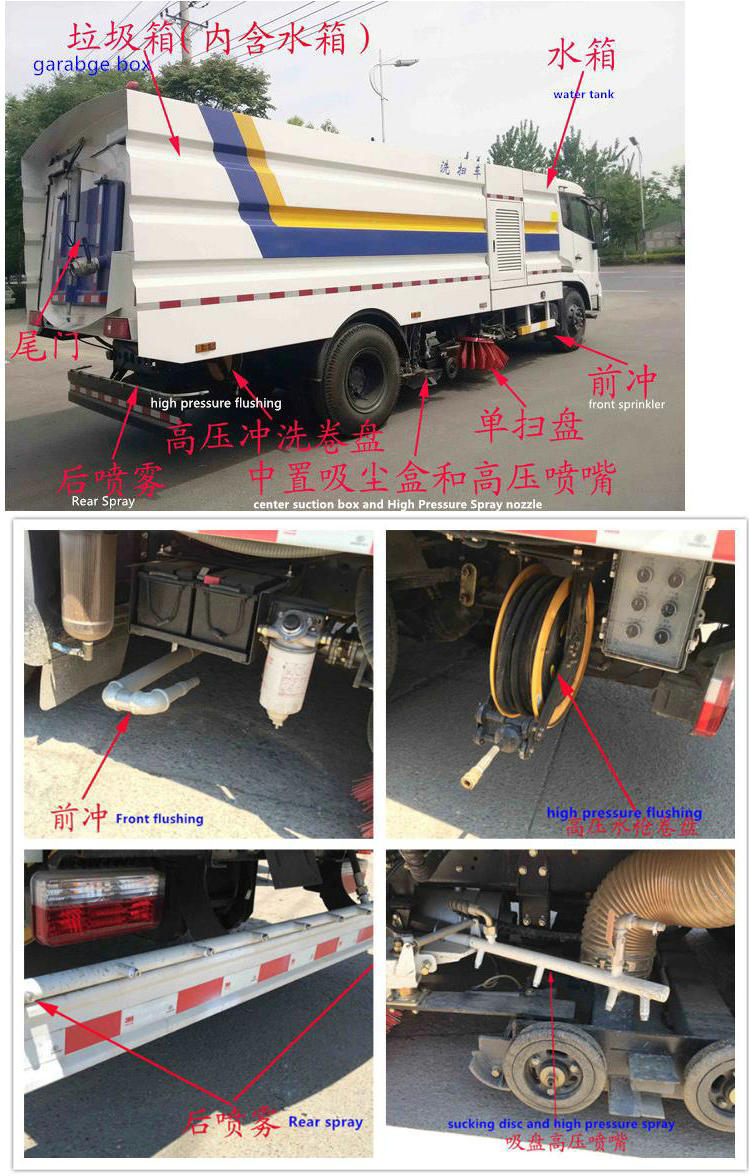

8, can be installed monitoring, pre-spray, post-spray, front punch, after sprinkling, snow shovel and so on.

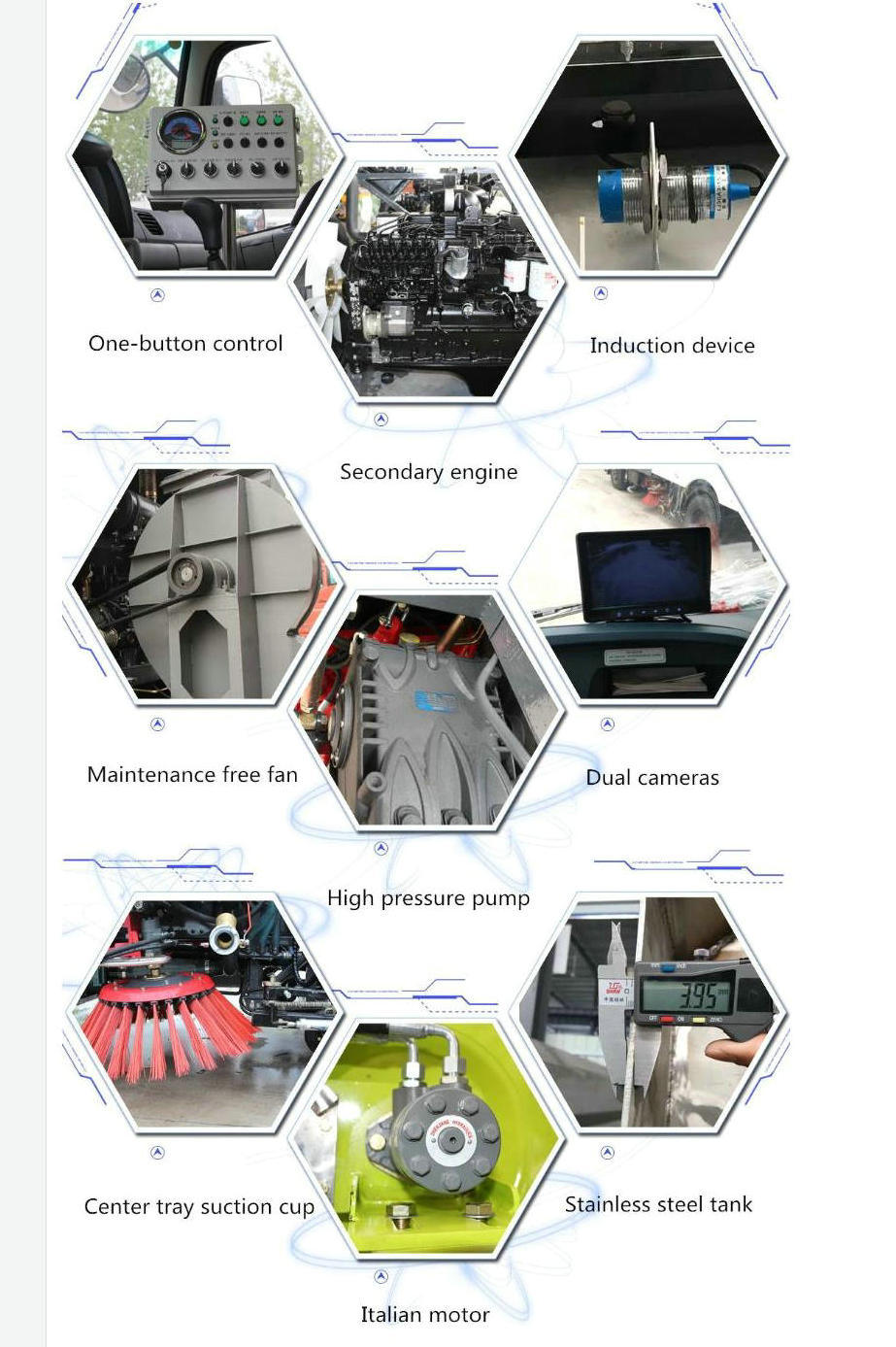

*Maintenance-free centrifugal fan, wear-resistant cylinder, manual pump emergency system, precision cold-formed Seamless Hydraulic tubing, tail LED arrow lamp.
*The cleaning width was 2.6-3.5M and the inhalation particle size is Φ 120 mm
Road sweeper truck is also called road sweeper truck, it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle
KAMA 4x2 2500 liters pavement sweeper
KAMA 2500 liters pavement sweeper
Single row cab, two doors, rated passengers 2 or 3, AC
LHD or RHD 4*2
6.00-15LT with 1 spare tire
Manual , 5 forward and 1 reverse
|Engine brand|| |
Dimension & weight
Overall dimension (L*W*H/mm)
75hp vice diesel engine, 4 units sweeper brushes, 1 piece sucker, stainless steel water tank and dust bin, 5ton airflow, reliable hydraulic system, sweeping system, electrical control system, etc.
1700Ldust bin+800Lwater tank
centralized control in the cab
Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck
Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant
Four Booms Sweeping System And Suction System Combine Working ,High Efficient.
Water Sprinklers Equipped On Brooms,Suction Nozzle.
Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.
Air Blower Is Special For Road Sweeper,High Efficient,Low Noise

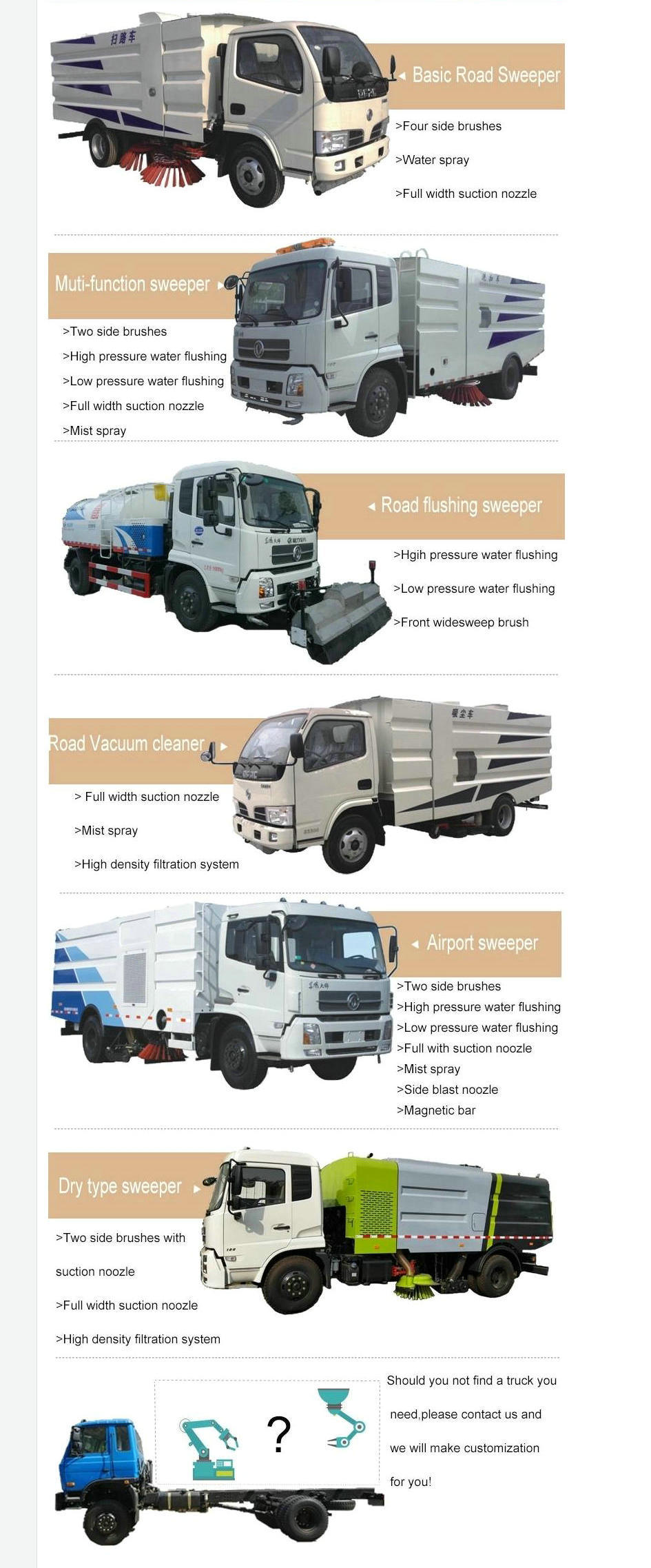

Sweepers classified editing
Classification of operations
(1), push-type sweeper and hand-held sweeper
(2), self-propelled road vehicles
(3), pure sweeping road vehicles
(4), suction sweepers
(5), pure suction sweeper (multi-function full suction sweeper)
(6), dry sweeping vehicles (vacuum trucks)
(7), wet sweeper
(8), full suction sweeper
|Standard configuration |
Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,
hydraulic system and electrical system.
surveillance system,rolling brush.

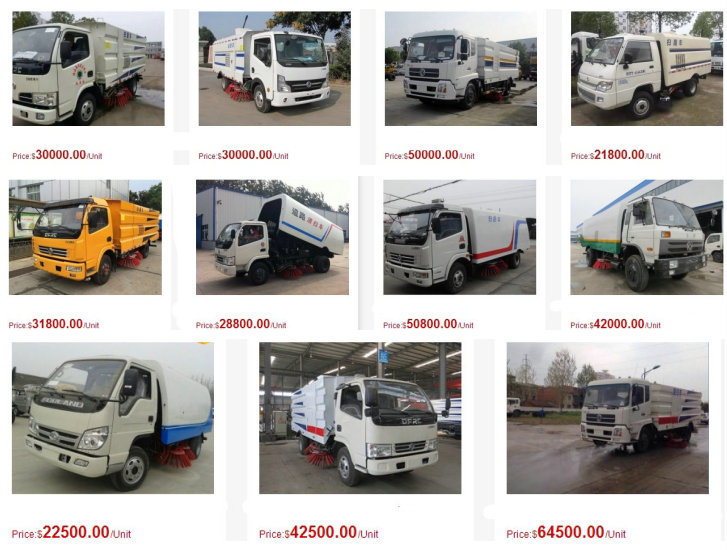

|Vehicle model||Chassis brand||Chassis model||Load (L)||Overall dimensions||Wheel base||Engine model||hp/standard||Tire||EXW Price |
|DRZ5160TSLD||DONGFENG LHD/RHD RHD price add $2000||DFL1160BX||6000;7000||4000; |
|8090X2470X3050||4700||B190 33||190/Euro 3||9.00-20||309800||US$49,175|
|DRZ5060TSLE||DONGFENG LHD/RHD RHD price add $2000||EQ1060TJ20D3||3500||800||5970X2000X2400||3300||CY4102-C3F||95/Euro 3||11.00R20||159400||US$25,302|
|DRZ5090TSLE||DONGFENG LHD/RHD RHD price add $2000||EQ1090T9ADJ3AC||4500||1000||6700X2290X2500||3800||CY4102-E3C||120/Euro 3||7.50R16||200500||US$31,825|
|DRZ5108TSLE||DONGFENG LHD/RHD RHD price add $2000||EQ1108KJ||5000||3000||7000X2480X3000||3950||B170 33||170/Euro 3||9.00-20||257700||US$40,905|
|DRZ5126TSLE||DONGFENG LHD/RHD RHD price add $2000||EQ1126KJ1||6000||4000||8090X2470X3050||4700||B190 33||190/Euro 3||9.00-20||279800||US$44,413|
|DRZ5141TSLE||DONGFENG LHD/RHD RHD price add $2000||EQ1141KJ||6000||4000||7650X2480X3000||4500||B190 33||190/Euro 3||10.00-20||272700||US$43,286|
|DRZ5073TSLB||FOTON LHD/RHD RHD price add $2000||BJ1073VEJEA-A||3500||800||5995X1900X2680||3360||4DW91-63NG2||98/Euro 2||6.50-16||149400||US$23,714|
|DRZ5163TSLB||FOTON LHD/RHD RHD price add $2000||BJ1163VKPGG-1||6000||4000||7810X2495X3160||5000||Phaser160Ti-33||160/Euro 3||9.00R20||299800||US$47,587|
|DRZ511009TSLQ||ISUZU LHD||QL11009LARY||5000||3000||6910X2200X2640||4175||4HK1-TCG40||190/Euro 4||8.25-20||331400||US$52,603|
|DRZ51609TSLQ||ISUZU LHD||QL11609MFRY||6000||4000||7705X2500X3060||4500||4HK1-TCG40||190/Euro 4||10.00-20||403100||US$63,984|
|DRZ5161TSLH||JAC LHD/RHD RHD price add $2000||HFC1161P3K2A47F||6000||4000||8155X2495X3070||4700||YC4E160-42||160/Euro 4||11.00R20||337900||US$53,635|
|DRZ5165TSLS||SHACMAN LHD/RHD RHD price add $2000||SX1165UN461||6000||4000||8040X2490X3270||4600||WP10.270E32||270/Euro 3||12.00R20||362000||US$57,460|
