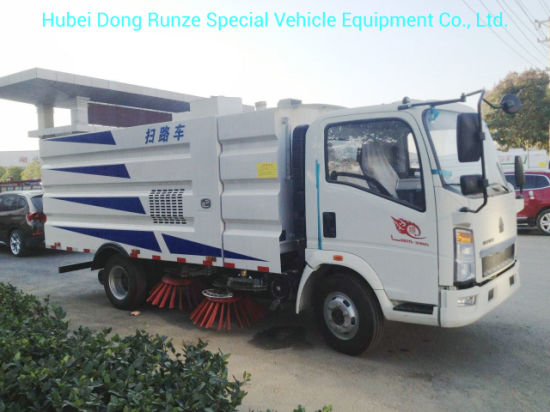

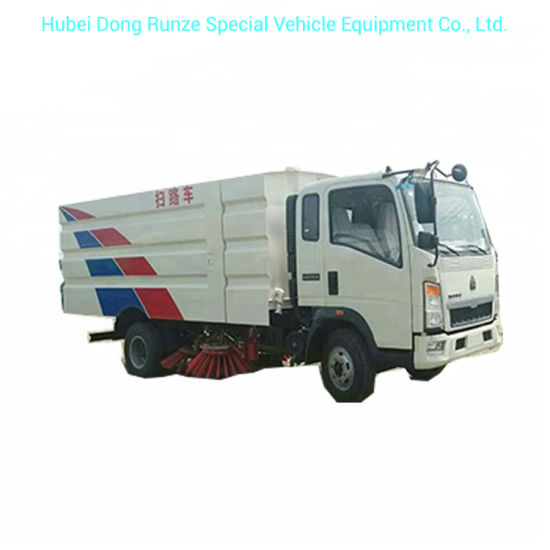

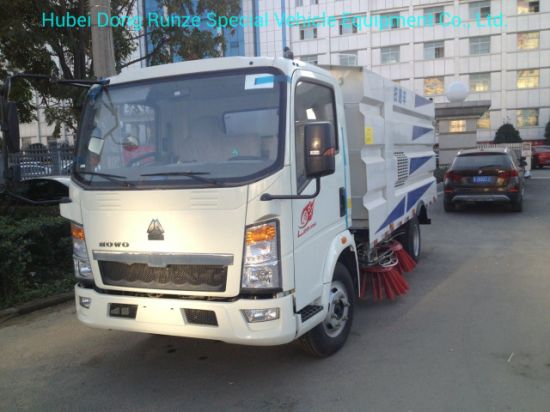

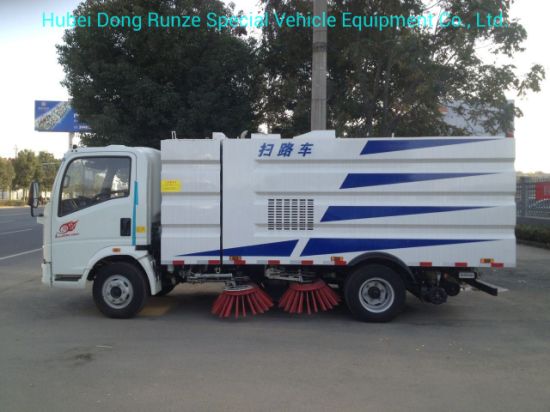

HOWO Road Vacuum Road Sweeper 4cbm Garbage 1 Cbm Water Stainless Steel 4X2 -Rhd. LHD 5
| Quantity: | |
|---|---|
- DRZ5080
- HOWO
- 8705
- Shanghai, China
- 1000
- T/T

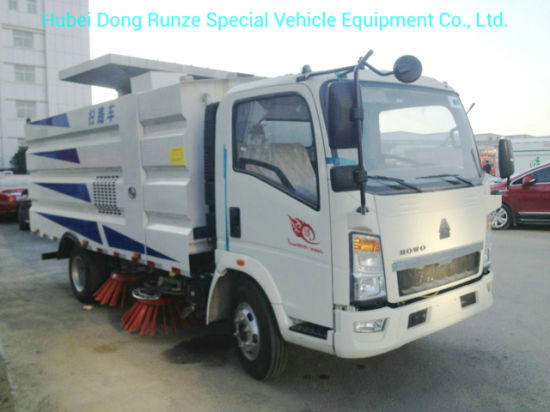

HOWO Road Vacuum Road Sweeper 4Cbm Garbage 1 Cbm Water Stainless Steel 4X2 -Rhd. LHD5
Righ hand Drive Road Sweeper Truck 5m3 Stainless Steel 304
Cleaning Street Road Sweeper Truck Ask for better price
The pictures are for your reference only.
Cell /+8615271357675
SPECIFICATION
| Cabin | Driving type 4×2, LHD/RHD HOWO cab, with air condition. As attached photo for reference | |
| Vehicle main Dimensions | Overall dimensions (L×W×H) | 6520*2150*2550 mm |
| Wheel base | 3815 mm | |
| Weight in KGS | Tare Weight | 5500 kg |
| Front axles loading capacity | 1x4000 | |
| Rear axles loading capacity | 1x7000 | |
| Engine | Brand | YN |
| Model | YN4102 | |
| Type | 4-stroke direct injection,4-cylinder in-line with water cooking, turbo-charging and inter-cooking | |
| Horse Power (HP) | 116 HP | |
| Emission standard | Euro II | |
| Gearbox | 6 forwards, 1 reverse. | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Tire | 7.50R16 all steel radial tyre with one spare | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
| Water brake system | Water pump, front and rear sprinklers, sprinkling width > 14 m | |
| Hydraulics | 4500 liters stainless steel made dust bin, 1000 liters carbon steel water tank Cleaning effciency: >90%, Max. cleaning speed: 20 km/h Max. cleaning width ≥3500 mm, with 4 pieces of brush | |

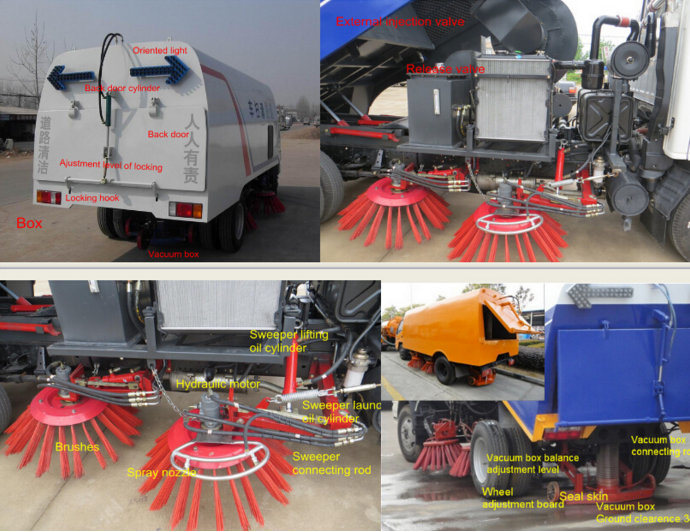

ROAD SWEEPER TRUCK
Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck
Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant
Four Booms Sweeping System And Suction System Combine Working ,High Efficient.
Water Sprinklers Equipped On Brooms,Suction Nozzle.
Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.
Air Blower Is Special For Road Sweeper,High Efficient,Low Noise
4x2 Howo road sweeper truck street sweeper truck vacuum road sweeper
Sinotruk HOWO light truck road sweeper truck hot sale factory price
1.production name:road truck, road sweeper truck, road sweeping truck,road sweeper machine,road sweeper,road sweeper vehicle,road sweeper car.
2.driving style:4x2 ,4x4, 6x4, 6x6, 8x4 ,8x8
3.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH JAPAN CHASSIS

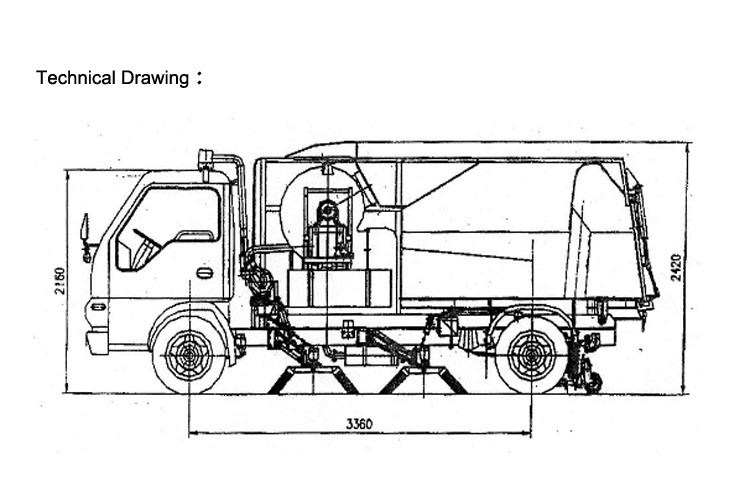

| Item | unit | parameter | |
| Product Name | Howo road sweeper truck street sweeper truck vacuum road sweeper | road sweeper truck | |
| Chassis model | Sinotruk HOWO | ||
| Overall dimensions | mm | 6190X2090X2500 | |
| Tank capacity | m3 | water tank 1m3 | dust tank 4m3 |
| Net weight | kg | 5950 | |
| Body dimensions | mm | ||
| Wheel base | mm | 3360 | |
| Front/rear overhang | mm | 1160/2470 | |
| Exhaust/hp | ml/kw | 3760/115 | |
| Max speed | km/h | 90 | |
| Tire specification | 7.00-16,7.00R16 | Engine type | ISF3.8s5154 |
| Traction system | 4×2 | Transmission | 6 Forward,1 Reverse |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Power steering | Allowable passengers in cab | 2,3 |
| Tilt cab,spare tire | |||

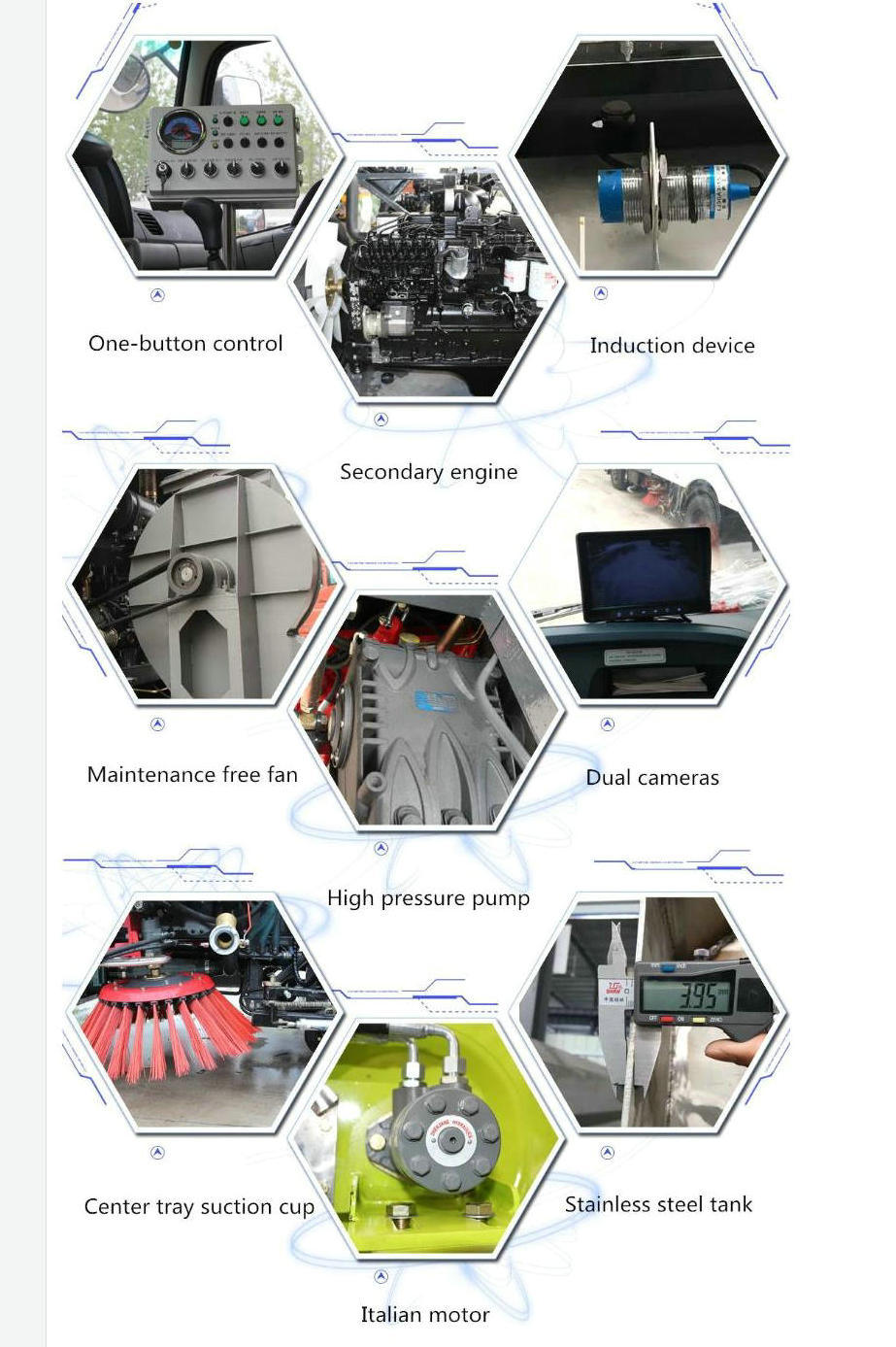

Equipment | 1.Equipped with three layers of filter system, dust filtering ratio up to 99.99%, extending nozzle to sweep the combination of outstanding ability to make clean sweep suction, suction system to achieve the perfect combination to ensure high cleaning and pumping efficiency. 2.With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle 3.Stainless steel water tanks, garbage can makes the working life longer,When cleaning, the sweeping brushes softly contact the ground, largely reducing their wear and extending their working life | ||
| Engine | Beijing Cummins Diesel Engine (Euro 4) | ||
| Production cycle | Within 20 days | ||
| Warranty | 12 month, from the date of supply,and can supply the spare parts if needed. | ||
1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 -90000square meters.
| Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. Selective configuration surveillance system,rolling brush. | |||||||||||
| Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | EXW Price RMB /USD=6.3 | ||
| Dust | Water | mm | mm | RMB | USD | ||||||
| DRZ5160TSLD | DONGFENG LHD/RHD RHD price add $2000 | DFL1160BX | 6000;7000 | 4000; 3500 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 309800 | US$49,175 |
| DRZ5060TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 159400 | US$25,302 |
| DRZ5090TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 200500 | US$31,825 |
| DRZ5108TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 257700 | US$40,905 |
| DRZ5126TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 279800 | US$44,413 |
| DRZ5141TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 272700 | US$43,286 |
| DRZ5073TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 149400 | US$23,714 |
| DRZ5163TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 299800 | US$47,587 |
| DRZ5070TSLQ | ISUZU LHD | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 255700 | US$40,587 |
| DRZ511009TSLQ | ISUZU LHD | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 331400 | US$52,603 |
| DRZ51609TSLQ | ISUZU LHD | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 403100 | US$63,984 |
| DRZ5161TSLH | JAC LHD/RHD RHD price add $2000 | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 337900 | US$53,635 |
| DRZ5165TSLS | SHACMAN LHD/RHD RHD price add $2000 | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 362000 | US$57,460 |
Main Products
Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
Truck with crane / Truck mounted crane
Oil Tank Truck / Fuel Tanker Truck
Water truck / Water Tank Truck / Water Sprinkler Truck
Concrete Mixer Truck
Van truck / Insulated truck/ workshop

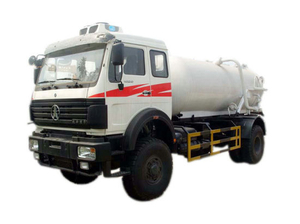

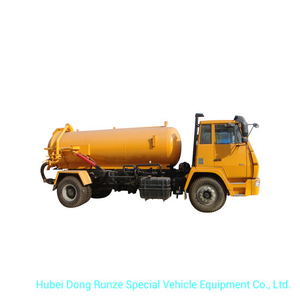

Fecal suction truck / Sewage suction truck
