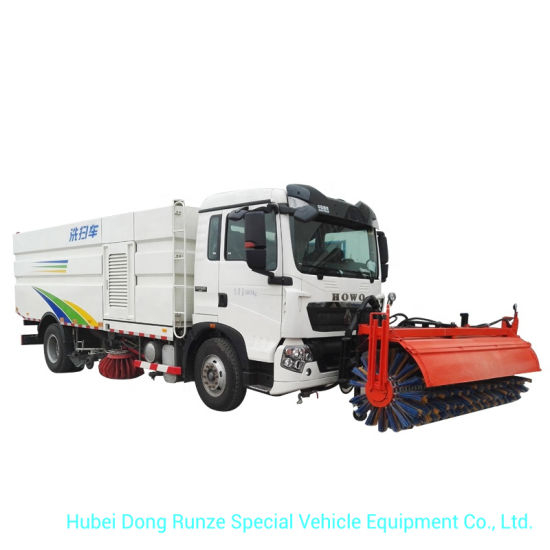

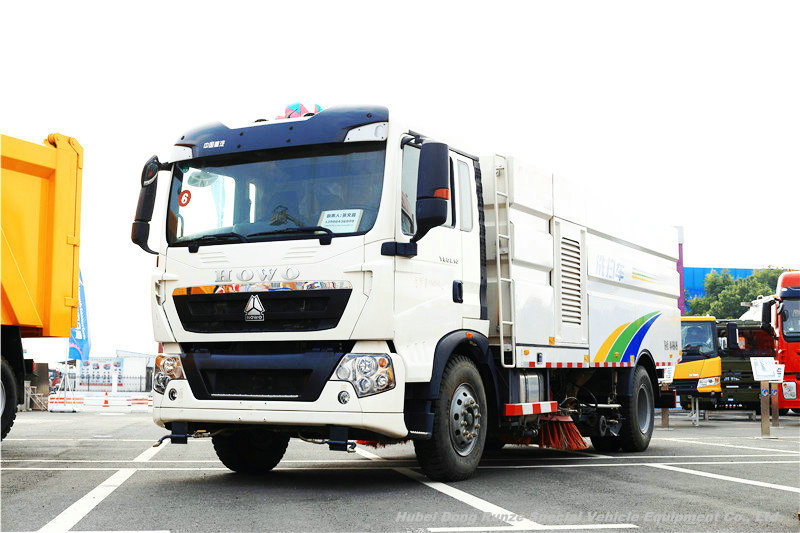

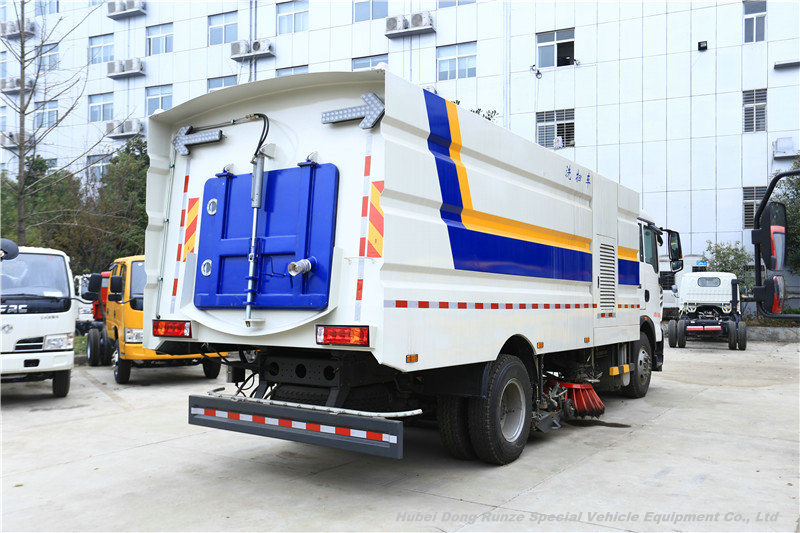

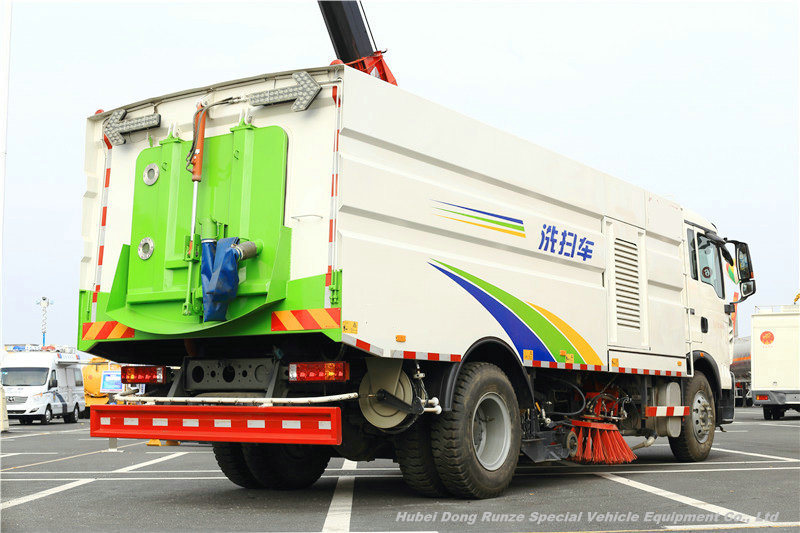

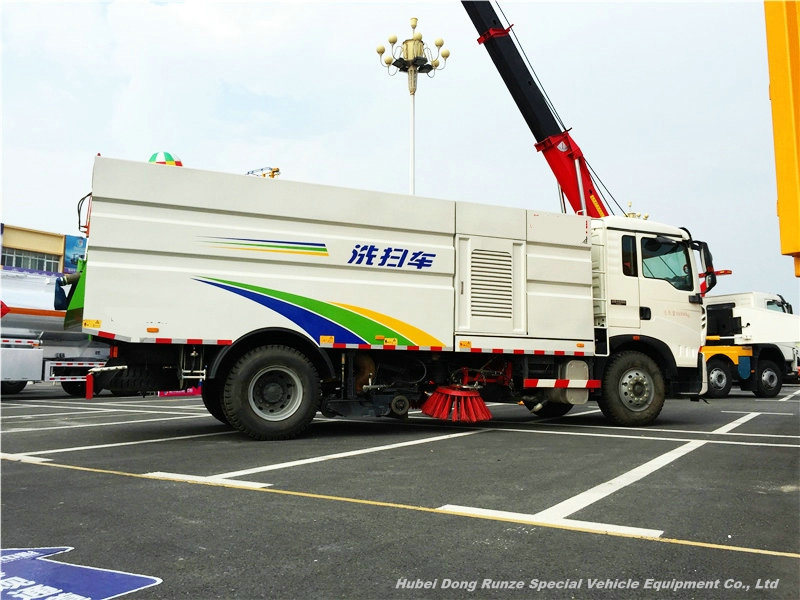

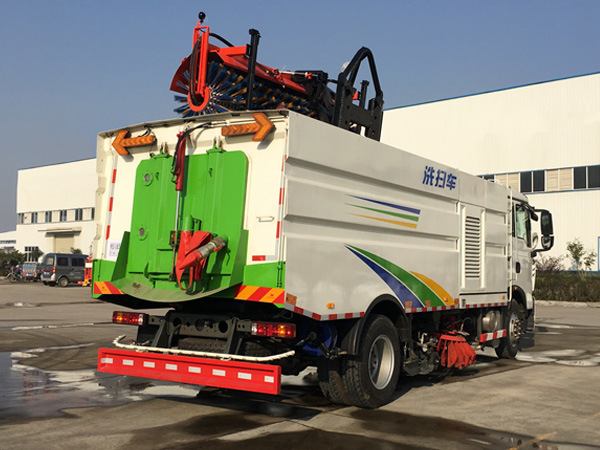

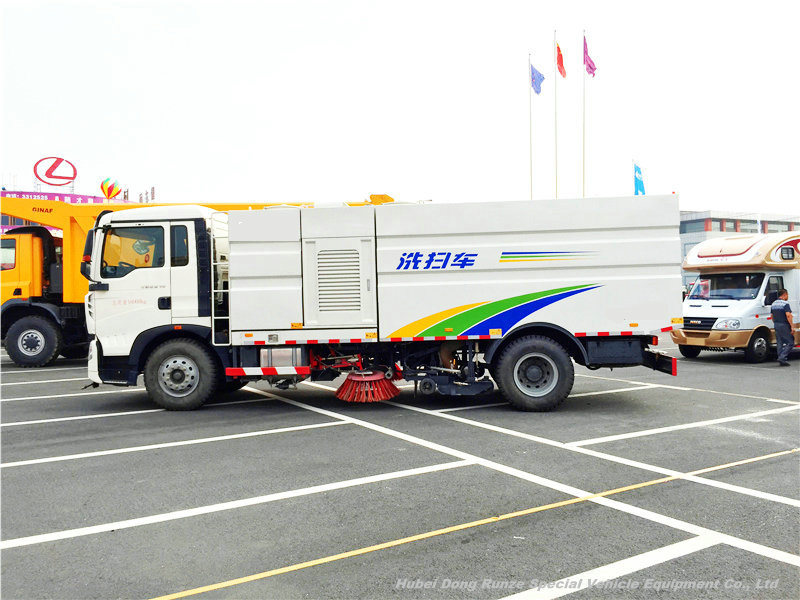

HOWO A7 Outdoor Road Sweeper Truck 8cbm Garbage 2 Cbm Water Stainless Steel 4X2 -Rhd. LHD
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T
HOWO Road Vacuum Road Sweeper 4Cbm Garbage 1 Cbm Water Stainless Steel 4X2 -Rhd. LHD5
Righ hand Drive Road Sweeper Truck 5m3 Stainless Steel 304
Cleaning Street Road Sweeper Truck Ask for better price
Howo A7 Outdoor Road Sweeper Truck 8cbm Garbage 2 Cbm Water Stainless Steel 4X2 -Rhd. LHD 5
The pictures are for your reference only.
Cell /+8615271357675
SPECIFICATION
| Item | Main specs | |
| Overall dimension(L×W×H) | 7870 ×2500 ×3150 | |
| Truck chassis model number | ZZ1187M501GE1(HOWO chassis) | |
| Total weight | 18000 kg | |
| Curb weight | 11700 kg | |
| Max. width of sweep | 4.1 m | |
| Sweeping efficiency(%) | ≥98% | |
| Max. suction size(mm) | 110 mm | |
| Garbage bin discharge angle | ≥50° | |
| Garbage bin volume | 8m3 | |
| Max. sweep capacity | 82000m2/h | |
| Sweep speed | 3 ~ 20km/h | |
Sinotruk HOWO sweeper truck mounted road sweeping machine sidewalk sweeper for sale
Vehicle performance and parameters | |||
Item Sinotruk HOWO sweeper truck | Parameter | Unit | |
Working Performance | Max sweep width | 3.0,4.1 | m |
Sweep speed | 3-20 | km/h | |
Max sweep capacity | 60000 - 82000 | m2/h | |
Max inhalation of granularity | ≥110 | mm | |
Angle of unloading | ≥45 | . | |
Volume of water tank | 2000 | L | |
Volume of garbage tank | 8000 | L | |
Driving Performance | Max speed | 90 | km/h |
Max gradeability | 30 | % | |
Braking distance | ≤10 | m | |
Min turning diameter | ≤13.6 | m | |
Fuel Performance | Fuel consumption(Driving) | ≤12 | L/100km |
Fuel consumption(Sweep working at 8km/h) | 6.5 | L/h | |
2.7 | L/10000m2 | ||
Quality Parameters | Curb weight | 4950 | kg |
Rated capacity | 2270 | kg | |
GVW | 7350 | kg | |
Dimension Parameter | Overall dimensions | 9950*2500*3300 | mm |
Wheelbase | 4700 | mm | |
Track front | 1504 | mm | |
Track rear | 1530 | mm | |
Front suspension | 1070 | mm | |
Rear suspension | 1580 | mm | |
Approach angle | 24 | . | |
Departure angle | 13 | . | |
Minimum Ground Clearance | 190 | mm | |

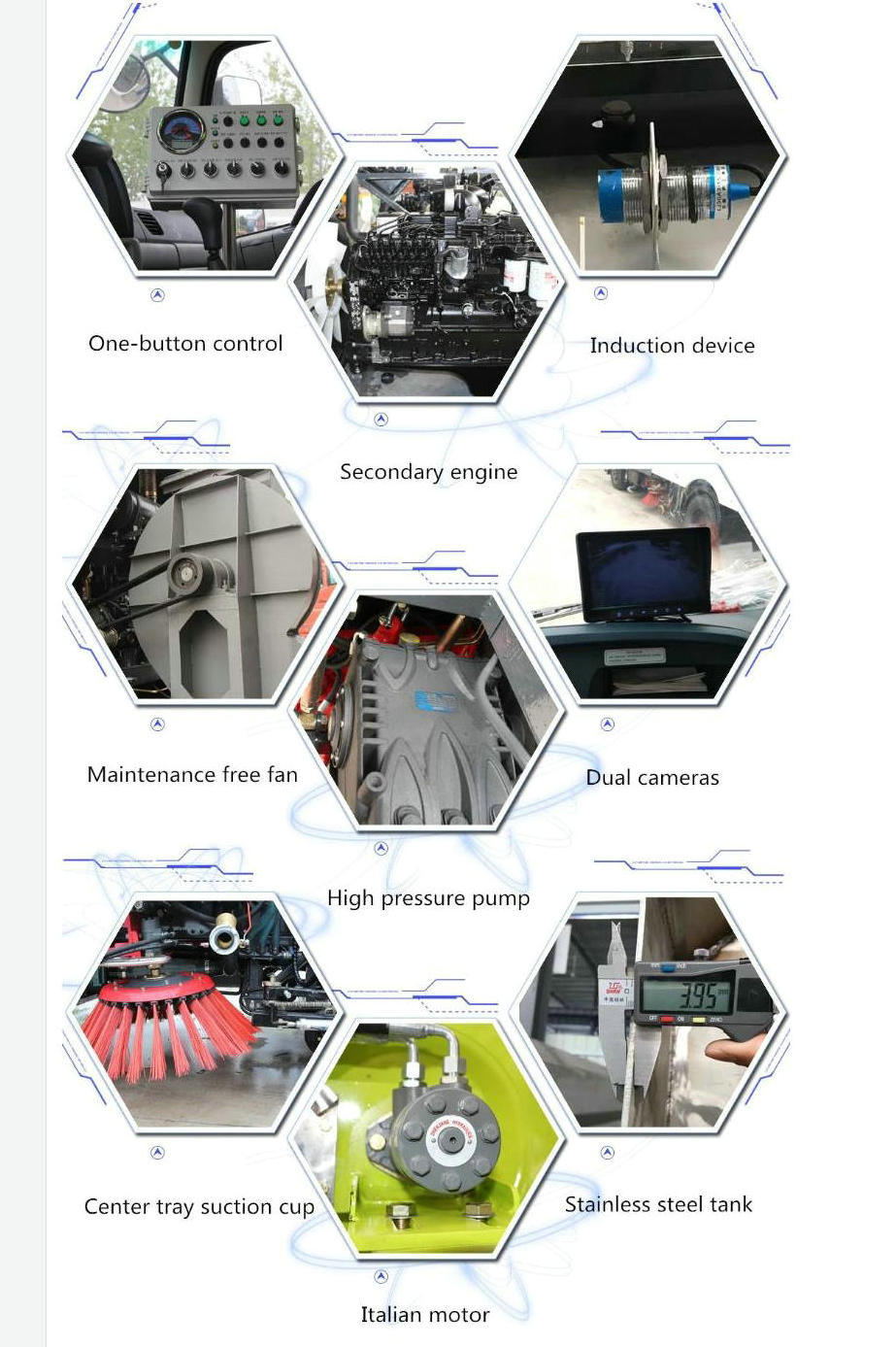

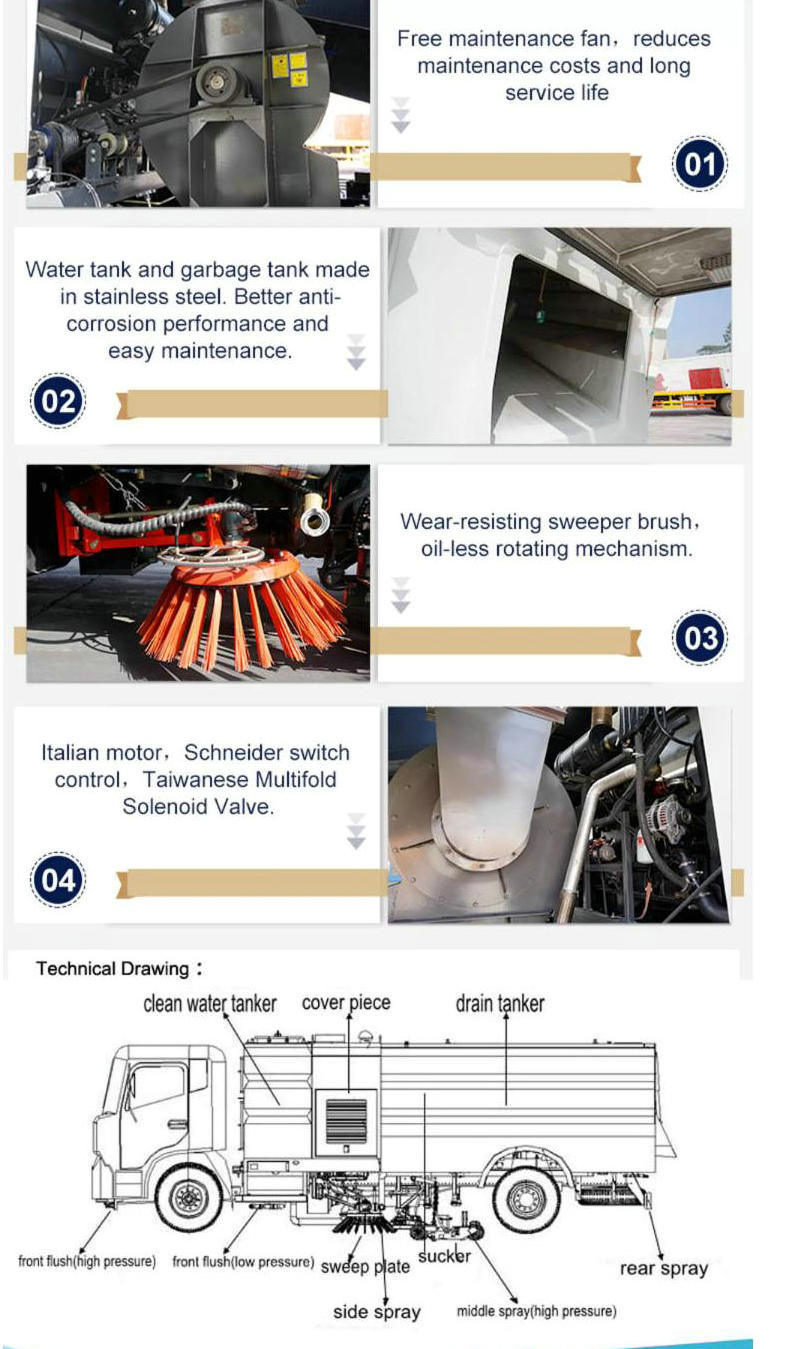

ROAD SWEEPER TRUCK
Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck

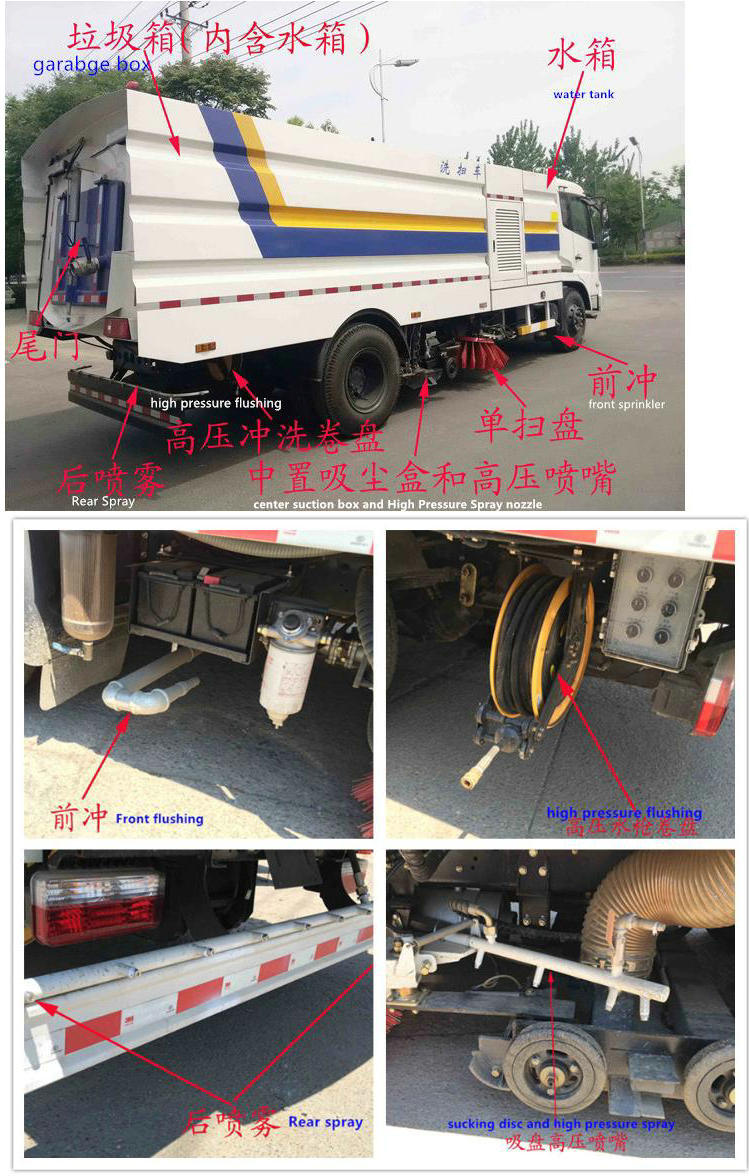

Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant
Four Booms Sweeping System And Suction System Combine Working ,High Efficient.
Water Sprinklers Equipped On Brooms,Suction Nozzle.
Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.
Air Blower Is Special For Road Sweeper,High Efficient,Low Noise
4x2 Howo road sweeper truck street sweeper truck vacuum road sweeper
Sinotruk HOWO light truck road sweeper truck hot sale factory price
1.production name:road truck, road sweeper truck, road sweeping truck,road sweeper machine,road sweeper,road sweeper vehicle,road sweeper car.
2.driving style:4x2 ,4x4, 6x4, 6x6, 8x4 ,8x8
3.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH JAPAN CHASSIS
1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 -90000square meters.
| Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. Selective configuration surveillance system,rolling brush. | |||||||||||
| Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | EXW Price RMB /USD=6.3 | ||
| Dust | Water | mm | mm | RMB | USD | ||||||
| DRZ5160TSLD | DONGFENG LHD/RHD RHD price add $2000 | DFL1160BX | 6000;7000 | 4000; 3500 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 309800 | US$49,175 |
| DRZ5060TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 159400 | US$25,302 |
| DRZ5090TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 200500 | US$31,825 |
| DRZ5108TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 257700 | US$40,905 |
| DRZ5126TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 279800 | US$44,413 |
| DRZ5141TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 272700 | US$43,286 |
| DRZ5073TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 149400 | US$23,714 |
| DRZ5163TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 299800 | US$47,587 |
| DRZ5070TSLQ | ISUZU LHD | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 255700 | US$40,587 |
| DRZ511009TSLQ | ISUZU LHD | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 331400 | US$52,603 |
| DRZ51609TSLQ | ISUZU LHD | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 403100 | US$63,984 |
| DRZ5161TSLH | JAC LHD/RHD RHD price add $2000 | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 337900 | US$53,635 |
| DRZ5165TSLS | SHACMAN LHD/RHD RHD price add $2000 | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 362000 | US$57,460 |
