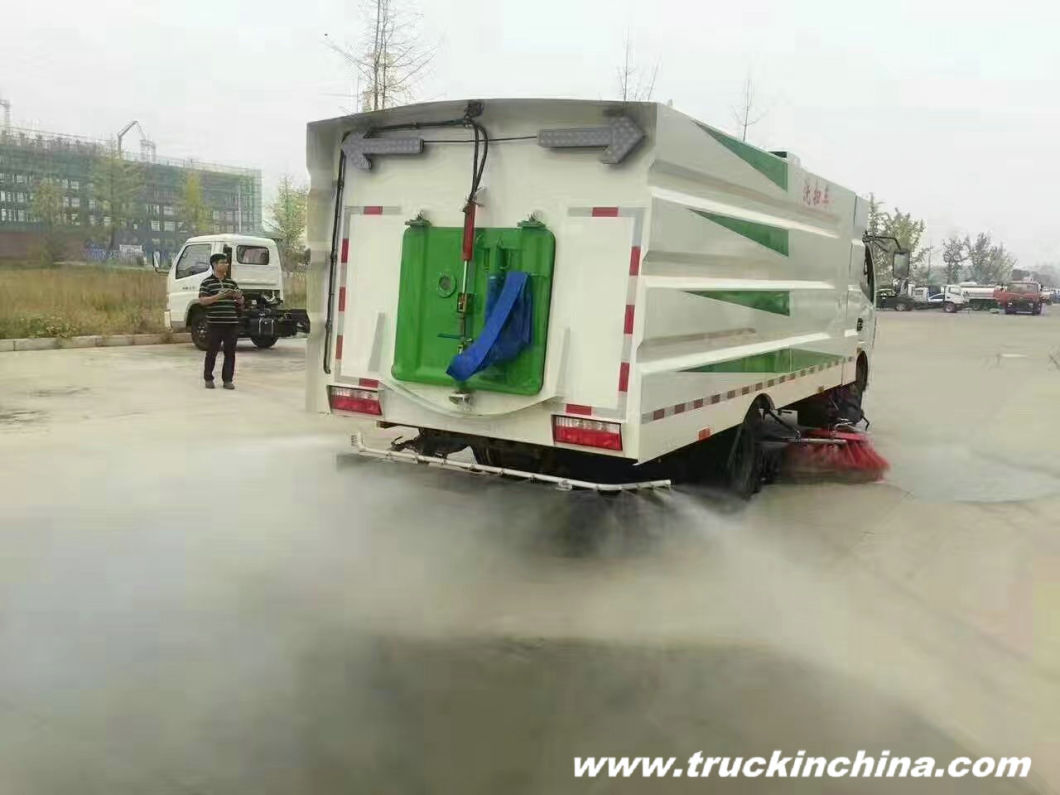

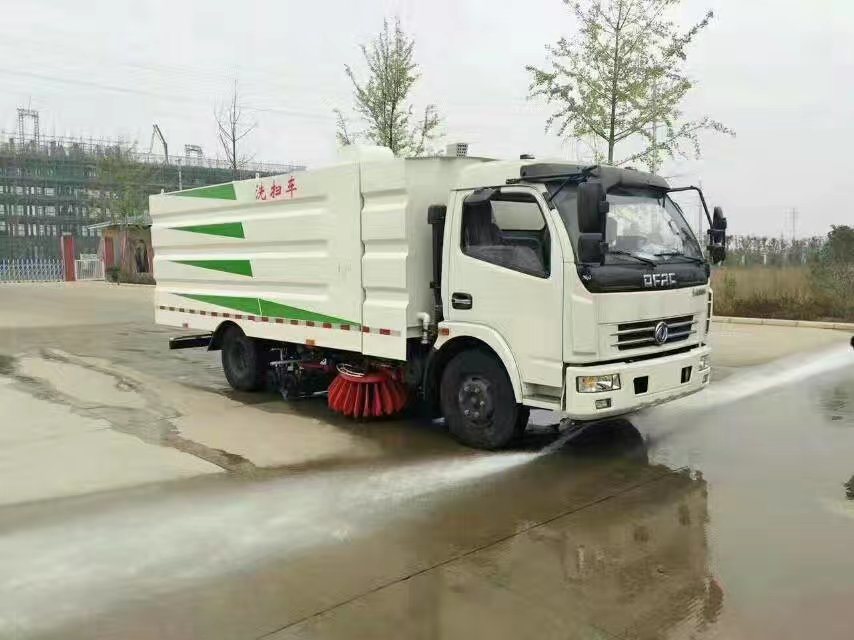

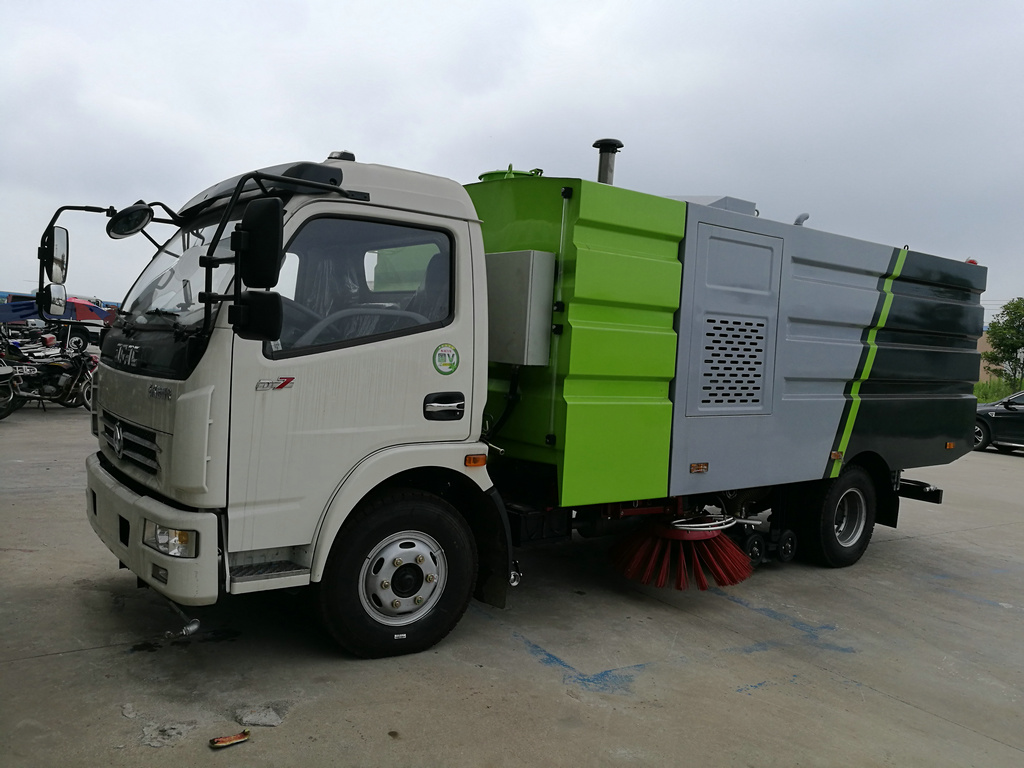

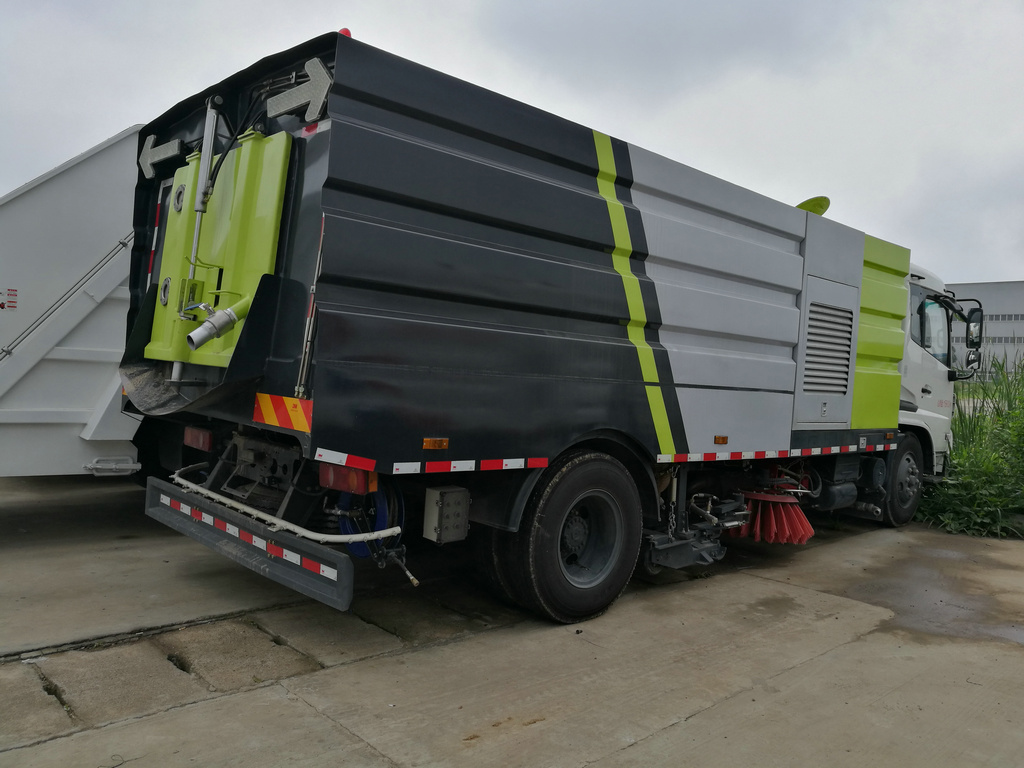

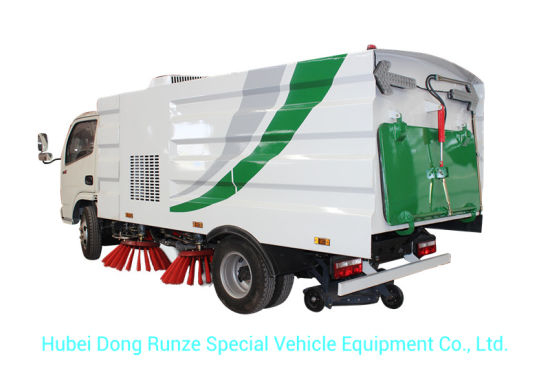

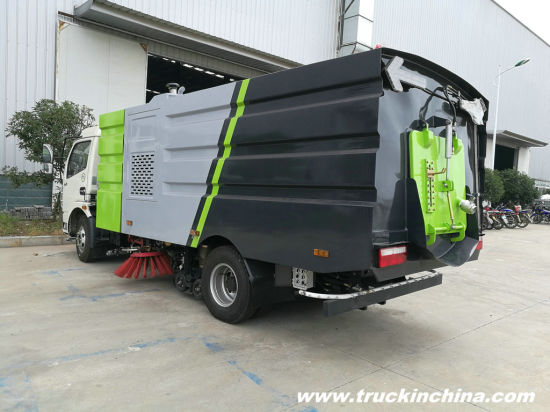

DFAC 8000 Liters Road Sweeper Truck 5 Cbm Garbage 2 Cbm Water Stainless Steel 304
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T
DFAC 8000 liters Road Sweeper Truck 5 Cbm Garbage +2 Cbm Water Stainless Steel 304
Cleaning Street Road Sweeper Truck Ask for better price
The pictures are for your reference only.
Cell /+8615271357675
SPECIFICATION
| Model | DRZ5080TSLE | ||
| Overall dimensions | 7100×2210×2700mm | Gross Weight (kg) | 8275 |
| Wheelbase (mm) | 3800 | Curb Weight (kg) | 6300 |
| Front Track (mm) | 1740 | Approach Angle | 20 |
| Rear Track (mm) | 1610 | Departure Angle | 11 |
| Number of axles | 2 | Front Overhang (mm) | 1130 |
| Traction system | 4×2 | Rear Overhang (mm) | 2170 |
| Max speed (km/h) | 103 | Number of Tyres | 6 |
| Front Axle Load (kg) | 3300 | Tyre Specification | 7.5R16 |
| Rear Axle Load (kg) | 4975 | Allowable Cab Passengers | 2 |
| Paint | Any Color Available | Fuel | Diesel |
| Water tank volume(cbm) | 2cbm | Garbage tank volume(cbm) | 5cbm |
| Max.cleaning Width(mm) | 3200 | Maximum Sweeping Capacity(cbm/h) | 90000 |
| Sweep Speed (km/h) | 3-25 | Sweeping Efficiency | ≥95% |
ROAD SWEEPER TRUCK
Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck

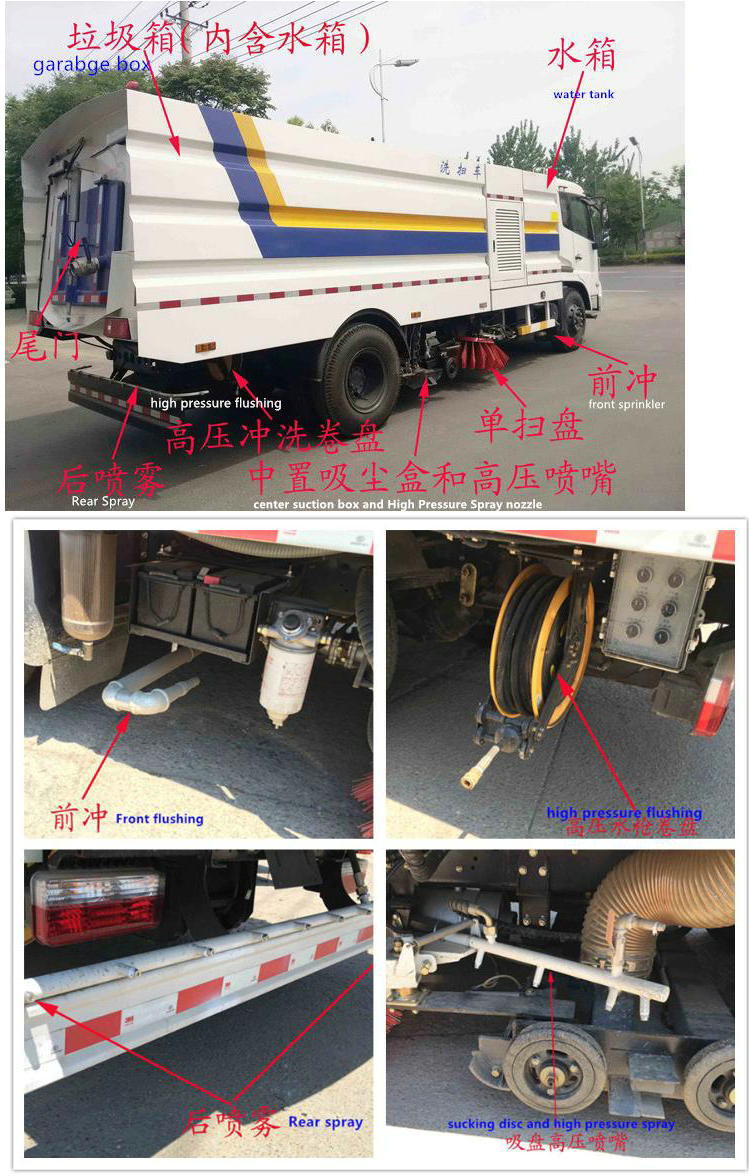

Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant
Four Booms Sweeping System And Suction System Combine Working ,High Efficient.
Water Sprinklers Equipped On Brooms,Suction Nozzle.

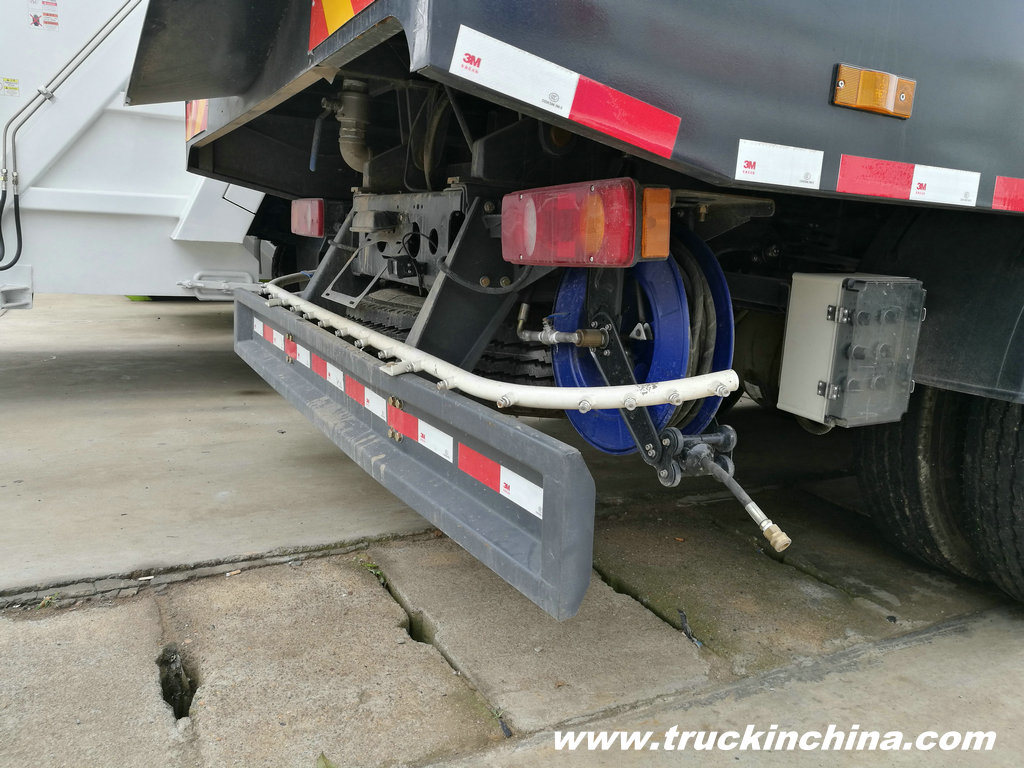

Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.
Air Blower Is Special For Road Sweeper,High Efficient,Low Noise

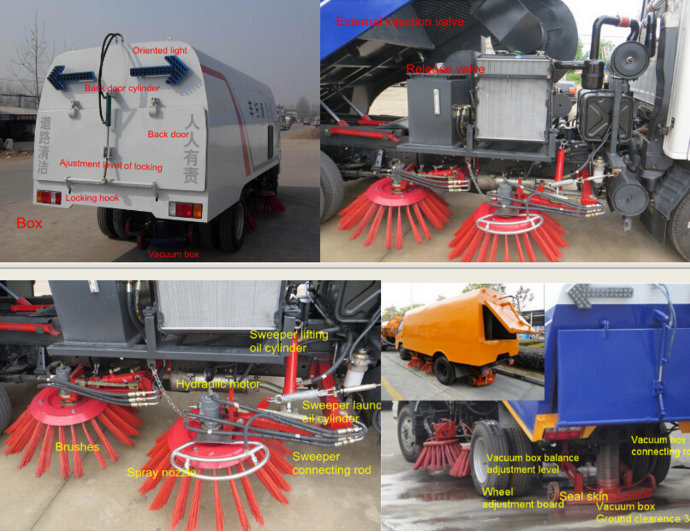

1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 square meters.
| Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. Selective configuration surveillance system,rolling brush. | |||||||||||
| Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | EXW Price RMB /USD=6.3 | ||
| Dust | Water | mm | mm | RMB | USD | ||||||
| DRZ5160TSLD | DONGFENG LHD/RHD RHD price add $2000 | DFL1160BX | 6000;7000 | 4000; 3500 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 309800 | US$49,175 |
| DRZ5060TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 159400 | US$25,302 |
| DRZ5090TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 200500 | US$31,825 |
| DRZ5108TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 257700 | US$40,905 |
| DRZ5126TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 279800 | US$44,413 |
| DRZ5141TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 272700 | US$43,286 |
| DRZ5073TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 149400 | US$23,714 |
| DRZ5163TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 299800 | US$47,587 |
| DRZ5070TSLQ | ISUZU LHD | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 255700 | US$40,587 |
| DRZ511009TSLQ | ISUZU LHD | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 331400 | US$52,603 |
| DRZ51609TSLQ | ISUZU LHD | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 403100 | US$63,984 |
| DRZ5161TSLH | JAC LHD/RHD RHD price add $2000 | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 337900 | US$53,635 |
| DRZ5165TSLS | SHACMAN LHD/RHD RHD price add $2000 | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 362000 | US$57,460 |
Cell :+8615271357675
