Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • Forland truck mounted mini 2.5m3 road sweeper
  • Burnishing
  • Cold Water Cleaning
  • New
  • 6.50r16
  • 70000
  • >95%
  • 2.0cbm
  • 0.5
  • 2600
  • 3200
  • 3880 ,4294kg
  • Video Technical Support, Field Installation, Commi
  • 12 Months
  • 5560*1760*2280mm
  • Forland
  • Nil
  • cleaning road sweeper
  • China
  • 8705909990
  • Sweep and Suck Type
  • ISO9000, CCC
  • Manual
  • Euro 3-5 -6 -7
  • Diesel
  • 2 Cbm Garbage +0.5 Cbm Water
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4x2

Cleaning Street Road Sweeper Truck Ask for better price

Cell /+8615271357675
The pictures are for your reference only.

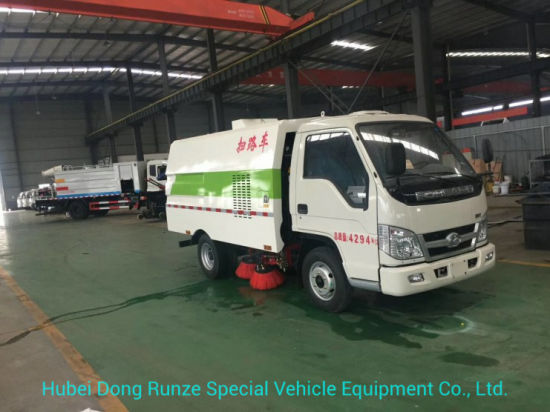

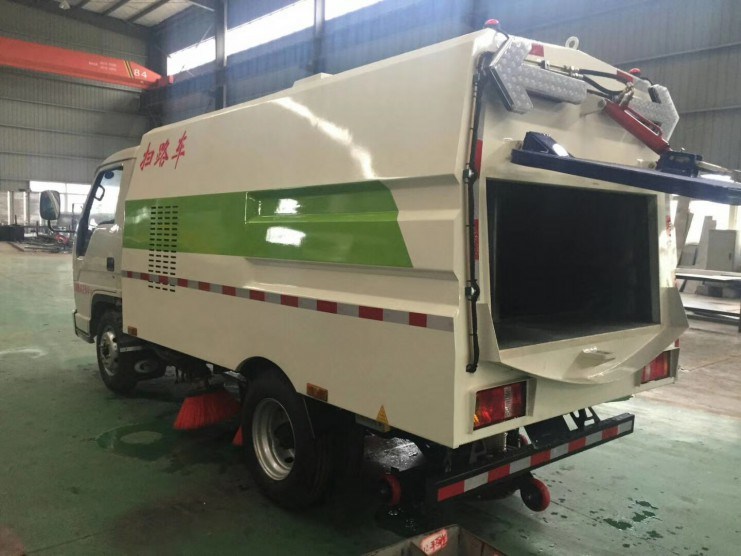

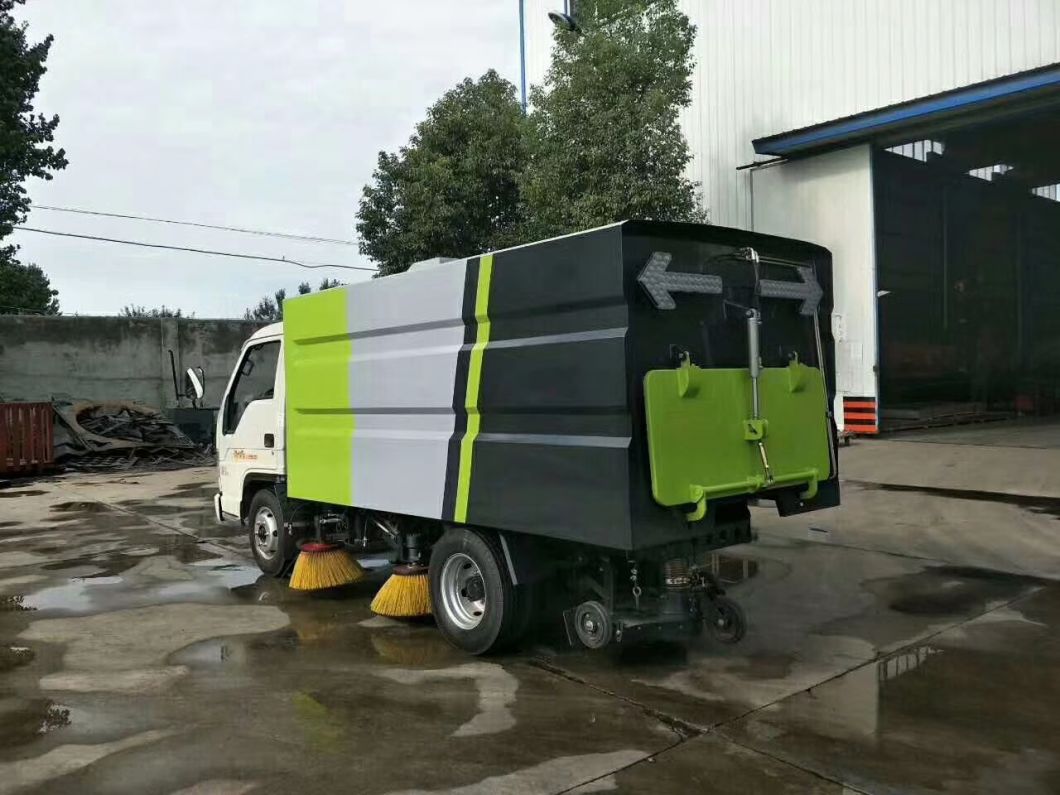

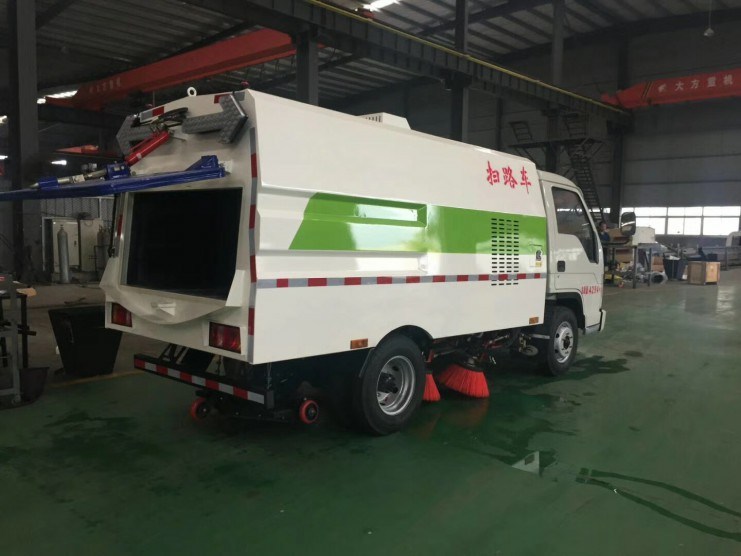

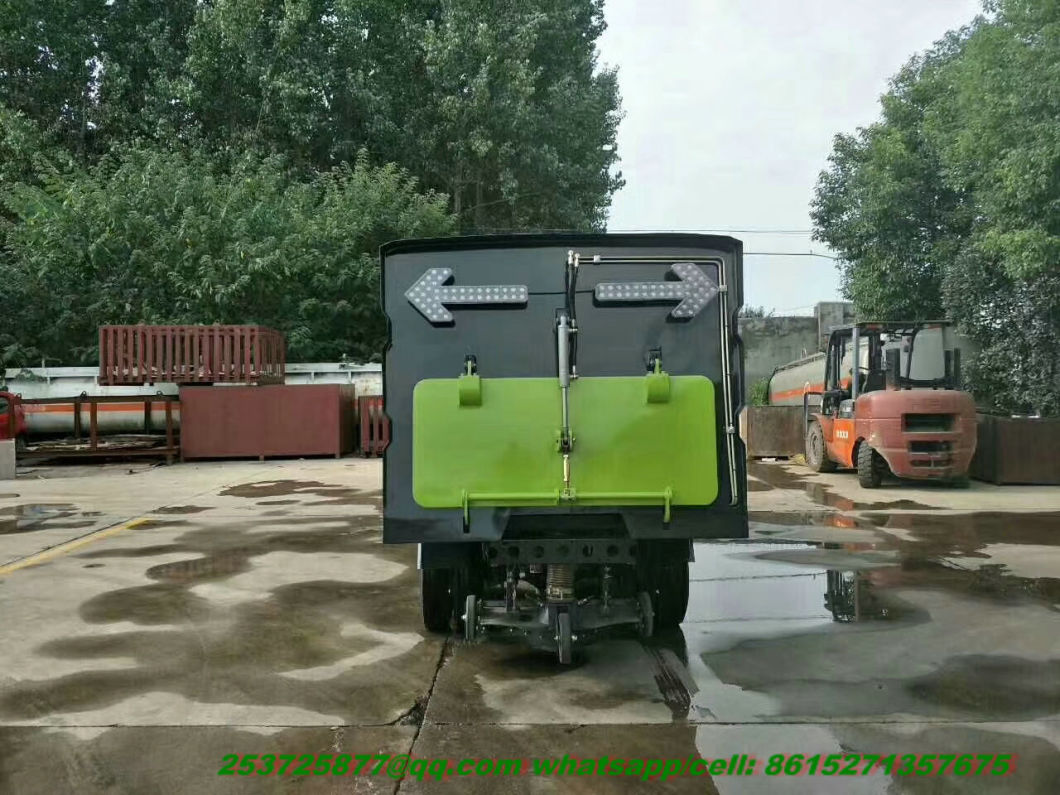

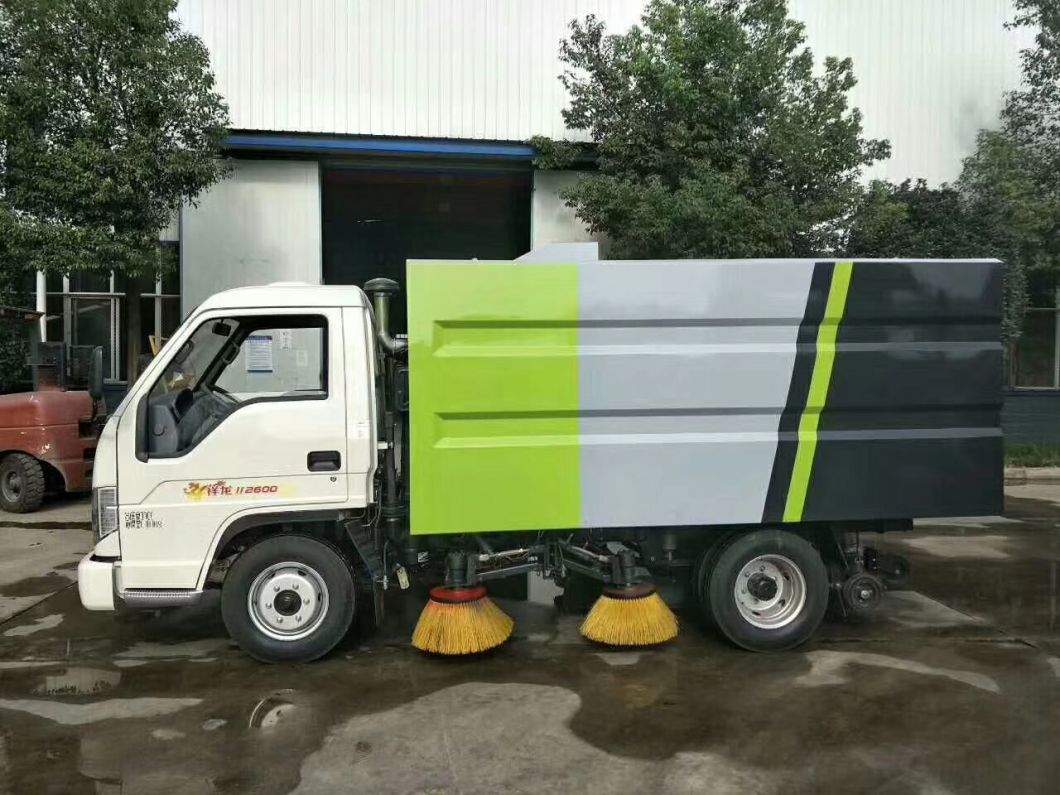

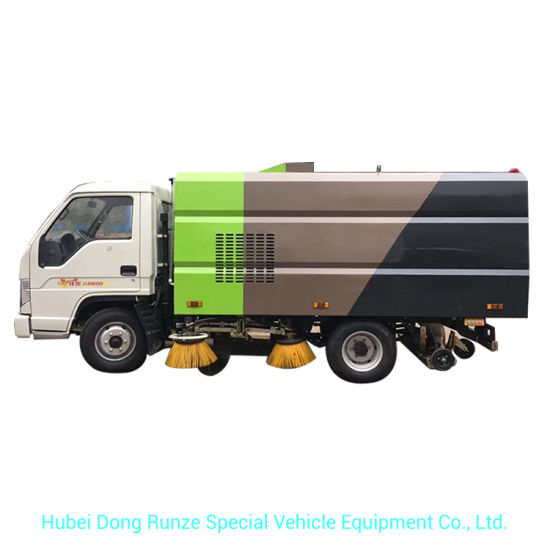

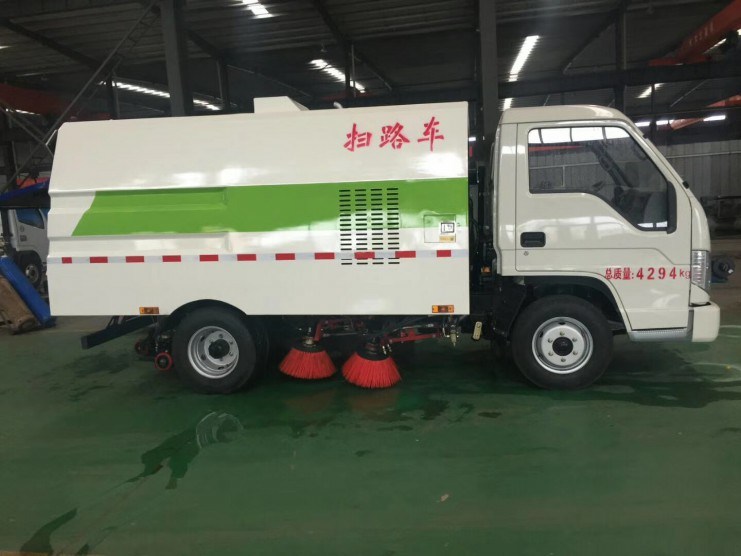

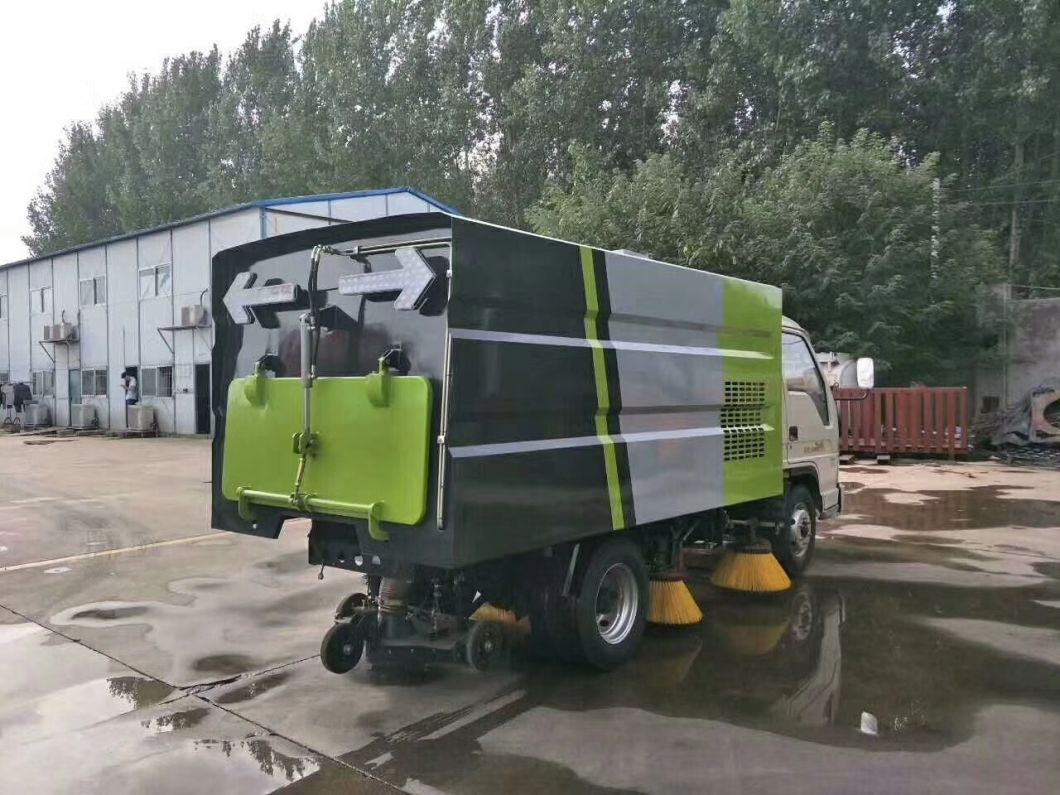

Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2

Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2

SPECIFICATION
Road Sweeper Truck
Model DRZ2600SLC
Overall dimensions 5560*1760*2280mm Gross Weight (kg) 4294
Wheelbase (mm) 2600 Curb Weight (kg) 3880
Front Track (mm) 1345 Approach Angle 18
Rear Track (mm) 1240 Departure Angle 18
Number of axles 2 Front Overhang 1115MM
Traction system 4*2 Rear Overhang 1845MM
Max speed 90KM/H Number of Tyres 6
Front Axle Load 1717KG Tyre Specification 6.50R16
Rear Axle Load 2577KG Allowable Cab Passengers 2
Paint Any Color Available Fuel Diesel
Superstructurer
Water tank volume 0.5CBM Garbage tank volume(cbm) 2.0CBM
Max.cleaning Width 3200MM Maximum Sweeping Capacity 70000CBM/H
Sweep Speed 3-25km/h Sweeping Efficiency ≥95%

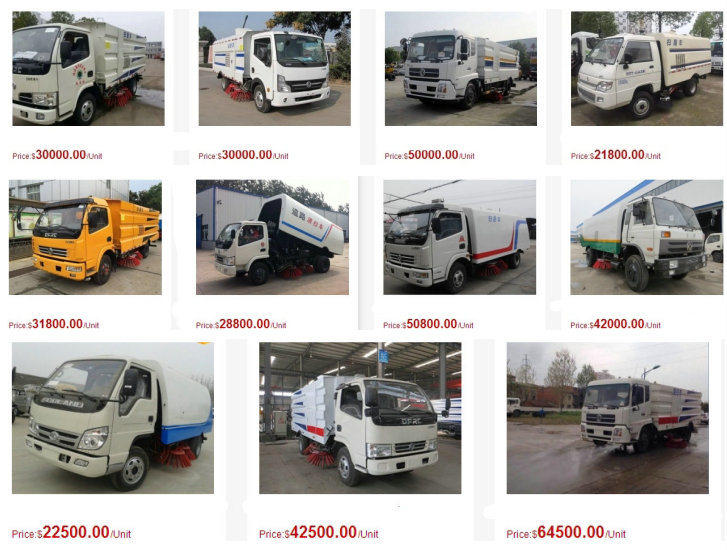

TRUCK MODELS
ROAD SWEEPER TRUCK

Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck

Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant

Four Booms Sweeping System And Suction System Combine Working ,High Efficient.

Water Sprinklers Equipped On Brooms,Suction Nozzle.

Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.

Air Blower Is Special For Road Sweeper,High Efficient,Low Noise


Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2

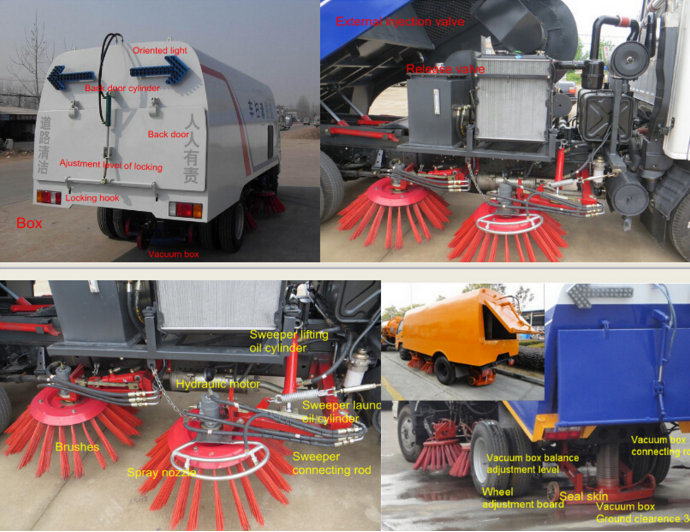

1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 square meters.



Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2

Standard configuration

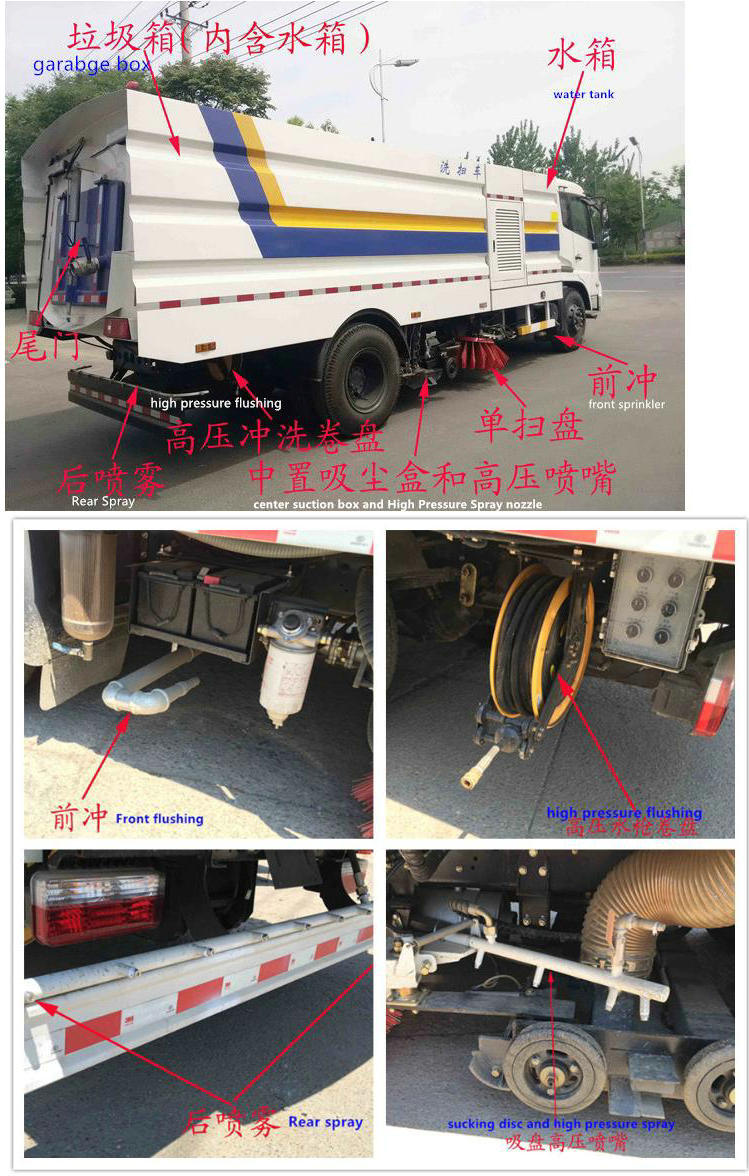

Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,
hydraulic system and electrical system.
Selective configuration
surveillance system,rolling brush.
Vehicle model Chassis brand Chassis model Load (L) Overall dimensions Wheel base Engine model hp/standard Tire EXW Price
RMB /USD=6.3
Dust Water mm mm RMB USD
DRZ5160TSLD DONGFENG LHD/RHD RHD price add $2000 DFL1160BX 6000;7000 4000;
3500
8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 309800 US$49,175
DRZ5060TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1060TJ20D3 3500 800 5970X2000X2400 3300 CY4102-C3F 95/Euro 3 11.00R20 159400 US$25,302
DRZ5090TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1090T9ADJ3AC 4500 1000 6700X2290X2500 3800 CY4102-E3C 120/Euro 3 7.50R16 200500 US$31,825
DRZ5108TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1108KJ 5000 3000 7000X2480X3000 3950 B170 33 170/Euro 3 9.00-20 257700 US$40,905
DRZ5126TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1126KJ1 6000 4000 8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 279800 US$44,413
DRZ5141TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1141KJ 6000 4000 7650X2480X3000 4500 B190 33 190/Euro 3 10.00-20 272700 US$43,286
DRZ5073TSLB FOTON LHD/RHD RHD price add $2000 BJ1073VEJEA-A 3500 800 5995X1900X2680 3360 4DW91-63NG2 98/Euro 2 6.50-16 149400 US$23,714
DRZ5163TSLB FOTON LHD/RHD RHD price add $2000 BJ1163VKPGG-1 6000 4000 7810X2495X3160 5000 Phaser160Ti-33 160/Euro 3 9.00R20 299800 US$47,587
DRZ5070TSLQ ISUZU
LHD
QL1070A1KAY 4500 1000 6465X1980X2435 3815 4KH1-TCG40 120/Euro 4 7.00-15 255700 US$40,587
DRZ511009TSLQ ISUZU LHD QL11009LARY 5000 3000 6910X2200X2640 4175 4HK1-TCG40 190/Euro 4 8.25-20 331400 US$52,603
DRZ51609TSLQ ISUZU LHD QL11609MFRY 6000 4000 7705X2500X3060 4500 4HK1-TCG40 190/Euro 4 10.00-20 403100 US$63,984
DRZ5161TSLH JAC LHD/RHD RHD price add $2000 HFC1161P3K2A47F 6000 4000 8155X2495X3070 4700 YC4E160-42 160/Euro 4 11.00R20 337900 US$53,635
DRZ5165TSLS SHACMAN LHD/RHD RHD price add $2000 SX1165UN461 6000 4000 8040X2490X3270 4600 WP10.270E32 270/Euro 3 12.00R20 362000 US$57,460
Forland Truck Mounted Mini Road Sweeper 2.5m3 LHD 4X2
