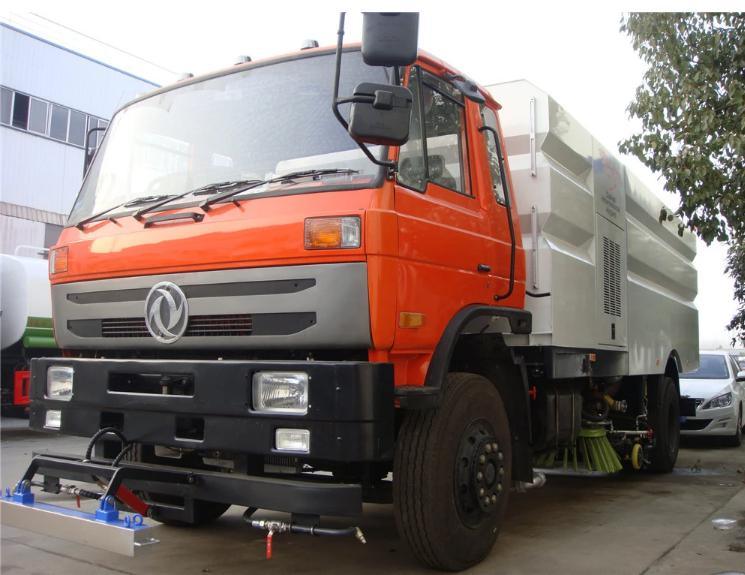

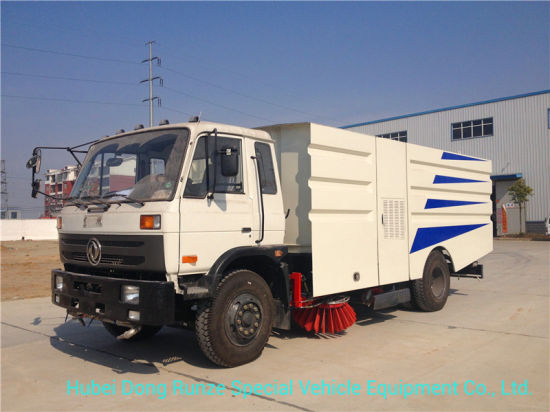

Dongfeng Street Sweeper Truck 4.5cbm Garbage 1.5 Cbm Water Stainless Steel for Airport Yard Sweeping Cleaning 4X2 -Rhd. LHD
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T
Dongfeng Street Sweeping Truck 4.5cbm Garbage 1.5 Cbm Water Stainless Steel 4X2 -RHD. LHD
Righ hand Drive Road Sweeper Truck 5m3 Stainless Steel 304 For Airport Yard Cleaning
Cleaning Street Road Sweeper Truck Ask for better price
The pictures are for your reference only.
Cell /+8615271357675
SPECIFICATION
| Specification of Dong run Ze Road Sweeper 145 | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | DF Road Sweeper 145 | Overall Dimension (mm) | 7000×2480×3000 |
| Truck Model | EQ1110GLJ | Wheel Base (mm) | 3950 |
Traction System | 4 x 2 | Gross Weight (kg) | 11495 |
| Cab Capacity | 1+1 | Curb Weight (kg) | 6800 |
| Transmission | manual | Front Wheel Tread (mm) | 1900; 1810 |
| Chassis Brand | DF | Rear Wheel Tread (mm) | 1800; 1800 |
| Tyre Model | 9.00-20 | Approach Angle (°) | 33 |
| Quantity of Tyre | 6 | Departure Angle (°) | 22 |
| Quantity of Axles | 2 | Front Overhang (mm) | 1250 |
| Max Speed (km/h) | 90 | Rear Overhang (mm) | 1920 |
| Chassis | |||
| Chassis Model | EQ1110GLJ | Leaf Spring | 8/11+8 |
| Engine (Motor) | |||
| Brand | DF | Type of Fuel | Diesel |
| Model | YC6J180-30; YC4E160-30; ISDe185 30; ISDe180 30; ISDe16030; YC4E160-31; B170 30; YC4E160-33; B170 33 | Displacement (ml) | 6500; 4260; 6700; 4500; 4500; 4260; 5900; 4257; 5900 |
| Max. Power (kw/hp) | 132; 118; 136; 132; 118; 118; 125; 118; 125 | Emission Standard | Euro |
| Cylinder Stator | 6, all cylinders arranged vertically in line | Max Torque (N.m) | 650 |
| Quantity of Valves Per Cylinder | * | Maximum Torque Speed (rpm) | 1200-1700 |
| Cylinder Diameter × Stroke (mm) | 105 x 125 | Motor Rated Rotating Speed (rmp) | 2500 |
| Full Load Minimum Fuel Consumption Rate (g/kW.h) | ≤200 | Air Intake Form | inter-cooling, water-cooling |
| Compression Ratio | * | Noise From 1 Meter | ≤99dB |
| Motor Net Weight (kg) | 733 | ABS | yes |
| Equipments | |||
| Water tank capacity (cbm) | 1.5 | Max. suction particle (mm) | 120mm |
| Dustbin tank capacity (cbm) | 4.0 | Min. clearance of suction nozzle (mm) | 200mm |
| Cleaning capacity (m2/h) | 9000-60000 | Max. Unloading angle | 45° |
| Sweep width (mm) | 3300 | Unloading height (mm) | 970 |
| Cleaning speed (km/h) | 3-20 | Brooms | 2 sets at each side |
| sweeping efficiency | ≥96% | Sucking disc | 1 set in the middle |
| The maximum water flow (L/min) | 21 | Unilateral water flow (L/min) | 11.7 |
| High pressure cleaning system | High-pressure plunger pump | Application | road, street, highway, airport etc. |
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit | |||
ROAD SWEEPER TRUCK 6 wheel 6tons RHD sweeper truck For Airport Yard Cleaning
Items | Descriptions | Specifications and Types |
General | Truck Name | Road sweeper truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 16000 | |
Curb Weight(kg) | 9045 | |
Overall Dimensions L*W*H(mm) | 7950×2480×3100 | |
Engine | Engine Model | B190 33 |
Engine Brand | Cammins | |
Fuel Type | Diesel | |
Power | 140KW/190HP | |
Emission Standard | Euro III | |
Displacement(ml) | 5900 | |
Engine Type | 6 cylinders in line,4 stroke,water cooling,charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | DONGFENG |
Cabin | Single and half row cab | |
Front/Rear Axle(kg) | 5950/9950 | |
Tire No. | 6 | |
Tire Specification | 10.00-20 Nylon tire | |
Wheelbase (mm) | 4500 | |
Axle No. | 2 | |
Gear Box | 6 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Steering Wheel | left hand drive | |
Air conditional | Optional | |
Sweeping System | Dust tank volume(m3) | 6 |
Water tank volume(m3) | 4 | |
Tank material | SUS304 stainless steel | |
Sweeping width | More than 3.5m | |
Sweeping capacity | About 52500m2/h |
Pictures of 4x2 good performance RHD y

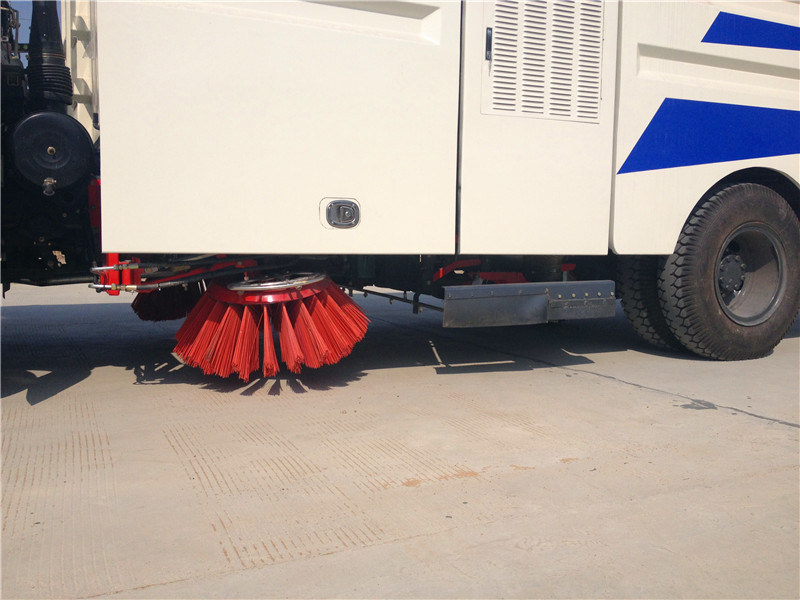

Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck

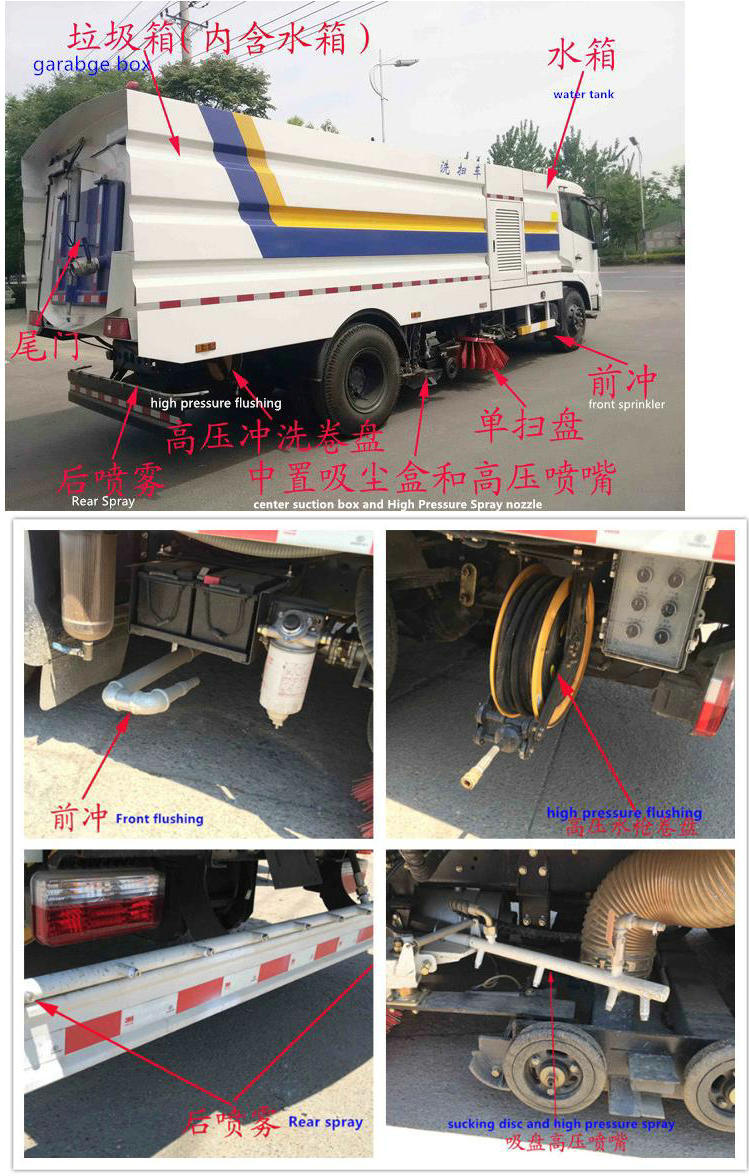

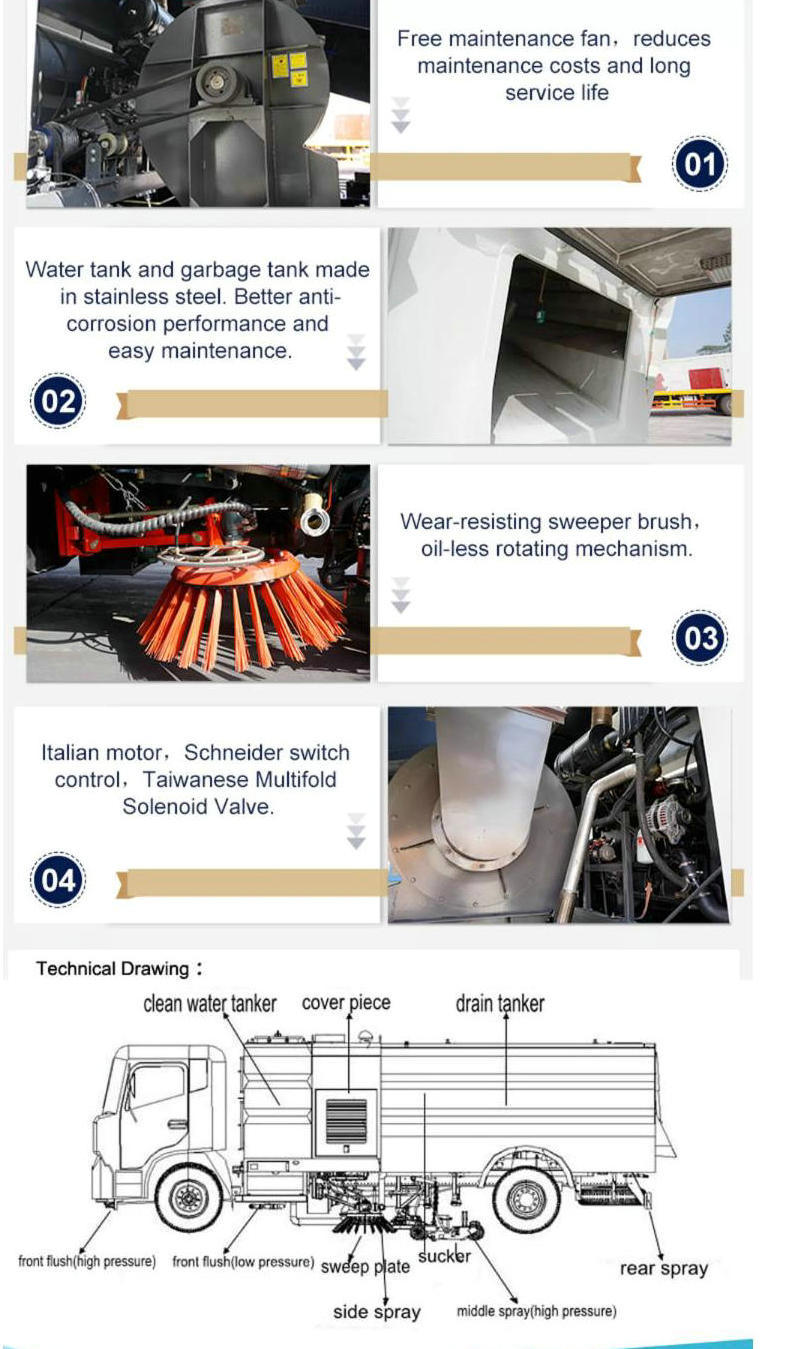

Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant
Four Booms Sweeping System And Suction System Combine Working ,High Efficient.
Water Sprinklers Equipped On Brooms,Suction Nozzle.
Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.
Air Blower Is Special For Road Sweeper,High Efficient,Low Noise
4x2 Howo road sweeper truck street sweeper truck vacuum road sweeper
Sinotruk HOWO light truck road sweeper truck hot sale factory price
1.production name:road truck, road sweeper truck, road sweeping truck,road sweeper machine,road sweeper,road sweeper vehicle,road sweeper car.
2.driving style:4x2 ,4x4, 6x4, 6x6, 8x4 ,8x8
3.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH JAPAN CHASSIS
1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 -90000square meters.
| Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. Selective configuration surveillance system,rolling brush. | |||||||||||
| Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | EXW Price RMB /USD=6.3 | ||
| Dust | Water | mm | mm | RMB | USD | ||||||
| DRZ5160TSLD | DONGFENG LHD/RHD RHD price add $2000 | DFL1160BX | 6000;7000 | 4000; 3500 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 309800 | US$49,175 |
| DRZ5060TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 159400 | US$25,302 |
| DRZ5090TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 200500 | US$31,825 |
| DRZ5108TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 257700 | US$40,905 |
| DRZ5126TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 279800 | US$44,413 |
| DRZ5141TSLE | DONGFENG LHD/RHD RHD price add $2000 | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 272700 | US$43,286 |
| DRZ5073TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 149400 | US$23,714 |
| DRZ5163TSLB | FOTON LHD/RHD RHD price add $2000 | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 299800 | US$47,587 |
| DRZ5070TSLQ | ISUZU LHD | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 255700 | US$40,587 |
| DRZ511009TSLQ | ISUZU LHD | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 331400 | US$52,603 |
| DRZ51609TSLQ | ISUZU LHD | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 403100 | US$63,984 |
| DRZ5161TSLH | JAC LHD/RHD RHD price add $2000 | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 337900 | US$53,635 |
| DRZ5165TSLS | SHACMAN LHD/RHD RHD price add $2000 | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 362000 | US$57,460 |
