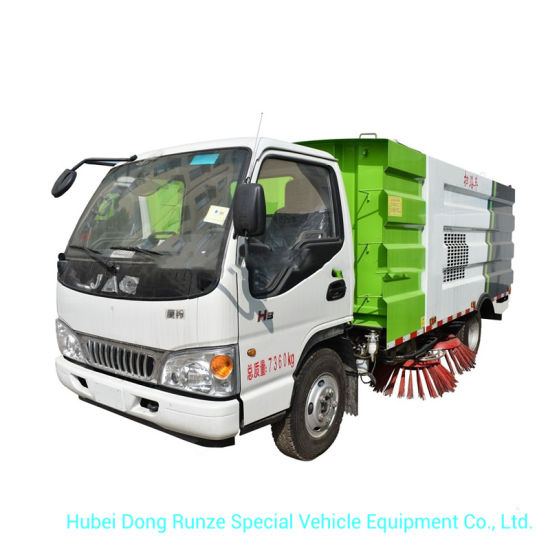

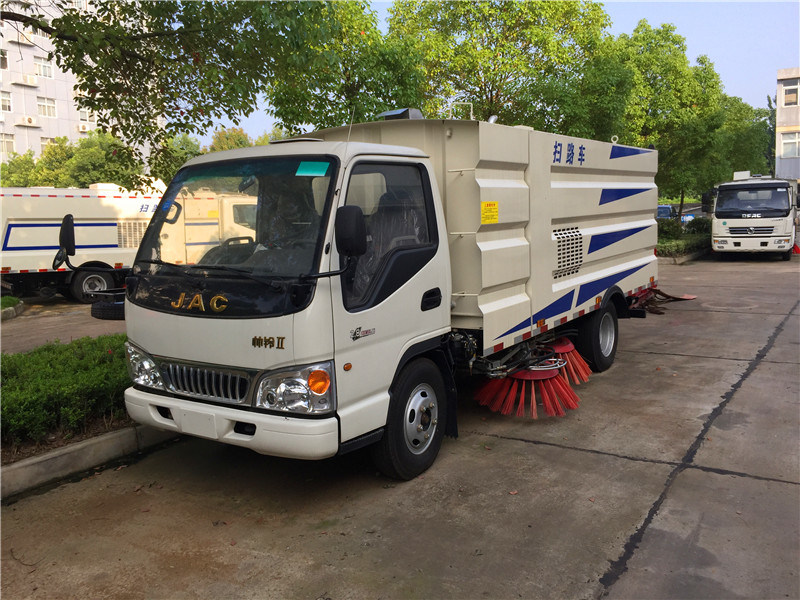

JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • JAC 5CBM Road Sweeper
  • Burnishing
  • Cold Water Cleaning
  • New
  • 7.00-16
  • 82000m2/H
  • >95%
  • 4
  • 1
  • 3360 mm
  • 3300-3500 mm
  • 4965kg
  • Video Technical Support, Field Installation, Commi
  • 12 Months
  • 6190/1990/2590
  • 3 ~ 15km/H
  • DRZE
  • Nil
  • cleaning road sweeper
  • China
  • 8705909990
  • Wet-type
  • ISO9000, CCC
  • Manual
  • Euro 3-5 -6 -7
  • Diesel
  • 4cbm Garbage +1cbm Water
JAC 5CBM Mechanical Road Sweeper 4m3 Dustbin,1.5m3 Clean Water Tank


Stainless Steel 304 For Airport Yard Cleaning

Cleaning Street Road Sweeper Truck Ask for better price

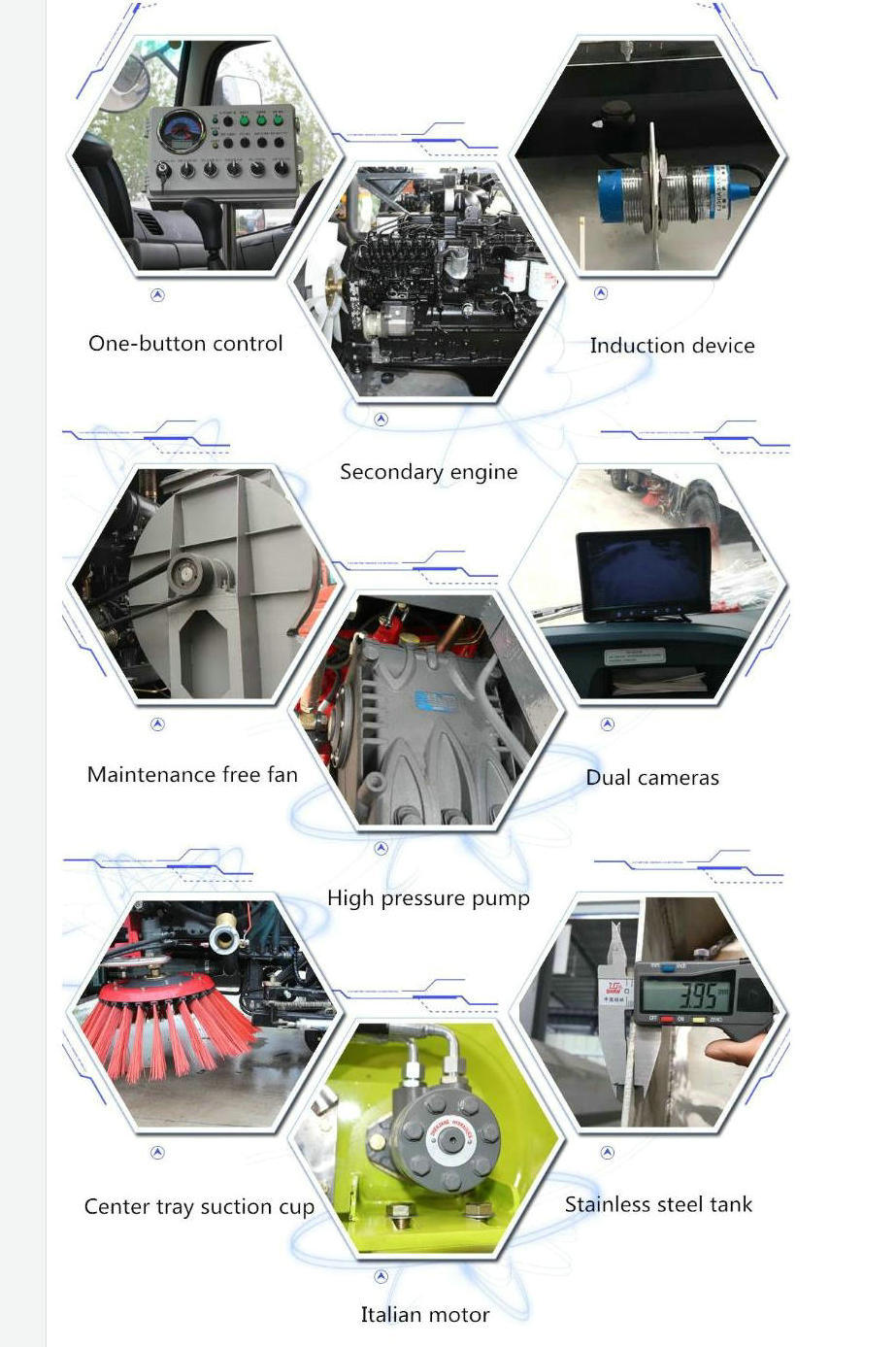

1> Equipped with 4 sweeping brush, JMC 88hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system.
2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm
3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin.

The pictures are for your reference only.

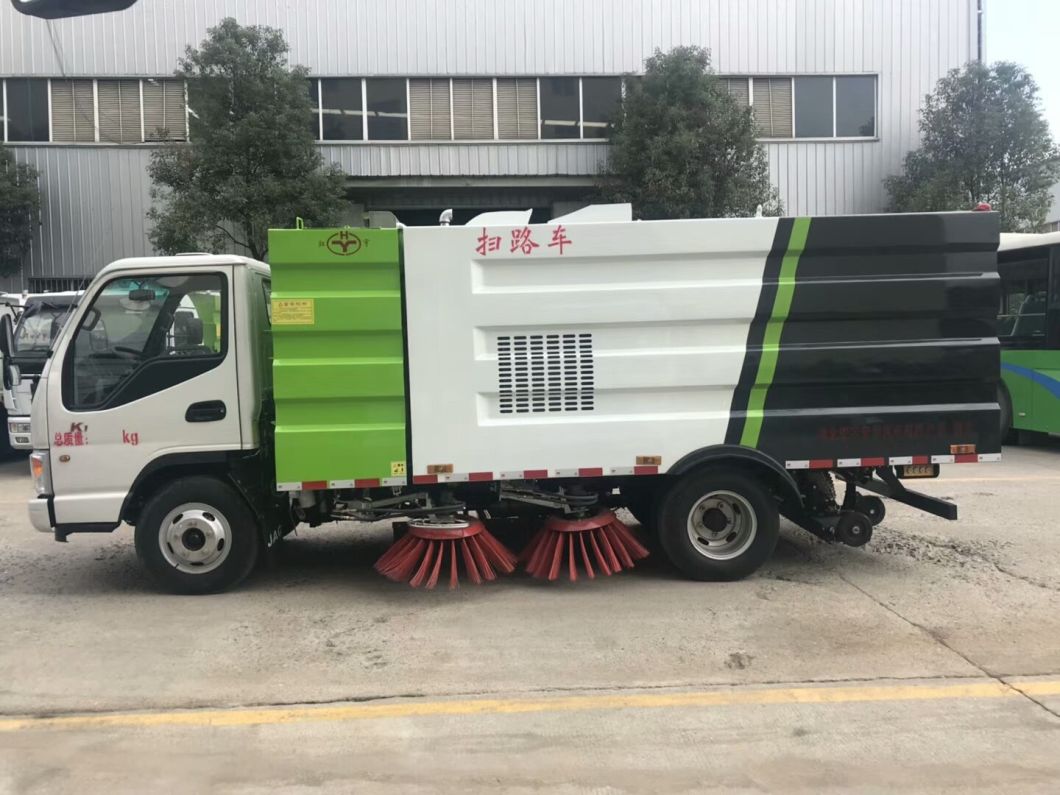

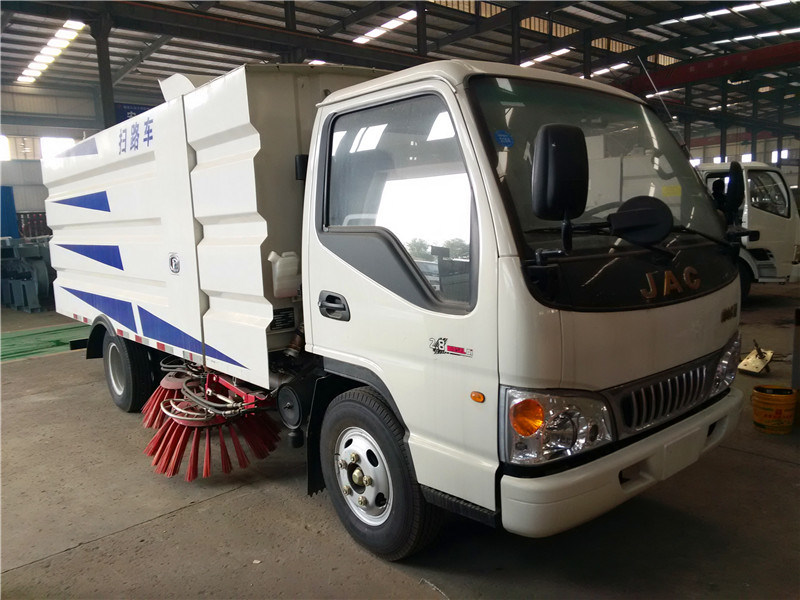

JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank
JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank
JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank
JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank
JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank


JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank




JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank
JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank




JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank

Product Application

China Sweeper Truck , with dongfeng chassis , 1.2 cbm water tanker volume and 4 cbm debris , four main broom ( broom has 3 speed control ) , I.S.U.Z.U sub-engine , maintenance free clutch and fan .

Normally used in Airport , Factories , Countries , Event place , Stadiums , Hospital , Buildings , Power Plants , Collages , Parks , Schools , Highways , Cities , Ports , Parking decks , Malls , Paved trails , Construction etc.

Our Advantages

1) Advanced hydraulic : Generate power and reliability where you need most

2) Customized Application --dual steering , custom painting we can build your perfect unit .

3) Innovative controls user friendly controls customized for operators .

4) Drive Friendly simple operation , training and no CDL requirements.



JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank
Cell /+8615271357675
SPECIFICATION

JAC road sweeper truck china for sales

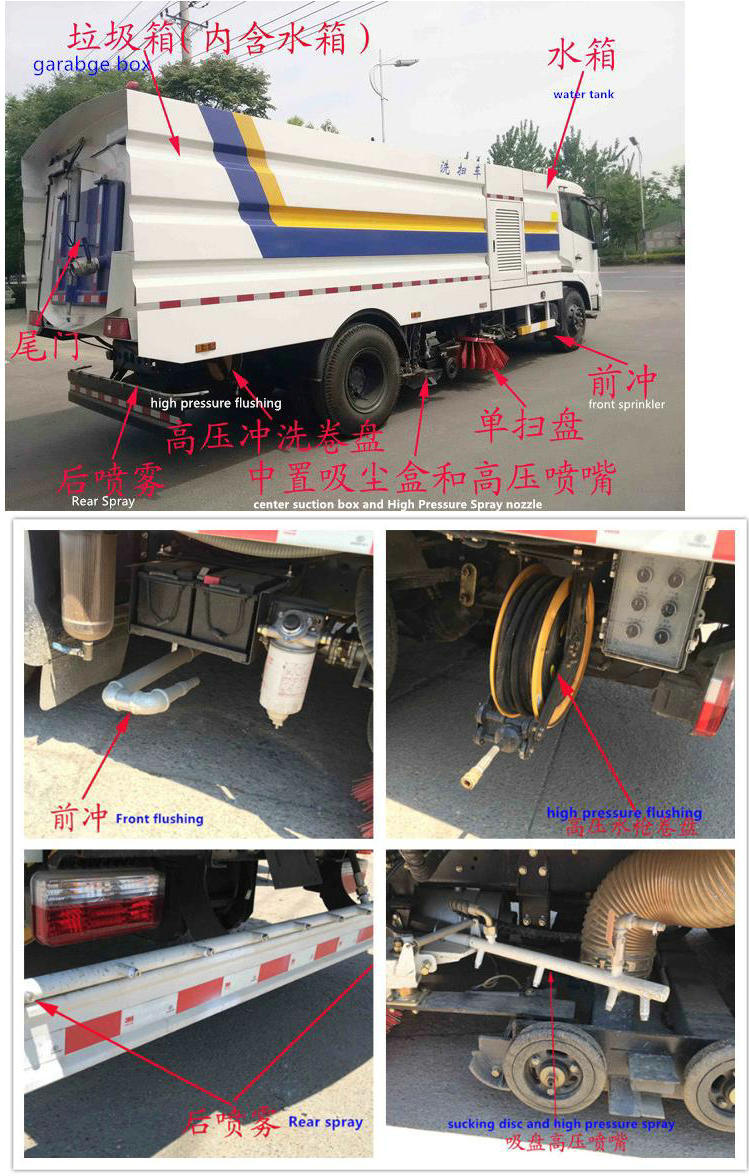

Compared with common road sweeper, this model has more functions:Road sweeping, road flushing, multi-angle slush flushing, separation zone cleaning, freeway guard rail flushing,spraying, moistening and dust containing, high pressure water gun for car cleaning/low flat flushing with strong water flow, road sprinkling and flower watering from both sides and so on.


1.The Vice-engine sweepers no. Fans and other work devices to take power through the chassis engine to drive.
2. Cleaning device with Automatic Collision Avoidance Obstacle protection and automatic reset function (by national patent)
3. "Mid four brush - rear nozzle" structure layout with sweeping wide, clean and efficient features, and facilitate the cleaning device and nozzle adjustment and maintenance.
4.Pneumatic conveying system with digestion and absorption of foreign advanced technology and efficient sweepers dedicated fans and can auto-leveling with the road the whole floating nozzle.
5.Sweeper combined with trochar disc, it can work excellently and can automotically choose work type according to waste condition on the ground and speed of the truck. ;

6.Trash and water tank large, continuous cleaning operation a long time.
7. Left, right front linkage scan can work independently or can choose to use the right front or left front sweep sweep to work independently.
8.Hydraulic system with superimposed solenoid hydraulic valve, highly integrated, reliable, easy maintenance;
9. Control switch installed in the driver focused interior, all electronic control can be found in cab ,Beautiful appearance designed via computer.

ITEM

UNIT

PARAMETER

Vehicle model

CLW5070TSLH4 JAC SWEEPER TRUCK

GVW

Kg

6995

Payload

1900

Curb weight

4965

Axle load

2520/4475

Overall dimension

mm

5900×1980×2450

Body dimension

××

Wheelbase

3360

Front/Rear overhang

1105/1435

Front track base

1440

Rear track base

1425

Approach/departure angle

°

24/14

Exhaust/hp

ml/kw

2771/88

Max speed

km/h

90

Chassis model

HFC1073P83K1C3

Manufacturer of chassis

JAC Automobile Co.,Ltd

Engine model

HFC4DA1-2C

Manufacturer of Engine

JAC Automobile Co.,Ltd

Fuel tank capacity

Appro.X180L

Brake system

Pneumatic

Engine fuel type

Diesel

Tire specification

7.00-16

Tires Nos.

6+1

Pieces of spring

7/4+5

Traction system

4×2

Transmission

5-speed

Operation control system

Electrically hydraulic control

Allowable passengers in cab

3

Emission standard

GB3847-2005,GB17691-2005 Euro 3-5-6

Techinical parameters

Auxiliary engine

CY4100/JX493G

Max cleaning width (mm)

3300-3500 mm

(PM 10)Cleaning efficiency

>96%

Max cleaning speed (km/h)

5-15 km/h

Max tipping angle (°)

45°

Max suction granularity (mm)

50

Water tank capacity (M3)

1.0

Garbage tank capacity (M3)

4.5

suction diameter

Φ200 import

Special blower

800-1100-2900N

cleaning operation fuel consumption

<3

Oil Pump Volume

25 L/M

Motor Displacement

16L

,

Intermediate 4 sweepers, rear suckers, carbon steel water tank, stainless steel garbage bin;

*Jiangling 77 horsepower sub-engine/Cummins 140 horsepower sub-engine, German Siemens control switch, high quality solenoid valve group

*Two-way operation button, Sanyo motor and high quality diaphragm pump, continuously variable speed automatic clutch

*Maintenance-free centrifugal fan, wear-resistant cylinder, manual pump emergency system, precision cold-formed Seamless Hydraulic tubing, tail LED arrow lamp.

*The cleaning width was 2.6-3.5M and the inhalation particle size is Φ 120 mm

JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank

Road sweeper truck is also called road sweeper truck, it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle

JAC 4cbm dustbin floor sweeper, street sweeper truck for sale

we commit to kinds of sweeper truck with different chassis, any inquiry please contact us.thank you.

Vehicle model

DRZ5073TSLHF

Tank fact cubage(cbm)

4m3 dustbin,1.5m3 clean water tank

Chassis model

HFC1071

Maximum total mass

6995kg

Curb weight

4965kg

Load weight

1900kg

Effective volume

5-7m³

Dimensions

6190×1990×2590 (mm)

Garbage box capacity

4CBM

Wheelbase

3360 mm

Cab 2 or 3 passengers

Tyre Specfication

7.00-16

Paint

Automative metallic paint

Equipment

1> Equipped with 4 sweeping brush, JMC 88hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system.
2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm
3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin.

Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck

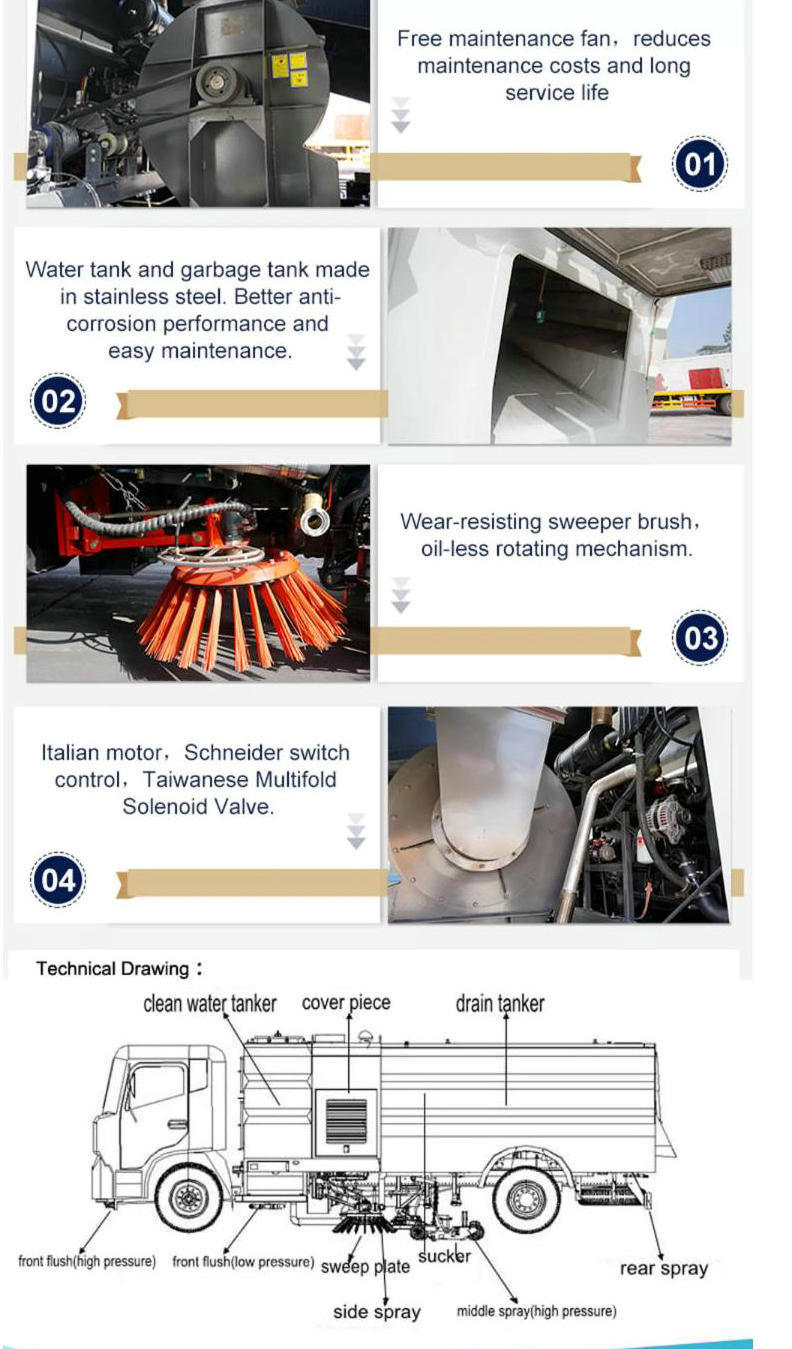

Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant

Four Booms Sweeping System And Suction System Combine Working ,High Efficient.

Water Sprinklers Equipped On Brooms,Suction Nozzle.

Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.

Air Blower Is Special For Road Sweeper,High Efficient,Low Noise
JAC 5cbm Mechanical Road Sweeper 4m3 Dustbin, 1.5m3 Clean Water Tank

4x2 Howo road sweeper truck street sweeper truck vacuum road sweeper

Sinotruk HOWO light truck road sweeper truck hot sale factory price

1.production name:road truck, road sweeper truck, road sweeping truck,road sweeper machine,road sweeper,road sweeper vehicle,road sweeper car.
2.driving style:4x2 ,4x4, 6x4, 6x6, 8x4 ,8x8
3.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH JAPAN CHASSIS


1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 -90000square meters.


Standard configuration
Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,
hydraulic system and electrical system.
Selective configuration
surveillance system,rolling brush.
Vehicle model Chassis brand Chassis model Load (L) Overall dimensions Wheel base Engine model hp/standard Tire EXW Price
RMB /USD=6.3
Dust Water mm mm RMB USD
DRZ5160TSLD DONGFENG LHD/RHD RHD price add $2000 DFL1160BX 6000;7000 4000;
3500
8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 309800 US$49,175
DRZ5060TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1060TJ20D3 3500 800 5970X2000X2400 3300 CY4102-C3F 95/Euro 3 11.00R20 159400 US$25,302
DRZ5090TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1090T9ADJ3AC 4500 1000 6700X2290X2500 3800 CY4102-E3C 120/Euro 3 7.50R16 200500 US$31,825
DRZ5108TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1108KJ 5000 3000 7000X2480X3000 3950 B170 33 170/Euro 3 9.00-20 257700 US$40,905
DRZ5126TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1126KJ1 6000 4000 8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 279800 US$44,413
DRZ5141TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1141KJ 6000 4000 7650X2480X3000 4500 B190 33 190/Euro 3 10.00-20 272700 US$43,286
DRZ5073TSLB FOTON LHD/RHD RHD price add $2000 BJ1073VEJEA-A 3500 800 5995X1900X2680 3360 4DW91-63NG2 98/Euro 2 6.50-16 149400 US$23,714
DRZ5163TSLB FOTON LHD/RHD RHD price add $2000 BJ1163VKPGG-1 6000 4000 7810X2495X3160 5000 Phaser160Ti-33 160/Euro 3 9.00R20 299800 US$47,587
DRZ5070TSLQ ISUZU
LHD
QL1070A1KAY 4500 1000 6465X1980X2435 3815 4KH1-TCG40 120/Euro 4 7.00-15 255700 US$40,587
DRZ511009TSLQ ISUZU LHD QL11009LARY 5000 3000 6910X2200X2640 4175 4HK1-TCG40 190/Euro 4 8.25-20 331400 US$52,603
DRZ51609TSLQ ISUZU LHD QL11609MFRY 6000 4000 7705X2500X3060 4500 4HK1-TCG40 190/Euro 4 10.00-20 403100 US$63,984
DRZ5161TSLH JAC LHD/RHD RHD price add $2000 HFC1161P3K2A47F 6000 4000 8155X2495X3070 4700 YC4E160-42 160/Euro 4 11.00R20 337900 US$53,635
DRZ5165TSLS SHACMAN LHD/RHD RHD price add $2000 SX1165UN461 6000 4000 8040X2490X3270 4600 WP10.270E32 270/Euro 3 12.00R20 362000 US$57,460
