Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • I. S. U. Z. U Road Sweeper
  • Burnishing
  • Cold Water Cleaning
  • New
  • 7.50-15; 7.50r15; 7.00-16; 7.00r16
  • I.S.U.Z.U
  • 4000L
  • White ;Blue, ;etc
  • 4000L
  • 70000 ;M2/H
  • 7130X2160X2520mm
  • 85L/Min
  • 20m
  • 45
  • Minimum 95%
  • 3-25
  • 2.8m
  • Maximum 120mm
  • Japan Brand Jmc or Cuumins
  • I. S. U. Z. U
  • Nil
  • military standard.
  • China
  • 8705909990
  • Sweep and Suck Type
  • ISO9000, CCC
  • Manual
  • Euro 5 -6 -7
  • Diesel
  • 4cbm Garbage +4 Cbm Water
Japan Brand New I. S. U. Z. U Road Sweeper 5CBM Tank For Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine

Japan brand New I.S.U.Z.U Road Sweeper Truck
Water tank capacity (cbm) 4 cbm
Max. suction particle (mm) 120mm
Dustbin tank capacity (cbm) 4.0cbm
Weight Dimension(L*W*H) Warranty
7300kg 7130×2160×2520Mm 1 Year
Sweep Speed (km/h) 3-25 Maximum Cleaning Width 2.8M
Sweeping Efficiency minimum 95% Allowable Dust Diameter maximum 120mm
Dumping Angle over 45° Maximum Sweeping Capacity 70000 m2/h
Dumping Height 970mm Washing Water Rated Flow 85L/Min
Suction Nozzle Dia200mm Low Pressure Washing Width 20M

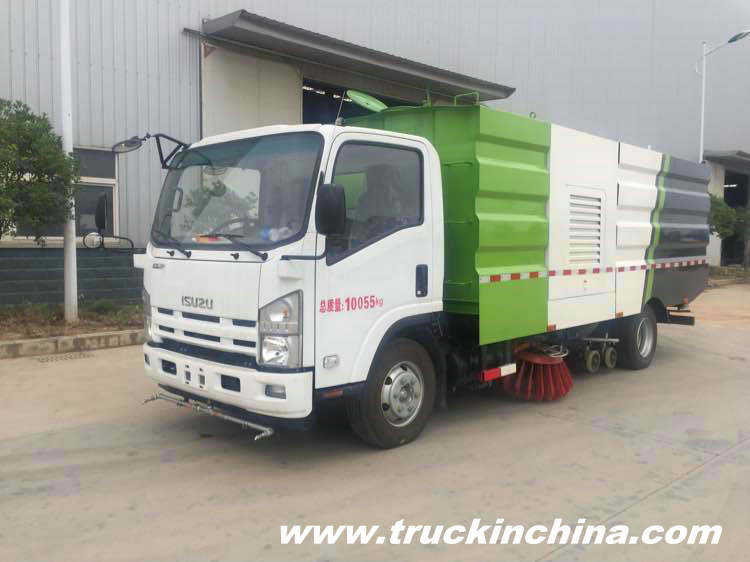

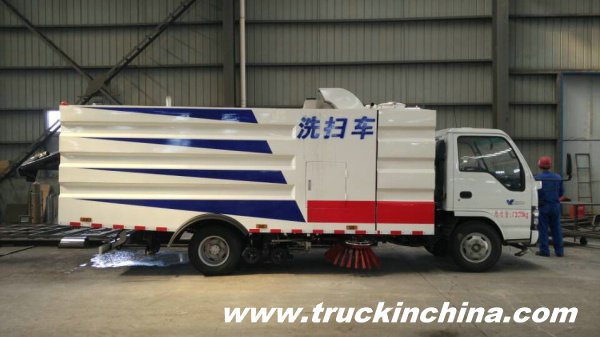

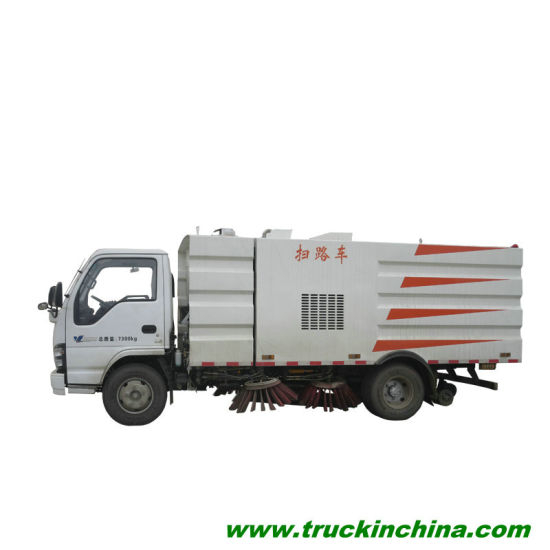

I.S.U.Z.U Vacuum Road Sweeper Truck cleaner


Cleaning Street Road Sweeper Truck Ask for better price

Cell /+8615271357675
The pictures are for your reference only.

Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine
2
Name Japan Truck Mounted 7.5m3 Road Sweeper Truck
Item Specifications Item Specifications
Truck
Model DRZ5070Txsq5 Gross Weight (Kg) 7300
Overall Dimensions 7130×2160×2520Mm Payload (Kg) 820
Wheelbase (Mm) 3815 Curb Weight (Kg) 6350
Front Track (Mm) 1504 Approach Angle 15°
Rear Track (Mm) 1425 Departure Angle 10°
Number Of Axles 2 Number Of Tyres 6
Traction System 4×2 Tyre Specification 7.00-16 14Pr
Max Speed (Km/h) 110 Abs
Paint White, Blue, Etc Allowable Cab Passengers 3
Front Overhang (Mm) 1015 Body Film 3M
Rear Overhang (Mm) 2300 Front Axle Load (Kg) 2580
Turning Diameter Rear Axle Load (Kg) 4720
Ground Clearance 410 Maximum Gradability
Performances
Sweep Speed (Km/h) 3-25 Maximum Cleaning Width 2.8M
Sweeping Efficiency Minimum 95% Allowable Dust Diameter Maximum 120mm
Dumping Angle Over 45° Maximum Sweeping Capacity 70000 m2/h
Dumping Height 970mm Washing Water Rated Flow 85L/Min
Suction Nozzle Dia200mm Low Pressure Washing Width 20M
Chassis
Model Ql1070A5Kay Brand Japan Brand
Emission Level Euro 5 Gross Weight (Kg) 7300
Front Overhang (Mm) 1015 Curb Weight (Kg) 2110
Rear Overhang (Mm) 1835 Chassis Overall Dimension 6665×1880×2220mm
Approach Angle 24° Leaf Spring 8/6+5
Departure Angle 16°
Engine (Motor)
Brands Model Displacement Rated Power
Japan Brand 4Kh1-Tc 2.999L 96kw (130hp)
Superstructure
Auxiliary Engine Japan Brand Garbage Tank Volume 4000L
Rated Power 57kw (78hp) 3600rpm Water Tank Volume 4000l
Peak Torque 172N.m 2000rpm
1
Specification Road Sweeper with 1.5m3 water tank and 4m3 garbage tank
Item Specification Item Specification
General
Truck Name DRZ Road Sweeper Overall Dimension (mm) 5760×1990×2420
Truck Model NKR77LLNACJAY Wheel Base (mm) 3360
Traction System 4 x 2 Gross Weight (kg) 6961
Cab Capacity 1+1 Curb Weight (kg) 5025
Transmission manual Front Wheel Tread (mm) 1504
Chassis Brand QL Rear Wheel Tread (mm) 1425
Tyre Model 7.50-15;
7.50R15;
7.00-16;
7.00R16
Approach Angle (°) 24
Quantity of Tyre 6 Departure Angle (°) 16
Quantity of Axles 2 Front Overhang (mm) 1015
Max Speed (km/h) 100 Rear Overhang (mm) 1525
Chassis
Chassis Model NKR77LLNACJAY Leaf Spring 8/6+5
Engine (Motor)
Brand QL Type of Fuel Diesel
Model 4KH1-TC Displacement (ml) 2999
Max. Power (kw/hp) 96 Emission Standard Euro
Cylinder Stator 4, all cylinders arranged vertically in line Max Torque (N.m) 280
Quantity of Valves Per Cylinder 2 Maximum Torque Speed (rpm) *
Cylinder Diameter × Stroke (mm) 95.4 x 104.9 Motor Rated Rotating Speed (rmp) *
Full Load Minimum Fuel Consumption Rate (g/kW.h) * Air Intake Form inter-cooling, water-cooling
Compression Ratio 18.3 : 1 Noise From 1 Meter
*
Motor Net Weight (kg) 255 ABS yes
Equipments
Water tank capacity (cbm) 1.5 Max. suction particle (mm) 120mm
Dustbin tank capacity (cbm) 4.0 Min. clearance of suction nozzle (mm) 200mm
Cleaning capacity (m2/h) 9000-60000 Max. Unloading angle 45°
Sweep width (mm) 3200 Unloading height (mm) 970
Cleaning speed (km/h) 3-20 Brooms 2 sets at each side
sweeping efficiency ≥96% Sucking disc 1 set in the middle
The maximum water flow (L/min) 21 Unilateral water flow (L/min) 11.7
High pressure cleaning system High-pressure plunger pump Application road, street, highway, airport etc.
NOTE:
1. Any part can be customized depending on customers' demand.
2. 12 months whole vehicle warranty
3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
4. MOQ: 1 unit

Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine
Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine






Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine
Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine
Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine



Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine

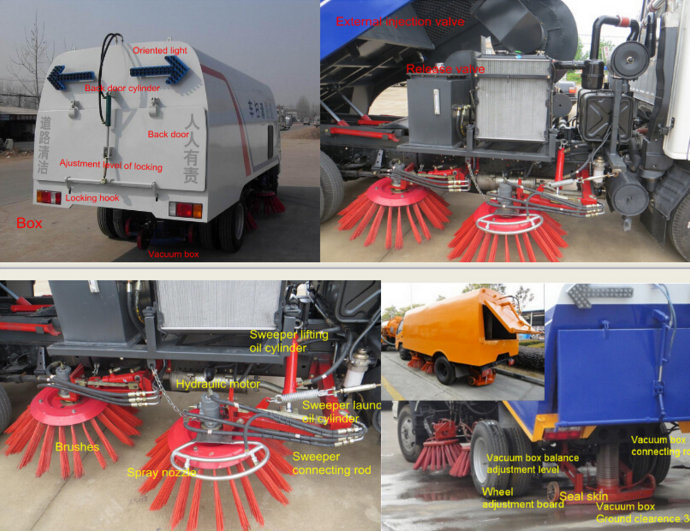

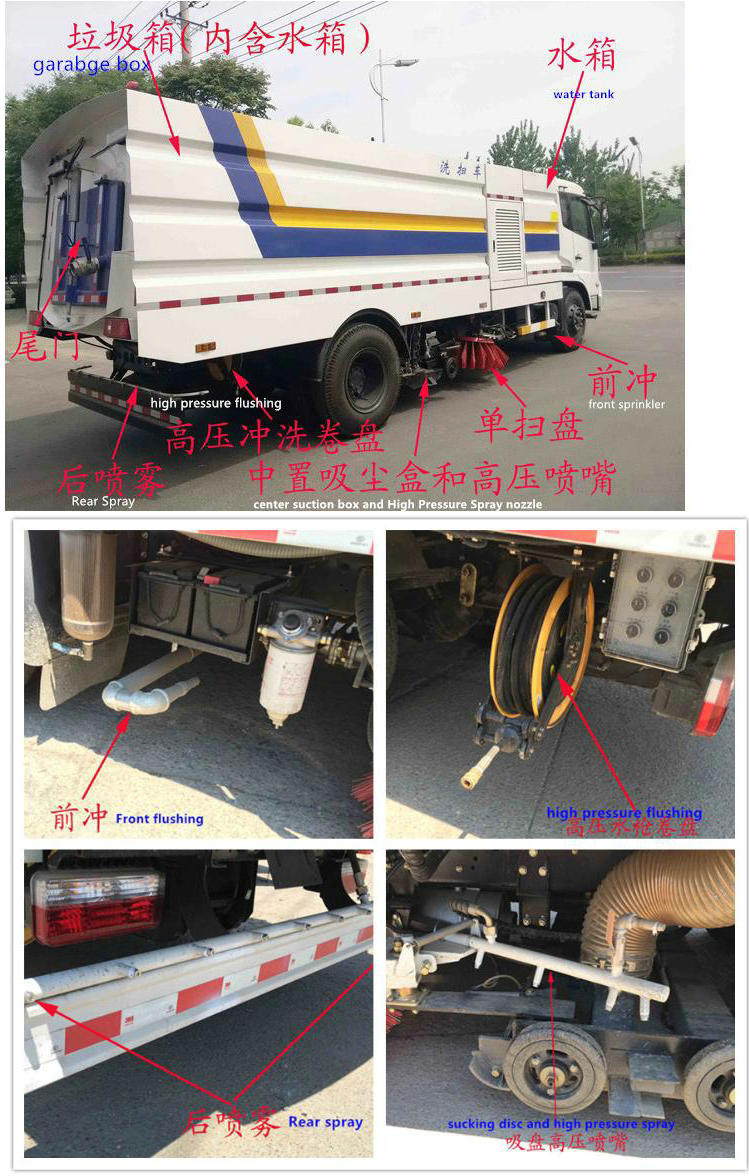

Street Sweeping4 Brooms Vacuum Cleaner Steel Brush Multifunction Road Sweeper Truck

Debris Bin And Water Bin Are Made Of Stainless Steel ,Corrosion-Resistant

Four Booms Sweeping System And Suction System Combine Working ,High Efficient.

Water Sprinklers Equipped On Brooms,Suction Nozzle.

Suction Nozzle Is Floating Type,Self Adjustable For Different Road Condition.

Air Blower Is Special For Road Sweeper,High Efficient,Low Noise


Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine
Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine

1. Consist of origina Vehicles chassis, hydraulic system, elevating system and electrical system.
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
maximum operation capacity: sqm/h/h-44000 square meters.

ISUZU Road Cleaning sweeper truck(6 cbm garbage +7 cbm water)

Item No.

Parameters

Overall Dimension

8800*2400*3000 mm

Drive model

4x2, new condition , LHD

Gross weight

14450 kg

Curb Weight

8845kg

Wheel Base

5200mm

Front/rear Overhang

1150/2050mm

Front/rear Tread

1745/1620 mm

Approach/Departure Angle

21/12 degree

Engine

I.S.U.Z.U ENGINE, 4HK1-TC, Diesel Engine, Four Stroke,

4 Cylinder in line.

Engine horsepower

190HP , 139 kw, Euro 4

Displacement

5.193 L(Diesel)

Max Driving Speed

90 km/h

Gear Box

ISUZU MLD brand ,6 Forward Gear, 1 Backward Gear

Tire

900R20, 6 pieces with 1 spare tire.

Upper part of the road sweeper truck

Tank

Garbage tank

Tank material

Stainless steel 304 3mm

Tank volume(cbm)

6 cbm

Water tank

Tank material

Stainless steel 304 3 mm

Tank volume(cbm)

7 cbm

Auxiliary engine

Model

JMC Brand

Power(kw)

64 kw, 87 HP

Motor

Brand

Imported brand motor

Switch

Brand

Imported French Schneider brand switch

High pressure

pump/Low pressure pump

Brand

Imported Germany brand-For high pressure pump; China weilong brand --low pressure pump

Brush

Quantity(pic)

2 pics

Sweeping and cleaning width

3 meters

Operation detail

Sweeper Working speed

3-15 km/h

Cleaning working speed

15-20 km/h

Working width

2800-3200 mm

Max. Operation ability

48000 m2/h

Max. Sucking dimension

100-120 mm

Density of sucking

2.0 g/cm3

Sucking weight

1.5 kg

Sloping angle of garbage box

45°

Sweeping rate

96%

Operating noise

88 db.

Dust system

Model

Low pressure misty

Dust by sweeper

Left and Right side front brushing.

Dust by sucking

Sucker included in the sucking hole.

Control system

Electrical control, controlled easily.

Main part

Germany imported high pressure Pump, water filter, pipes, stainless steel spraying structure, high pressure

spraying head and so on.

Hydraulic system

Type/model

Open type, electrical control operation.

Main parts

Gear pump, engine motor, hydraulic cylinders,electromagnetic valve, integrated part, high

pressure pump and so on.

Motor

Japan Sanyo

Earthquake proof-Pressure

gauge

Germany IMT

Volume of the hydraulic oil

>60 L

Pressure of system overflow

10-12

Electrical system

Voltage of truck chassis

system

24 v

Voltage of operation

12 v

Electrical control system

Auxiliary engine speed gauge, auxiliary water

temperature gauge, machine oil temperature alarm, operation control switch and so on.

Controller

Japan brand

Control switch

Schneider brand switch

Breaker

Germany hagrid

Cleaning system

Main part

Sweeper structure, brush, oil cylinder, oil pipe, linking

bolts, adjusting bolts, hydraulic motor etc.
Diameter of brushing 800-900 mm.
Speed of brushing motor 140 r/min.
Scrolling number 2 pics.
Number of each scrolling 22
Sloping angle of brushing system Front side:5-15°; Extend side: 5-10°

Sucker system

Sucking diameter 110mm
Sucker brand German brand NORRES
Walking wheel bearings Swedish SKF brand
Ground distance 5-8 mm
Speed of sucker 50-65 mm
Pressure of sucker 380 mm H2O

Fan system

Model High pressure fans.
Rated working speed 2700 r/min
Drive model Auxiliary engine, clutch and drive belts.
Flow meters 5000-7800 m3/h.

Remarks

1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower

4, Rear LED pilot lamp

5, Self unloading box body

6, The color will be designed on basis of your requirements.

7. Power system: DC 24V

Compared with common road sweeper, this model has more functions:Road sweeping, road flushing, multi-angle slush flushing, separation zone cleaning, freeway guard rail flushing,spraying, moistening and dust containing, high pressure water gun for car cleaning/low flat flushing with strong water flow, road sprinkling and flower watering from both sides and so on.
1.The Vice-engine sweepers no. Fans and other work devices to take power through the chassis engine to drive.
2. Cleaning device with Automatic Collision Avoidance Obstacle protection and automatic reset function (by national patent)
3. "Mid four brush - rear nozzle" structure layout with sweeping wide, clean and efficient features, and facilitate the cleaning device and nozzle adjustment and maintenance.
4.Pneumatic conveying system with digestion and absorption of foreign advanced technology and efficient sweepers dedicated fans and can auto-leveling with the road the whole floating nozzle.
5.Sweeper combined with trochar disc, it can work excellently and can automotically choose work type according to waste condition on the ground and speed of the truck. ;
6.Trash and water tank large, continuous cleaning operation a long time.
7. Left, right front linkage scan can work independently or can choose to use the right front or left front sweep sweep to work independently.
8.Hydraulic system with superimposed solenoid hydraulic valve, highly integrated, reliable, easy maintenance;

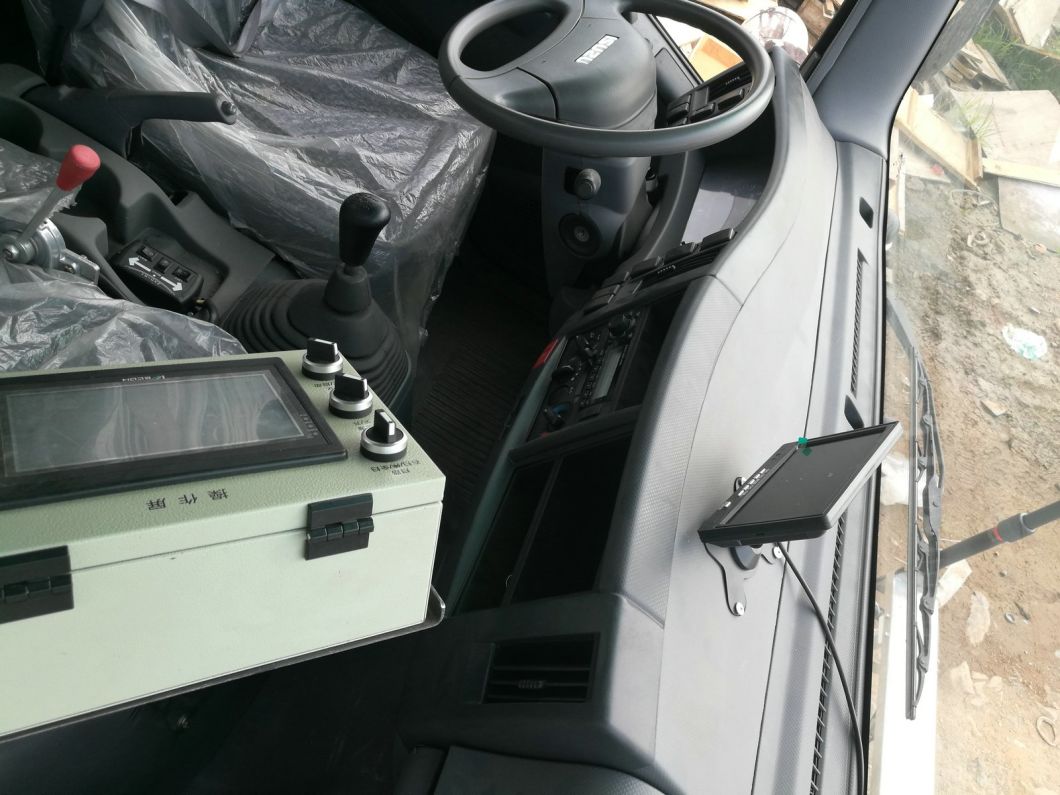

9. Control switch installed in the driver focused interior, all electronic control can be found in cab ,Beautiful appearance designed via computer.
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
Sweeper Truck Euro 4 -5 4.3m3 90HP Sweeping Truck 4_2 DongFeng for sale
DongFeng 5.5m3 Cleaning Truck RHD /LHD
DongFeng 10m3 Sweeper Truck Euro 4 -5
4.3m3 98HP Road Cleaner Truck ISUZU for sale
10m3 190HP Road Cleaning Truck ISUZU for sale
8m3 Street Sweeper for sale
sweeper Kit SKD with Vaccum Fan , Water Washing Auxiliary Engine ISUZU 100P light truck EURO 5

I.S.U.Z.Useries wheelbase mm cabin Isuzu model
I.S.U.Z.U100P light truck EURO 5 2490 single cabin QL1040A6EAY
double cabin QL1040A6EWY
2765 single cabin QL1040A6FAY
double cabin QL1040A6FWY
3360 single cabin QL1040A6HAY QL1042A6HAY QL1043A6HAY
QL1045A6HAY
single cabin wider QL1044A6HAY
single with sleeper
double cabin QL1040A6HWY QL1042A6HWY
3815 single cabin QL1070A6KAY
double cabin QL1070A6HWY



4KH1CN5LS
Isuzu 4KH1CN5LS diesel engine 98hp, Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2T, rear axle 4T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit, speed limit device, exhaust brake.

600P Wheel Base 2490 single cabin
double cabin QL1040A5EWY
2765 single cabin QL1070A5FAY QL1040A5FAY QL1071A5FAY
double cabin QL1040A5FWY
3360 single cabin QL1070A5HAY QL1071A5HAY QL1040A5HAY
QL1044A5HAY
single cabin QL1040A7HAY
single with sleeper
double cabin QL1070A5HWY QL1040A5HWY
single cabin wider QL1043A5HAY
3815 single cabin QL1070A5KAY QL1071A5KAY
QL1060A5KAY
single cabin wider QL1072A5KAY
single with sleeper
double cabin QL1070A5KWY

600P EUR 5
I.s.u.z.u 4KH1CN5HS diesel engine 130hp,Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2.5T, rear axle 4.8T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable, double row cabin can not tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit device, exhaust brake.
I.s.u.z.u 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, double circuit type oil brake.

700P I.S.U.Z.U middle truck Wheel Base 3360 oil brake single cabin
3815 oil brake single cabin
single cabin
4175 oil brake single cabin
4475 oil brake single cabin
single cabin
single with sleeper
5200 oil brake single cabin QL1080A8PAY
single with sleeper
3815air brake single cabin QL1100A8KAY
4175air brake single cabin QL1100A8LAY
4475air brake single cabin QL1100A8MAY
5200air brake single cabin QL1100A8PAY


I.S.U.Z.U FTR EUR 5

FTR I.S.U.Z.U middle truck 3900 single with sleeper QL1160VKFRY
4500 single with sleeper QL1160VMFRY
4700 single with sleeper QL1180
5000 single with sleeper QL1160VNFRY
5550 single with sleeper QL1160VQFRY
5800 single with sleeper QL5160XXYVRFRY



I.s.u.z.u 4HK1-TC50 diesel engine 205hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, tyre 10.00R20 , exhaust brake. Single Cabin Refitting Double Cabin

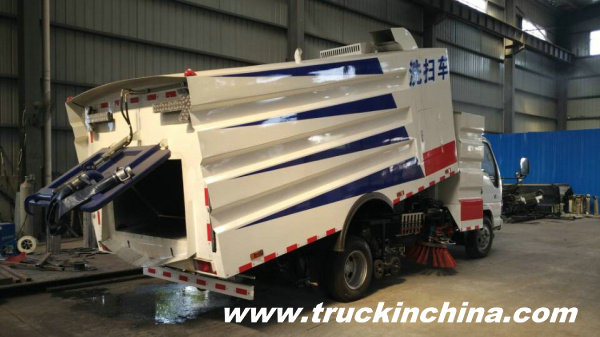

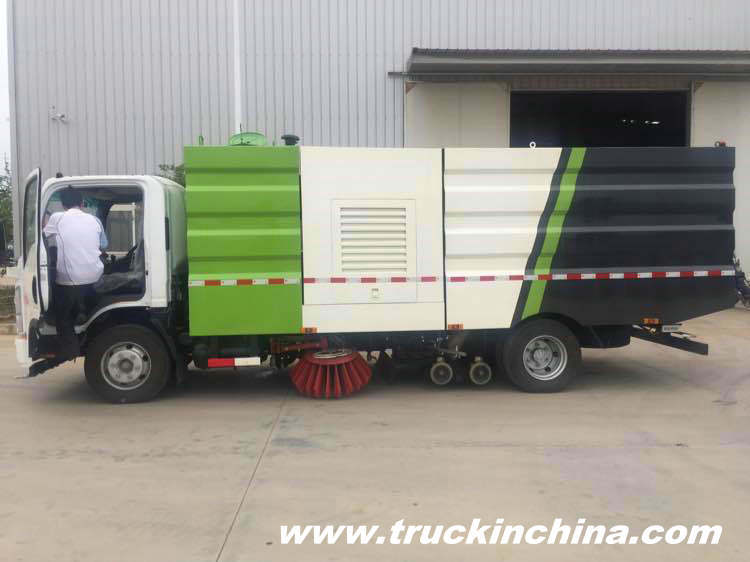

Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine

Standard configuration
Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,
hydraulic system and electrical system.
Selective configuration

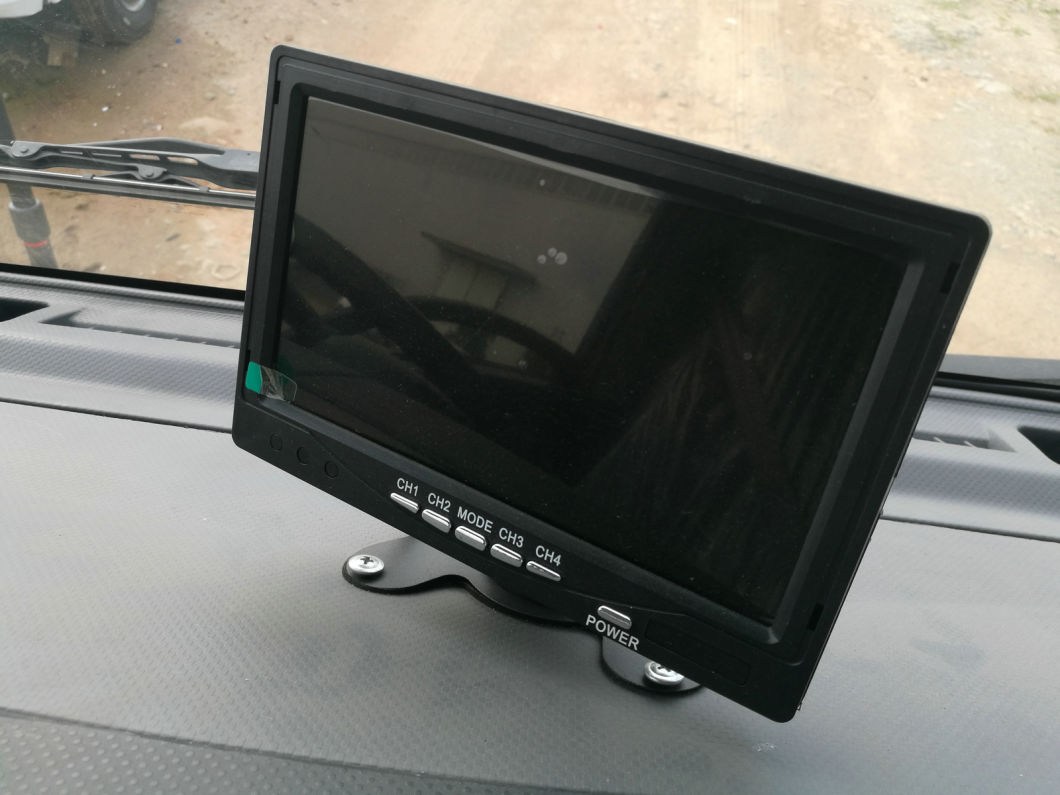

surveillance system,rolling brush.
Vehicle model Chassis brand Chassis model Load (L) Overall dimensions Wheel base Engine model hp/standard Tire EXW Price
RMB /USD=6.3
Dust Water mm mm RMB USD
DRZ5160TSLD DONGFENG LHD/RHD RHD price add $2000 DFL1160BX 6000;7000 4000;
3500
8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 309800 US$49,175
DRZ5060TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1060TJ20D3 3500 800 5970X2000X2400 3300 CY4102-C3F 95/Euro 3 11.00R20 159400 US$25,302
DRZ5090TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1090T9ADJ3AC 4500 1000 6700X2290X2500 3800 CY4102-E3C 120/Euro 3 7.50R16 200500 US$31,825
DRZ5108TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1108KJ 5000 3000 7000X2480X3000 3950 B170 33 170/Euro 3 9.00-20 257700 US$40,905
DRZ5126TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1126KJ1 6000 4000 8090X2470X3050 4700 B190 33 190/Euro 3 9.00-20 279800 US$44,413
DRZ5141TSLE DONGFENG LHD/RHD RHD price add $2000 EQ1141KJ 6000 4000 7650X2480X3000 4500 B190 33 190/Euro 3 10.00-20 272700 US$43,286
DRZ5073TSLB FOTON LHD/RHD RHD price add $2000 BJ1073VEJEA-A 3500 800 5995X1900X2680 3360 4DW91-63NG2 98/Euro 2 6.50-16 149400 US$23,714
DRZ5163TSLB FOTON LHD/RHD RHD price add $2000 BJ1163VKPGG-1 6000 4000 7810X2495X3160 5000 Phaser160Ti-33 160/Euro 3 9.00R20 299800 US$47,587
DRZ5070TSLQ ISUZU
LHD
QL1070A1KAY 4500 1000 6465X1980X2435 3815 4KH1-TCG40 120/Euro 4 7.00-15 255700 US$40,587
DRZ511009TSLQ ISUZU LHD QL11009LARY 5000 3000 6910X2200X2640 4175 4HK1-TCG40 190/Euro 4 8.25-20 331400 US$52,603
DRZ51609TSLQ ISUZU LHD QL11609MFRY 6000 4000 7705X2500X3060 4500 4HK1-TCG40 190/Euro 4 10.00-20 403100 US$63,984
DRZ5161TSLH JAC LHD/RHD RHD price add $2000 HFC1161P3K2A47F 6000 4000 8155X2495X3070 4700 YC4E160-42 160/Euro 4 11.00R20 337900 US$53,635
DRZ5165TSLS SHACMAN LHD/RHD RHD price add $2000 SX1165UN461 6000 4000 8040X2490X3270 4600 WP10.270E32 270/Euro 3 12.00R20 362000 US$57,460
Japan Brand Truck I. S. U. Z. U Road Sweeper 5cbm Tank for Street Sweeping Urban Street Cleaning Mounted Sweep Cleaner Machines Auxiliary Engine


Cell :+8615271357675

Related Products

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
TEL: 86-152-71357675
 WeiChat:king253725877
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2020 XML webmail
