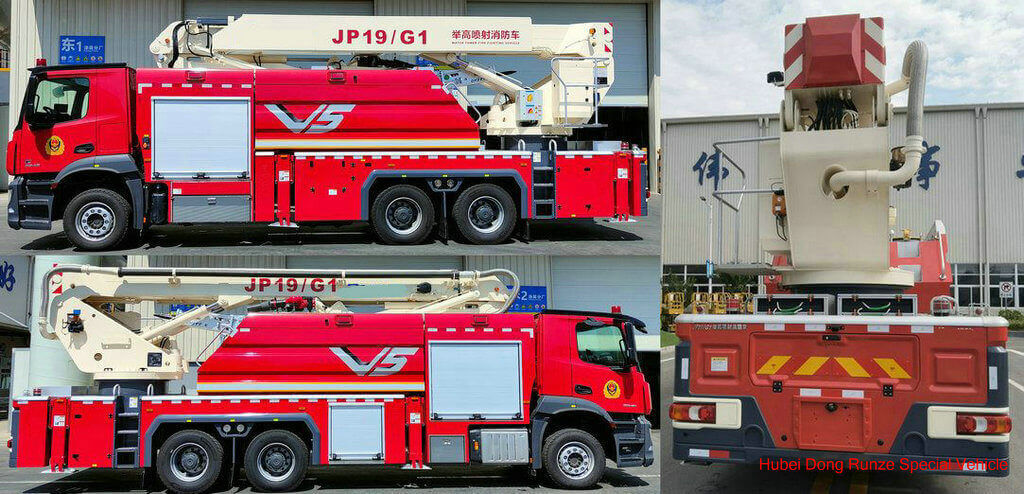

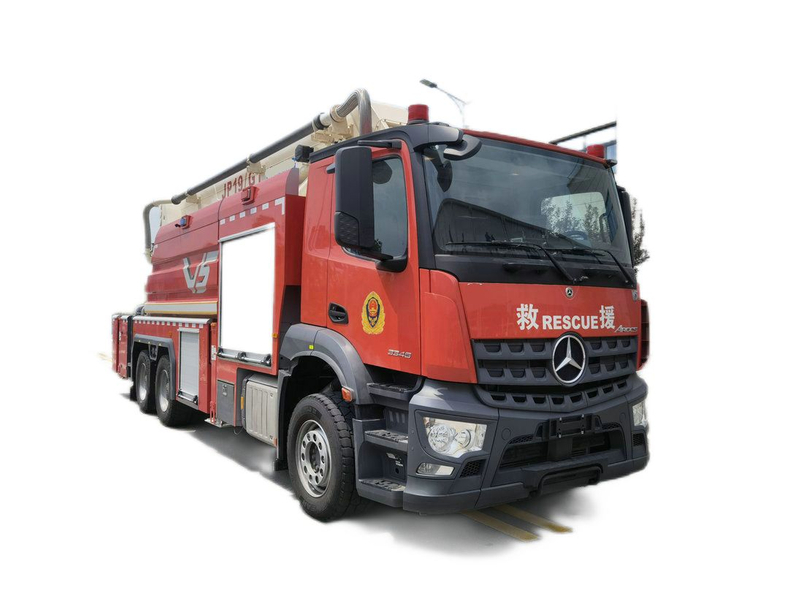

Arocs Forcible Entry 19M Water Tower Fire Fighting Truck JP19
water tank : 4.3m3, foam tank : 2.4m3
19m boom, fire pump, fire cannon,
Main technical parameters
(4) Boom system
11. The maximum demolition operation range is ≥ 15 m;
12. The maximum spraying distance is ≥ 70 m;
13. The maximum injection flow rate is ≥ 60 L/s;
14. The combined action time of the boom is ≤ 110 s;;
★ The rated flow rate of fire pump for vehicle test is ≥ 70 L/s
(5) Leg system
15. Leg span: longitudinal × transverse ≤ 10500 mm × 8500 mm;;16. Expansion time of outrigger: < 40s
(6) Demolition system
17. Hydraulic impact energy ≥ 1000 J;;
18. Hydraulic grasping weight ≥ 0.25 t;;
19. Maximum operating height ≥ 19m
20. Hydraulic shear: the maximum shear force is ≥ 30 t;;
21. At the maximum working height of hydraulic lifting, the maximum lifting mass is ≥ 0. 6 t and the working range is ≥ 6 m;;
(7) Safety protection system
22. Working range limit: The vehicle has a certain range limit according to different luffing angles;
23. Soft leg control: In the process of getting on the bus, when any leg is not stressed, there is an audible and visual alarm signal, and the boom cannot continue to move in the dangerous direction, but can move in the safe direction;
24. On-off interlocking device: When the off-off outrigger is not adjusted, the on-off cannot move; When the boom does not fall back into the bracket, the car can not move. The boom luffing, telescoping to the limit position of deceleration.
25. Boom luffing. Deceleration stop device that telescopes to the limit position: When the vehicle boom approaches the luffing boundary angle. When the boom is fully contracted or extended, the action speed automatically decreases, and when it reaches the limit, the action automatically stops;
26. Boom mid-position falling back protection device: When the boom and platform approach the cab on the side or above, the boom can fall back to the boom bracket only when the boom and platform are all in place and aligned;
(8) Equipment box and pump room
27. There are ≥ 2 equipment boxes located on the left and right sides of the vehicle body;
28. The equipment box adopts light aluminum alloy rolling shutter door or turnover door, which is dustproof and waterproof. The rolling shutter door or turnover door should be opened and closed smoothly, and can hover at any position without sliding down; Equipped inside the equipment box
LED lighting, light source with rolling shutter door action switch, light should be sufficient;
29. Fixed mechanisms such as revolving door, dragging frame, flap and equipment box should be used inside the equipment box to improve space utilization rate and operation convenience;
(9) Flip the pedal
30. Intelligent control of each fire-fighting component, which is arranged at the rear of the pump room as a whole;
31. All handles, buttons, switches and indicator lights on the control panel shall be marked with Chinese marks;
32. Pipeline layout and operation and maintenance instructions are provided in prominent positions;
33. It can intuitively and accurately read liquid level, rotational speed, pressure, vacuum pressure, pump rotational speed, etc.;
(ten) electrical system
The top of the cab is equipped with an LED red long row warning lamp with a power ≥ 100 W, and the cab is equipped with a hand-held loudspeaker;
34. LED red strobe lights ≥ 3 are installed on the upper parts of both sides of the car body;
35. LED working lights ≥ 2, located at the upper parts of both sides of the car body;
Large on-board equipment should at least meet the basic requirements of installation, debugging and acceptance.
★ Communication system: install digital-analog compatible vehicle-mounted platform: compatible with 350 megabytes/370 megabytes
Overall dimensions: | 10480×2540×3940(mm) | Fuel Type: | Diesel oil |
Total mass: | 31100(Kg) | ||
Net | 24250(Kg) | Rated load mass: | 6700(Kg) |
Approach Angle/Departure Angle: | 17/9 (°) | Front/rear overhang: | 1500/2785(mm) |
Axle Load: | 7800/11600/11700 | Wheelbase: | 4800+1350(mm) |
Number of axle | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/55 r22. 5/315/70 r22. 5385/65 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4 |
Front wheel base: | 2140(mm) | Rear wheel base: | 1804/1804(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.6-56 | Daimler Trucks AG | 10677 | 336 |
A :This model is a special operation vehicle for fire fighting. Total tank volume :6.700 cubic meters, Water tank volume :4.3m3, tank size :1670×2360×1140mm, Foam tank volume :2.4m3, foam tank size :930×2360×1140mm Integrated side and rear protection structure The main special devices are boom, fire pump, fire cannon, breaking device. Maximum net engine power is 335kW. B.The total volume of the tank :6.7cbm, Water tank 4.1cbm, foam tank 2.69cbm, | |||
