SYM5330JXFJP38
-
DONG RUN ZE
-
8705301000

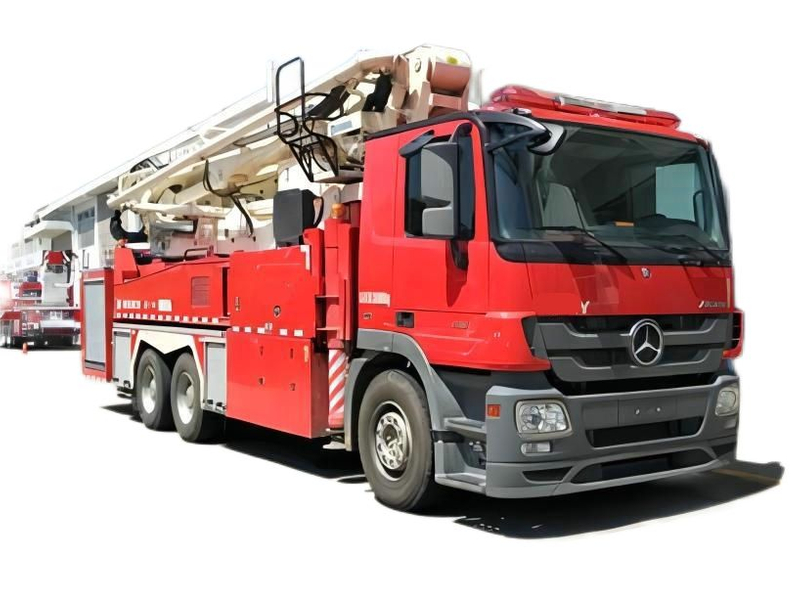

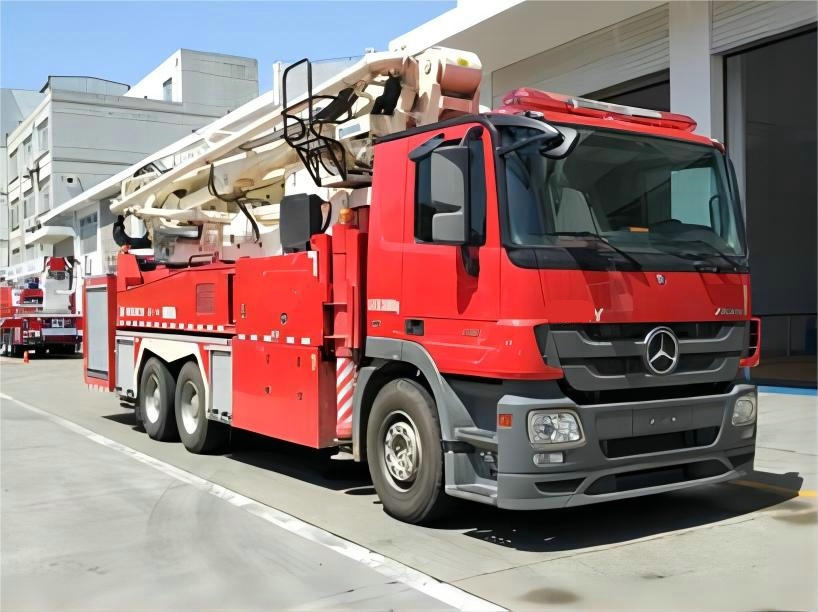

3341Actros 38m Long Span Water Tower Lifter Fire Truck
water tank : 1.95m3, foam tank : 1.47m3
38m boom, fire pump, fire cannon,
Main technical parameters
Overall dimensions: | 10640×2500×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 33000(Kg) | ||
Net | 29400(Kg) | Rated load mass: | 3450(Kg) |
Approach Angle/Departure Angle: | 13/9 (°) | Front/rear overhang: | 1440/3350(mm) |
Axle Load: | 8100/12500/12400 | Wheelbase: | 4500+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/65R22.5 20PR/315/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4 |
Front wheel base: | 2096(mm) | Rear wheel base: | 1804/1804(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM501LA.V/3 | Daimler AG | 11946 | 305 |
The vehicle is a special operation vehicle for fire fighting, the main special devices are fire pump, fire cannon. The engine has a maximum net power of 300kw. The first axle tire is 385/65R22.5; The second and third axle tyres are 315/80R22.5. Total volume of the tank is 3.4cbm, Water tank 1.95cbm, Class B foam tank 1.471 cbm, Integrated side and rear protection structure | |||
| Boom System | |
| Maximum Working Height/ Working.. | 38m m |
| Maximum Downward Working Depth | 21.9 |
| Maximum Working Amplitude in ca... | 22.5 |
| Unfolding Time of Boom | 140s |
| Slewing Angle | +360° |
| Slewing Time | 200s |
| Compl ete Vehicle Parameter | |
| Overall Dimensions (L*W*H) | 10.64*2.4*4.0 m |
| Maximum Total Weight | 33000 kg |
| Supportinq System | |
| Maximum Unfolding Span | 7.3*7.3 |
| Action Time of Support Leg | 40s |
| Hydraulic System | |
| Model of Fire Control Pump | Hale |
| Rated Flow of Pump | 6000L _PML /s |
| Rated Working Flow of Whole Vehic... | 4200L PM |
| Model of Fire Control Gun | Akron 3482 |
| Maximum Jetting Range of Water G... | 80m(water) /70m(foam) |
| Scope of Left and Right Swing Ang-.. | -450~450 |
| Allowable Working Pressure of Pipe... | 2.5Mpa |
| Chassis Parameter | |
| Model of Chassis | Actros 3341E5 |
| Engine Power | 300kw@1800rpm |
| Tail Gas Emission Standard | Euro V |
